Keeping your TT4030 tractor on its factory service schedule is what the 165 pages of this New Holland TT4030 operator manual PDF are built for. Maintenance runs by the hour meter: daily checks, the first 50 hour service, then 50, 300 and 1200 hour tasks such as valve clearance checks, transmission oil replacement and radiator flushing. Working chapters explain the 8x2 transmission, rear PTO speeds, remote valves, three-point hitch setups, wheel track adjustment and ballasting limits, while symptom charts sort engine, hydraulic, hitch and electrical faults. Hold clutch pedal clearance at 35 to 40 mm. After reversing the wheel discs, bring the disc-to-rim nuts to 228 to 232 N·m. For the 50 hour fan belt adjustment, your target is 10 to 11 mm of slack under an 8 to 10 kgf load. Text is searchable and bookmarked, so the fluids and lubricants table settles which oil to order, first time, for the 1200 hour transmission change.
What's Inside This New Holland TT4030 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 6-15 | Note to the Owner, Identification of the Engine, Nameplate, Identification Valve, Ecology and the Environment, Noise Levels, Before Operating the Machine, International Symbols |
| Safety Information | 16-37 | Safety Precautions, Shielding Offered by the Tractor, Roll Over Protective Structure, Safety Decals, Before Operating the Machine, Driving the Vehicle, Machine Operation |

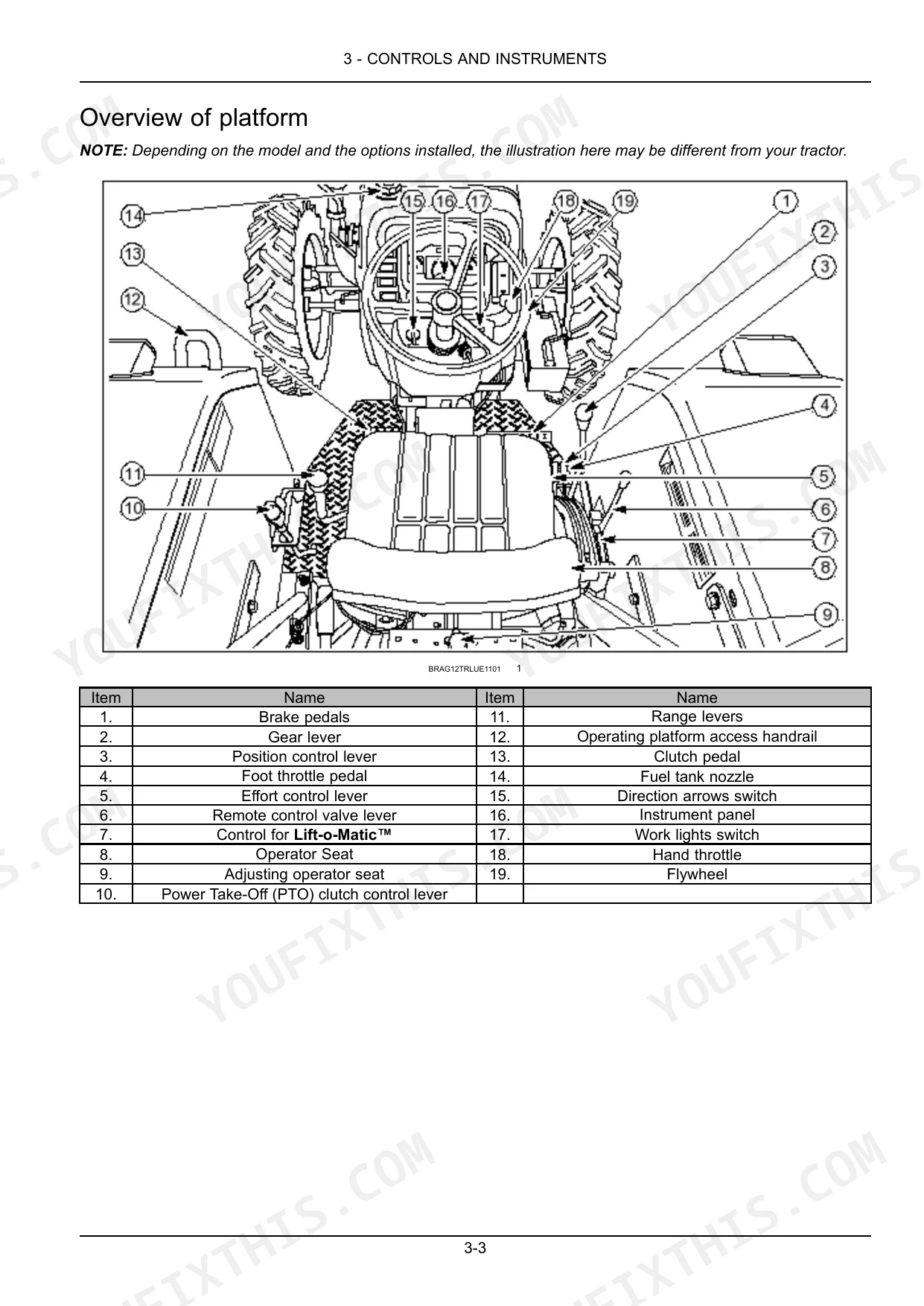

| Controls and Instruments | 38-53 | Access to Operator's Platform (Introduction, Rear View Mirrors, Overview of Platform), Operator's Seat (Seat Belt) |

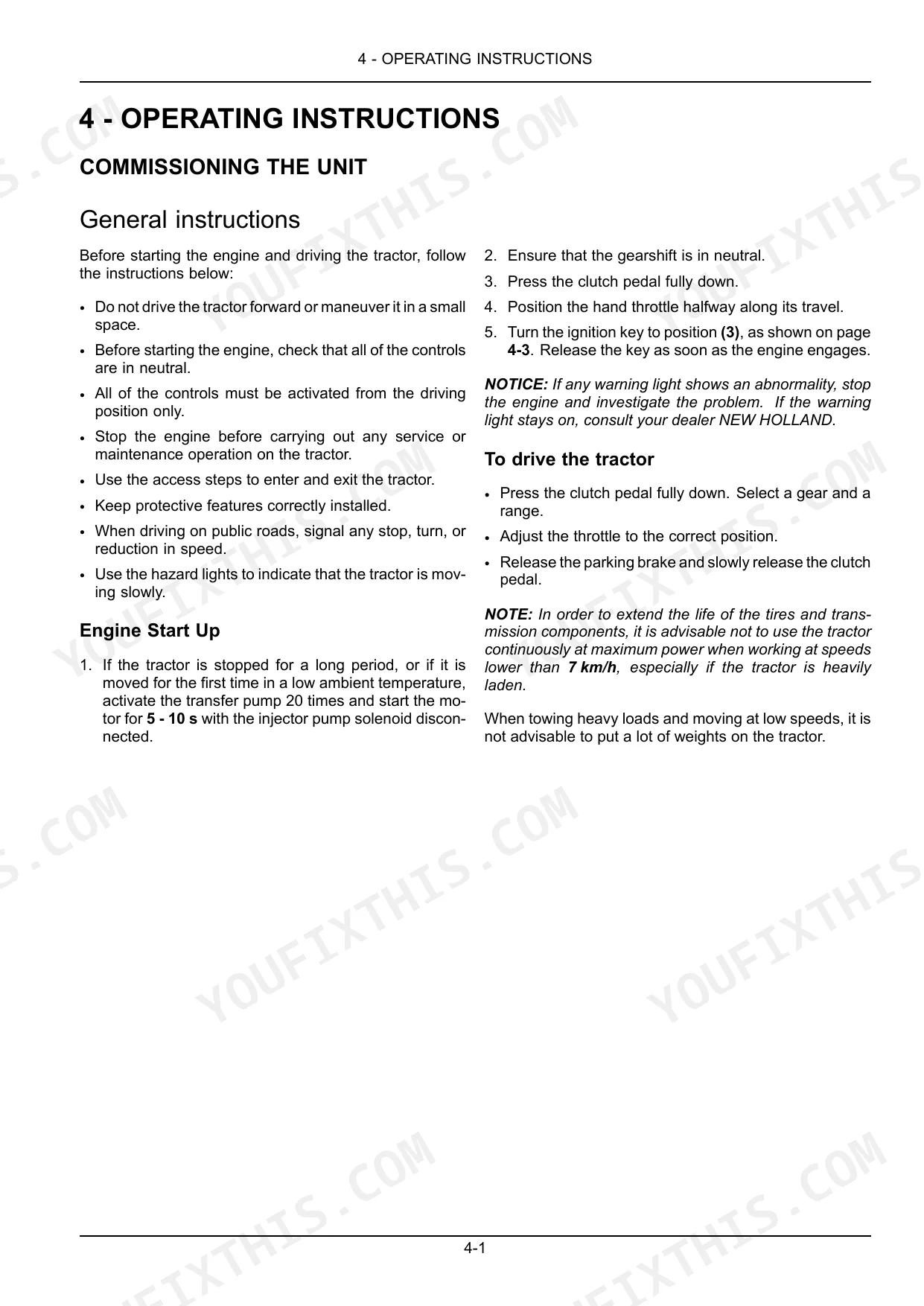

| Operating Instructions | 54-59 | Commissioning the Unit (Filling the Fuel Tank), Starting the Unit (Starting the Engine, Booster Battery Procedure), Stopping the Unit (Stopping the Engine) |
| Transport Operations | 60-61 | Preparing for Road Transport (Carrying the Tractor on a Transporter), Recovery Transport (Towing the Machine) |
| Working Operations | 62-105 | Transmission (Operation 8x2, Travel Speeds, Informational Decals Valve, Inching Pedal and Throttle) |

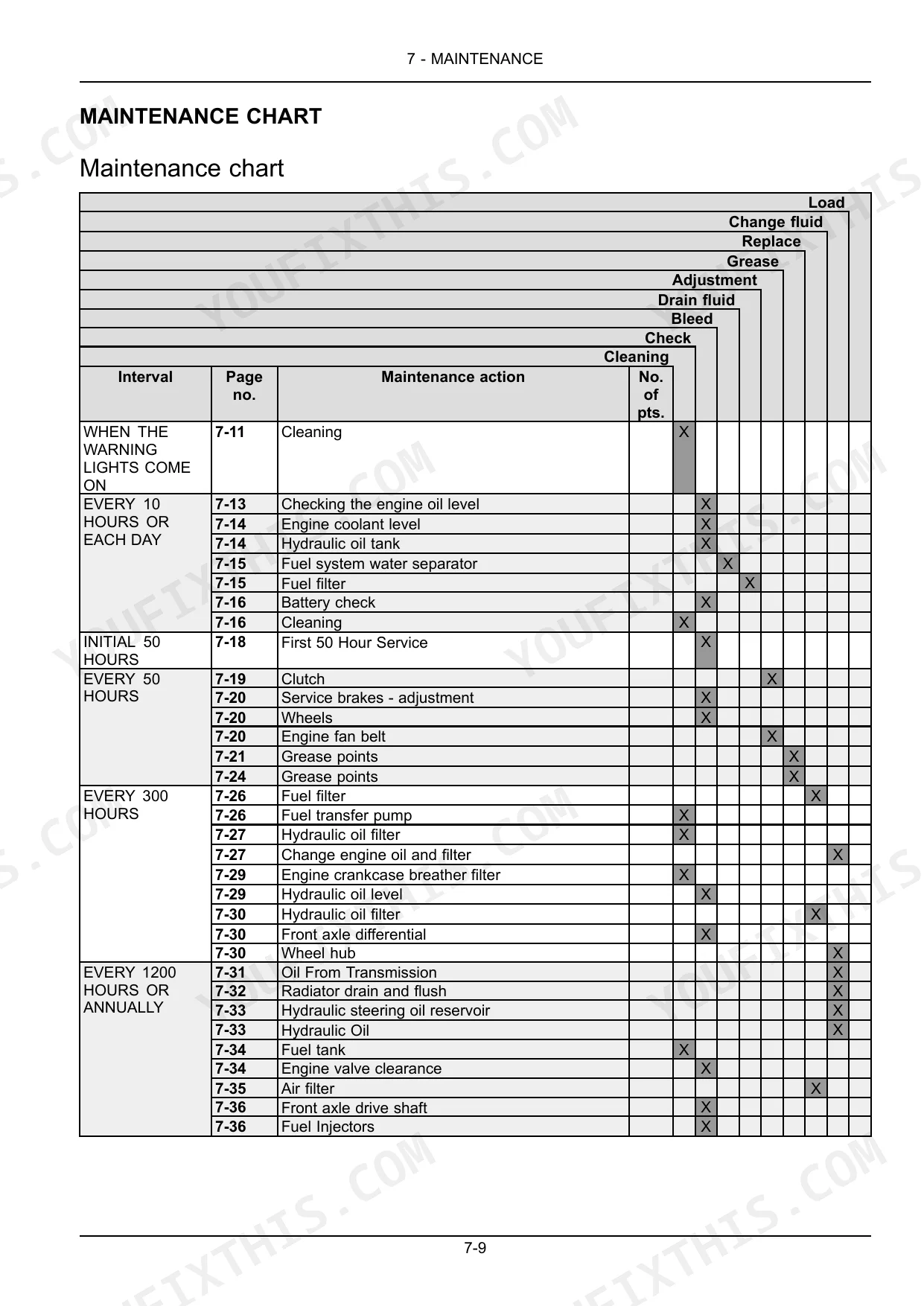

| Maintenance | 106-151 | Maintenance Chart, When the Warning Lamp Lights (Cleaning the Air Filter) |
| Troubleshooting | 152-155 | Symptom (Engine, Hydraulics, Three-Point Hitch, Electrical System) |
| Specifications | 156-165 | Fluids and Lubricants, Engine, Transmission, Hydraulic System, Brakes, Electrical System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

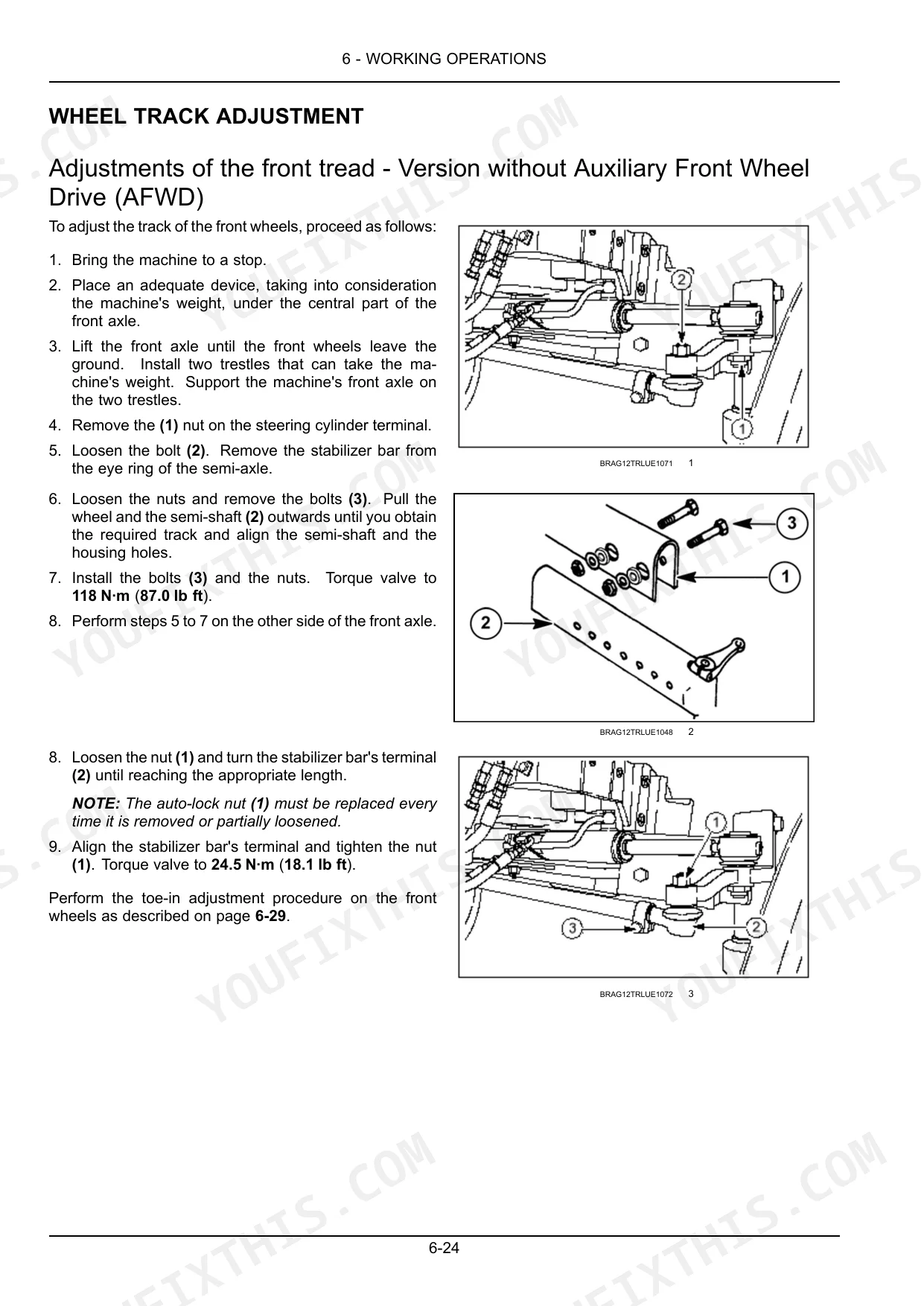

| Front axle semi-shaft bolts torque | 118 N·m (87.0 lb ft) | p. 85 |
| Stabilizer bar terminal nut torque | 24.5 N·m (18.1 lb ft) | p. 85 |
| Engine fan belt slack | 10 - 11 mm | p. 125 |
| Engine fan belt load | 8 - 10 kgf (17.64 - 22.05 lbf) | p. 125 |
| Clutch pedal clearance | 35 - 40 mm (1.4 - 1.6 in) | p. 124 |
| Alternator | 14 V, 23 A | p. 160 |
| Engine oil capacity | 10.7 l (2.8 US gal) | p. 158 |
| Hydraulic and transmission oil capacity | 33 l (8.7 US gal) | p. 158 |
| Clutch Disc diameter | 280 mm | p. 159 |
| Front axle bolt torque | 118 N·m | p. 85 |
New Holland TT4030 Common Problems This Manual Covers

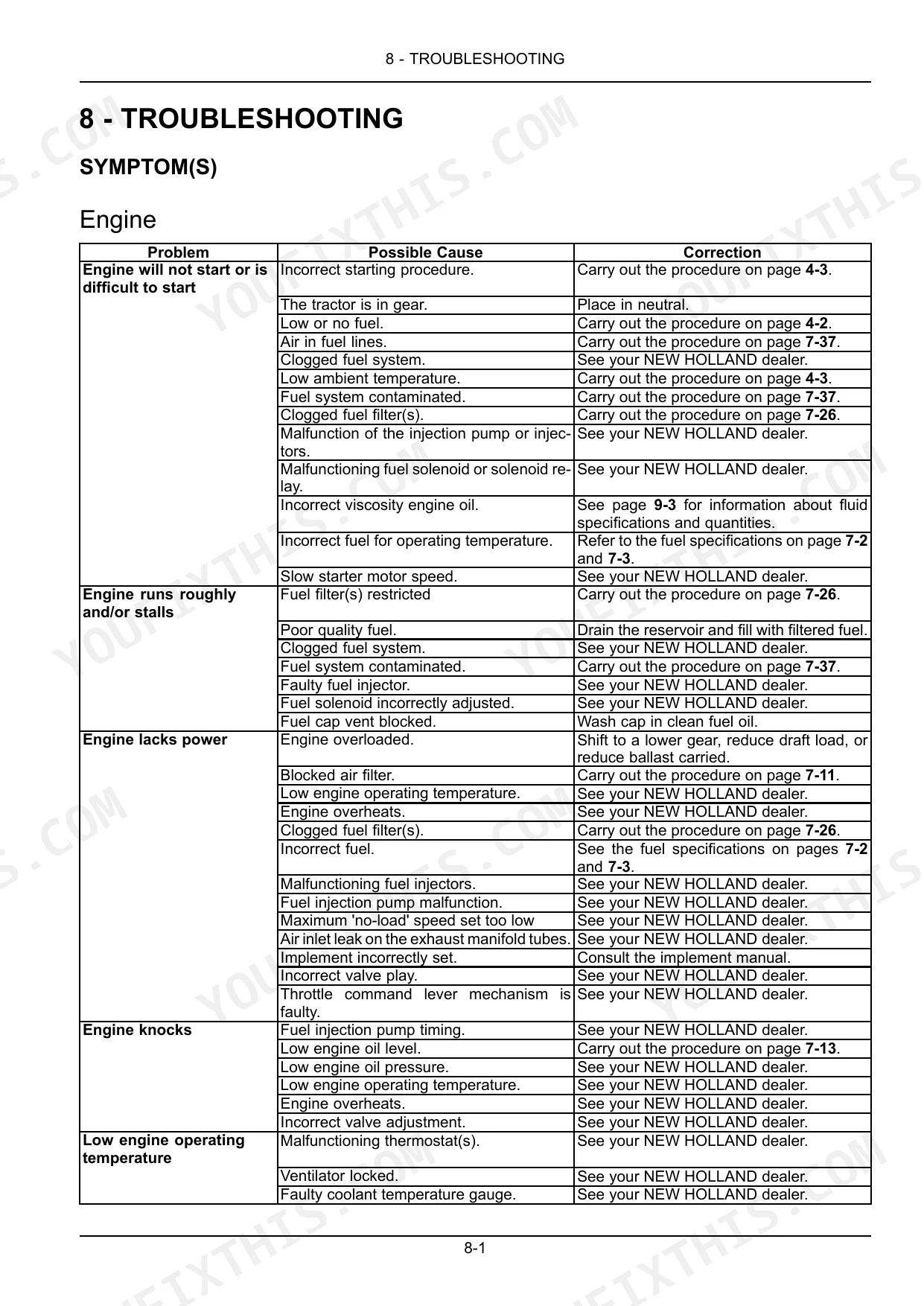

New Holland TT4030 engine will not start or is difficult to start in low ambient temperatures
Check that the tractor is not in gear, then follow the starting procedure. Verify fuel level, clear air from the fuel lines and replace clogged fuel filters, per the chart on page 152. Confirm engine oil viscosity matches the fluid specifications. Never bypass the transmission or PTO neutral start switches; if they fail, consult your New Holland dealer (page 30).
Manual Section: Engine Troubleshooting p. 152Engine runs roughly and keeps stalling with suspected poor quality or contaminated fuel
Replace restricted fuel filters. If fuel quality is poor, drain the reservoir and refill with filtered fuel, following the chart on page 152. Remove the fuel cap and wash it in clean fuel oil to clear a blocked vent. Do not smoke while filling (page 33). If you suspect a faulty injector or a misadjusted fuel solenoid, take the tractor to your New Holland dealer.
Manual Section: Engine Troubleshooting p. 152Tractor hydraulic system will not operate at all or the hydraulic oil overheats
Check the hydraulic oil level. The chart on page 153 lists both too low and too high as causes. Replace a clogged hydraulic oil filter. If the flow control is set incorrectly, let the system cool and adjust it before operating again. Hydraulic and transmission oil capacity is 33 L (page 158). See your dealer if the hydraulic load is not matched to the tractor.
Manual Section: Hydraulic System Troubleshooting p. 153Three-point hitch lift lowers slowly or will not move when the control lever is moved
Decrease the load if the lift will not move. If it drops slowly, adjust the lowering speed control, per page 153. Never let anyone stand under raised equipment (page 18), and do not leave the hitch raised when the tractor is stopped (page 31). If the pressure adjustment is low or the hitch is tight or jamming, see your New Holland dealer.
Manual Section: Three-point Hitch Troubleshooting p. 153Alternator warning light stays on with engine running and the battery does not charge
Stop the engine and make sure all movement has stopped (page 25). Inspect the drive belt for breaks or looseness and set 10 to 11 mm slack under an 8 to 10 kgf load (page 125). Clean and tighten loose or corroded terminals, then check the battery per page 154. For low idle speed or a faulty alternator, see your New Holland dealer.
Manual Section: Electrical System Troubleshooting p. 154Starter motor turns the engine slowly or the starter is inoperative when the key is turned
Clean and tighten loose or corroded battery and starter connections. Place the HI-LO and gear shift levers in neutral, as page 154 directs. Test battery voltage. If it reads around 12.3 V, recharge at 1/10 of capacity per page 145 (rated 12 V, 100 A·h, page 160). Wear splash-proof goggles and gloves because electrolyte burns and batteries emit explosive gases (page 144).
Manual Section: Electrical System Troubleshooting p. 154Frequently Asked Questions
How do I bleed the fuel system on a New Holland TT4030?
To bleed the fuel system, place a recipient under the component, loosen the plugs (3) and (4) on the filters (2) and (1) by two turns, and turn the transfer pump lever (1) until fuel flows without air. Tighten the plugs, turn the lever a few more times, and start the engine. If it fails to start, repeat the procedure. p. 142
What are the replacement specifications for the battery and its terminals on the New Holland TT4030?
The tractor uses a 12 V, 100 A·h battery. When replacing, ensure the negative terminal (-) is connected last, and apply a bit of petroleum jelly to the terminals to prevent corrosion. p. 144
What is the correct engine oil capacity for the TT4030?
The engine oil capacity for the TT4030 is 10.7 liters (2.8 US gallons). p. 158
What is the specified torque for the front disc to hub bolts on a 4WD New Holland TT4030?
The specified torque for the front disc to hub bolts on a 4WD model is 220 N·m (162.3 lb ft). p. 125
What is the correct engine fan belt tension?
The engine fan belt should have a slack of 10 - 11 mm when measured between the pulleys with a load of 8 - 10 kgf (17.64 - 22.05 lbf). p. 125
