Planting will not wait while you second guess a hitch setting or an alarm code on your T8. This 624 page New Holland T8.275-T8.390 operator manual PDF, OEM 84309497, covers all five models from the T8.275 to the T8.390 in factory detail. Maintenance takes up roughly a quarter of the book, walking every interval from the daily 10 hour checks out to the 5000 hour services with the fluids and capacities each one calls for. Alarm and symptom tables decode the instrument cluster, and the working operations chapter sorts out rear PTO, three point hitch, remote valves, and ballasting. Store DEF between -11 °C (12 °F) and 30 °C (86 °F), and pull disc to rim nuts to 310 Nm (230 lb ft). A tractor parked over a question is an afternoon of fieldwork gone. Bookmarks and a real text layer put the right page in front of you fast; download it and stay in the field.
What's Inside This New Holland T8.275-T8.390 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 11-20 | Tractor Intended Use, Product Identification, Component Location |
| Safety Information | 21-44 | Safety Rules and Signal Word Definitions, Read the Operators Manual, Proposition 65, Safety Rules - General, Safety Rules - Air Conditioning System, Safety Rules - Basic Operating |

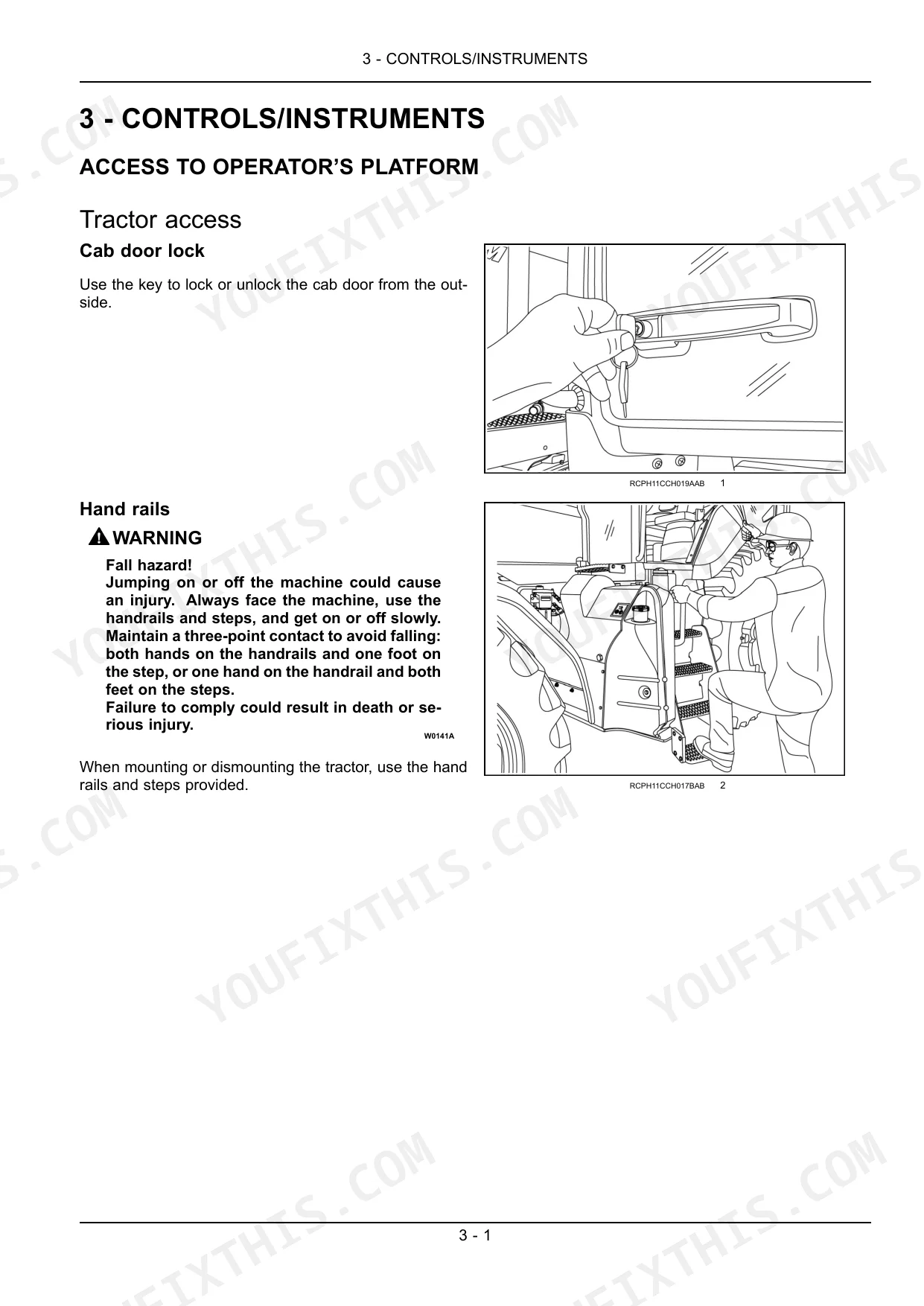

| Controls/Instruments | 45-124 | Access to Operator’s Platform, Operator’s Seat, Instructor’s Seat, Forward Controls, Left-Hand Side Controls, Right-Hand Side Controls, Rearward Controls, Overhead Controls |

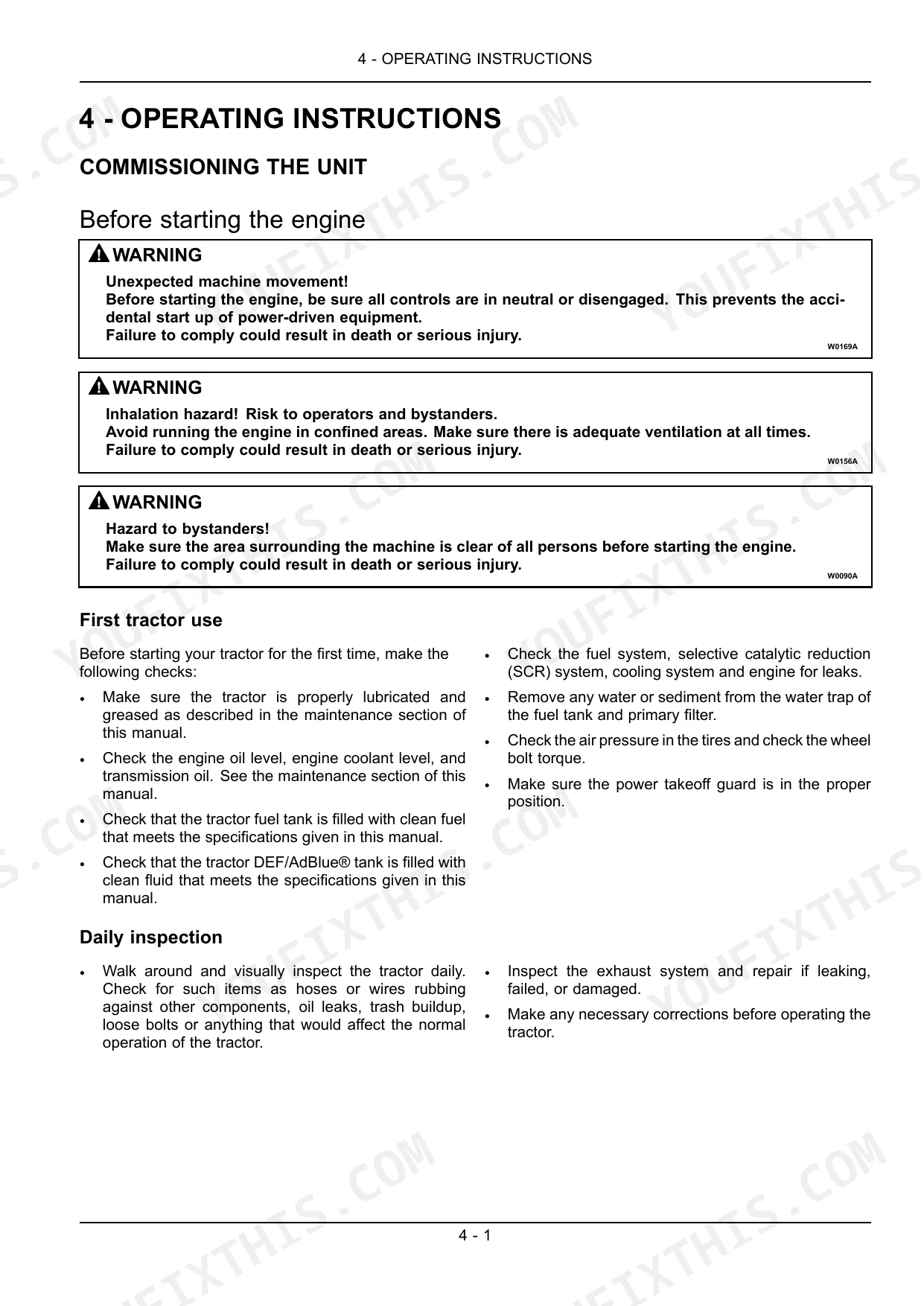

| Operating Instructions | 125-186 | Commissioning the Unit, Starting the Unit, Stopping the Unit, Moving the Unit |
| Transport Operations | 187-200 | Road Transport, Shipping Transport, Recovery Transport |
| Working Operations | 201-388 | Rear PTO, Front PTO, Rear Hitch, Front Hitch, Drawbars and Towing Attachments, Auxiliary Power Connections, Hydraulic Remote Control Valves, Ballasting the Tractor |

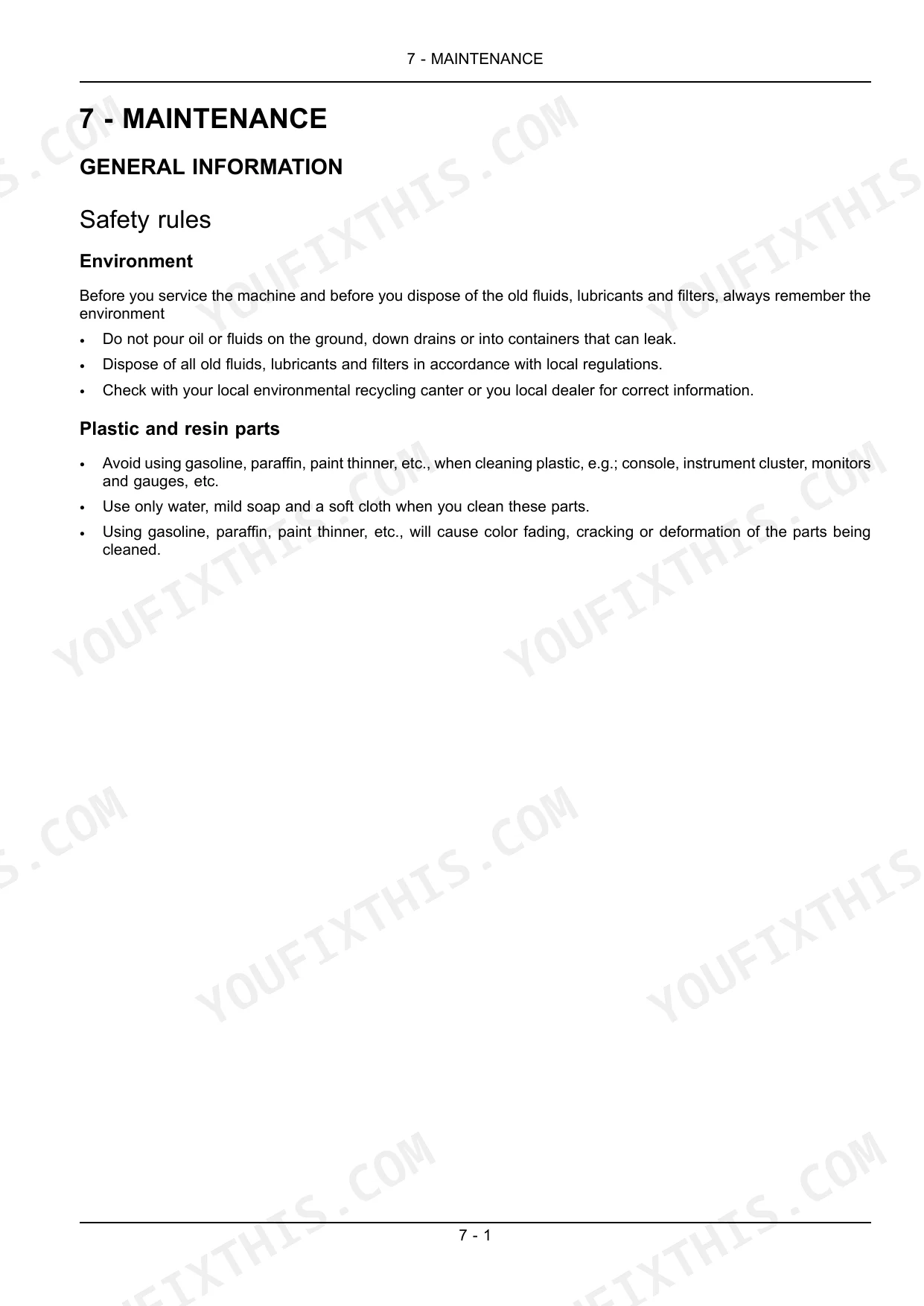

| Maintenance | 389-548 | Maintenance Chart, At Warning Message Display, First 10 to 50 Hours, Every 10 Hours or Daily, Every 50 Hours or Weekly, Every 100 Hours, Every 300 Hours, Every 400 Hours |

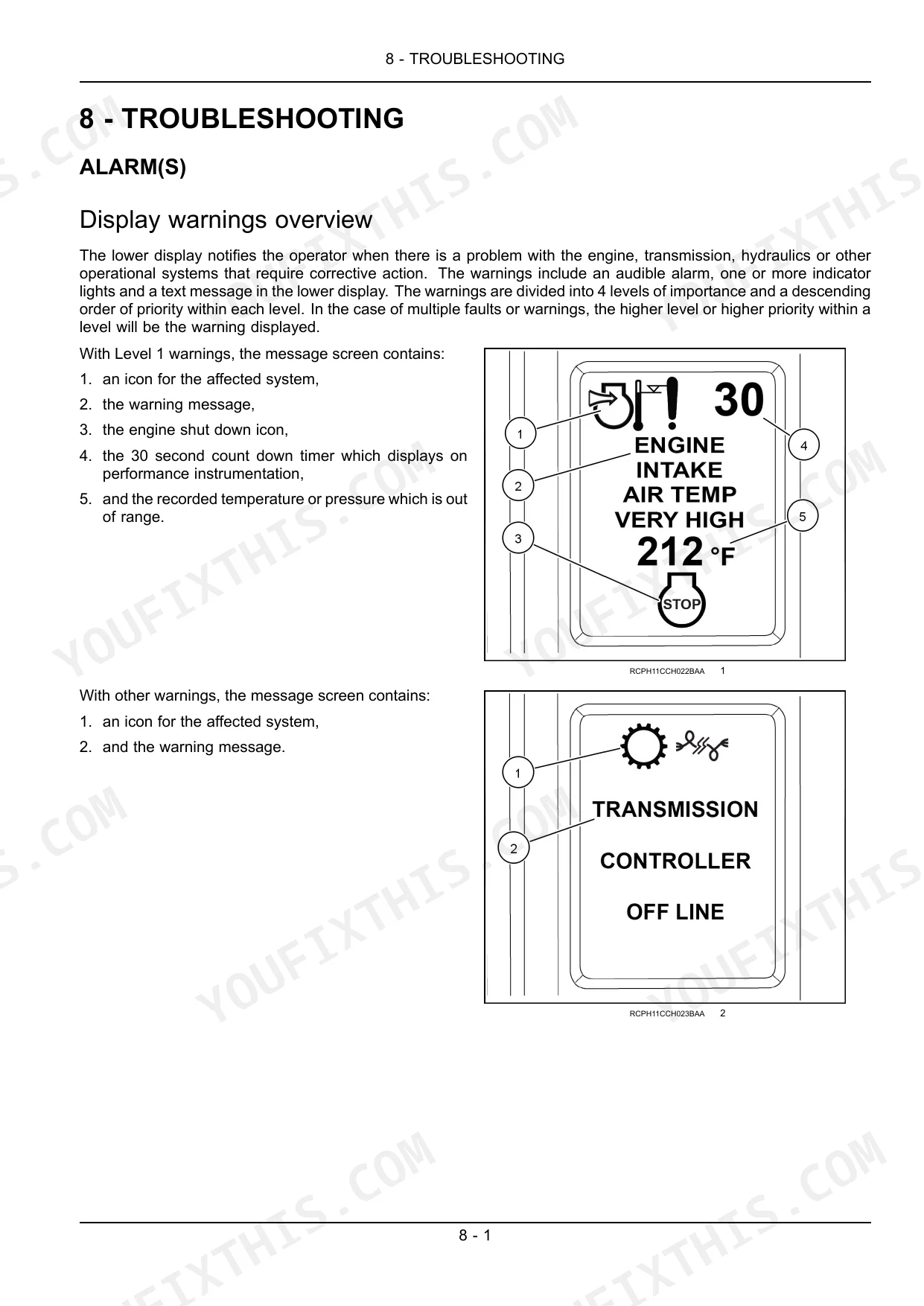

| Troubleshooting | 549-568 | Alarm(s), Symptom(s) |

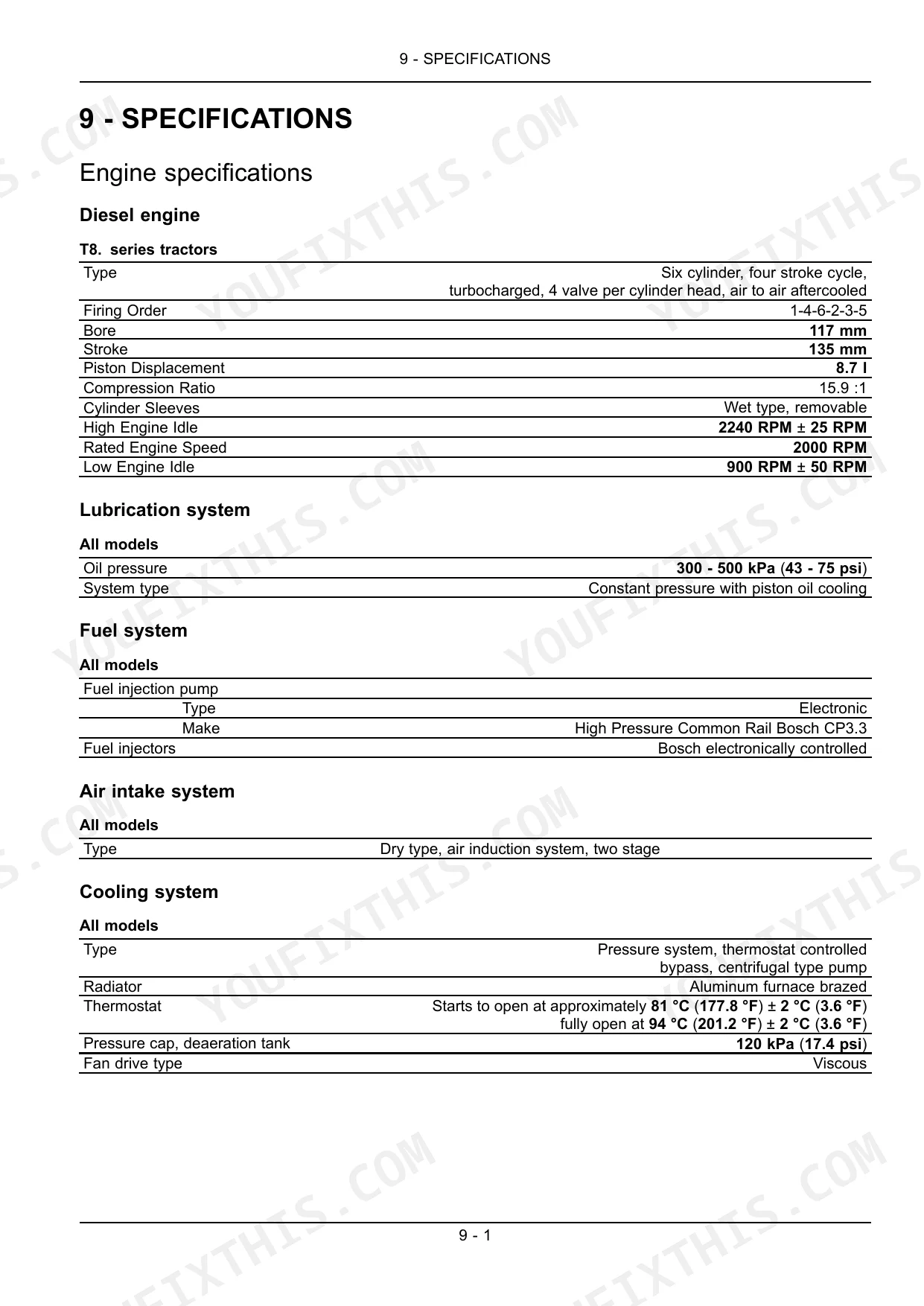

| Specifications | 569-586 | Engine Specifications, Power Train Specifications |
| Accessories | 587-604 | Front Wheel Fenders |
| Forms and Declarations | 605-624 | Delivery Report, First Service |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Disc to front axle hub nuts (A) | 385 - 425 Nm (285 - 315 lb ft) | p. 332 |
| Disc to rim nuts (B) | 310 Nm (230 lb ft) | p. 332 |
| DEF/AdBlue storage temperature | -11 °C (12 °F) to 30 °C (86 °F) | p. 408 |
| DEF/AdBlue shelf life | 6-12 months | p. 408 |
| Fuel transfer pump run time | 30-45 seconds | p. 470 |
| Wait time after transfer pump stops | 10 seconds | p. 470 |
| Engine drive train gear cover bolt torque | 58 - 65 N·m (43 - 48 lb ft) | p. 500 |
| Spanner wrench for cab suspension adjustment | 289 mm (11.375 in) in length, for collars from 50 - 121 mm (2.0 - 4.75 in) in diameter | p. 516 |
| Engine Oil Capacity (with filter change) | 25L | p. 401 |
| Cooling System Capacity | 26.5L | p. 401 |
| Fuel Tank Capacity | 636L | p. 401 |
| DEF/AdBlue Tank Capacity | 87L | p. 401 |
New Holland T8.275-T8.390 Common Problems This Manual Covers
New Holland T8 losing power or running rough after refueling, air or water in the fuel filter
Warnings for the engine, transmission and hydraulics show on the lower display with an audible alarm, indicator lights and a text message, in 4 levels of importance (page 549). The engine lacks power row on page 560 lists clogged fuel filter(s), incorrect fuel and low DEF/AdBlue level among its causes. After fitting a new canister, bleed the filter: open the bleed screw, turn the key on so the fuel transfer pump runs for 30-45 seconds, turn the key off once it stops, wait approximately 10 seconds and repeat until no air comes from the bleed, then close the screw and start the engine (page 470).
Manual Section: Maintenance p. 470DEF system warning light on with engine power reduced during planting, exhaust fluid gauge reads full
DEF/AdBlue is a 32.5 % aqueous urea solution defined by ISO 22241-1; do not add anti-gelling or freeze point improvers (page 408). Store it between -11 °C (12 °F) and 30 °C (86 °F) in an approved, tightly closed container, since storage above 30 °C (86 °F) greatly reduces its typical 6-12 month shelf life (page 408). The tank holds 87 l (page 401), and low DEF/AdBlue level is itself a listed cause of lack of power (page 560).
Manual Section: Maintenance p. 408Temperature gauge climbing into the red and overheating alarm sounding during heavy tillage
Work the engine overheats row on page 561: low engine oil or coolant level (fill the recovery tank and check for leaks), defective thermostat(s), a dirty or blocked radiator core, excessive overload, a faulty radiator pressure cap, a blocked cooling system, a loose or worn fan belt and leaking hoses. The cooling system holds 26.5 l (page 401), and engine coolant is changed every 2000 hours on the maintenance chart (page 419).
Manual Section: Maintenance p. 561Front wheel wobble and clicking noise from the hub after changing wheel tread spacing
On the MFD axle, torque the disc to front axle hub nuts (A) to 385 - 425 Nm (285 - 315 lb ft) with lubricated hardware and the disc to rim nuts (B) to 310 Nm (230 lb ft) without lubricating them, following the torque sequence and making sure the disc fits flush against the rim. Check bolt torque after the first 30 minutes of field use, every 10 hours until torques stabilize and every 300 hours thereafter (page 332).
Manual Section: Working Operations p. 332Engine cranks slowly on frosty mornings and takes several tries to start
Turn the key to on until the electric fuel pump stops (30 to 45 seconds) and the grid heater icon goes out, then crank for no more than 30 seconds and wait 2 to 3 minutes between attempts to let the starting motor cool (page 129). In cold weather leave the key on while the 'Grid Heater ON Wait to Start' message shows, and never use ether as a starting aid (page 130). If the engine still will not start, check the fuel shutoff solenoid fuse under the top step (page 129).
Manual Section: Operating Instructions p. 129Frequently Asked Questions
How do I retrieve fault codes on my New Holland T8 tractor?
To view fault codes from all controllers, press and hold the Engine hours key on the keypad for greater than 2 seconds. This will access the diagnostic menu on the lower display. p. 104
What is the torque for the rear wheel bushing bolts on the New Holland T8.275-T8.390?
The 6 bushing bolts on the rear wheel must be torqued to 300 - 350 Nm (220 - 260 lb ft). p. 371
What is the engine oil capacity for the New Holland T8.275-T8.390 tractor?
The engine oil capacity for the 9.0 L engine is 25 liters (6.6 US gal) when performing an oil change with a filter change. p. 401
How often should the pneumatic brake system dryer be replaced on the New Holland T8.275-T8.390?
The pneumatic brake system dryer should be replaced every 1000 hours or annually. p. 419
What is the torque for the front end weight mounting bolts on the New Holland T8.275-T8.390?
The rear bolts for the front end weights should be torqued to 247 - 320 Nm (185 - 235 lb ft), and the side bolts to 174 - 220 Nm (132 - 161 lb ft). p. 317
What do I get after purchasing this New Holland T8.275-T8.390 manual?
One searchable PDF covering 624 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Can I print specific sections of this New Holland T8.275-T8.390 Operator Manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
