Wheel nut torque, PTO speeds, and the maintenance chart for the T4.65 and T4.75 Powerstar tractors all settle in one place: New Holland operator manual 48129908, 302 pages covering both models. This is the New Holland t4.65 powerstar, t4.75 powerstar operator manual pdf, with wiring coverage that maps the fuse and relay compartments circuit by circuit. Maintenance takes up the largest block of the book, running the intervals from the 10 hour grease points through the 1200 hour transmission and 4WD axle fluid changes, and the troubleshooting chapter sorts faults by system: engine, hydraulics, rear three point hitch, service brakes, front loader. Torque the wheel hub locknuts to 115 N·m (85 lb ft); keep towing speed under 8 km/h (5.0 mph). Hitching an unfamiliar implement in a hurry is how afternoons disappear. Bookmarked and text searchable, your copy rides along wherever the tractor is working.
What's Inside This New Holland T4.65 Powerstar, T4.75 Powerstar Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 9-26 | Introduction, Various Controls, Consumables, Capacities, Engine Oil Temperature Chart, Organic Acid Technology Coolant, Biodiesel Fuel - Biodiesel Fuels |
| Safety Information | 27-58 | Safety Rules and Signal Word Definitions, Safety Rules - General Information, Safety Rules - Maintenance, Safety Rules - Wheels and Tires, Safety Rules - Explosions and Fires |

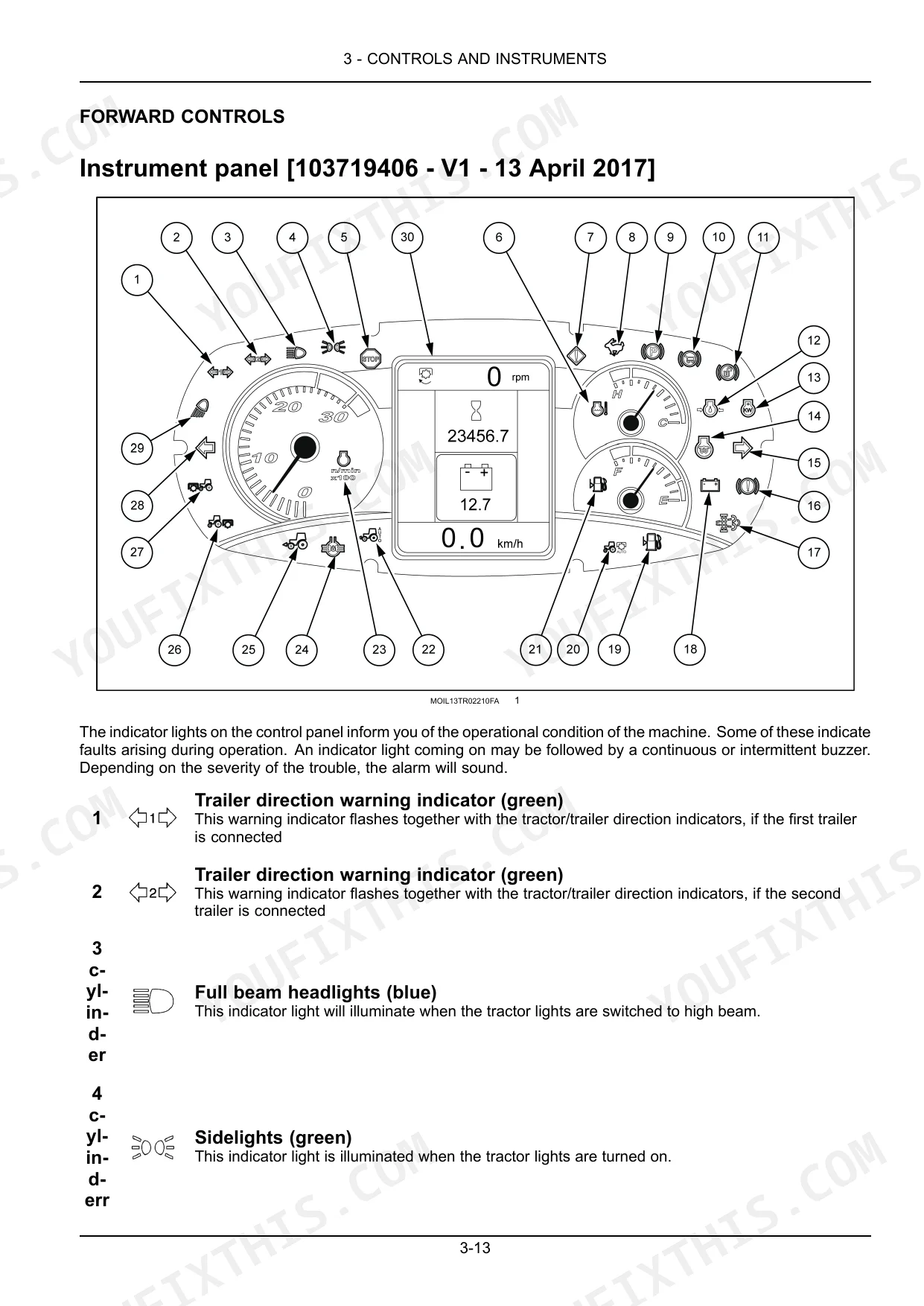

| Controls and Instruments | 59-100 | Access to Operator's Platform (Mounting and Dismounting, Getting to Know the Internal Parts of the Cab, Rear-View Outside Mirrors - Localization Overview, Clock Adjustment) |

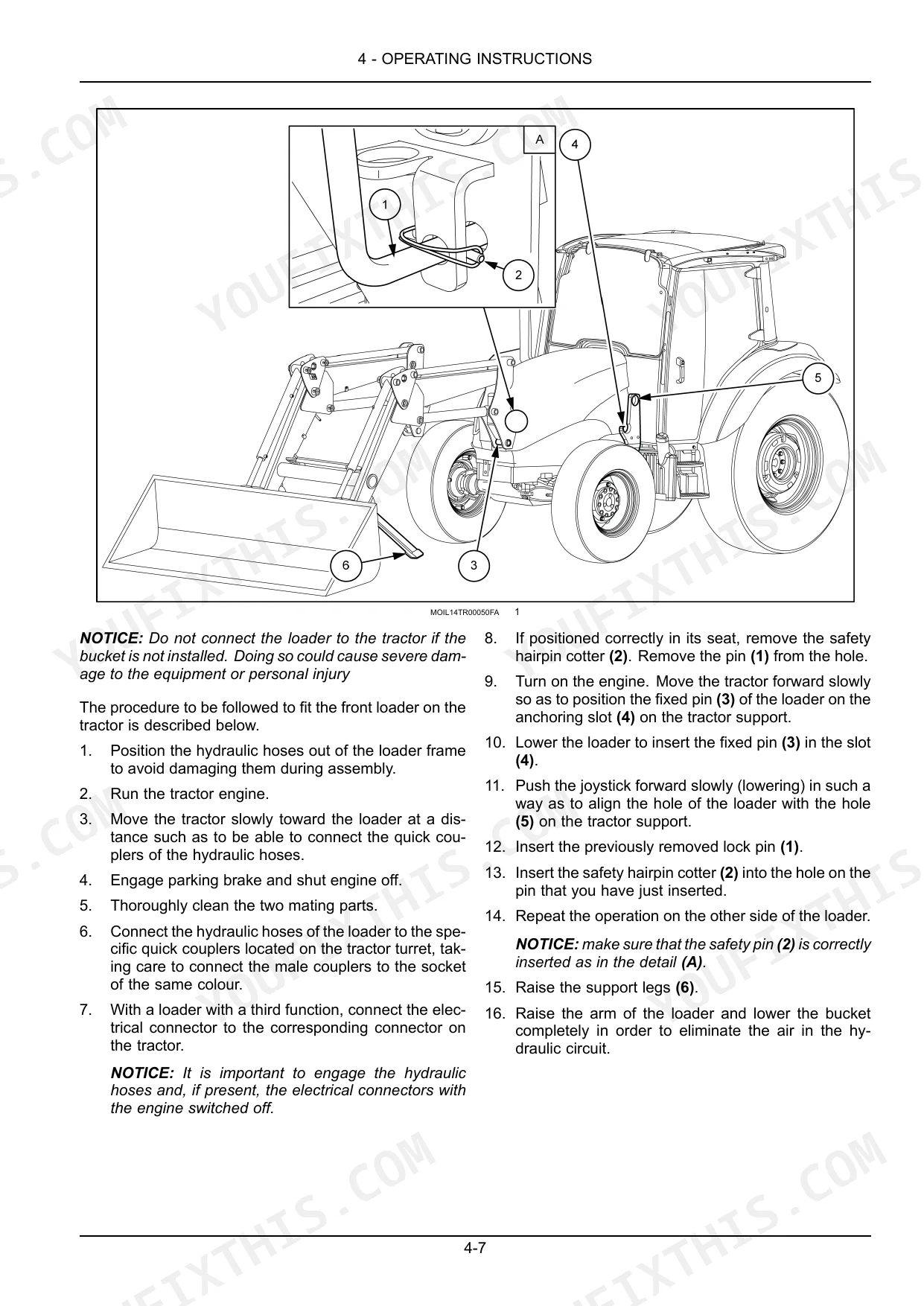

| Operating Instructions | 101-112 | Commissioning the Unit (Basic Operating Safety Rules, Refueling), Starting the Unit (Starting the Engine), Stopping the Unit (Stopping the Engine) |
| Transport Operations | 113-114 | Road Transport (Tractor Transporting), Recovery Transport (Towing the Tractor) |

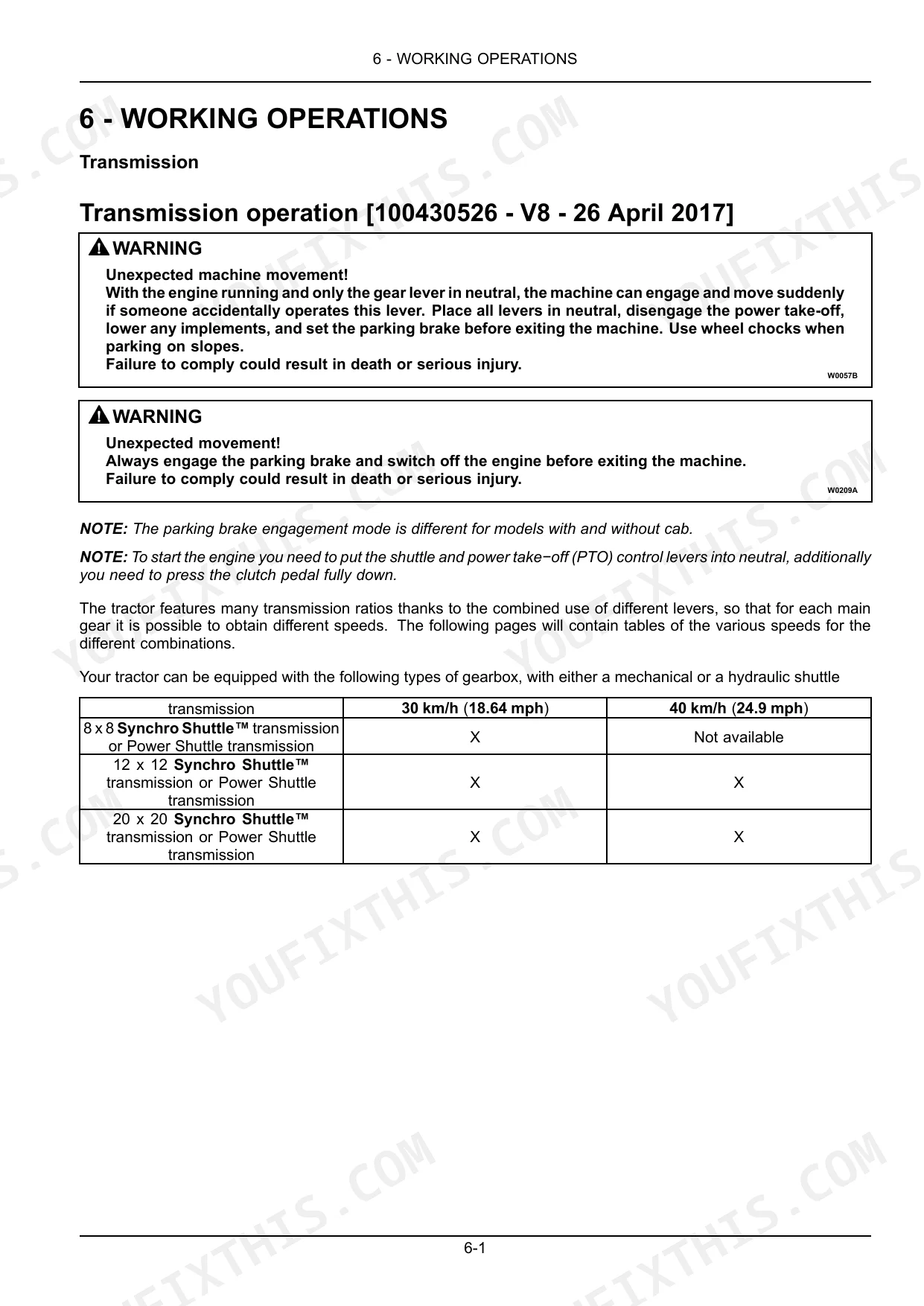

| Working Operations | 115-168 | Transmission (Operation), Four Wheel Drive (Four-Wheel Drive: Mechanical Engagement, Electro-Hydraulic Control), Differential Lock (Mechanical Differential Lock) |

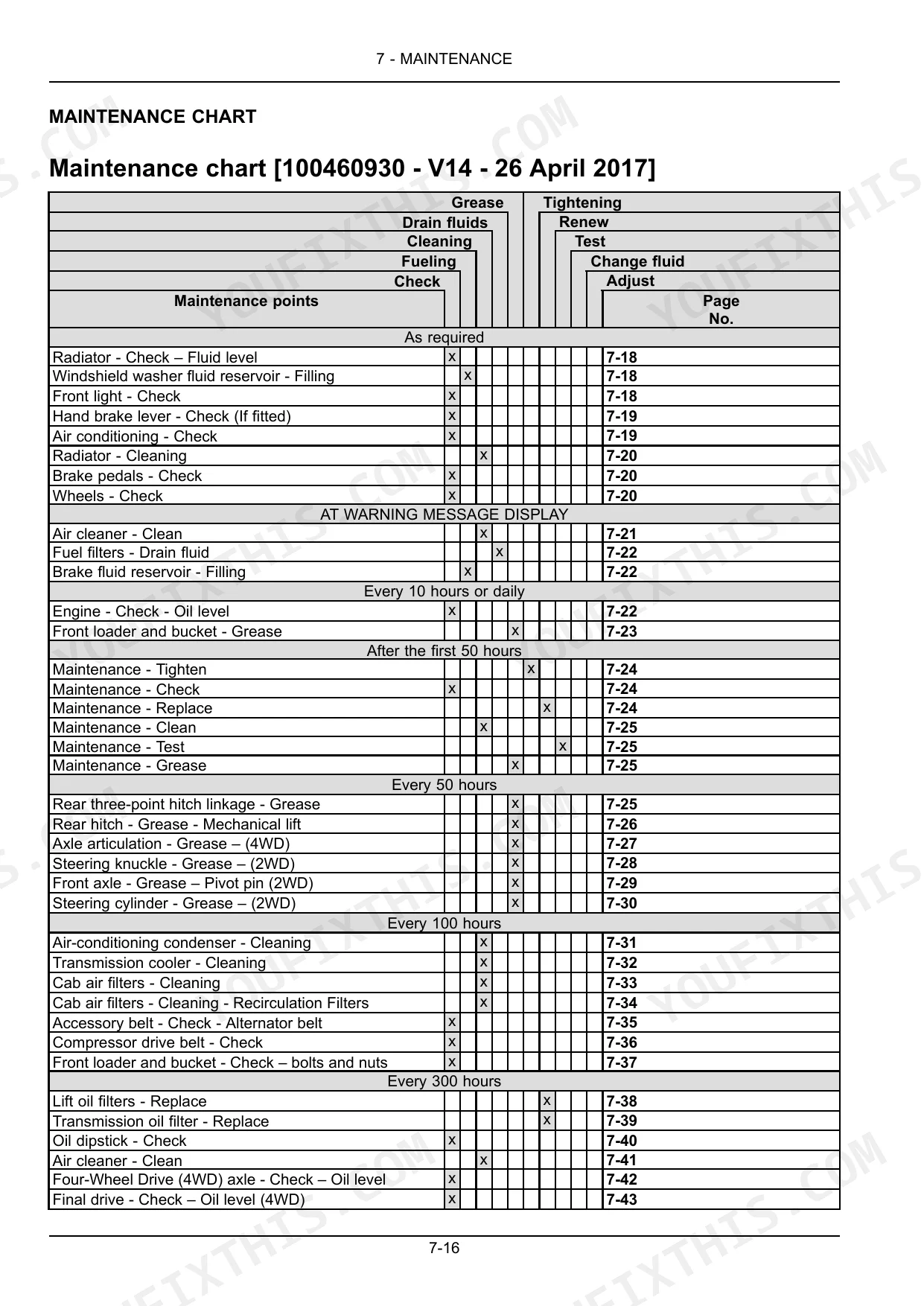

| Maintenance | 169-252 | Maintenance Chart |
| Troubleshooting | 253-266 | Fault Code Resolution (Engine - Troubleshooting, Electrical System - Troubleshooting, Hydraulic Systems - Troubleshooting) |
| Specifications | 267-284 | Dimensions and Weights, Maximum Permitted Loads on Front and Rear Axle, Speed Table for 8 X 8 Gearbox, Speed Table for 8 X 8 Gearbox with Additional Reducer |
| Accessories | 285-302 | Radio, Single Piece Ballast, Coolant Immersion Heater |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine idle speed for hydraulic system cooling | 1000 RPM | p. 105 |
| Towing speed limit | 8 km/h (5.0 mph) | p. 114 |
| Rear axle weight distribution | minimum of 30% of the total weight | p. 138 |
| Tightening torque of the wheel-hub locknuts | 115 N·m (11.7 kgm, 85 ftlbs.) | p. 155 |
| Tightening torque for front and rear wheels (M16) | 220 N·m (162.3 lb ft) | p. 155 |
| Headlight adjustment reference point | 5 cm (2.0 in) below the crosses | p. 249 |
| Engine Oil Capacity (with filter) | 9.50 L | p. 174 |
| Engine Oil Capacity (oil pan only) | 6.4 – 8.1 L | p. 174 |
| Front Axle Oil Capacity | 4.5 L | p. 174 |
| Front Final Drive Oil Capacity (each) | 1.2 L | p. 174 |
| Fuel Tank Capacity | 90.0 L | p. 174 |
| Engine Power (ECE R120) | 48 kW (65 Hp) at 2300 RPM | p. 277 |
New Holland T4.65 Powerstar, T4.75 Powerstar Common Problems This Manual Covers

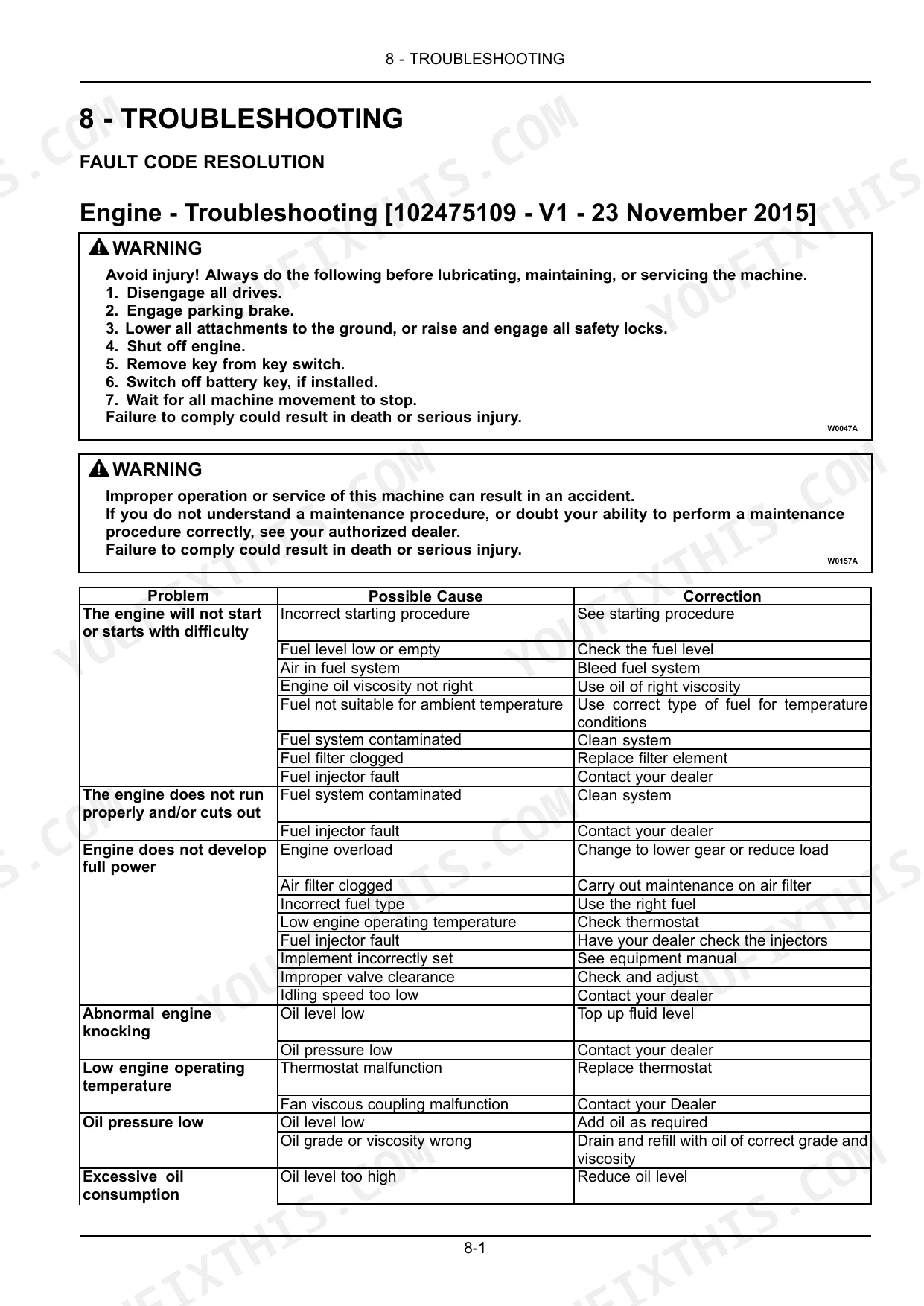

New Holland T4.65 Powerstar remote hydraulics weak or dead, three-point hitch won't lift the implement
Check the hydraulic troubleshooting chart on page 256 before you pull anything apart. Verify the fluid level at the sight glass with the tractor parked level and the hitch fully down. Run the engine at 1000 RPM per page 105 to warm and circulate oil, then retest lift with the implement attached.
Manual Section: Hydraulic System Troubleshooting p. 256Power shuttle or range selector hangs up, hard shifting between ranges
Check the transmission operation instructions starting on page 115 and confirm you are stopping fully before selecting range. Verify the clutch pedal travels through its full stroke and the shuttle lever seats in its detent. Inspect the selector cable and linkage at the housing for slack, frayed strands, or a loose clamp, then readjust.
Manual Section: Working Operations p. 115Brake pedals feel soft or travel to the floor before the tractor slows
Check the service brake troubleshooting chart on page 259 first. Verify both pedals sit at equal height and that the latch is free before road travel. Inspect the brake tie rod adjustment and the fluid level in the reservoir. Keep towing speed below 8 km/h (5.0 mph) as page 114 states until the brakes are right.
Manual Section: Hydraulic Service Brakes Troubleshooting p. 259Battery charge light stays on or flashes while running, cab blower and lights cutting out
Test battery voltage at the posts with the key off. Page 255 calls for 12.6 V; anything lower means charge or replace before chasing wiring. Verify the 120 A alternator belt tension and clean both cable clamps down to bright metal. Inspect the blower resistor connector and ground for green corrosion.
Manual Section: Electrical System Troubleshooting p. 255Front end light and steering wanders with a loaded rear implement or full drawbar pull
Verify the rear axle carries a minimum of 30% of total tractor weight as page 138 requires, then add front ballast. Fit the 220 kg four-weight and support set covered on page 164, or the 400 kg single piece ballast on page 293. Torque wheel hub locknuts to 115 N·m (85 ftlbs) after the first loaded hours.
Manual Section: Working Operations p. 138Engine cranks slowly or refuses to start on a cold morning
Check the engine troubleshooting chart on pages 253 and 254 before condemning the starter. Verify fuel in the 90.0 L tank and confirm the grade suits the temperature, since summer blends gel and starve the filter. Measure battery voltage against the 12.6 V figure on page 255 and clean the ground strap at the block.
Manual Section: Engine Troubleshooting p. 253Frequently Asked Questions
How do I reset the oil change counter on my New Holland T4.65 or T4.75 Powerstar tractor?
To reset the engine oil working hours counter, ensure the engine is switched off. Enter the programming menu by pressing the switch (2) on the symbol (B) for more than three seconds, navigate to "OIL RESET" using switch (3), press switch (2) to select, and press switch (2) again to reset the counter to "OFF". p. 98
What is the torque specification for the wheel nuts on the New Holland T4.65 or T4.75 Powerstar?
The tightening torque for the front and rear wheel nuts on the M16 and M18 bolts is 220 N·m (162.3 lb ft) for M16 and 310 N·m (228.6 lb ft) for M18. p. 155
How do I view stored error codes on the instrument cluster?
To view stored error codes, enter the programming menu by pressing switch (2) on symbol (B) for more than three seconds. Navigate using switch (3) until the error codes screen (S1) appears, then press switch (2) on symbol (B) to view the codes in memory. p. 99
What is the engine oil capacity for the T4.65 and T4.75 Powerstar models?
The engine oil capacity including the filter is 9.50 L (2.09 UK gal / 2.51 US gal). The oil pan capacity (MIN-MAX) is 6.4 – 8.1 L (1.4 – 1.8 UK gal / 1.7 – 2.1 US gal). p. 174
What is the recommended engine oil service interval for the T4.65 and T4.75 Powerstar?
The service interval depends on the oil used: 600 hours for NEW HOLLAND AMBRA UNITEK MASTERGOLD SBL CJ-4, 400 hours for NEW HOLLAND AMBRA MASTERGOLD™ HSP ENGINE OIL, and 300 hours for other API CJ-4 compliant oils. p. 175
What do I get after purchasing this New Holland T4.65 Powerstar manual?
One searchable PDF covering 302 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Am I free to print this New Holland T4.65 Powerstar Operator Manual?
Yes, printing is unrestricted: a single page, a chapter, or the lot, on letter or A4.
