Part of the New Holland Operator Manuals.
The plate under the cab door tells you where you stand: if the serial reads ZDJT13873 or above, this is the book New Holland printed for that tractor, factory publication 48071323, 382 pages in English.
It covers the T4.75, T4.85, T4.95, T4.105 and T4.115 with the F5DFL413 series engines. Controls and Instruments walks the cab, Working Operations covers transmission, four wheel drive and the differential lock, and the Maintenance chapter carries the maintenance chart, capacities and the wheel and hub torque figures you need before the drill goes back on.
When a warning lamp comes up mid-season, the Troubleshooting chapter lists fault code resolution for the engine, electrical, hydraulic, rear three-point hitch, brake and cab climate systems, so you can sort the tractor yourself instead of waiting on a service call while the weather turns. Buy it once and it stays yours for as long as you own the tractor.
What's Inside This New Holland T4.75–T4.115 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 11-34 | Introduction, Body Maintenance, Biodiesel Fuel - Biodiesel Fuels, Organic Acid Technology Coolant, Recommended Engine Oil for Operating Temperature Ranges, Consumables, Capacities |
| Safety Information | 35-74 | Safety Rules and Signal Word Definitions, Safety Rules - General Information, Safety Rules - Maintenance, Safety Rules - Wheels and Tires, Safety Rules - Explosions and Fires |

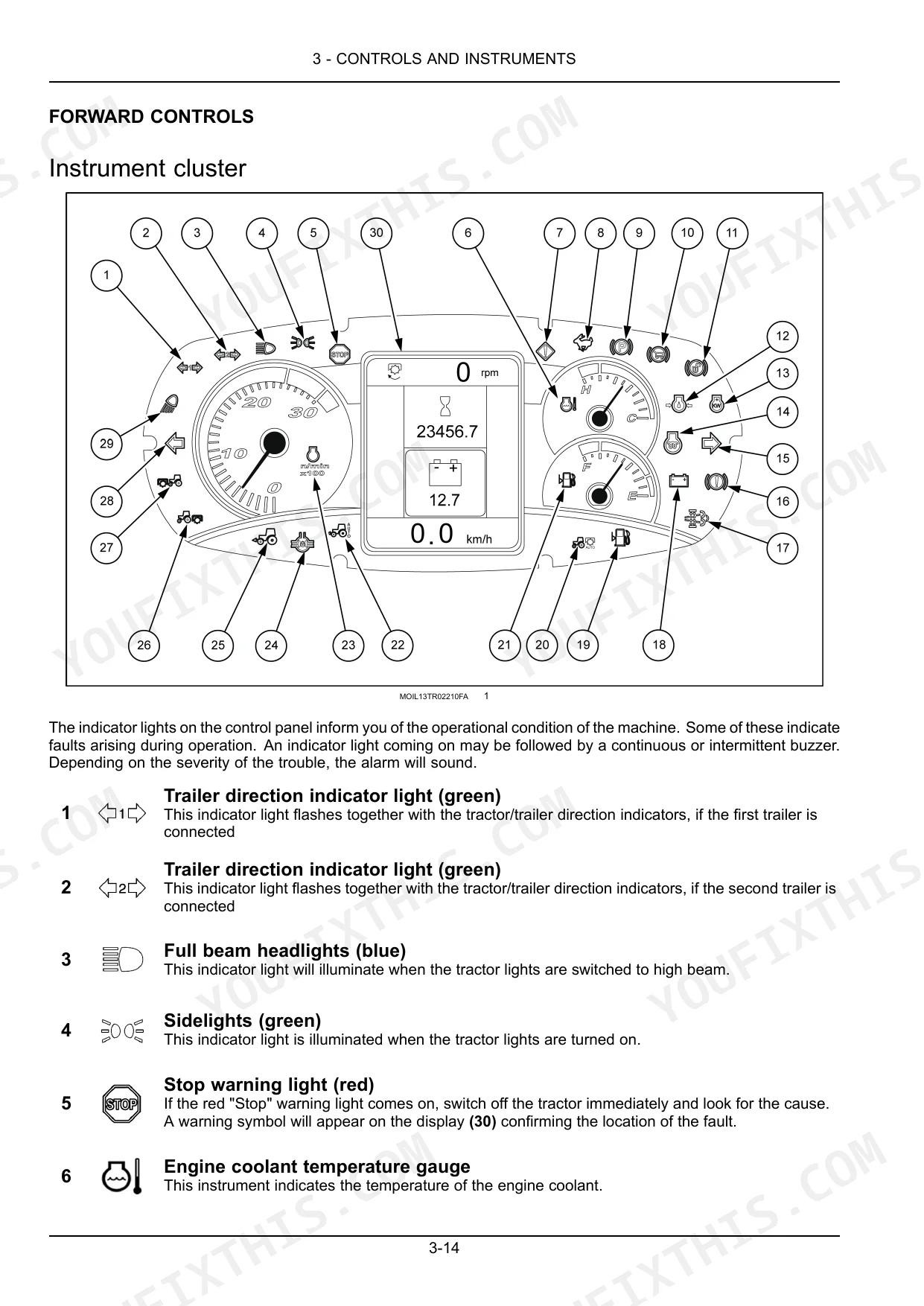

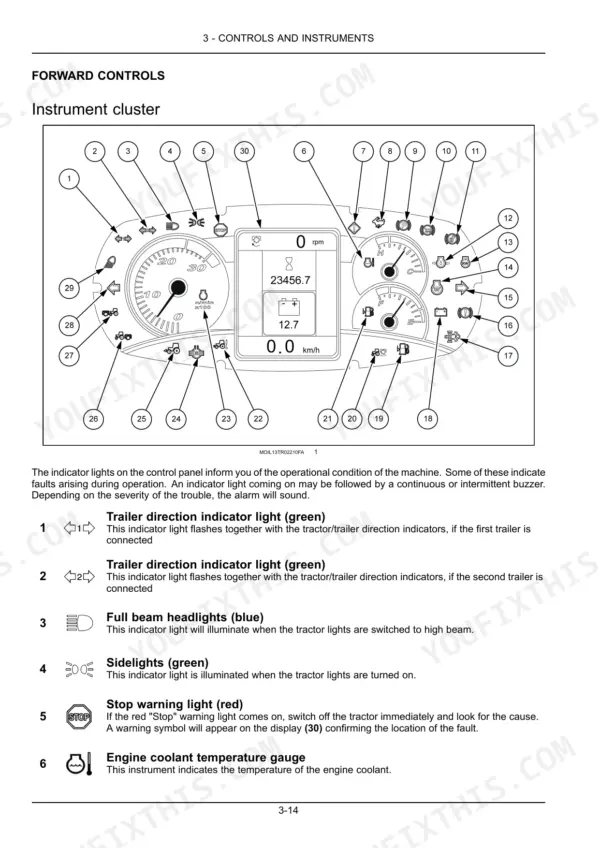

| Controls and Instruments | 75-130 | Access to Operator's Platform (Getting in and Out of the Machine, Getting to Know the Internal Parts of the Cab, External Rear View Mirrors, Clock Adjustment) |

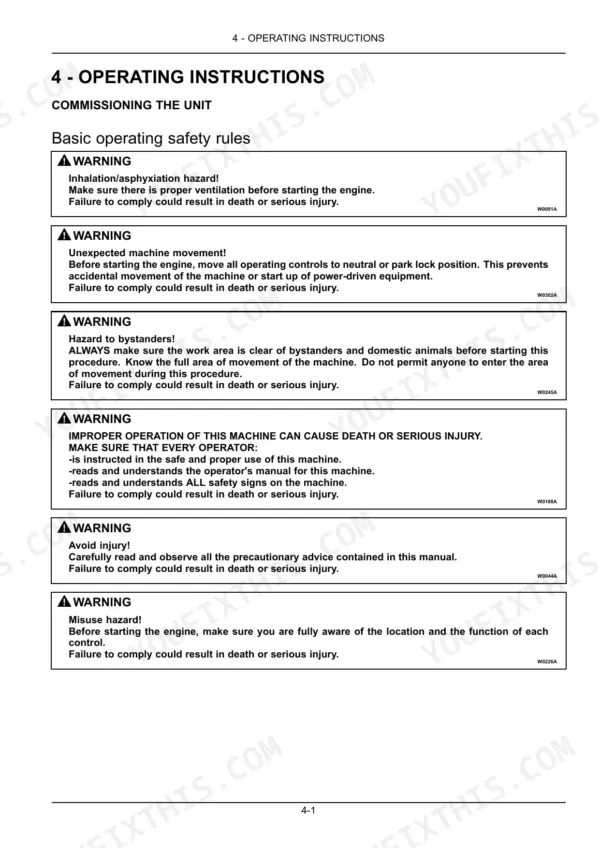

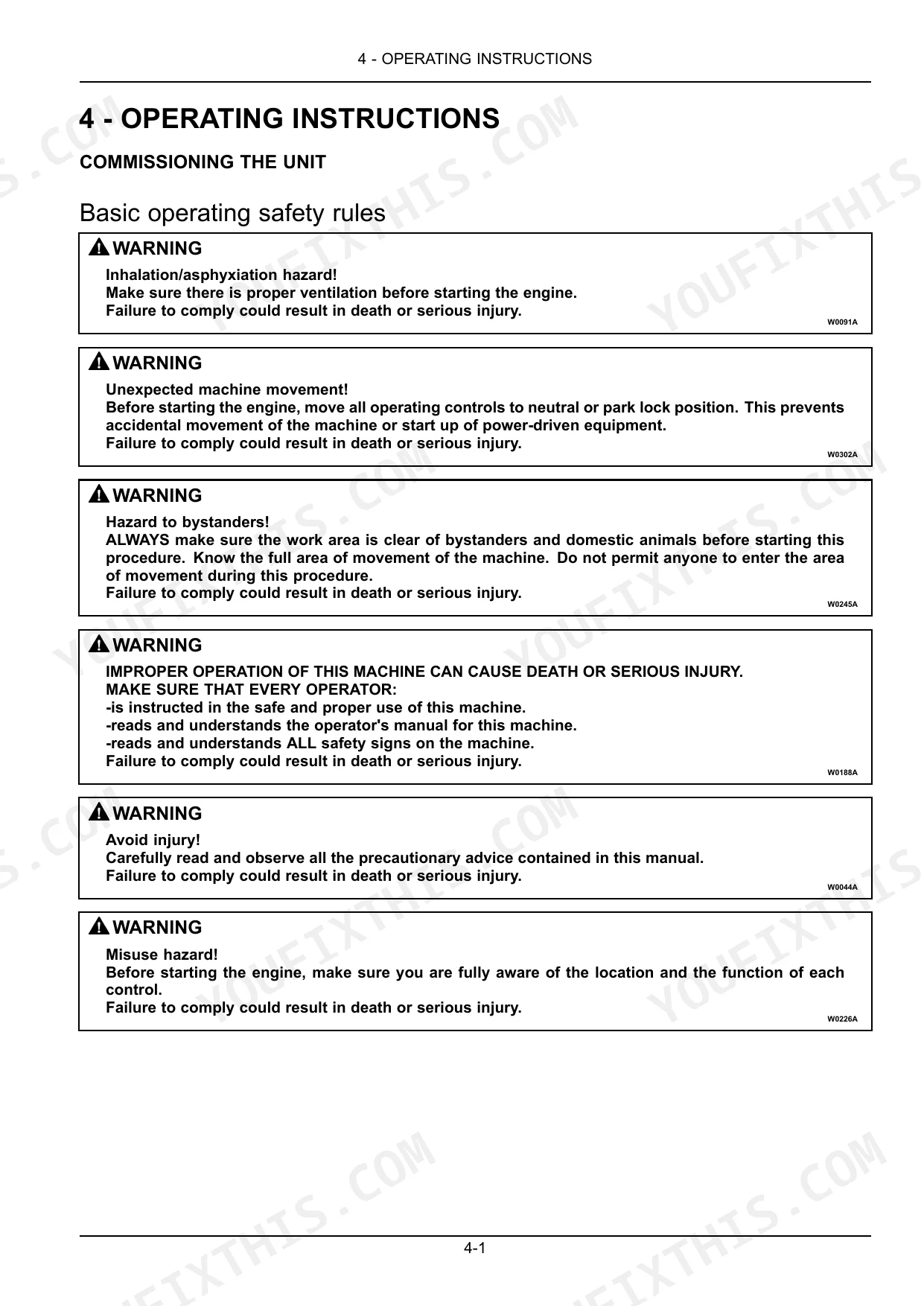

| Operating Instructions | 131-140 | Commissioning the Unit (Basic Operating Safety Rules, Refueling), Starting the Unit (Starting the Engine) |
| Transport Operations | 141-142 | Road Transport (Tractor Transporting), Recovery Transport (Towing the Tractor) |
| Working Operations | 143-236 | Transmission (Operation), Four Wheel Drive (Control, Control - SuperSteer Models), Differential Lock (Mechanical Differential Lock, Electrohydraulic Differential Lock) |

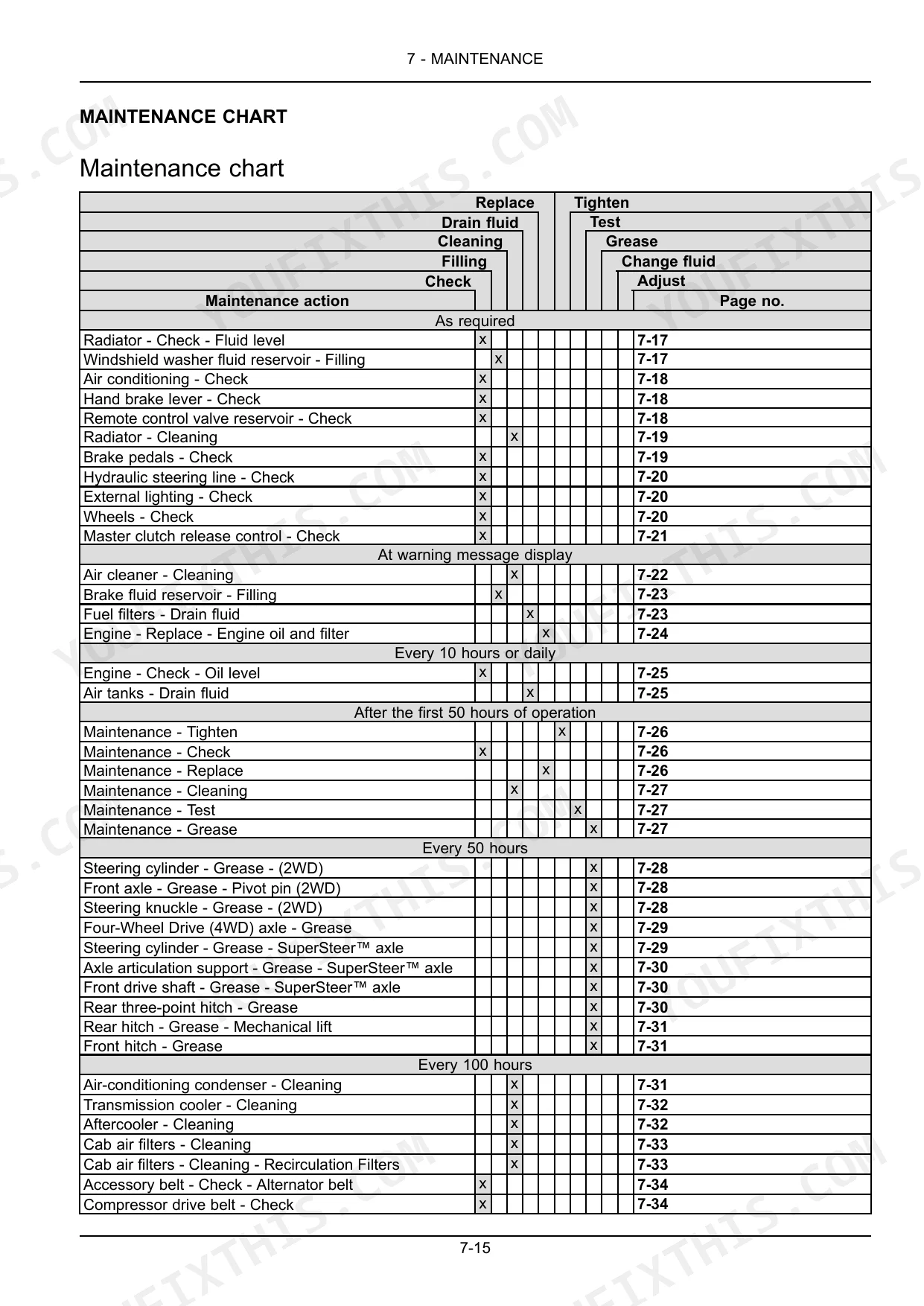

| Maintenance | 237-314 | Maintenance Chart |
| Troubleshooting | 315-382 | Fault Code Resolution (Engine - Troubleshooting, Electrical System - Troubleshooting, Hydraulic Systems - Troubleshooting, Rear Three-Point Hitch - Troubleshooting, Hydraulic Service Brakes - Troubleshooting, Cab Climate Control - Troubleshooting) |

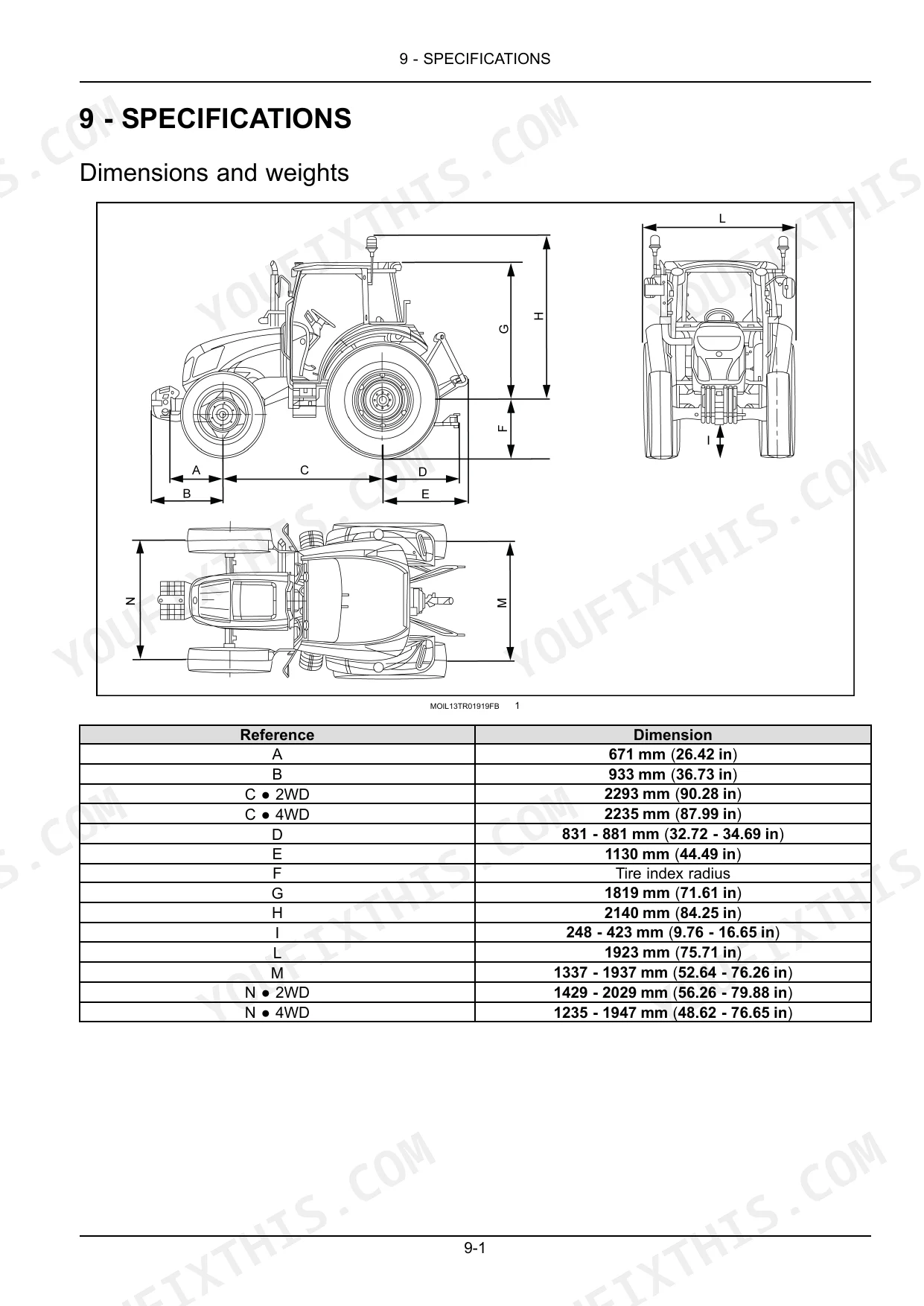

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Compressor operation time limit | 1 min | p. 85 |
| Quick-fitting female coupler size | 1/2 inch | p. 154 |
| Front wheel disc to hub nuts (M16) tightening torque | 220 N·m (162.3 lb ft) | p. 279 |
| Starter power supply | 3.2 kW or 4.2 kW | p. 359 |
| Engine Oil Capacity (including filter) | 9.50 L | p. 249 |
| Fuel Tank Capacity | 115.00 L | p. 249 |
| Rear wheel disc to hub nuts (M18) tightening torque | 310 N·m (228.6 lb ft) | p. 279 |
| 2WD models | ||
| Wheel-hub locknuts tightening torque (2WD front axle) | 115 N·m (11.7 kgm, 85 ftlbs.) | p. 214 |
| Steering strut fixing screws torque (2WD) | 39 N·m | p. 214 |
| T4.75 | ||
| Engine Power (T4.75) | 55 kW (75 Hp) at 2300 RPM | p. 356 |
| T4.115 | ||
| Engine Power (T4.115) | 84 kW (114 Hp) at 2300 RPM | p. 356 |
New Holland T4.75–T4.115 Common Problems This Manual Covers
Wheel nuts loosen after ballast changes
Moving wheels in or out for row spacing, or hanging cast weight on them, means the nuts have to come back to spec before field work. The manual gives 220 N·m for the front M16 disc to hub nuts, 310 N·m for the rear M18, and 250.0 N·m on the disc to rim nuts.
Manual Section: Working Operations p. 279Hitch lifts slowly with a clogged filter
A three-point hitch that lifts lazily or creeps down under an implement often traces back to a lift oil filter left past its change interval. The Maintenance section covers the change and tells you to tighten the new filter until the seal contacts the mounting surface, then another 3/4 of a turn by hand.
Manual Section: Maintenance p. 272Remote coupler will not take the hose
Trapped pressure and a grit-packed face keep a push-pull coupler from seating, and guessing at the size costs you a morning at the parts counter. Working Operations documents the remote valves, each with two 1/2 inch quick-fitting female push-pull couplers that mate to pressurised male ends.
Manual Section: Working Operations p. 154Air seat bottoms out on rough ground
An air suspension seat that sinks through a long day is usually a leaking bellows or a compressor being run wrong. The Controls and Instruments section covers seat setup and notes the compressor should not be operated for more than 1 min at a time.
Manual Section: Controls and Instruments p. 86Slow cranking on cold mornings
A tired or undersized battery shows itself on the first frosty start before chores, and the wrong replacement makes it worse. The Specifications chapter lists the battery at 88 A·h to 100 A·h and the starter power supply at 3.2 kW or 4.2 kW, so you can check what is actually fitted.
Manual Section: Specifications p. 359Overfilling at the engine oil change
Pouring the whole jug in rather than filling to the dipstick mark pushes oil past seals and into the breather. The capacities in the Maintenance section call for 9.50 L of engine oil including the filter, and the same page gives the 115.00 L fuel tank for planning a long day's cutting.
Manual Section: Maintenance p. 249Fault code on the dash mid-season

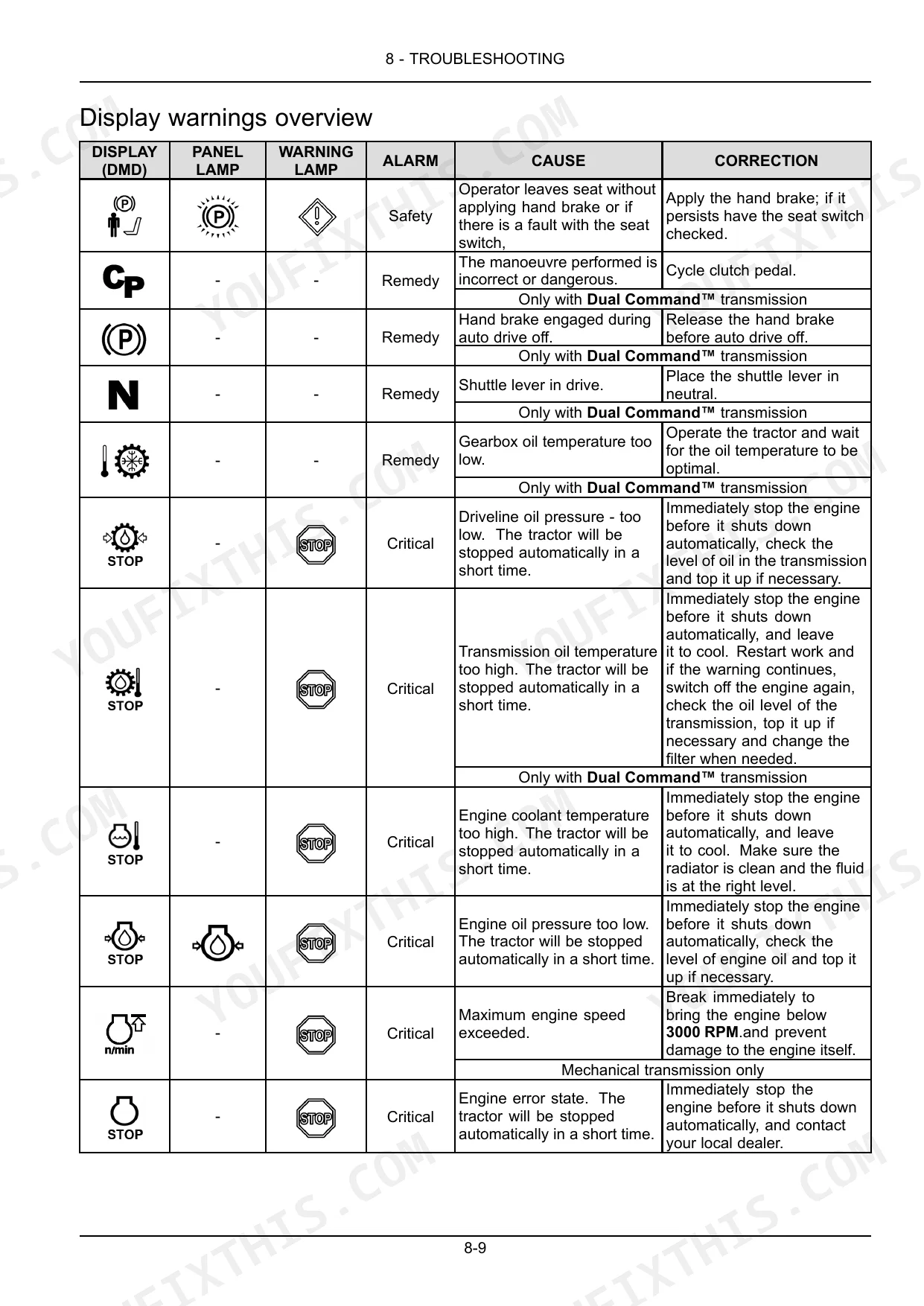

A code with the baler still hooked on forces a decision: keep going or shut down. Troubleshooting runs fault code resolution across the engine, electrical system, hydraulics, rear three-point hitch, hydraulic service brakes and cab climate control, with probable causes and corrections in order.
Manual Section: Troubleshooting p. 315Frequently Asked Questions
Which tractors and serial numbers does this manual cover?
The cover on page 1 lists the New Holland T4.75, T4.85, T4.95, T4.105 and T4.115 tractors, PIN ZDJT13873 and above, part number 48071323. The technical data on page 356 pairs them with the F5DFL413A, F5DFL413L, F5DFL413K, F5DFL413J and F5DFL413H engines. p. 1
Is this an operator manual or a repair manual?
It is the operator manual. It covers running the tractor, the Maintenance section with the maintenance chart, service intervals and capacities, and fault code troubleshooting. It does not carry engine overhaul or transmission teardown procedures; those live in the service manual. p. 237
What are the wheel nut torque figures for the New Holland T4.75–T4.115?
The wheel tighten check on page 279 specifies 220 N·m (162.3 lb ft) for the front M16 disc to hub nuts, 310 N·m (228.6 lb ft) for the rear M18 disc to hub nuts, and 250.0 N·m (184.4 lb ft) for the disc to rim nuts. Check them again after any wheel or ballast change. p. 279
Will it help me with a warning light or fault code?
Yes. The Troubleshooting chapter gives fault code resolution for the engine, electrical system, hydraulic systems, rear three-point hitch, hydraulic service brakes and cab climate control, listing the probable cause and the correction for each condition. p. 315
How will I receive this New Holland T4.75–T4.115 Operator Manual?
This is a 382-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this New Holland T4.75–T4.115 Operator Manual printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
