Power Shuttle hydraulics are where T4 jobs get hard. This New Holland service manual, part number 47840679, gives you the control valve schematic, clutch pressure checks and the fault code chapter to chase them. It covers the T4.85, T4.95, T4.105 and T4.115, less cab and with cab, with Hi-Lo, mechanical or Power Shuttle transmission.
The rest of the book covers the clutch, 4WD, front and rear axles, brakes, steering, front loader hydraulics, cab air conditioning and every electrical schematic sheet. The engine chapter covers removal, fuel tanks, EGR and DPF, cooling and the aftercooler.
Troubleshooting tables and the fault code chapter list causes and corrections.
What's Inside This New Holland T4.85, T4.95, T4.105, T4.115 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Safety | 1-23 | Model and Engine Applicability, Contents, Safety Rules, Basic Instructions, Consumables and Capacities, Part Identification |

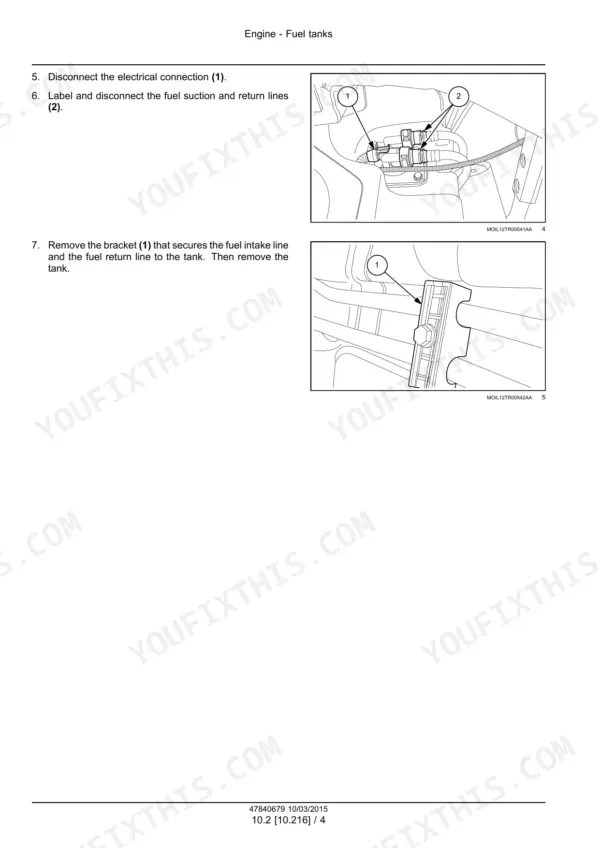

| Engine | 24-115 | Engine Removal and Installation, Fuel Tanks, EGR and DPF Exhaust Treatment, Engine Cooling System, Fan and Drive, Aftercooler |

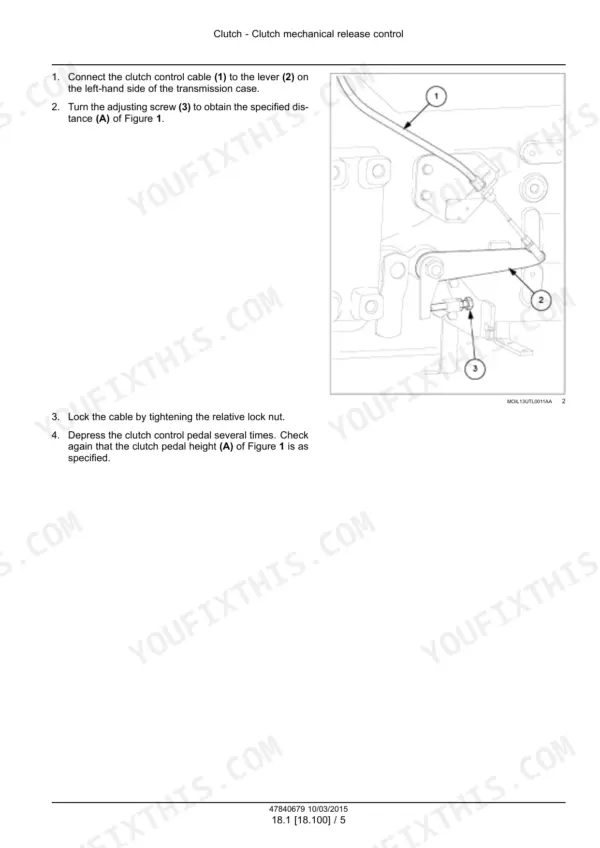

| Clutch | 116-159 | Mechanical and Hydraulic Release Control, Clutch Components, Specifications and Torques, Troubleshooting |
| Transmission | 160-333 | Mechanical Transmission Controls, Power Shuttle, Master Clutch Housing, Control Valve, Creeper, Reverser, Hi-Lo Unit, Transmission Cooler, Rear Drive |
| Four-Wheel Drive System | 334-409 | Mechanical and Electro-Hydraulic 4WD Control, Troubleshooting, Drive Shaft |
| Front Axle | 410-519 | Powered Front Axle, Bevel Gear Set and Differential, Final Drive Hubs and Steering Knuckles, Non-Powered Front Axle |
| Rear Axle | 520-587 | Rear Bevel Gear Set and Differential, Planetary and Final Drives, Troubleshooting |
| Power Take-Off (PTO) | 588-773 | Mechanical and Electro-Hydraulic Rear PTO Control, One-Speed and Two-Speed Rear PTO, Front PTO |

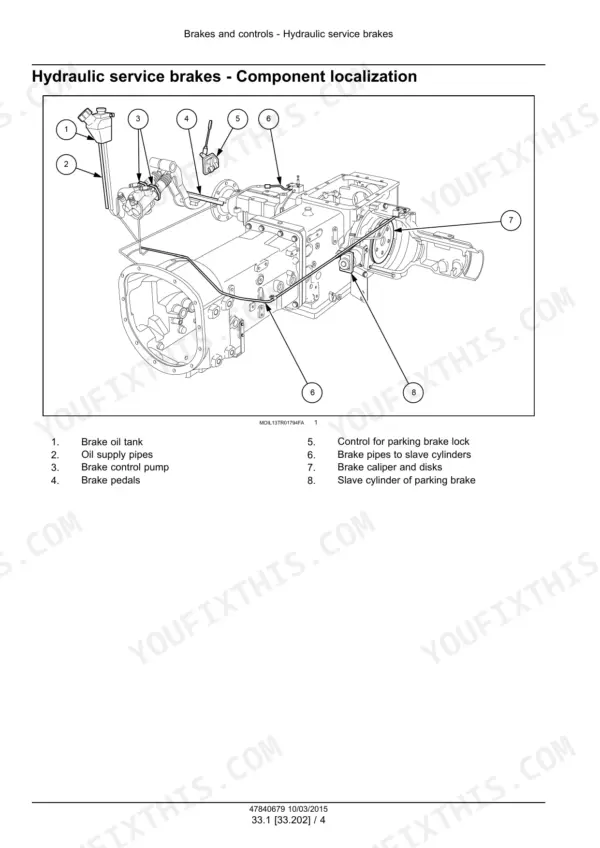

| Brakes and Controls | 774-803 | Hydraulic Service Brakes, Specifications and Torques, Parking Brake |
| Hydraulic Systems | 804-927 | Hydraulic Schematics, Fixed Displacement Pump, Front Hitch Lines, Remote Control Valves, Three-Point Hitch Valve and Cylinder, Front Loader Hydraulics |
| Hitches, Drawbars and Implement Couplings | 928-1037 | Drawbars and Towing Hitches, Rear Three-Point Hitch and Linkage, Front Hitch, Troubleshooting |
| Steering | 1038-1107 | Steering Control, Tie Rods, Hydraulic Control Components, Pump, Cylinders, Troubleshooting |
| Wheels | 1108-1123 | Front and Rear Wheels, Wheel Nut Torques |

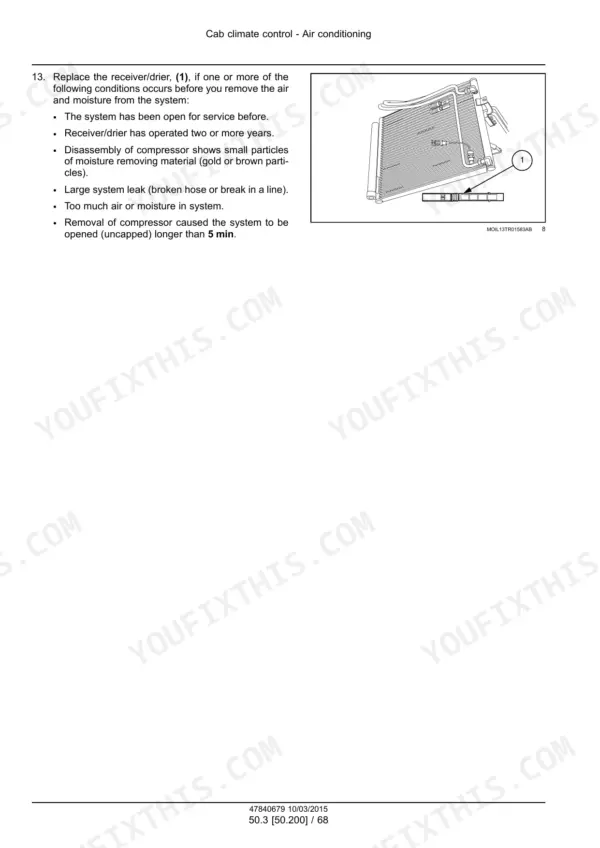

| Cab Climate Control | 1124-1219 | Heating, Ventilation, Air Conditioning Specifications, Compressor, Troubleshooting |

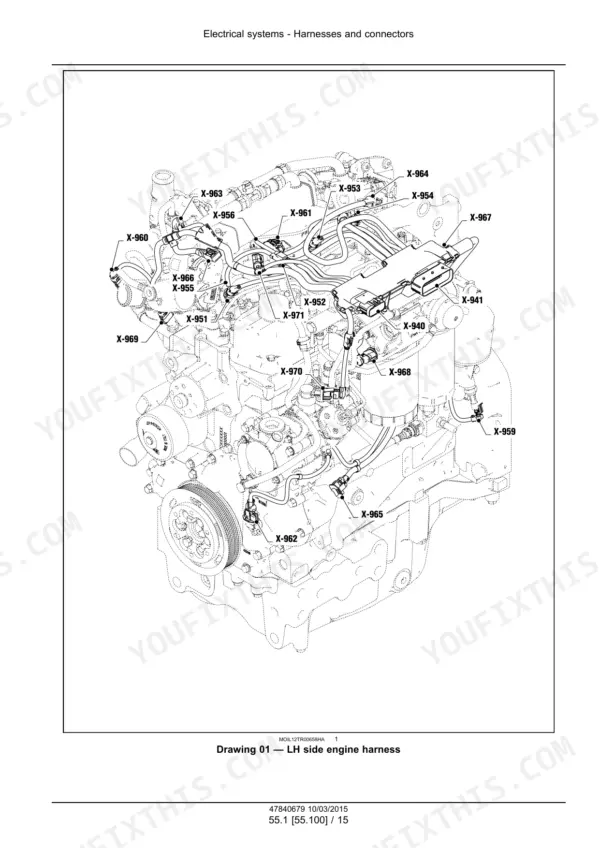

| Electrical Component Locations | 1220-1330 | Component Localization for Platform and Cab, How to Use Wiring Diagrams, Colour Code, Harness Identification by Component and Description |

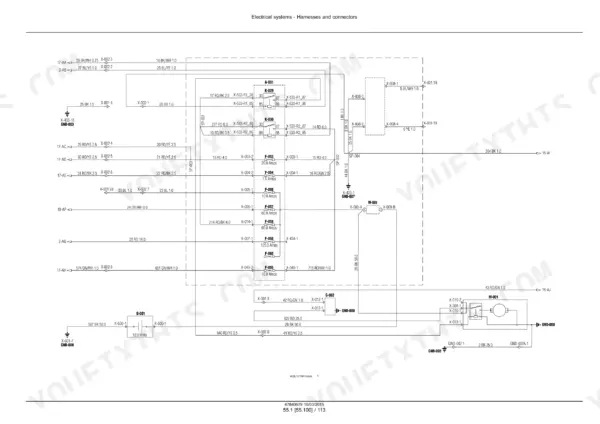

| Electrical Schematics | 1331-1489 | Electrical Schematic Sheets for Mechanical or Power Shuttle and Hi-Lo Tractors, Less Cab and with Cab |
| Wire Connectors and Harness Repair | 1490-2019 | Connector Component Diagrams, Harness Repair, Rewiring, Measuring and Electrical Tests |
| Starting, Charging and Battery | 2020-2055 | Engine Starting System and Starter, Alternator, Battery |

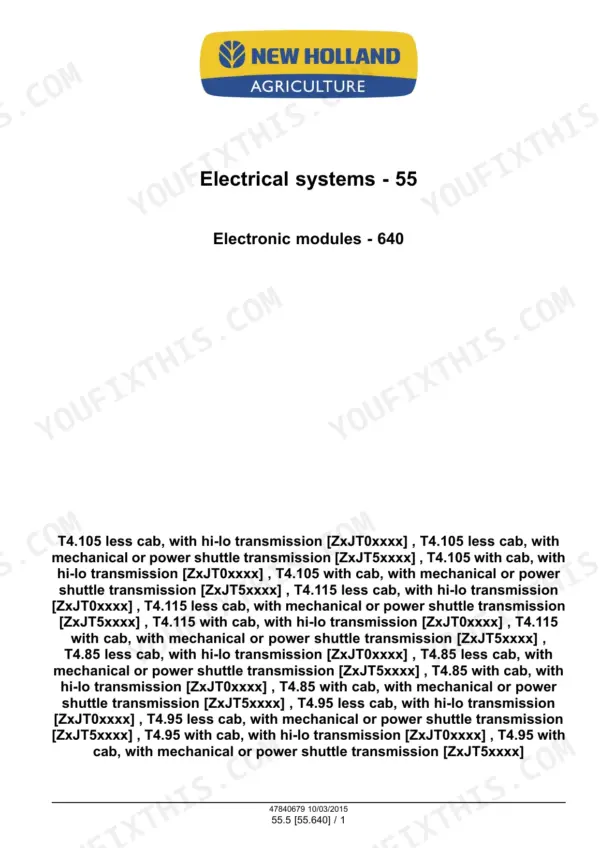

| Electronic Modules and Instruments | 2056-2167 | Electronic Modules and Diagnostic Menus, Rear PTO Control System, Warning Indicators, Alarms and Instrument Cluster |
| Fault Codes (DTC) | 2168-3027 | Fault Code List with Cause and Solution for Each Code, Fault Code Index |
| Front Loader and Bucket | 3028-3085 | Loader Arm, Bucket |
| Platform, Cab, Bodywork and Decals | 3086-3187 | Cab, Cab Interior and Trim, Doors and Hatches, Operator Platform Less Cab, Engine Hood and Shields |
| Special Tool Index | 3188-3193 | Special Tools with Genuine and Reference Numbers |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine speed at maximum power | 2300 RPM | p. 816 |
| Engine oil capacity | 8.5 l (2 US gal), SAE 10W-40 | p. 19 |
| Fuel tank capacity | 115 l (30 US gal) | p. 19 |
| Cooling system capacity | 16 l (4.2 US gal); 14 l (3.7 US gal) model without cab | p. 19 |
| Transmission and rear axle oil | 48 l (12.7 US gal) mechanical; 58 l (15.3 US gal) hydraulic | p. 19 |
| Front axle oil | 4.5 l (1.2 US gal); final drives 1.0 l (0.3 US gal) each | p. 19 |
| Lift hydraulic pump output | 45 l/min (11.89 US gpm); 60 l/min (15.85 US gpm) optional pump | p. 816 |
| Hydraulic services pump output | 25 l/min (6.60 US gpm); 32 l/min (8.45 US gpm) optional pump | p. 816 |
| Main pressure relief valve, mechanical transmission | 190.0 bar (2755.0 psi) | p. 809 |
| Steering relief valves | 165 - 170 bar (2392.5 - 2465 psi) pressure relief valve; 230 - 240 bar (3335 - 3480 psi) cylinder relief | p. 1050 |
| Steering pump rated output | 52.2 l/min (13.8 US gpm) pump 19 + 11; 67.9 l/min (17.9 US gpm) pump 25 + 14 | p. 1088 |
| Service brake operating pressure | 17.60 bar (255.20 psi) | p. 776 |
| Power Shuttle and services transmission working pressure | 17.50 - 18.50 Kg/cm² (248.91 - 263.13 psi) | p. 178 |
| Lift capacity at ball ends | 2430 kg (5357 lb) without supplementary cylinder; 3018 kg (6654 lb) with supplementary cylinder | p. 930 |
| Hitch valve calibration | 190 - 195 bar pressure regulating valve; 220 - 225 bar cylinder safety valve | p. 930 |
| Engine speed with PTO at 540 RPM | 1957 RPM mechanical PTO; 1876 RPM hydraulic PTO | p. 626 |
| Engine speed with PTO at 540E and 1000 RPM | 1535 RPM (540E); 2125 RPM (1000) | p. 677 |
| Front 4WD wheel disk to hub torque | 220.0 N·m (162.3 lb ft) | p. 1110 |
| Rear wheel disc to hub nuts torque | 310.0 N·m (228.6 lb ft) | p. 1116 |
| Air conditioning refrigerant charge | 650.0 g (22.9 oz) HFC-134a | p. 1141 |
New Holland T4.85, T4.95, T4.105, T4.115 Common Problems This Manual Covers
Tractor does not move (Power Shuttle)
The Power Shuttle troubleshooting table lists three causes: low system pressure, low forward clutch pressure and low reverse clutch pressure. Check system pressure first. If system pressure is good, check forward and reverse clutch pressure and repair the clutch as necessary, following the Power Shuttle section.
Manual Section: Transmission p. 170Steering wheel excessively stiff
There are two causes to rule out. A faulty hydraulic pump needs repair, and the Steering chapter covers the pump and its rated output. A pressure relief valve that is set wrong needs calibrating back to 165 - 170 bar (2392.5 - 2465 psi).
Manual Section: Steering p. 1083The lift operates in jerks
Start with the cheap checks. Restore the oil level if the tank is low. Clean or replace the pump inlet filter if it is clogged. If it still jerks, air is getting in, so check the suction pipe, its fittings and the seal.
Manual Section: Hitches, Drawbars and Implement Couplings p. 1000The clutch slips
Once the clutch is apart, look for three causes. Replace worn disks. Replace the Belleville spring if it is weak or damaged. If the friction surfaces have oil or grease on them, replace the disks, find and eliminate the source of the grease, then clean the surfaces.
Manual Section: Clutch p. 155Frequently Asked Questions
Does this manual cover my New Holland T4.85, T4.95, T4.105 or T4.115, and which transmission and PIN?
It covers all four models, less cab and with cab. Hi-Lo tractors are covered from PIN ZxJT0xxxx and above. Mechanical and Power Shuttle tractors are covered from PIN ZxJT5xxxx and above. This is part number 47840679, which replaces part number 47561948. p. 1
What are the New Holland T4.85 to T4.115 fluid capacities?
Engine oil takes 8.5 l (2 US gal) of SAE 10W-40. The fuel tank holds 115 l (30 US gal). Cooling takes 16 l (4.2 US gal), or 14 l (3.7 US gal) on a model without cab. Transmission and rear axle take 48 l (12.7 US gal) mechanical or 58 l (15.3 US gal) hydraulic. The front axle takes 4.5 l (1.2 US gal), and each final drive takes 1.0 l (0.3 US gal). p. 19
What are the New Holland T4.85 to T4.115 hydraulic pump outputs and relief valve settings?
The lift pump delivers 45 l/min (11.89 US gpm) and the services pump 25 l/min (6.60 US gpm). The optional pumps deliver 60 l/min (15.85 US gpm) and 32 l/min (8.45 US gpm). The mechanical transmission hydraulic schematic shows the main pressure relief valve calibrated to 190.0 bar (2755.0 psi). The steering pressure relief valve is set at 165 - 170 bar (2392.5 - 2465 psi). p. 816
What is the New Holland T4.85 to T4.115 lift capacity, engine speed for each PTO speed and wheel nut torque?
Lift capacity at the ball ends is 2430 kg (5357 lb) without the supplementary cylinder and 3018 kg (6654 lb) with it. For 540 RPM at the PTO, the engine runs at 1957 RPM with the mechanical PTO or 1876 RPM with the hydraulic PTO. 540E needs 1535 RPM and 1000 needs 2125 RPM. Torque the front 4WD disk to hub to 220.0 N·m (162.3 lb ft). Torque the rear disc to hub nuts to 310.0 N·m (228.6 lb ft). p. 930
What is inside this manual: wiring diagrams, hydraulic schematics, fault codes?
You get electrical schematic sheets for every version, plus connector diagrams and harness repair. Hydraulic schematics cover the mechanical transmission, the Power Shuttle control valve and the front loader. The DTC chapter gives the cause and solution for each code. Troubleshooting tables cover the clutch, transmission, 4WD, axles, PTO, hitch, steering and air conditioning. The engine chapter covers removal, fuel tanks, EGR, DPF, cooling, the fan and the aftercooler, but it has no internal overhaul procedures. p. 1331
