Diesel particulate filter regeneration is where most owners get stuck, and the New Holland T4.115 operator manual PDF (OEM 47604431, 260 pages) walks that whole procedure from the programmable display, then keeps going through every other system on this tractor. Fault code tables translate what the instrument cluster is flashing into a cause and a fix, covering the hydraulic lift, three-point linkage, brakes, and cab climate control. A full maintenance chart sorts every service point by hour meter, and the specifications section prints axle and drawbar load limits so you can ballast a heavy implement correctly. Change the hydraulic circuit oil filter every 300 hours; pull the front M16 disc to hub nuts to 220 N·m (162.3 lb ft). A guessed torque costs you a wheel stud. Print the pages for the job at hand and let them get greasy on the bench; the bookmarked, text searchable file stays clean for the next season's work.
What's Inside This New Holland T4.115 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 10-25 | Introduction, Fuel Supply, Biodiesel Fuel - Biodiesel Fuels, Body Maintenance, Opening the Hood, Fluids and Lubricants |
| Safety Information | 26-47 | Safety Rules and Signal Word Definitions, Air Conditioning Safety Regulations, Vehicle Vibration Levels, Cab Guard, Machine Stability, Personal Protective Equipment |

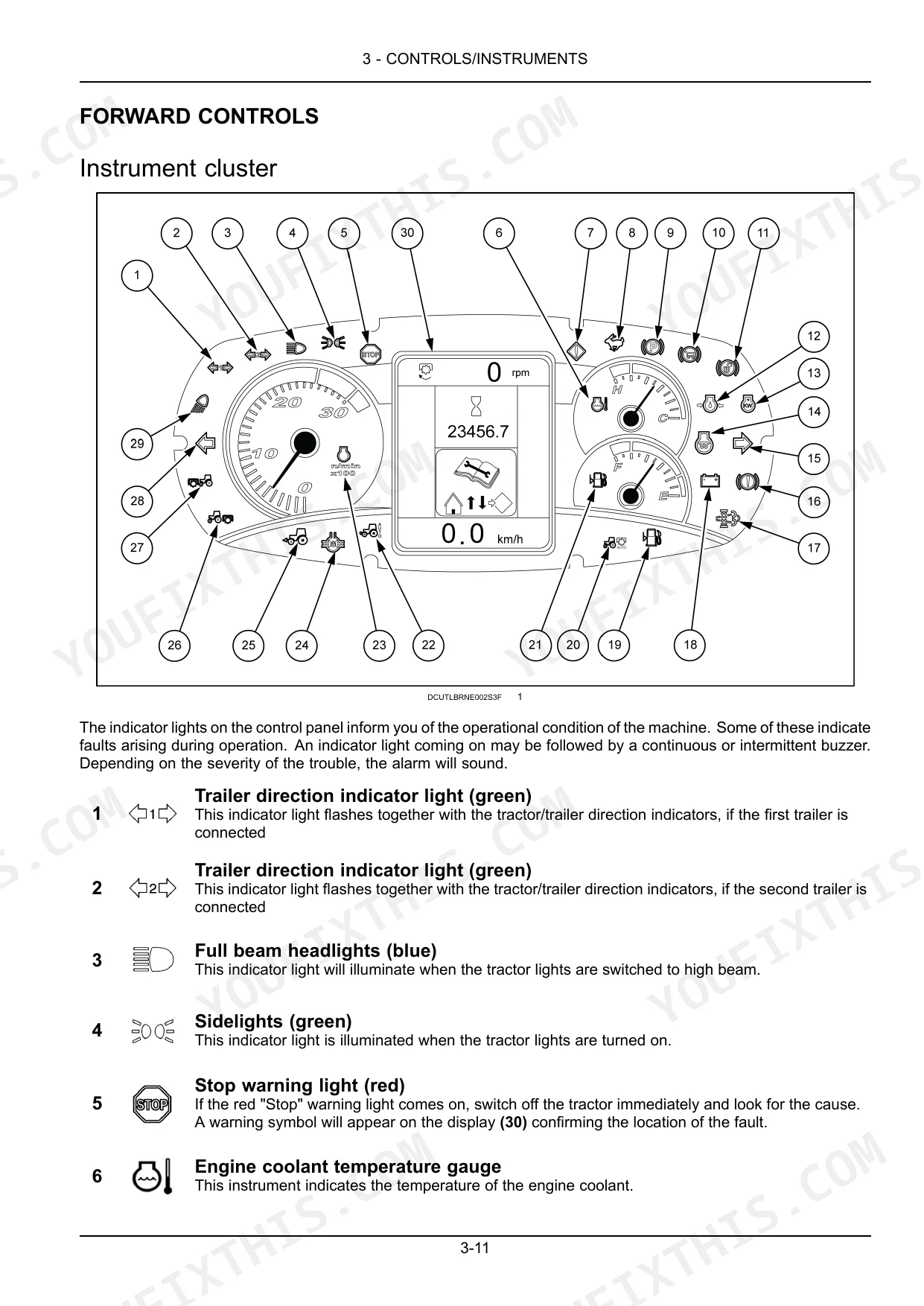

| Controls/Instruments | 48-89 | Access to Operator's Platform (Cab), Operator's Seat (Mechanically-Adjusted Operator Seat - Adjust, Pneumatically-Adjusted Operator Seat - Adjust, Seat Belt) |

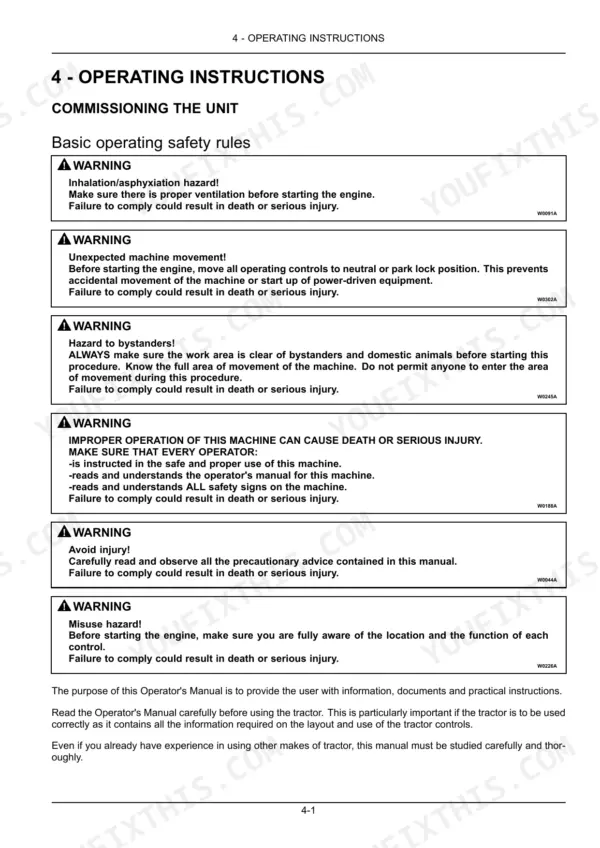

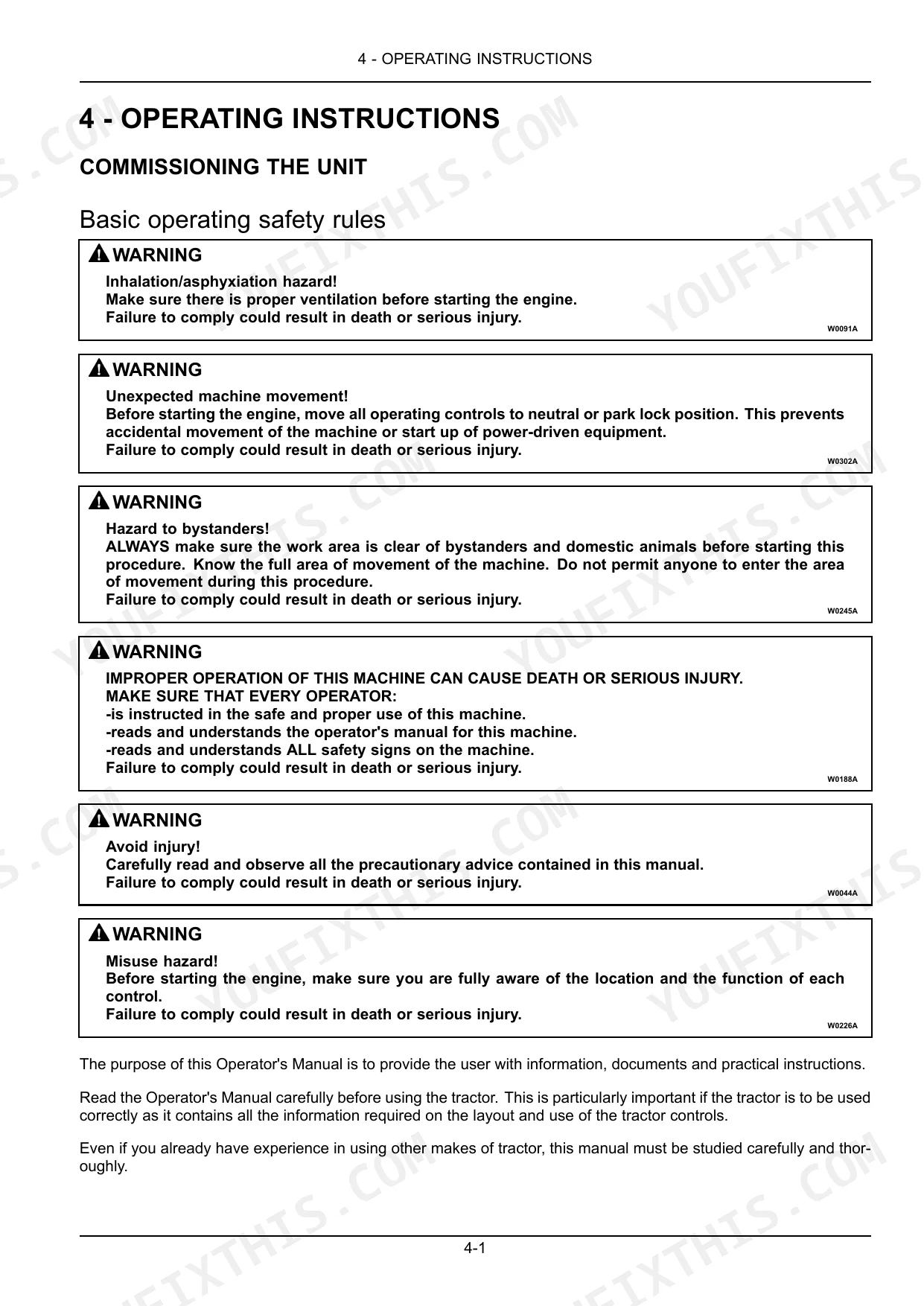

| Operating Instructions | 90-103 | Commissioning the Unit (Basic Operating Safety Rules), Starting the Unit (Starting the Engine, Machine Movement Start-Up), Stopping the Unit (Stopping the Engine) |
| Transport Operations | 104-105 | Road Transport (Transporting the Machine), Recovery Transport (Towing the Tractor) |
| Working Operations | 106-147 | Four Wheel Drive (Four-Wheel Drive with Electro-Hydraulic Control), Differential Lock (Mechanical Differential Lock, Electrohydraulic Differential Lock) |

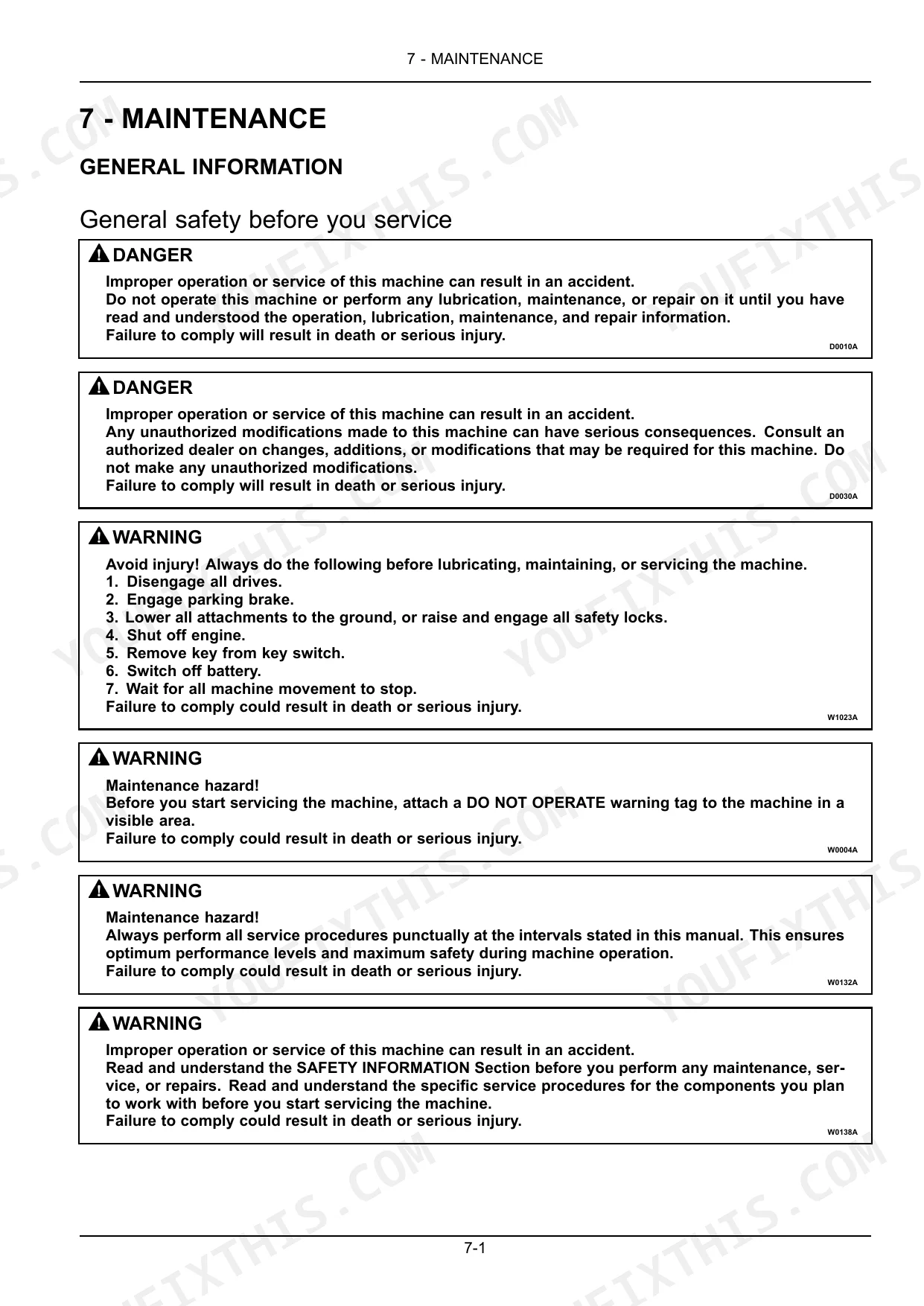

| Maintenance | 148-201 | Maintenance Chart |

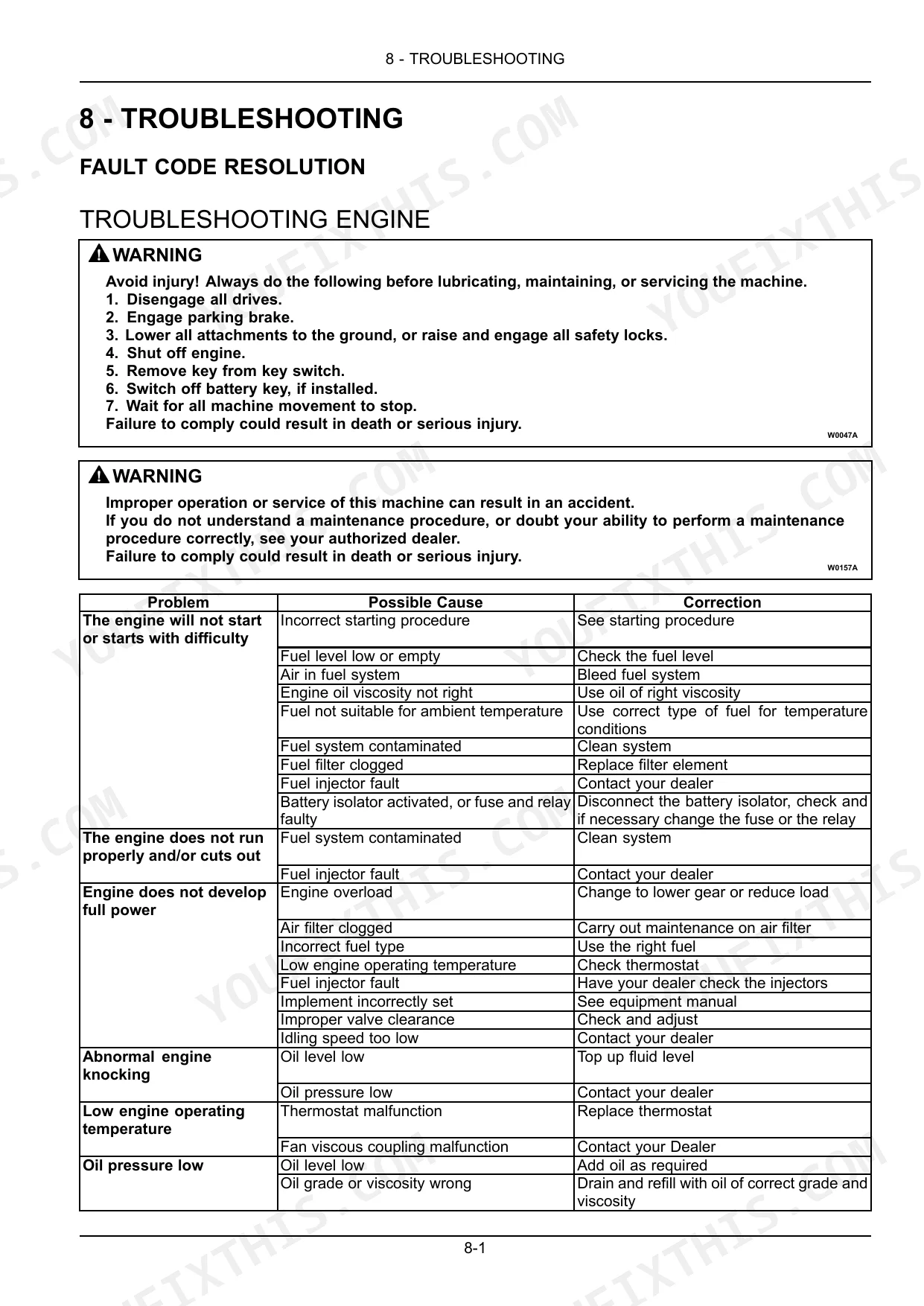

| Troubleshooting | 202-217 | Fault Code Resolution (Troubleshooting Engine, Electrical System - Troubleshooting Electrical System, Hydraulic Systems - Troubleshooting Hydraulic System, Rear Three-Point Hitch - Troubleshooting Hydraulic Lift and 3-Point Linkage, Hydraulic Service Brakes - Troubleshooting, Cab Climate Control - Troubleshooting) |

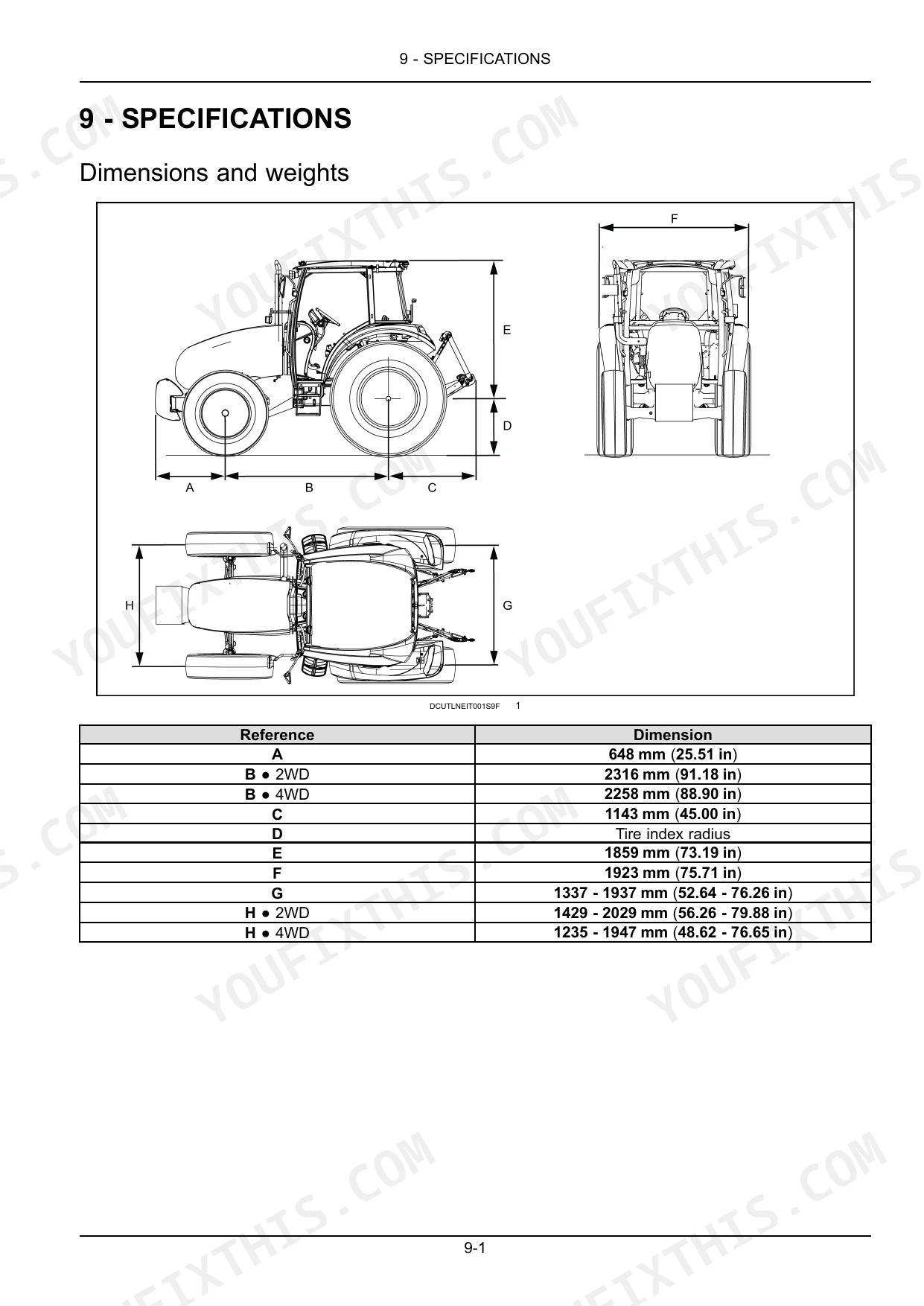

| Specifications | 218-225 | Dimensions and Weights, Maximum Permitted Loads on Front and Rear Axle, Maximum Permitted Loads on Drawbar, Technical Data |
| Accessories | 226-260 | Radio, Joystick and Electric Hydraulic Control - Operating, Front Loader and Bucket - Operating |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine idle speed for turbocharger cooling | 1000 RPM | p. 95 |
| Hydraulic circuit oil filter maintenance interval | Every 300 hours | p. 157 |
| Dry air filter - External cartridge maintenance interval | At warning message display or Every 300 hours | p. 157 |
| Alternator belt maintenance interval | Every 100 hours | p. 157 |
| Disc to hub nuts (Front - M16) | 220 N·m (162.3 lb ft) | p. 177 |
| Disc to hub nuts (Rear - M18) | 310 N·m (228.6 lb ft) | p. 177 |
| Alternator output | 120 A (standard version), 150 A (on request) | p. 225 |
| Starter motor power | 3.2 kW or 4.2 kW | p. 225 |
| Fuel tank capacity | 115 L (30 US gal) | p. 151 |
| Engine oil capacity | 8.5 L (2 US gal) | p. 156 |
| Transmission/rear axle oil capacity (Mechanical) | 48 L (12.7 US gal) | p. 156 |
New Holland T4.115 Common Problems This Manual Covers
New Holland T4.115 three point hitch lifts fine cold, then slows or quits once hydraulic oil warms up
Check the transmission and rear axle oil level first; the hydraulic system version holds 58 L (15.3 US gal), listed on page 156. Replace the hydraulic circuit oil filter if it has 300 hours on it, per the schedule on page 157. Then recheck lift with the draft control lever backed off before harvest traffic stacks up.
Manual Section: Rear Three-Point Hitch TroubleshootingTransmission fault code on the dash, electric shuttle lever slow to respond or dead
Write down the code from the display, then match it against the error code reference starting on page 202. Cycle the shuttle lever through forward, neutral, and reverse; a worn lever switch or neutral button is the usual culprit. Also load test the battery; specifications on page 225 call for 88 A·h to 100 A·h capacity.
Manual Section: Troubleshooting p. 202Engine turns over slowly or refuses to start on cold mornings before field work
Check battery terminals for corrosion and load test the battery; specifications on page 225 list 88 A·h to 100 A·h capacity feeding a 3.2 kW or 4.2 kW starter motor. Inspect the alternator belt, due for a check every 100 hours. If cranking stays slow with a good battery, have the starter and cables tested before winter chores start.
Manual Section: Electrical System TroubleshootingBlue smoke and oil film in the turbo air pipe after hard pulling
Idle the engine at 1000 RPM for a few minutes before shutdown, per the operating procedure on page 95, so the turbocharger cools while oil still flows. Verify the crankcase is not overfilled; engine oil capacity is 8.5 L (2 US gal), listed on page 156. Service the air filter at the warning message or every 300 hours.
Manual Section: Operating Instructions p. 95Warning lamps flash and the digital instrument display goes blank while driving
Check battery ground and terminal connections first; loose grounds on open station tractors cause most display dropouts. Verify the alternator is charging; standard output is 120 A per the specifications on page 225. Match any code that appears against the error code reference beginning on page 202, and write codes down before they clear.
Manual Section: Display Warnings OverviewFrequently Asked Questions
How do I reset the oil change counter on my New Holland T4.115?
To reset the oil change counter, ensure the engine is switched off. Enter the programming menu by pressing switch (2) on symbol (B) for more than three seconds until 'SETUP MENU' appears. Step with switch (3) until 'OIL RESET' appears, then press switch (2) on symbol (B) to display 'RESET'. Press switch (2) on symbol (B) again to confirm; the monitor will display 'OFF'. p. 88
What is the meaning of error code U19 on the New Holland T4.115?
Error code U19 indicates that the oil temperature is below 10 °C (50.0 °F), which means that calibration is not permitted. p. 201
What is the engine oil capacity for the New Holland T4.115?
The engine oil capacity for the T4.115 is 8.5 liters (2 US gallons). p. 156
What is the correct tightening torque for M16 class 8.8 bolts on a New Holland T4.115 tractor?
The minimum tightening torque for an M16 class 8.8 bolt is 190 N·m (140 lb ft). p. 252
How often should the transmission oil be replaced?
The transmission oil should be replaced every 1200 hours or every two years. p. 180
Is this New Holland T4.115 Operator Manual a digital download?
Immediate download of the complete 260-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Is this New Holland T4.115 Operator Manual printable?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
