Winter storage is over and the Boomer needs its 50 hour service before the first cutting: the New Holland Boomer 46D CVT, Boomer 54D CVT operator manual PDF, OEM 48028213, answers that in 266 pages written for both compact tractor variants. Nearly seventy pages walk the operator's platform control by control, from forward and left-hand side controls through the overhead and exterior switches, so every dash indicator and CVT input has a name and a function. The maintenance section is the heaviest block in the book, sorted into 10 hour, 50, 100, 300, 600, and 1000 hour intervals, with warning and fault displays explained where they appear. Torque your wheel bolts to 129 N·m (95 lb ft) and refill the CVT transmission and hydraulic system with 35.2 L (9.3 US gal). A guessed torque loosens a rear wheel at road speed. Bookmarked, searchable, and cheap to print for the bench, where it can pick up grease.
What's Inside This New Holland Boomer 46D CVT, Boomer 54D CVT Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-18 | Note to the Owner, Intended Use, Electro-Magnetic Compatibility, Product Identification Number, Operator's Manual Storage on the Machine, Machine Orientation |
| Safety Information | 19-46 | Safety Alert Symbol and Signal Word Definition, Safety Rules, Roll Over Protective Structure, Ecology and the Environment, Safety Features, Safety Signs, Instructional Signs |

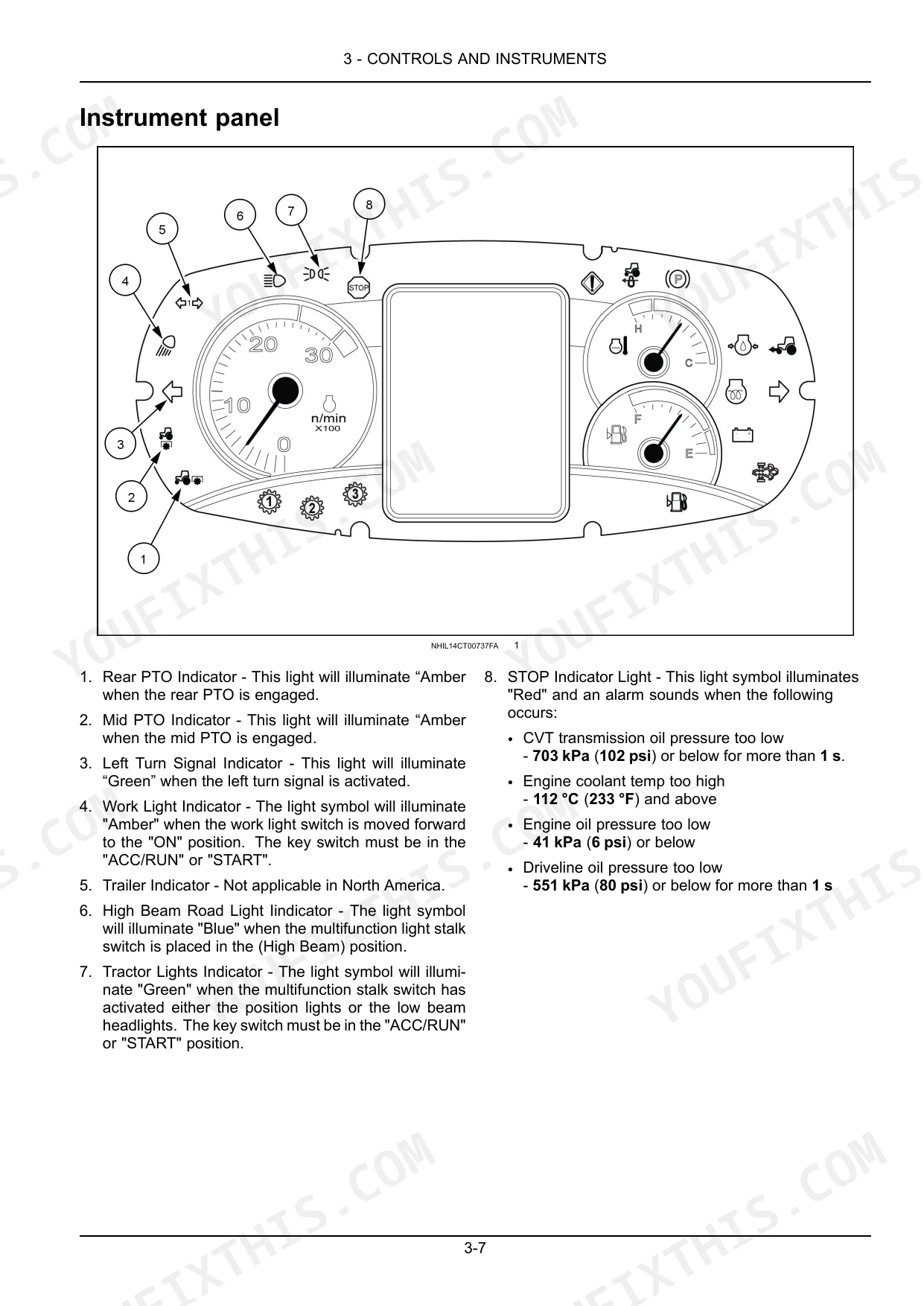

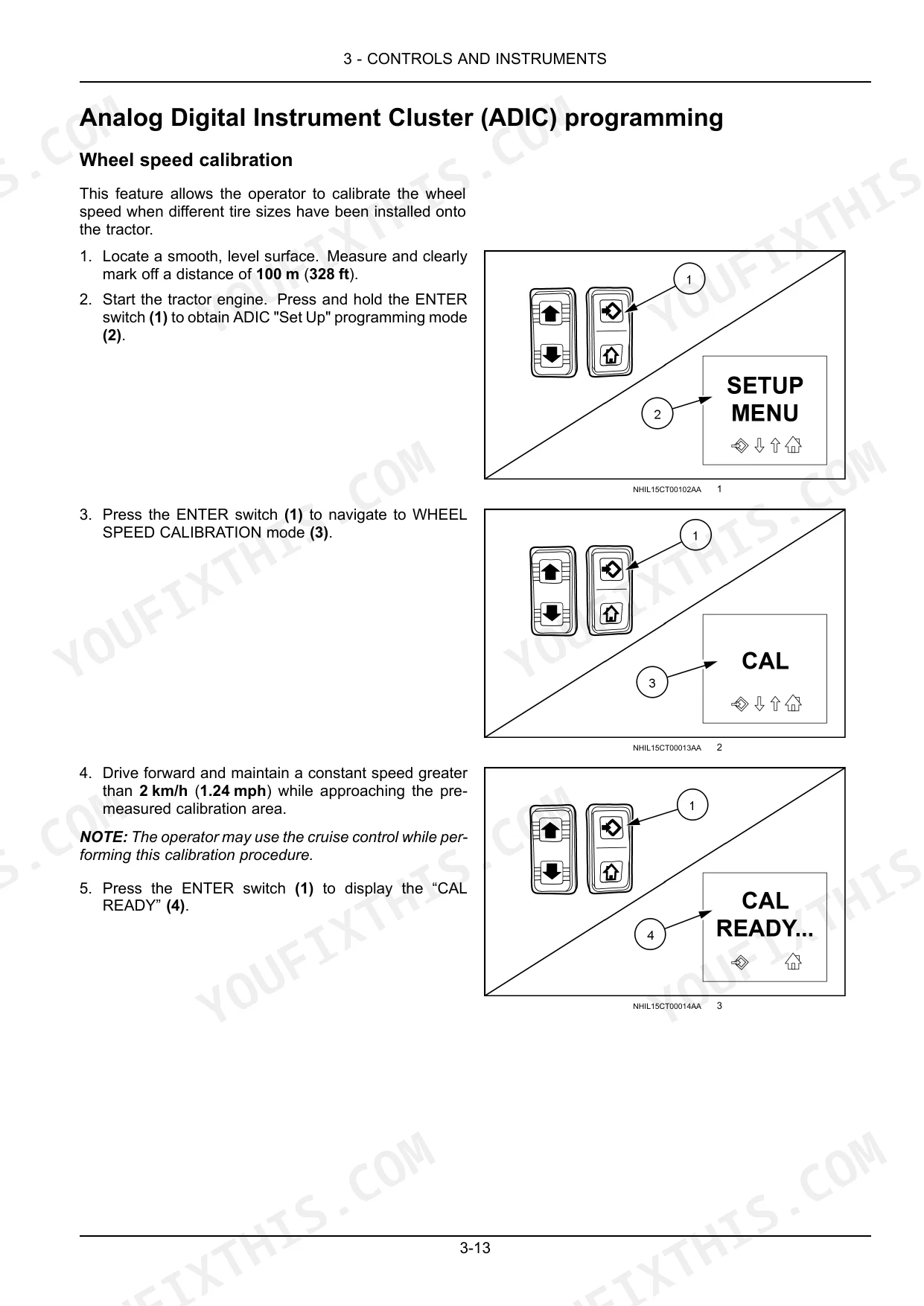

| Controls and Instruments | 47-116 | Access to Operator's Platform, Operator's Seat, Forward Controls, Left-Hand Side Controls, Right-Hand Side Controls, Rearward Controls, Overhead Controls, Exterior Controls |

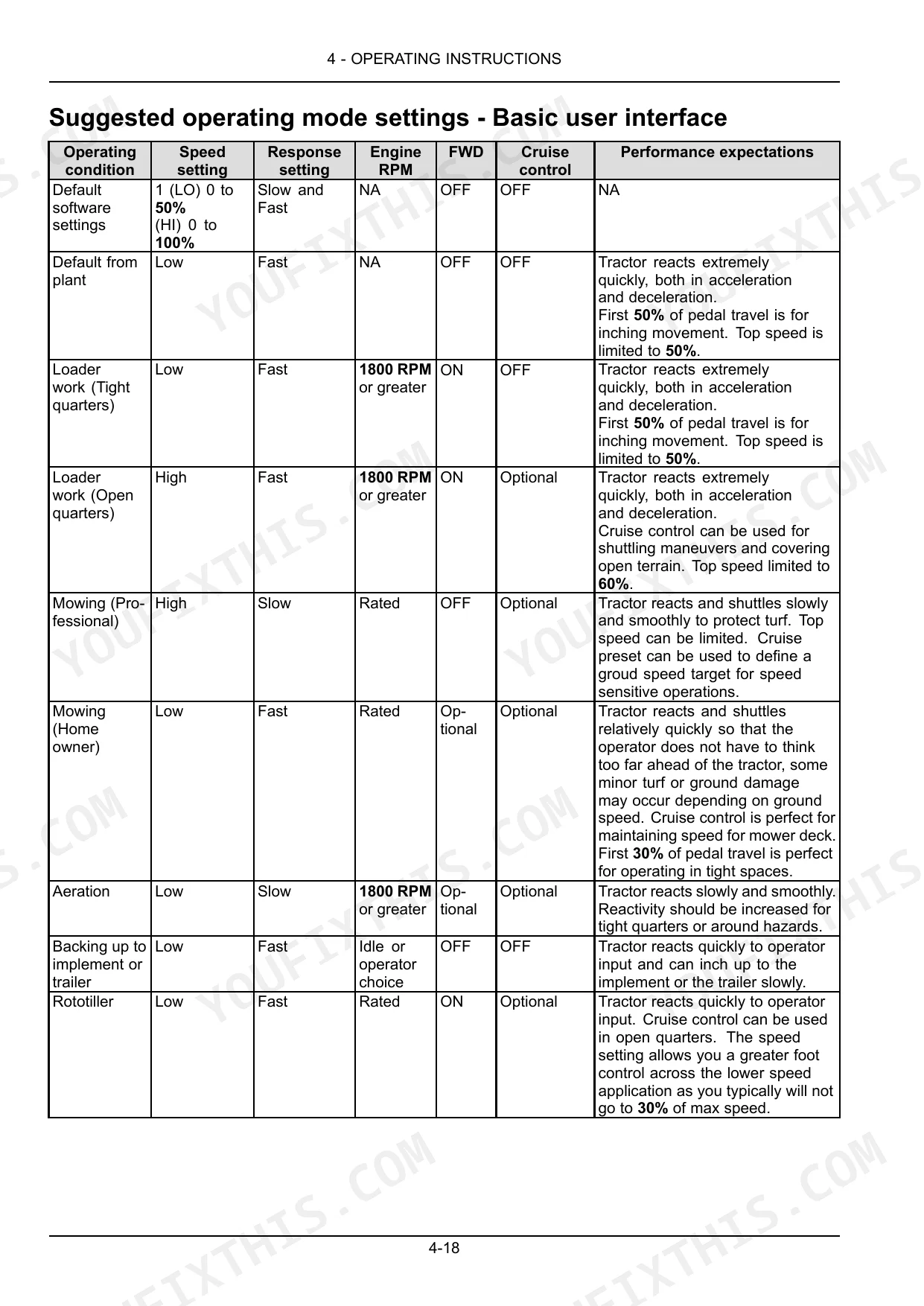

| Operating Instructions | 117-150 | Commissioning the Unit, Starting the Unit, Stopping the Unit |
| Transport Operations | 151-164 | Front Work and Road Lights, Hazard Lights |
| Working Operations | 165-172 | Driving the Tractor, Tractor Hydraulics |

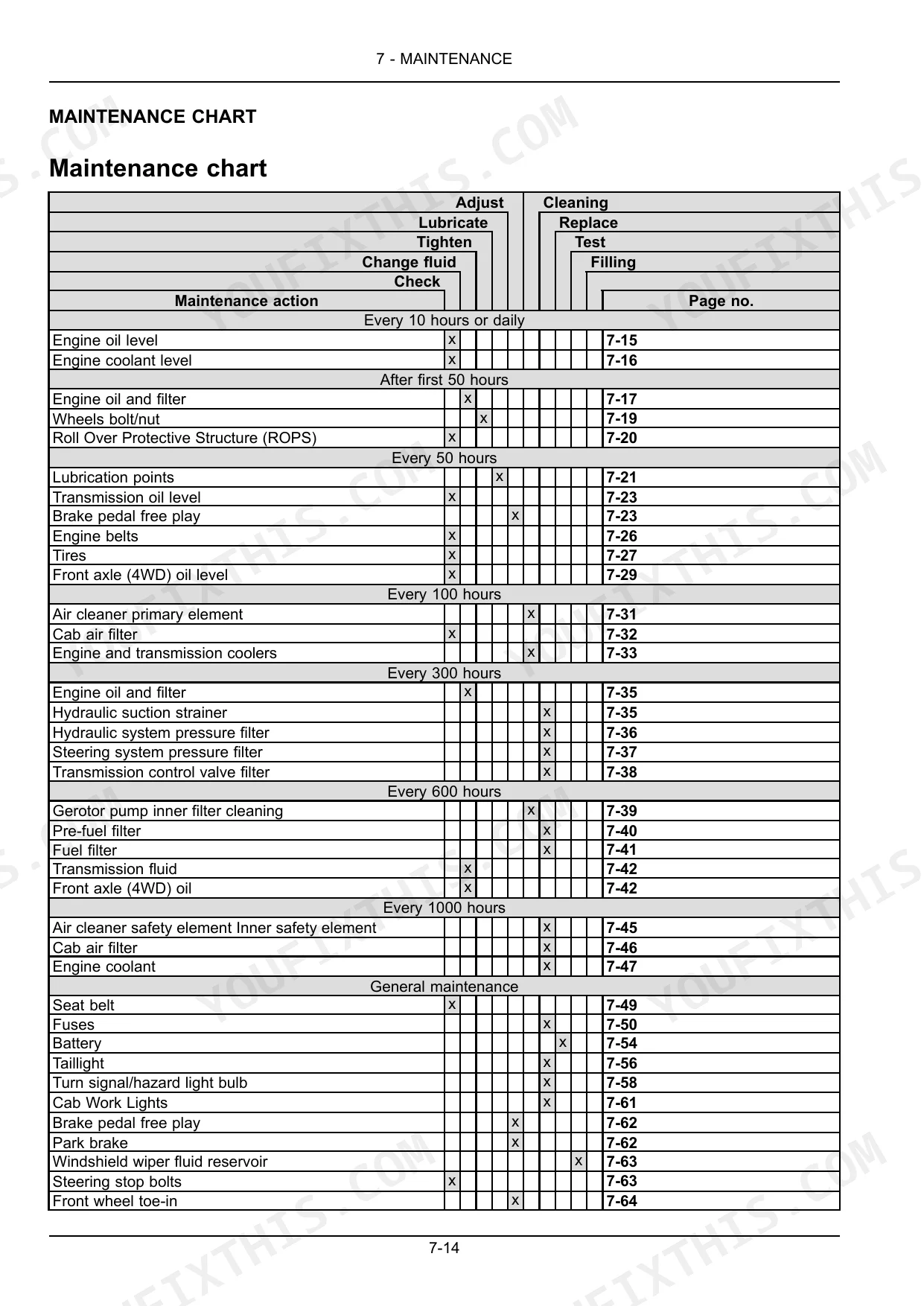

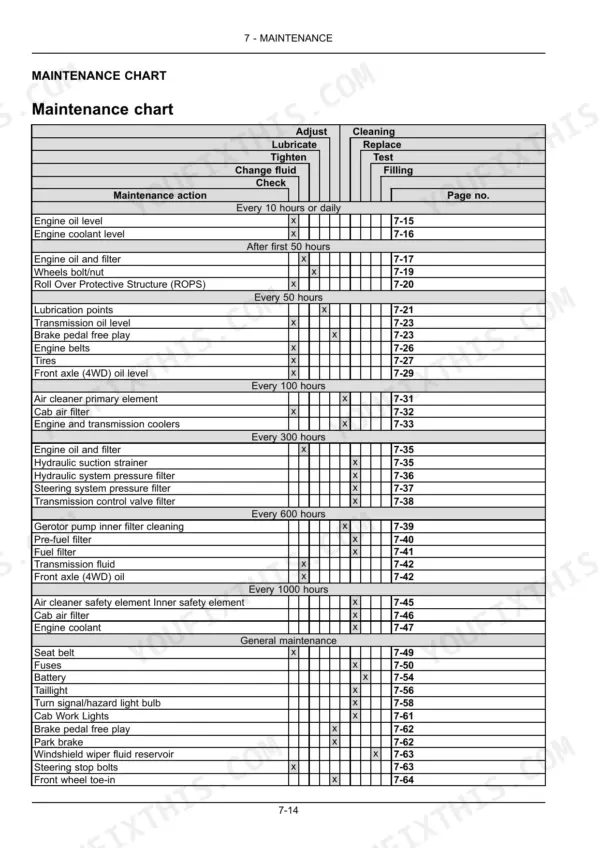

| Maintenance | 173-238 | Maintenance Chart, Every 10 Hours or Daily, After First 50 Hours, Every 50 Hours, Every 100 Hours, Every 300 Hours, Every 600 Hours, Every 1000 Hours |

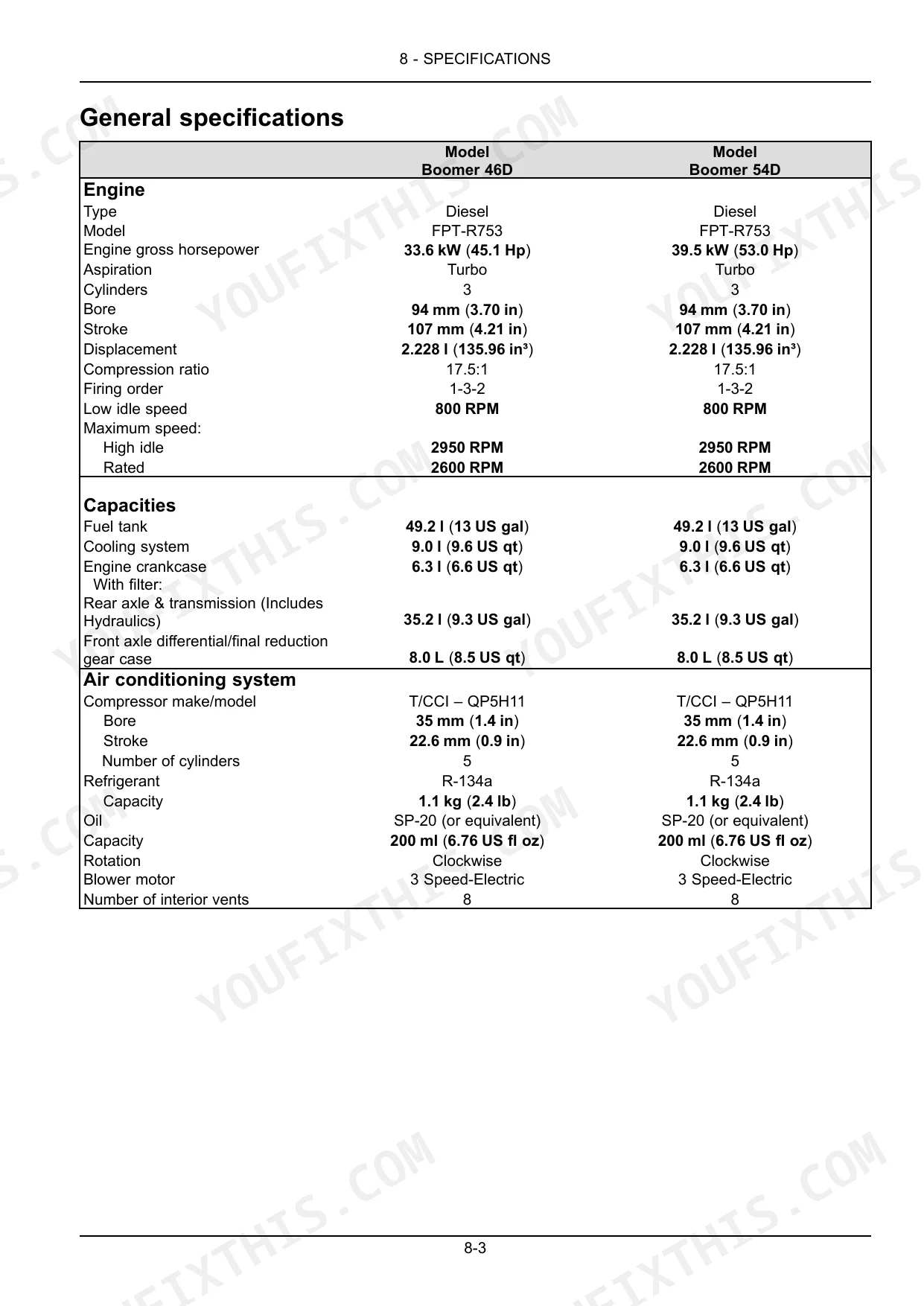

| Specifications | 239-250 | Wheel Tread Settings, Tractor Dimensions |
| Accessories | 251-258 | Front End Weights, Rear Wheel Weights |
| Forms and Declarations | 259-266 | Delivery Report, Inoperative Service Checks, Safety Items Check, Operative Service Checks |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Transmission/Hydraulic Oil Capacity | 35.2 L (9.3 US gal) | p. 184 |
| Front Wheel Torque | 129 N·m (95 lb ft) | p. 191 |
| Rear Wheel Torque | 129 N·m (95 lb ft) | p. 191 |
| C.V.T. transmission fluid capacity | 35.2 L (9.3 US gal) | p. 214 |
| Main fuse amperage rating | 100 A | p. 225 |
| Engine Oil Capacity | 6.3 L (6.6 US qt) | p. 184 |
| Transmission / Hydraulic Oil Capacity | 35.2 L (9.3 US gal) | p. 184 |
| Front Axle Oil Capacity | 8.0 L (8.5 US qt) | p. 184 |
| Engine Coolant Capacity | 9.0 L (9.6 US qt) | p. 184 |
| Fuel Tank Capacity | 49.2 L (13.0 US gal) | p. 184 |
| Front Wheel Bolt Torque | 129 N·m (95 lb ft) | p. 191 |
| Rear Wheel Bolt Torque | 129 N·m (95 lb ft) | p. 191 |
New Holland Boomer 46D CVT, Boomer 54D CVT Common Problems This Manual Covers
New Holland Boomer 46D CVT will not move in cold weather and dash flashes a warning
Warm the engine at idle before selecting a range. Check the status and warning icon meanings starting, then confirm transmission fluid is at the full mark. Capacity is 35.2 L (9.3 US gal) per page 214, so even a quart low can trip transmission protection. Recheck level warm.
Manual Section: Status and warning iconsDrive weakens or nearly disappears under load on hot afternoons
Shut down and let the tractor cool before restarting. Clean chaff and dust off the radiator and oil cooler screens, and inspect the air cleaner primary element using the procedure. Verify transmission oil level on flat ground with the engine off; the system holds 35.2 L (9.3 US gal).
Manual Section: Tractor Hydraulics p. 167Engine drops to idle on its own, gauges sweep, and several codes appear on the display
Record every code, then look them up in the ADIC fault code tables on pages 72 through 78 before touching anything. Check battery terminals for corrosion and loose clamps, and inspect the 100 A main fuse listed on page 225. Clean and reseat any connector showing green film or moisture.
Manual Section: Analog Digital Instrument Cluster (ADIC) fault codes - Engine relatedEngine cranks but will not start with the operator seated
Verify the transmission control is in neutral and the PTO switch is off, then sit fully in the seat so the safety switch closes. Inspect the seat switch connector under the cushion for corrosion or a pulled pin. Check the fuse identification chart and confirm the 100 A main fuse is intact.
Manual Section: Fuse identificationExhaust filter icon stays lit on the dash and will not clear during field work
Keep working the tractor at rated engine speed so automatic regeneration can finish. If the icon stays on, run a manual regeneration following the steps with the tractor parked away from dry crop residue. Top off fuel first; the tank holds 49.2 L (13.0 US gal).
Manual Section: Particulate Matter Catalyst regeneration p. 84Front axle whines or steering feels heavy when four wheel drive is engaged
Park level and check the front axle and final reduction oil levels using the plugs described. Fill the differential housing to the level plug; capacity is 8.0 L (8.5 US qt) per page 215. Set tire pressures from the chart, then retorque wheel bolts to 129 N·m (95 lb ft).
Manual Section: Front axle and differential oil level check p. 215Frequently Asked Questions
What is the torque specification for the front wheel bolts on the Boomer 46D and 54D tractors?
The front wheel bolts must be tightened to a torque of 129 N·m (95 lb ft) whenever the wheel assembly is removed or the bolts are loosened. p. 191
What is the total transmission and hydraulic oil system capacity on a New Holland Boomer 46D CVT, Boomer 54D CVT?
The total capacity for the transmission and hydraulic oil system is 35.2 L (9.3 US gal). p. 184
How often should the engine oil and filter be changed after the initial 50-hour break-in period?
After the initial 50-hour break-in period, the engine oil and filter should be changed every 300 hours of operation. If the tractor is operated under continuous, severe operating conditions, the interval should be shortened to 100 hours. p. 189
What is the proper belt deflection for the air conditioning compressor belt?
The air conditioning compressor belt should have a deflection of 7 mm (0.3 in) when a deflection force of 85 N (19 lb) is applied. p. 198
What is the required torque for the ROPS bottom mounting bolts on a New Holland Boomer 46D CVT, Boomer 54D CVT?
The ROPS bottom mounting bolts (M12) should be tightened to a torque of 93 – 126 N·m (81 – 93 lb ft) during inspection. p. 192
How quickly can I access this New Holland Boomer 46D CVT manual after buying?
Straight to your device: 266 pages of searchable Operator Manual, downloadable the moment payment goes through.
Can I print specific sections of this New Holland Boomer 46D CVT manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
