A fault code flashing mid-job on the instrument cluster wastes daylight fast; this New Holland Boomer 54D operator manual PDF, factory publication 48028237, is the 272-page answer for the 54D and 54D CVT compact tractors. Tables in the controls section decode the ADIC's transmission, PTO, and engine faults in plain language, and the maintenance chapter, close to a quarter of the book, carries each service from the daily checks through the 1000-hour coolant change. CVT operating modes, PTO operation, and the deluxe three-point linkage each get their own setup procedures, plus ballast and tire inflation tables for your loader and implement work. Watch coolant temperature: 112 °C (233 °F) trips the STOP indicator, and blow the air cleaner primary element clean every 100 hours at no more than 30 psi. Hay down, code flashing, no number in reach: that is the stall this book ends. Bookmarked and text-searchable, it hands you the right filter spec before you finish dialing the dealer.
What's Inside This New Holland Boomer 54D, Boomer 54D CVT Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-26 | Note to the Owner, Intended Use, Official Documents, Electro-Magnetic Compatibility, Manual Scope and Required Training Level, Metric and Imperial Units Abbreviations |
| Safety Information | 27-60 | Safety Alert Symbol and Signal Word Definition, Safety Rules, Airborn Noise Emission, Vibration Levels, Machine Stability, Ecology and the Environment, Safety Features |

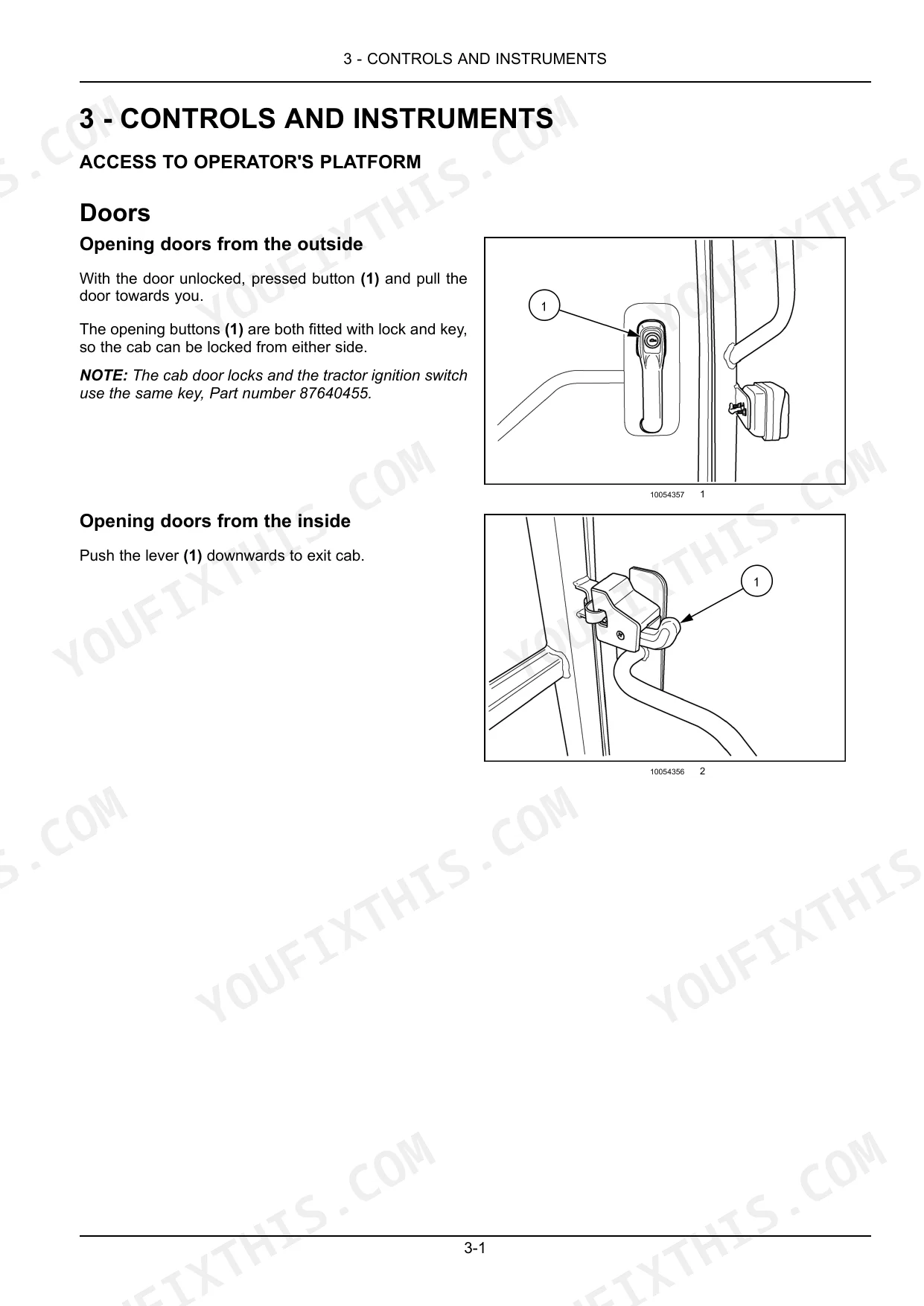

| Controls and Instruments | 61-128 | Access to Operator's Platform (Doors), Operator's Seat (Seat Belt) |

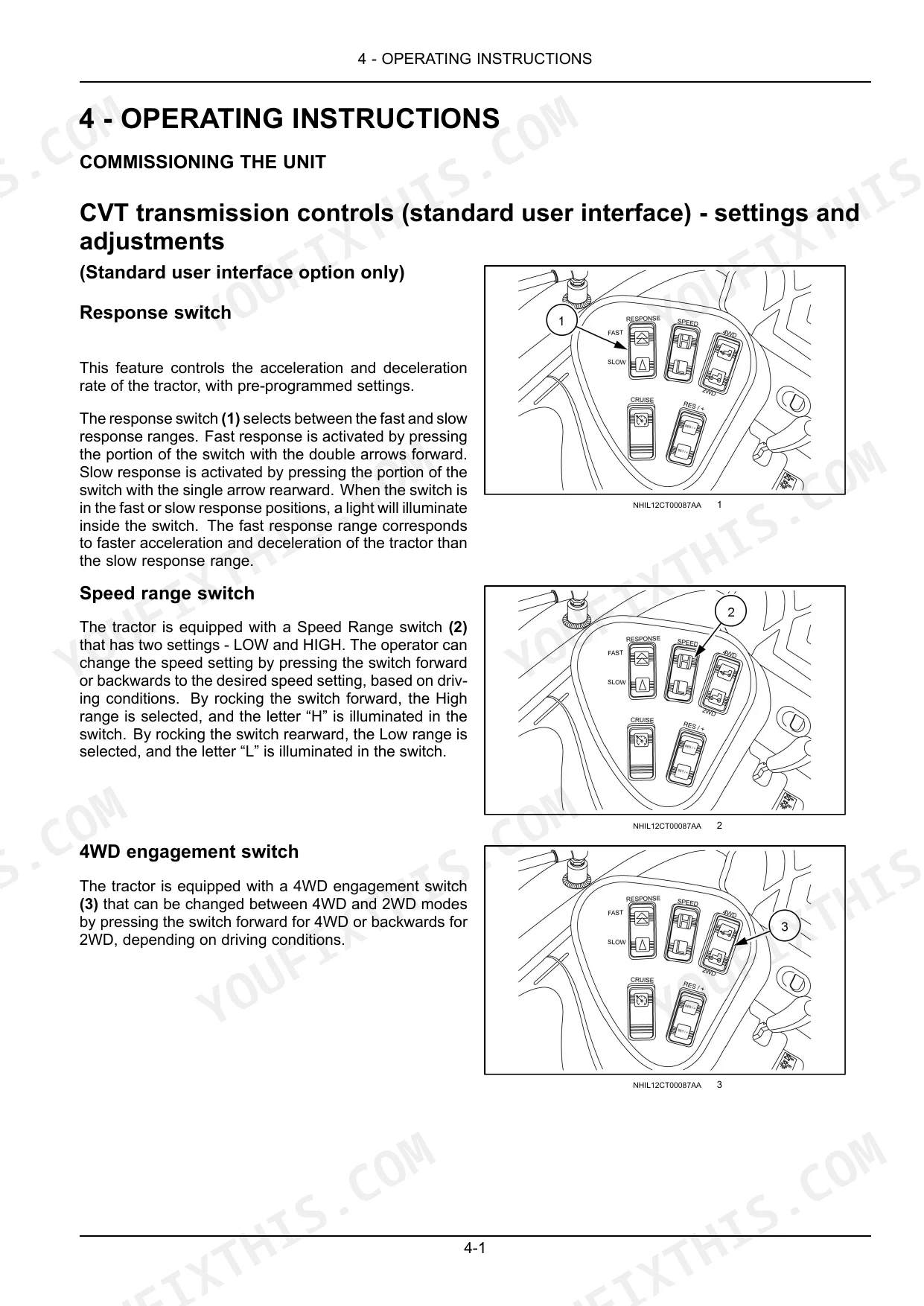

| Operating Instructions | 129-162 | Commissioning the Unit (CVT Transmission Controls - Settings and Adjustments, Suggested Operating Mode Settings - Basic User Interface, Suggested Operating Mode Settings - Enhanced User Interface, Power Take-Off Operation, Extendable Drawbar, Deluxe Three-Point Linkage) |
| Transport Operations | 163-172 | Road Transport (Front Road Lights, Hazard Lights, Tail/Brake Lights, Cab Work Lights, Roof Beacon, Multifunction Stalk Switch, License Plate Light) |
| Working Operations | 173-180 | Tractor Hydraulics (Hydraulic Systems - Safety Rules, Hydraulic Power Lift, Position Control, Top Link Lift Rocker, Hydraulic Power Lift Drop Rate Control Valve, Rear Remote Control Valve, Mid Mount Two Spool Control Valve) |

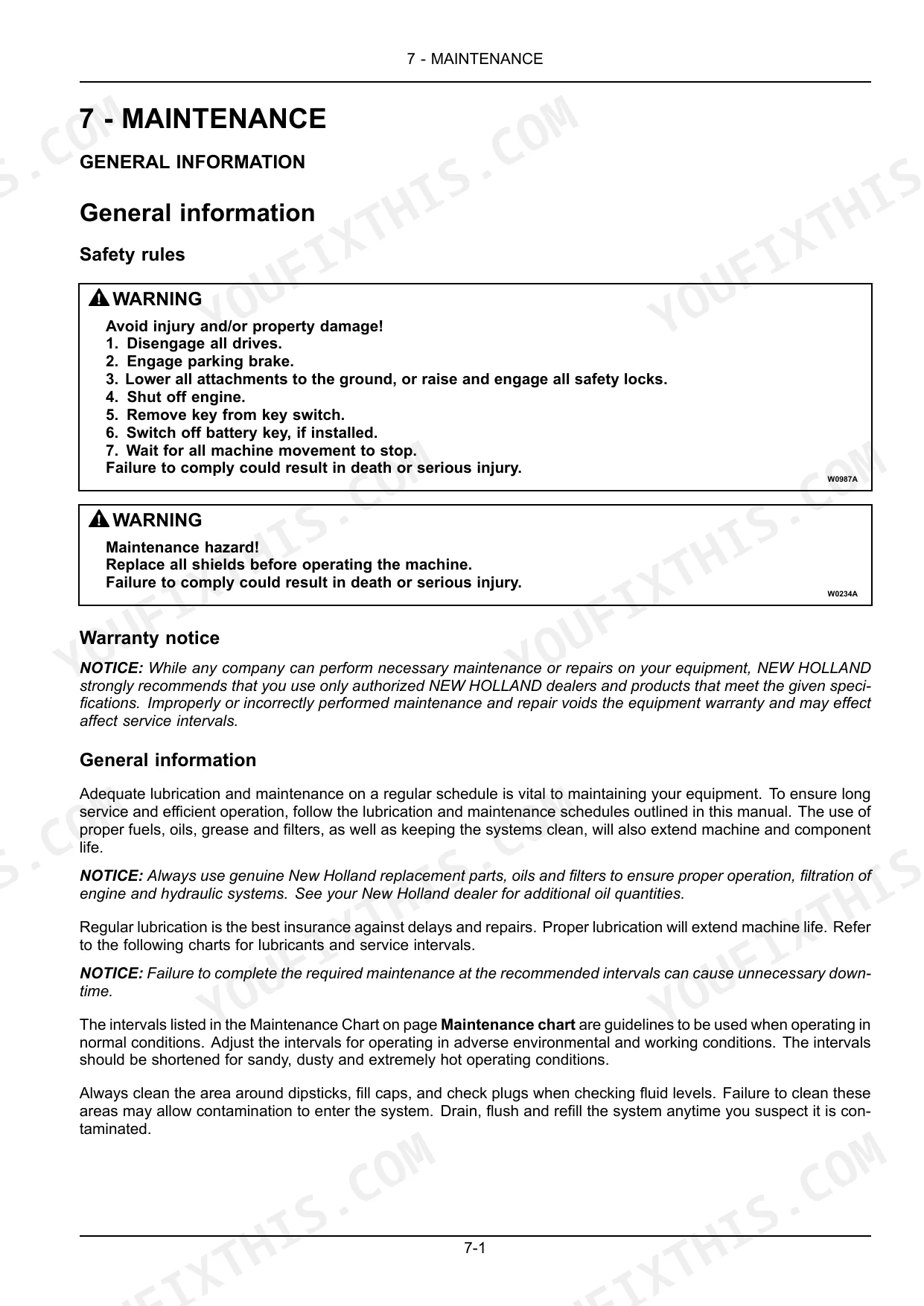

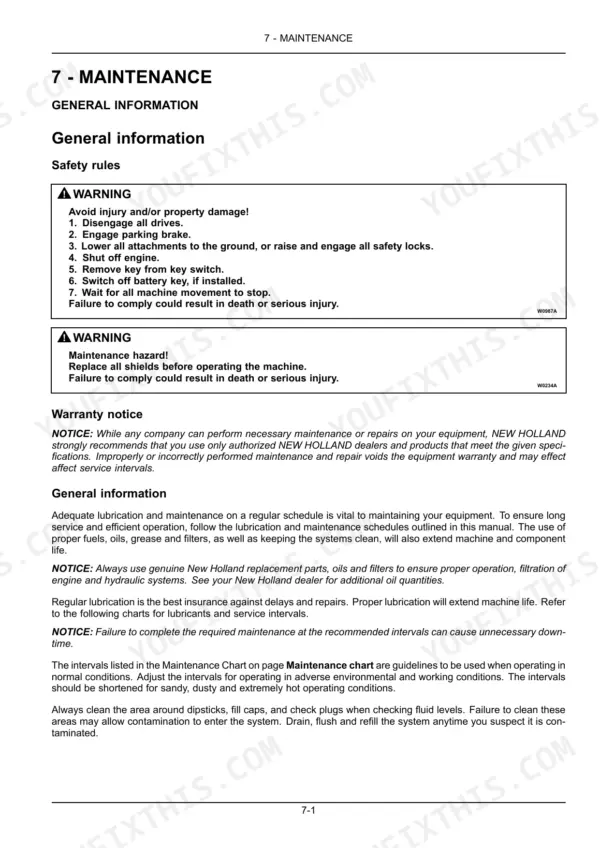

| Maintenance | 181-244 | Maintenance Chart, Every 10 Hours or Daily (Engine: Oil Level, Coolant Level), After First 50 Hours (Engine Oil and Filter, Wheels Bolt/Nut) |
| Specifications | 245-256 | Wheel Tread Settings, Tractor Weighting, Tractor Dimensions |
| Accessories | 257-264 | Front End Weights, Rear Wheel Weights, 3-Point Hitch Counter Weight, Rear Wheels Liquid Ballast, Tire Inflation Pressures, Dealer Installed Accessory |
| Forms and Declarations | 265-272 | Delivery Report - Owner Copy, Delivery Report - Dealer Copy |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine speed for alternator excitation (cold start) | 950 RPM | p. 66 |
| Engine speed for alternator self-excitation | 2300 RPM | p. 66 |
| Engine coolant temperature for Stop indicator | 112 °C (233 °F) | p. 65 |
| Air cleaner primary element cleaning interval | 100 hours | p. 211 |
| Air cleaner primary element cleaning air pressure | 2 Kg/cm² (30 psi) | p. 211 |
| Cold cranking ability | 850 A at -18 °C (0 °F) | p. 233 |
| Battery type | BCI group 34R, 12 V | p. 233 |
| Cooling system capacity | 9.0 L (9.6 US qt) | p. 227 |
| Thermostat start to open | 80 °C (95 °F) | p. 248 |
| Thermostat fully open | 95 °C (203 °F) | p. 248 |
| Engine Oil Capacity | 6.3 L | p. 193 |
| Transmission / Hydraulic Oil Capacity | 35.2 L | p. 193 |
New Holland Boomer 54D, Boomer 54D CVT Common Problems This Manual Covers
New Holland Boomer 54D intermittent no-start, sometimes fires after tapping the module on the engine
Check the battery cable clamps and the harness connectors at the control module before anything else; a loose ground mimics a dead module. Verify the 100 A main fuse, identified on page 232, has not blown. If a code shows on the cluster, match it in the Analog Digital Instrument Cluster (ADIC) fault codes tables on page 84.
Manual Section: Fuses p. 232Error code 3350 on the display, charging voltage slow to reach normal after startup
Check engine speed first: the alternator excites at 950 RPM on a cold start and 800 RPM warm, per page 66. If the charge icon stays lit, clean the battery terminals and tighten the cable clamps. Match code 3350 against the fault code tables before calling the dealer.
Manual Section: Controls and Instruments p. 66Temperature gauge climbing into the red when mowing or baling in dusty conditions
Clean chaff out of the radiator and coolers with compressed air, not water, every 100 hours per page 213. Shut the engine down before coolant reaches 112 °C (233 °F), the STOP alarm threshold on page 65. Check the coolant level cold; the system holds 9.0 L (9.6 US qt).
Manual Section: Maintenance p. 213Engine runs cold and takes half the morning to reach operating temperature
Check warm-up against the thermostat specs on page 248: start to open at 80 °C, fully open at 95 °C (203 °F). If the gauge never gets there after a solid run under load, the thermostat is likely stuck open; have your dealer swap it before cold mornings in the field.
Manual Section: Specifications p. 248White corrosion building up on battery terminals and acid stains under the battery tray
Remove the cables, negative first, and scrub the terminals and tray with a baking soda solution, then rinse and dry. Coat the clamps with dielectric grease after tightening. If the battery is past saving, replace it with a BCI group 34R, 12 V unit rated 850 A cold cranking at -18 °C (0 °F), specified on page 233.
Manual Section: Maintenance p. 233Frequently Asked Questions
What does error code 3350 mean on a New Holland Boomer 54D?
Error code 3350 indicates that the terminal 50 (crank input) is always on. This fault code is related to the engine control unit. p. 87
What are the torque specifications for the New Holland Boomer 54D wheel bolts?
The front wheel torque for the Boomer 54D is 129 N·m (95 lb ft). The rear wheel torque is also 129 N·m (95 lb ft). p. 200
What is the engine oil capacity for the New Holland Boomer 54D?
The combined capacity of the engine crankcase and oil filter is 6.3 L (6.6 US qt). p. 198
What is the fuel tank capacity of the Boomer 54D?
The fuel tank capacity for the Boomer 54D is 49.2 liters (13 US gallons). p. 173
What is the proper belt deflection for the air conditioning compressor belt?
The proper belt tension for the air conditioning compressor belt is a deflection force of 85 N (19 lb) and a belt deflection of 7 mm (0.3 in). p. 206
Do I get instant access to this New Holland Boomer 54D Operator Manual?
A 272-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Am I free to print this New Holland Boomer 54D Operator Manual?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
