Part of the New Holland Operator Manuals.
The hydrostatic transmission is what sends most Boomer owners looking for paperwork, and the Troubleshooting section is where the symptom lists for the HST, the clutch, the hydraulic lift, the steering and the electrical system all sit. It covers the Boomer 40 and Boomer 50 compact tractors with the S4QL engine, 256 pages, delivered as a PDF.
Controls and Instruments walks the shuttle shift lever, range lever, differential lock pedal, front-wheel drive lever and both PTO controls. Operating Instructions carries engine break-in, PTO operation, three-point hitch attachment and the extendable drawbar. Working Operations handles ballasting with cast iron weights, brackets and liquid fill.
Maintenance runs from the service chart through the daily 10 hour oil and coolant checks, and Specifications opens with wheel tread settings and tire inflation pressures, followed by the fluid capacities. General Information shows where to read the Product Identification Number, so the part you order matches the tractor in your shed and the job finishes inside the weather window.
What's Inside This New Holland Boomer 40, Boomer 50 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 9-22 | Note to the Owner, Intended Use, Electro-Magnetic Compatibility, Manual Scope, Metric and Imperial Units Abbreviations, Product Identification Number, Operator's Manual Storage |
| Safety Information | 23-68 | Safety Alert Symbol and Signal Word Definition, Safety Rules, Ecology and the Environment, Safety Features, Safety Aspects, Tractor Jacking Points, Airborne Noise Emission |

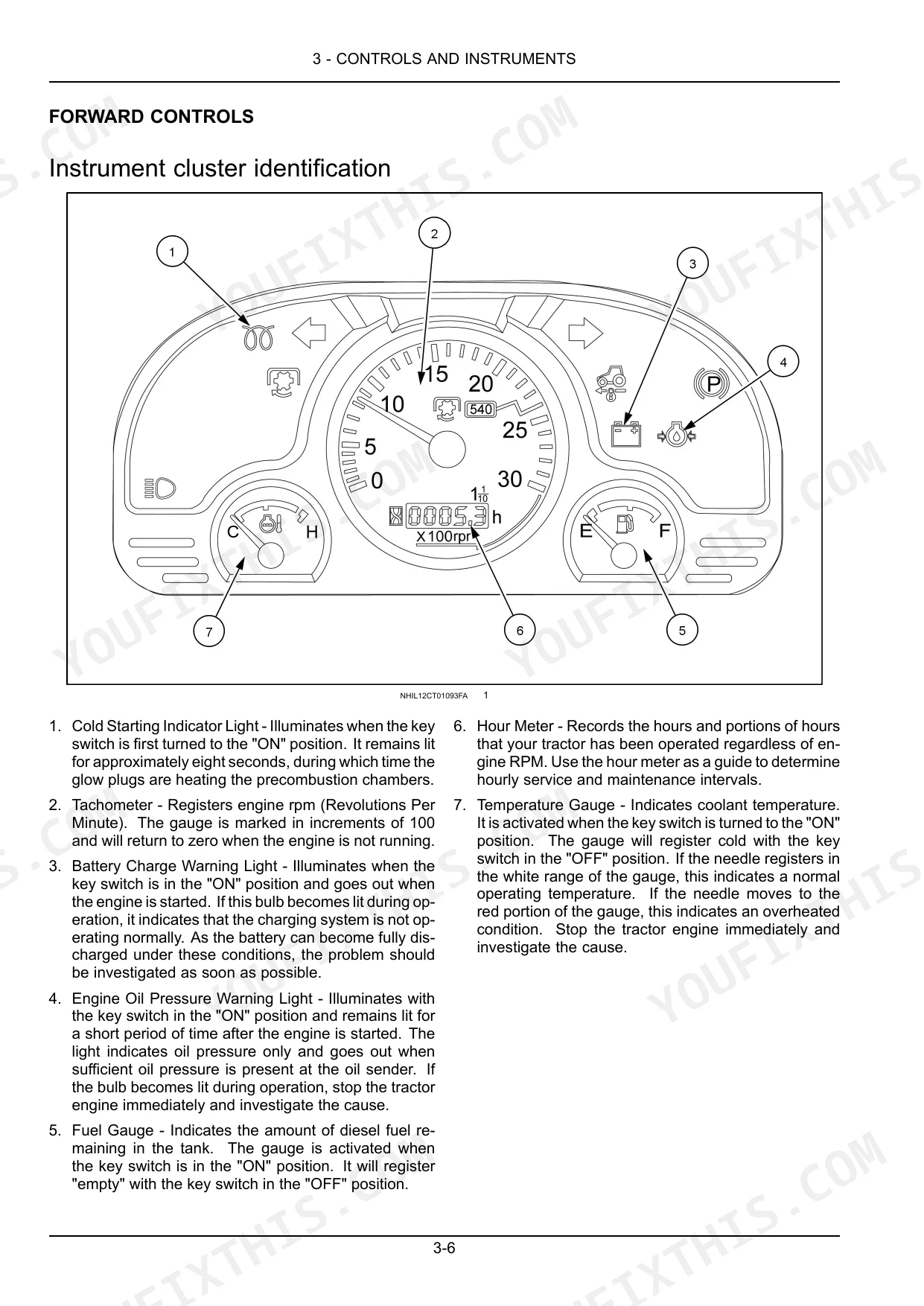

| Controls and Instruments | 69-116 | Access to Operator's Platform (Cab: Door, Side Window, Rear Window), Operator's Seat (Belt, Controls) |

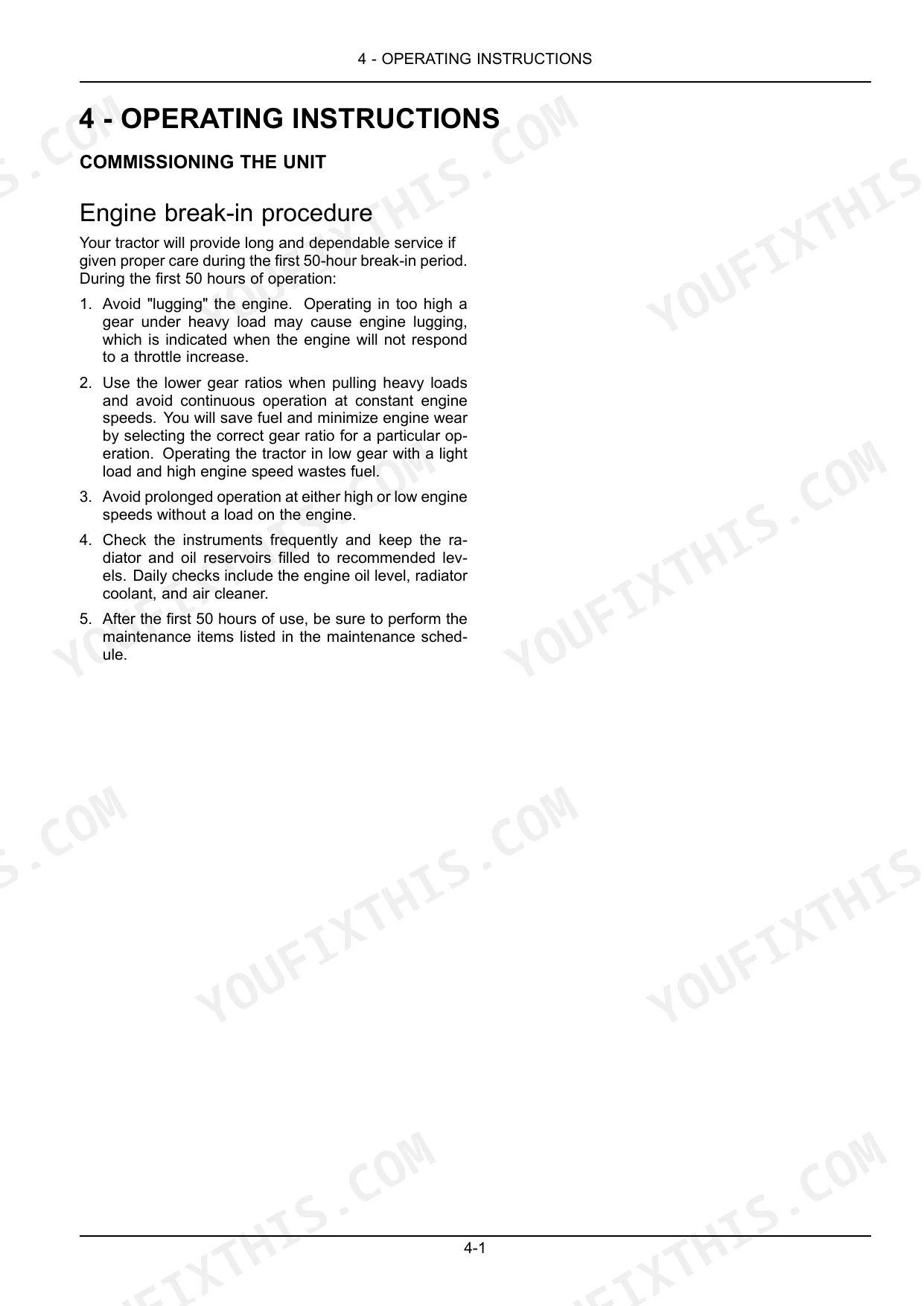

| Operating Instructions | 117-148 | Commissioning the Unit (Engine Break-In Procedure, Power Take-Off Operation, Three-Point Hitch, Attaching Three-Point Equipment, Extendable Drawbar, Hydraulic Lift Rocker, Hydraulic Power Lift Drop Rate Control Valve) |
| Transport Operations | 149-158 | Road Transport (External Lighting - Identification, Hazard Warning Light Operation, Turn Signal Operation, Road Lights Operation, Work Lights Operation, Rear Work Light Operation, Driving the Vehicle) |
| Working Operations | 159-162 | Tractor Ballasting, Cast Iron Weights, Front Weight Carrier Bracket, Rear Counter Weight Bracket, Ballasting Box, Liquid Ballast |

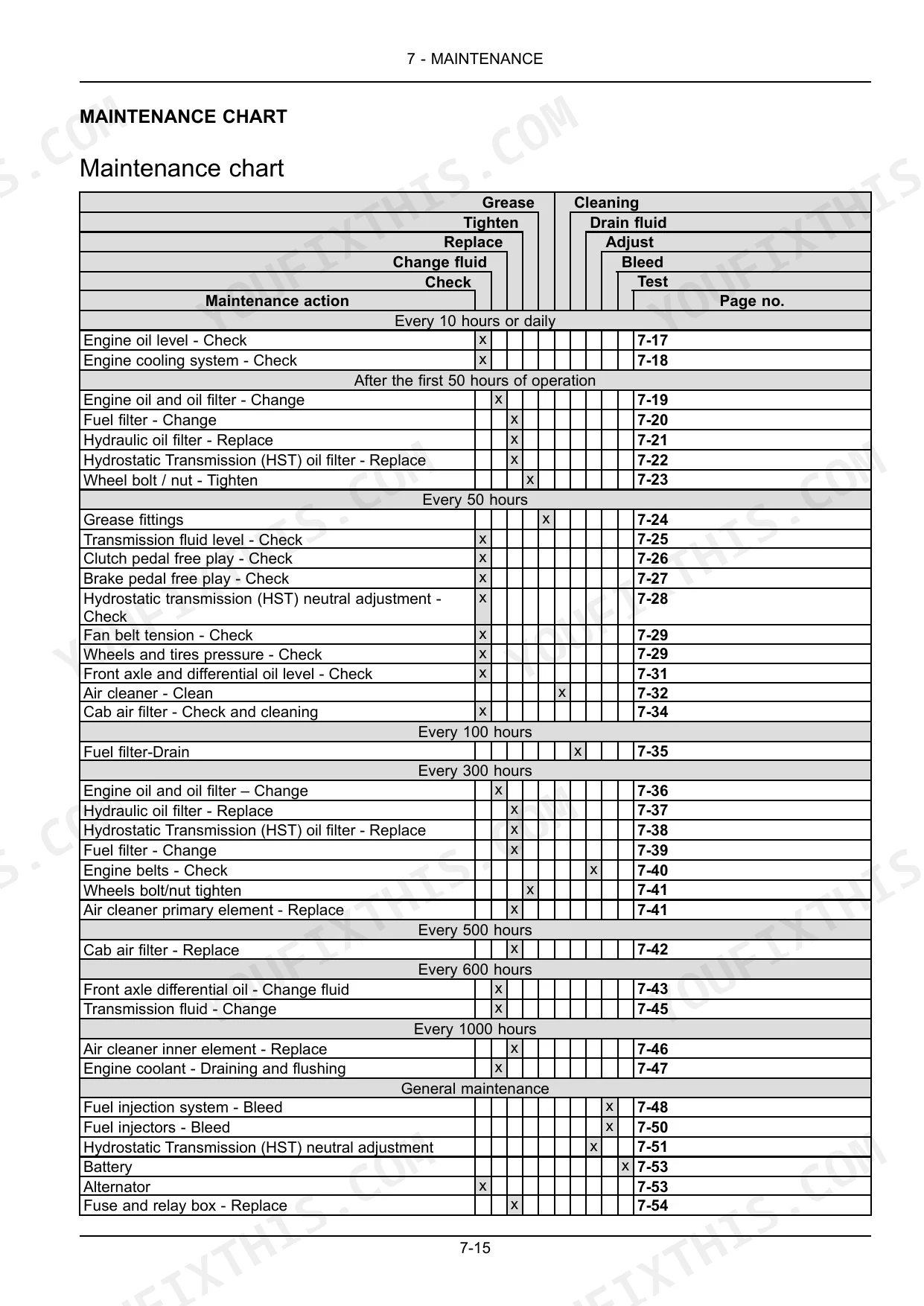

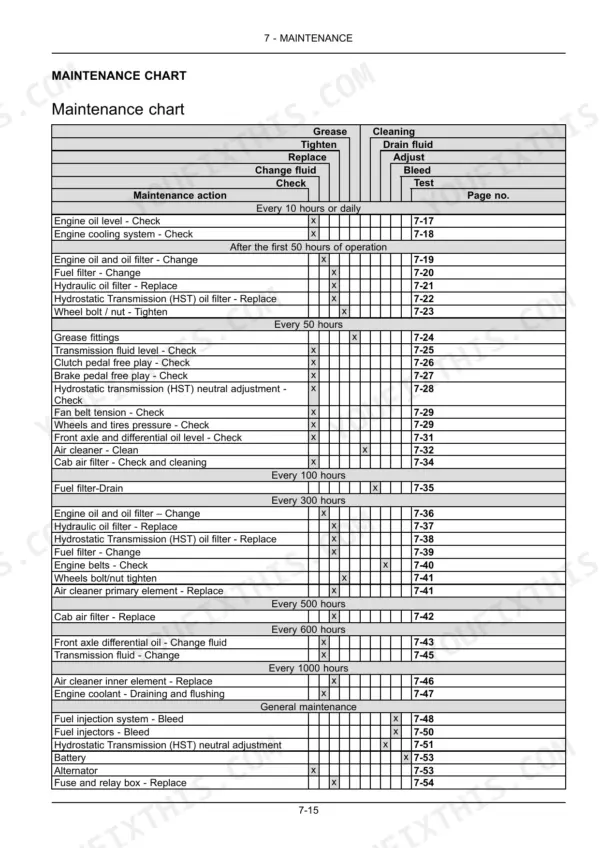

| Maintenance | 163-230 | Maintenance Chart, Every 10 Hours or Daily (Engine: Oil Level - Check, Cooling System - Check) |

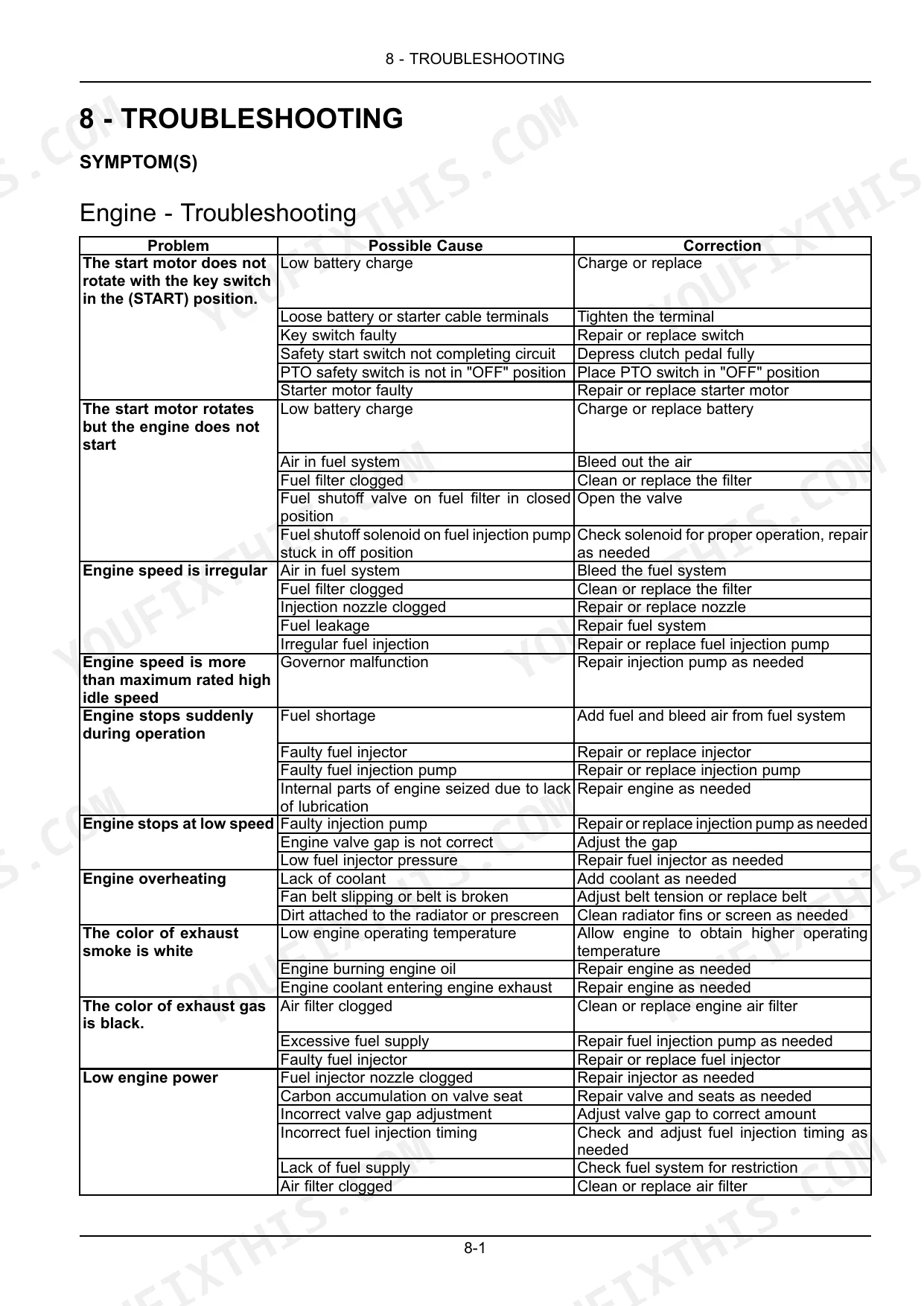

| Troubleshooting | 231-234 | Symptom (Engine - Troubleshooting, Clutch - Troubleshooting, Hydraulic Service Brakes - Troubleshooting, Hydraulic Lift System - Troubleshooting, Steering - Troubleshooting, Hydrostatic Transmission - Troubleshooting, Electrical System - Troubleshooting) |

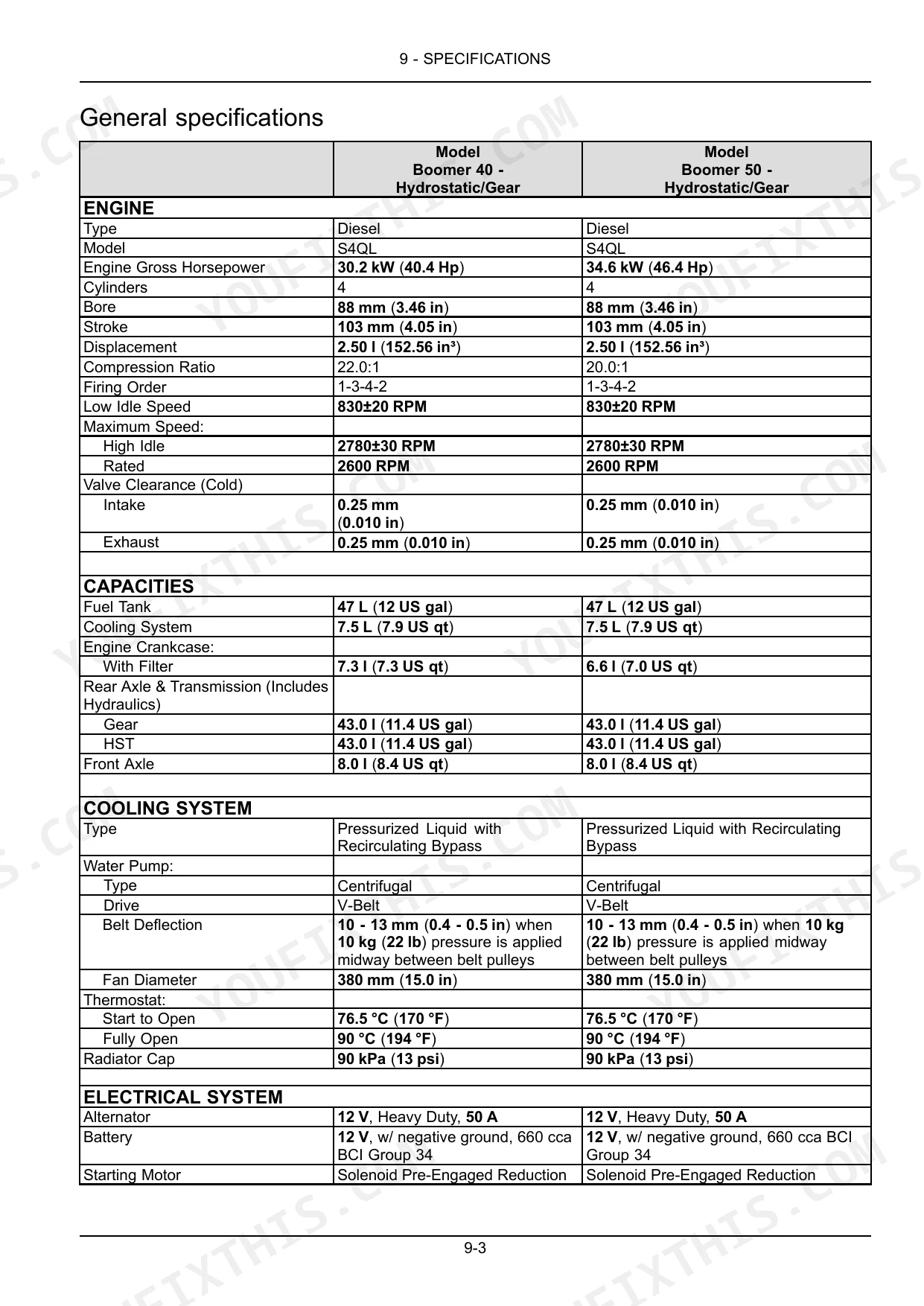

| Specifications | 235-244 | Wheel Tread Settings, Tire Inflation Pressures, Tractor Dimensions |
| Accessories | 245-246 | Optional Equipment |
| Forms and Declarations | 247-256 | Delivery Report - Owner Copy, Delivery Report - Dealer Copy |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Rear remote valve coupler size | 12.7 mm (0.5 in) | p. 97 |
| Clearance between implement and nearest part of tractor when fully raised | 100 mm (4 in) | p. 122 |
| Metric non-flanged hardware torque (M4) | 2.2 N·m (19 lb in) | p. 172 |
| Metric non-flanged hardware torque (M5) | 4.5 N·m (40 lb in) | p. 172 |
| Transmission/Rear Axle/Hydraulic Oil Capacity | 43.0 L | p. 237 |
| Front Axle Oil Capacity | 8.0 L | p. 237 |
| Front Wheel Bolt Torque | 176 - 196 N·m | p. 185 |
| Rear Wheel Bolt Torque | 176 - 196 N·m | p. 185 |
| Fuel Tank Capacity | 47 L | p. 237 |
| Cooling System Capacity | 7.5 L | p. 237 |
| Boomer 40 | ||
| Engine Oil Capacity (with filter) | 7.3 L | p. 237 |
| Boomer 50 | ||
| Engine Oil Capacity (with filter) | 6.6 L | p. 237 |
New Holland Boomer 40, Boomer 50 Common Problems This Manual Covers
Hydrostatic drive creeps or loses pull
A Boomer worked hard in summer heat can start to feel soft in the HST pedals, or creep forward with both pedals released. The Troubleshooting section lists hydrostatic transmission symptoms alongside their checks, so you start with linkage and fluid condition instead of pulling the transmission.
Manual Section: Troubleshooting p. 231PTO will not engage
Mid and rear PTO trouble on these tractors usually traces back to the switch and its interlocks, or to the speed selection lever, rather than the driveline itself. Controls and Instruments covers the PTO switch, the mid PTO lever and the optional rear PTO speed selection lever, and what each position does.
Manual Section: Controls and Instruments p. 69Wheel bolts loosen after ballasting
Hanging cast iron weights or filling the tires with liquid ballast loads the wheel studs far beyond a bare tractor, and bolts that were snugged by feel work loose. Front and rear wheel bolt torque is 176 - 196 N·m (130 - 145 lb ft).
Manual Section: Maintenance p. 185Brake pedals feel uneven
The two brake pedals drift out of adjustment at different rates, so one grabs before the other and the tractor pulls when you brake on the road. The Maintenance section sets brake pedal free play at 50.0 - 60.0 mm so both sides match.
Manual Section: Maintenance p. 189Clutch drags when shifting
A clutch that will not fully release makes the shuttle and range levers fight you, and grinds gears on the move. Specifications gives clutch pedal free-travel of 19 - 30 mm, the first figure to check before anyone talks about splitting the tractor.
Manual Section: Specifications p. 238Implement contacts tractor when raised
A three-point implement set up on the wrong link lengths, or without the stabilizers adjusted, can swing into the tires or the back of the tractor at full lift. Operating Instructions calls for 100 mm (4 in) of clearance between the implement and the nearest part of the tractor when fully raised.
Manual Section: Operating Instructions p. 122Hitch drifts down under load
A loaded hitch that sinks overnight, or will not hold a heavy implement at working height, points at the lift circuit rather than the implement. Specifications lists the hydraulic lift system relief valve setting at 16671 kPa, the reference figure when a gauge test is the next step.
Manual Section: Specifications p. 239Frequently Asked Questions
Which tractors does this manual cover?
New Holland Boomer 40 and Boomer 50 compact tractors with the S4QL engine, under New Holland publication 47901424. One book serves both models, with capacities called out per model where the two differ.
Is this an operator manual or a full service manual?
It is the operator manual: controls, operation, maintenance intervals, adjustments, and a symptom-based Troubleshooting section covering the engine, clutch, hydraulic service brakes, hydraulic lift, steering, hydrostatic transmission and electrical system. It is not an overhaul book, so there are no engine teardown or rebuild procedures. p. 231
What fluid capacities does the Boomer 40 and 50 operator manual give?
The Specifications section lists engine oil with filter at 7.3 L for the Boomer 40 and 6.6 L for the Boomer 50, combined transmission, rear axle and hydraulic oil at 43.0 L, front axle at 8.0 L, cooling system at 7.5 L and fuel at 47 L. p. 237
Where do I find torque figures?
The Maintenance section carries a metric hardware torque chart running from 2.2 N·m (19 lb in) on M4 up to 551 N·m (410 lb ft) on M24. Guessing a figure on a hitch or wheel fastener is how studs snap under load, so work from the printed chart. p. 172
Do I get instant access to this New Holland Boomer 40 Operator Manual?
One searchable PDF covering 256 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Am I able to print pages from this New Holland Boomer 40 manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
