When the variable displacement pump in the traveling drive starts hunting or losing power, guesswork gets expensive; the Wacker Neuson WL38 service manual PDF, factory document 1000358251, walks you through that troubleshooting and every other system on this wheel loader across 372 pages. Hydraulic schematics trace the work hydraulics from the gear pump through the lift and tilt cylinders, while the electrical section pairs full wiring diagrams with machine control unit service. Error code tables round out the back of the book, turning a warning light into a diagnosis. Torque the M18 x 1.5 wheel nuts to 285 Nm and light-series 6 mm hydraulic fittings to 10 Nm, straight from the factory tightening tables. A loader parked over one missing spec is money leaking. Download the bookmarked, text-searchable file and the right page is open before your coffee cools.
What's Inside This Wacker Neuson WL38 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 11-50 | Notice on This Service Manual, Technical Data, Tightening Torques, Safety Instructions |
| Operation | 51-66 | Overview of Control Elements, Indicator Lights and Warning Lights |

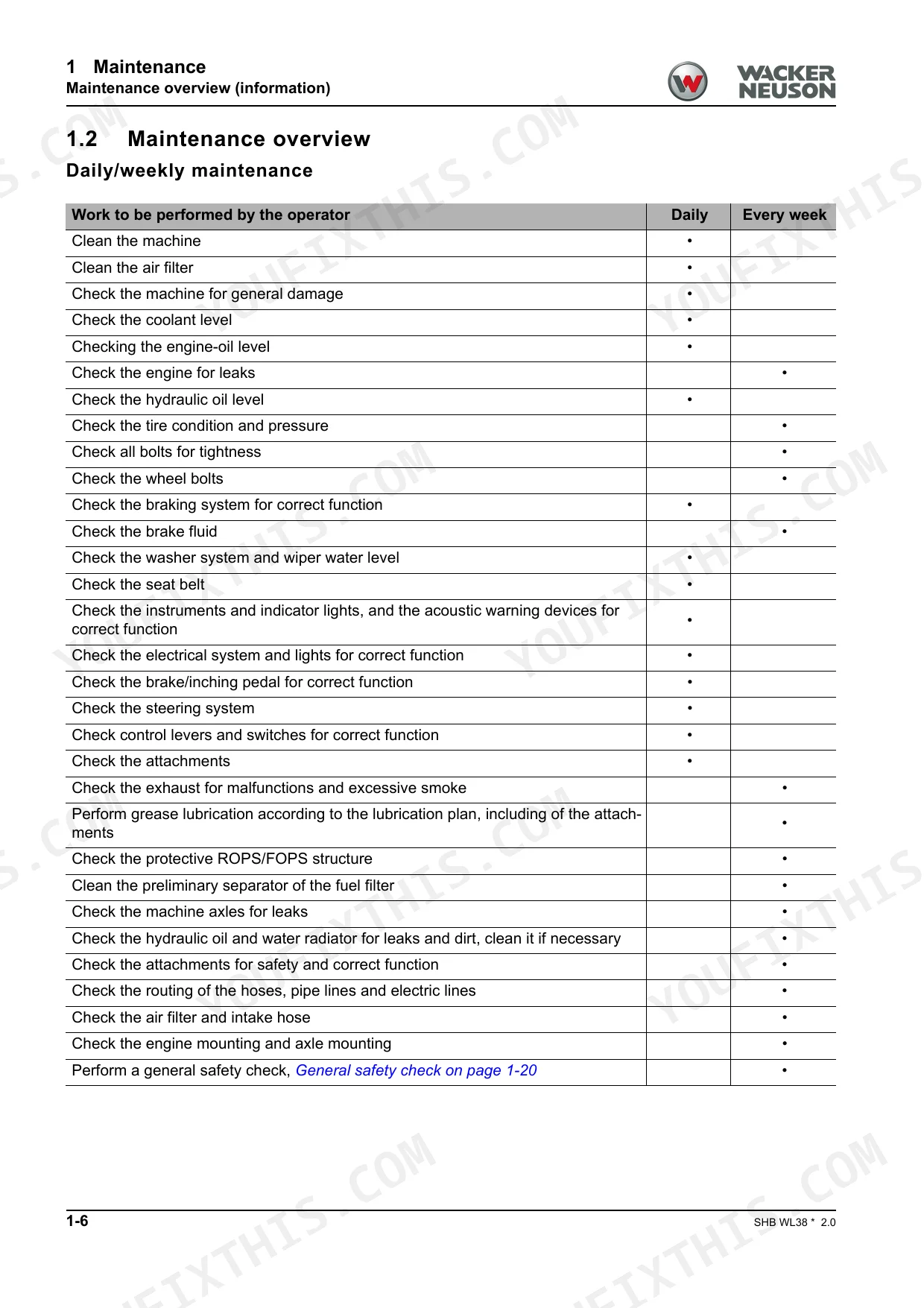

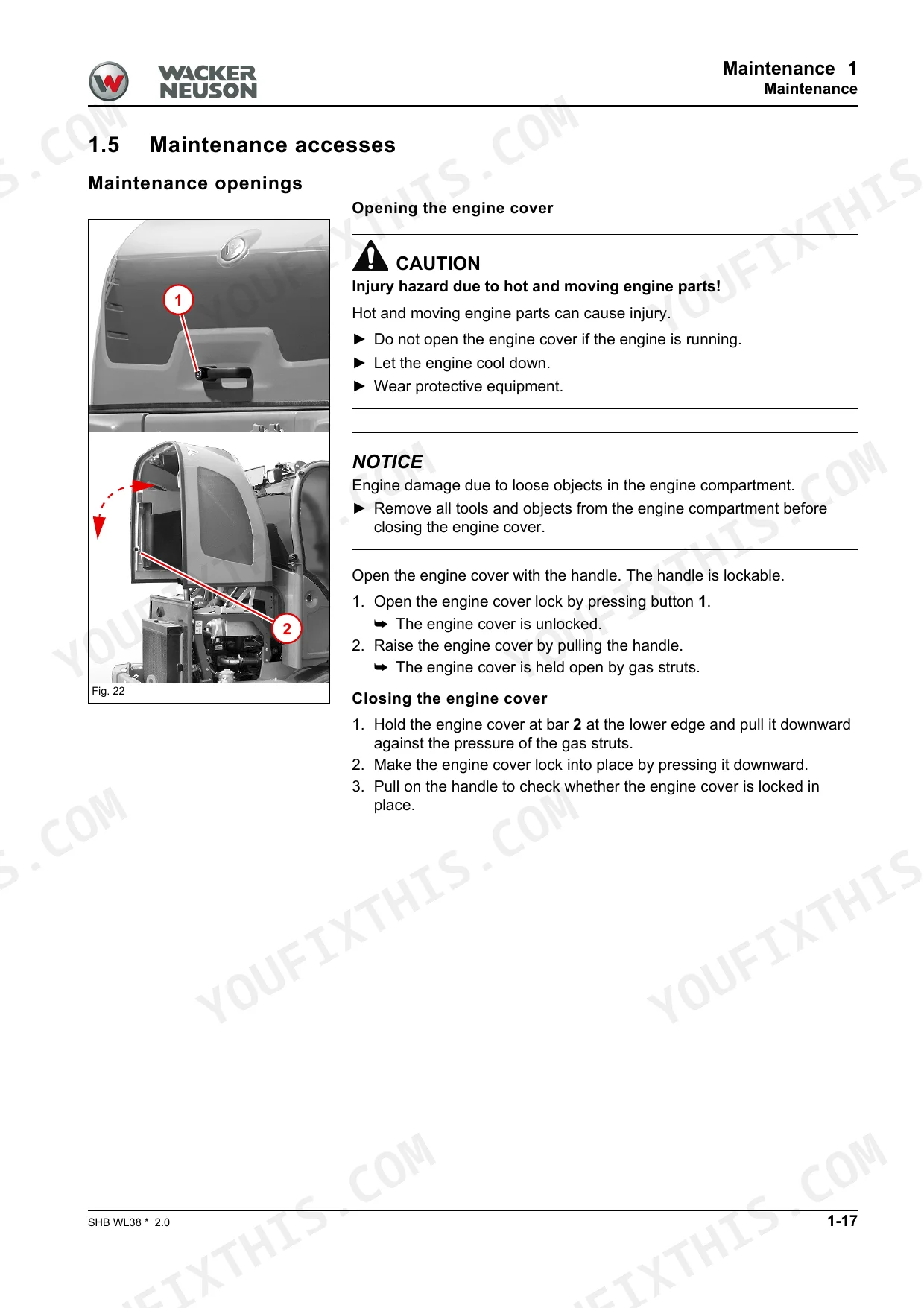

| Maintenance | 67-144 | Information on Maintenance, Maintenance Overview, Lubrication Work, Fuel System, Cooling System, Hydraulic System |
| Engine | 145-176 | Complete Component |
| Cooling | 177-180 | Coolant Reservoir, Radiator, Fan Blades, Cooling System |
| Traveling Drive | 181-208 | Variable Displacement Pump, Troubleshooting |
| Axles | 209-218 | Front Axle, Rear Axle |
| Braking System | 219-234 | Service/Parking Brake, Master Brake Cylinder |
| Steering System | 235-244 | Steering Orbitrol |
| Work Hydraulics | 245-284 | Hose Installation, Gear Pump |
| Electrical System | 285-324 | Machine Control Unit, Electrical Diagram |
| Trim | 325-332 | Engine Cover, Bottom Plate, Trailer Power Outlet, Trailer Coupling, Counterweight |
| Cabin | 333-348 | Heating |

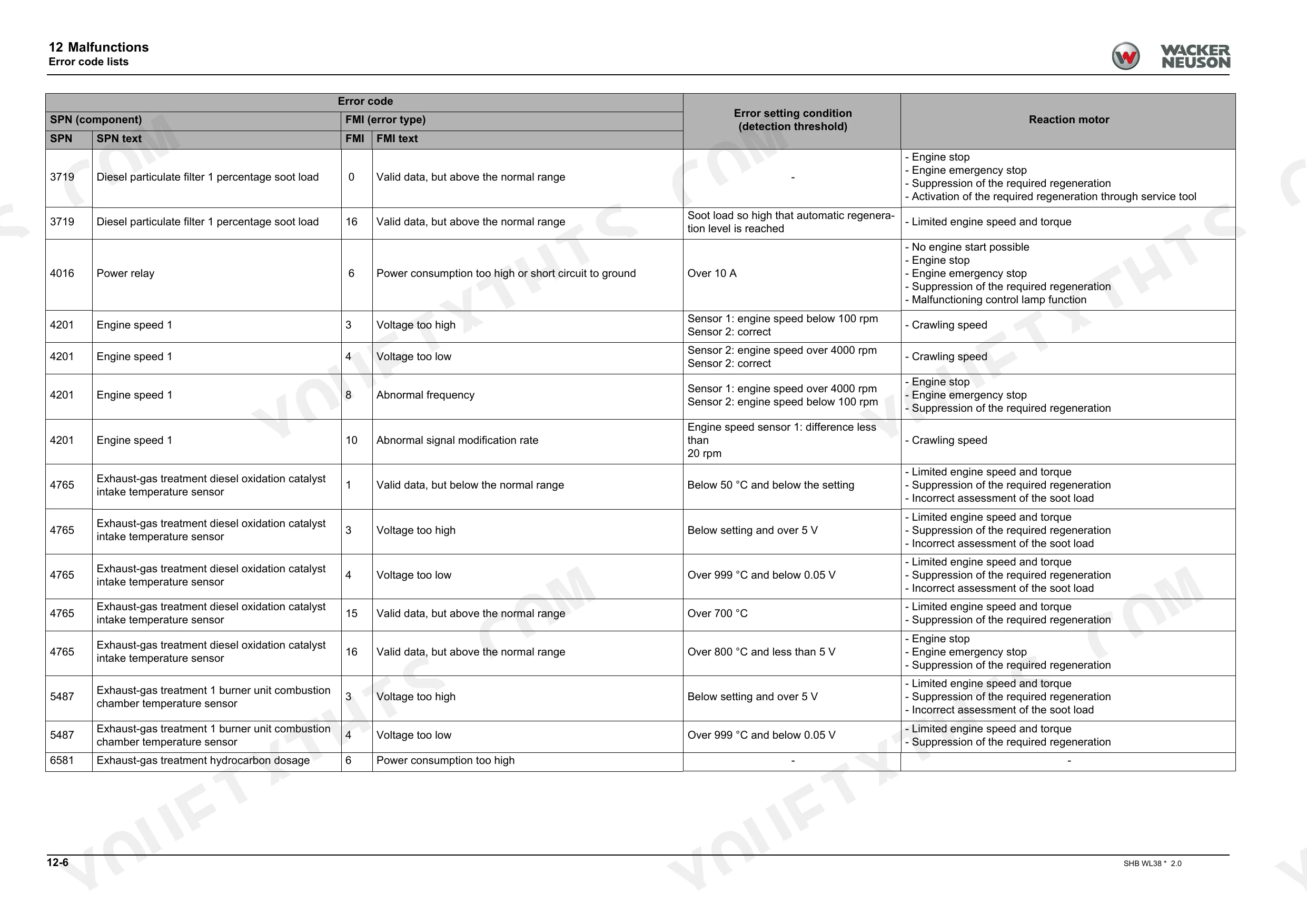

| Malfunctions | 349-372 | Error Code Lists |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel nut M14 x 1.5 | 150 Nm | p. 26 |
| Wheel nut M18 x 1.5 | 285 Nm | p. 26 |
| Hydraulic screw connections (light series) 6 mm | 10 Nm | p. 29 |
| Hydraulic screw connections (heavy series) 6 mm | 15 Nm | p. 29 |
| Tightening torque for brake line threaded fittings (Shape F/FS male fitting screws with flare) | 14+2 Nm | p. 27 |
| Tightening torque for worm drive hose clamps (7.9 mm width, first-time installation) | 0.9 ± 0.2 Nm | p. 37 |
| Check the injectors | every 3000 operating hours | p. 77 |
| V-belt deflection | 10 mm (0.4 in) | p. 115 |
| Engine Output (Perkins 404D-22) | 36.3 kW | p. 15 |
| Engine Output (Deutz TCD 2.9 L4) | 55.4 kW | p. 16 |
| Maximum permissible slope | 25° | p. 16 |
| Operating pressure (Steering system) | 190 bar | p. 19 |
Wacker Neuson WL38 Common Problems This Manual Covers
Wacker Neuson WL38 loses forward and reverse travel, engine runs but machine won't move
Check hydraulic oil level first; the reservoir holds 50 L and a low level starves the variable displacement pump. Work through the traveling drive troubleshooting steps starting on page 181, testing pump and drive motors. Inspect the solenoid valve wiring for a Y19 coil interruption before condemning the pump itself.
Manual Section: Traveling Drive p. 181Weak traction on slopes, travel speed never reached, machine feels underpowered pushing into the pile
Verify engine output first; the Deutz TCD 2.9 L4 is rated 55.4 kW and a fuel restriction will mimic a hydraulic fault. Test drive circuit pressures per the traveling drive procedures starting on page 181. Remember the rated maximum slope is 25 degrees; replace contaminated hydraulic oil filters if pressure tests low.
Manual Section: Traveling Drive p. 181Steering responds slowly and requires high force at the wheel, worse at low idle
Test steering circuit pressure; the spec is 190 bar on page 19, and a low reading points to supply or relief valve trouble rather than the orbitrol. Check oil level in the 50 L hydraulic reservoir, then inspect suction lines for air leaks. Follow the steering system procedures starting on page 235 to test the orbitrol.
Manual Section: Steering System p. 235Engine starts but runs rough, stumbles under load, and drops RPM badly

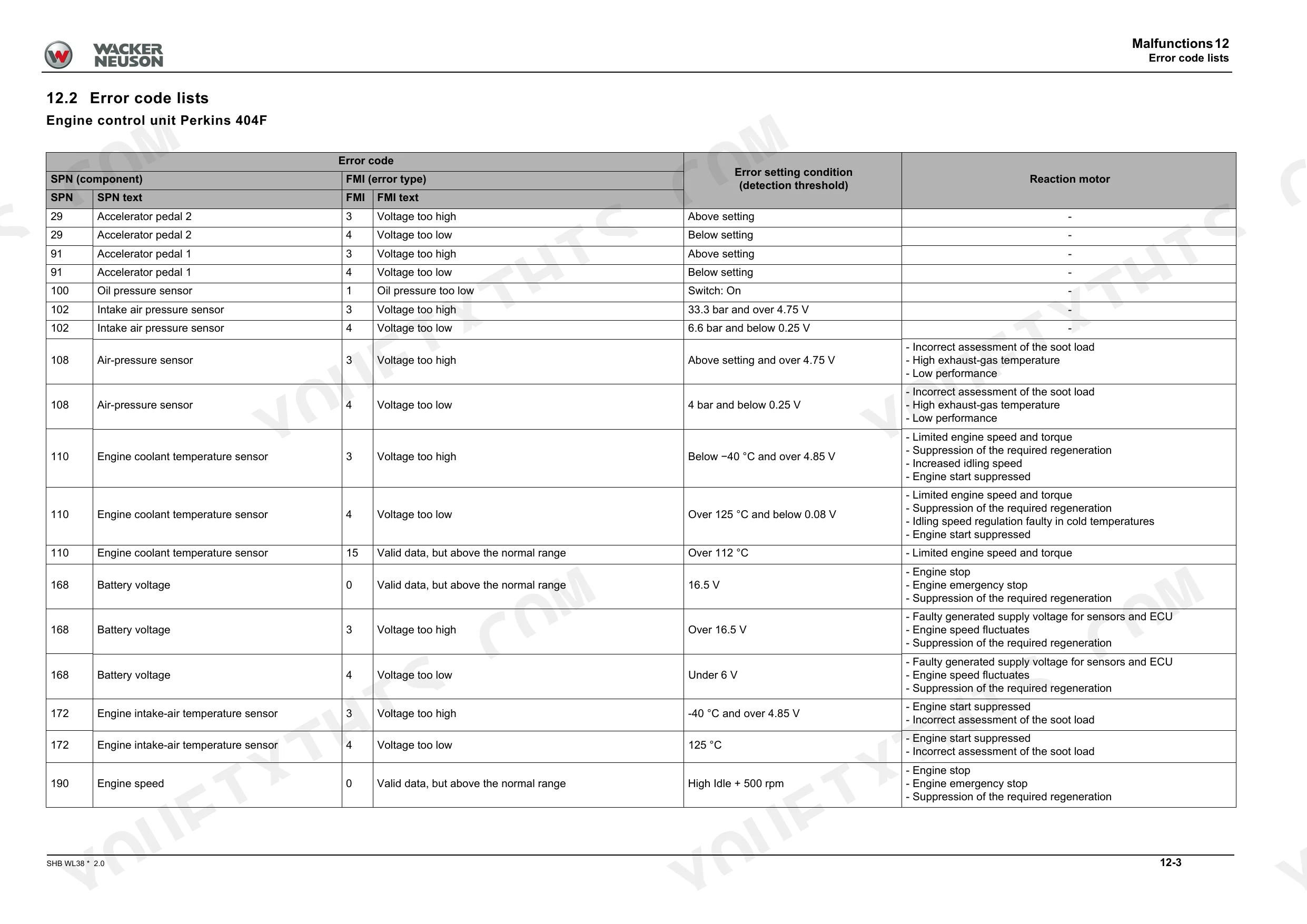

Bleed the fuel system first; air pulled through a cracked pickup tube in the 70 L tank causes rough running and droop. Inspect glow plugs and injectors; the schedule on page 77 calls for injector checks every 3000 operating hours. Pull stored fault codes from the error code reference starting on page 351 before replacing parts.
Manual Section: Engine p. 145Low oil warning lamp stays on even though the dipstick reads full
Verify actual oil level before anything else; the Perkins 404D-22 holds 8.0 L. Check the oil sensor connector and harness against the wiring diagram on page 297, then test the sensor itself for a false signal. Cross-check any stored fault against the error code reference starting on page 351 before ordering a sensor.
Manual Section: Electrical System p. 297Auxiliary hydraulics dead, attachment gets no flow when the joystick function is pressed

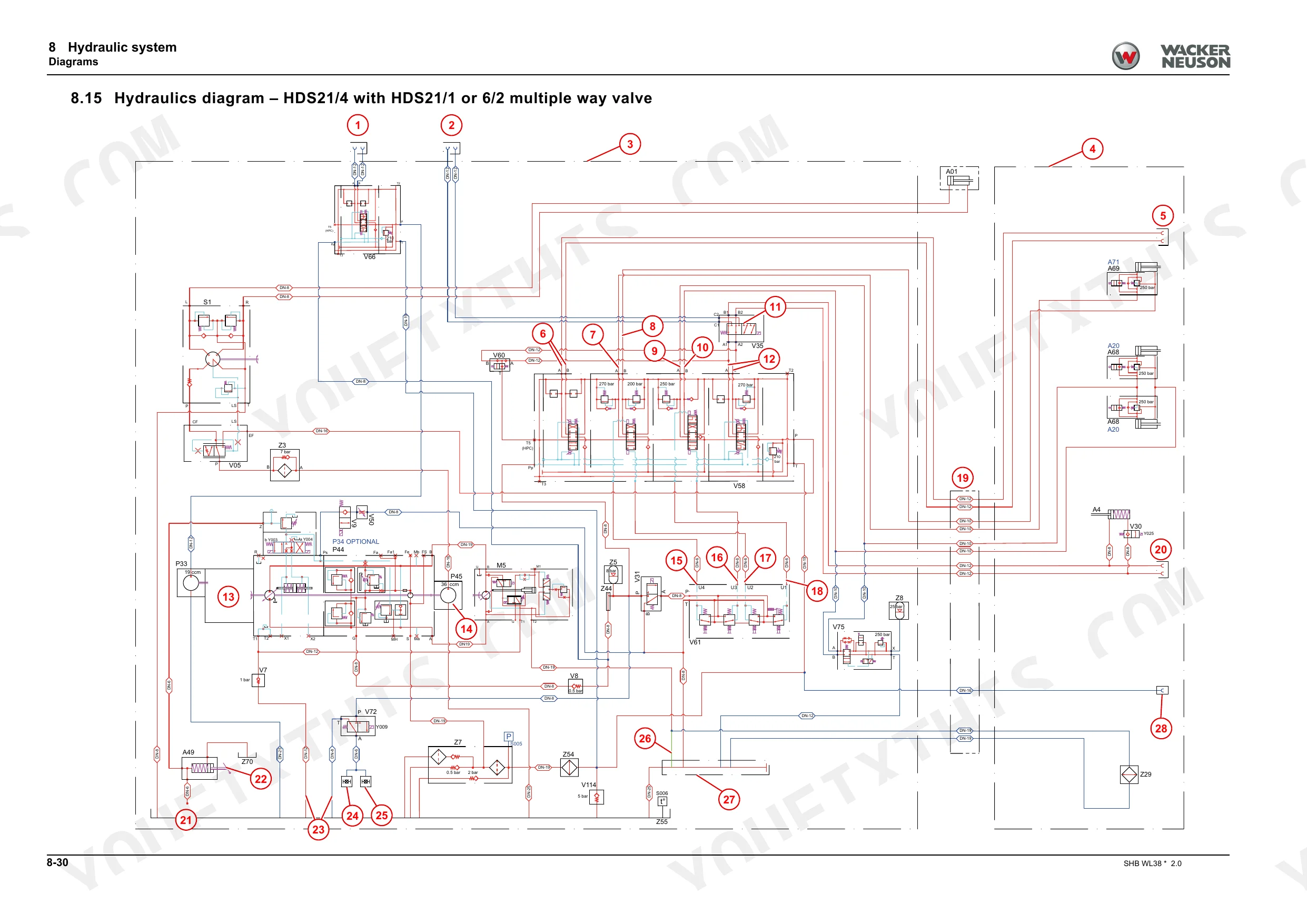

Check the quick-hitch connection first; a coupler that is not fully seated blocks all flow. Verify oil level in the 50 L reservoir, then test the pilot solenoid valve for coil interruption and contamination. Torque light-series 12 mm hydraulic screw connections to 35 Nm per page 29 when reassembling, and trace the circuit on the hydraulic schematic on page 274.
Manual Section: Work Hydraulics p. 245Frequently Asked Questions
What are the replacement specifications for hydraulic hoses and lines?
Hydraulic hoses must be replaced no later than 6 years after their production date. Additionally, do not repair damaged pipe lines or hydraulic hoses; they must be replaced immediately with new ones, even if only minor moisture penetration is visible. p. 45
What is the tightening torque for M14 metric coarse-pitch thread bolts with a property class of 8.8?
For metric coarse-pitch thread screws with a property class of 8.8, the specified tightening torque for an M14 size is 133 Nm, provided the surfaces are untreated and non-lubricated. p. 27
How often should the engine oil and engine oil filter be replaced?
The engine oil and engine oil filter should be changed every 500 operating hours. This is a critical maintenance task to ensure engine longevity. p. 78
What is the maximum permissible slope for the machine with a lowered loader unit?
The maximum permissible slope for the machine when the loader unit is in the lowered position is 25 degrees. p. 16
What is the procedure for bleeding the fuel system?
To bleed the fuel system, add fuel to the tank, turn the starting key to position I to activate the electric fuel-feed pump, and wait for one minute. The system will bleed itself automatically, and the engine will then be ready to start. p. 105
