Searching for a reliable Yanmar 3tnv88 service manual pdf? This 370-page factory reference (OEM #0BTNV0-G0000) breaks down the complete teardown and rebuild process for 2005-era Yanmar TNV series industrial engines, covering the 3TNV82A, 3TNV84, 3TNV84T, 3TNV88, and 4TNV variants. You get a massive electrical section loaded with wiring diagrams, extensive troubleshooting charts for fuel and starting faults, and step-by-step procedures for servicing the turbocharger and injection pump. Open to any chapter and find page after page of precise maintenance schedules, clearance tolerances, and rebuild steps to keep these diesel workhorses firing right. Swap that initial oil filter at exactly 50 hours, and make sure to lock down the fuel injector retainer bolts to 29 ft-lb (39.2 N-m) before cranking. A blown head gasket does not have to ruin your week. Grab this bookmarked digital file, pull it up on your shop tablet, and start turning wrenches.
What's Inside This Yanmar Yanmar 3TNV82A-4TNV106T Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 1-6 | Manual Overview, Scope of Coverage, How to Use This Manual |
| Yanmar Warranties | 7-14 | Yanmar Limited Warranty, Emission System Warranty, Yanmar Co., Ltd. Limited Emission Control System Warranty - Usa Only |
| Safety | 15-36 | - |

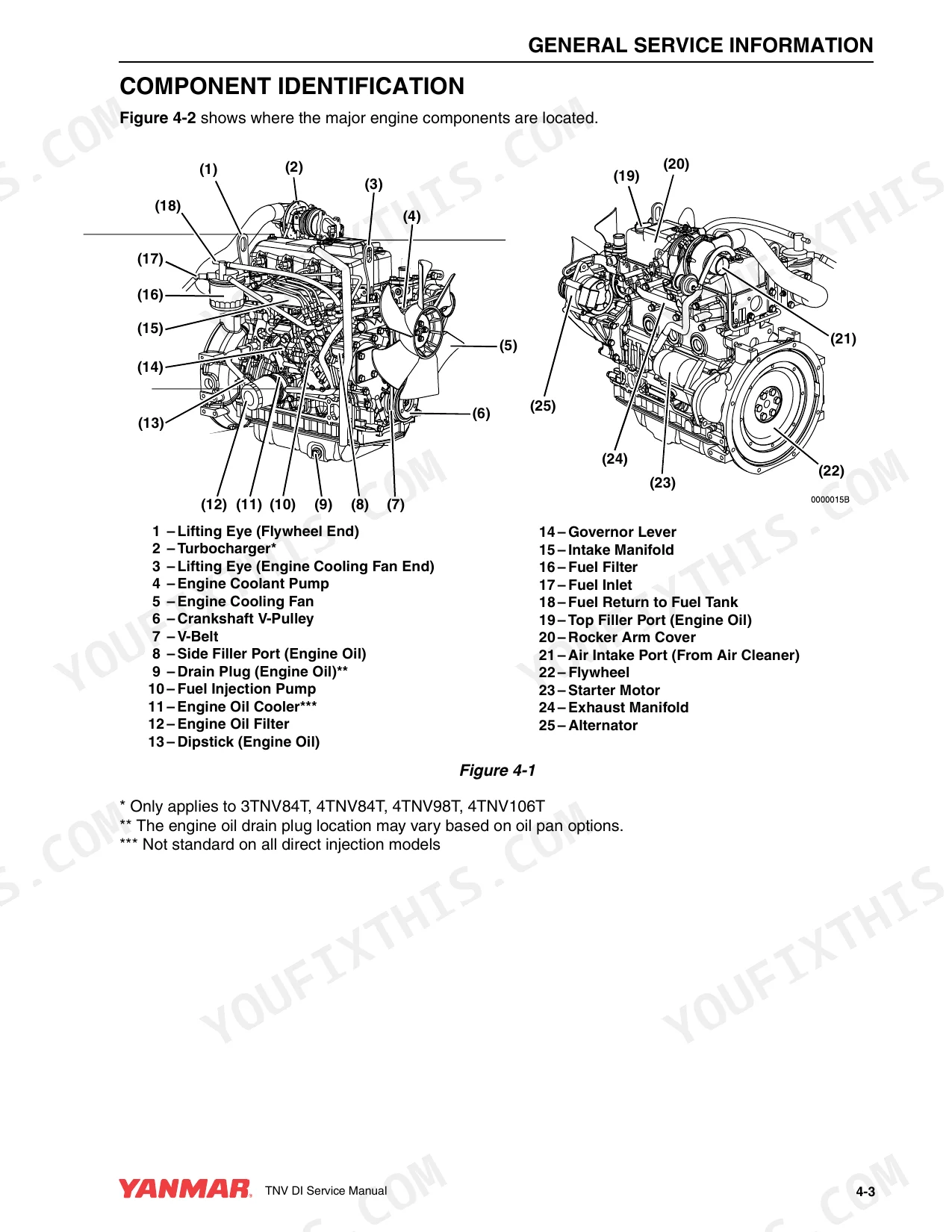

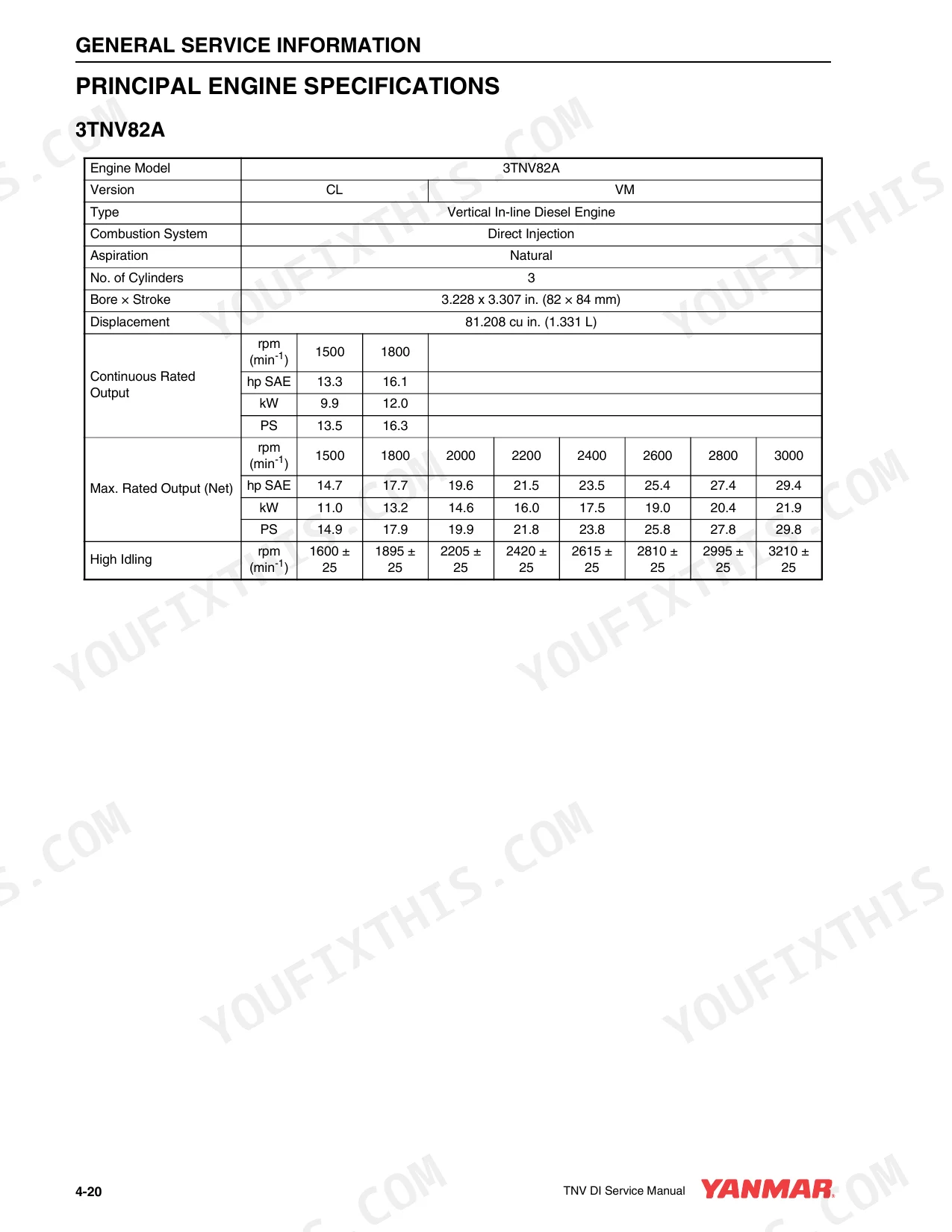

| General Service Information | 37-84 | Component Identification, Location of Labels, Emission Control Regulations, Emission Control Labels, The 97/68/EC Directive Certified Engines, Engine Family |
| Periodic Maintenance | 85-124 | Before You Begin Servicing, Introduction, Periodic Maintenance Schedule, Periodic Maintenance Procedures |
| Engine | 125-218 | Before You Begin Servicing, Introduction, Cylinder Head Specifications, Camshaft and Timing Gear Train Specifications, Crankshaft and Piston Specifications |

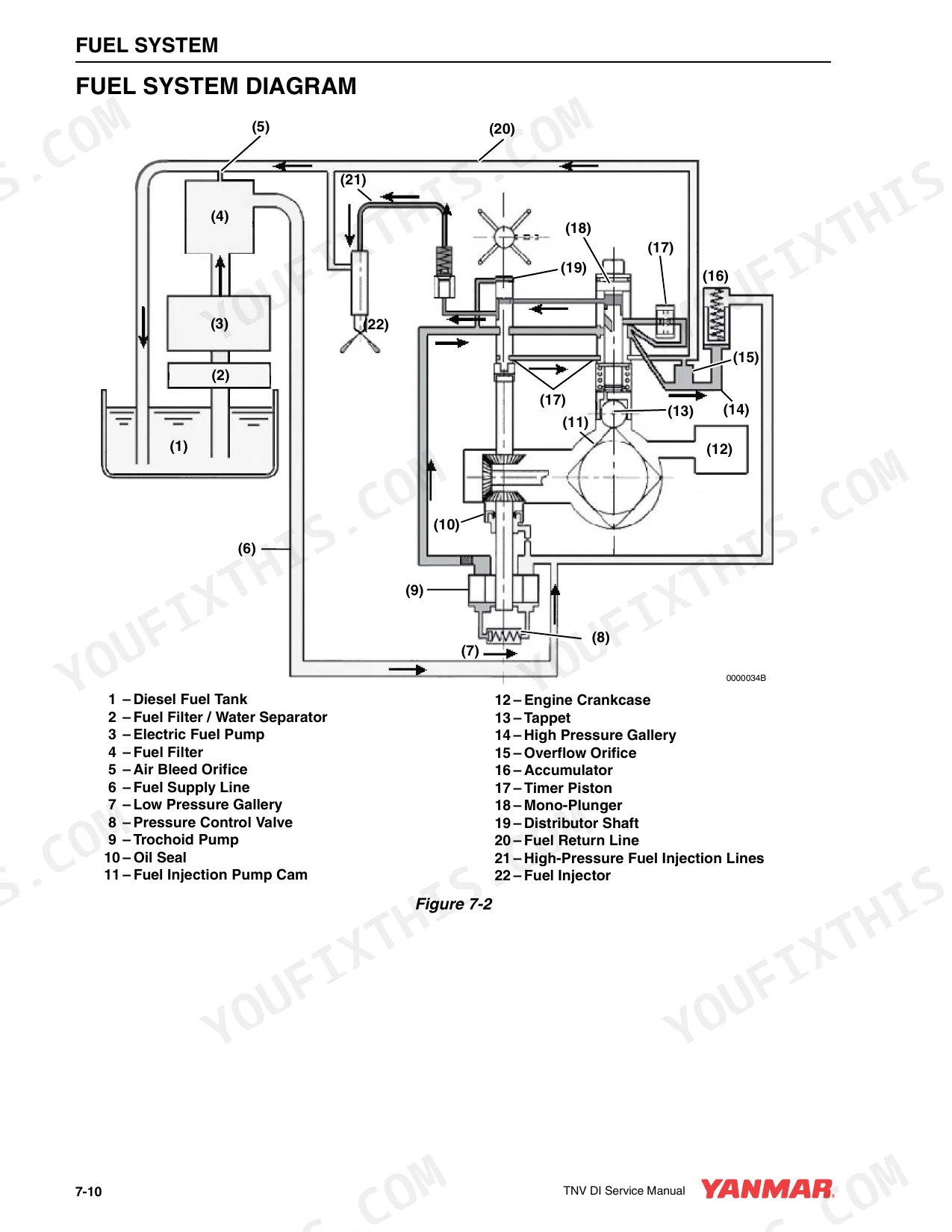

| Fuel System | 219-256 | Before You Begin Servicing, Introduction, Fuel System Specifications, Special Service Tools, Measuring Instruments, Fuel System Diagram, Fuel System Components, Fuel Injection Pump |
| Cooling System | 257-268 | Before You Begin Servicing, Introduction, Cooling System Diagram, Engine Coolant Pump Components, Engine Coolant System Check, Engine Coolant Pump |
| Lubrication System | 269-284 | Before You Begin Servicing, Introduction, Oil Pump Service Information, Lubrication System Diagram, Checking Engine Oil Pressure, Trochoid Oil Pump |
| Turbocharger | 285-300 | Before You Begin Servicing, Introduction, Specifications, Turbocharger Components, Turbocharger Component Functions, Washing Procedure, Periodic Inspection |
| Starter Motor | 301-320 | Before You Begin Servicing, Introduction, Starter Motor Information, Starter Motor Specifications, Starter Motor Troubleshooting, Starter Motor Components |

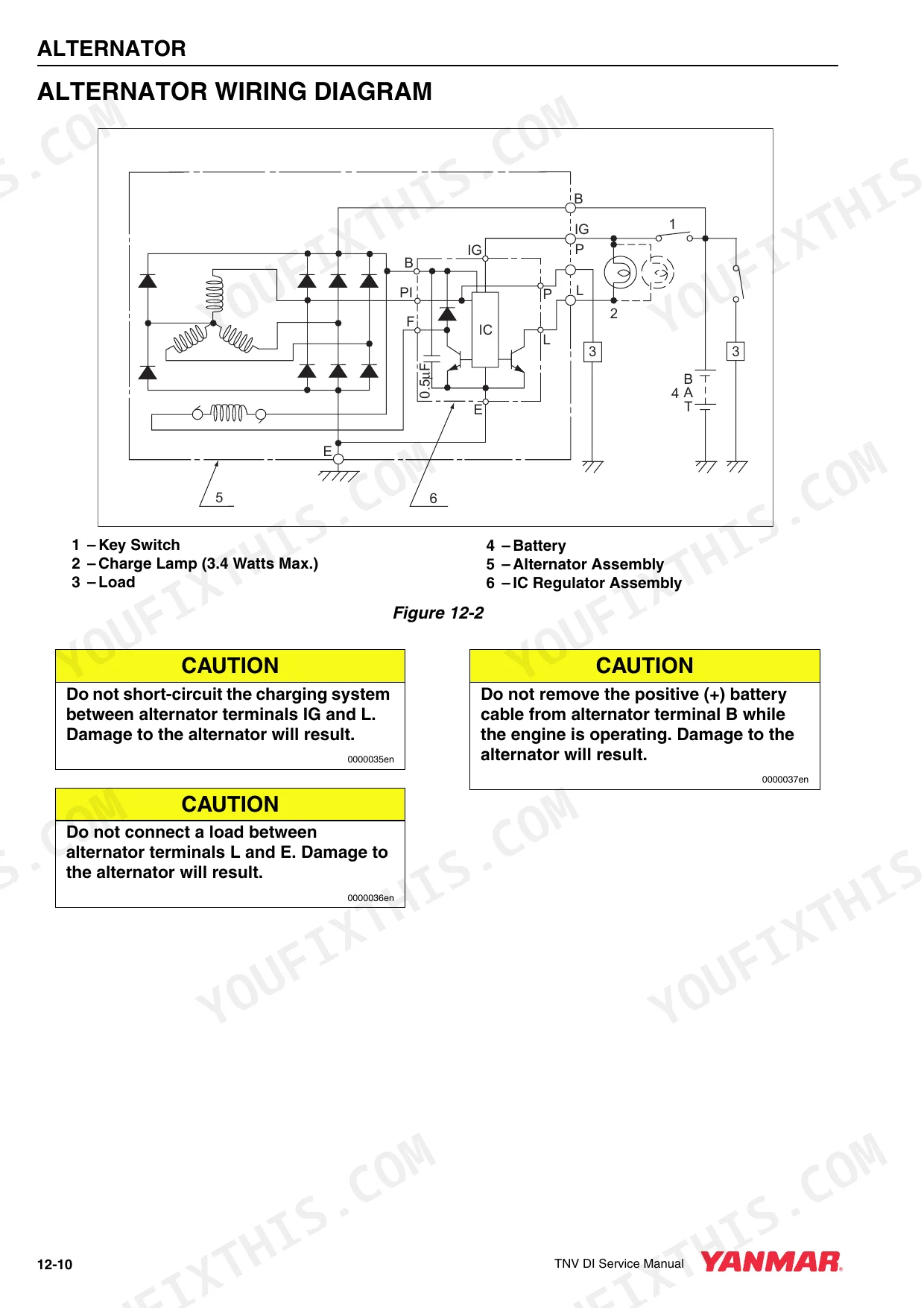

| Alternator | 321-342 | Before You Begin Servicing, Introduction, Dynamo and Alternator Information, Alternator Specifications, Dynamo Specifications, Alternator Troubleshooting, Alternator Components |
| Electric Wiring | 343-350 | Electric Wiring Precautions, Electrical Wire Resistance, Battery Cable Resistance, Electrical Wire Sizes - Voltage Drop, Conversion of Awg to European Standards |

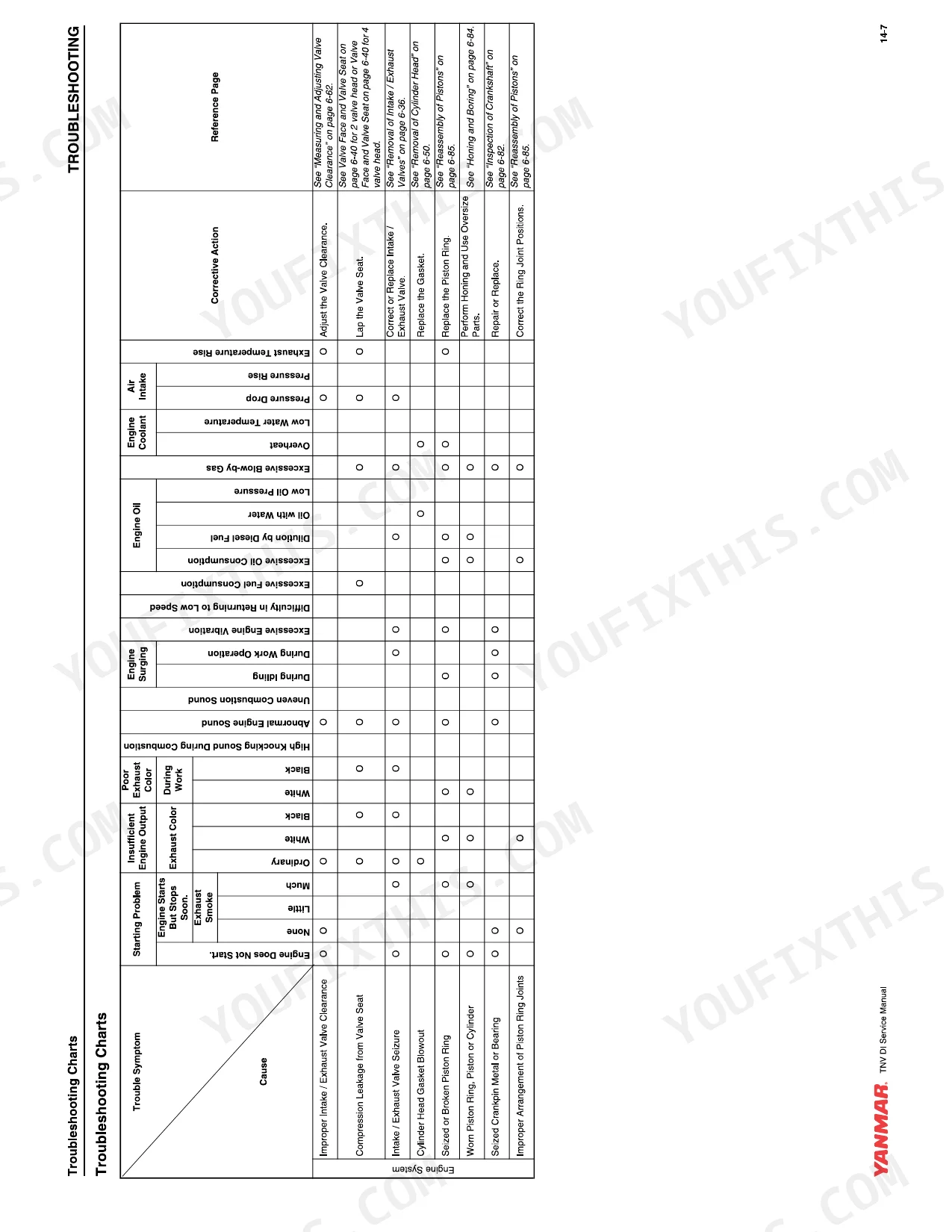

| Troubleshooting | 351-370 | Special Service Tools, Troubleshooting by Measuring Compression Pressure, Quick Reference Table for Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

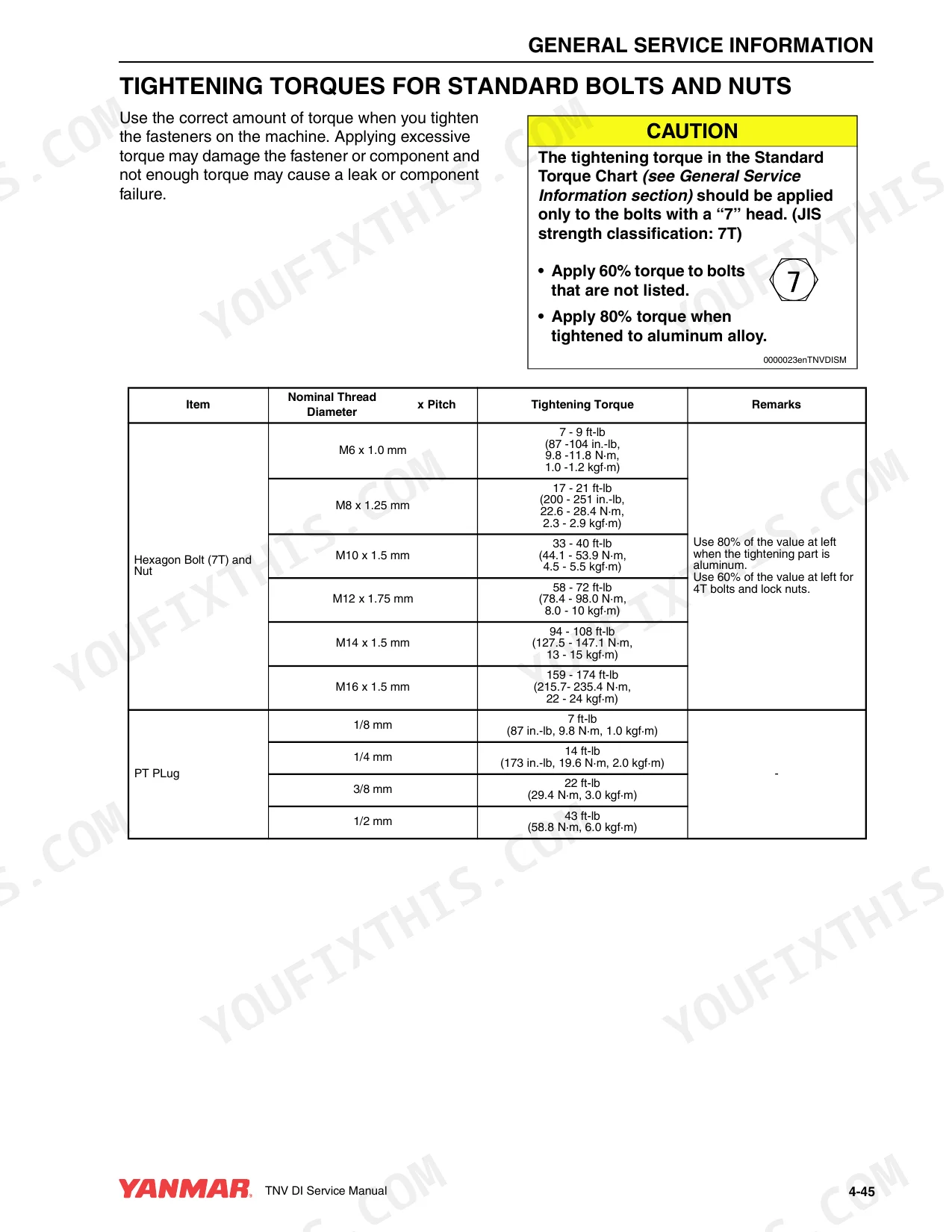

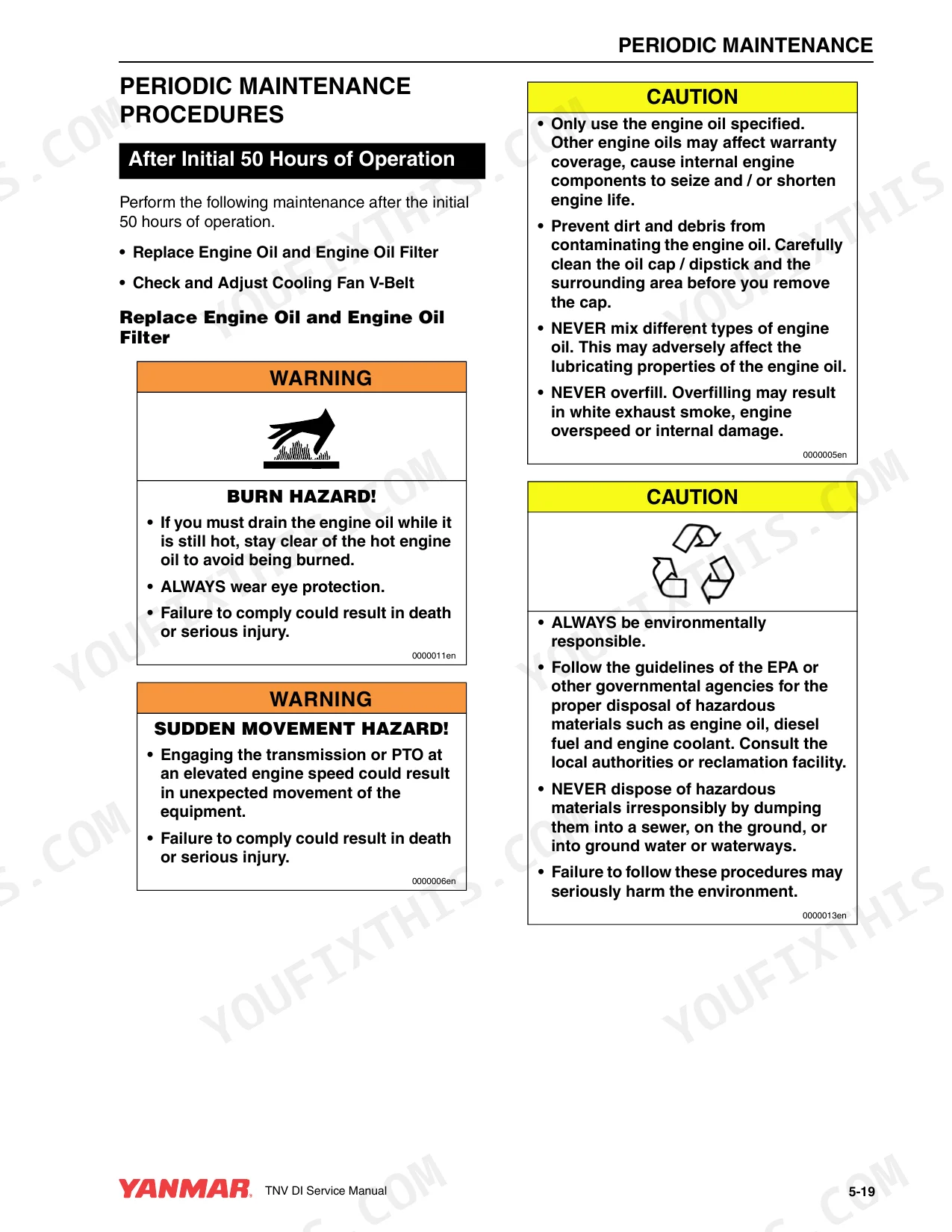

| Rocker Arm Cover Bolt Torque (M8 x 1.25 mm, standard bolt) | 17 - 21 ft-lb (22.6 - 28.4 N·m; 2.3 - 2.9 kgf·m) | p. 226 |
| Fuel Injector Retainer Bolt Torque | 29 ft·lb (39.2 N·m; 4 kgf·m) | p. 226 |
| Fuel Filter Replacement Interval | Every 500 hours | p. 102 |
| Engine Oil Filter Replacement Interval (initial) | After Initial 50 Hours of Operation | p. 103 |
| Engine Oil Filter Replacement Interval (subsequent) | Every 250 Hours of Operation | p. 49 |
| Air Cleaner Element Cleaning/Replacement Interval | Every 250 Hours of Operation (clean), Every 500 Hours of Operation (replace) | p. 102 |
| Maximum Air Intake Restriction | 0.90 psi (6.23 kPa; 635 mmAq) | p. 99 |
| Thermostat Valve Opening Temperature | 157°F - 163°F (70°C - 73°C) | p. 80 |
| Thermostat Full Opening Lift Temperature | 0.32 in (8 mm) or above 185°F (85°C) | p. 80 |
| Radiator Cap Relief Valve Opening Pressure | 10.8 - 14.8 psi (75 - 105 kPa; 0.75 - 1.05 kgf/cm²) | p. 267 |
| Water Pump Replacement Guidance | Replace as an assembly only. Do not attempt to repair or replace individual components. | p. 260 |
| Used V-Belt Tension (Position A) | 3/8 - 1/2 in. (10 - 14 mm) | p. 105 |
Yanmar Yanmar 3TNV82A-4TNV106T Series Common Problems This Manual Covers
Yanmar 3TNV84 engine fuel system air leaks, stalling, long cranking, or hard starting. p. 226
Test the fuel injector pressure as outlined on page 226. Verify the pressure reaches 3133 - 3278 psi for used parts on smaller models. Replace the fuel filter if it has been over 500 hours since the last service, as detailed on page 102. Bleed air from the fuel lines completely.
Manual Section: Fuel SystemSudden engine overheating, rapid coolant loss, or excessive pressure buildup in the cooling system. p. 267
Inspect the radiator cap relief valve opening pressure on page 267 and verify it falls between 10.8 - 14.8 psi. Test the thermostat to confirm it opens at 157°F - 163°F, using the diagnostic values on page 80. Replace the water pump as a complete assembly if you spot leaks.
Manual Section: Cooling SystemInternal engine knocking noises or low oil pressure warning light activation at rated speed. p. 273
Measure engine oil pressure at rated speed to confirm it holds between 42 - 57 psi, as shown on page 273. Drain the oil and change the filter if it exceeds the 250-hour replacement interval on page 102. Check the trochoid oil pump for heavy wear or internal bypass issues.
Manual Section: Lubrication SystemRestricted air intake piping, heavy black exhaust smoke, and poor acceleration under heavy load. p. 99
Check the air intake system for blockages and ensure restriction stays below 0.90 psi, referencing page 99. Inspect the V-belt deflection at position A to verify it measures 3/8 - 1/2 in. Adjust the tension or replace the belt per page 105 if the blower runs too slowly.
Manual Section: Periodic MaintenanceFrequently Asked Questions
How do you fix yanmar 3TNV84 engine fuel system air leaks, stalling, long cranking, or hard starting?
Test the fuel injector pressure as outlined on page 226. Verify the pressure reaches 3133 - 3278 psi for used parts on smaller models. Replace the fuel filter if it has been over 500 hours since the last service, as detailed on page 102. Bleed air from the fuel lines completely.
How do you fix sudden engine overheating, rapid coolant loss, or excessive pressure buildup in the cooling system?
Inspect the radiator cap relief valve opening pressure on page 267 and verify it falls between 10.8 - 14.8 psi. Test the thermostat to confirm it opens at 157°F - 163°F, using the diagnostic values on page 80. Replace the water pump as a complete assembly if you spot leaks.
How do you fix internal engine knocking noises or low oil pressure warning light activation at rated speed?
Measure engine oil pressure at rated speed to confirm it holds between 42 - 57 psi, as shown on page 273. Drain the oil and change the filter if it exceeds the 250-hour replacement interval on page 102. Check the trochoid oil pump for heavy wear or internal bypass issues.
How do you fix restricted air intake piping, heavy black exhaust smoke, and poor acceleration under heavy load?
Check the air intake system for blockages and ensure restriction stays below 0.90 psi, referencing page 99. Inspect the V-belt deflection at position A to verify it measures 3/8 - 1/2 in. Adjust the tension or replace the belt per page 105 if the blower runs too slowly.
How quickly can I access this manual after buying?
This is a 370-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Service Manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Can I find wiring schematics in this Yanmar 3TNV82A & variants manual?
Included. The Yanmar 3TNV82A & variants Service Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text quality is crisp and clear throughout, making it easy to read. Diagrams and illustrations are raster images, which means they may show some pixelation when highly magnified, but their labels remain readable. The pages are clean with no scan artifacts or marks, though many pages are intentionally left blank as fillers.
