Looking for the official factory procedures for your Yanmar BY3-Series marine engine? This 96-page Yanmar 4BY3-150, 4BY3-180, 6BY3-220, 6BY3-260 operation manual pdf (OEM #0ABY0-G00301) breaks down the operating protocols and maintenance schedules for every standard and Z-drive variant. Open this file to find a full troubleshooting chart diagnosing everything from smoke color to vibration and low power output. You also get a complete diagnostic trouble code table and rigorous periodic maintenance schedules to keep your power plant running cleanly. Lock down the zinc anode to exactly 25 N·m and verify your coolant temperature alarm triggers correctly at over 110 degrees Celsius. Don't let a mystery fault code ruin your time on the water. Grab this bookmarked download, pull it up on your phone in the engine room, and fix the problem.
What's Inside This Yanmar 4BY3 / 6BY3 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 7-8 | Record of Ownership |
| Safety | 9-18 | Safety Precautions (Before You Operate, During Operation and Maintenance), Safety Decals |

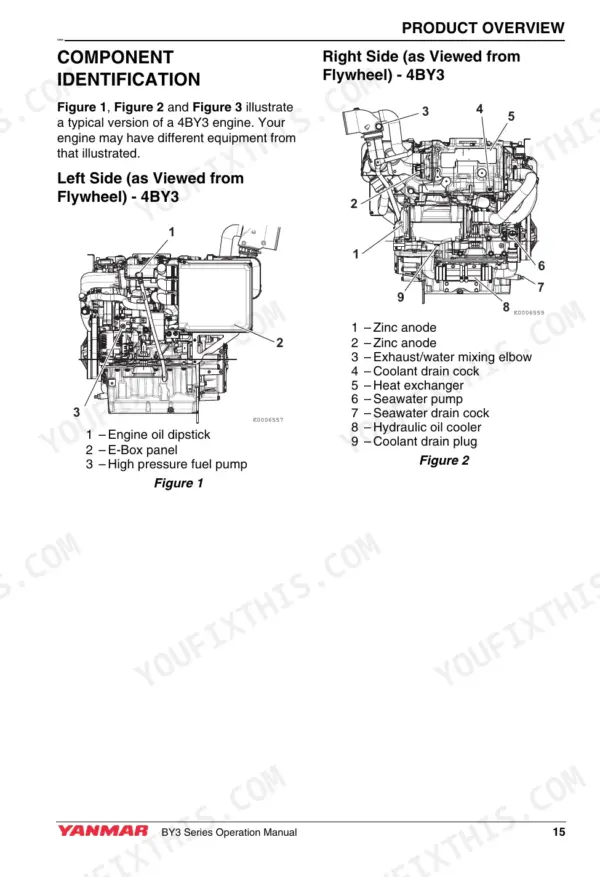

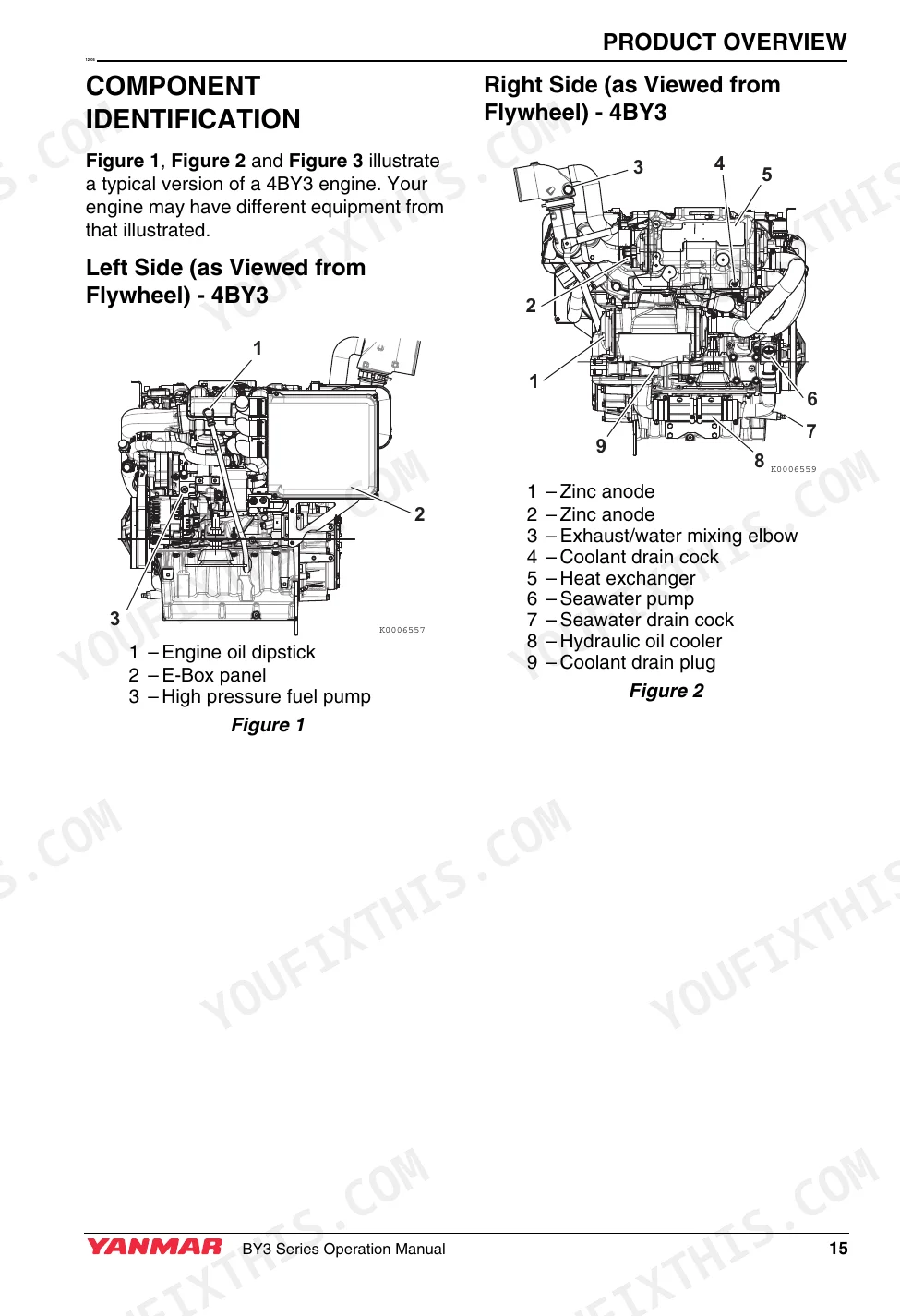

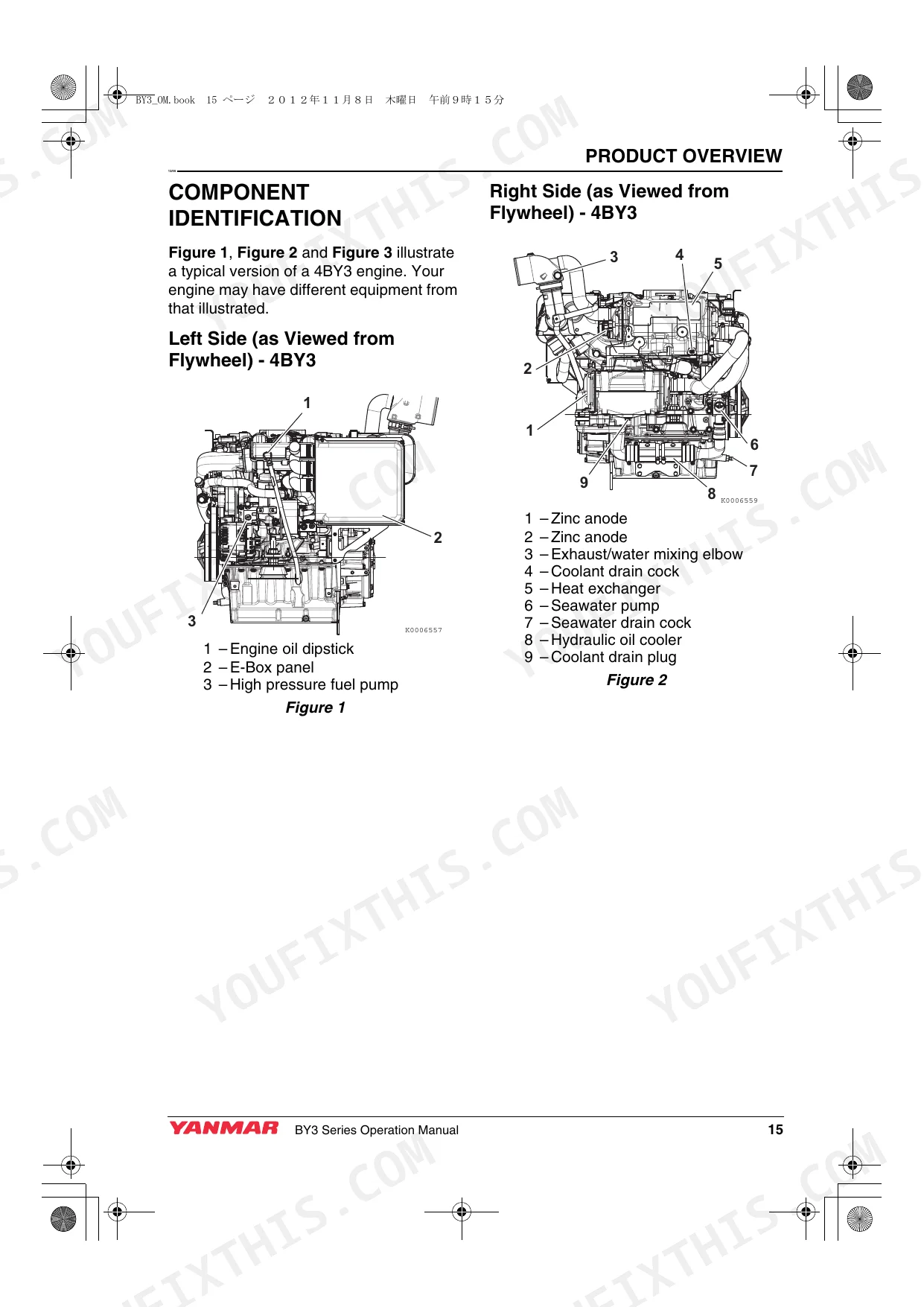

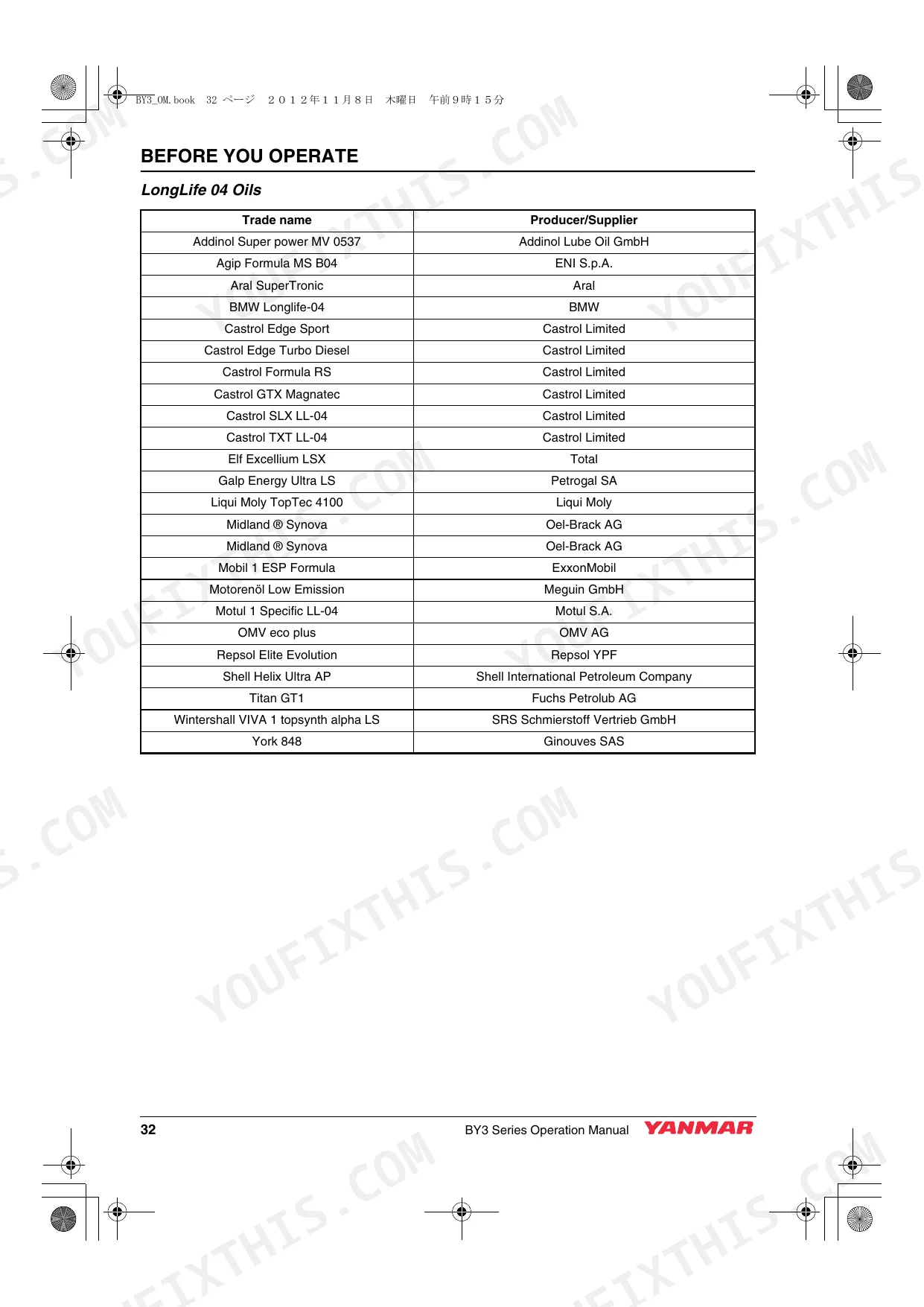

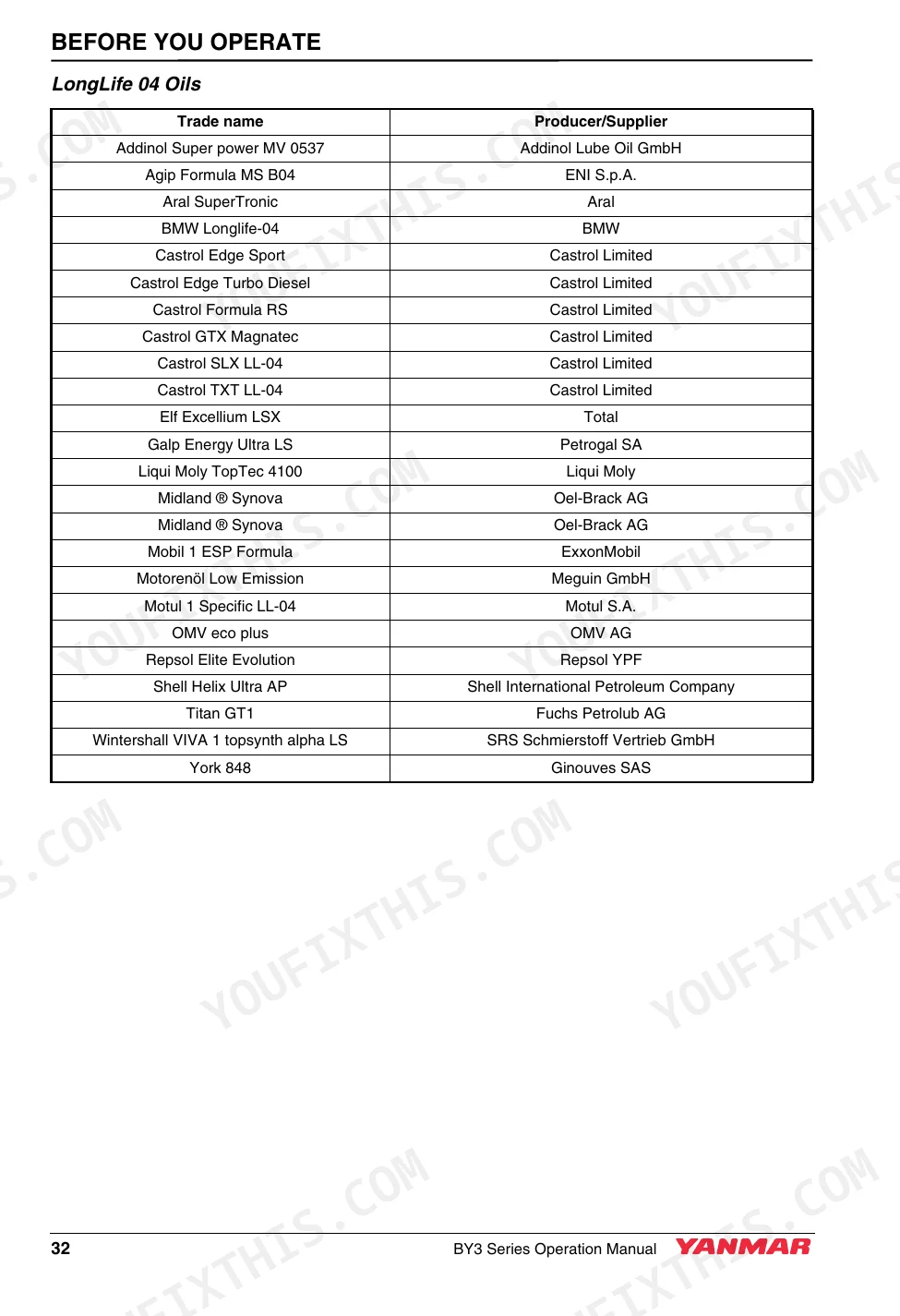

| Product Overview | 19-28 | Yanmar BY3-Series Features and Applications, New Engine Break in |
| Before You Operate | 29-42 | Safety Precautions, Diesel Fuel (Specifications, Filling the Fuel Tank, Bleeding the Fuel System) |
| Engine Operation | 43-46 | Safety Precautions, Starting the Engine (Starting at Low Temperatures), Shutting Down the Engine, Emergency Shut Down, Checking the Engine After Operation |
| Periodic Maintenance | 47-68 | Safety Precautions |

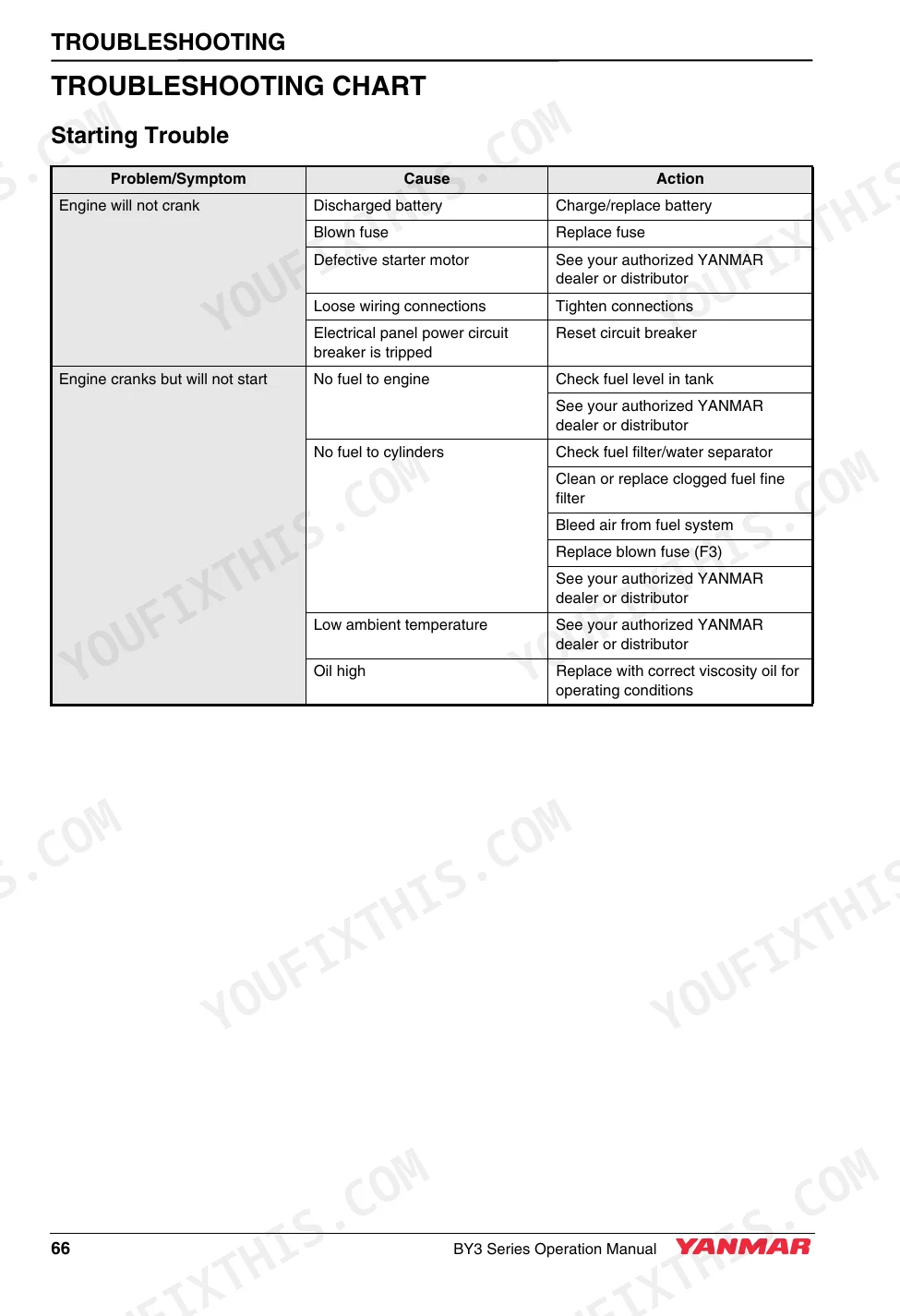

| Troubleshooting | 69-80 | Safety Precautions, Troubleshooting After Starting, Troubleshooting Information |
| Long-Term Storage | 81-82 | Prepare Engine for Long-Term Storage, Draining the Seawater Cooling System |
| Specifications | 83-86 | Engine Specifications |
| Epa Warranty Usa Only | 87-96 | Yanmar Co. |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Zinc anode torque | 25 N·m (18 ft-lb) | p. 64 |
| Coolant temp alarm threshold | Over 110 °C (230 °F) | p. 77 |
| Maximum continuous operation at low idle or low speed and light load | 30 minutes at a time | p. 20 |

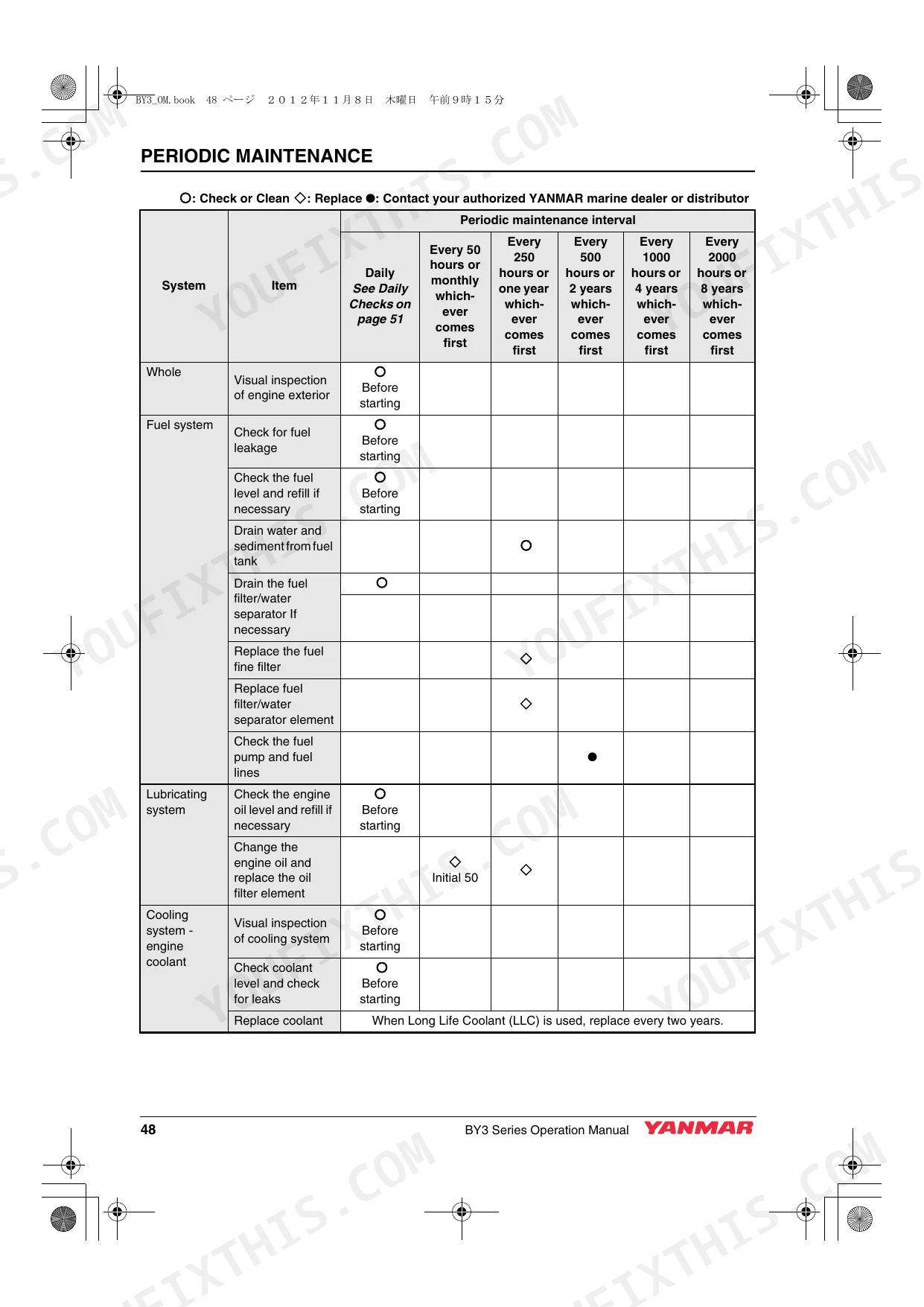

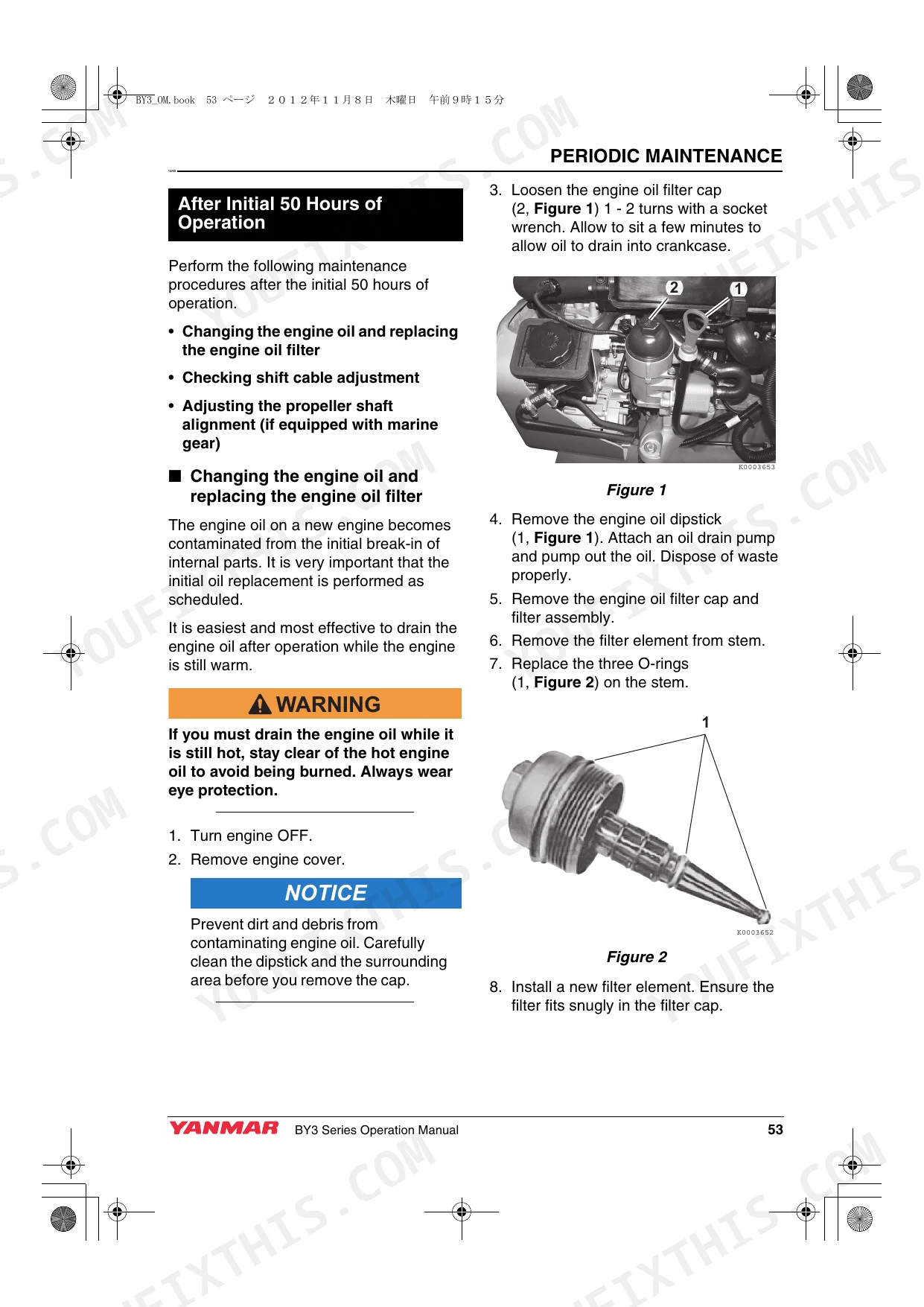

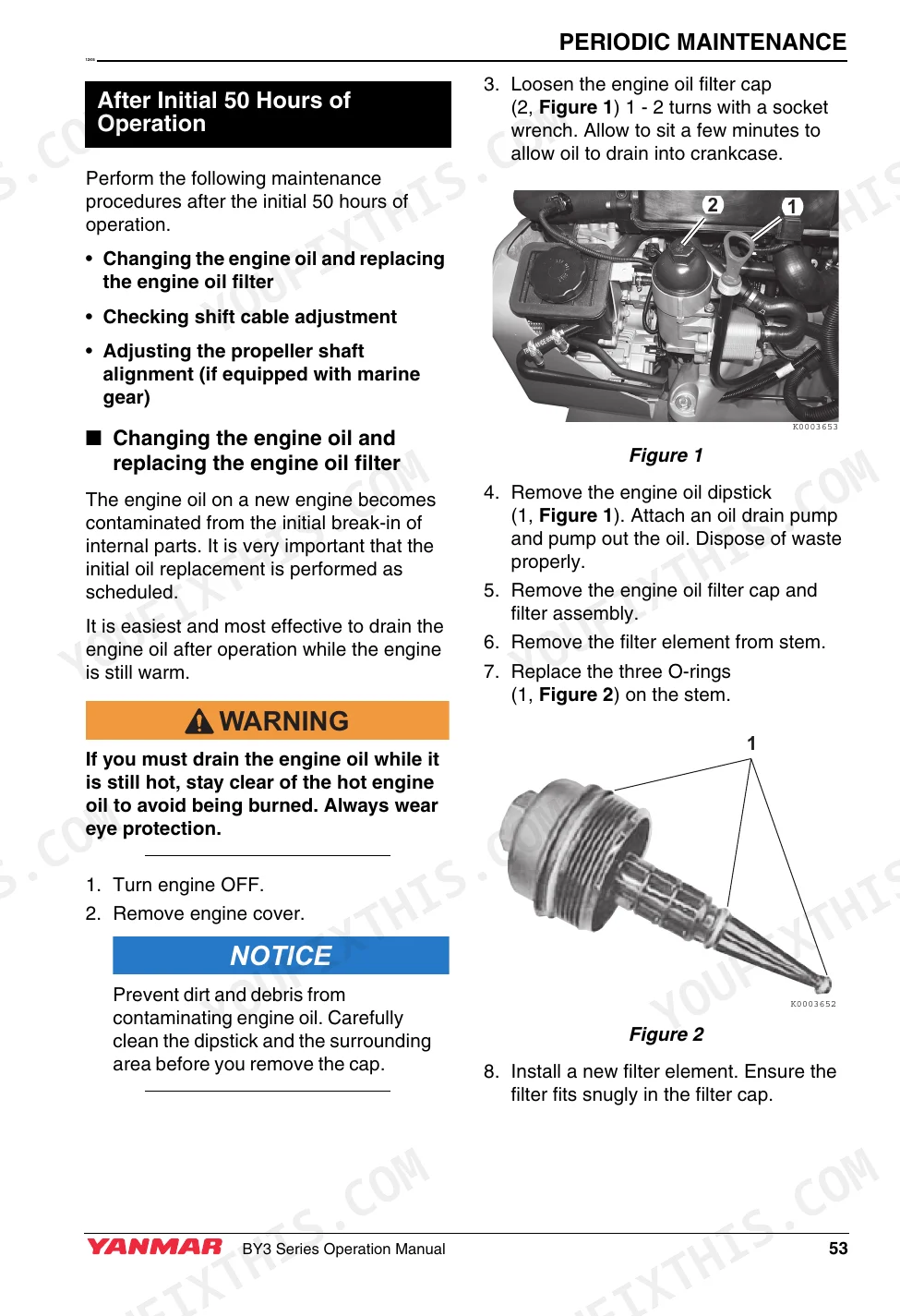

| Engine Oil Change Interval (after initial 50 hours) | 250 hours | p. 48 |
| M4 Hex bolt torque (grade 8.8 or 8) | 2.7 N·m (24 in.-lb) | p. 49 |
| M12 Hex bolt torque (grade 12.9 or 12) | 135 N-m (100 ft-lb) | p. 49 |
| 5 mm Hex head hose clamp torque | 1.0 - 1.5 N·m (8.9 - 13 in.-lb) | p. 49 |

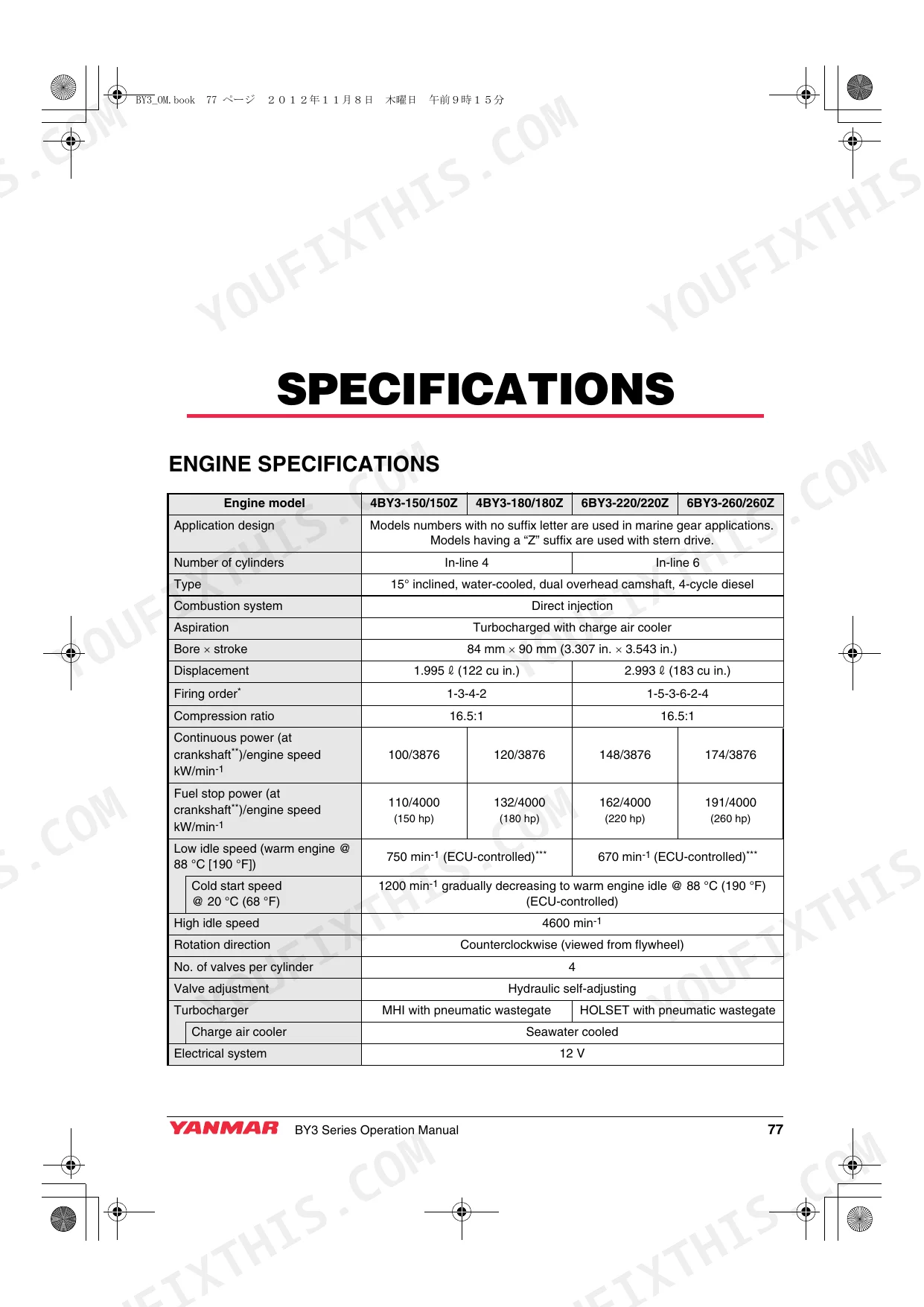

| Bore x stroke | 84 mm x 90 mm (3.307 in. x 3.543 in.) | p. 83 |
| Compression ratio | 16.5:1 | p. 83 |
| 4BY3-150/150Z, 4BY3-180/180Z | ||
| Coolant capacity (approximate) | 10 l (10.6 qt) | p. 84 |
| 4BY3-150, 4BY3-150Z, 4BY3-180, 4BY3-180Z | ||
| Number of cylinders | 4 | p. 83 |
| 6BY3-220, 6BY3-220Z, 6BY3-260, 6BY3-260Z | ||
| Number of cylinders | 6 | p. 83 |
Yanmar 4BY3 / 6BY3 Series Common Problems This Manual Covers

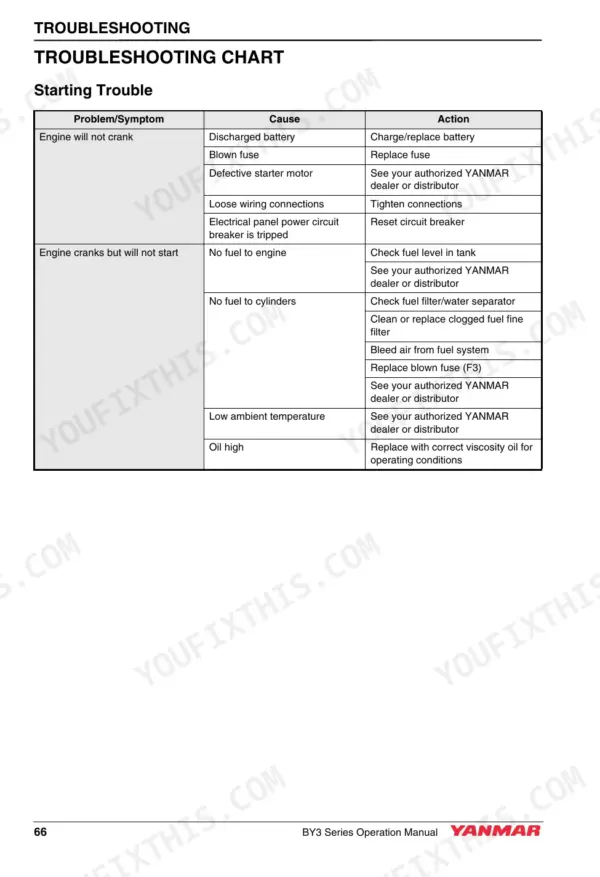

Yanmar 4BY3-150 intermittent hard start or no-start condition after sitting or running hot p. 84
Test the battery to ensure it meets the required 12 V/85 Ah/680 CCA capacity shown on page 84. Inspect all ground connections and battery cables for corrosion or looseness. Check the starting circuit for voltage drops. Clean terminals and replace compromised wiring before attempting another restart.
Manual Section: TroubleshootingEngine coolant temperature rising rapidly under load or triggering high temp indicator alarm p. 77
Verify the coolant temp alarm threshold is over 110 °C (230 °F) using the diagnostic codes on page 77. Inspect the raw-water intake and clean the seawater filter. Check the exhaust elbow for fouling and replace the zinc anodes, torquing them to 25 N·m (18 ft-lb) as specified on page 64.
Manual Section: TroubleshootingHigh oil consumption and poor piston ring sealing after initial engine break-in period p. 20
Review operating habits regarding low idle periods. Restrict continuous operation at low idle or light load to 30 minutes at a time per the guidelines on page 20. Drain the system and perform an engine oil change at the 250 hours interval outlined on page 48.

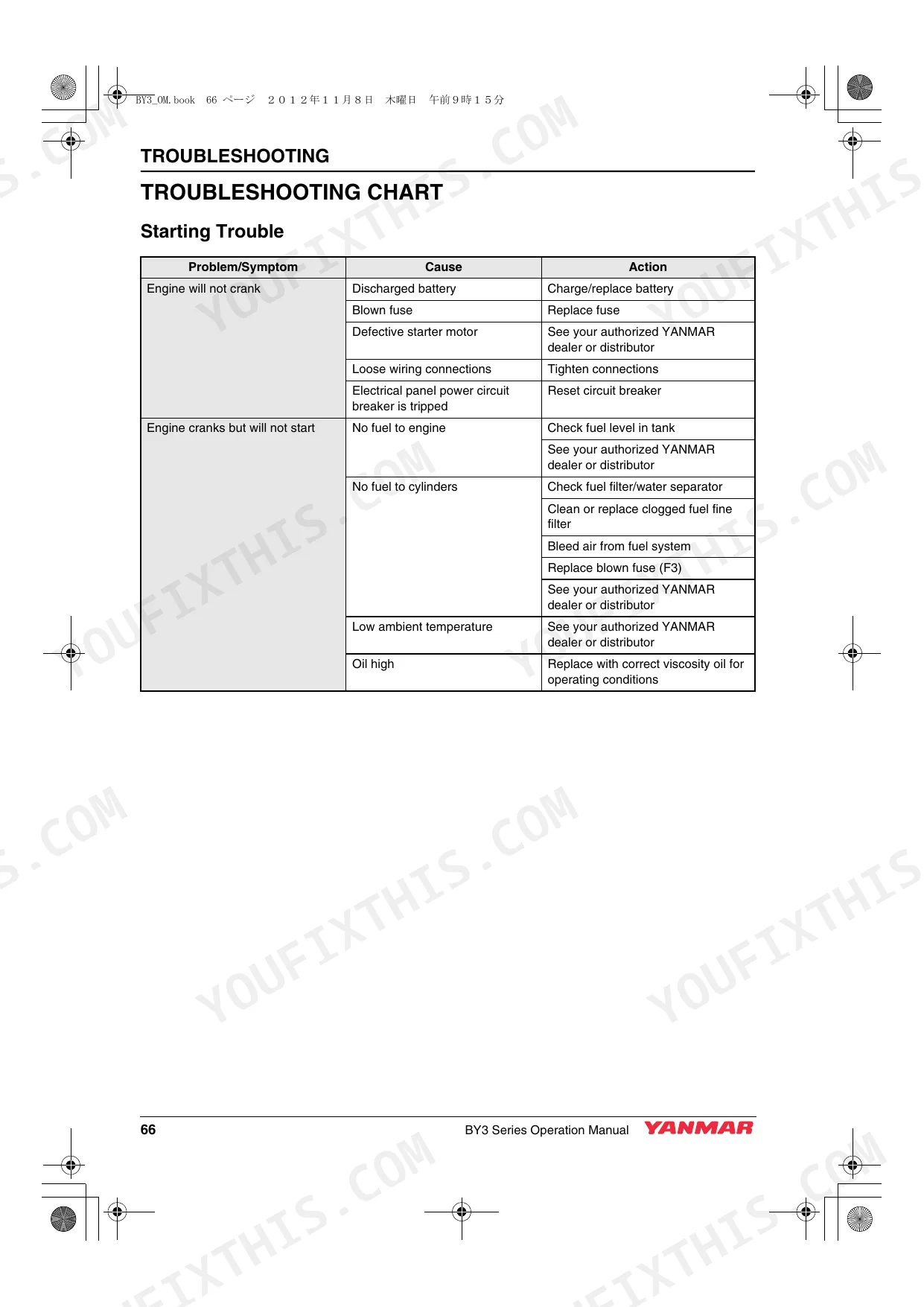

Manual Section: Product OverviewSudden engine shutdown underway or complete failure to restart after a fuel interruption p. 72
Bleed air from the fuel system and inspect primary and secondary filters for clogs. Review the starting procedures on page 72 if the engine cranks but will not start. Verify fuel line connections are tight and secure all 5 mm hose clamps to 1.0 - 1.5 N·m (8.9 - 13 in.-lb) per page 49.
Manual Section: TroubleshootingFrequently Asked Questions
How do I clear alarm codes on a YANMAR 6BY3-260Z?
Some warning alarms on the YANMAR 6BY3-260Z can be canceled by turning the engine off and then restarting it. However, for other fault codes, a special tool is required by a technician to read and correct the problem. For detailed assistance, contact your authorized YANMAR distributor or dealer.
What does error code mean on a YANMAR BY3 engine?

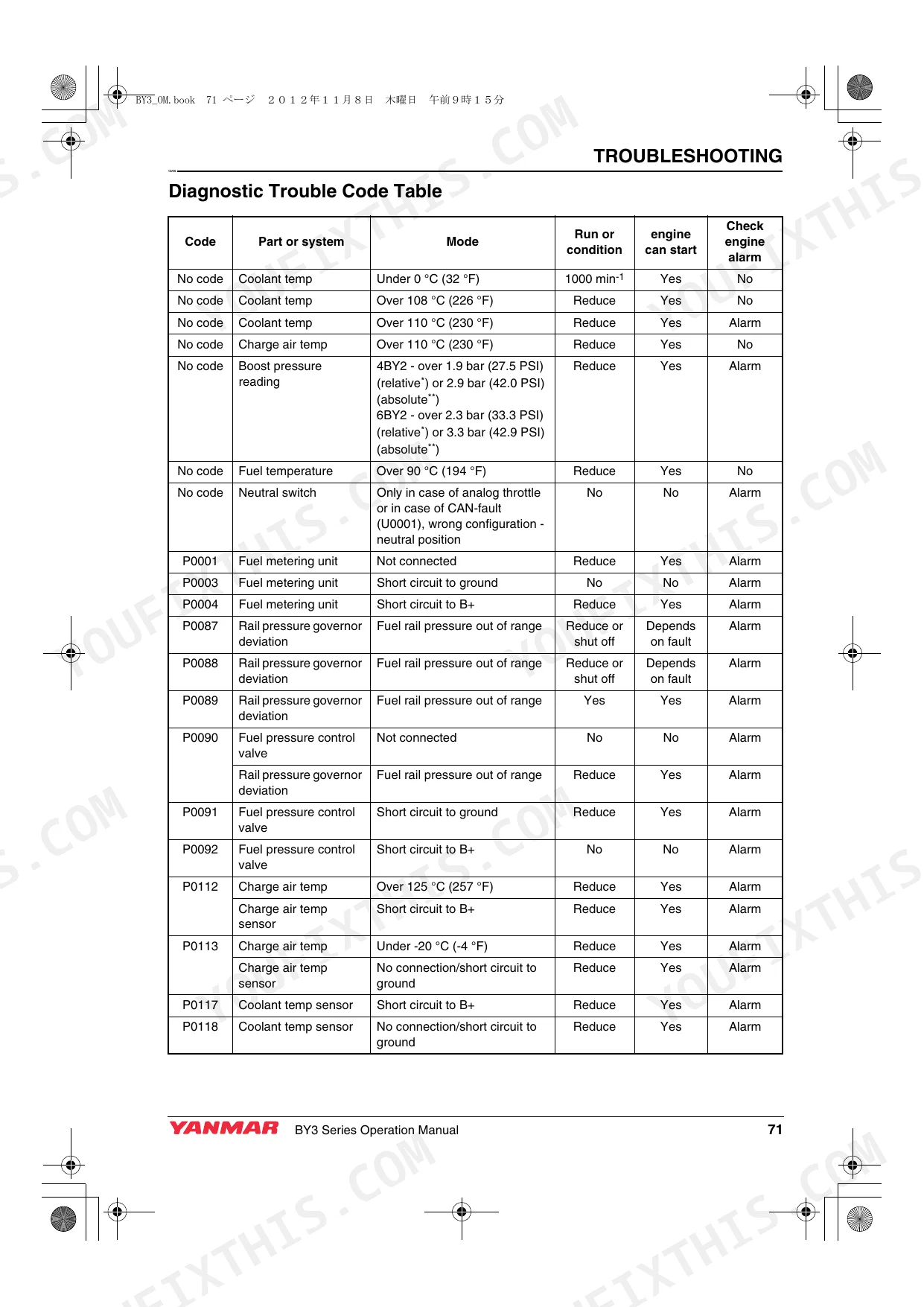

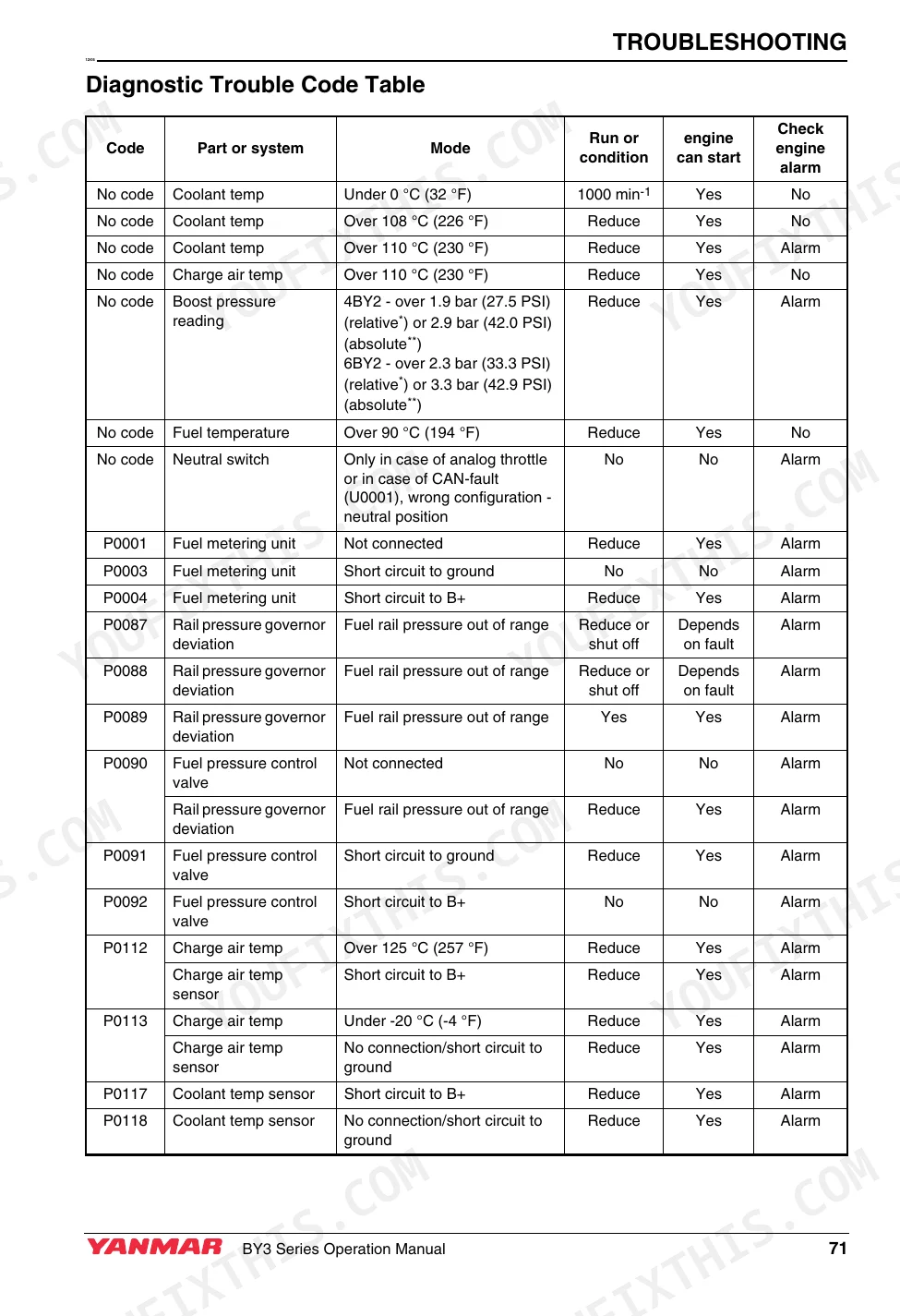

The manual provides a "Diagnostic Trouble Code Table" on pages 77-80, which lists various error codes, the affected part or system, and the mode (cause) of the fault. For example, error code P0001 indicates a "Fuel metering unit" that is "Not connected". If an indicator illuminates, stop the engine immediately and determine the cause.
How do I reset the engine control panel after an overheat alarm?
For an overheat alarm (over 108 °C), the engine torque will be reduced to protect the engine, but no specific trouble code may be set. The alarm might be canceled if the engine is turned off and then restarted after the issue is resolved. If the alarm persists, contact an authorized YANMAR dealer or distributor for diagnosis and repair.
What are the replacement specifications for Exhaust elbow?
The manual specifies that the exhaust/water mixing elbow should be checked or replaced every 500 hours of operation or every 2 years, whichever comes first. For specific replacement procedures or detailed specifications, you should contact your authorized YANMAR dealer or distributor.
What are the replacement specifications for Air filter / air cleaner element?
The air filter element should be replaced every 500 hours of operation or every 2 years, whichever comes first. The replacement procedure involves turning off the engine, removing the engine cover, detaching the clamp, removing the old air filter, and installing a new one.
What format is this manual in?
You get a 96-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this Yanmar 4BY3-150 & variants Operation Manual printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Document Quality
This document is a scanned PDF with an optical character recognition (OCR) layer, allowing you to search and copy the full text. The text is crisp and consistently easy to read throughout. Diagrams and illustrations are clear raster images, and their labels are readable. Pages are clean with no noticeable scan artifacts or skewed content. Please note that several pages, including 12, 18, 40, 46, 80, 86, 88, and 94, are intentionally left blank.
