Working on a Yanmar 3TNV or 4TNV series industrial diesel engine inside your mini-excavator or skid steer loader? This 280-page Yanmar 3TNV service manual PDF (OEM #M9961-02E050) completely breaks down every factory teardown and rebuild procedure for these powerplants. You get detailed factory wiring diagrams, exploded views of the trochoid oil pump, and a complete section of step-by-step turbocharger overhaul instructions. Open up the troubleshooting guides to quickly diagnose sudden oil decrease or white exhaust smoke, then jump to the extensive torque tables to assemble the block perfectly. Lock down the fuel filter element to exactly 20-24 N-m and verify the MP4 fuel limiter nut is set to 19.6-21.6 Nm before firing the ignition. Stop relying on internet guesswork for engine repairs. Grab this bookmarked digital download, pull it up on your shop tablet, and get the machine running right.
What's Inside This Yanmar 3TNV Manual
| System | Pages | Key Topics |
|---|---|---|
| Main Page | 1-16 | - |

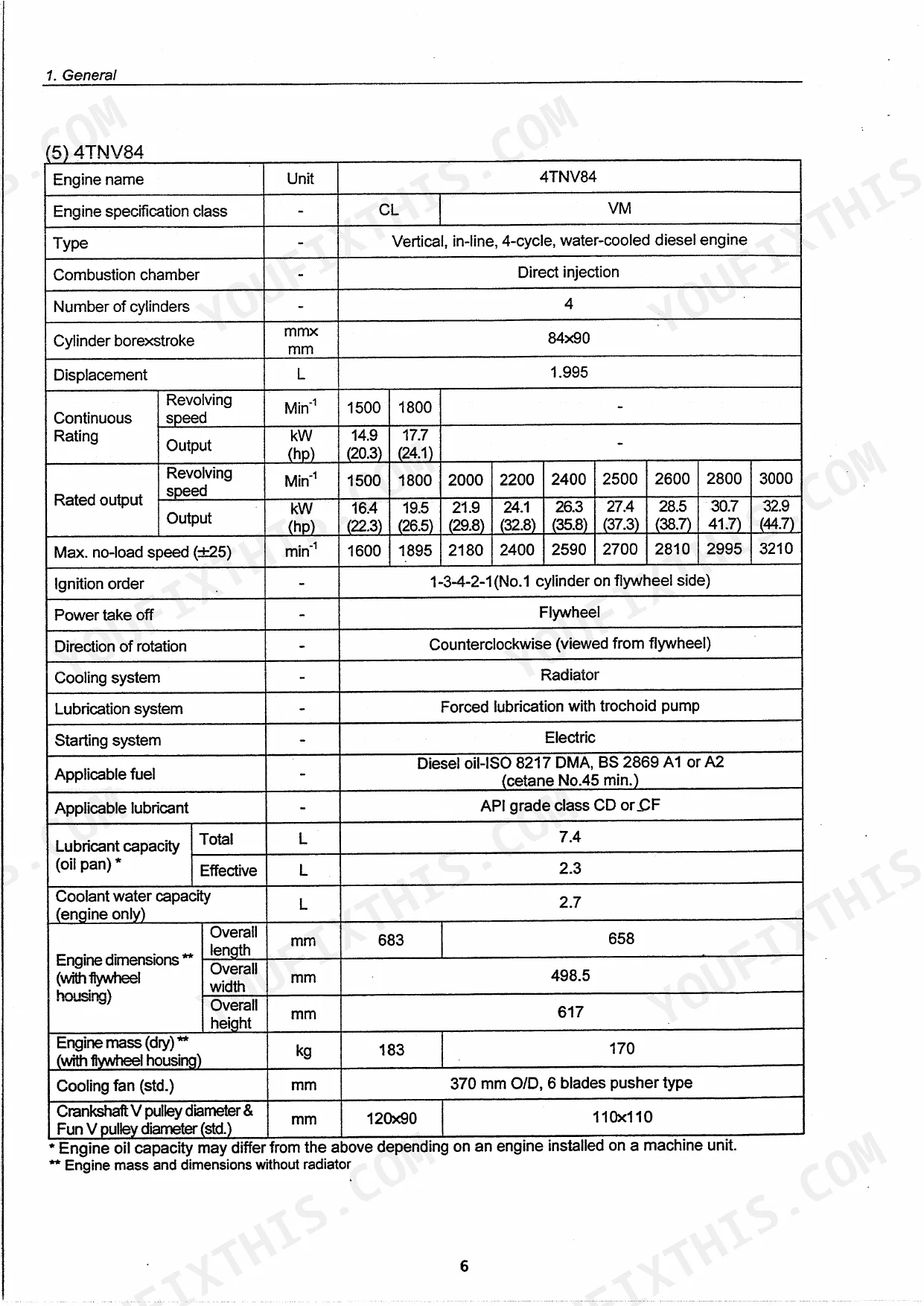

| General | 17-37 | Engine Nomenclature, Specifications, Fuel Oil, Lubricating Oil and Cooling Water, Engine External Views, Structural Description |

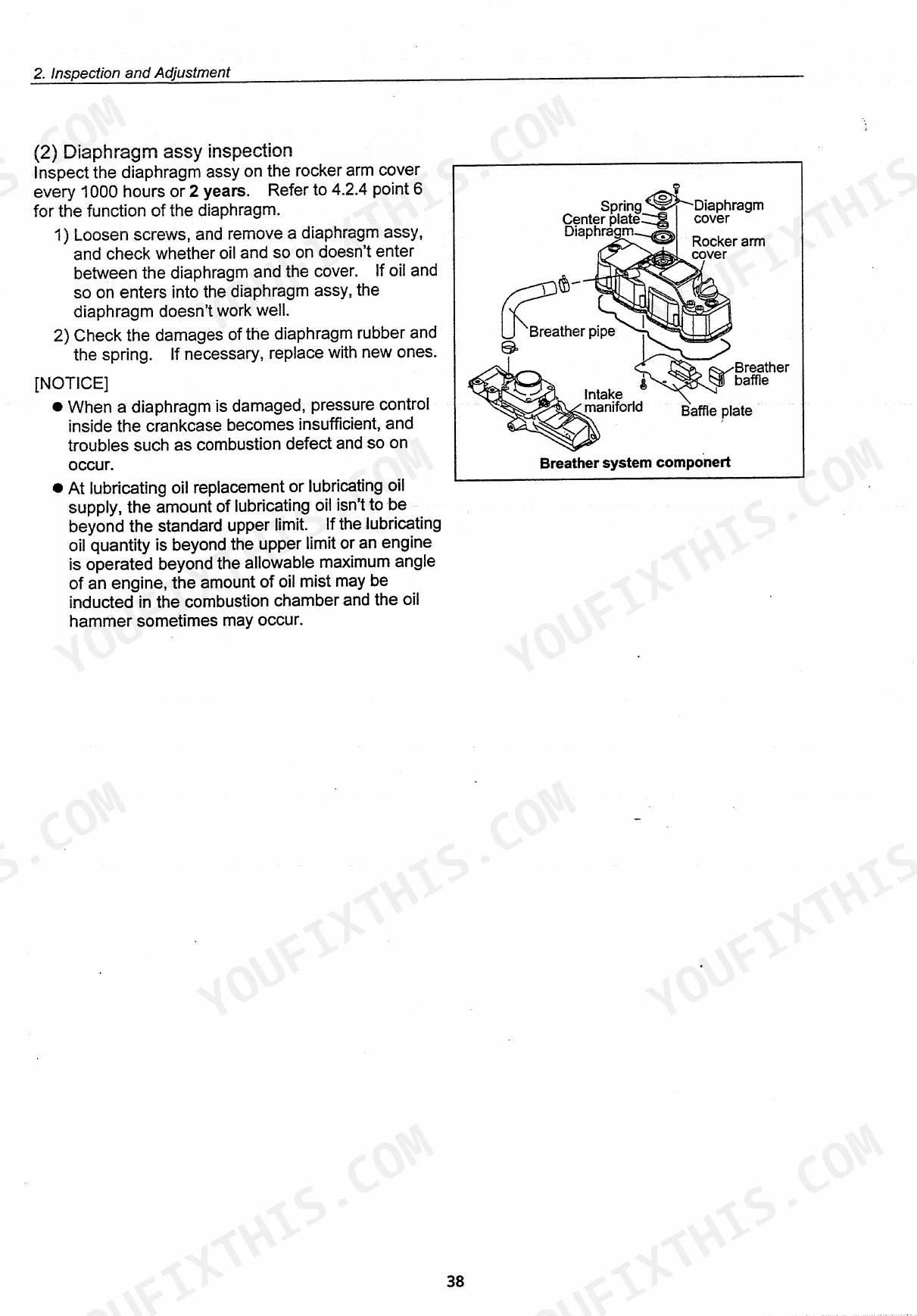

| Inspection Adjustment | 38-68 | Periodic Maintenance Schedule, Periodic Inspection and Maintenance Procedure, No-Load Maximum or Minimum Speed Adjustment, Sensor Inspection, Cooling Water System Leak Check |

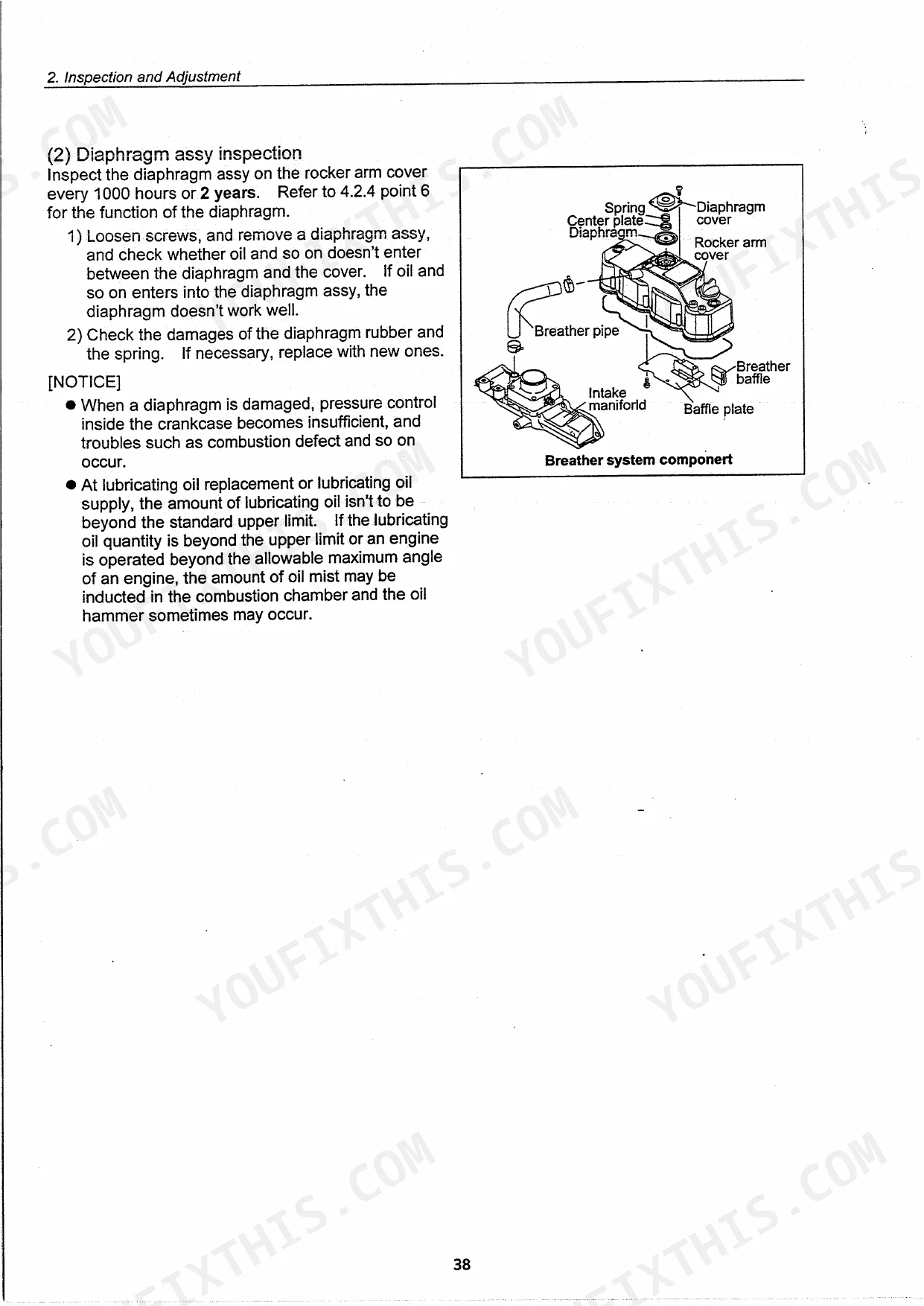

| Troubleshooting | 69-74 | Excessively Exhaust Smoke, White Smoke Generation, Sudden Oil Decrease |

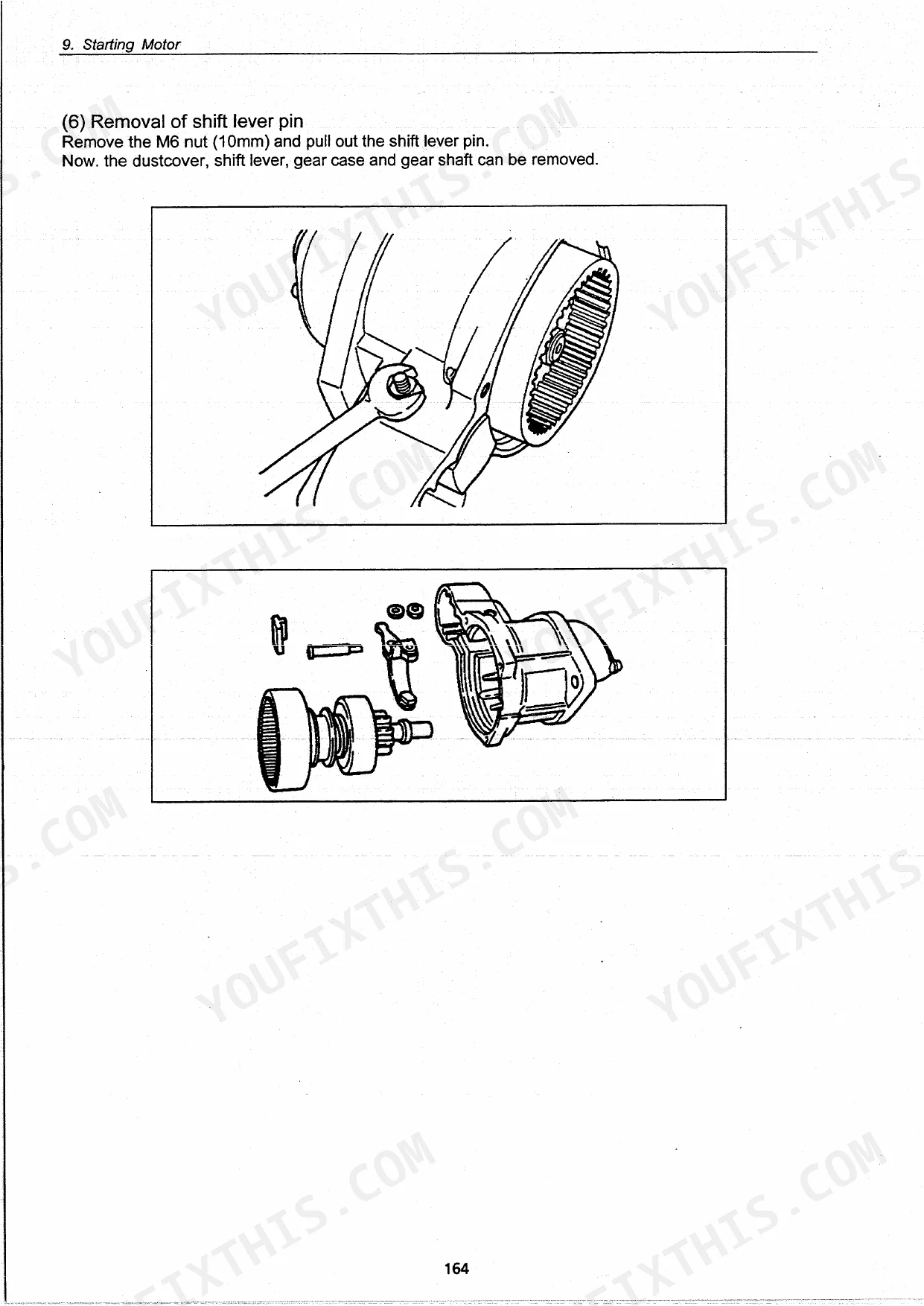

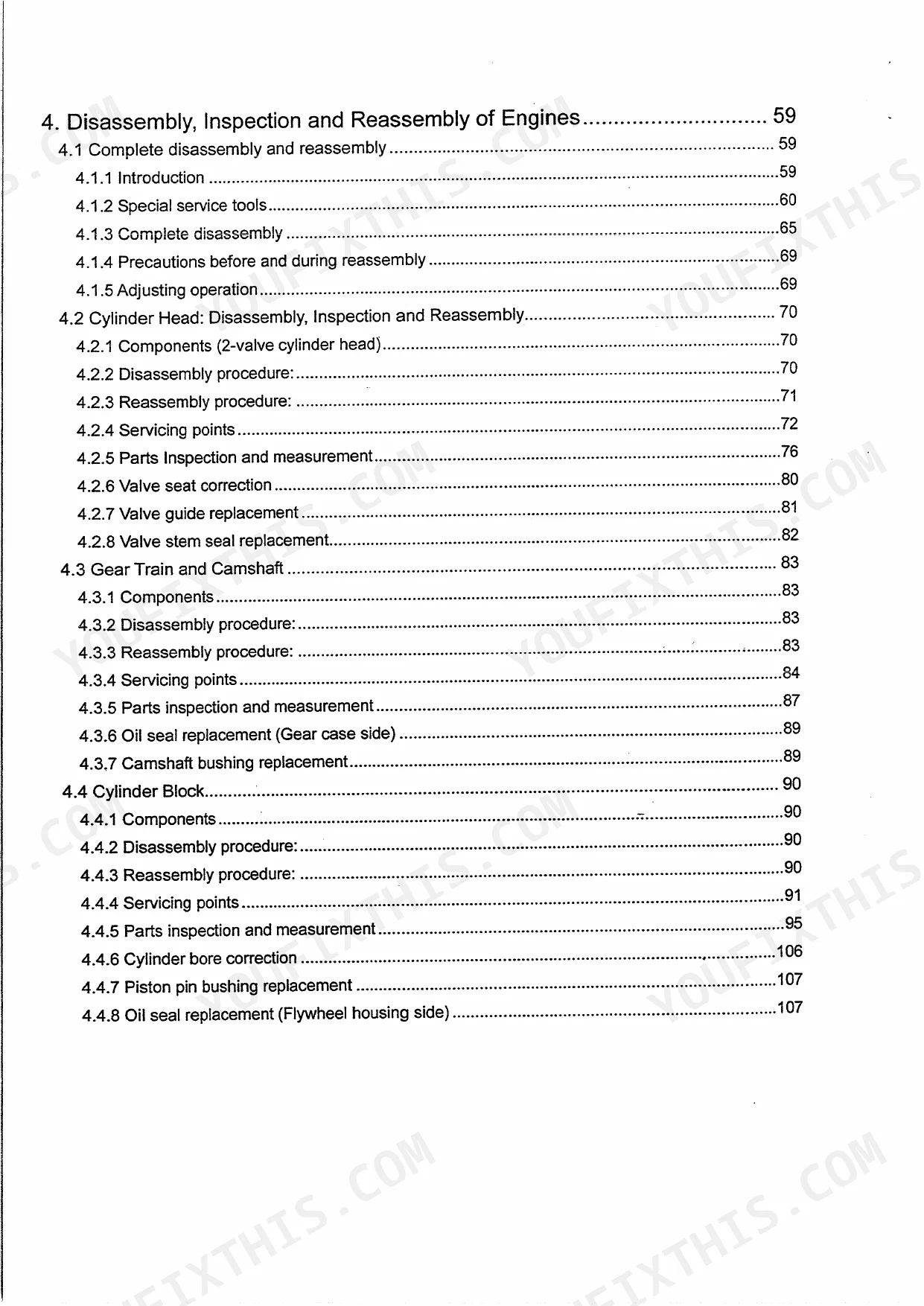

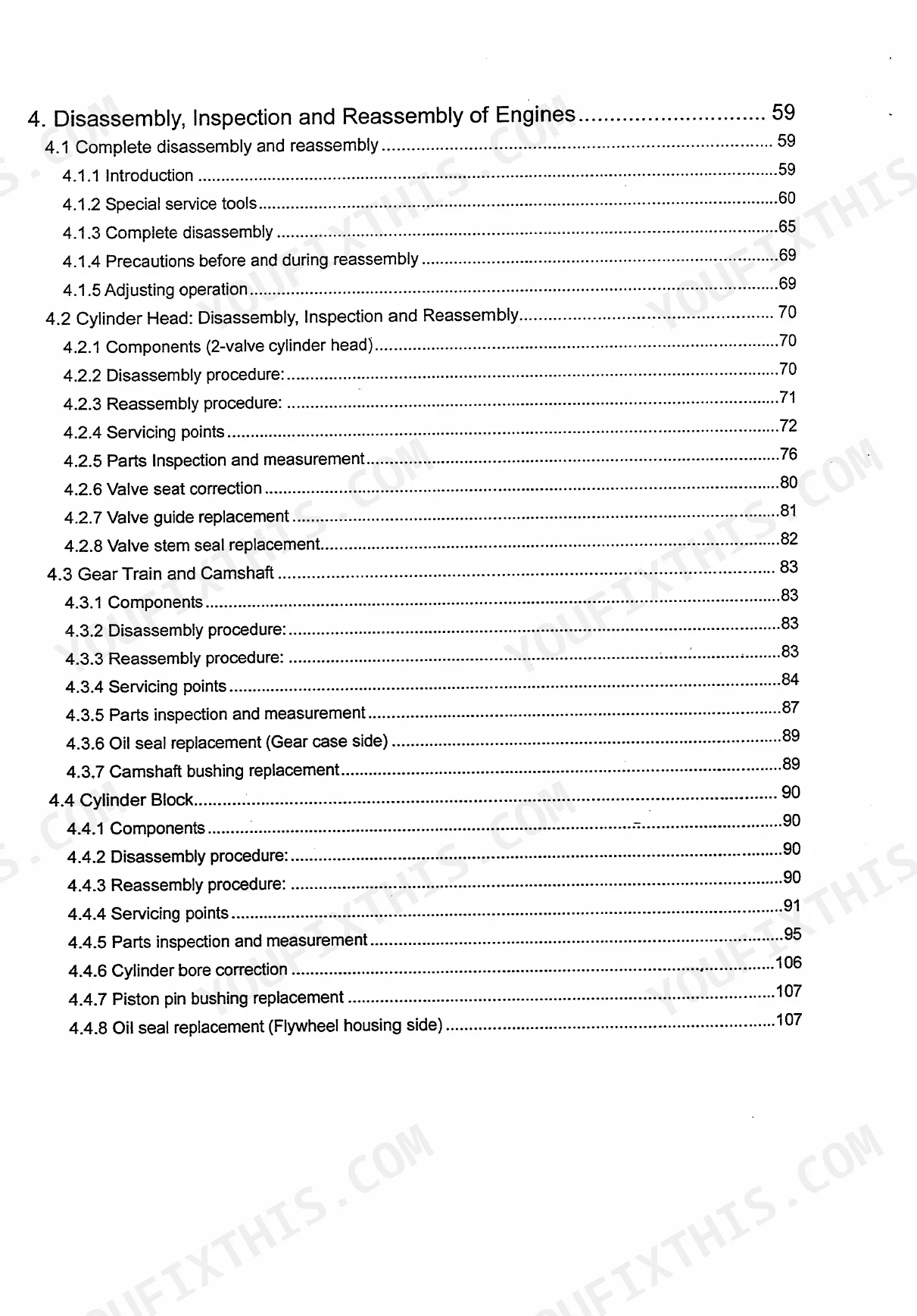

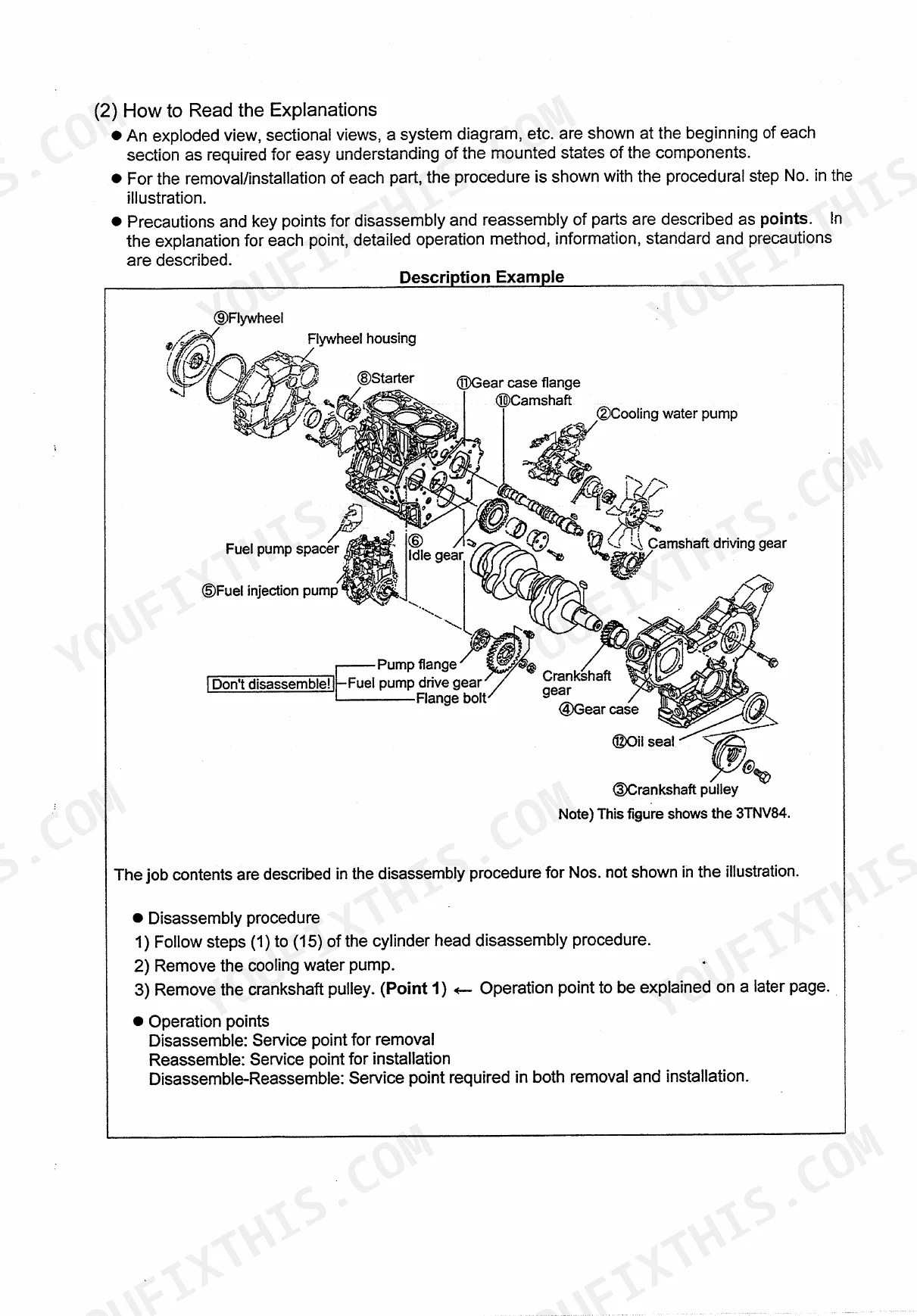

| Disassembly, Inspection and Reassembly of Engines | 75-123 | Complete Disassembly and Reassembly (Introduction, Special Service Tools, Precautions Before and During Reassembly, Operation), Cylinder Head: Disassembly |
| Lubrication System | 124-127 | Lubrication System Diagram, Trochoid Pump Components, Disassembly, Servicing Points, Parts Inspection and Measurement (Trochoid Pump Inspection and Measurement) |
| Cooling System | 128-129 | Cooling Water System, Cooling Water Pump Components, Disassembly, Servicing Points |
| Fuel Injection Pump/Governor | 130-133 | Introduction, Fuel Injection Pump (Fuel System Diagram, External View and Components, Disassembly Procedure, Assembly Procedure, Servicing Points) |
| Trbochager: Disassembly, Inspection and Reassembly | 134-155 | Structure and Functions, Service Standards and Tightening Torque, Periodic Inspection Procedure, Disassembly Procedure, Washing and Inspection Procedure, Reassembly Procedure |
| Starting Motor | 156-191 | Specifications, Components, Troubleshooting, Disassembly Procedure, Inspection and Maintenance, Service Standards |
| Alternator | 192-195 | Components, Specifications, Wiring Diagram, Standard Output Characteristics, Inspection, Troubleshooting |

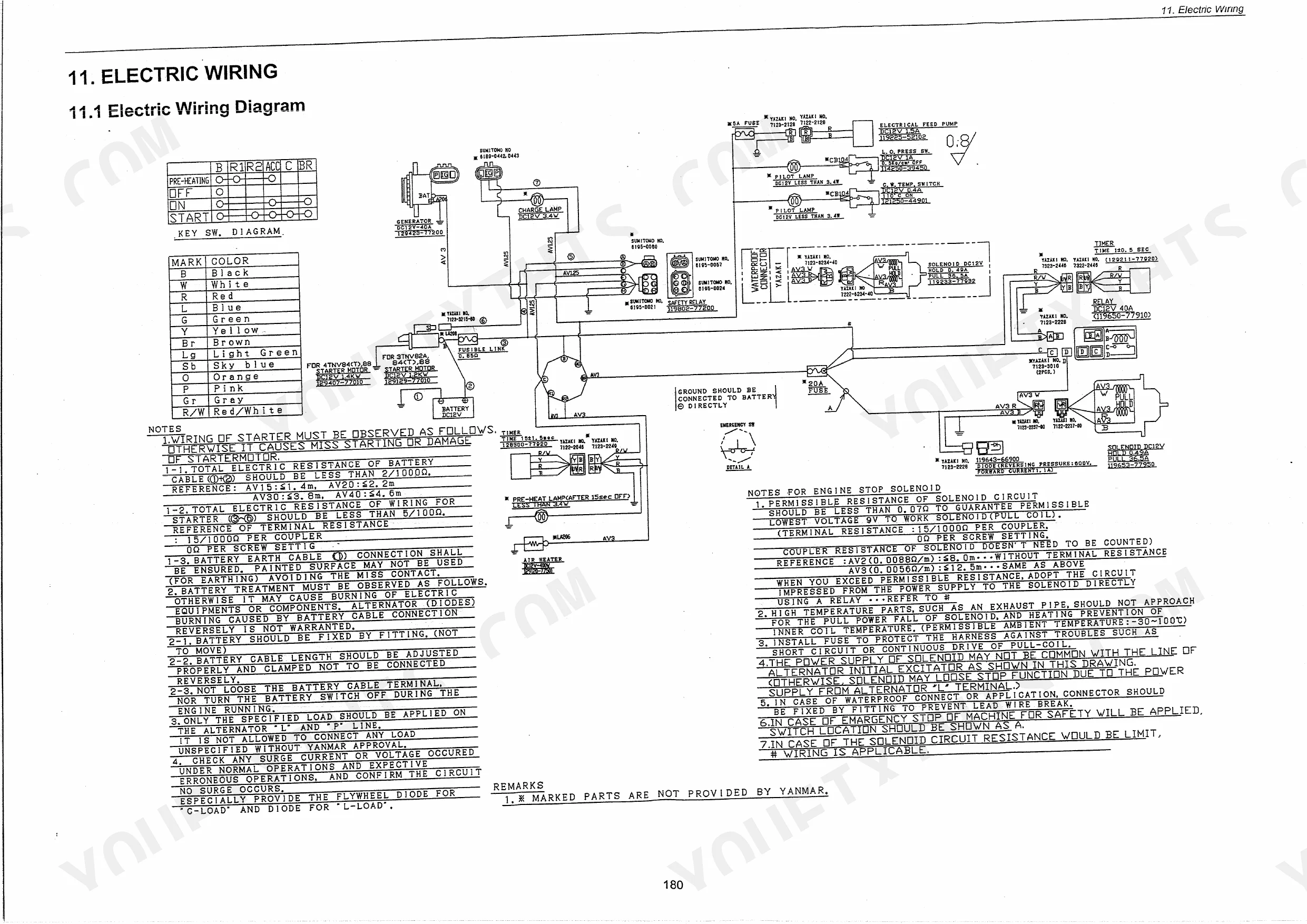

| Electric Wiring | 196-200 | Electric Wiring Diagram, Alternator Wiring Precautions, Starter Wiring Precautions, Current Limiter Wiring Precautions, Section Area and Resistance of Electric Wire |
| Service Standards | 201-211 | Engine Tuning, Cylinder Head, Gear Train and Camshaft, Cylinder Block, Lubricating Oil System (Trochoid Pump) |
| Tightening Torque for Bolts and Nuts | 212-280 | Tightening Torques for Main Bolts and Nuts, Tightening Torques for Standard Bolts and Nuts |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 3TNV82A to 4TNV106(T) | ||
| Fuel filter element tightening torque | 20~24 N·m (2.0~2.4 kgf·m) | p. 35 |
| MP4, MP2 | ||
| Nut, fuel limiter torque | 19.6~21.6 Nm | p. 276 |
| Angleich complete torque | 25~29 Nm | p. 276 |
Yanmar 3TNV Common Problems This Manual Covers
Yanmar 3TNV and 4TNV engine cranks but will not start or starts only after repeated bleeding. p. 35
Inspect the fuel delivery system and verify filter seating to prevent air ingress. Tighten the fuel filter element to 20~24 N·m (2.0~2.4 kgf·m) as specified on page 35. Bleed the air completely from the lines. If the engine still refuses to start, check the feed pump delivery pressure.
Manual Section: 3. TroubleshootingHeavy black smoke from exhaust under load with noticeable power loss and excessive fuel smell. p. 43
Remove and test the injectors. Verify the fuel injection nozzle standard pressure reaches 19.6~20.6 MPa (200~210 kgf/cm²) for CL models, as outlined on page 43. Replace leaking nozzles and ensure you clean the fuel nozzle every 1500 hours according to the maintenance schedule on page 21.
Manual Section: 3. TroubleshootingPersistent low compression and rough idle even after completing a full fuel system bleeding procedure. p. 79
Measure valve clearances using a feeler gauge. Adjust the valve rocker arm clearance to the standard 0.016~0.054 mm for TNV82A through TNV88 models, following the specifications on page 79. Inspect the cylinder head for burnt valves if the clearance is correct but compression remains low.
Manual Section: 4. Disassembly, Inspection and Reassembly of EnginesSpeed control instability and engine surging or hunting on electronically governed equipment applications. p. 276
Test the rack actuator wiring for a short to ground. Inspect the governor components and verify the fuel limiter nut torque is 19.6~21.6 Nm on MP2 and MP4 models, as shown on page 276. Check the E-ECU internal circuitry if the mechanical governor adjustments fail to stabilize engine speed.
Manual Section: 13. Tightening Torque for Bolts and NutsFrequently Asked Questions
What is the torque specification for YANMAR 3TNV cylinder head bolts?
The torque specifications for cylinder head bolts vary by model. For the 3TNV82A, the tightening torque is 37.2~41.2 Nm (3.8~4.2 kgf·m) for M8x1.25 bolts. For TNV84~88 models, it is 85.3~91.1 Nm (8.7~9.3 kgf·m) for M10x1.25 bolts, and for 3TNV94L~98, it is 103~113 Nm (10.5~11.5 kgf·m) for M11x1.25 bolts.
What is the torque specification for YANMAR fuel nozzle set bolt?
The tightening torque for the fuel nozzle set bolt on YANMAR 4TNV models is 25~29 Nm (2.5~2.9 kgf·m) for M8x1.25 bolts. This specification applies to TNV82A~88 and 4TNV94L~98~106(T) models.
How do I bleed the fuel system on a YANMAR 3TNV engine?
To bleed the fuel system, first check the fuel oil level and refuel if necessary. Then, open the cock of the water separator and loosen the air bleeding bolt by turning it 2-3 times counter-clockwise. Once clear fuel without bubbles comes out, tighten the air bleeding bolt and feed fuel using the priming pump or electromagnetic fuel feed pump.
What are the replacement specifications for fuel filters on YANMAR 3TNV/4TNV engines?
For fuel filter element replacement, the applicable part number for 3TNV82A~ and 4TNV88 models is 119802-55800. For 4TNV84(T) and 4TNV106(T) models, use part number 123907-55800. The tightening torque for the fuel filter element is 20~24 N·m (2.0~2.4 kgf·m).
What is the engine oil capacity for YANMAR 3TNV82A and 4TNV106(T) engines?
The total engine oil capacity for the YANMAR 3TNV82A engine is 3.6 liters, with an effective capacity of 1.2 liters. For the 4TNV106(T) engine, the total capacity is 14.0 liters, with an effective capacity of 9.0 liters.
What is the coolant water capacity for YANMAR 3TNV82A and 4TNV106(T) engines?
The coolant water capacity for the YANMAR 3TNV82A engine is 1.8 liters. For the 4TNV106(T) engine, the coolant water capacity is 6.0 liters. These figures are for the engine only.
What are the standard valve clearances for YANMAR 3TNV and 4TNV engines?
The standard valve clearance for models 3TNV82A~98 is 0.15~0.25 mm. For the 4TNV106(T) model, the standard valve clearance is 0.25~0.35 mm. These clearances are crucial for proper engine operation.
How do I check and adjust the V-belt tension on YANMAR engines?
To check the V-belt tension, press the V-belt with your thumb. For a new V-belt, the deflection should be 8~12 mm. For a used V-belt, the deflection should be 10~14 mm. If adjustment is necessary, loosen the set bolt and adjuster, then tighten the V-belt to the specified deflection.
What are the standard compression pressure values for YANMAR 3TNV and 4TNV engines?
The standard compression pressure for a 3TNV82A engine is 3.16±0.1 MPa (31±1 kgf/cm²), with a limit of 2.45±0.1 MPa (25±1 kgf/cm²). For TNV88~106(T) models, the standard is 3.43±0.1 MPa (35±1 kgf/cm²), with a limit of 2.75±0.1 MPa (28±1 kgf/cm²).
What is the standard pressure for the radiator cap on YANMAR engines?
The standard pressure for the radiator cap is 0.09±0.015 MPa (0.9±0.15 kgf/cm²). If the cap tester pressure gauge reads lower than this, or if the cap does not open, it should be replaced.
