From splitting the tractor at the front frame to the closed centre hydraulics and Autotronic 2 electronics, this 625 page Massey Ferguson 8160 shop manual PDF walks every system on the seven tractor 8100 series end to end: wet clutch, gearbox, rear axle, PTO, front axle, cab. Hydraulic schematics trace the closed centre circuit, trailer braking and auxiliary spool valves through a section that fills more than a quarter of the book. Wiring diagrams and the electronics chapters carry you from tester programming through auto diagnosis on the electronic lift control. Set the speed sensor clearance to 1 mm and pull the rear axle housing bolts to between 175 and 270 Nm. Split in the yard with no one to call, you want the right page fast; bookmarks and a live text layer put any section two clicks from the cover, and the tractor back in the field before the weather turns.
What's Inside This Massey Ferguson 8100 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction - Specifications | 1-35 | Reading the Manual, Chassis Mounting Points and Dimensions, Safety Precautions, Practical Advice, Installation Instructions, Conversion Tables, Locking Compounds and Sealants |

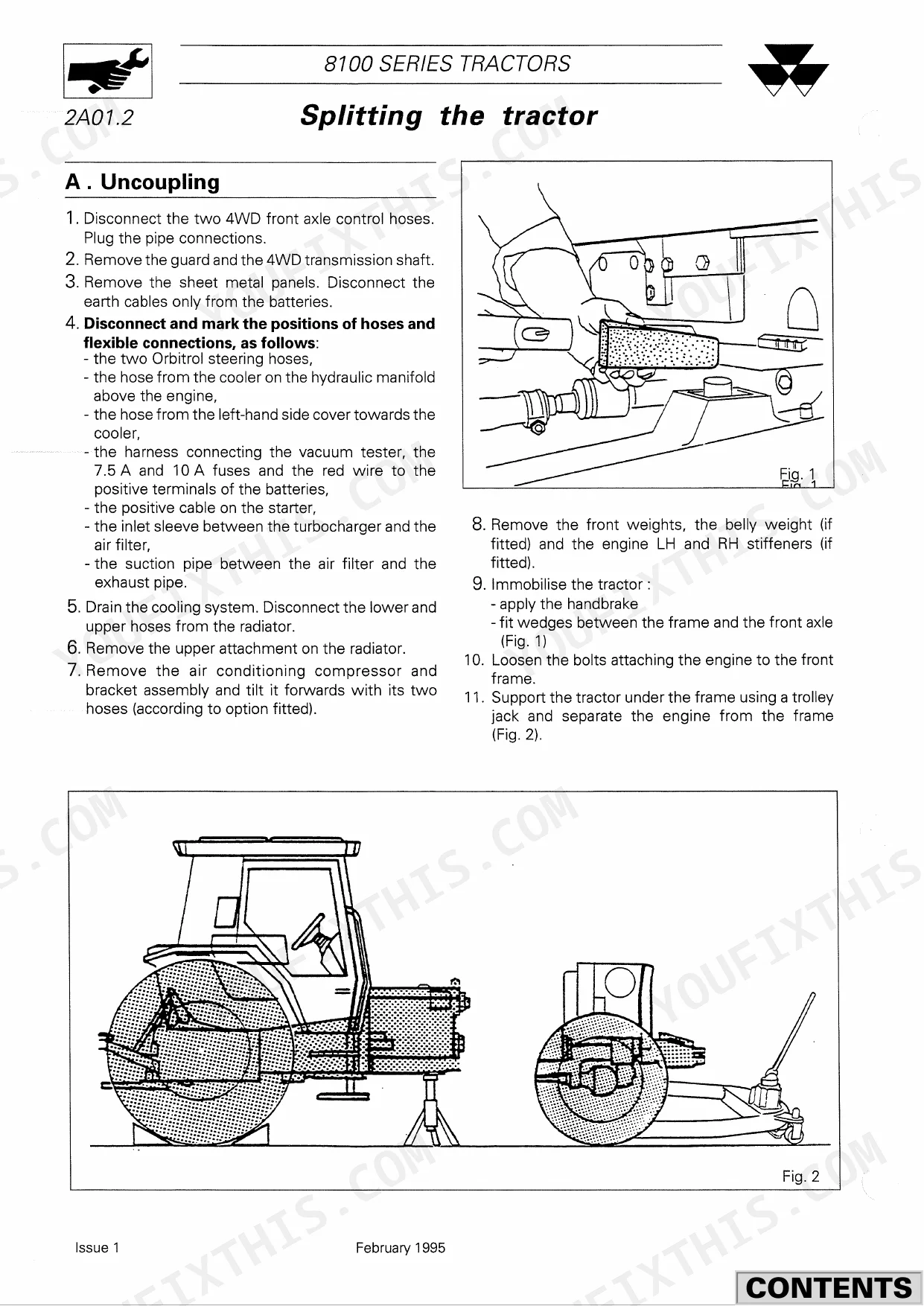

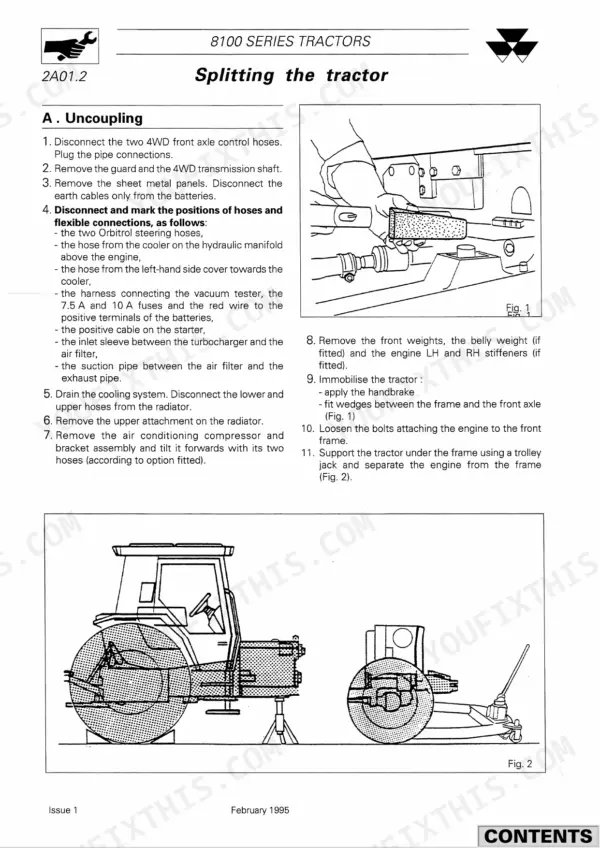

| Splitting the Tractor | 36-53 | Splitting Between Front Frame and Engine, Splitting Between Engine and Gearbox, Splitting Between Gearbox and Rear Axle |
| Engine and Equipment | 54-65 | General, Spacer |

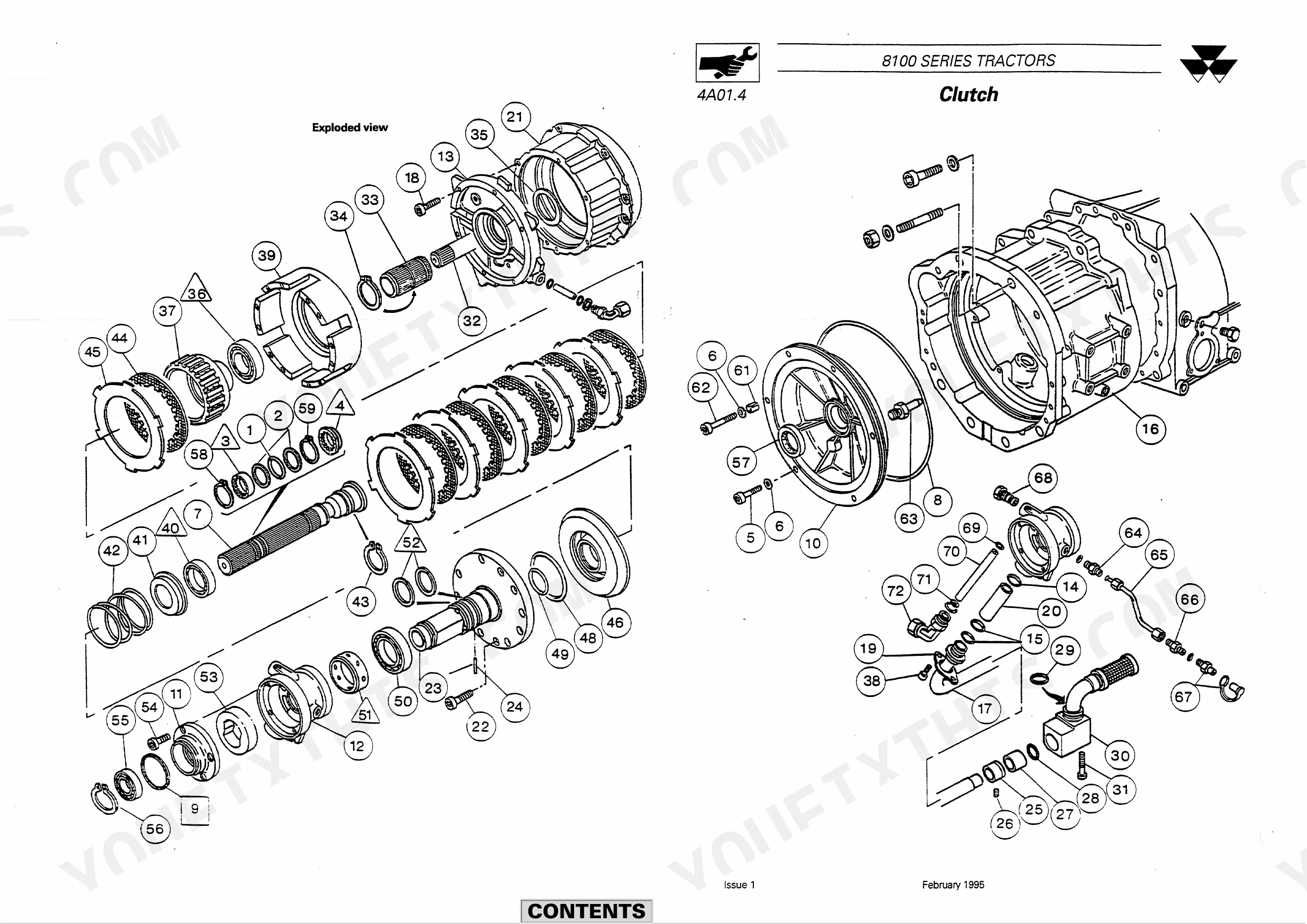

| Clutch | 66-79 | Wet Clutch |
| Gearbox | 80-151 | General Operation, Input Unit, Reverse Shuttle, Selector Cover, Selector Rails, Output Shaft, Mainshaft, Layshaft |
| Rear Axle | 152-215 | Description of Rear Axle, Standard Trumpet Housings, Trumpet with Sealed Compartment, Trumpets with Composite Final Drive, Differential, Rear Hitch Mechanism, Lift Cover |
| Power Take Off | 216-233 | PTO Clutch, PTO Brake Layshaft Driving Gear, Bearings and Gears |
| Front Axle 2 and 4WD | 234-293 | Bearings, 4WD Control Unit, Final Drive Units, Differential, 2WD Front Axle, Steering Column |
| Hydraulics | 294-463 | Closed Centre Circuit Description, Trailer Braking, Distribution Block, Auxiliary Spool Valves, Lift Control Valve, Hydrostatic Steering, Right Hand Cover, Left Hand Cover |
| Electrical Equipment | 464-479 | Electrical System |
| Electronics | 480-597 | Tester Programmer Description, Reprogramming of the Tester, Electronic Lift Control, Lift Control Electrical System, Auto Diagnostic, Checking with Tester, Autotronic 2 Description |
| Cab and Equipment | 598-625 | Instrument Panel, Air Conditioning, Recharging the System, Air Conditioning System Failures |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Maximum torque | 551 Nm | p. 6 |
| Torque at rated speed | 430 Nm | p. 6 |
| Bolt (1) tightening torque | 175 - 270 Nm | p. 164 |
| Bolt (19) tightening torque | 34 - 50 Nm | p. 164 |
| Speed sensor clearance | 1 mm | p. 208 |
| Position sensor voltage | 6.92 - 6.96 volts | p. 209 |
| Leak test pressure | 0.3 bar | p. 215 |
| Axial play for support nut (51) | 0.05 to 0.25 mm | p. 283 |
| Booster pump capacity | 60 cm3 per revolution | p. 297 |
| Booster pump output | 160 litres/mn at 2,200 rpm | p. 297 |
| Suction strainer filtration threshold | 150 µm | p. 297 |
| Pressure relief valve (34) calibration | 230 bar | p. 344 |
Massey Ferguson 8100 Series Common Problems This Manual Covers
Massey Ferguson 8100 series hydraulic pump weak, three-point hitch slow to lift, remote hydraulics intermittent under load
Connect a pressure gauge and check charge pressure against the closed centre chart on page 379: expect 4.8 bar at 1,000 rpm and 5.5 bar at 2,200 rpm, with standby pressure holding 3 to 5 bar. If charge pressure runs low, clean the 150 micron suction strainer before condemning the pump; a starved pump reads like a worn one.
Manual Section: Hydraulic System Troubleshooting (Closed Centre) p. 379PTO will not engage, EHR dead, front PTO inoperative, all functions failed together
Check the fuses before chasing wiring: the front PTO runs on a 5 A fuse and the Autotronic unit on a 15 A fuse, both listed on page 479. Test for battery voltage at each fuse with the key on, then wiggle the fuse block connectors while watching for dropouts; overheated terminals kill these circuits together.
Manual Section: Electrical Equipment p. 479Battery not charging in the field, voltmeter reads low, alternator light flickers at idle
Test charging voltage at the battery with the engine at high idle. Verify the regulator holds 14.2 V; the alternator is rated 70 A, both specs on page 467. If voltage sits low, clean and tighten the ground strap and battery terminals before replacing the alternator, then load test to confirm full output.
Manual Section: Electrical Equipment p. 467Transmission missing B and C ranges, shuttle works but tractor loses gears under load
Drain the transmission and pull the selector cover to inspect the selector rails and forks, following the gearbox procedures starting on page 80. Look for a bent rail, sheared detent, or worn fork on the B and C range selectors. Refill the transmission and rear axle with 87.5 L of oil, the capacity listed on page 13, before road testing.
Manual Section: Gearbox p. 80Small hydraulic leaks under the tractor, oil seeping around trumpet housing seals and fittings
Clean the underside, run the tractor, and mark where fresh oil appears. Pressurize the trumpet sealed compartment to 0.3 bar using the leak test procedure on page 215, then check joints with soapy water and watch for bubbles. Replace any O-ring that weeps and recheck at the same 0.3 bar so the tractor is ready before the weather window opens.
Manual Section: Rear Axle p. 215Frequently Asked Questions
How do you read diagnostic codes on a Massey Ferguson 8100 series tractor?
Diagnostic codes are read using the tester-programmer tool. When a fault is detected, the driver is informed by the flashing of warning light I on the ELC control panel. The first number of the flashing sequence indicates the importance level of the failure (1 = important, 2 = average, 3 = minor). p. 513
How do you clear a Massey Ferguson 8100 series fault code after repair?
To clear a fault code after repair, you must interrupt the supply and reconnect it to reset the system. For example, in the case of a solenoid unplugged fault (code 1-1), you must interrupt the supply, repair the fault, and then reconnect the supply to reset. p. 513
What is the valve clearance specification for a Massey Ferguson 8100 Series tractor?
It depends on which engine the tractor has, and the two families differ. On the 8110, 8120 and 8130 (Perkins 1006.6THR) the cold clearances are 0.20 mm inlet and 0.45 mm exhaust. On the 8140, 8150 and 8160 (MF/Valmet 620 DS and 634 DS) both inlet and exhaust are 0.35 mm. The factory table on page 6 prints an imperial column beside the millimetre one, but its inch figures do not convert cleanly. 0.20 mm is 0.008 in, not the 0.08 in shown, so set the clearance from the millimetre value. p. 6
What is the tightening torque for the cylinder head bolts on a Massey Ferguson 8100 series tractor?
The manual specifies that cylinder head attaching nuts and bolts must be tightened to the required torque. While specific values depend on the bolt strength classification, for standard zinc-plated metric threads of class ISO 8.8, an M20 bolt requires 560 Nm (max) and an M24 bolt requires 960 Nm (max). p. 34
What is the fuel tank capacity for the Massey Ferguson 8110, 8120, and 8130 models?
The fuel tank capacity for the Massey Ferguson 8110, 8120, and 8130 models is 226 liters (49.7 Imp. gal / 58.8 US gal). p. 13
Is this Massey Ferguson 8100 manual a PDF I download?
You download the Shop Manual yourself: 625 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Does this Massey Ferguson 8100 manual allow printing?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
