This is the factory TM1576 diagnosis and test manual for the John Deere 8100, 8200, 8300 and 8400 row-crop tractors, 1995-2001. It is the code-reading book: over 140 pages of service code diagnostics covering the ACU, CCU, ECU, HCU, ICU, PCU and SSU controllers, plus CAN bus and wiring checks with full functional schematics and component locations. You get the real test numbers, hydraulic pump pressure at 19500-20800 kPa (2825-3025 psi), SCV port pressure near 3000 psi under load, hitch settling limits, brake pedal travel at 1-3/4 inch (43 mm). Power shift clutch pressure tests, engine compression and oil pressure tests, and GreenStar/AutoTrac diagnostics round it out. This is the diagnosis manual, not the rebuild manual.
What's Inside This John Deere 8100-8400 Manual

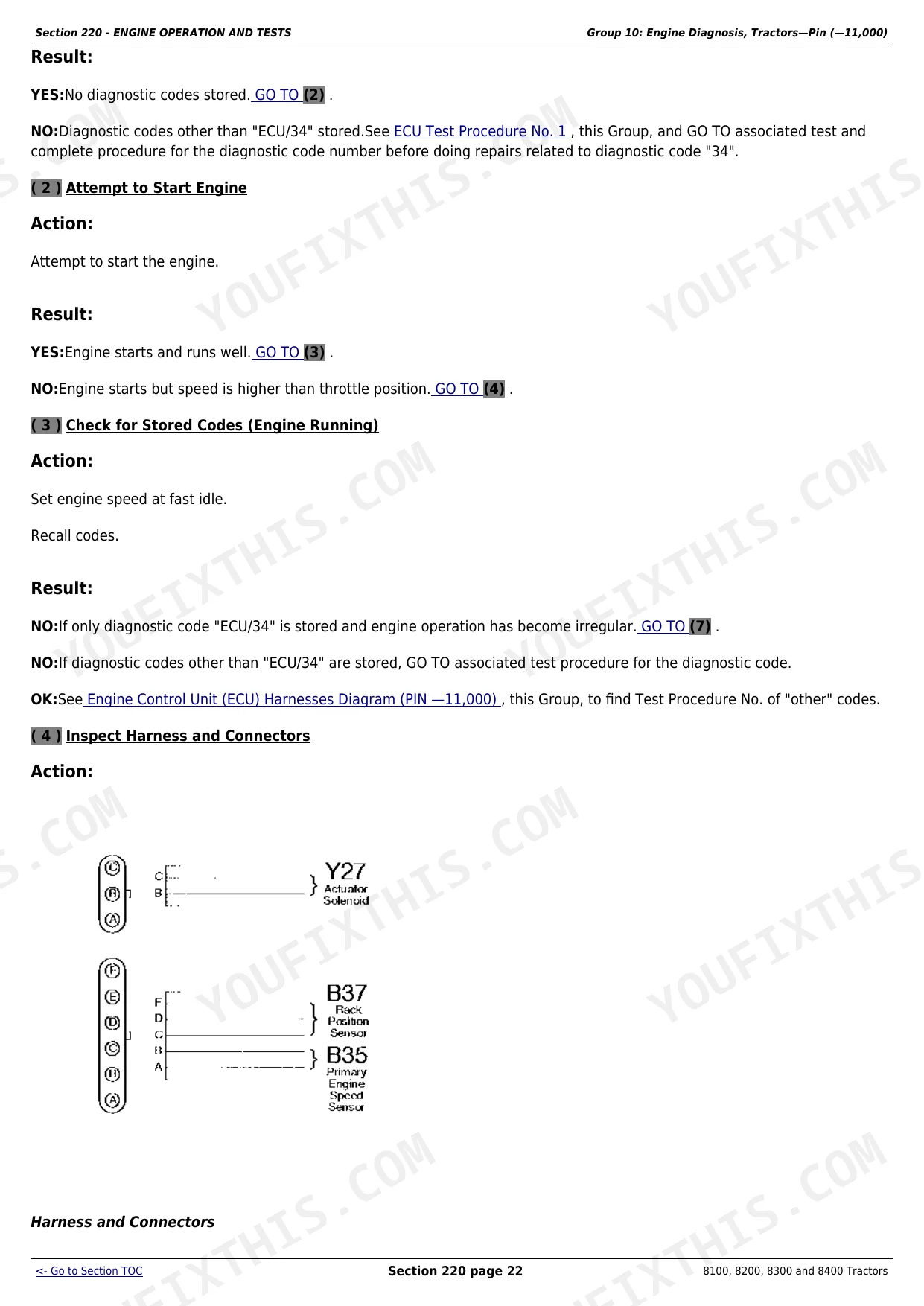

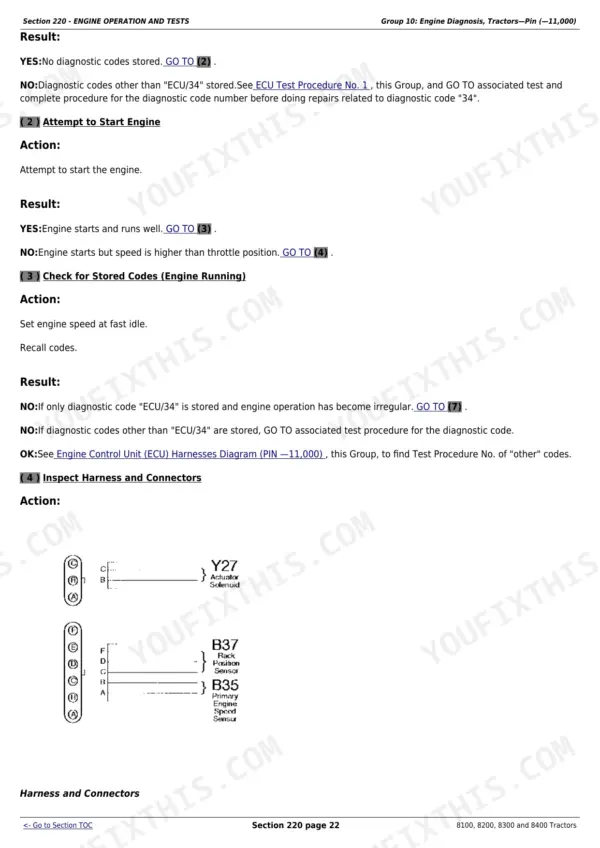

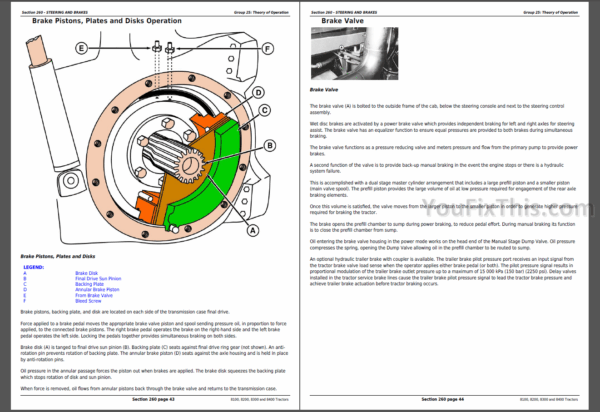

| System | Pages | Key Topics |
|---|---|---|
| Safety Information | 7-23 | High-Pressure Fluid Warnings |
| General Information | 24-99 | Test Equipment, Jt Pressure Test Kits, Gauge Calibration |
| Service Codes | 100-242 | ACU/AMS/CCU/ECU/HCU/ICU/LHP/PCU/SCU/SSU/SUP Code Diagnostics, Diagnostic Trouble Codes |
| Observable Symptoms | 243-279 | Symptom-Based Troubleshooting |
| Engine Operation and Tests | 280-486 | Engine Operation, Engine Diagnosis by Pin, Compression and Oil Pressure Tests |
| Fuel, Air Intake and Engine Cooling Systems | 487-503 | Fuel System, Air Intake, Engine Cooling Diagnosis and Tests |
| Electrical Operation and Tests | 504-1392 | Electrical Operation, Wiring Checks, CAN Bus and Ccd Bus Diagnostics, Functional Schematics, Component Location |
| Ams GreenStar, JDLink, AutoTrac, FieldDoc | 1393-1638 | Ams GreenStar, JDLink, AutoTrac, StarFire Receiver, FieldDoc Precision-Ag Diagnostics |
| Power Shift Transmission | 1639-2029 | Power Shift Transmission Operation, Clutch Pressure Tests, Transmission Diagnosis |
| Drive Systems | 2030-2078 | MFWD, Differential Diagnosis |
| Steering and Brakes | 2079-2156 | Steering Operation, Steering Effort and Turns Tests, Brake Pedal Travel and Park Brake Tests |
| Hydraulic System | 2157-2634 | Hydraulic System Operation, Pump Pressure, SCV Pressure and Flow, Hitch Response and Settling Tests |
| Operator Station Operation and Tests | 2635-2671 | Operator Station, HVAC, Instrument and Control Diagnosis |
| Dealer Fabricated Tools | 2672-2687 | Dealer Fabricated Tools Drawings |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Brake pedal travel | 1-3/4 inch (43 mm) | p. 2162 |
| SCV P port pressure (engine under load) | near 3000 Psi | p. 2166 |
| SCV cylinder extend/retract time (3-1/2 X 8 inch cylinder) | less than 2.5 seconds | p. 2167 |
| Hitch raise/lower time (rear remote switch) | within 2 seconds | p. 2168 |
| Hitch settling (without implement) | Less than 13 mm (1/2") in 5 minutes | p. 2170 |
| Hitch settling (with implement) | Less than 25 mm (1") in 5 minutes | p. 2170 |
| Hydraulic pump pressure | 19500-20800 kPa (195-208 bar) (2825-3025 psi) | p. 2170 |
John Deere 8100-8400 Common Problems This Manual Covers
Entire hydraulic system stops working
Start with the basics before pulling anything apart: oil level, then both hydraulic filters, then the charge pump suction screen. Section 270 walks the pump pressure test, a healthy system reads 19500-20800 kPa (2825-3025 psi).
Manual Section: Section 270 - Hydraulic SystemHydraulic oil overheating
Section 270 covers the causes in order: oil level too low or too high, oil cooler air passages packed with chaff, or an internal leak dumping flow to heat. The flow and pressure tests in this section isolate an internal leak without guesswork.
Manual Section: Section 270 - Hydraulic SystemNo-start or intermittent electrical failure

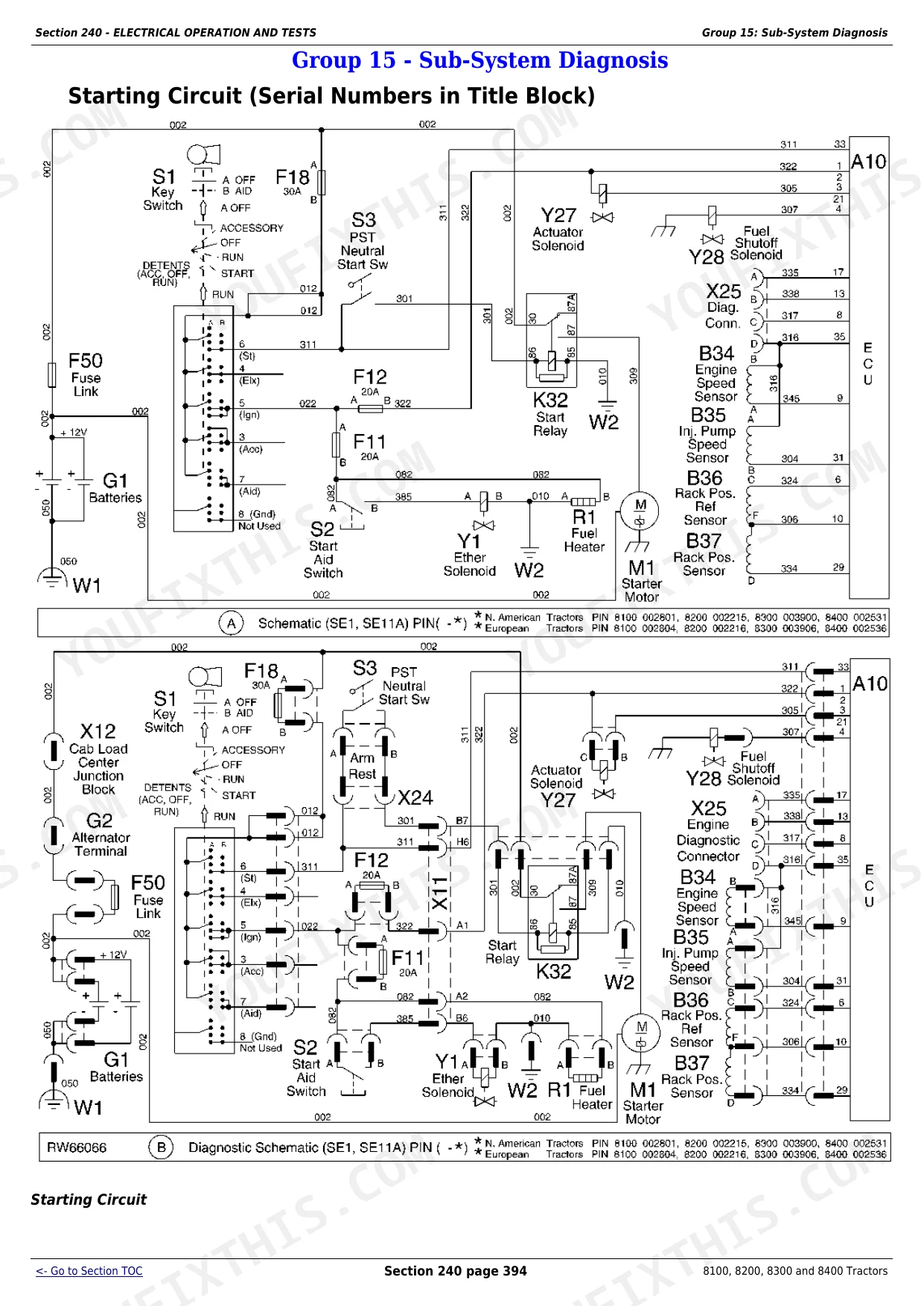

These tractors are known for a dead battery cell or a high cable that corrodes internally while looking fine outside. Section 240 gives the wiring checks and voltage drop tests to prove the cable bad, plus schematics for chasing intermittent circuits.
Manual Section: Section 240 - Electrical Operation and TestsGround speed reads zero or jumps around
Usually the ground speed sensor itself or its O-ring, which gets cut on a sharp edge of the differential housing at the sensor plug. Section 212 works the symptom, Section 211 covers the related speed sensor codes, so pull and inspect the sensor before replacing controllers.
Manual Section: Section 212 - Observable SymptomsFrequently Asked Questions
Will this manual help me read and clear the service codes on my 8300?
Yes, that is the core of this book. Section 211 runs about 140 pages of service code diagnostics for every controller on these tractors: ACU, CCU, ECU, HCU, ICU, PCU, SCU, SSU and more. Each code gets a diagnostic procedure that walks you to the failed circuit or component, and Section 240 backs it up with wiring checks and functional schematics so you can chase the fault to a pin.
My whole hydraulic system quit. Does this manual cover that?
Yes. Section 270 is nearly 480 pages on the hydraulic system. For a dead system it points you at the usual suspects first: low oil, plugged filters (replace both, not one), or a clogged charge pump suction screen. Then it gives you the numbers to verify the fix, pump pressure should test 19500-20800 kPa (2825-3025 psi).
Does it cover the erratic ground speed reading that keeps flaking out?
It does. Section 212 handles symptom-based troubleshooting and Section 211 covers the transmission speed sensor codes. A known trouble spot on these tractors is a damaged O-ring at the sensor plug, cut by a sharp edge on the differential housing, so check the sensor and seal before you condemn the CCU.
Are torque specs and rebuild procedures in here?
No, and be clear on this before buying. This is the diagnosis and test manual: codes, symptoms, pressure tests, electrical checks and schematics. Disassembly, torque specs and rebuild procedures are in the separate repair manual. Buy this one to find the problem, the repair manual to tear it down.
Does it cover GreenStar and AutoTrac on these tractors?
Yes. Section 246 runs about 245 pages on the AMS side: GreenStar, JDLink, AutoTrac, the StarFire receiver and FieldDoc. If your guidance drops out or the display throws codes, this is the section with the diagnostic procedures for it.
