The Wacker Neuson 14504 service manual PDF (OEM ID 1000263436) strips this track excavator down to its swivel unit, travel drive, and TCD 2012 valve train across 354 pages of factory service data. Hydraulic schematics trace the pilot oil circuit, negative control valve, and double variable displacement pump, while wiring diagrams follow every harness from the engine bay to the cabin roof. Rebuild sequences take the PowerTilt PTS10 swivel device down to seals and shaft bearings, and a malfunctions chapter walks engine, hydraulic, and air conditioning faults back to their source. Check that negative control regulates between 10,1 and 29,4 bar, and pull M14x1.5 DKOL hose fittings to 20 Nm before you blame a weeping union. Guess wrong on a bearing and you pay twice. Bookmarked and text-layered, this PDF puts type labels and component numbers in front of you before you order, so the first part you buy is the one that fits.
What's Inside This Wacker Neuson 14504 Manual
| System | Pages | Key Topics |
|---|---|---|
| Operation | 13-30 | Information on This Service Manual, Identification of Warnings and Dangers, Designated Use and Exemption From Liability, Type Labels and Component Numbers, Machine Overview |
| Engine | 121-142 | Overview of Tcd 2012 2V L04 Engine, Fuel Circuit Diagram, Coolant System Diagram, Removing the Cylinder-Head Cover, Checking and Adjusting Valve Clearance |
| Hydraulic System | 143-240 | Hydraulic Pump, Gear Pump, Proportional Reducer Valve Prv, Pump Regulation, Oil Flow Regulation, Oil Flow Limitation, Output Regulation, Tightening Torques |
| Electrical System | 241-280 | Ohm’s Law; Power, Measuring Equipment, Measuring Methods, Color Coding of the Lines, Relays, Electric Units, Fuse Box in Cabin, Main Fuse Box with Relays |
| Air Conditioning | 281-286 | Compressor, Condenser, Evaporator, Expansion Valve, Fan Regulator, Dehumidifier |
| Options | 287-296 | Automatic Air Conditioning, Air-Suspension Seat, Long Stick, Flat-Seal Coupling, Kat Drive Interlock, Engine Oil Sump Service Valve, Changeover Valve for Sae/Iso Controls |
| PowerTilt PTS10 | 297-328 | Tools, Separating the Bucket or Equipment From the PowerTilt Swivel Device, Separating the PowerTilt Swivel Device From the Machine, Exploded Views, Assembly Drawing |
| Hydraulic Quickhitch System | 329-342 | H-Cylinder, Quick Couplers, Mounting Frame, Selector Unit, Lock Pins, Hydraulic Couplings |

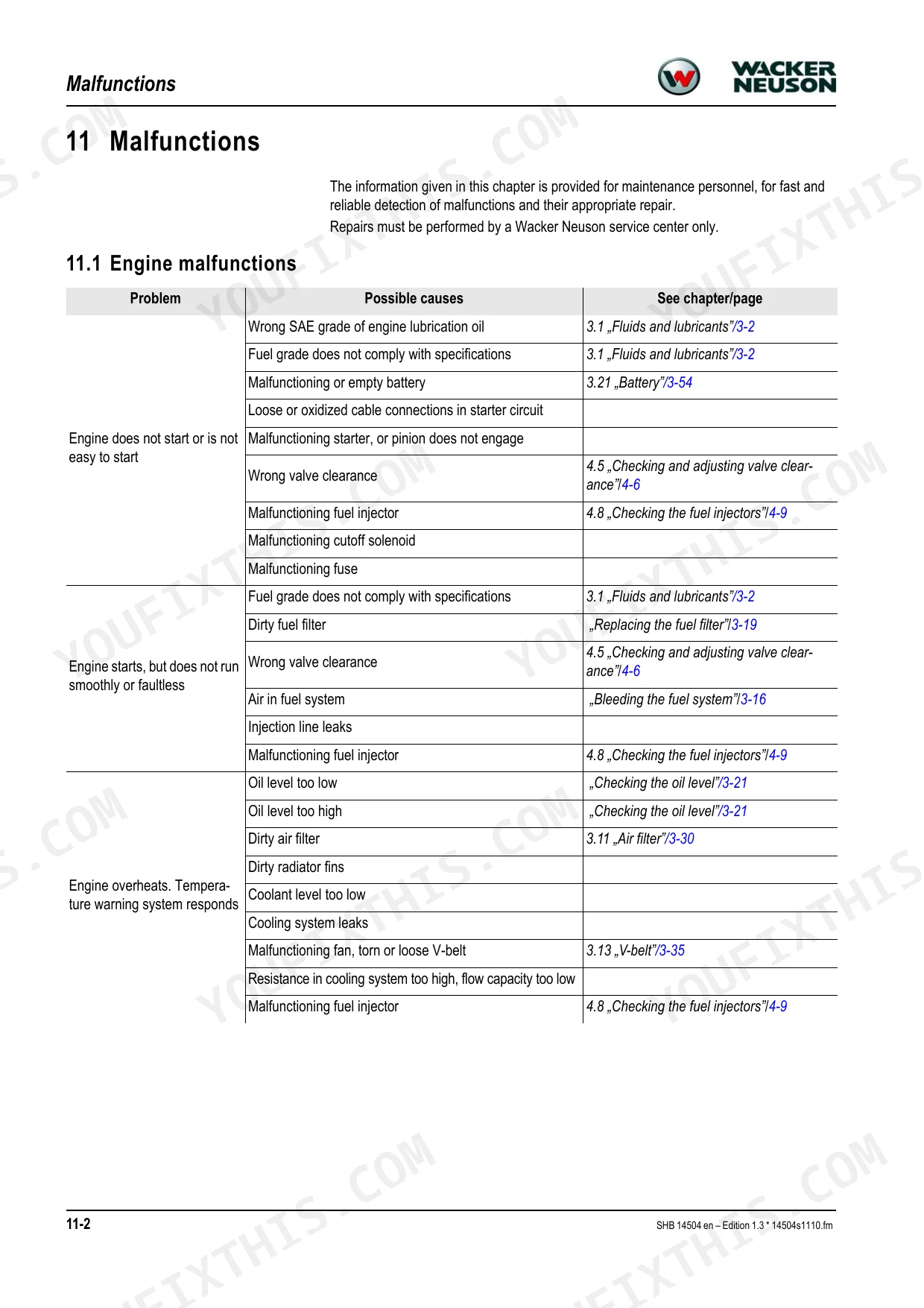

| Malfunctions | 343-354 | Engine Malfunctions, Malfunctions in the Hydraulic System, Troubleshooting the Swivel Unit, Malfunctions in the Air Conditioning System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| NC Regelbereich | 10,1 – 29,4 bar (146.5 - 426.4 psi) | p. 6 |
| Metric hose fittings (light execution, Dkol) - M12X1.5 | 15 Nm (11 ft.lbs.) | p. 37 |
| Metric hose fittings (light execution, Dkol) - M14X1.5 | 20 Nm (15 ft.lbs.) | p. 37 |
| Coolant mixture (Water) | 50 % by volume | p. 36 |
| Coolant mixture (Anticorrosion agent) | 1 % by volume | p. 36 |
| Socket power outlet | 15 A max. | p. 35 |
| Hydraulic oil reservoir capacity | 110 l (29.1 gal) | p. 48 |
| Radiator cleaning compressed air pressure | 2 bar | p. 72 |
| Maximum mineral oil content in biodegradable oil | 2 % | p. 88 |
| Steel and hybrid track tension measuring rod distance | 35 mm | p. 96 |
| Rubber track tension play | 30 – 40 mm | p. 97 |
| Coolant pressure for reservoir cap test | 1.5 – 1.9 bar | p. 139 |
Wacker Neuson 14504 Common Problems This Manual Covers
Wacker Neuson 14504 hydraulic system overheats after an hour of digging, boom and arm movements turn jerky and weak
Check the hydraulic oil level sight glass first; the reservoir holds 110 l (29.1 gal) and running low overheats the system fast. Clean the oil cooler with compressed air at 2 bar maximum. Replace the reservoir breather filter if it is past the 1000 hour interval on page 227, then verify main relief pressure sits at 340 bar.
Manual Section: Malfunctions p. 344Engine overheats under load, temperature gauge climbs even after clearing debris off the radiator screen
Check coolant level; the radiator system holds about 13.5 l (3.5 gal) of a 50 percent antifreeze mix. Blow the radiator fins clean with compressed air at no more than 2 bar, working from the fan side out. Pressure-test the reservoir cap and replace it if it will not hold 1.5 to 1.9 bar, the spec on page 139.
Manual Section: Engine p. 139Machine pulls to one side when traveling, tracks wear unevenly and pack with mud
Clean mud and rock out of both track frames and around the idlers before touching anything else. Check track tension next: steel and hybrid tracks want 35 mm at the measuring rod, the spec on page 96, and rubber tracks want 30 to 40 mm of play per page 97. Adjust at the track adjuster and match both sides.
Manual Section: Malfunctions p. 344Upper carriage swings hard in one direction or will not rotate, swing motor groans under load
Grease the swing bearing raceway and pinion teeth first; a dry bearing is the usual culprit on high-hour machines. If it still drags, verify pilot control pressure reaches 36 bar, the spec on page 33, and confirm main relief holds 340 bar. Work through the swivel unit chart in the Malfunctions section if pressure will not rise.
Manual Section: Swivel Unit TroubleshootingEngine starts but runs rough and hunts at idle, then dies when you throttle up
Bleed air from the fuel system: crack the injector lines, crank until fuel runs clear with no bubbles, then retighten. Inspect the pre-filter and every suction line back to the 205 l fuel tank for cracks that pull air. Replace a collapsed fuel filter, then follow the engine troubleshooting chart in the Malfunctions section starting on page 344.
Manual Section: Engine MalfunctionsFrequently Asked Questions
What are the torque specifications for hydraulic threaded fittings in the light execution (DKOL) category?
For light execution (DKOL) hydraulic fittings, the torque varies by nominal diameter. For example, a 05 nominal diameter with M12X1.5 thread requires 15 Nm (11 ft.lbs.), while a 32 nominal diameter with M45X2 thread requires 220 Nm (162 ft.lbs.). p. 37
What is the valve clearance specification for the engine?
The valve clearance for the engine at cold temperature is 0.3 +0.1 mm for the intake valve and 0.5 +0.1 mm for the exhaust valve. p. 32
What is the recommended service interval for replacing the hydraulic oil filter insert?
The hydraulic oil filter insert should be replaced for the first time after 50 operating hours, and then every 500 operating hours thereafter. p. 49
What is the tightening torque for the engine oil drain plug?

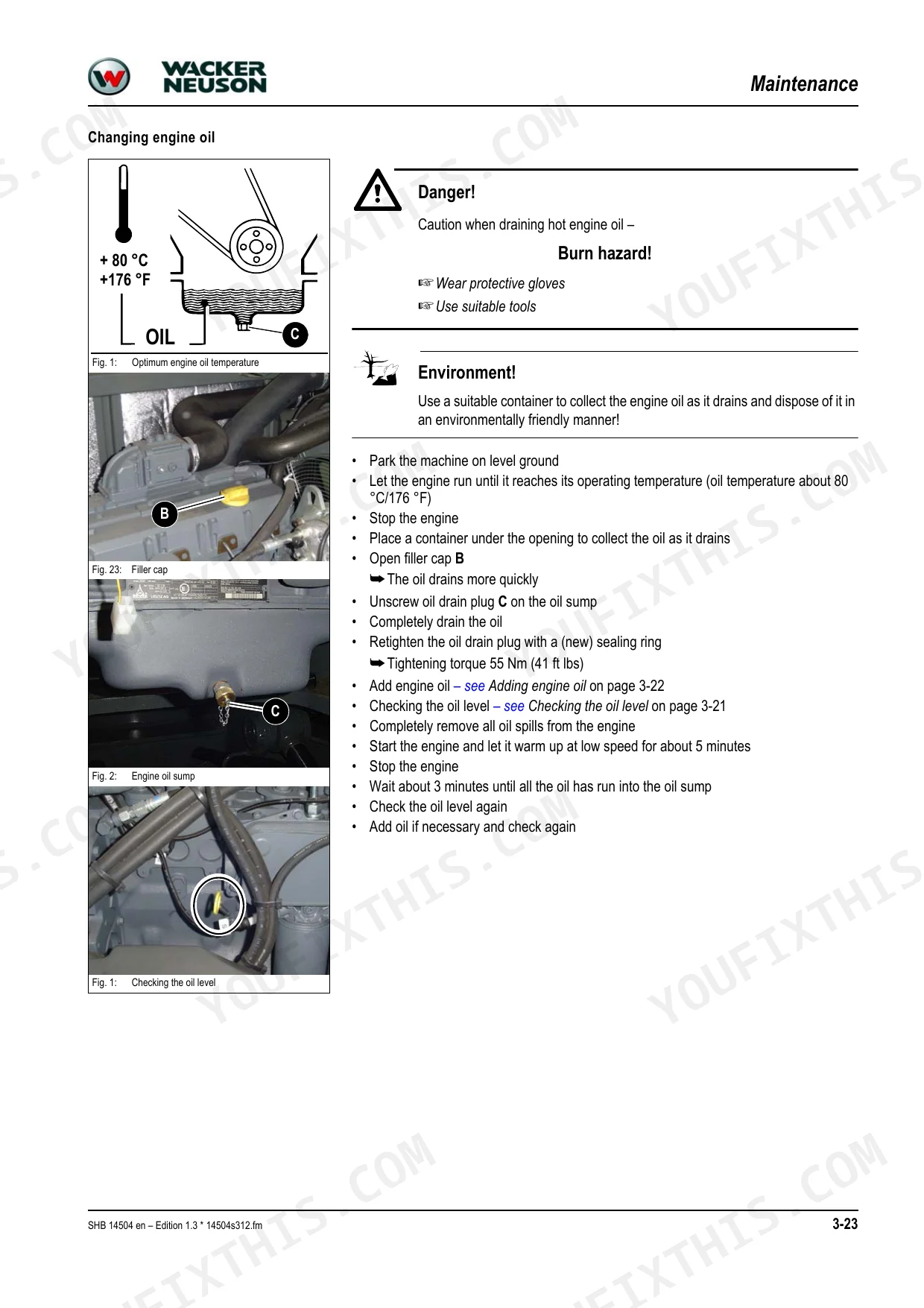

When changing the engine oil, the oil drain plug must be retightened with a new sealing ring to a torque of 55 Nm (41 ft lbs). p. 69
What is the specified compression pressure for the engine?
The compression pressure for the engine is between 30 and 38 bar (21 – 26 psi). p. 32
How is this Wacker Neuson 14504 Service Manual delivered?
Instant PDF download. You get the full 354-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print just the pages I need from this Wacker Neuson 14504 manual?
Yes, printing is unrestricted: a single page, a chapter, or the lot, on letter or A4.
