All 226 pages of this Case 1526, 1530, 1537 service manual PDF (OEM #9-71536) cover the complete 1500 Series UNI-LOADER, from engine and fuel systems through hydraulics, power train, brakes, electrical, and mounted loader equipment. Inside, you get hydraulic schematics for the 3-spool valve, lift control valve, variable speed control, and pump circuits, plus wiring diagrams tracing the starting circuit, alternator charging system, and ignition. Every trace is laid out so you can pin a fault without chasing ghosts. Power train covers drive belt, jackshaft, chain, clutch (Formsprag and Stearns), variable sheave, and gear box; brakes and electrical round out the full mechanical picture. Torque your clutch shaft nut to 35-40 ft-lbs, set wheel bolts to 85-100 ft. lbs., and fill the hydraulic system to its 19-gallon capacity. Every hour down costs money. Bookmarked and keyword-searchable, open it on your phone or tablet and start wrenching.
What's Inside This Case 1526, 1530, 1537 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 5-8 | Maintenance and Lubrication |

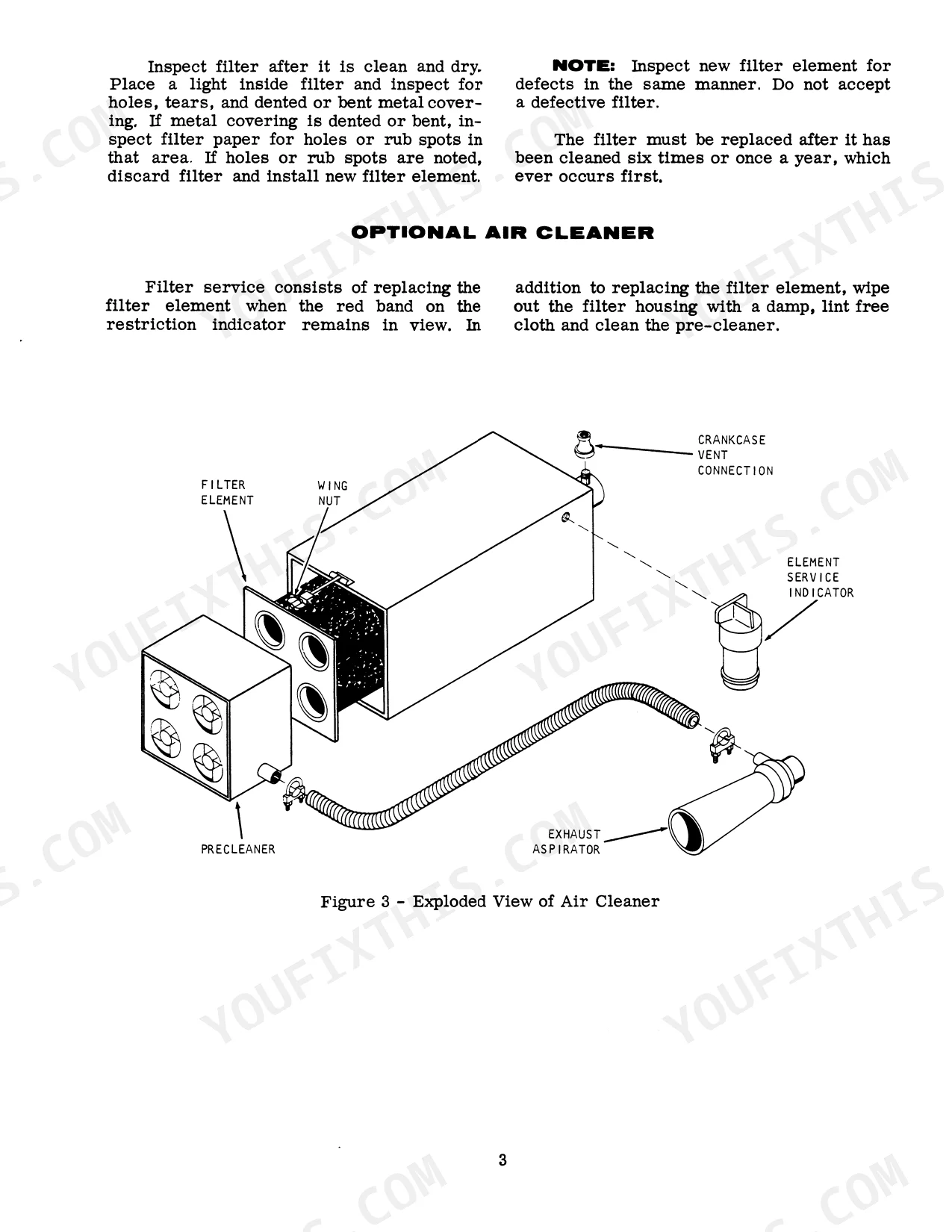

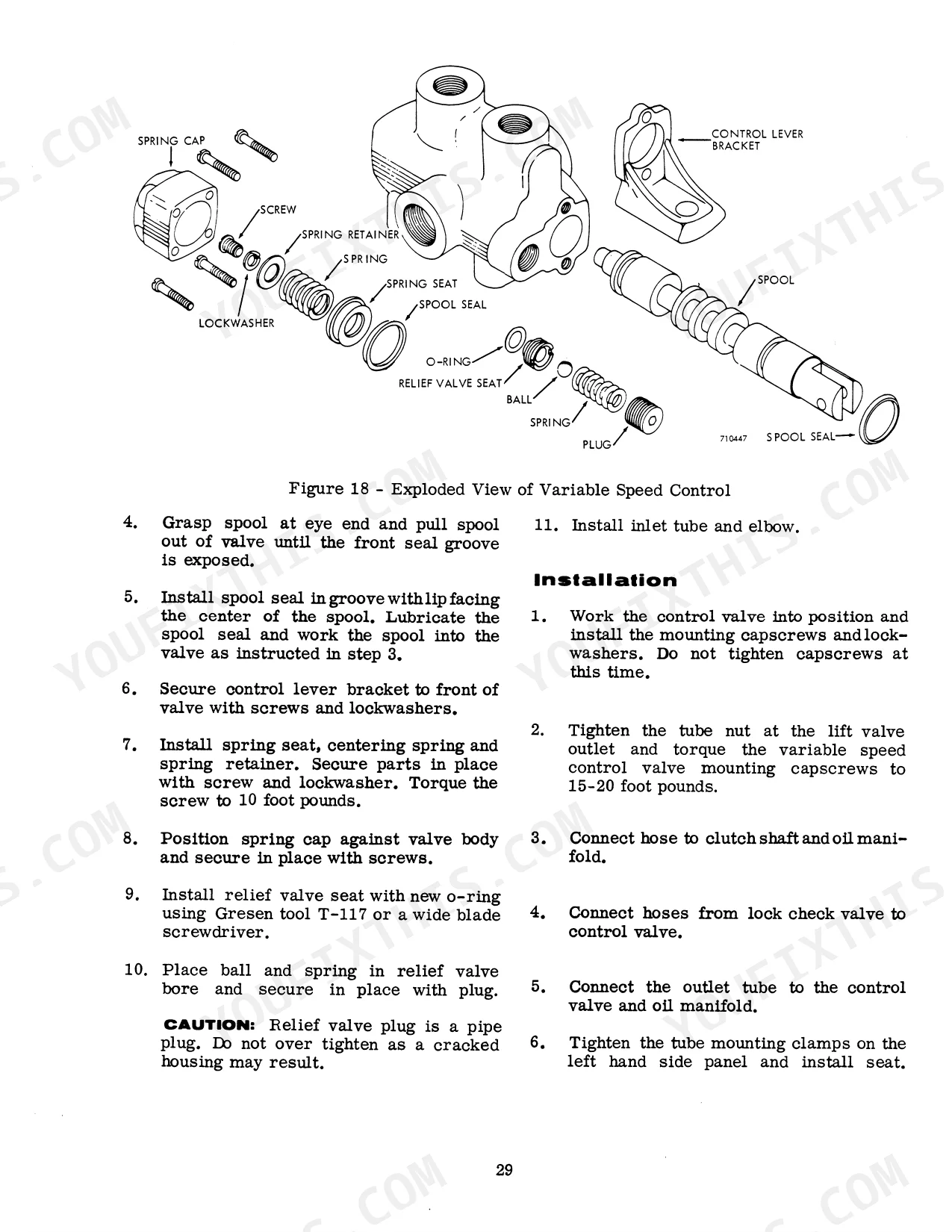

| Engine | 9-12 | Air Cleaner |
| Fuel Systems | 13-20 | Electric Fuel Pump, Lp Gas Fuel System |
| Hydraulic System | 21-100 | 3 Spool Valve, Lift Control Valve, Variable Speed Control Valve, Relief Valve, Hydraulic Pump, Cylinders |
| Power Train | 101-150 | Drive Belt, Jackshaft, Chain, Clutch, Variable Sheave, Gear Box |
| Brakes | 151-162 | Foot Brakes, Brake Shoe, Brake Drum, Wheel Cylinder, Master Cylinder, Parking Brake |
| Electrical System | 163-194 | Battery, Starting Circuit, Starter, Starter Solenoid, Alternator Charging System, Ignition System |
| Mounted Equipment | 195-226 | Loader, Rollover Protection Structure |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Clutch shaft nut torque (Formsprag Clutch) | 35-40 foot-pounds | p. 122 |
| Clutch shaft nut torque (Stearns Clutch) | 35-40 foot-pounds | p. 124 |
| Wheel bolt torque | 85-100 ft. lbs. | p. 11 |
| Hydraulic system capacity (approx.) | 19 gal | p. 12 |
| Engine crankcase capacity | 6-1/4 qts | p. 12 |
| Spark Plug Torque | 25-30 foot pounds | p. 191 |
Case 1526, 1530, 1537 Common Problems This Manual Covers
Case 1537 Uni-Loader bucket lifts slowly or won't raise under full load

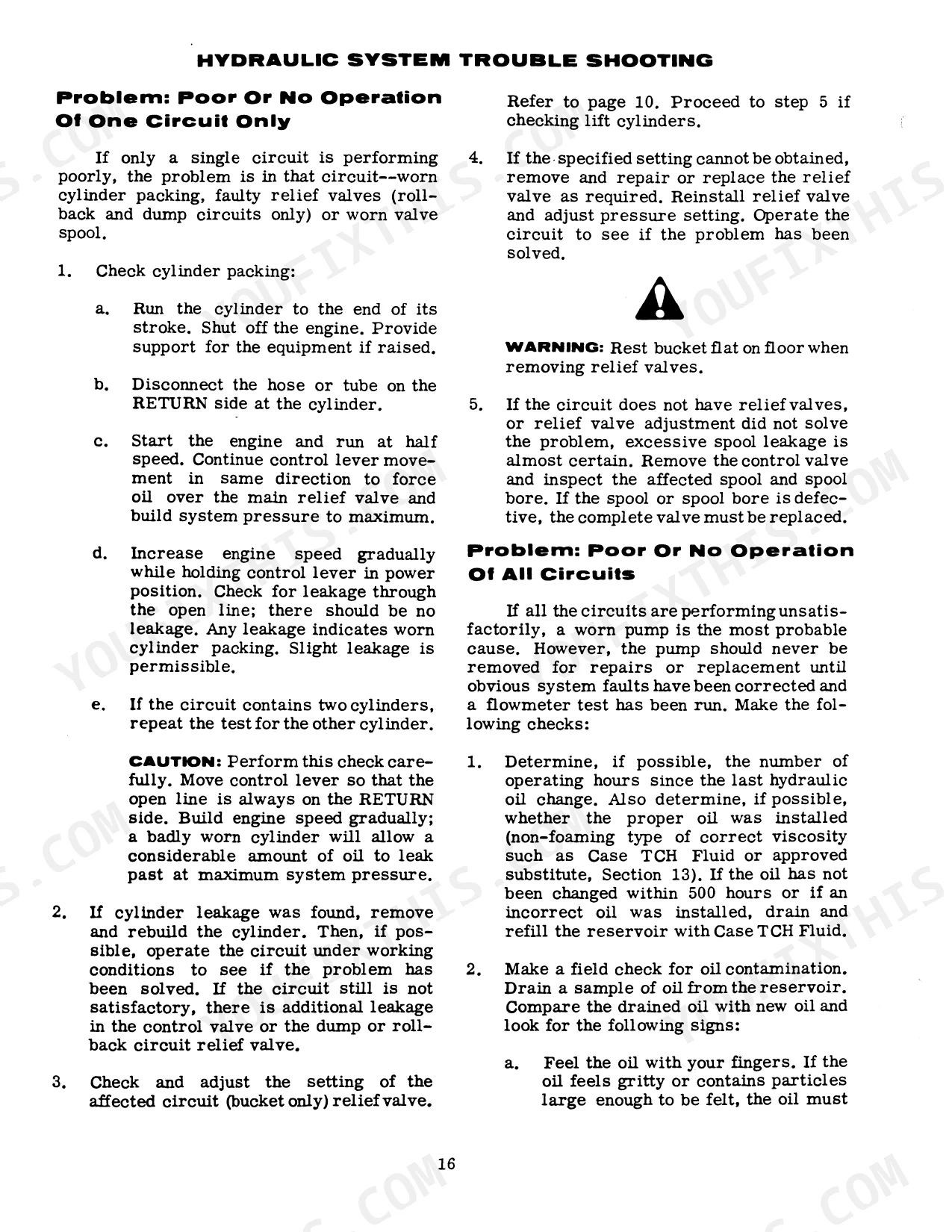

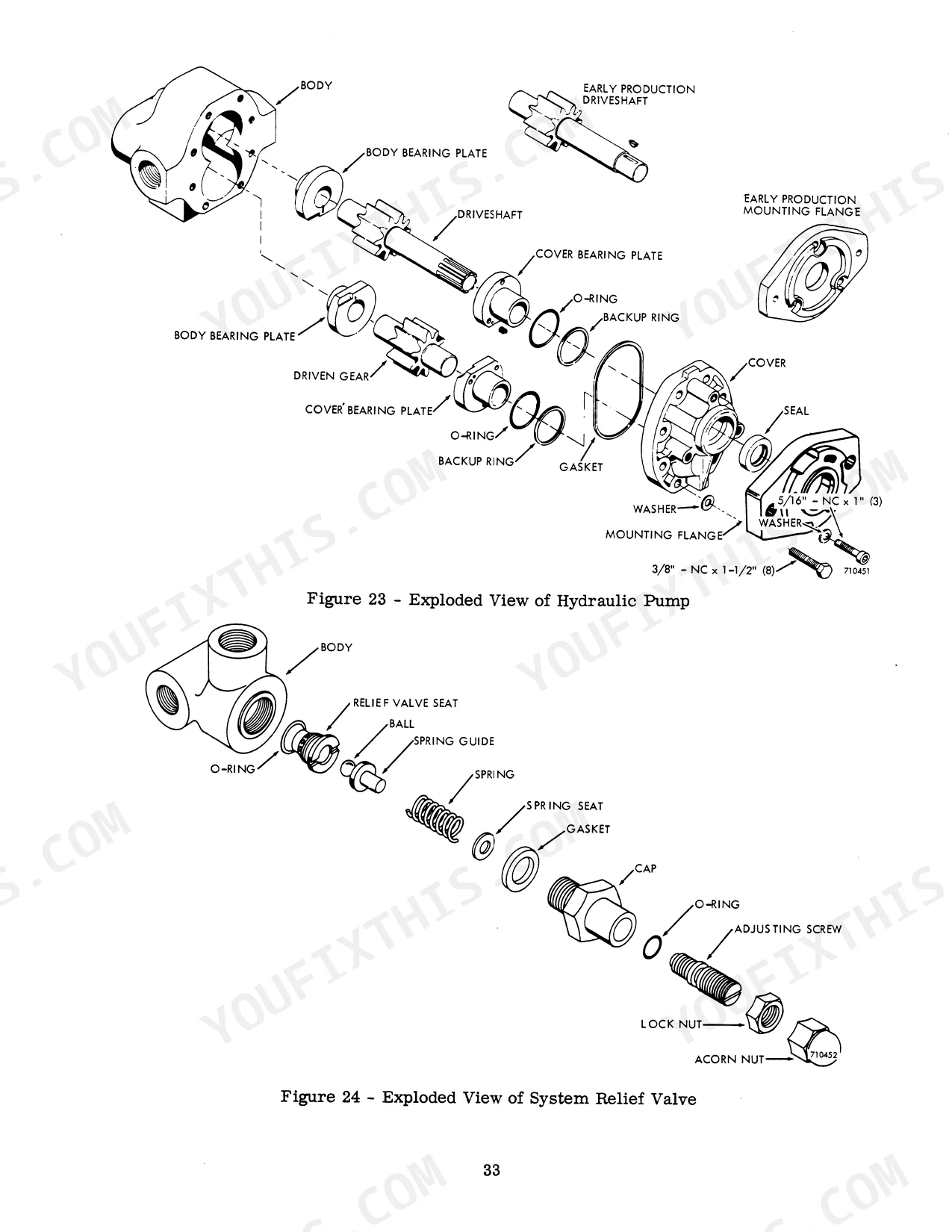

Check hydraulic oil level first; system capacity is 19 gal (72 liters) on page 12. Inspect the hydraulic pump for pressure loss, then examine the 3-spool control valve for worn or stuck spools. Service procedures cover pump and valve disassembly step by step. Clean or replace the pump before condemning the valve assembly.
Manual Section: Hydraulic SystemTilt circuit drifts down or control lever sticks when bucket held in mid-position
Inspect the tilt spool in the control valve for scoring, swelling seals, or debris. Remove the valve body and check for internal seal failure on the tilt circuit specifically. Trace the tilt circuit on the hydraulic schematic to rule out downstream restrictions. Replace tilt cylinder internal seals if the spool and valve body check out clean.
Manual Section: Hydraulic SystemClutch adjuster won't move without a hammer and long extension bar p. 122
Remove the drive belt cover and inspect the clutch through the Power Train section at page 101. Check the engagement mechanism for binding, corrosion, or mechanical damage to the thrust components. When reassembling, torque the clutch shaft nut to 35-40 foot-pounds: page 122 covers Formsprag type, page 124 covers Stearns type. Verify the fluid coupler rotates freely before closing the cover.
Manual Section: Power TrainEngine overheats and temperature climbs rapidly when operating loader under full hydraulic load

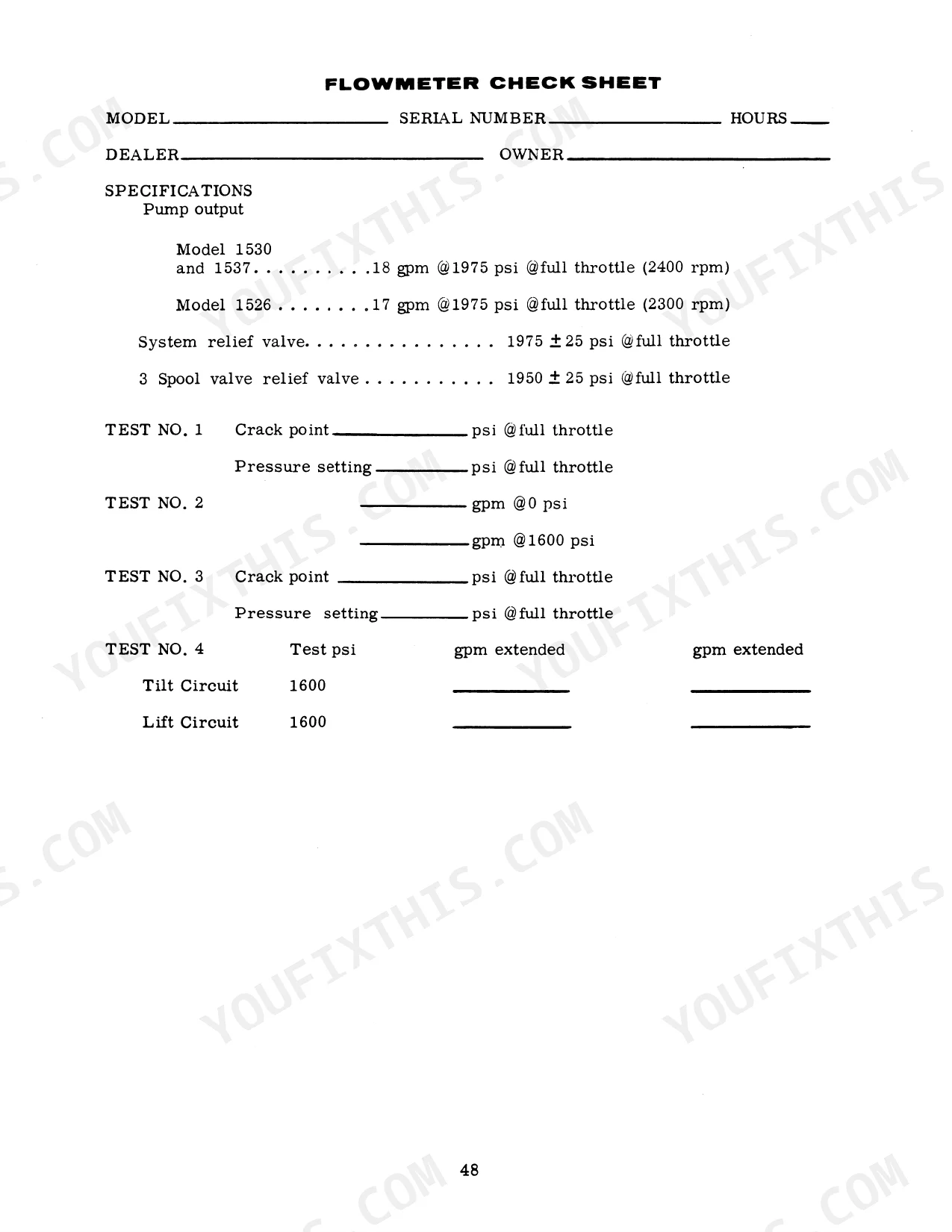

Check hydraulic oil level against the 19 gal system capacity on page 12 and clear any debris from the cooler core. Trace the hydraulic circuit on the schematic to identify flow restrictions or misrouted hoses. Verify the relief valve is not stuck open or set too low; a weak relief valve forces the pump to work against back-pressure and build heat continuously.
Manual Section: Hydraulic SystemEngine cranks slowly or won't start in cold weather below freezing p. 163

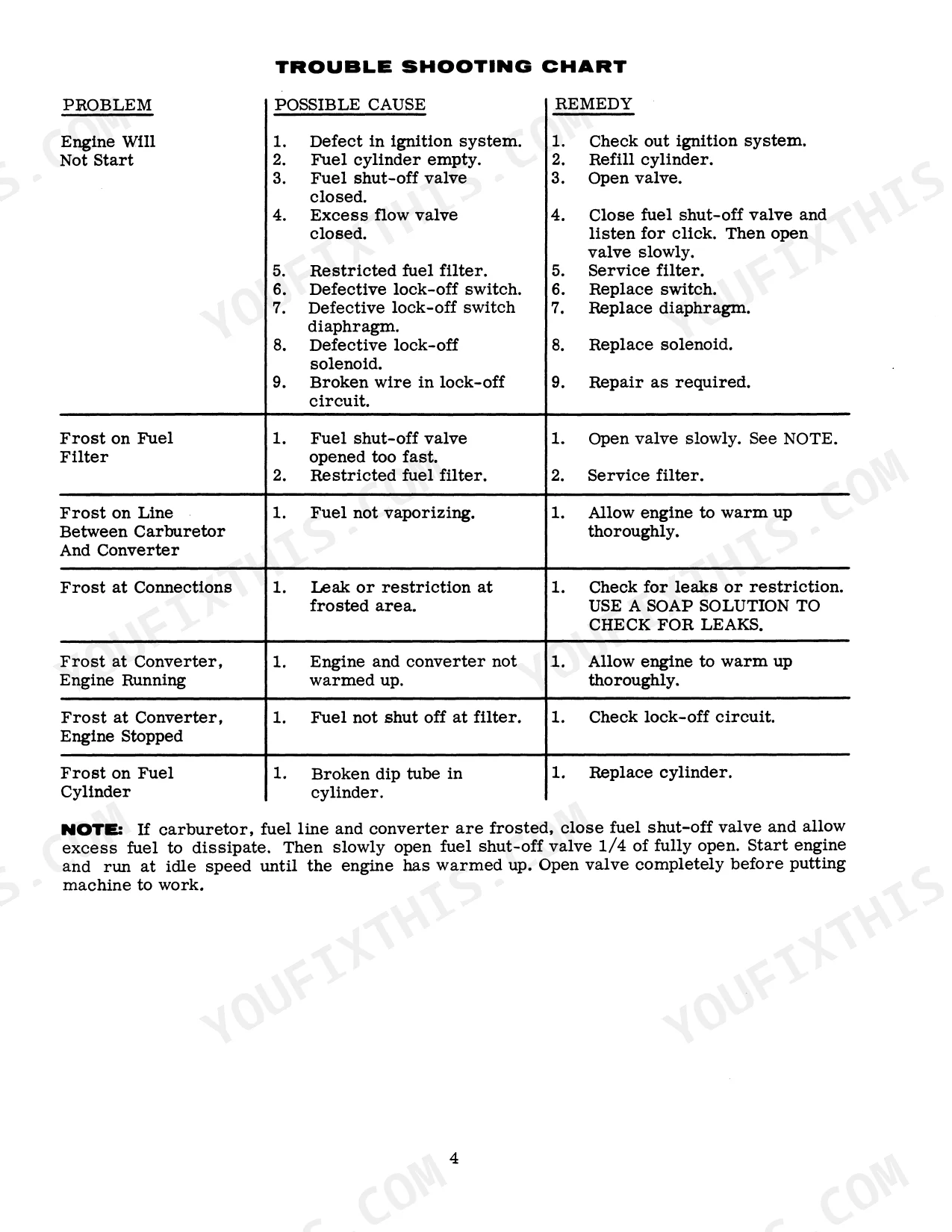

Check battery voltage at the terminals and inspect cable connections at the starter solenoid. Test the starting circuit per the electrical troubleshooting beginning at page 163. Inspect spark plugs for fouling and torque replacements to 25-30 foot-pounds (page 191). On LP gas models, inspect the fuel converter for frost buildup and the converter-to-carburetor line using troubleshooting procedures at page 20.
Manual Section: Electrical SystemFrequently Asked Questions
How do you reset the hydraulic system on Case 1526 Uni-Loader?
To address sluggish operation in the hydraulic system, drain the existing oil and refill with clean Case TCH Fluid. Then flush the entire system to ensure proper operation. Check hydraulic oil level; system capacity is 19 gal (72 liters) on page 12.
How do you fix Case 1537 Uni-Loader bucket that lifts slowly or won't raise under full load?
Check hydraulic oil level first; system capacity is 19 gal (72 liters) on page 12. Inspect the hydraulic pump for pressure loss, then examine the 3-spool control valve for worn or stuck spools. Service procedures cover pump and valve disassembly step by step. Clean or replace the pump before condemning the valve assembly.
How do you rebuild the tilt control valve spool on Case 1526/1530/1537 Uni-Loaders?
Inspect the tilt spool in the control valve for scoring, swelling seals, or debris. Remove the valve body and check for internal seal wear or contamination. Replace worn spools or seals using the control valve rebuild procedure in the Hydraulic System chapter (pp. 21-100). Flush the system with clean Case TCH Fluid after reassembly and cycle the bucket and tilt functions several times to purge air before returning to service.
How do you service the chain case and drive system on Case 1526/1530/1537 Uni-Loaders?
The Power Train chapter (pp. 101-150) covers chain case service, drive sprockets, and final drive components for the Case 1526/1530/1537 Uni-Loaders. Inspect drive chains for wear and elongation at each major service interval; replace as a set with sprockets when stretch exceeds the service limit. Check chain case oil level at the fill plug and drain/refill at the hour intervals specified. Brake service (pp. 151-162) follows power train inspection.
