International 553, 654, 724, 824 Diesel Tractor Operator Manual

$19.99 USD · one-time payment

Model: 553 | 654 | 724 | 824
Type: Diesel Tractor
62 Pages·7.6 MB·Searchable PDF·English·Print-Ready
  • ✓ Wiring Diagrams
  • ✓ Torque Specs
  • ✓ Multi-Level Bookmarks (2-level navigation)
Preview Sample Pages (PDF)
Add to Cart
International 553, 654, 724, 824 operator manual diagram showing tractor instrument panel and control lever locations.
International 553, 654, 724, 824 Diesel Tractor Operator Manual
$19.99

Instant Download 24/7

  • Works on PC, Mac, tablet, and phone.
  • Download once, keep forever



Guaranteed Safe Checkout
Visa Mastercard PayPal Apple Pay Google Pay

Need the factory operating reference for your International 724 operator manual PDF? This 62-page document (OEM #1 090 839 R1) covers the full lineup: 553, 654, 724, and 824 diesel tractors. Inside: hydraulic schematics for draft and position control routing, complete instrument cluster descriptions for every warning lamp and control lever, and a pre-operation checklist for each day's work. The maintenance section walks through air cleaner service, fuel filter changes, transmission oil checks, and a troubleshooting chart that maps symptoms like engine knock and oil pressure loss to probable causes. Torque your wheel nuts to 160-180 ft lbs (22-25 mkg) and swap the primary fuel filter at the 750-hour mark. No more guessing which dash lamp means stop-now versus check-later. Bookmarked by section; pull it up on your tablet, jump straight to the procedure you need, and keep your tractor on schedule.

What's Inside This Operator Manual

SystemPagesKey Topics
Serial Numbers2International Diesel Tractors, Engine Serial Number, Chassis Serial Number, Transmission Serial Number, Draft Control Serial Number, Tractor Image G3949, Tractor Image G3948
Recommended Lubricants7Engine (Oil, Selection of Oil Types According to, Air Temperature, Viscosity Grade Sae No), Oil Bath Air Cleaner, Transmission, Powershift, Standard and Final Drives

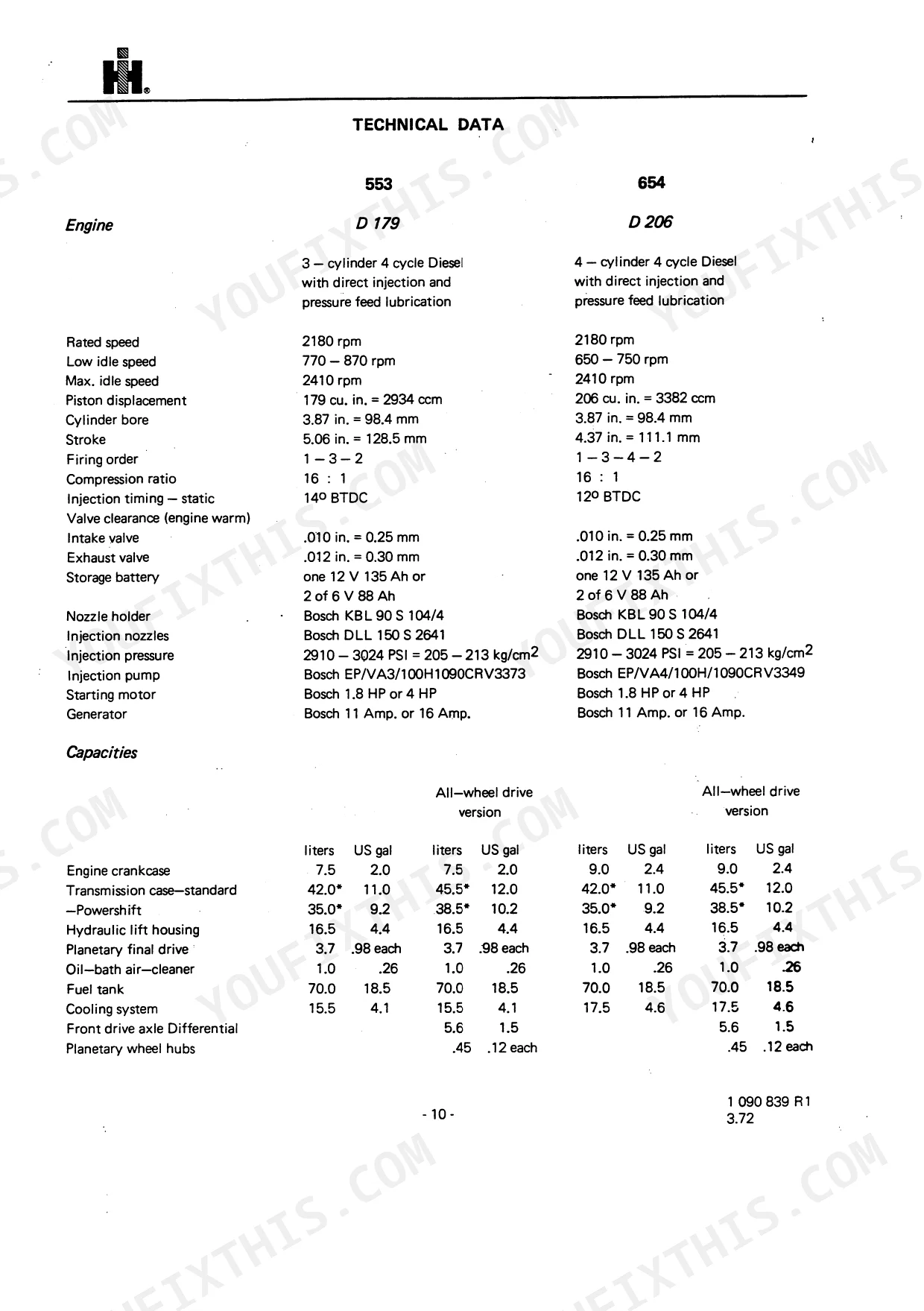

Technical Data8-10Engine 553 (D 179, Rated Speed, Low Idle Speed, Max Idle Speed, Piston Displacement, Cylinder Bore, Stroke, Firing Order, Compression Ratio, Injection Timing - Static, Valve Clearance, Intake Valve, Exhaust Valve, Storage Battery, Nozzle Holder, Injection Nozzles, Injection Pressure, Injection Pump, Starting Motor, Generator)
Preparing the Tractor for Each Day's Work11-13Coolant, Fuel, Crankcase Oil
Speed Charts14-16Speed Chart in Mph for 553 and 654 Tractors Equipped with 8+4 Synchronized Transmission or with Powershift 12+4 Synchronized Transmission and 13-30 As Tires (Range Speed, Agriomatic Range, Lever Positions and Respective Speeds Are Shown in the Diagram Below, Forward Ranges, Powershift - Forward Drive, Reverse Range, Figures 1, 2, 3 and 4 in the Diagram Correspond with Transmission Speeds 1, 3 and 4, When Using Other Tire Sizes, Speeds May Vary Slightly, Before Studying This Speed Chart Read Instructions on Gear Shifting on Pages 25 and 26, On 12+4 Powershift Transmission the Second Gear Speeds of All Ranges Are About 14% Lower Than Given Above)

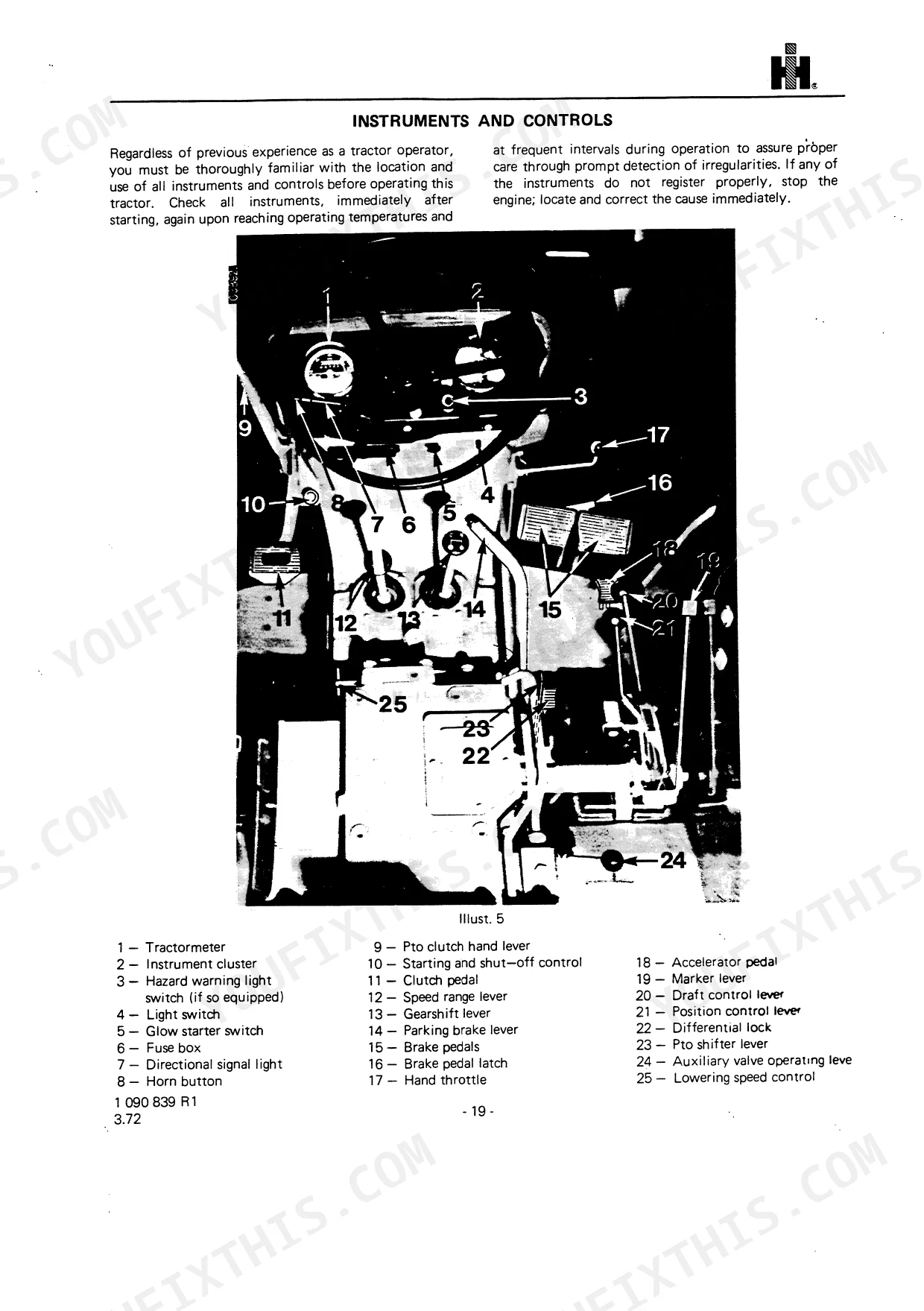

Instruments and Controls17-22Tractormeter

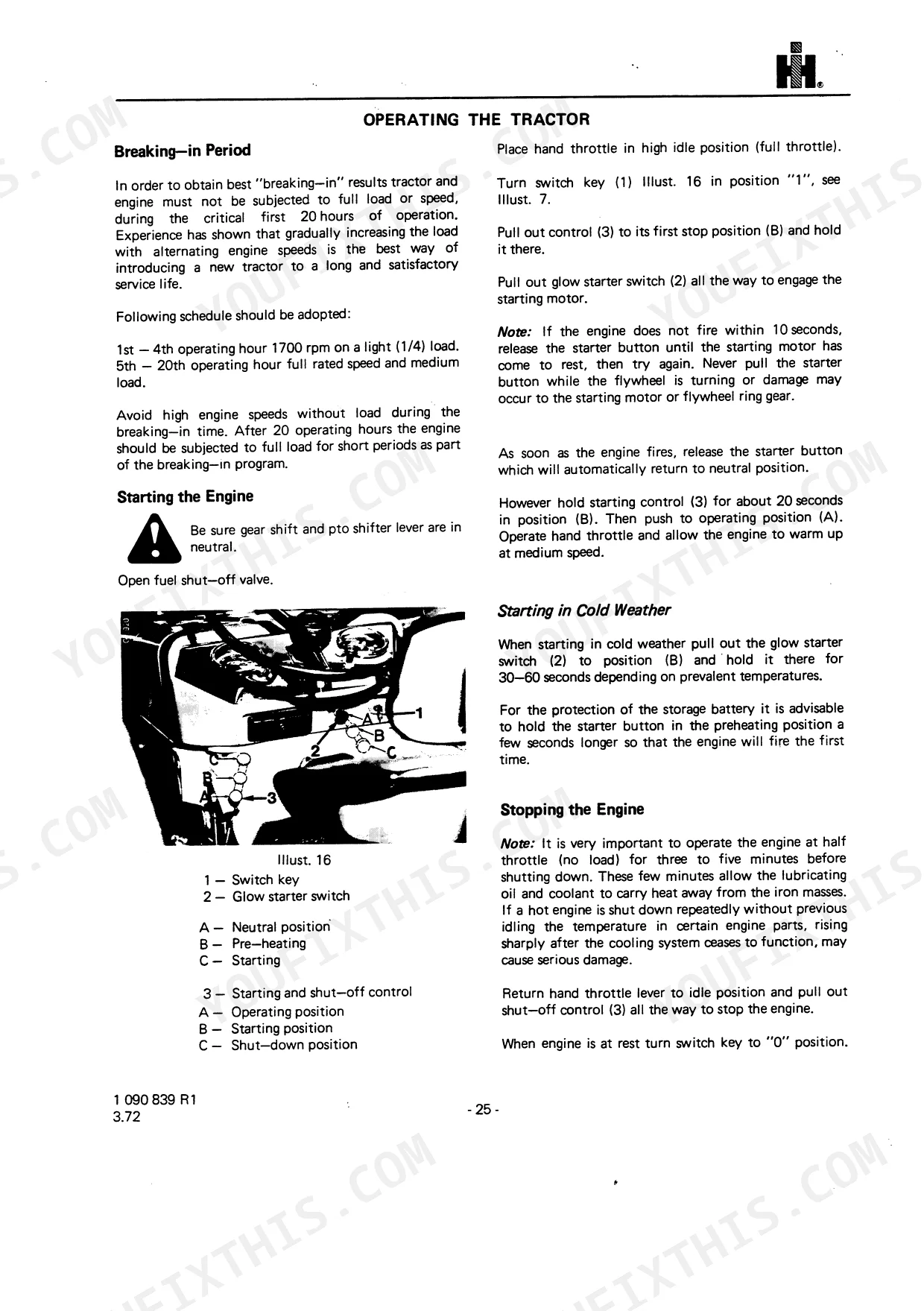

Operating the Tractor23-28Breaking-In Period, Towing the Tractor, Weights, Antifreeze Solution
Power Take-Off29-30Independent PTO Operation with Dual Clutch, Independent PTO Operation with Single Clutch, Ground Speed PTO

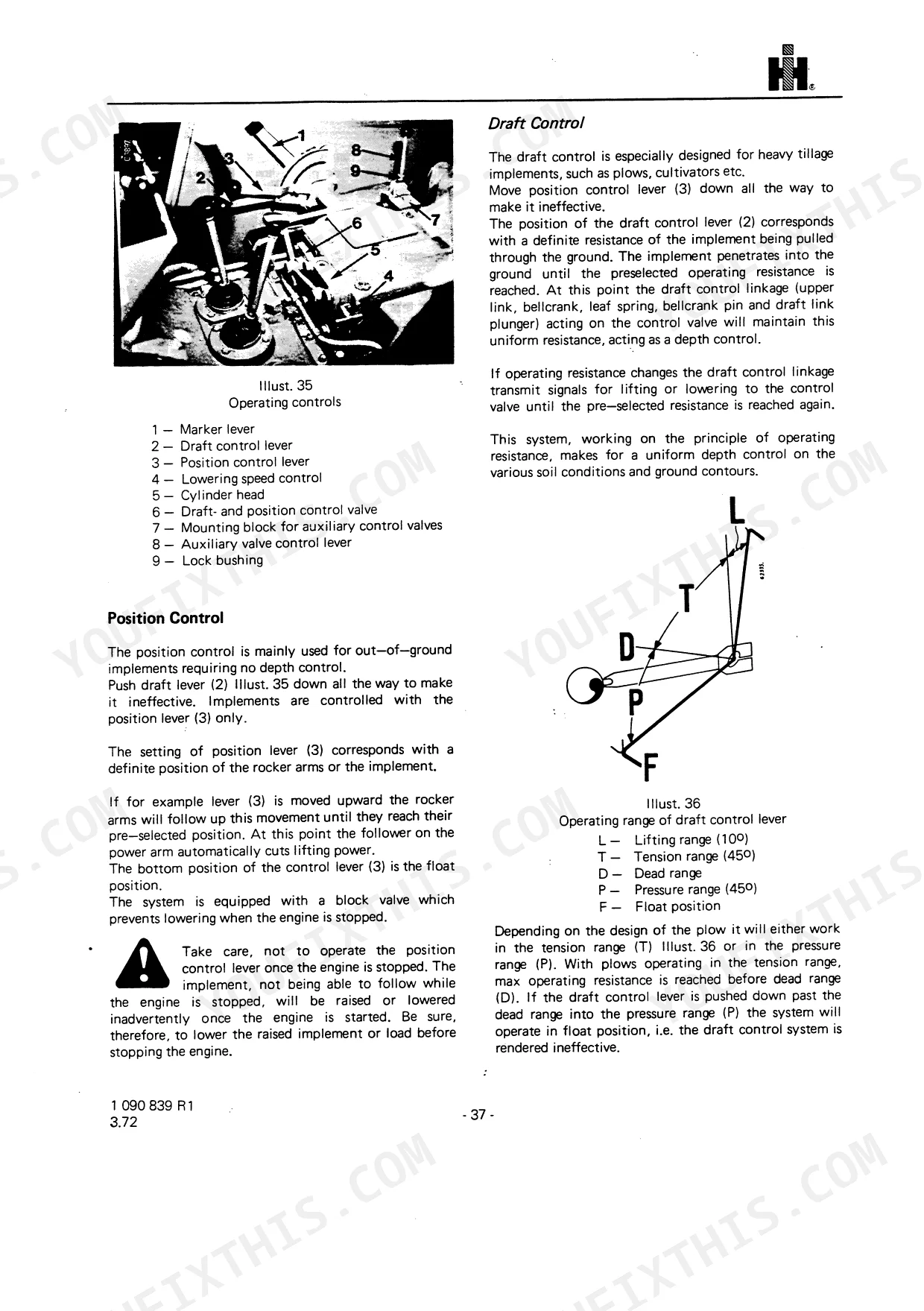

Hitches and Hydraulics31-39Hitching Draw Clevis, Front, Swivel Type Adjustable Trailer Hitch, Swinging Drawbar, Drawbar, Three-Point Suspension Hitch
Lubrication Guide40-41Lubrication Guide Diagram, Removing or Installing the Engine Hood, Changing Engine Oil, Draining the Engine Oil, Oil Filter, Clean Filter, Clogged Filter

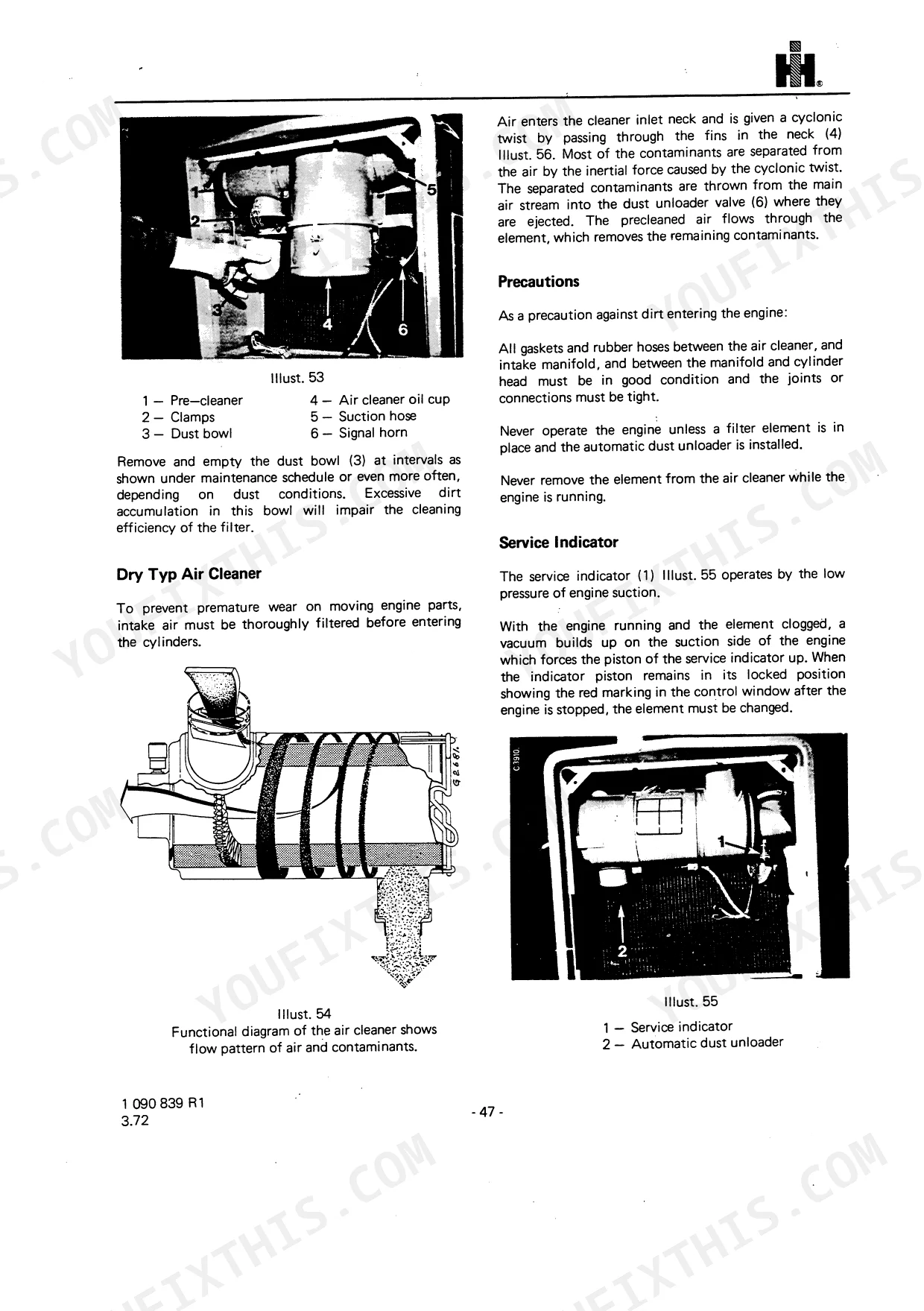

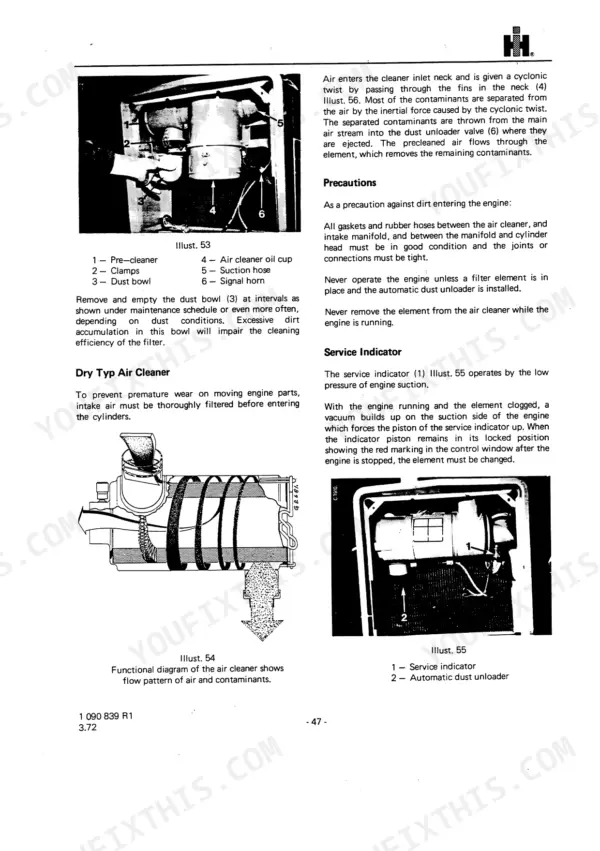

Maintenance42-59Oil Bath Air Cleaner, Pre-Cleaner for Air Cleaner, Dry Typ Air Cleaner, Service Indicator, Automatic Dust Unloader, Filter Element Service (Removal, Installation), Fuel
Electrical Equipment60Servicing the Storage Batteries, V Battery (Ground Cable, Positive Cable, Filler- and Breather Caps)
Mechanical Problems and Their Probable Cause61Engine Overheats, Engine Will Not Start, Uneven Engine Operation, Engine Does Not Develop Full Power, Loss of Oil Pressure, Engine Knocks, Lack of Compression
Safety Rules62Caution Is the Most Effective Safeguard Against Accidents, To Operate a Tractor You Must Be a Good Driver and Be in Possession of a Valid Driving Licence

Quick Reference Specifications

SpecificationValuePage
IH Anti-freeze protectiondown to -20°C (-4°F)p. 50
Engine Injection Pressure2910-3024 PSI (205-213 kg/cm2)p. 8
Rear Wheel Rim Bolts Torque130 ft lbs (18 mkg)p. 29
Wheel Nuts Torque160-180 ft lbs (22-25 mkg)p. 29
Primary Fuel Filter Service Interval750 hoursp. 46
BrandInternational
Model553, 654, 724, 824
Machine TypeDiesel Tractor
Manual TypeOperator Manual
LanguageEnglish
FormatSearchable PDF (Digital Download)
Pages62
File Size7.6 MB
Manual No.1 090 839 R1
Wiring DiagramsYes
Hydraulic SchematicsNo
Torque SpecificationsYes
Bookmarked / IndexedYes
