Part of the Yanmar Repair Manuals.
The clutch on a YM169 sits behind a full tractor split, and the disassembly sequence that gets you there is the kind of thing you want in writing before the machine is in pieces on the shop floor. This Yanmar service manual walks the YM169 and YM169D diesel tractors, both powered by the 3T72HA-A engine, through that job and every other major repair across 202 pages.
Inside are chapters on tractor disassembly, construction and maintenance of the clutch, transmission, brakes, hydraulic lift, steering, and axles, full engine service from teardown to adjustment, electrical equipment, troubleshooting, and a regular inspection checklist. Specifications and tightening torque ratings sit up front; a guessed head torque on an old diesel is an expensive guess.
The PDF carries 46 bookmarks, so you can jump from a symptom to the right chapter in seconds, print the pages you need, and get back in the field.
What's Inside This Yanmar YM169, YM169D Manual
| System | Pages | Key Topics |
|---|---|---|

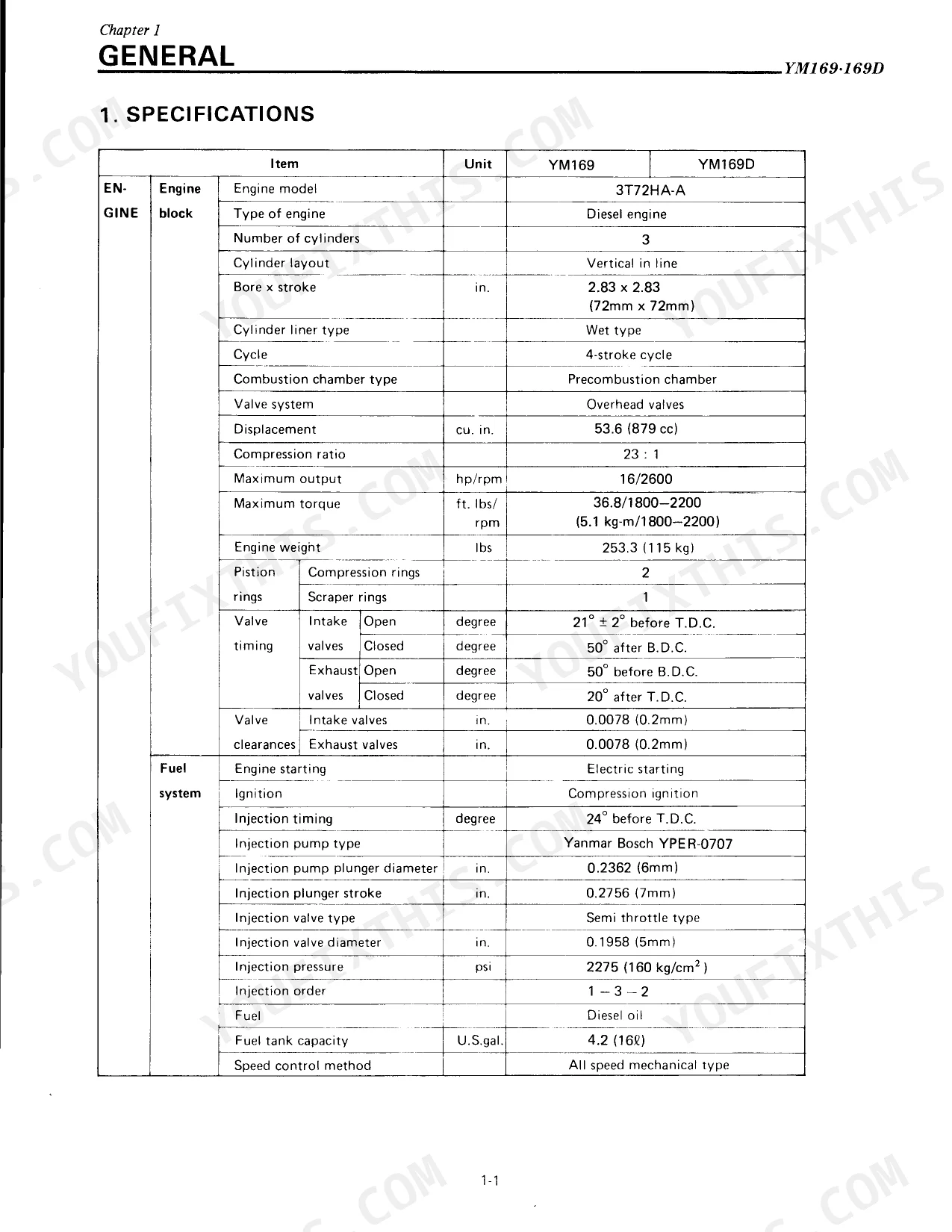

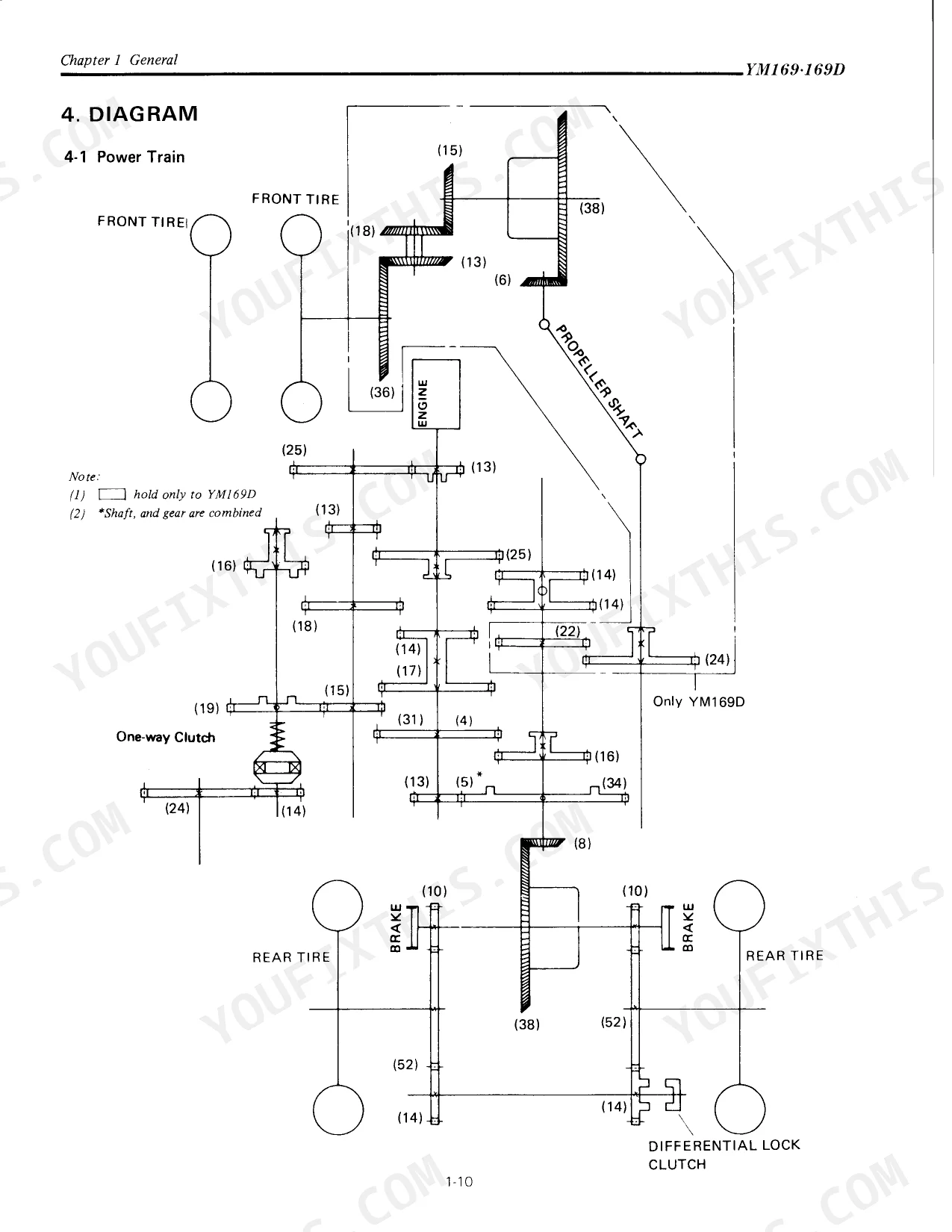

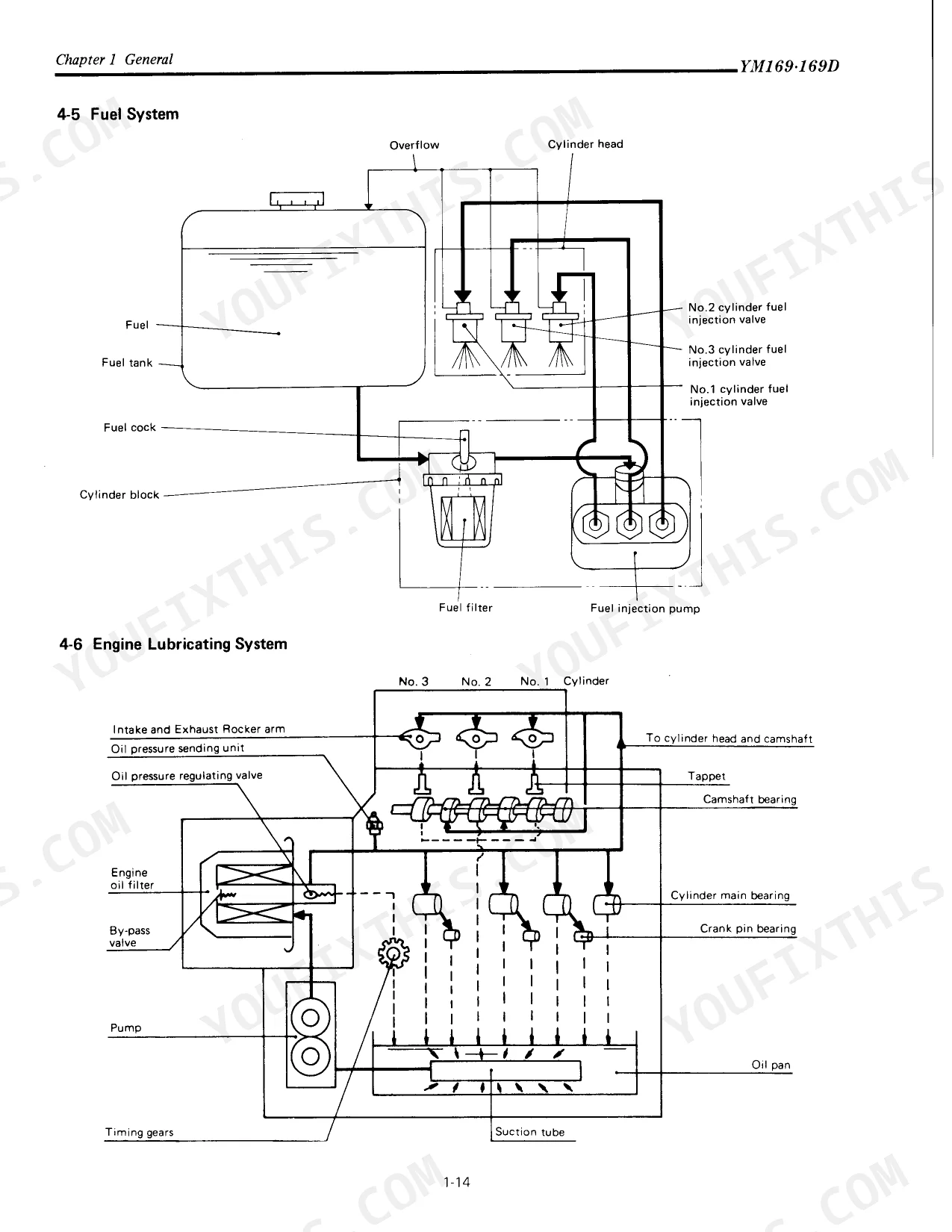

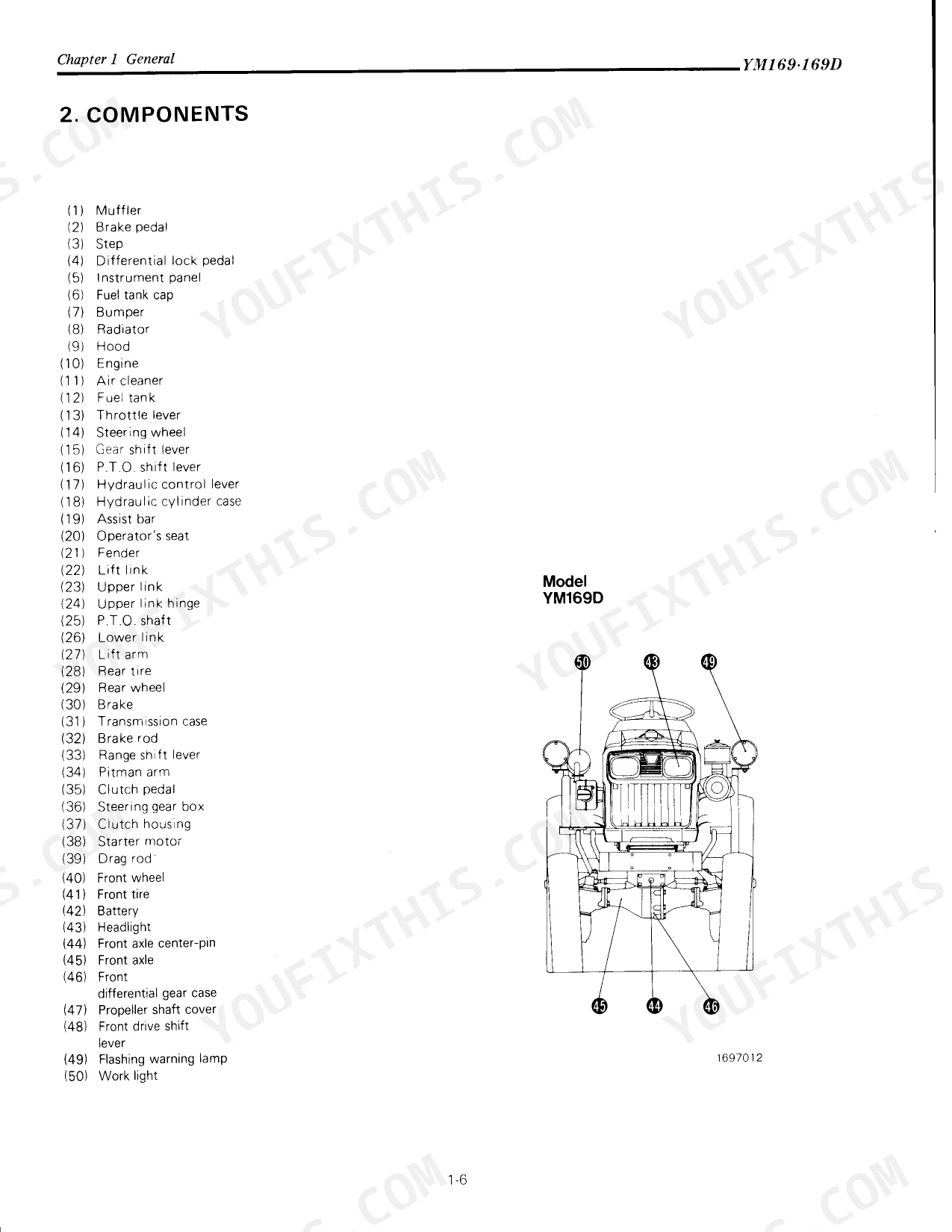

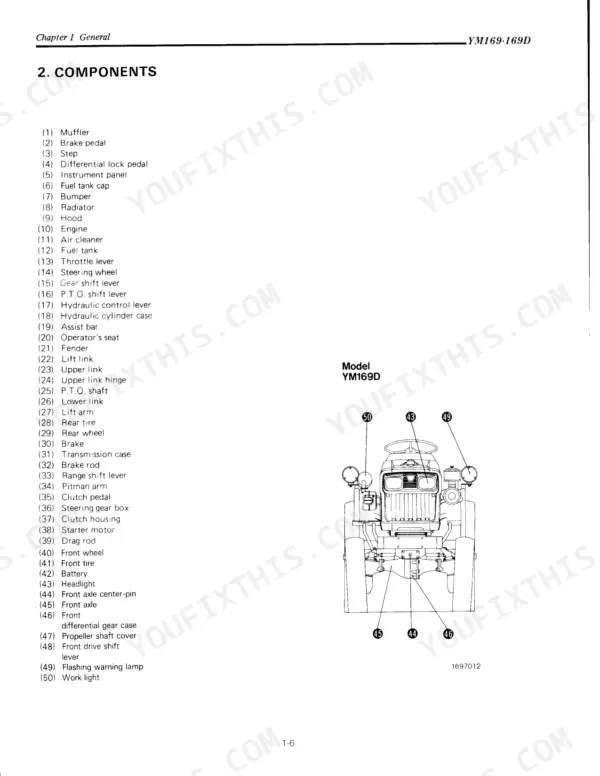

| General | 7-27 | Specifications, Components, Tightening Torque Ratings, Diagram (Power Train, Front Axle Sectional View, Transmission Sectional View) |
| Tractor Disassembly | 28-37 | Disassembly Sequence |
| Tractor Construction and Maintenance | 38-65 | Clutch and Relevant Items, Transmission and Related Items, Brake, Hydraulic Lift Device, Steering, Front Axle, Rear Axle |
| Tractor Assembly | 66-106 | General Assembly, Transmission Assembly, Front Axle Assembly, Center Pin Assembly, Brake Drum Assembly, Hydraulic System Assembly |
| Tractor Adjustment | 107-110 | Clutch and Related Items, PTO and Related Items, Brake and Related Items, Hydraulic Equipment, Steering System |
| Engine | 111-160 | Disassembly Sequence, Construction and Maintenance, Assembly Sequence, Adjustment |
| Electrical Equipment | 161-186 | Battery, Generator and Current Limiter, Starter Motor, Thermostat, Turn Signal Lights, Water Temperature Indicator Light |

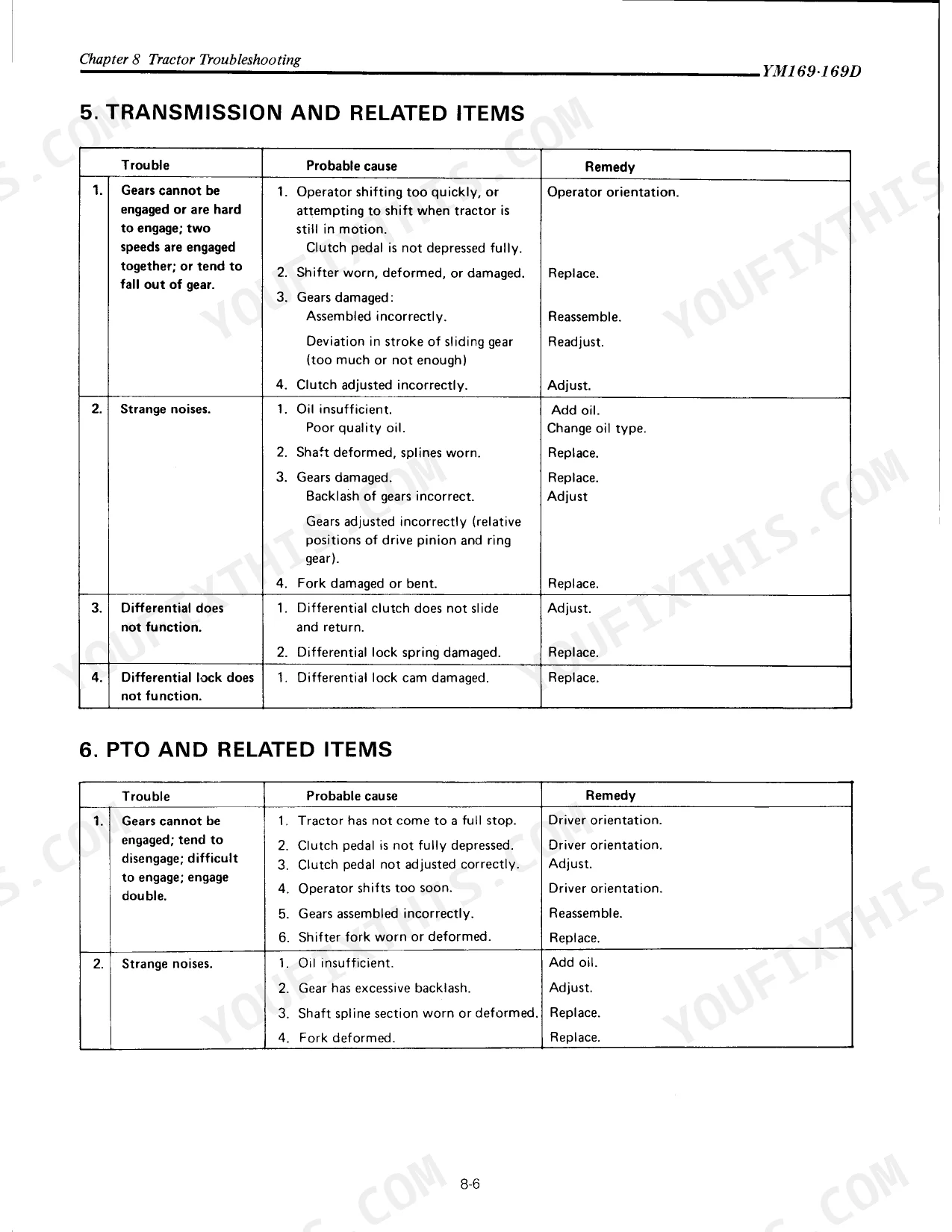

| Tractor Troubleshooting | 187-196 | Engine and Related Items, Electrical System, Clutch and Related Items, Transmission and Related Items, Hydraulic System, Steering and Suspension Systems |
| Regular Inspections | 197-202 | Check List |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Rear wheel bolts torque | 58 – 72 ft·lbs (8.0 – 10.0 kg·m) | p. 16 |
| Battery capacity | 45 AH (20-hour rate) | p. 163 |
| Battery voltage | 12V | p. 163 |
| Starter motor manufacturer | HITACHI | p. 178 |
| Starter motor light running voltage/current | 12V/less than 60A | p. 178 |
| Cooling system type | Water-cooled | p. 10 |
| Thermostat type | SH100-02 (Hitachi) | p. 184 |
| Maximum Engine Output | 16/2600 hp/rpm | p. 9 |
| Hydraulic Control Relief Pressure | 1564 psi (110 kg/cm²) | p. 55 |
Yanmar YM169, YM169D Common Problems This Manual Covers
Slow cranking after winter storage
A tractor that sat through the off season often comes back with a drained battery, corroded terminals, or a lazy starter. Chapter 7 gives the battery specifications (12V, 45 AH, 3.5A charging current) and starter motor details so you can prove which part is actually at fault before buying anything.
Manual Section: Chapter 7 Electrical Equipment p. 161Engine runs hot under load
Working ground on a warm day will find a tired cooling system fast. The troubleshooting chapter walks engine heat complaints back through their likely causes step by step, so you fix the real problem instead of throwing parts at it.
Manual Section: Chapter 8 Tractor Troubleshooting p. 187Weak or slow three point hitch
When the lift arms crawl up with an implement hooked on, the hydraulic lift device section covers construction and maintenance of the system, including the hydraulic control relief pressure of 1564 psi (110 kg/cm²) you need to test against instead of guessing.
Manual Section: Chapter 3 Tractor Construction and Maintenance p. 38Clutch or brake pedal out of adjustment
Free play drifts as linkages wear, and a dragging clutch or uneven brakes follow. Chapter 5 collects the adjustment procedures for the clutch, brakes, PTO, hydraulic equipment, and steering in one short chapter you can work through in an afternoon.
Manual Section: Chapter 5 Tractor Adjustment p. 107Smoke and low power from engine wear
The 3T72HA-A will run for decades, but blowby, smoke, and fading power eventually mean measuring wear instead of guessing at it. The engine chapter runs from disassembly sequence through construction and maintenance, assembly sequence, and final adjustment.
Manual Section: Chapter 6 Engine p. 111Splitting the tractor in the right order
Clutch and transmission work means separating the tractor, and doing it out of sequence costs hours. Chapter 2 lays out the disassembly sequence so supports, wiring, and linkages come apart in the order Yanmar intended.
Manual Section: Chapter 2 Tractor Disassembly p. 28Frequently Asked Questions
Which tractors does this manual cover?
It covers the Yanmar YM169 and YM169D diesel tractors, both built around the 3T72HA-A engine. The diagrams include a front axle sectional view specific to the YM169D, so both versions are served by the same 202 page service manual.
Does it cover the electrical system?
Yes. The Electrical Equipment chapter covers the battery, generator and current limiter, starter motor, thermostat, turn signal lights, and the water temperature indicator light, with specifications such as the 12V, 45 AH battery and its 1.260 electrolyte specific gravity at full charge. p. 161
Are torque specs included?

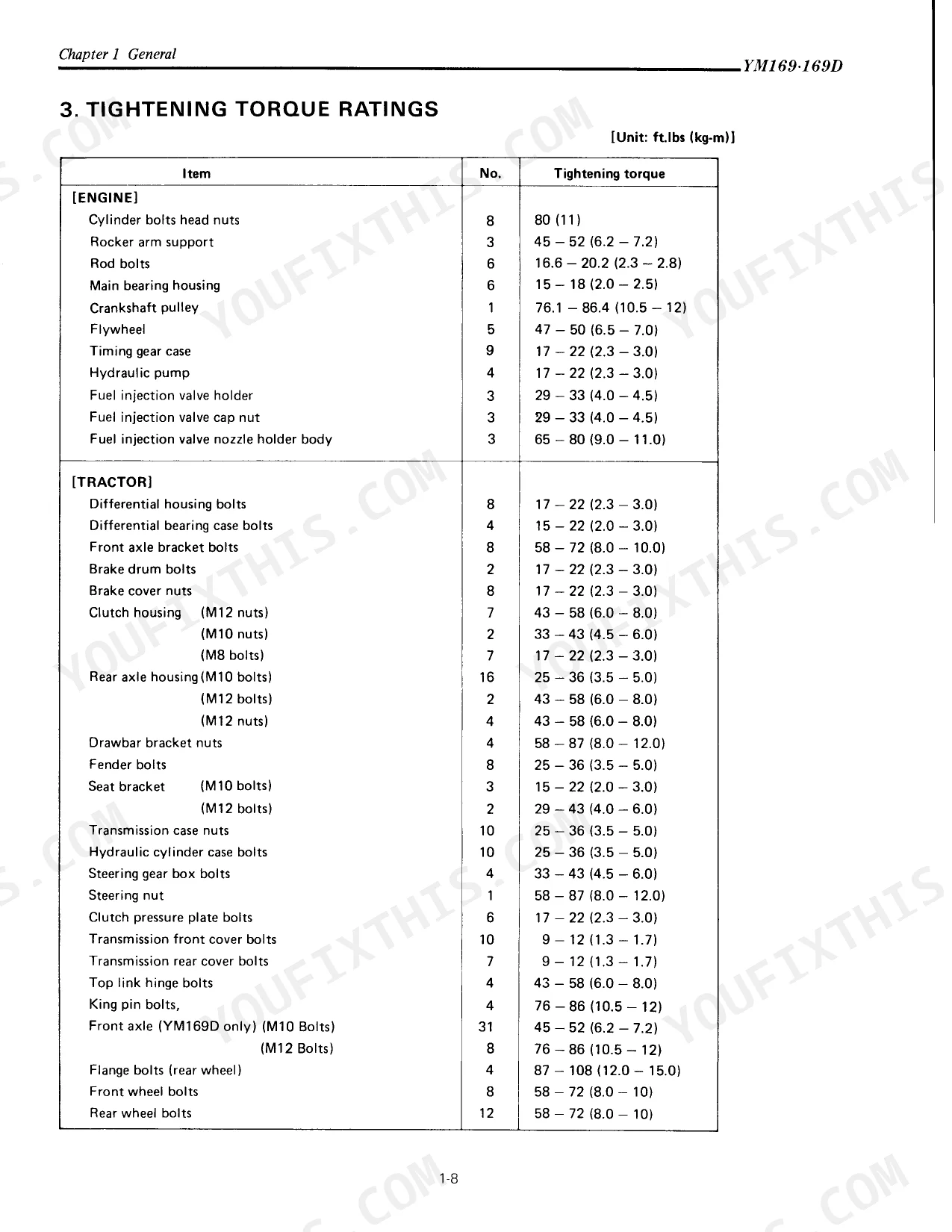

Yes. Chapter 1 General includes tightening torque ratings alongside the specifications and component diagrams, with figures like 58 to 72 ft lbs (8.0 to 10.0 kg m) for the rear wheel bolts. p. 7
Can I rebuild the engine with this manual?
The Engine chapter covers the full job on the 3T72HA-A: disassembly sequence, construction and maintenance, assembly sequence, and adjustment. Paired with the torque ratings in Chapter 1 and the engine troubleshooting tables in Chapter 8, it supports a complete teardown and rebuild. p. 111
Is this Service Manual a digital download?
This is a 202-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Service Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Are hydraulic diagrams part of this Yanmar YM169 Service Manual?
The hydraulics are covered as a system rather than as a schematic set. Chapter 1 carries the power train, front axle and transmission sectional views; the Tractor Construction and Maintenance chapter covers the hydraulic lift device; and the Tractor Adjustment chapter gives the hydraulic equipment procedures, including the control relief pressure of 1564 psi (110 kg/cm2) on page 55 to test against.
