Looking for the factory specs to tear down your Yanmar marine diesel? This 214-page Yanmar 6LYA-STE service manual pdf (OEM #HINSHI-H8001) breaks down the complete engine block, fuel injection equipment, and reduction gear for the 6LYA-UTE and STE variants. You get complete electrical system wiring diagrams, detailed fuel injection pump disassembly steps, and a full section dedicated to troubleshooting marine engine faults. Open to any chapter and find step-by-step rebuild procedures covering everything from the turbocharger to the sea water pump. Set the exhaust valve clearance to exactly 0.4 mm and confirm the first stage cylinder head bolts are tightened to 15.0~16.0 kg-m before moving on. Guessing marine engine tolerances leads to catastrophic failures at sea. Grab this bookmarked download, load it on your tablet, and fix your boat with confidence.
What's Inside This Yanmar 6LYA Series Manual
| System | Pages | Key Topics |
|---|---|---|

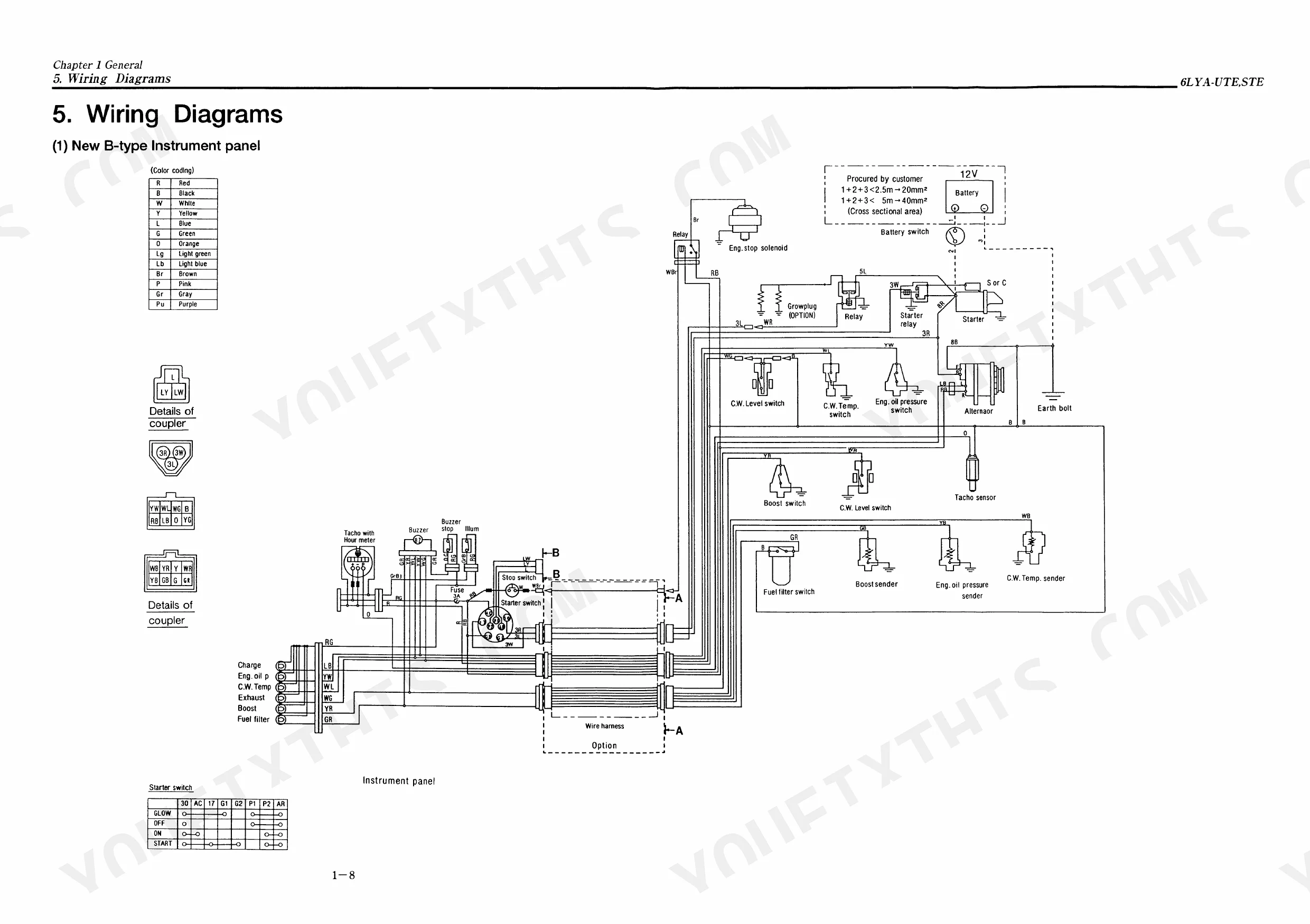

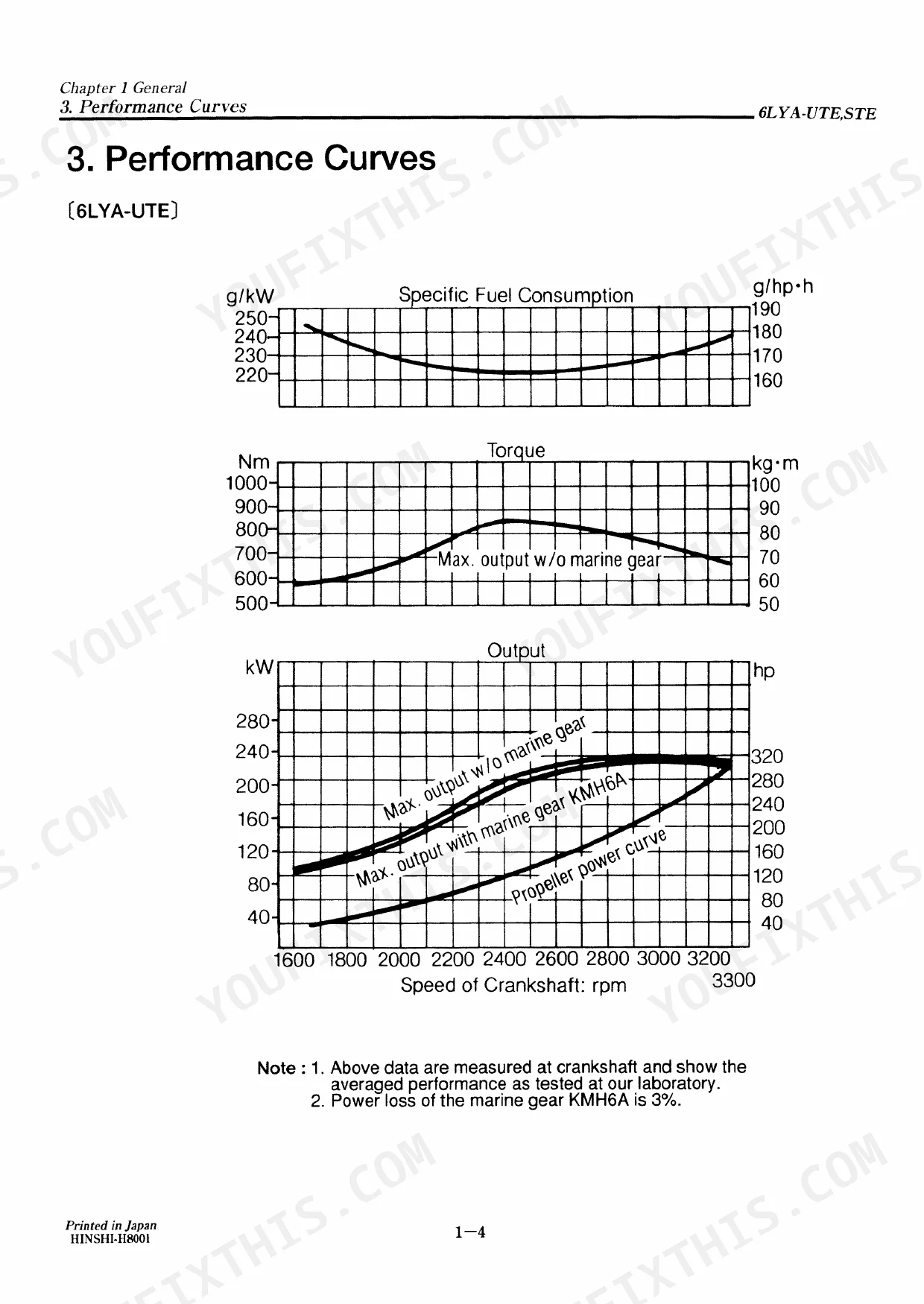

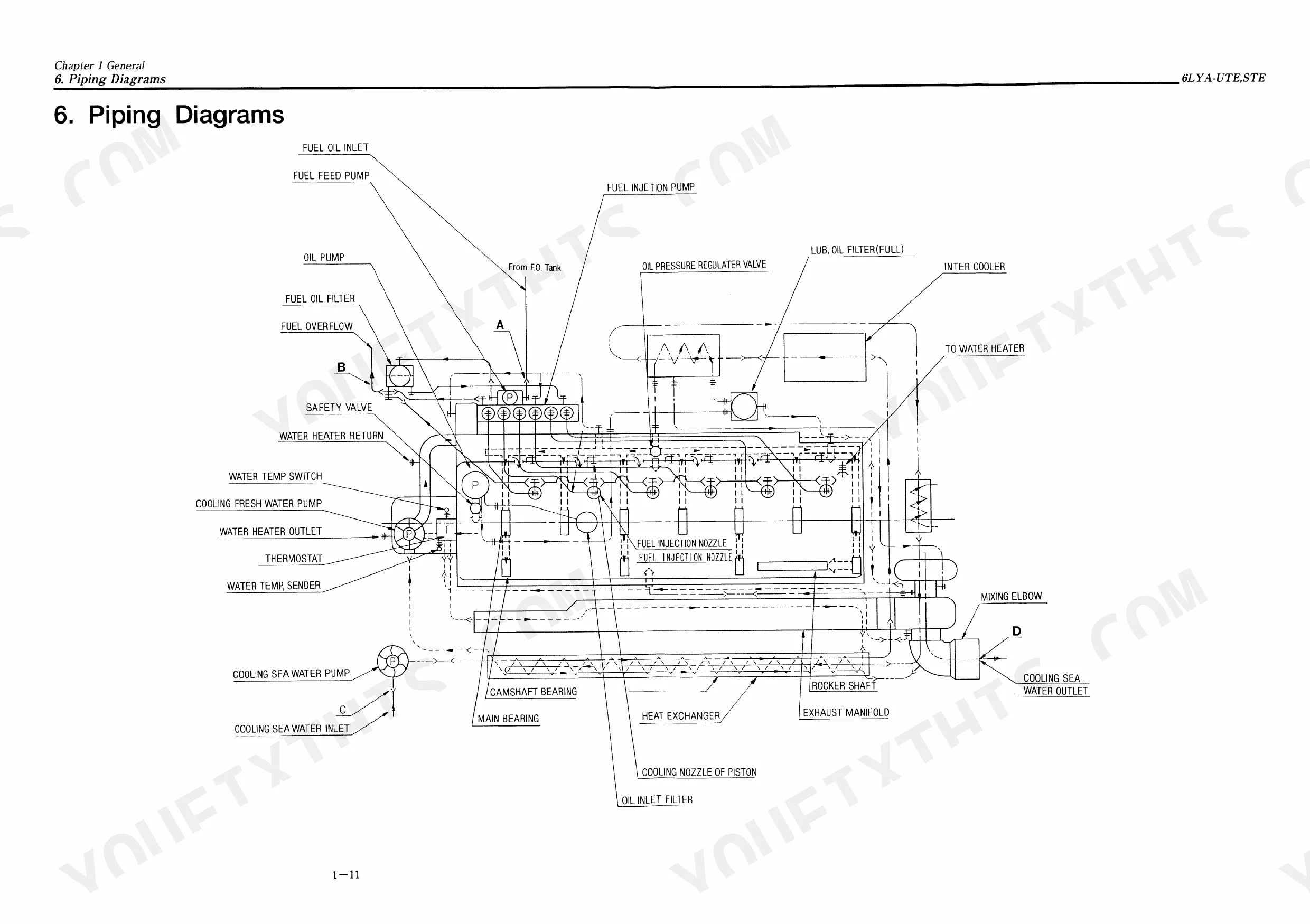

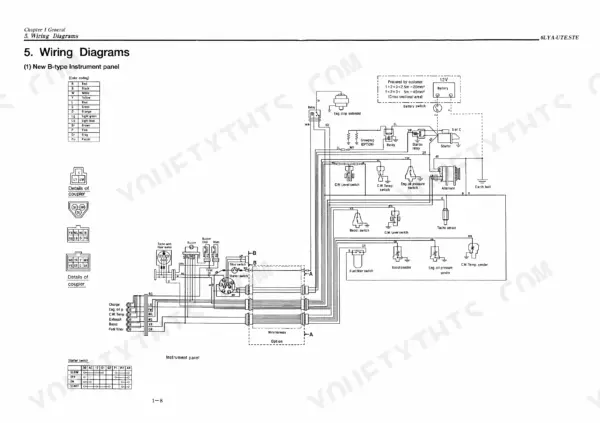

| General | 5-15 | Exterior Views, Specifications, Performance Curves, Dimensions, Wiring Diagrams, Piping Diagrams |

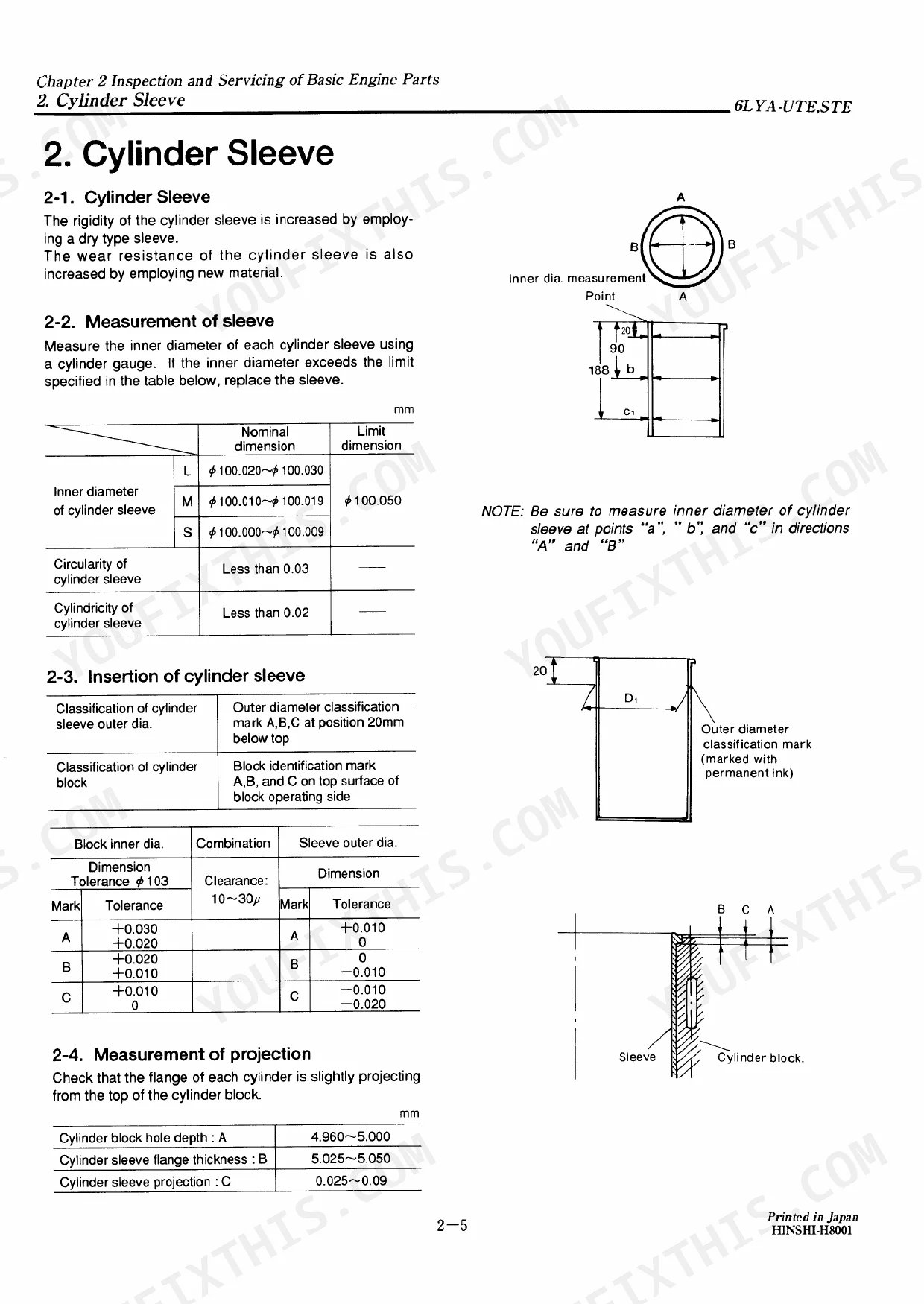

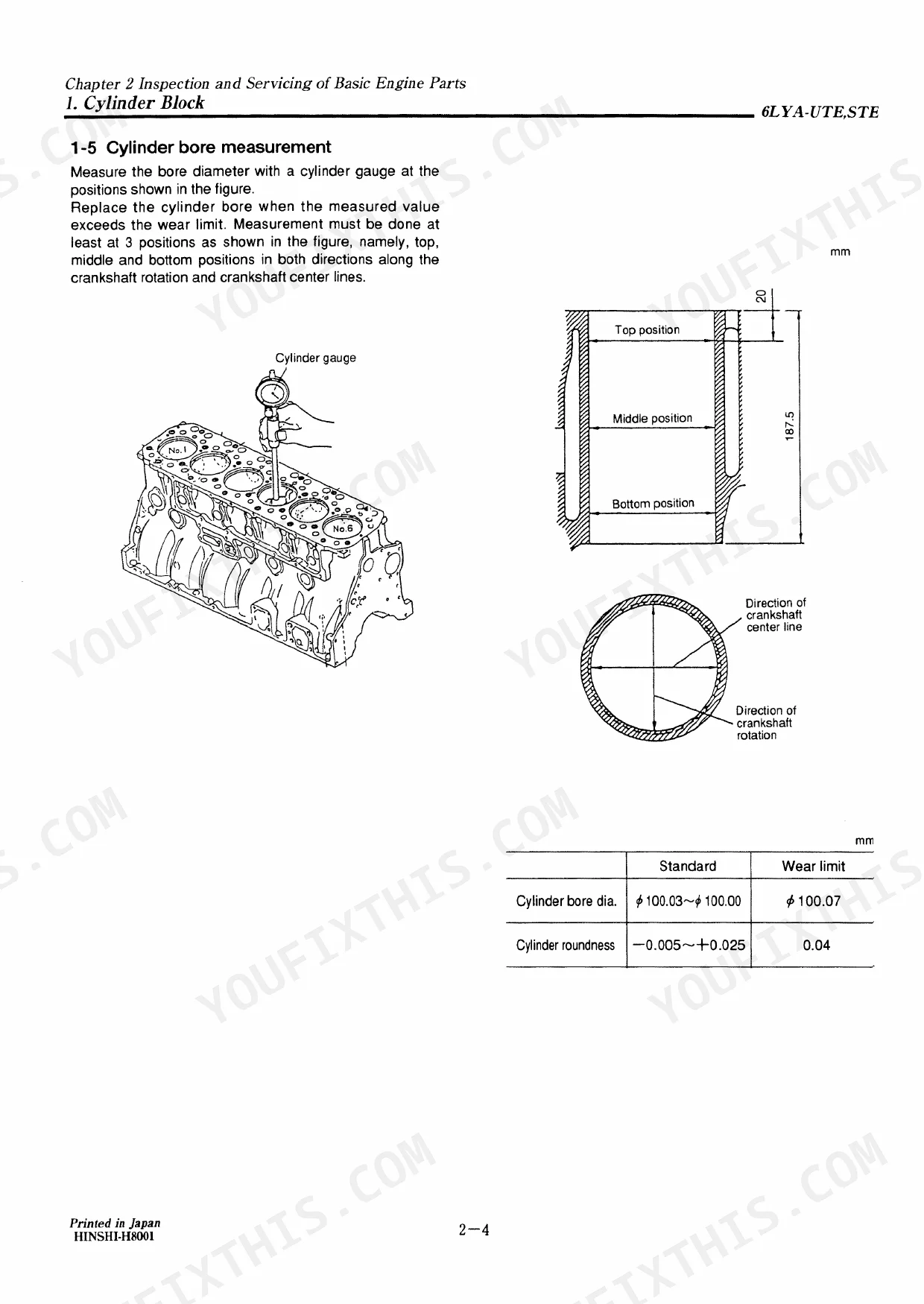

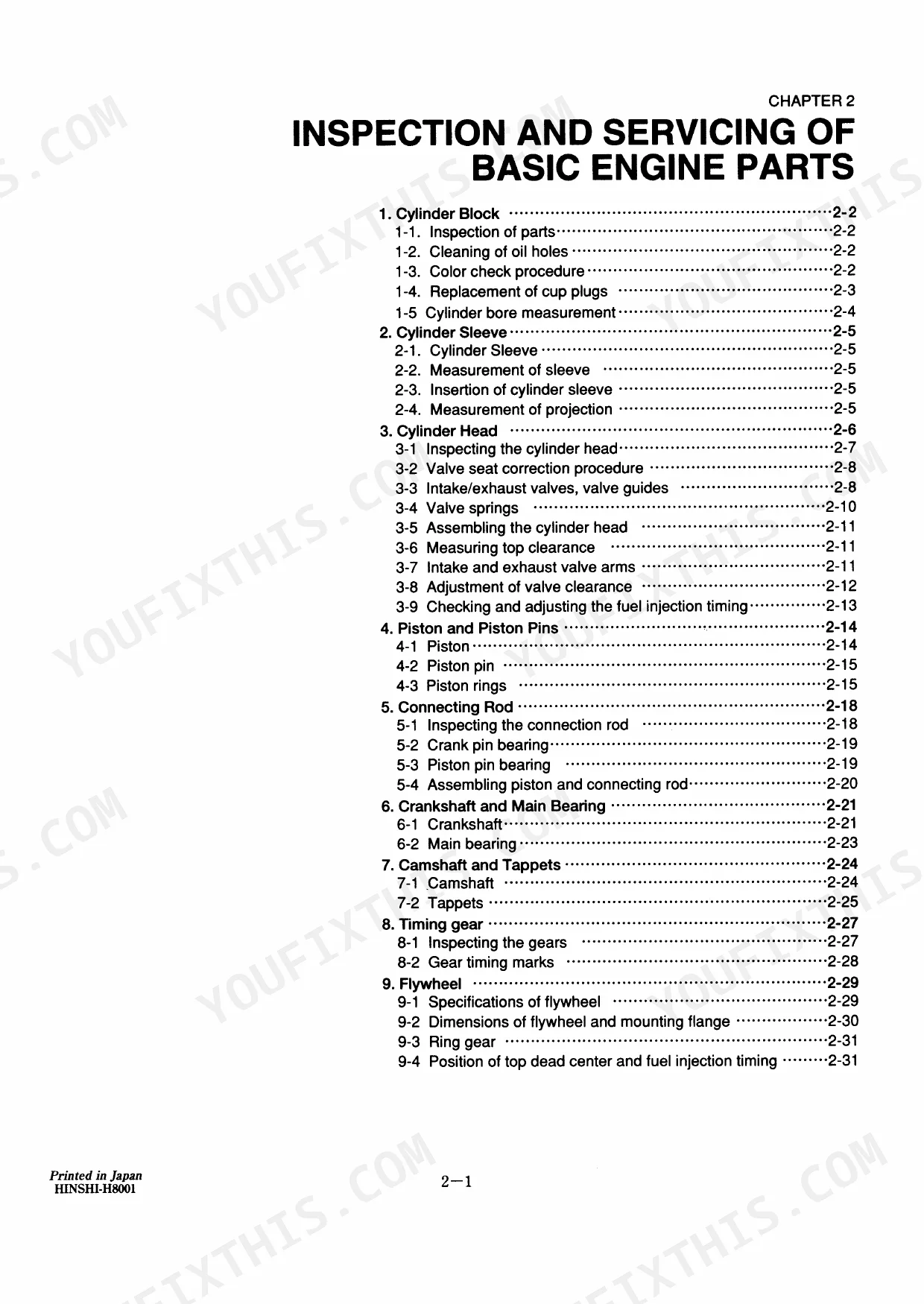

| Inspection and Servicing of Basic Engine Parts | 16-46 | Cylinder Block, Cylinder Sleeve, Cylinder Head, Piston and Piston Pins, Connecting Rod, Crankshaft and Main Bearing, Camshaft and Tappets, Timing Gear |
| Fuel Injection Equipment | 47-86 | Fuel Injection Pump Construction, Fuel Injection Pump Specifications, Fuel Supply System, Fuel Injection Nozzle, Fuel Feed Pump, Disassembly |
| Intake and Exhaust System | 87-100 | Turbocharger |
| Lubrication System | 101-110 | Lube Oil Pump, Lube Oil Filter, Oil Pressure Control Valve, Lube Oil Cooler, Piston Cooling Nozzle, Rotary Waste Oil Pump (Optional) |
| Cooling Water System | 111-125 | Sea Water Pump, Fresh Water Pump, Fresh Water Cooler, Pressure Cap and Sub Tank, Thermostat, Kingston Cock (Optional) |
| Reduction and Reversing Gear | 126-136 | Specification and System, Reassembly and Disassembly (KMH6A), Cautions for Reassembly |
| Remote Control (Optional) | 137-139 | Remote Control System (Option), Remote Control Installation |
| Electrical System | 140-170 | System Diagram, Battery, Starter Motor, Alternator, Instrument Panel, Warning Devices, Tachometer |
| Disassembly and Reassembly | 171-207 | Disassembly and Reassembly Precautions, Disassembly and Reassembly Tools, Bolt/Nut Tightening Torque, Test Running |
| Troubleshooting | 208-213 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head bolt tightening torque (First stage) | 15.0~16.0 kg-m | p. 26 |
| Cylinder head bolt tightening torque (Second stage) | 20.0~22.0 kg-m | p. 26 |
| Nozzle fastening nut tightening torque | 0.4~0.5 kg-m | p. 201 |
| Exhaust valve clearance | 0.4 mm | p. 28 |
| Lube oil filter replacement period | Every 250 hours of engine operation | p. 106 |
| Main bearing clearance standard value | 0.036~0.093 mm | p. 204 |
| Cylinder head gasket thickness at tightening | 1.30±0.05 mm | p. 202 |
| Alternator Nominal Output | 12V/80A | p. 155 |
| Thermostat Opening Temperature | 76.5°C | p. 123 |
Yanmar 6LYA Series Common Problems This Manual Covers
Yanmar 6LYA marine diesel engine output drops by 10 percent or more under heavy load p. 87
Inspect the turbocharger blower for air side fouling. Clean the intake components. If power does not recover, verify exhaust valve clearance on page 28 and adjust to exactly 0.4 mm. Repeat the blower cleaning cycle up to 3 times to restore full pressure.
Manual Section: Chapter 4 Intake and Exhaust SystemContinuous water leakage drips from the seawater pump drain pipe during normal operation p. 111
Disassemble the seawater pump and replace the failed oil seal to stop continuous drain pipe leakage. While draining the cooling system, test the thermostat using the specifications on page 123 to verify the opening temperature is 76.5°C. Reinstall the pump and test run.
Manual Section: Chapter 6 Cooling Water SystemExcessive oil consumption occurs at higher RPMs with visible signs of internal engine wear p. 171
Remove the cylinder block components to inspect for internal wear. Measure the main bearing clearance against the standard value of 0.036~0.093 mm on page 204. During reassembly, verify the new cylinder head gasket thickness at tightening is 1.30±0.05 mm according to the chart on page 202.
Manual Section: Chapter 10 Disassembly and ReassemblyFresh oil drips around the lube filter housing immediately following a routine maintenance service p. 101
Remove the lube oil filter and clean the mating surface thoroughly. Install a new filter, hand-tighten, and then turn an additional 3/4 turn to seat the seal. Note the schedule on page 106, which mandates replacement every 250 hours of engine operation.
Manual Section: Chapter 5 Lubrication SystemFrequently Asked Questions
What are the torque specs for Yanmar 6LYA-UTE / 6LYA-STE cylinder head bolts?
When assembling the cylinder head, the tightening torque for the cylinder head bolts should be applied in two stages: first at 15.0 to 16.0 kg-m, and then at 20.0 to 22.0 kg-m.
How do I troubleshoot a Yanmar 6LYA-STE that will not start?
Troubleshooting for a non-starting engine involves checking several areas, including piston rings (worn plunger, plunger sticks, damaged plunger spring), fuel injection pump issues (air inside pump, faulty fuel injection valve), and problems with pressurized air or other miscellaneous causes.
How do I bleed fuel on a Yanmar 6LYA-UTE after changing filters?
The manual indicates that the fuel feed pump includes a priming pump designed to extract air from the fuel system, which can be used manually when the engine is stopped. In troubleshooting, 'Bleed air' is listed as a countermeasure for issues related to a faulty fuel injection pump.
What are the replacement specifications for seawater pump oil seal?
When replacing the mechanical seal of the seawater pump, it is recommended to coat the sliding surface with a good quality silicon oil, taking care to avoid scratches. For the oil seal, it should be coated with grease before insertion.
What are the replacement specifications for lube oil filter?
The lube oil filter should be replaced every 250 hours of engine operation. It is a full-flow, paper element type with a filtering area of 4,000 cm² and an element rating of Max 45 µ, Ave. 35 µ.
What is the oil capacity of the Yanmar 6LYA-UTE/STE engine?
The total lube oil capacity for the Yanmar 6LYA-UTE/STE engine is 4.0 liters.
What are the valve clearances for the Yanmar 6LYA-UTE/STE engine?
The intake valve clearance for both 6LYA-UTE and 6LYA-STE models is 0.1 mm. The exhaust valve clearance is 0.4 mm for the 6LYA-UTE and 0.5 mm for the 6LYA-STE.
What is the standard injection starting pressure for the fuel injection nozzle?
The standard injection starting pressure for the 6LYA-UTE model is 240 to 250 kg/cm², while for the 6LYA-STE model, it is 260 to 270 kg/cm².
How quickly can I access this manual after buying?
Immediate download of the complete 214-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this manual?
No copy protection at all. The PDF is DRM-free, so print whatever sections you need to take to the shop. Standard letter or A4 paper works.
Document Quality
This document is a mixed PDF, featuring native digital text for the main content and embedded scanned images for diagrams and tables. You can search and copy the main body text, which is crisp and easy to read throughout. Diagrams and illustrations are primarily raster images, so they may show some pixelation when highly magnified, but their labels are generally clear and readable. The pages are clean with no significant scan artifacts, stains, or skewed content, and there are no notable blank pages.
