All 72 pages of this International Harvester T-4, T-5 Crawler Tractor Operator Manual (OEM #1003883R1) are built around one goal: giving you the factory procedures to operate and maintain your crawler the way IH intended. Open to a detailed controls walkthrough covering the Torque Amplifier lever, steering clutch levers, and engine speed controls, plus cold weather starting sequences and a complete hydraulic system operating section. You also get a full "Finding Trouble" diagnostic section, lubrication service intervals, track chain tension procedures, brake and steering clutch adjustments, valve tappet adjustment steps, and factory specifications covering both the T-4 and T-5. Torque your track shoe bolts to 90-100 ft. lb., check them every 8 hours, and swap the oil filter element every 150 hours. Your crawler is down. Bookmarked by section and keyword-searchable, open it on tablet or phone and get back to work.
What's Inside This International Harvester T-4, T-5 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 11 | Clutch Housing, Battery Ignition Unit, Engine Crankcase, Radiator |
| Description | 12-13 | Engine, Final Sprocket Drives, Transmission, Engine Clutch, Steering Clutches and Brakes, Track Assemblies, Hitch |
| Instruments and Controls | 14-15 | Ammeter, Brake Pedal, Engine Speed Control Lever, Gearshift Lever, Steering Control Levers, Torque Amplifier Lever |

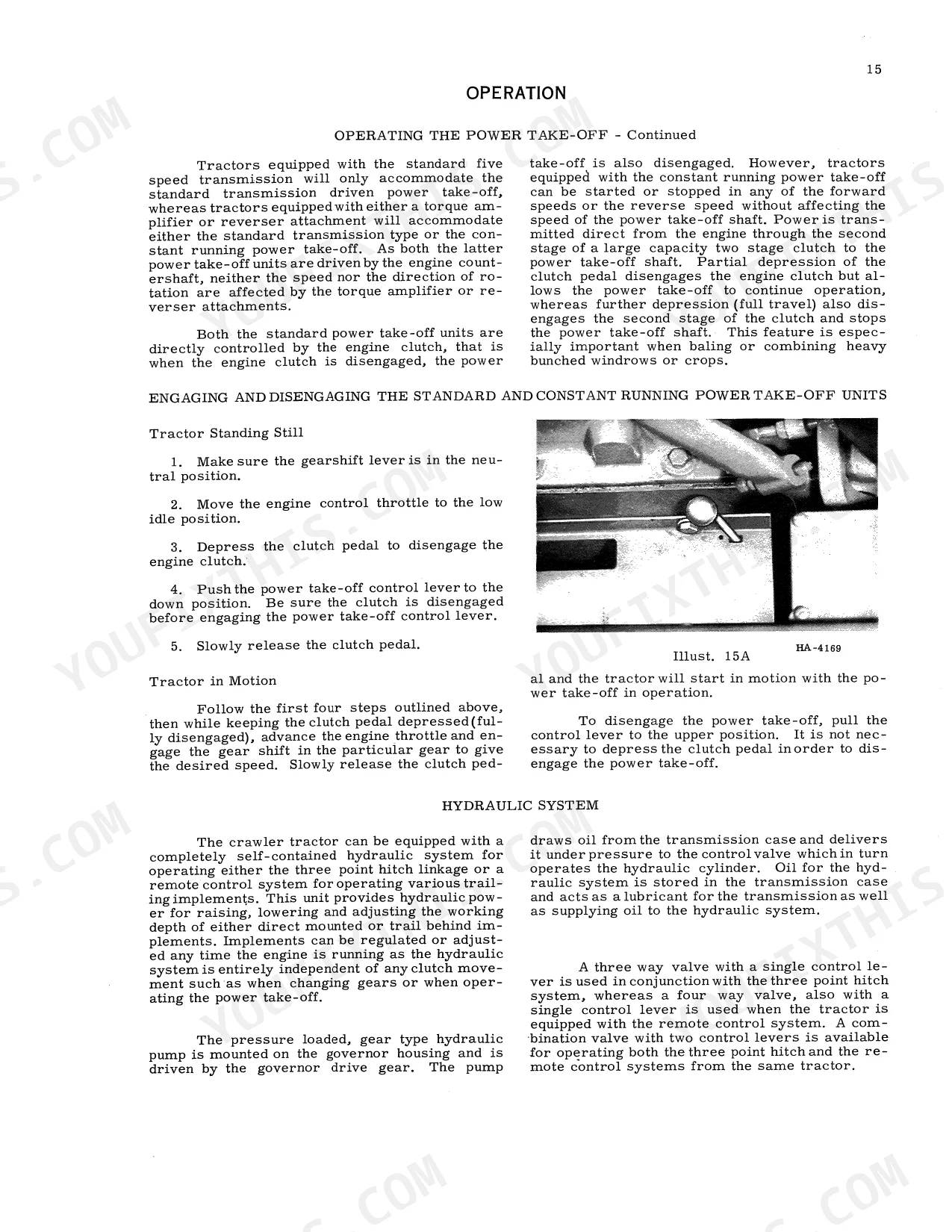

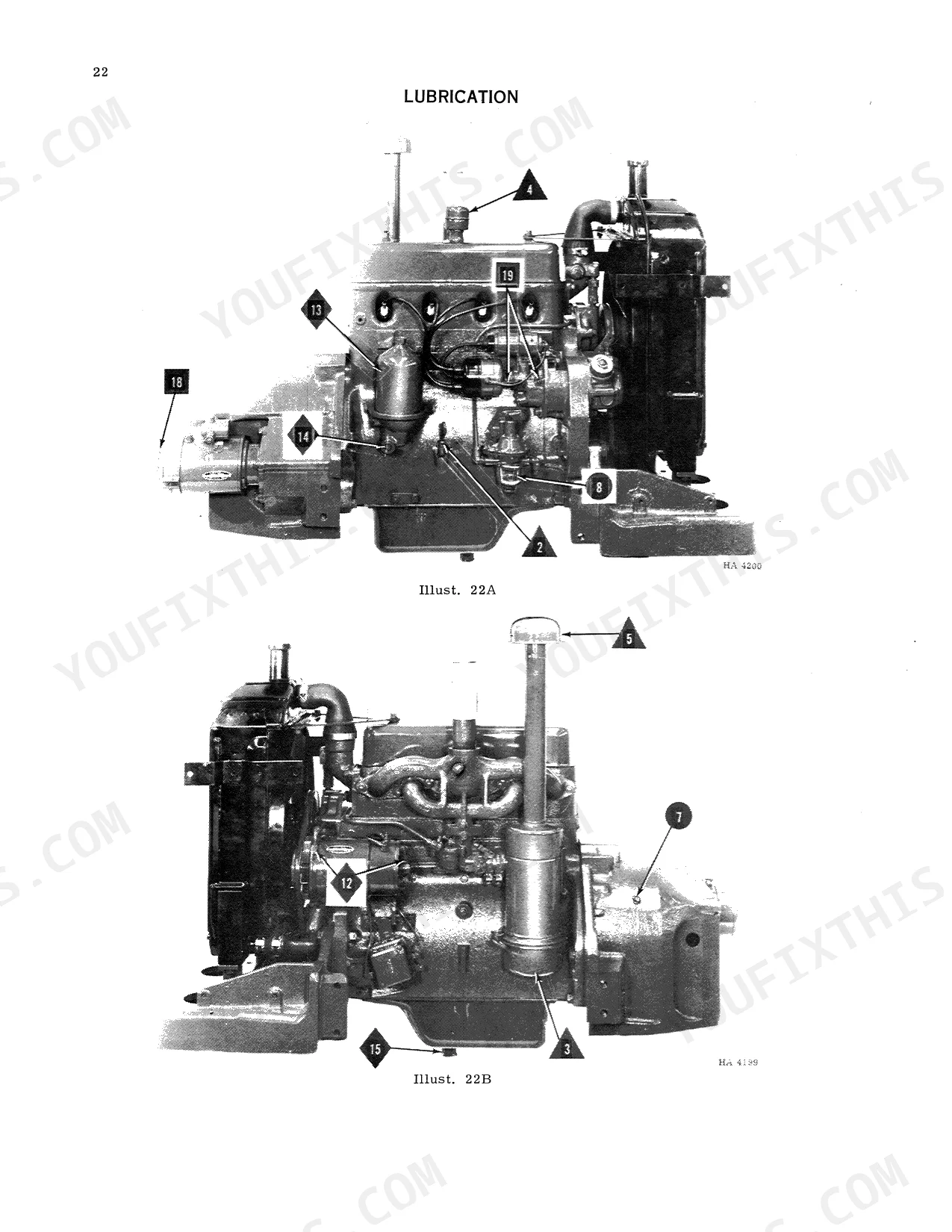

| Operation | 16-28 | Before Starting Your New Tractor, Cold Weather Preparation, Driving the Tractor, Hydraulic Remote Control Attachment, Hydraulic System, Operating a Gasoline Engine |
| Lubrication | 29-34 | Engine Oil, Fuel System, Gear Lubricant, Hydraulic Fluid Filter, Oil Filter, Oil Pressure Gauge |
| Finding Trouble | 35-41 | Engine, Transmission, Steering Clutches, Track Chain, Rollers, Idlers, Ammeter |
| Maintenance | 42-59 | Air Cleaner, Front Idler Alignment, Track Chain Tension, Brake and Steering Clutch Adjustment, Carburetor, Checking Slack in Track Chain, Checking the Timing, Cooling System |
| Attachments | 60-65 | Front End Weights, Track Frame Positions (Front Track Frame Position, Rear Track Frame Position), Track Shoes (Type of Shoes) |
| Special Equipment | 66 | Front End Weights, Transmission Driven Power Take-Off, Drawbar Extension Attachment, Three Point Linkage, Hydraulic Remote Control Attachment, Front Track Frame Position Attachment, Rear Track Frame Position Attachment, Electric Lighting |
| Specifications | 67-72 | Engine, Clutches, Transmission, Tracks, Over-All Dimensions, Capacities, Power Take-Off Speeds, Fuse |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Track shoe bolts torque | 90 to 100 ft. lb. | p. 58 |
| Oil filter element replacement interval | every 150 hours of operation | p. 29 |
International Harvester T-4, T-5 Common Problems This Manual Covers
International Harvester crawler tractor engine turns over but won't fire up p. 16
Check the fuel shutoff valve is fully open and the tank has fuel. Verify the choke is positioned correctly for the temperature, cold starts need full choke. Inspect spark plug wires for secure connections and look for moisture on the distributor cap. Review the starting sequence on page 16 to confirm you're following the correct throttle and ignition steps before cranking.
Manual Section: OperationAmmeter shows discharge or needle fluctuates while running p. 29
Verify all battery cable connections are clean and tight at both the battery posts and the generator terminals. Inspect the fan belt for slippage or wear. A loose belt is the first thing to check when you see an ammeter acting up under load. Review the electrical troubleshooting chart on page 29 to walk through generator, regulator, and connection checks in order.
Manual Section: LubricationCrawler pulls to one side or won't complete a turn when steering lever is pulled p. 35
Check that both steering clutch levers move freely through their full travel without binding. Inspect the steering clutch adjustment. A clutch that drags or slips will cause the tractor to resist turning or drift. Refer to the steering fault table on page 35 to confirm whether the issue is clutch slip, brake engagement, or track tension before adjusting anything.
Manual Section: Finding TroubleTrack chain rides up on sprocket teeth or derails during operation p. 42
Stop immediately and check track tension before moving the machine again. Walk the length of the track and look for bent links, worn pins, or debris packed into the chain. Confirm track shoe bolts are torqued to 90 to 100 ft. lb. Loose shoes change chain geometry fast. Refer to page 42 for the track chain tension and front idler alignment procedures.
Manual Section: MaintenanceEngine runs rough, smokes, or loses power under load p. 35
Start with the air cleaner. A plugged element starves the engine and causes all three symptoms at once. Check the fuel strainer for sediment and verify the throttle linkage moves the carburetor through its full range. If the engine smokes and oil consumption is high, check the crankcase oil level on the dipstick and look for external leaks before adding oil. The performance troubleshooting steps begin on page 35.
Manual Section: Finding TroubleOil pressure drops at operating temperature or warning indicator activates at idle p. 35
Pull over and shut down before oil pressure falls further. Check the crankcase oil level immediately. Low oil is the most common cause on these tractors. Verify the oil filter element has been replaced on schedule; the service interval is every 150 hours of operation and a clogged element restricts flow at idle. If level and filter are good, review the oil pressure troubleshooting steps starting on page 35.
Manual Section: Finding TroubleFrequently Asked Questions
What engine does the International Harvester T-4 use?
The International Harvester T-4 crawler tractor is powered by a C-123 gasoline engine. This engine is a four-cylinder, wet sleeve, valve-in-head type, as detailed in the specifications.
Did the International Harvester T-4 and T-5 share the same chassis?
Yes, the International Harvester T-4 and T-5 crawler tractors shared many principal components. Except for the power units, components like the engine clutch, transmission, steering clutches, final sprocket drives, and track assemblies were exactly the same.
What is the weight of the International Harvester T-4 crawler?
The net weight of the International Harvester T-4 crawler is 4925 lbs, specified for a configuration with a 48" gauge, 4 roller track frame, and 10" shoes.
Are parts for the T-4 and T-5 International Harvester interchangeable?
Yes, many principal components are interchangeable between the T-4 and T-5 International Harvester crawler tractors. Specifically, the engine clutch, transmission, steering clutches, final sprocket drives, and track assemblies are exactly the same, with the exception of the power units.
How to adjust steering clutches on International Harvester T-4
To adjust the steering clutches, ensure a minimum of 1" of free play at the upper ends of the steering levers by adjusting the push rods. Additionally, adjust set screw "B" in the steering lever to maintain a minimum clearance of 3/8" between the brake actuating lever and the end of the set screw when in the forward position.
What format is this International Harvester T-4, T-5?
Instant PDF download. You get the full 72-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this International Harvester T-4, T-5?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
