International 955, 1055, 1255, 1455 Diesel Tractor Operator Manual (incl. Wiring)

$19.99 USD · one-time payment

Model: 1255 | 1455 | 955 | 1055
Type: Diesel Tractors
84 Pages·8.4 MB·Searchable PDF·English·Print-Ready
  • ✓ Wiring Diagrams
  • ✓ Torque Specs
  • ✓ Bookmarks
Preview Sample Pages (PDF)
Add to Cart
Case IH 1255, 1455, 955, 1055 operator manual page for starting, stopping, and breaking-in the tractor engine.
International 955, 1055, 1255, 1455 Diesel Tractor Operator Manual (incl. Wiring)
$19.99

Instant Download 24/7

  • Works on PC, Mac, tablet, and phone.
  • Download once, keep forever



Guaranteed Safe Checkout
Visa Mastercard PayPal Apple Pay Google Pay

All 84 pages of this International 1255, 1455 Operator Manual (OEM #1091540R2) are factory-written for one job: keeping your 1255 or 1455 diesel tractor running right and running safe. Inside you get a full instrument cluster and controls walkthrough, step-by-step operating procedures from cold-start to shutdown, and a dense maintenance schedule covering engine, transmission, hydraulics, axles, and chassis. You also get wiring diagrams for electrical troubleshooting, plus a trouble shooting section that tackles engine overheating, hard starts, power loss, and oil pressure faults. Front field tire pressure runs 0.15-0.2 MPa; change the oil filter every 100 hours on the 1455 or every 200 hours on the 1255. That's factory schedule, not forum math. Your machine doesn't wait. Bookmarked and keyword-searchable, this PDF opens on any device so you can pull up the right spec before you touch a wrench.

What's Inside This Operator Manual

SystemPagesKey Topics
Introduction13-16Index, General Instructions and Precautions, Safety Rules
Technical Data17-21Capacities, Dimensions, Travelling Speeds, Recommended Lubricants, Special Torques, Si Measurements
Preparing for Each Day's Work22Fuel, Crankcase Oil
Instruments and Controls, Operator's Cab23-29Instrument Cluster, Control Levers, Switches, Differential Lock Pedal, Air Pressure Gauge, Heating
Operating the Tractor30-32Breaking-In Period, Starting the Engine, Stopping the Engine, Turbo Clutch, Towing the Tractor, Operator's Seat
Operating Adjustments33-35Jerrican-Weights, Liquid Weight, Antifreeze Solution, Adjusting Front Wheel Tread Width, Adjusting Rear Wheel Tread Width
Operating Equipment36-47PTO, Trailer Hitch, Drawbar, Three-Point Suspension Hitch, Hydraulic Lift, Front Loader

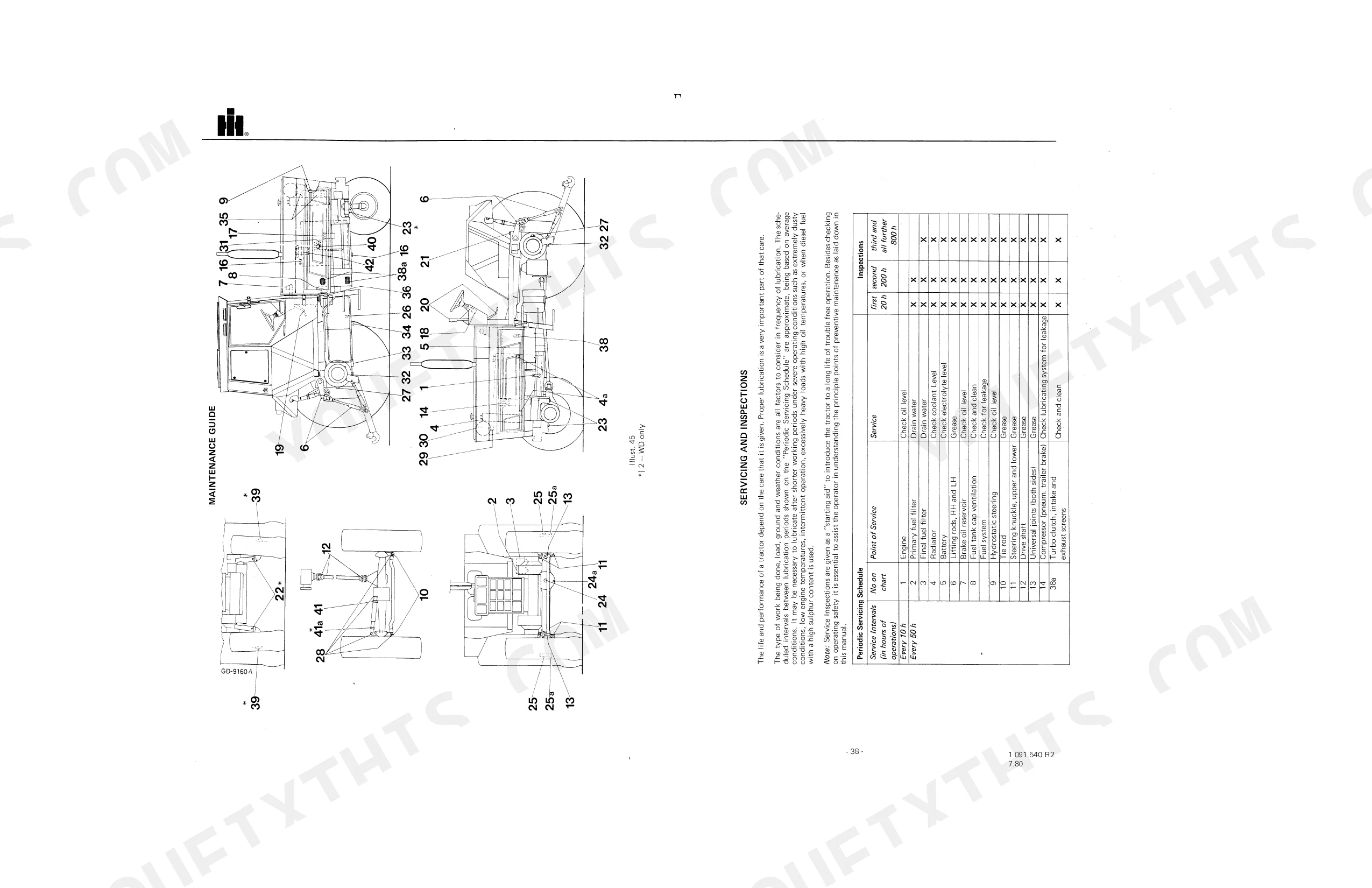

Maintenance48-79Servicing and Inspections, Engine, Transmission and Hydraulic System, Axles, Chassis, Electrical Equipment
Storing and Housing80-81Preparing for Storage, Servicing Engine During Storage, Preparing for Operation
Trouble Shooting82-84Engine Overheats, Engine Will Not Start, Uneven Engine Operation, Engine Does Not Develop Full Power, Loss of Oil Pressure, Engine Knocks

Quick Reference Specifications

SpecificationValuePage
1455
Engine oil filter replacement interval, 1455every 100 hp. 46
1255
Engine oil filter replacement interval, 1255every 200 hp. 46
All Models
Front wheel tire pressure (field)0.15-0.2 MPap. 18
Cylinder head bolts torque14-15 daNmp. 20
Fuel Tank Capacity140 Litersp. 17
PTO Max. Permissible Power Transmission (540/min)55 kWp. 36
Front Wheel Toe-in (4-wheel drive axle)0-2 mmp. 70
BrandCase IH
Model1255, 1455, 955, 1055
Machine TypeDiesel Tractors
Manual TypeOperator Manual
LanguageEnglish
FormatSearchable PDF (Digital Download)
Pages84
File Size8.4 MB
Manual No.1091540R2
Wiring DiagramsYes
Hydraulic SchematicsNo
Torque SpecificationsYes
Bookmarked / IndexedYes
