Document 3C873-9971-2 covers your Kubota M8540 Narrow from the first cold start to the 4-year service marks, all 116 pages of it. A safe operation section walks through ROPS, PTO use, and slope driving, then periodic service intervals map out everything due between the 50-hour and 4-year marks. Implement limitations spell out max drawbar load and lower link lifting capacity. Cab controls cover the air conditioner and rear defogger, while the instrument panel section breaks down the LCD display, hydraulic-shuttle shift lever, and 4WD/Bi-Speed Turn switch. Fluid capacities sit in one table: 76 L of fuel, 10.7 L of engine oil with the filter, 9.0 L of coolant. Bookmarks jump you to any section, and keyword search pulls a spec up on your phone before you climb down from the cab.
What's Inside This Kubota M8540 NARROW Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 11-20 | Cab, ROPS, Operating on Slopes, Driving the Tractor on the Road, Parking the Tractor, Operating the PTO, Using 3-Point Hitch |
| Servicing of Tractor | 21-22 | Warranty, Scrapping the Tractor and Its Procedure, Tractor Identification Plate, Tractor Serial Number, Engine Serial Number, Cab Identification Plate |

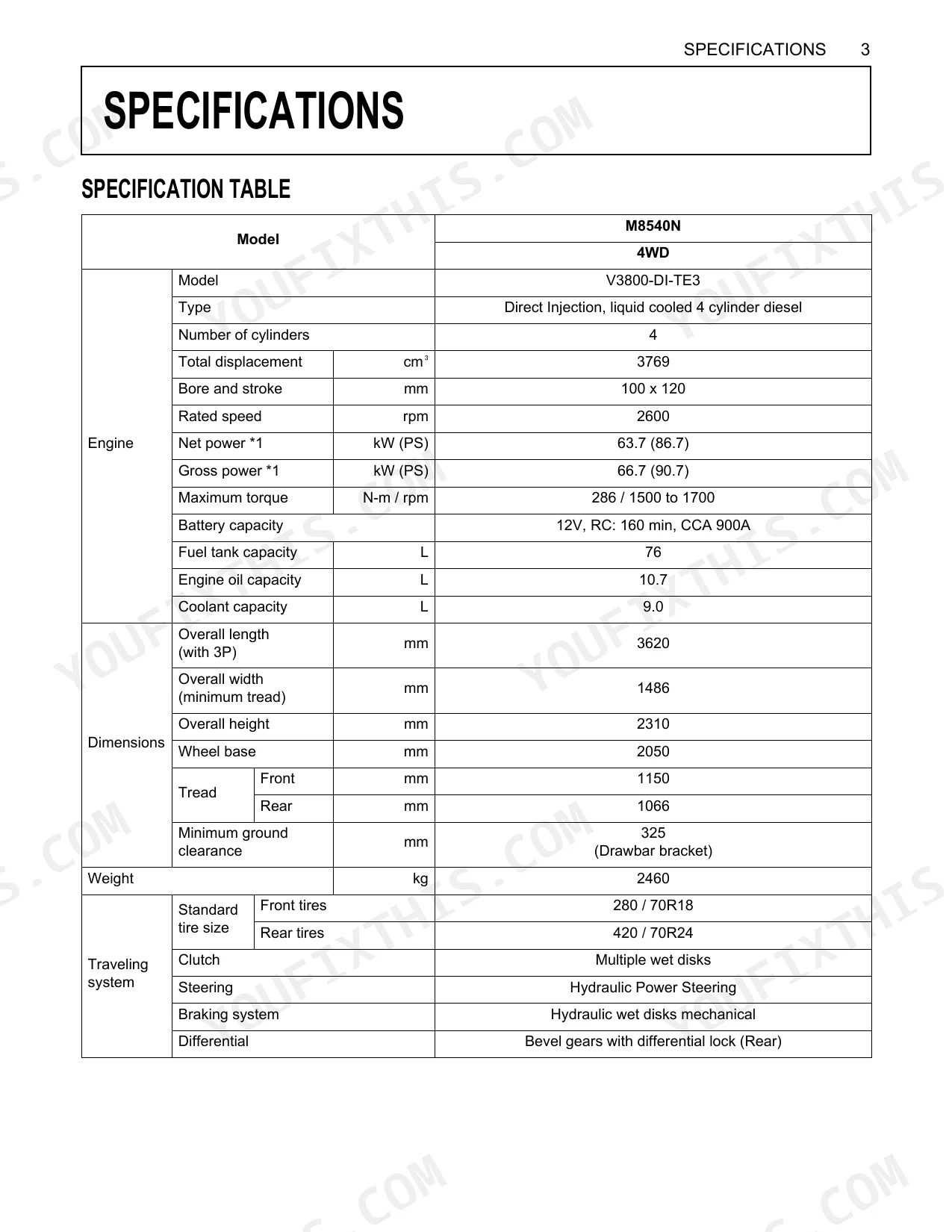

| Specifications | 23-25 | Specification Table, Travelling Speeds |
| Implement Limitations | 26-27 | Tread (Max. Width), Lower Link End Max. Lifting Capacity, Implement Weight, Max. Drawbar Load, Trailer Loading Weight |

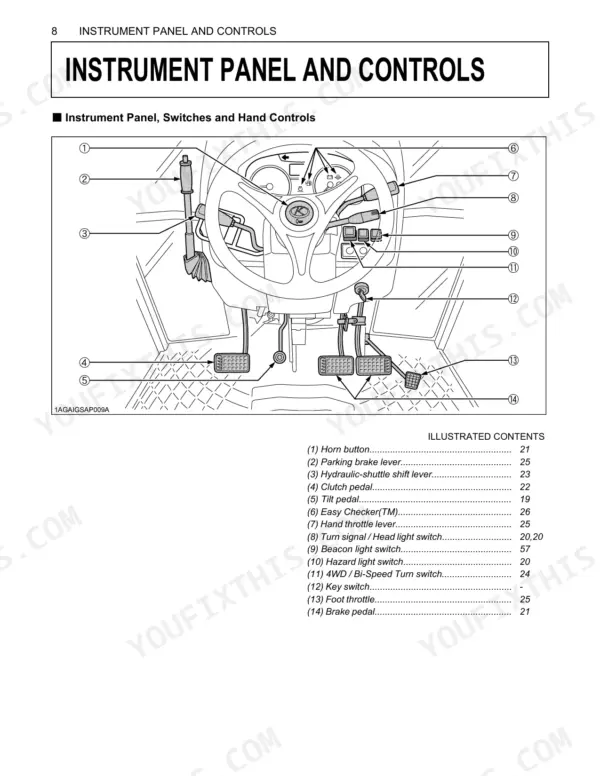

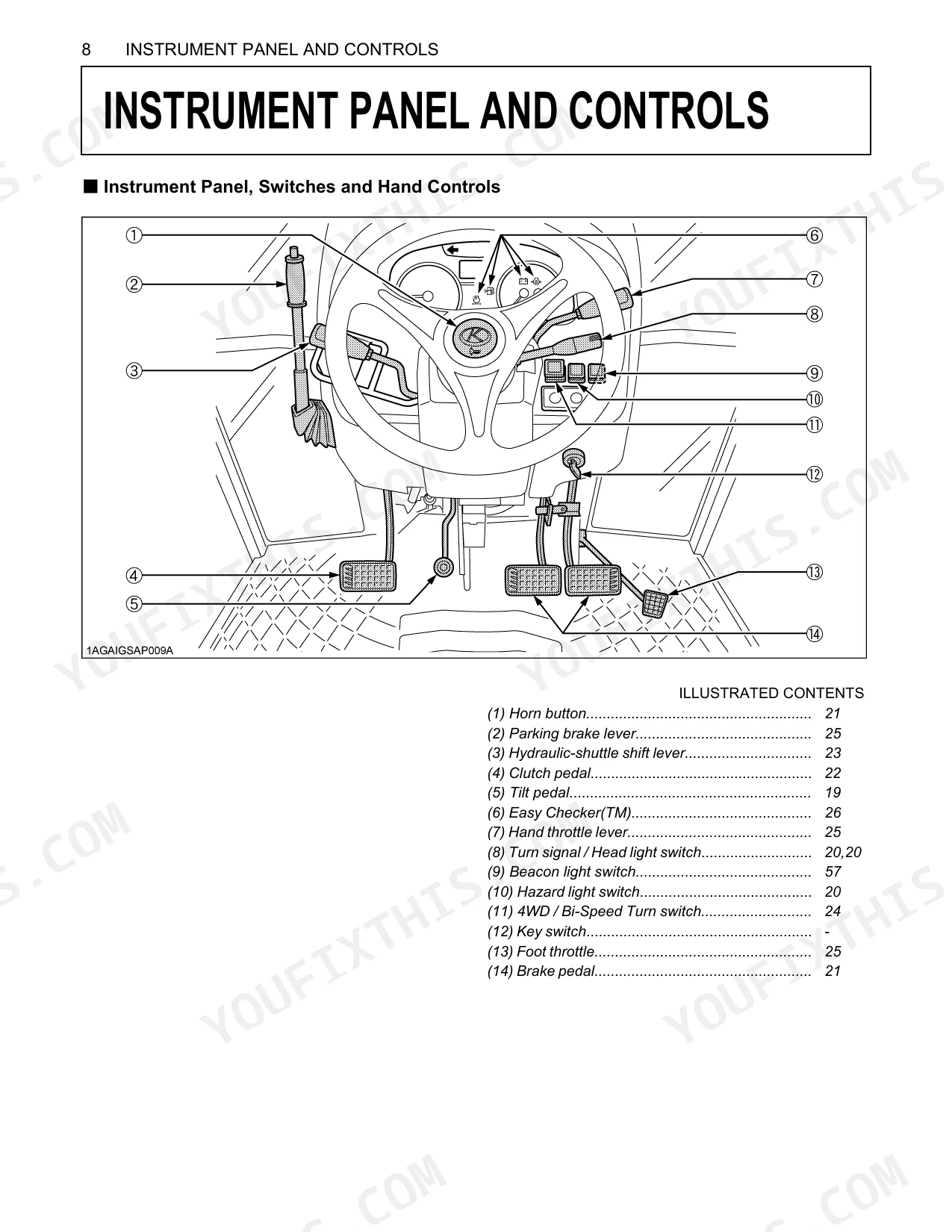

| Instrument Panel and Controls | 28-31 | Liquid Crystal Display, Tachometer, PTO / Hour Meter Select Switch, Main Gear Shift Lever, Hydraulic-Shuttle Shift Lever, 4WD / Bi-Speed Turn Switch |
| Pre-Operation Check | 32 | Daily Check |
| Operating the Engine | 33-37 | Starting the Engine, Cold Weather Starting, Stopping the Engine, Warming Up, Jump Starting |
| Operating the Tractor | 38-54 | Operating New Tractor, Boarding and Leaving the Tractor, Starting, Stopping, Check During Driving, PTO Rmp / Travel Speed Monitor, Parking, Operating Techniques |
| PTO | 55-57 | PTO Operation |

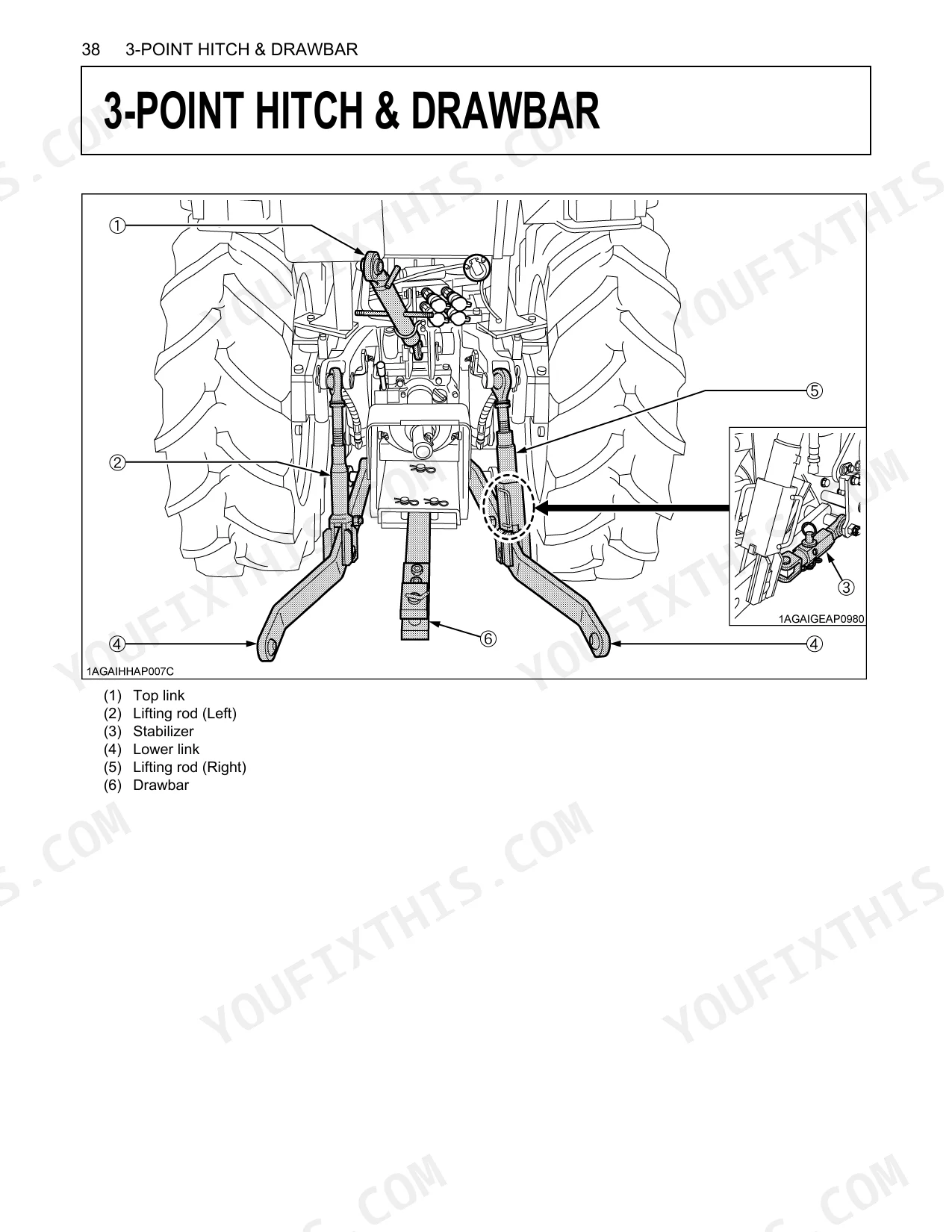

| 3-Point Hitch and Drawbar | 58-62 | 3-Point Hitch, Drawbar |
| Hydraulic Unit | 63-66 | 3-Point Hitch Control System, Remote Hydraulic Control System |
| Tyres, Wheels and Ballast | 67-68 | Tyres, Ballast |
| Cab Operation | 69-77 | Door Window, Dome Light, Work Light, Wiper, Air Conditioner, Rear / Side Defogger with Time, Installing the Implement Control Box, Electrical Outlet |
| Maintenance | 78-82 | Service Intervals, Lubricants, Fuel and Coolant |
| Periodic Service | 83-111 | How to Open the Hood, Daily Check, Every 50 Hours, Every 100 Hours, Every 200 Hours, Every 400 Hours, Every 500 Hours, Every 600 Hours |
| Storage | 112 | Tractor Storage, Removing the Tractor From Storage |
| Troublshooting | 113 | Engine Troubleshooting |
| Options | 114 | Front End Weights, Rear Wheel Weights, Double Acting Remote Hydraulic Control Valve with Detents and Self-Cancelling |
| Appendices | 115-116 | Index |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel tank capacity | 76 L | p. 23 |
| Engine oil capacity | 10.7 L | p. 23 |
| Coolant capacity | 9.0 L | p. 23 |
| Coolant capacity (Recovery tank) | 1.0 L | p. 81 |
| Washer liquid capacity | 1.3 L | p. 81 |
| Transmission case capacity | 52 L | p. 81 |
| Front differential case oil capacity | 5.0 L | p. 81 |
| Front axle gear case oil capacity | 3.0 L | p. 81 |
| Muffler nut (M10) torque | 48.1 to 55.8 N-m (4.9 to 5.7 kgf-m) | p. 39 |
| Tie-rod nut torque | 167 to 196 N-m (17 to 20 kgf-m) | p. 95 |
| Wheel bolt torque (Front) | 260 to 304 (26.5 to 31.0) N-m (kgf-m) | p. 67 |
| Wheel bolt torque (Rear) | 244 (24.9) N-m (kgf-m) | p. 67 |
Kubota M8540 NARROW Common Problems This Manual Covers
Kubota M8540 Narrow engine won't start or turns over slowly in cold weather p. 33
Walk through the cold weather starting procedure on page 33. Confirm the fuel tank holds enough diesel; total capacity is 76 L. Let the glow plug indicator on the instrument panel finish its full cycle before cranking. If the engine still won't fire, inspect the pre-fuel filter for water or sediment.
Manual Section: Operating the EngineWarning light on instrument panel illuminates during startup and won't go off p. 28
Match the warning light on page 28 to its system. Check the corresponding fluid level: engine oil holds 10.7 L, the coolant system 9.0 L. Run through the daily pre-operation check on page 32 before you keep working. A light that stays on after warmup with fluids correct means dealer attention is needed.
Manual Section: Instrument Panel and ControlsEngine temperature gauge climbs toward the red zone during heavy fieldwork or extended idling p. 113
Stop work and let the engine cool before opening any caps. Check the coolant recovery tank level; it holds 1.0 L maximum (page 81). Clear any debris from the radiator screen and confirm airflow is unobstructed. Trace the root cause in the overheating section of the engine troubleshooting chart on page 113 before restarting.
Manual Section: Troublshooting3-point hitch fails to raise fully or lifts implement slowly under load p. 63
Verify the hydraulic oil level at the sight glass meets the minimum mark. Set the position and draft control levers correctly for your implement type using the control layout on page 63. If lift stays sluggish with proper fluid, the hydraulic oil filter is due for replacement at 500 hours per the schedule on page 78.
Manual Section: Hydraulic UnitCab air conditioner blowing warm air instead of cooling on hot days p. 69
Review the air conditioner controls and fan speed settings with the cab operation guide on page 69. Inspect the air conditioner pipes and hoses for visible damage or leaks; these get checked every 500 hours (page 80). If airflow is strong but the air stays warm, refrigerant may be low and needs dealer service.
Manual Section: Cab OperationBrake pedal feels soft or spongy and tractor takes longer to stop p. 83
Measure brake pedal free travel; the spec is 7 to 14 mm. Confirm the left and right pedals adjust evenly and the parking brake holds when engaged. Brake pedal adjustment falls due every 100 hours per the service schedule on page 78. A pedal still soft after adjustment needs dealer service.
Manual Section: Periodic ServiceFrequently Asked Questions
What are the recommended service intervals?
The service interval table breaks it down by hours. Engine start system and wheel bolt torque get checked every 50 hours; battery condition and greasing every 100 hours; engine oil changes every 500 hours. Larger jobs run on longer cycles: flush the cooling system every 2000 hours or 2 years, and replace radiator hoses every 4 years.
What fluids and capacities does this machine require?
Fuel is 76 L of No.2-D diesel (No.1-D below -10 °C), and coolant takes 9 L of fresh clean soft water with anti-freeze, plus 1.0 L for the recovery tank. The engine crankcase with filter holds 10.7 L of CF or CI-4 oil, and the transmission case 52 L of KUBOTA UDT or SUPER UDT fluid. Front differential and front axle gear cases need 5.0 L and 3.0 L respectively, either KUBOTA UDT or SUPER UDT fluid or SAE 80 - SAE 90 gear oil.
How to troubleshoot engine won't start?
A hard or no-start usually traces to one of a few causes: no fuel flow, air or water in the fuel system, thicker oil viscosity in winter, or a weak battery. The fixes: check the fuel tank and filter, bleed the fuel system, switch to an oil viscosity that suits the temperature, fit an optional engine block heater, and clean the battery cables and terminals or charge the battery. In cold weather, pull the battery and store it charged indoors.
What are the hydraulic system specifications?
Pump capacity runs 61 L/min at a system pressure of 19.1 MPa (195 kgf/cm²). The 3-point hitch is Category 1 (Category 2 Link end), lifting up to 2300 kg at the lifting points. Measured 24 inches behind the lifting point, max lifting force drops to 1800 kg.
What torque specifications are listed?
Wheel bolts torque to 260 to 304 N-m (26.5 to 31.0 kgf-m) on one type and 244 N-m (24.9 kgf-m) on the other. The tie-rod nut takes 167 to 196 N-m (17 to 20 kgf-m), and the muffler pipe nut (M10) calls for 48.1 to 55.8 N-m (4.9 to 5.7 kgf-m).
How will I receive this Kubota M8540 NARROW Operator Manual?
Immediate download of the complete 116-page searchable operator manual. Open it on any device: laptop at your desk or phone in the field.
Is this Kubota M8540 NARROW Operator Manual printable?
None at all. The PDF is DRM-free, so print whatever sections you want to carry out to the shop. Standard letter or A4 paper works.
