This is the Kubota workshop manual for the V2003-T-B and F2503-T-B turbocharged diesel engines, publication 9Y011-03060, a 114-page English service reference. These engines power a range of compact machines, and the manual is written for shop-level repair rather than day-to-day operation.It walks through engine specifications and dimensions, engine identification and the full tightening-torque tables, then checking and adjusting the engine body, lubricating, cooling, and fuel systems, and finally the electrical system with starter and alternator disassembly, testing, and service. Factory specs cover compression pressure, valve clearance, injection timing and pressure, oil pressure, and thermostat opening temperature.Mechanics and rebuilders can use it to diagnose faults, measure parts against factory limits, and reassemble the V2003-T-B and F2503-T-B to specification.
What's Inside This Kubota V2003-T-B, F2503-T-B Manual

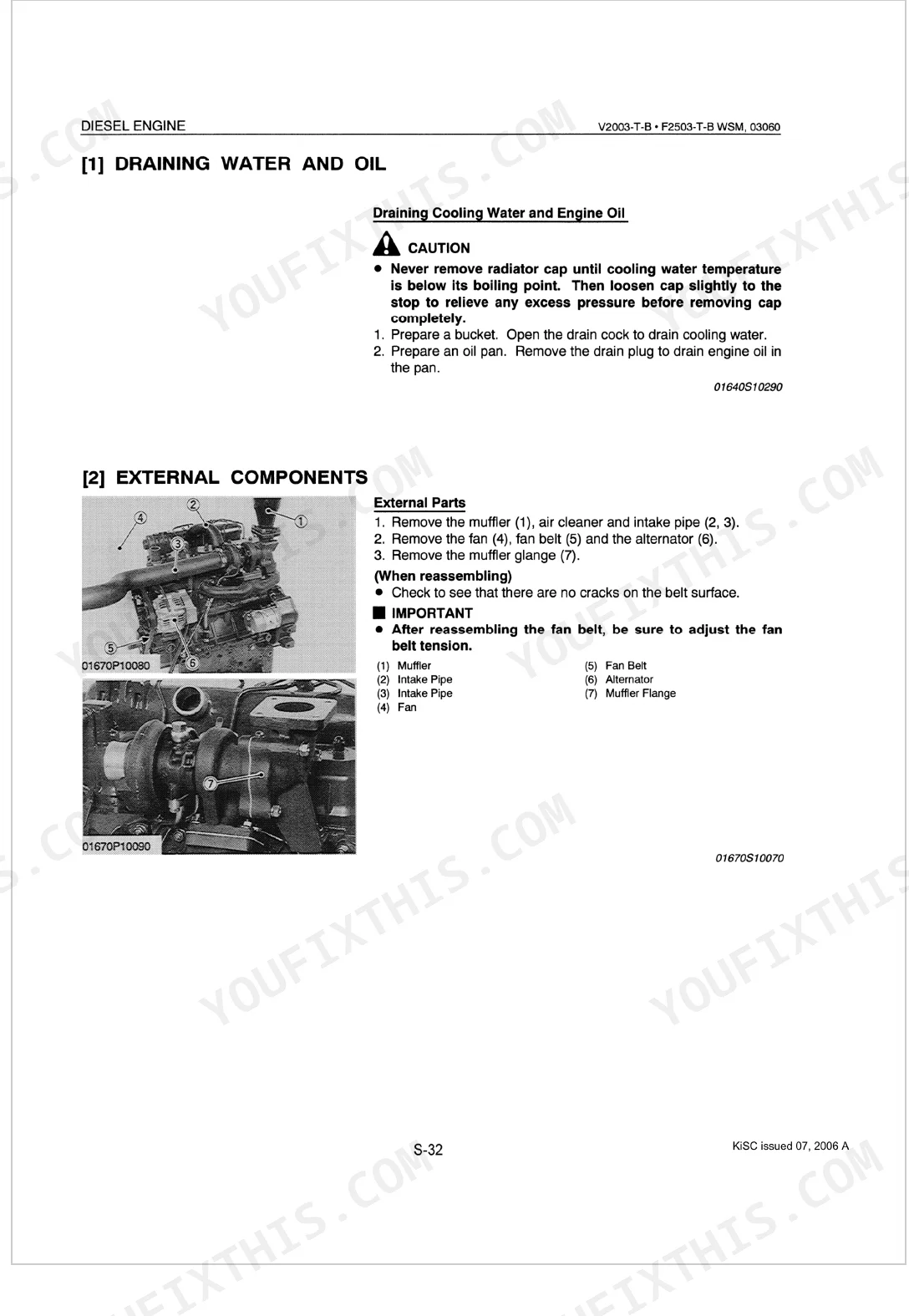

| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | 3-5 | Safety First, Before Servicing and Repairing, Safety Starting, Safety Working, Avoid Fires, Ventilate Work Area, Prevent Acid Burns, Dispose of Fluids Properly |
| Specifications | 6 | Engine Specifications (Model, Number of Cylinders, Type, Bore X Stroke, Total Displacement) |
| Dimensions | 7 | Engine Dimensions, Dimensions Table (V2003-T-B, F2503-T-B), Engine Dimensions Diagram |
| General | 34-60 | Engine Identification (Model Name and Engine Serial Number, Cylinder Number), Tightening Torques (Special Use Screws, Bolts and Nuts, General Use Screws, Bolts and Nuts) |
| Engine Body | 61-94 | Draining Water and Oil, External Components, Cylinder Head and Valves, Gear Case, Piston and Connecting Rod, Flywheel and Crankshaft, Cylinder Head, Timing Gear and Camshaft |
| Lubricating System | 95-96 | Checking (Engine Oil Pressure), Servicing (Oil Pump, Rotor Lobe Clearance, Clearance Between Rotor and Cover) |
| Cooling System | 97-99 | Checking (Fan Belt, Radiator, Thermostat Valve Opening Temperature, Radiator Water Leakage, Radiator Cap Air Leakage) |
| Fuel System | 100-103 | Checking and Adjusting (Injection Pump, Injection Timing, Fuel Tightness of Pump Element, Fuel Tightness of Delivery Valve, Injection Nozzle, Nozzle Injection Pressure, Nozzle Spraying Condition, Valve Seat Tightness) |
| Electrical System | 104-114 | Checking (Starter, Glow Plug), Disassembling and Assembling (Starter, Alternator), Servicing (Starter |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Cylinder head bolt tightening torque | 93.1 to 98.0 N-m (9.5 to 10.0 kgf-m, 68.7 to 72.3 ft-lbs) | p. 36 |
| Connecting rod bolt tightening torque | 44.1 to 49.0 N-m (4.5 to 5.0 kgf-m, 32.5 to 36.2 ft-lbs) | p. 36 |

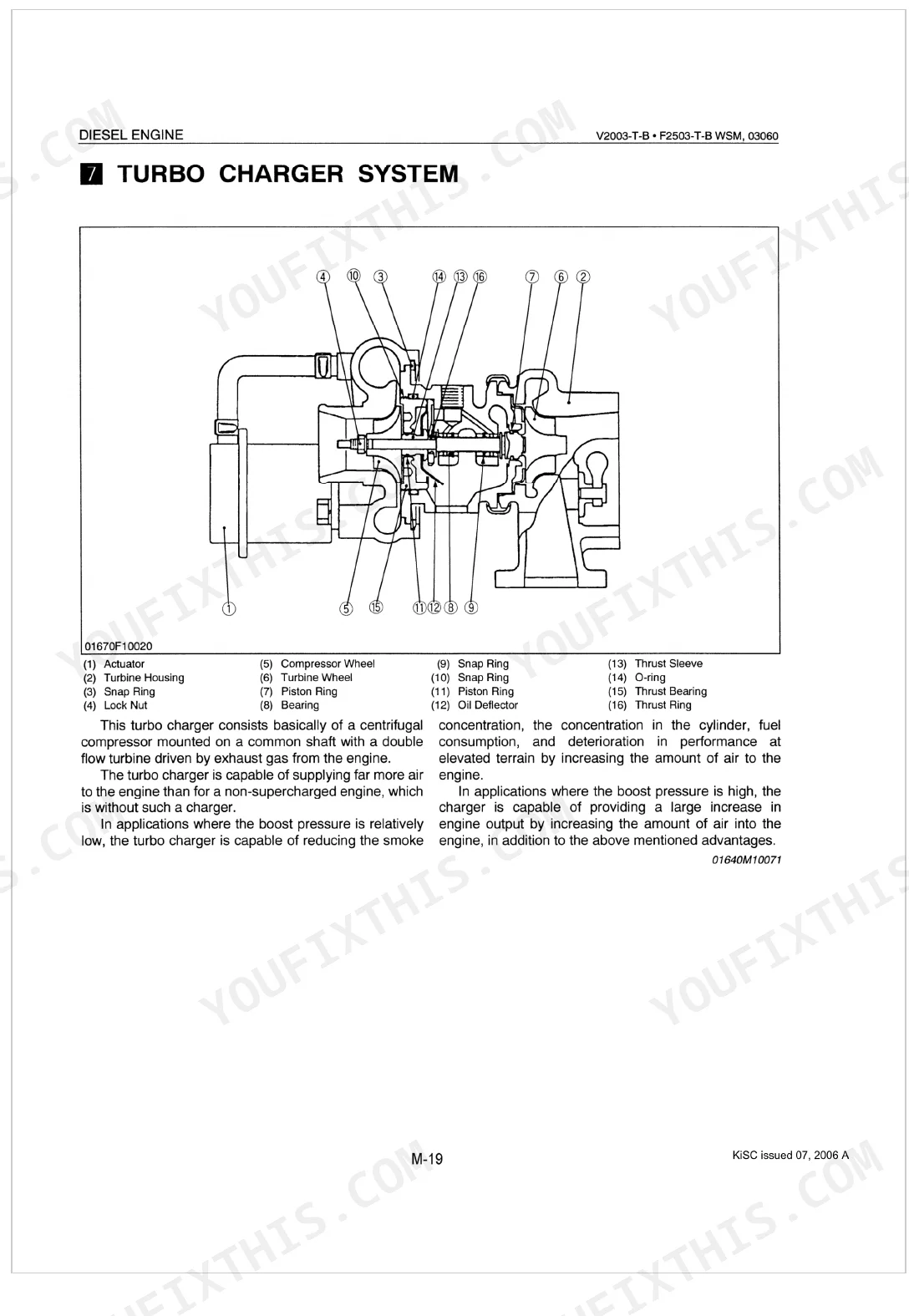

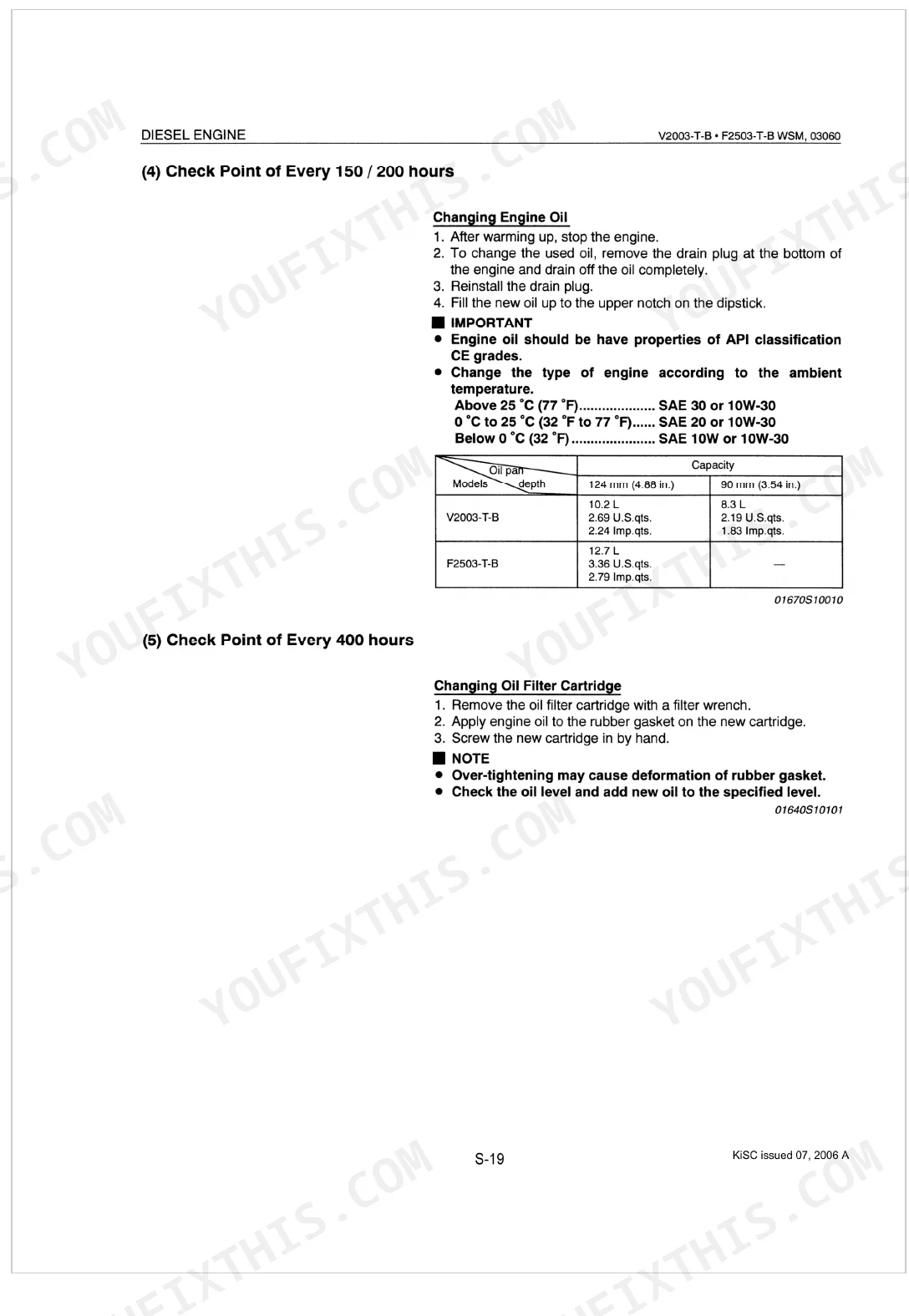

| Lubricating oil capacity (90 mm oil pan) | 8.3 L | p. 52 |
| Lubricating oil capacity (124 mm oil pan) | 10.2 L | p. 52 |
| Flywheel bolt tightening torque | 98.0 to 107.8 N-m | p. 36 |

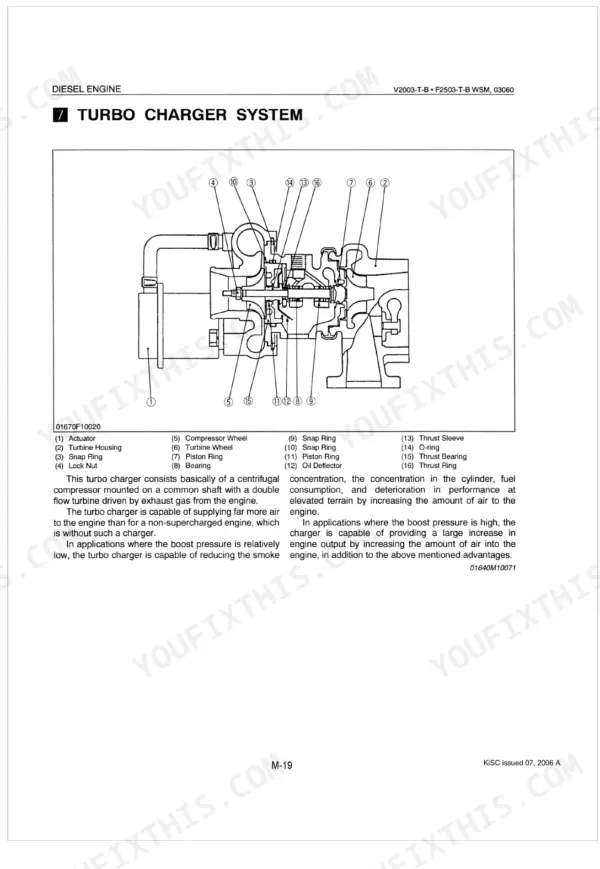

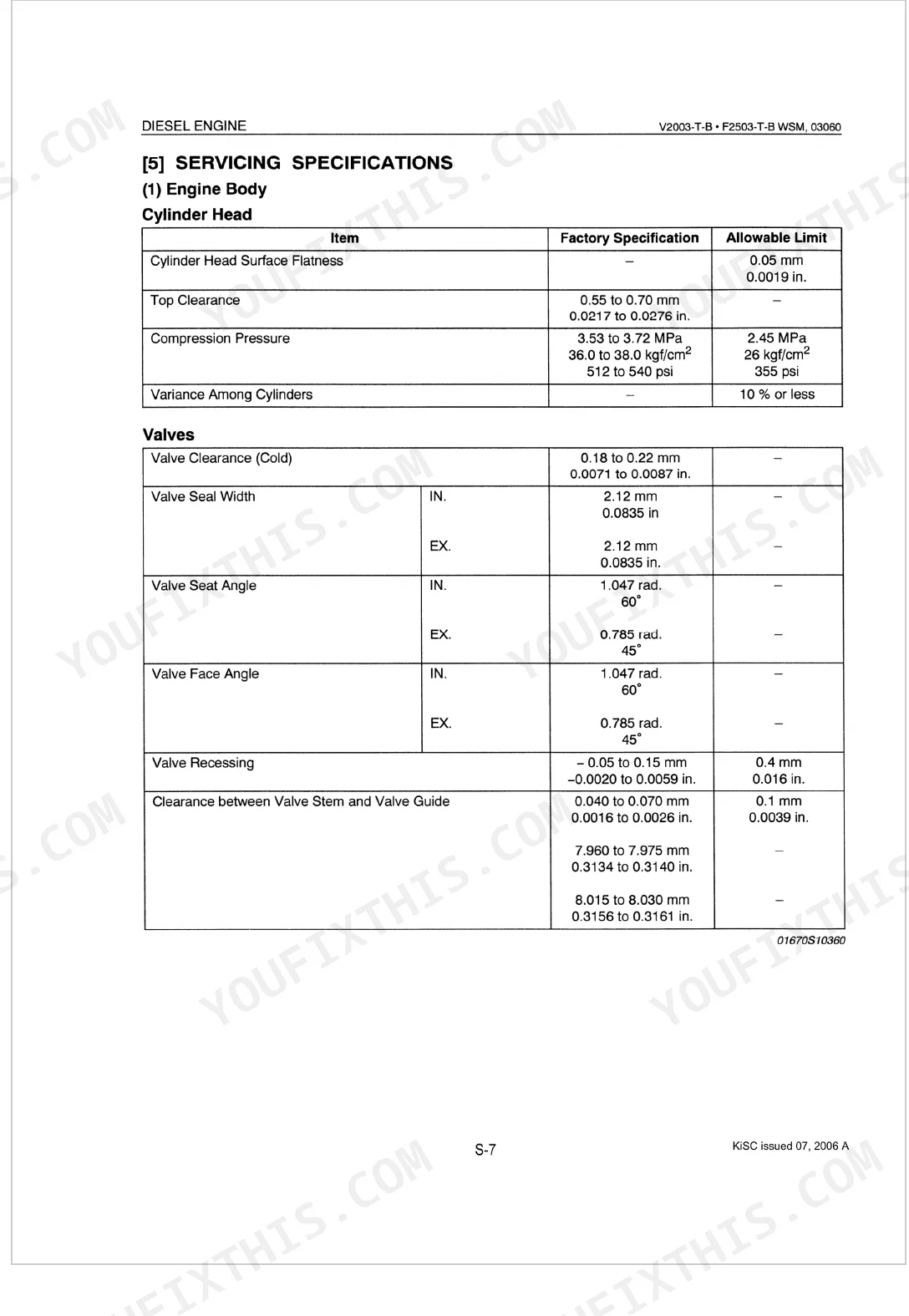

| Compression Pressure (Factory Spec) | 3.53 to 3.72 MPa | p. 40 |
| Valve Clearance (Cold) | 0.18 to 0.22 mm | p. 40 |
| Engine Oil Pressure (At Idle Speed, Allowable Limit) | 49 kPa | p. 45 |
| Thermostat's Valve Opening Temperature | 69.5 to 72.5 °C | p. 45 |
| Fuel Injection Pressure (Factory Spec) | 13.73 to 14.71 MPa | p. 46 |
| V2003-T-B | ||
| Injection Timing (V2003-T-B) | 0.31 to 0.35 rad. (18 to 20°) Before T.D.C. | p. 46 |
| F2503-T-B | ||
| Injection Timing (F2503-T-B) | 0.30 to 0.33 rad. (17 to 19°) Before T.D.C. | p. 46 |

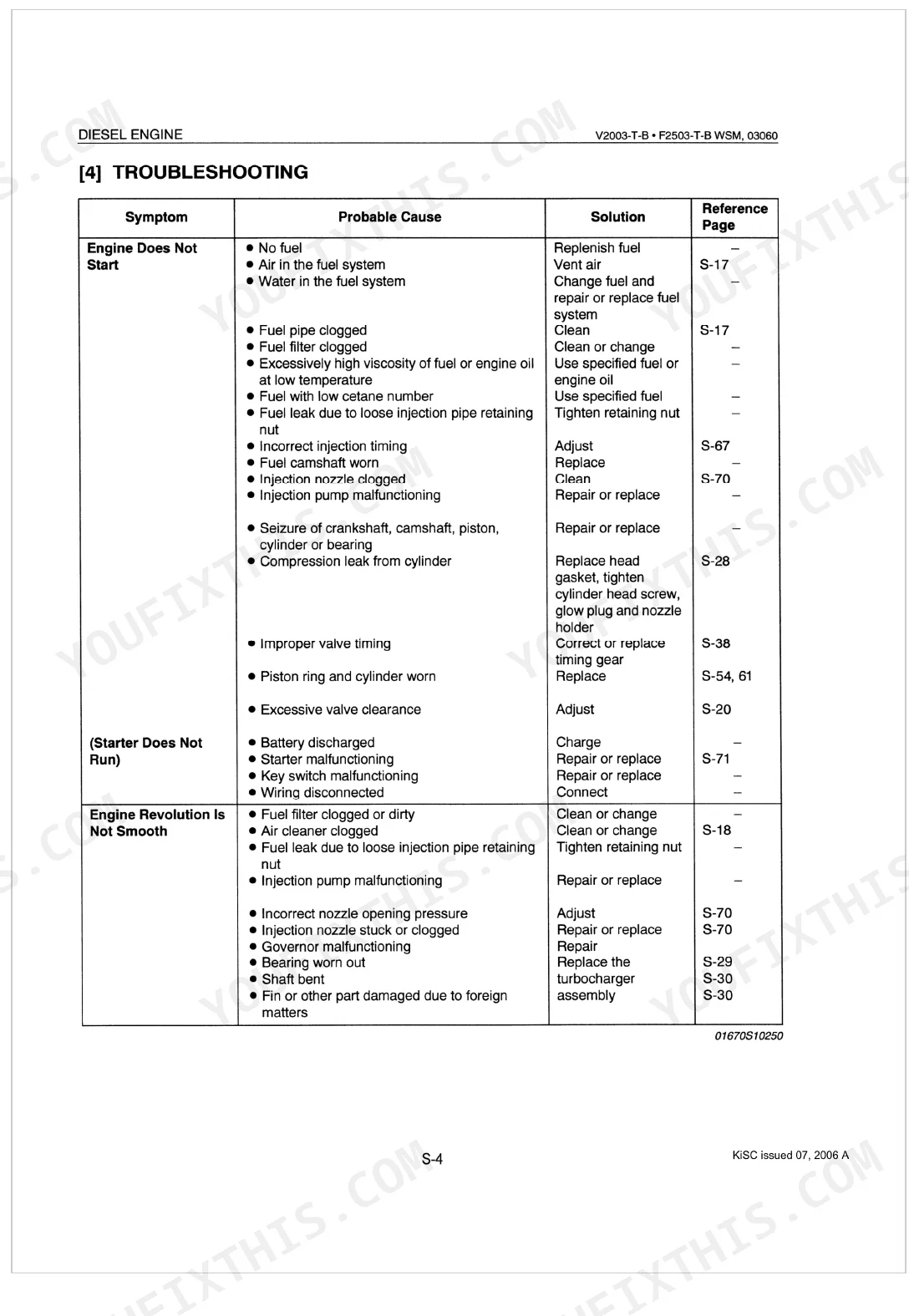

Kubota V2003-T-B, F2503-T-B Common Problems This Manual Covers
Low compression and hard starting
Worn rings, valves, or a failing head gasket drop compression below the factory limit and make the engine hard to start. The Engine Body section covers compression testing and the checking and adjusting steps.
Manual Section: Engine Body p. 61Low engine oil pressure
A worn oil pump or excess clearances let oil pressure fall below spec and risk bearing damage. The Lubricating System section covers oil pressure checking and oil pump rotor clearances.
Manual Section: Lubricating System p. 95Overheating under load
A loose fan belt, a weak thermostat, or a blocked radiator drives coolant temperature up. The Cooling System section covers the fan belt, thermostat opening temperature, and radiator leak checks.
Manual Section: Cooling System p. 97Black smoke and rough running
Injection pump or nozzle faults cause smoke, hard starting, and power loss. The Fuel System section covers injection timing, pump element tightness, and nozzle pressure and spray checks.
Manual Section: Fuel System p. 100Engine will not crank or charge
Starter and alternator faults leave the engine dead or the battery flat. The Electrical System section covers starter and glow-plug checks and alternator disassembly and service.
Manual Section: Electrical System p. 104Noisy valvetrain from wrong clearance
Valve clearance outside 0.18 to 0.22 mm cold causes tapping and lost performance. The Engine Body section gives the valve clearance checking and adjusting procedure.
Manual Section: Engine Body p. 61Frequently Asked Questions
Which engines does this manual cover?
It covers the Kubota V2003-T-B and F2503-T-B turbocharged diesel engines, publication number 9Y011-03060, as listed in the Specifications section. p. 6
Is this a full repair manual?
Yes. It is the workshop manual with checking, adjusting, disassembly, and service procedures across the engine body, lubricating, cooling, fuel, and electrical systems.
Does it list tightening torques?
The General section carries the tightening-torque tables for special and general-use screws, bolts, and nuts, including cylinder head, connecting rod, and flywheel figures. p. 34
Does it give injection timing and pressure specs?
Yes. The Fuel System section covers injection timing and nozzle injection pressure checks, with the factory values noted per engine model. p. 100
Will this Kubota V2003-T-B Workshop Manual download right away?
A 114-page Workshop Manual in searchable PDF, ready the moment checkout completes. View it on a computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this Kubota V2003-T-B Workshop Manual?
Yes. Print as many copies as you like; there are no restrictions. Plenty of mechanics print just the section they need and carry it to the shop floor.
