This Kubota operator's manual covers the M6040, M7040, M8540, and M9540 tractors, powered by Kubota's V3307-DI and V3800-DI-T diesel engines. Its 45 pages focus on running and maintaining these machines correctly and safely.Inside you will find safe operating practice, a full specification table, and a guided tour of the instrument panel and controls, including the LCD monitor, shuttle shift lever, and PTO controls. Operating sections cover starting, parking, the PTO, the three point hitch and drawbar, and the remote hydraulic control system.The maintenance section lays out service intervals, periodic checks, and routine jobs such as replacing a fuse or a light bulb, plus tire and wheel settings. It is the reference for day to day operation and upkeep, not a teardown repair manual, and suits owners who want to run these tractors by the book.
What's Inside This Kubota M6040–M9540 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 5-14 | Before Operating the Tractor, Seat Belt, Working, Starting, Safety for Children, Operating on Slopes, Driving the Tractor on the Road, Parking the Tractor |

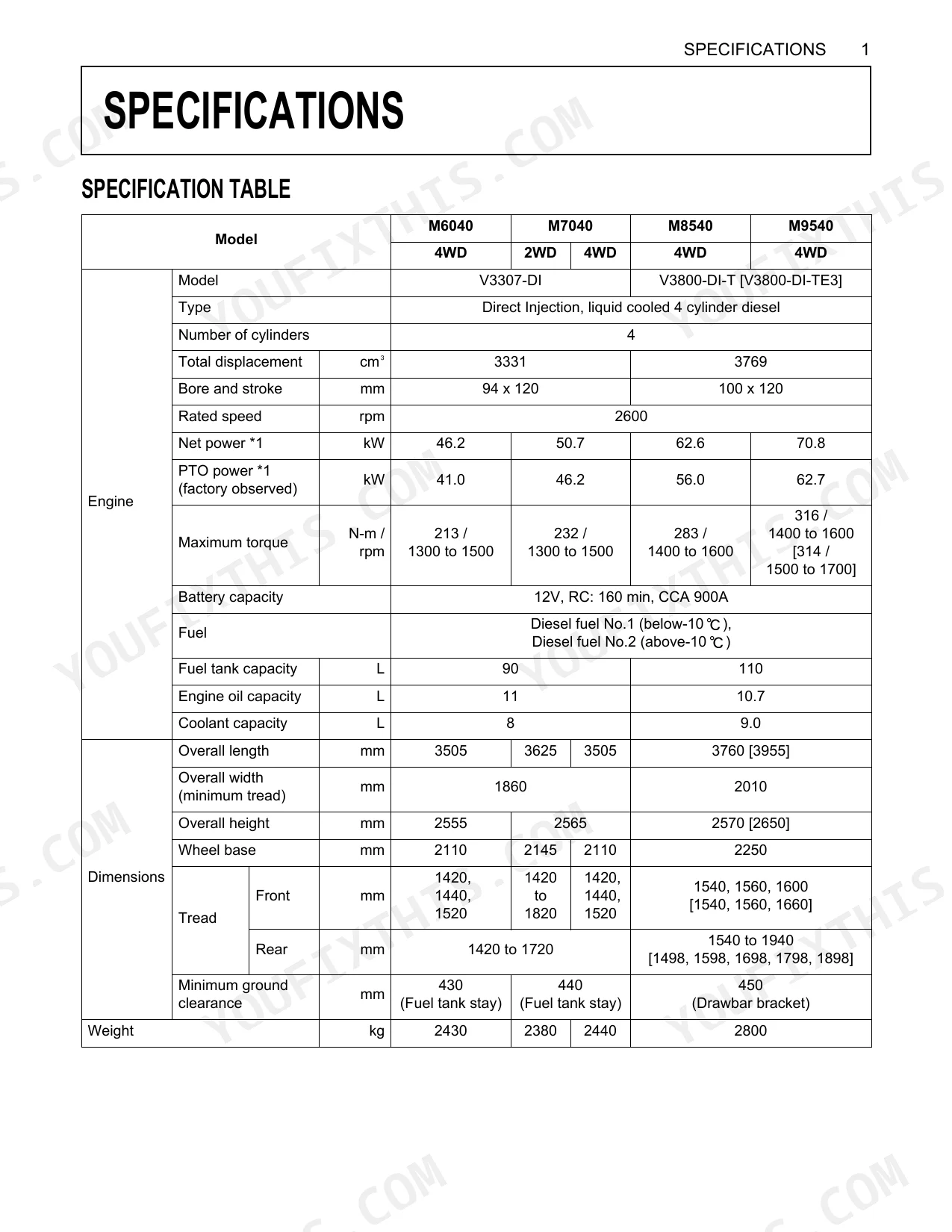

| Specifications | 15-17 | Specification Table, Engine, Dimensions, Weight, Traveling System, Traveling Speeds, Transmission Type |

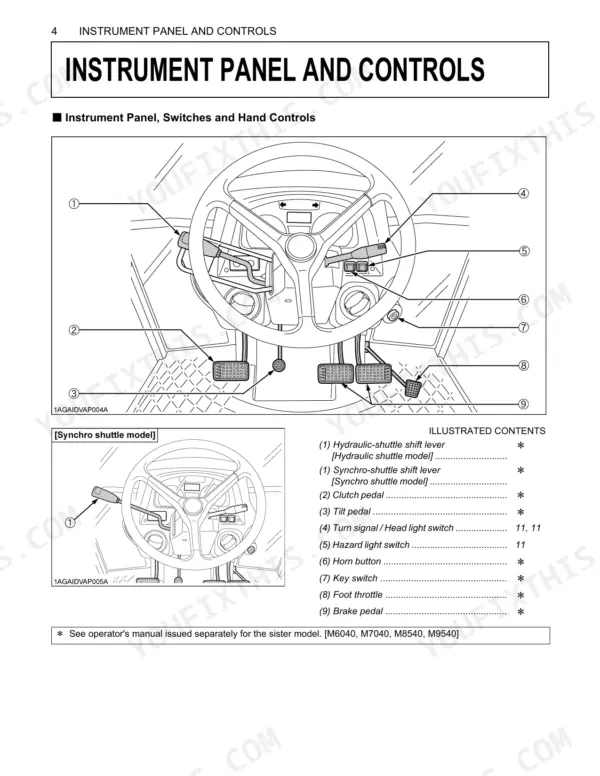

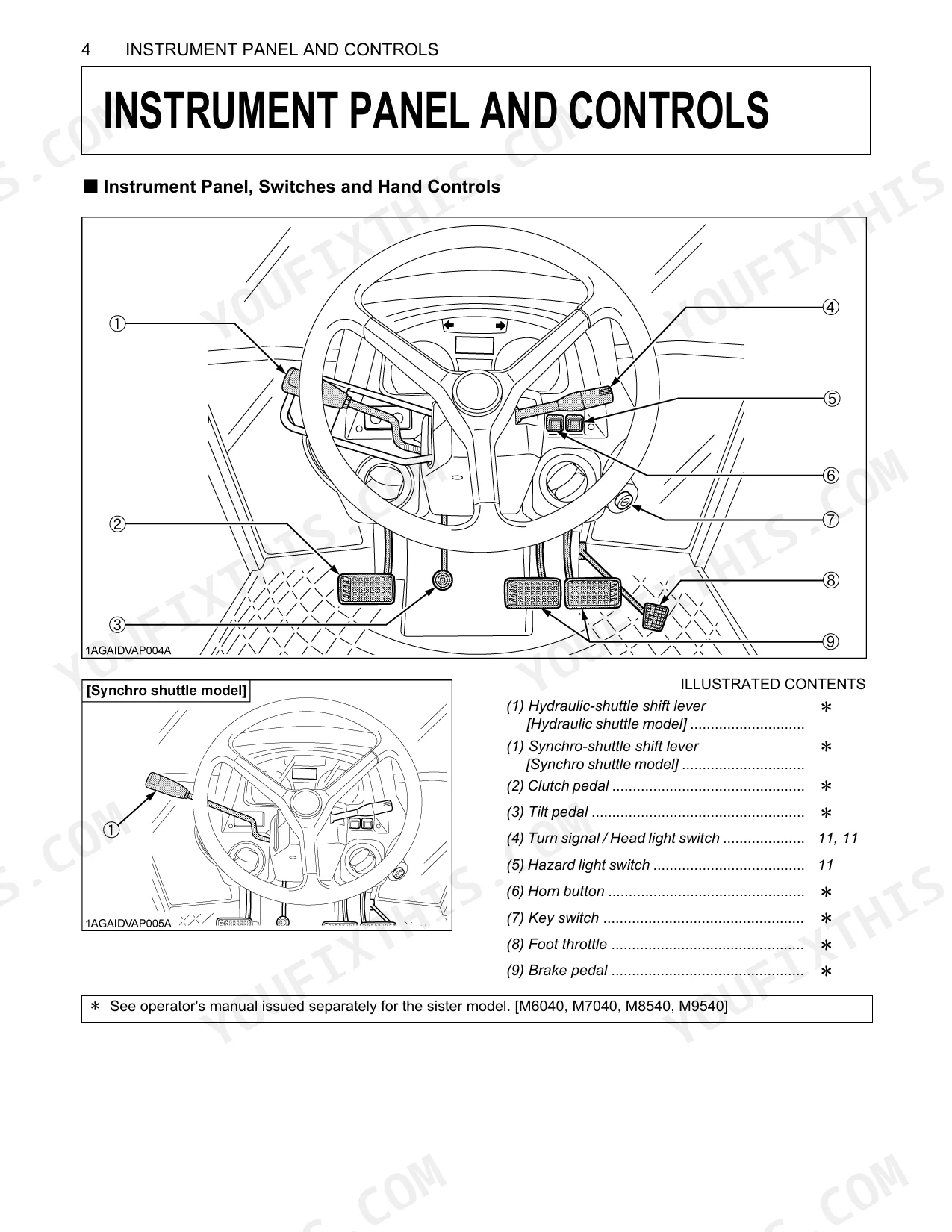

| Instrument Panel and Controls | 18-23 | Shuttle Shift Lever, Gear Shift Levers, Brake Pedal, Clutch Pedal, LCD Monitor, Indicators, PTO Controls, Remote Control Valve Lever |

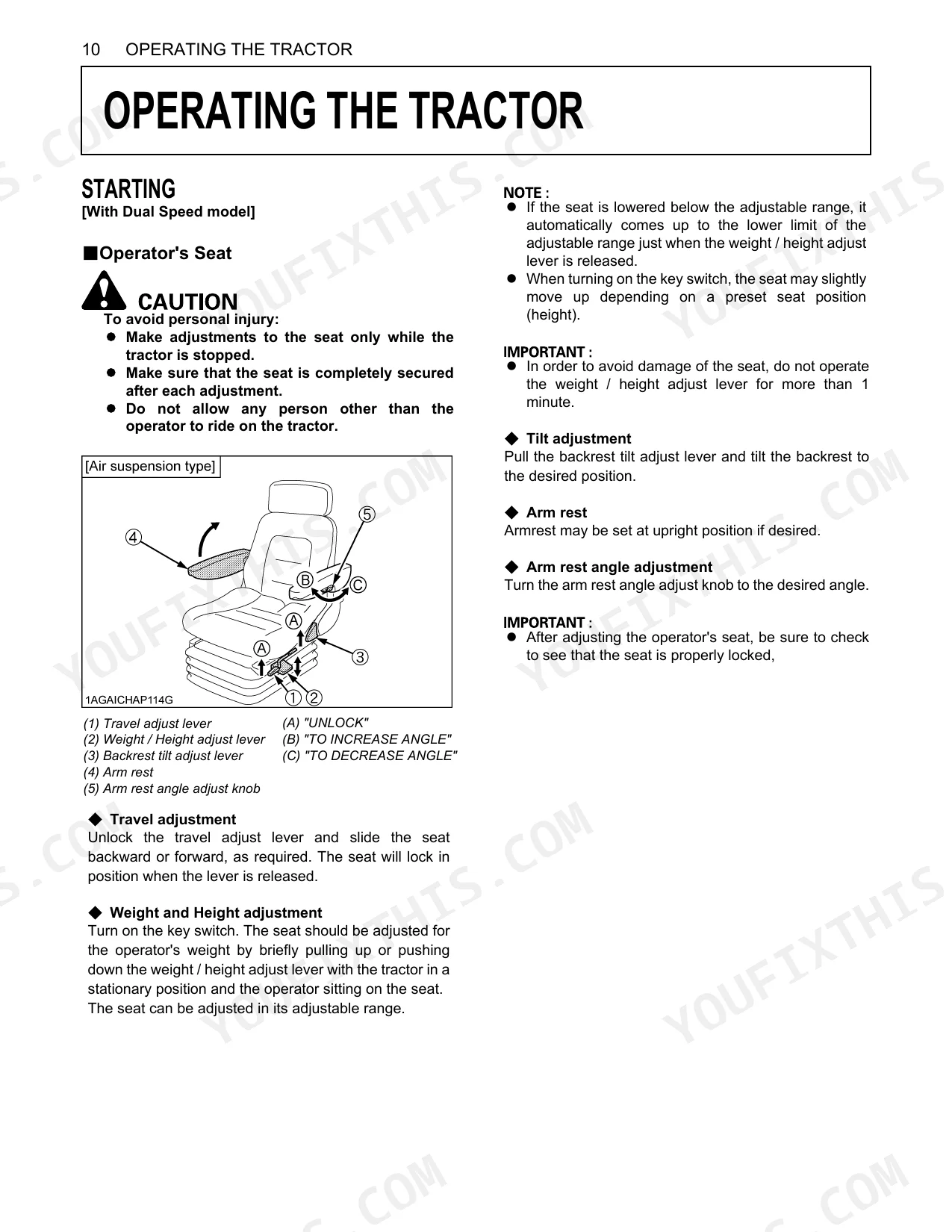

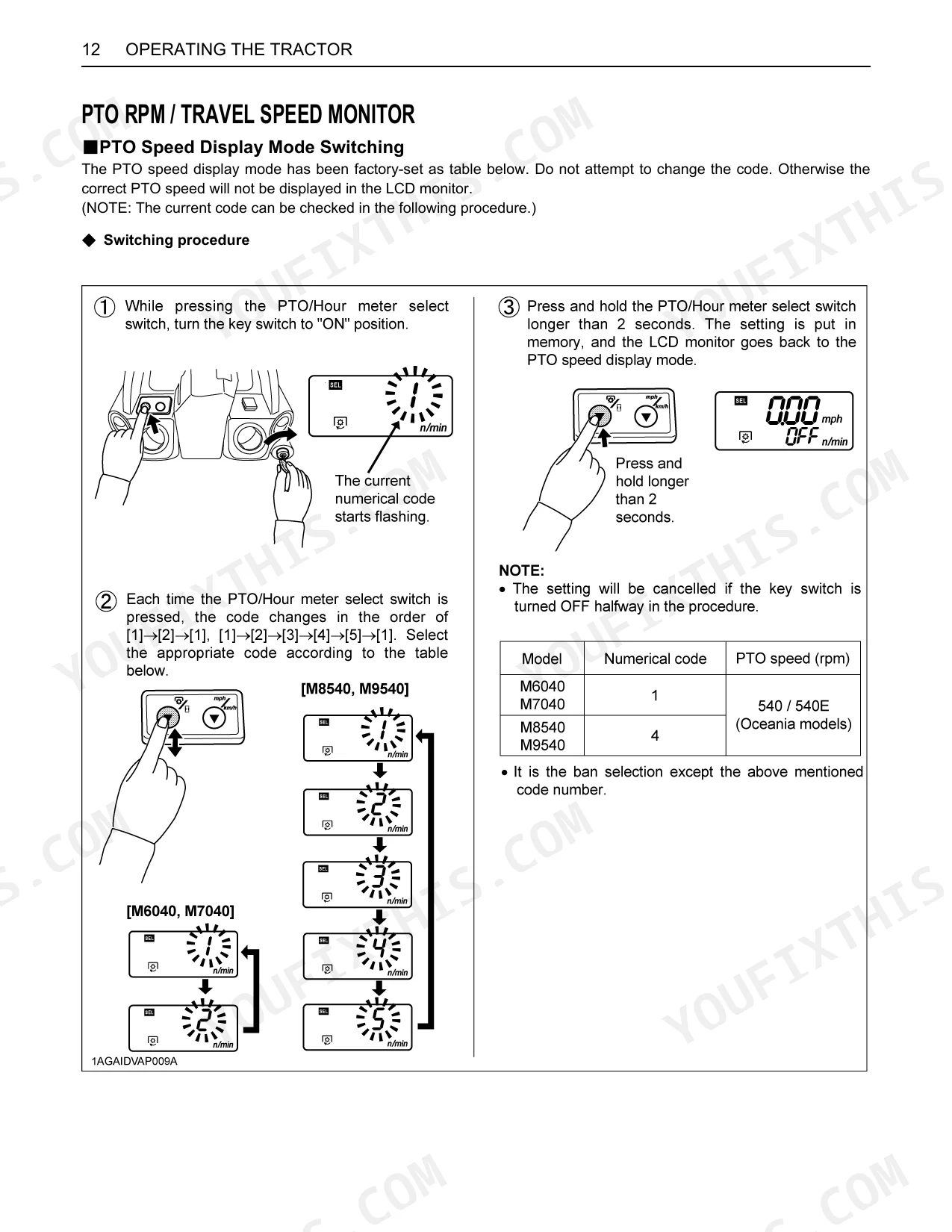

| Operating the Tractor | 24-28 | Starting, PTO RPM / Travel Speed Monitor, Parking, Operating Techniques |
| PTO | 29-31 | PTO Operation, PTO Gear Shift Lever, PTO Clutch Control Lever, PTO Clutch Control Switch, PTO Clutch Indicator, To Turn Off, LCD Monitor Message |
| Point Hitch & Drawbar | 32-33 | 3-Point Hitch, Remote Hitch Up / Down Lever, Drawbar, Drawbar Length, Pivot Pin, Swing Drawbar |
| Hydraulic Unit | 34-35 | Remote Hydraulic Control System, Remote Control Valve Lever, Remote Control Valve, Remote Control Valve Lever with Double Acting Valve |
| Tires, Wheels and Ballast | 36-38 | Tires |

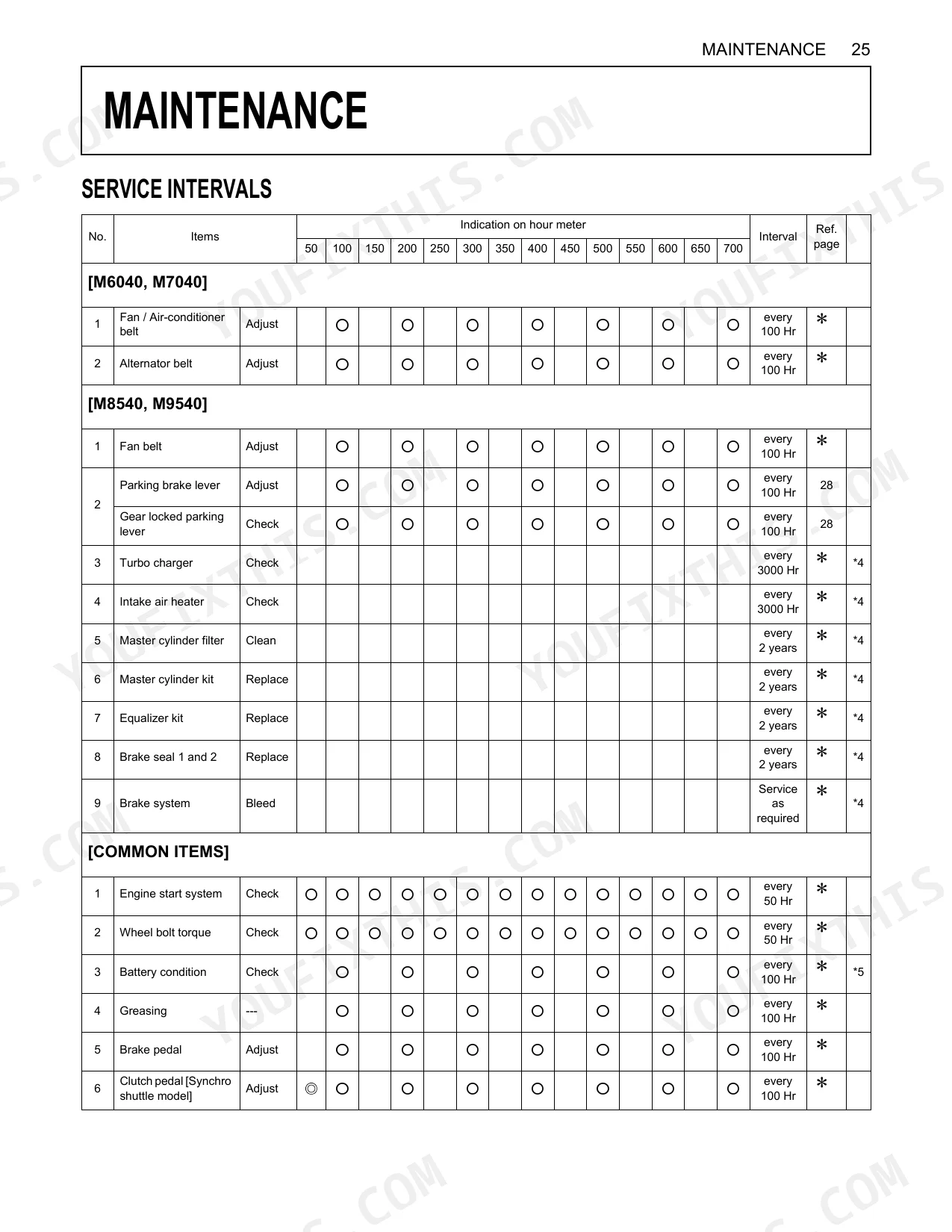

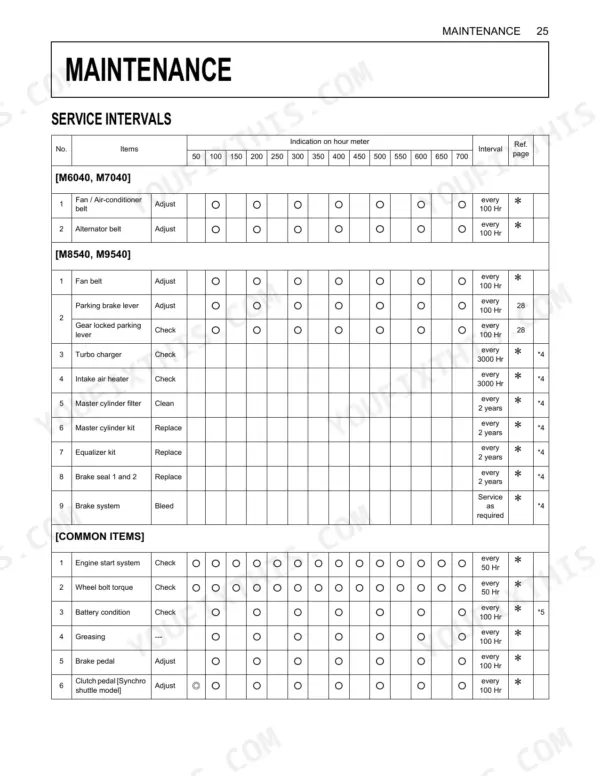

| Maintenance | 39-44 | Service Intervals, Periodic Service, Every 100 Hours, Parking Brake Lever, Checking Gear Locked Parking Lever, Service As Required, Replacing Fuse, Replacing Light Bulb |
| Options | 45 | Double Acting Remote Hydraulic Control Valve with Detents and Self-Cancelling, Flow Control Valve Kit |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| M8540, M9540 | ||
| Rear wheel bolt torque (wheel to hub) | 343 to 402 N-m (35.0 to 41.0 kgf-m) | p. 38 |
| Front wheel bolt torque | 260 to 304 N-m (26.5 to 31 kgf-m) | p. 37 |
| Hydraulic pump capacity | 64.3 L/min | p. 16 |
| All Models | ||
| Hydraulic oil filter replacement interval | every 300 Hr | p. 40 |
| Fuel filter replacement interval | every 400 Hr | p. 40 |
| Battery capacity | 12V, RC: 160 min, CCA 900A | p. 15 |
| Battery specifications | 105E41R 12V, AMP. HR (5HR) 80, AMP. HR (20HR) 100, RESERVE CAPACITY (MIN) 160, BCI CCA 900, EN CCA 800 | p. 11 |
| Rated Engine Speed | 2600 rpm | p. 15 |
| M6040, M7040 | ||
| Hydraulic pump capacity | 41.6 L/min | p. 16 |
| Fuel Tank Capacity | 90 L | p. 15 |
| Engine Oil Capacity | 11 L | p. 15 |
| Max. 3-Point Hitch Lifting Force (lower link end) | 1900 kg | p. 16 |
Kubota M6040–M9540 Series Common Problems This Manual Covers
Tractor will not start
A no-start or intermittent start often comes down to the starting procedure, seat and interlock conditions, or a daily check that was missed. The Operating the Tractor section walks through correct starting.
Manual Section: Operating the Tractor p. 24Hydraulics feel slow or weak
Sluggish or weak hydraulics usually mean low fluid, a control valve set wrong, or air in the system. The Hydraulic Unit section explains the remote hydraulic control system and its valve levers.
Manual Section: Hydraulic Unit p. 34PTO does not engage or turn off
A PTO that will not engage, slips, or fails to stop is often a control lever, switch, or clutch indicator issue. The PTO section covers the gear shift lever, clutch control lever and switch, and the indicator.
Manual Section: PTO p. 29Blown fuse or dead light
A dead accessory or lighting circuit is commonly a blown fuse or a failed bulb. The Maintenance section shows how to replace a fuse and a light bulb as service-as-required tasks.
Manual Section: Maintenance p. 39Loose wheel bolts or low tire pressure
Wheel bolts that back off or tires run at the wrong pressure affect handling and safety. The Tires, Wheels and Ballast section gives inflation pressure and wheel bolt torque figures.
Manual Section: Tires, Wheels and Ballast p. 36Confusing warning or monitor message
An unfamiliar indicator or LCD monitor message can stop work until you know what it means. The Instrument Panel and Controls section identifies the monitor, indicators, and control layout.
Manual Section: Instrument Panel and Controls p. 18Frequently Asked Questions
Which tractor models does this manual cover?
It covers the Kubota M6040, M7040, M8540, and M9540 tractors, powered by the V3307-DI and V3800-DI-T diesel engines.
Is this an operator manual or a full service manual?
This is an operator's manual. It covers safe operation, the instrument panel and controls, operating the tractor, the PTO, hydraulics, and routine maintenance, rather than teardown and rebuild procedures.
Where are the service intervals listed?
The Maintenance section sets out the service intervals and periodic service tasks, including the every 100 hours checks and service-as-required jobs. p. 39
Does it give wheel bolt torque figures?
Yes. The Tires, Wheels and Ballast section lists the front wheel bolt torque of 260 to 304 N-m along with tire inflation pressures. p. 36
How quickly can I access this manual after buying?
Immediate download of the complete 45-page searchable Operator Manual. Access it on any device, laptop at your desk or phone in the field.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
