This Kubota workshop manual covers the LA1953AU and LA2253AU front loaders. Across 122 pages it gives the mechanism, servicing specifications, and repair procedures a technician needs to keep these loaders working.The manual opens with loader specifications, safety, and terminology, then moves through the tightening torque tables for the frame, fittings, and hardware. A large mechanism section details the hydraulic circuit and control valve assembly for both models, including the spill guard and the optional third function valve.The servicing section carries the troubleshooting charts, servicing specifications, and step by step instructions for dismounting the loader from the tractor, checking, and rebuilding the cylinders and valves. This is a repair-level PDF for owners and mechanics servicing a Kubota LA1953AU or LA2253AU, not an operator's quick guide.
What's Inside This Kubota LA1953AU, LA2253AU Manual
| System | Pages | Key Topics |
|---|---|---|
| Information | 3-13 | - |
| General | 14-23 | Loader Identification, Lubricants, Tightening Torque (Stud Bolts, American Standard Screws, Bolts and Nuts with Unc or Unf Threads, Plugs, Hydraulic Fittings) |
| Mechanism | 24-90 | Hydraulic Circuit (La1953au, La2253au), Control Valve Assembly (Hydraulic Circuit, Structure, Operation) |
| Servicing | 91-122 | Accumulator Relief Valve, Dismounting Front Loader From Tractor, Stand and Side Frame, Hydraulic Hose |

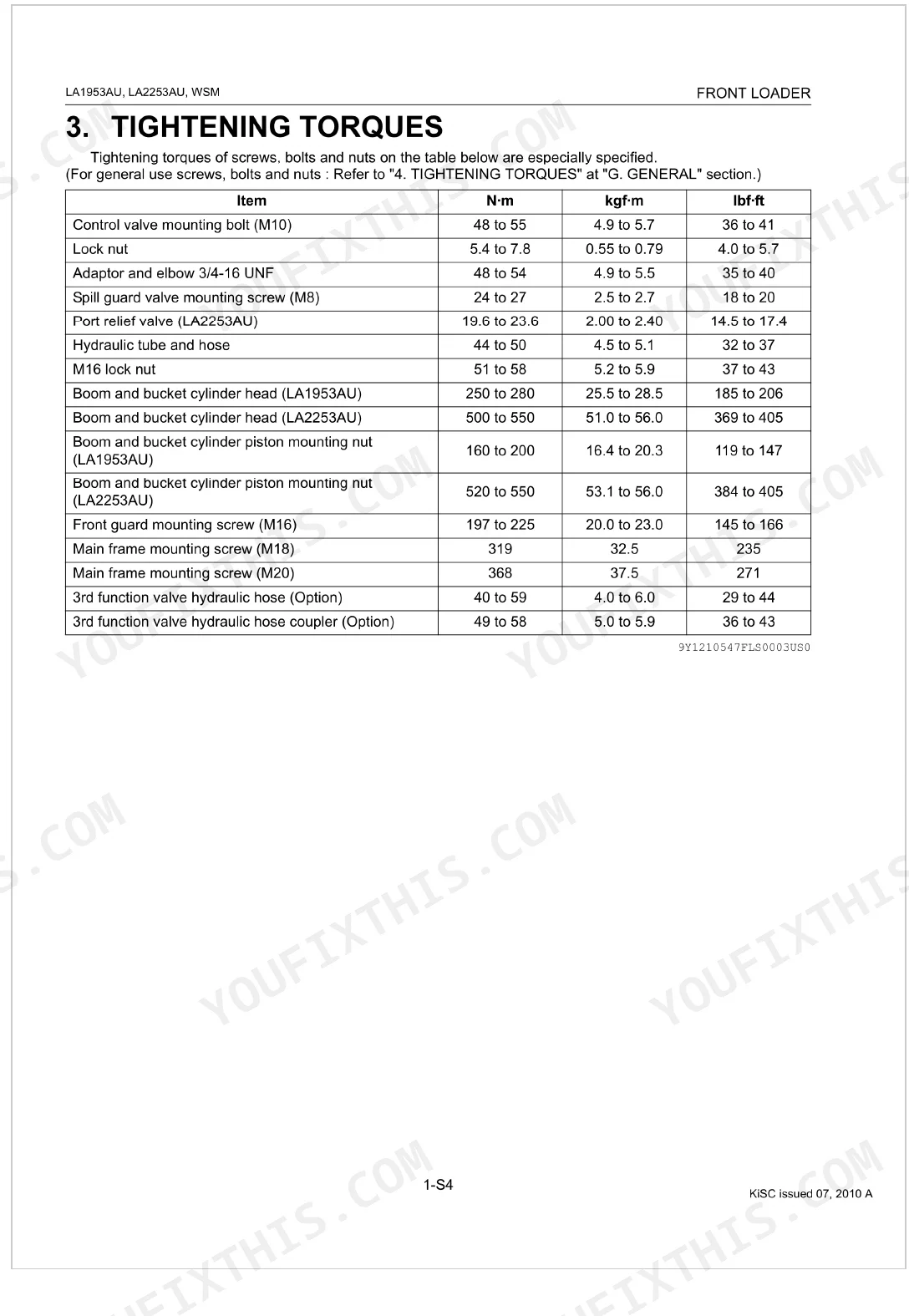

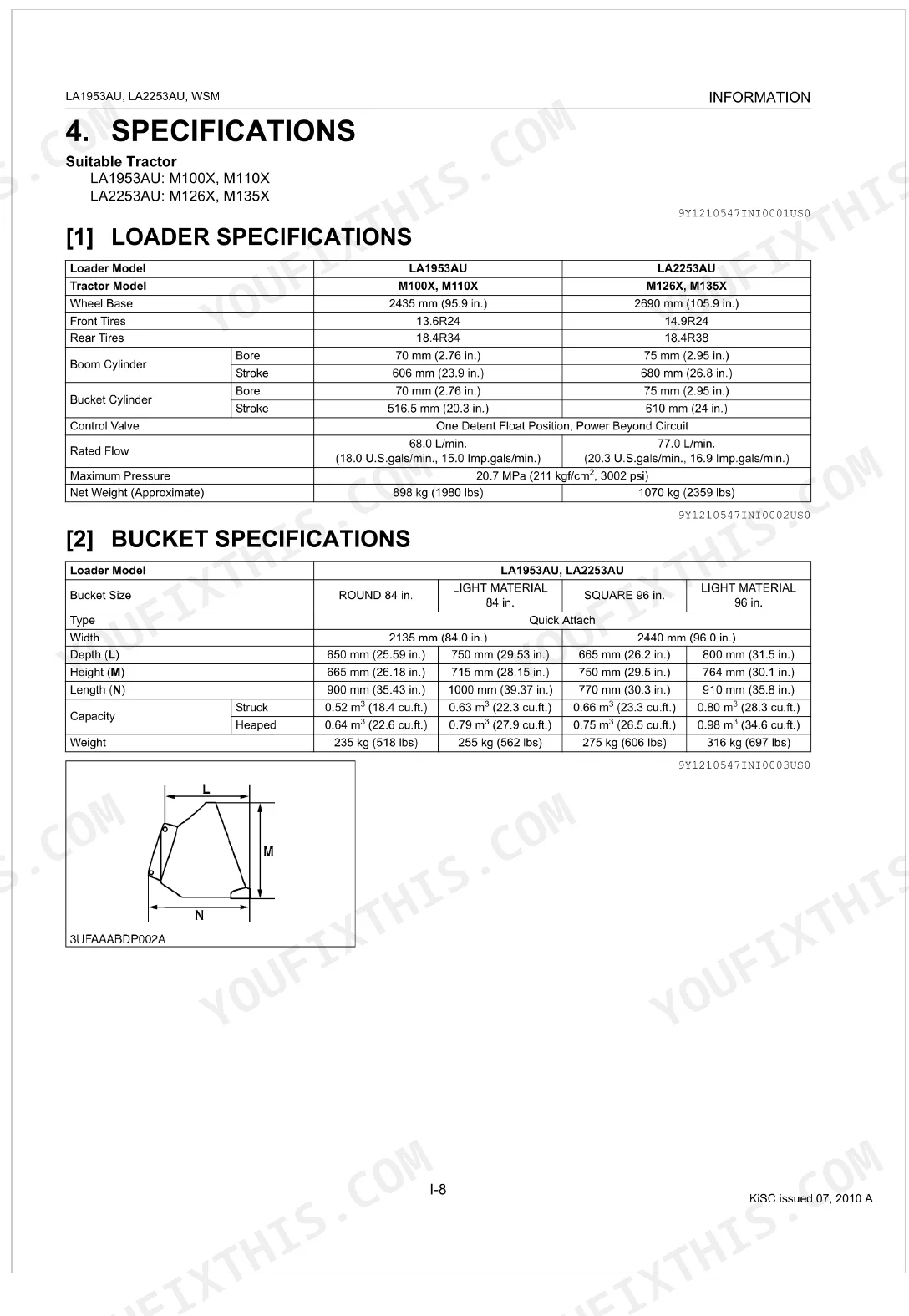

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| LA1953AU | ||
| Boom and bucket cylinder head torque | 250 to 280 N·m (25.5 to 28.5 kgf·m, 185 to 206 lbf·ft) | p. 96 |
| Boom and bucket cylinder piston mounting nut torque | 160 to 200 N·m (16.4 to 20.3 kgf·m, 119 to 147 lbf·ft) | p. 96 |
| LA2253AU | ||
| Boom and bucket cylinder head torque | 500 to 550 N·m (51.0 to 56.0 kgf·m, 369 to 405 lbf·ft) | p. 96 |
| Boom and bucket cylinder piston mounting nut torque | 520 to 550 N·m (53.1 to 56.0 kgf·m, 384 to 405 lbf·ft) | p. 96 |
| All Models | ||
| Hydraulic tube and hose torque | 44 to 50 N·m (4.5 to 5.1 kgf·m, 32 to 37 lbf·ft) | p. 96 |
| Hose fitting, Flare nut (UNF) 3/4 torque | 36 to 40 N·m (3.7 to 4.0 kgf·m, 27 to 29 lbf·ft) | p. 20 |
| 3rd function valve coupler torque | 49 to 58 N·m (5.0 to 5.9 kgf·m, 36 to 43 lbf·ft) | p. 119 |
| Boom/Bucket cylinder piston seal dimension A | 0.157 rad | p. 115 |
| Boom/Bucket cylinder piston seal dimension D | 42 mm (1.65 in.) | p. 115 |
| Quick hitch frame rod length 'a' | 321 to 323 mm (12.64 to 12.7 in.) | p. 112 |
| Quick hitch frame bolt length 'b' | 2.0 to 3.0 mm (0.079 to 0.11 in.) | p. 112 |
| Control valve mounting bolt (M10) torque | 48 to 55 N·m (4.9 to 5.7 kgf·m, 36 to 41 lbf·ft) | p. 96 |
Kubota LA1953AU, LA2253AU Common Problems This Manual Covers
Loader arms will not raise, lower, or curl

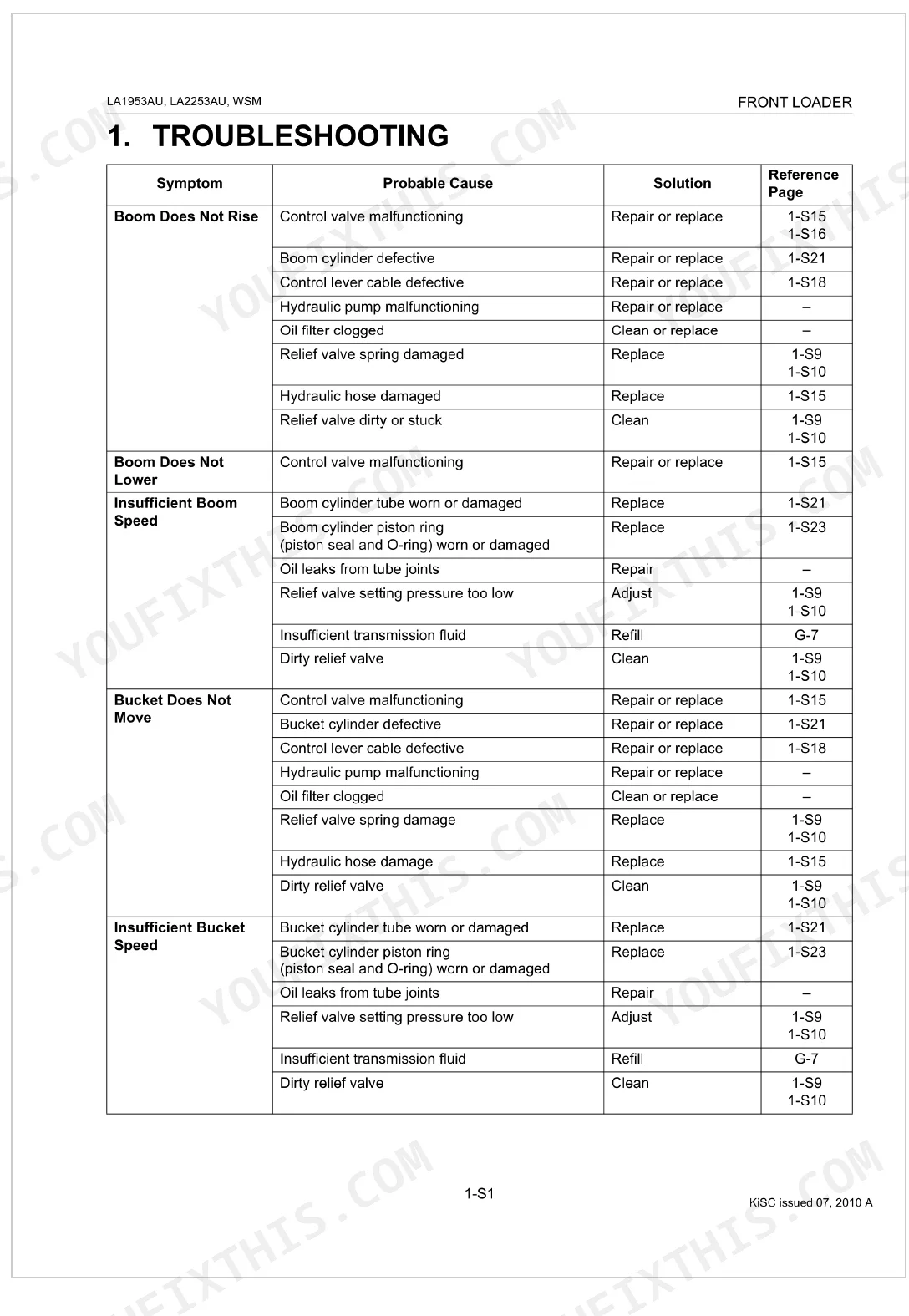

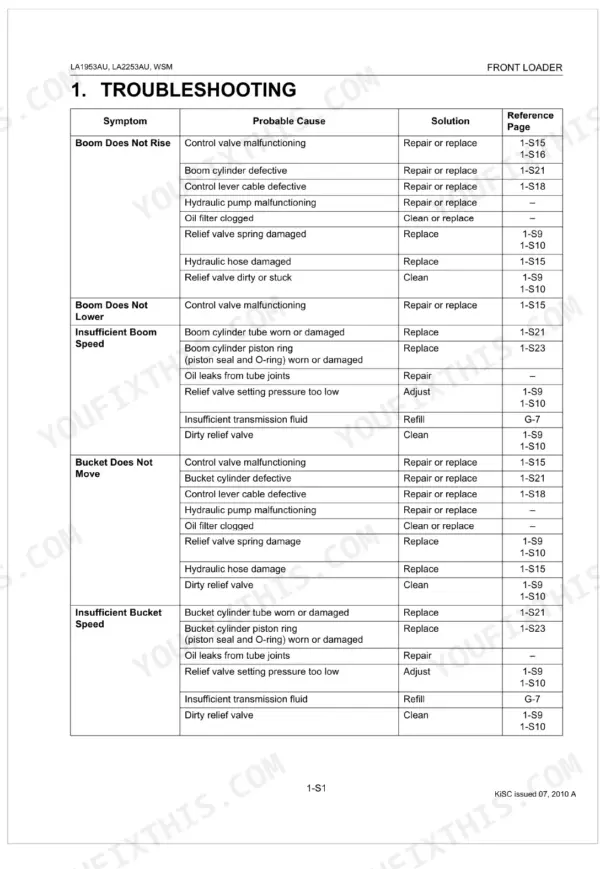

When the boom or bucket stops responding or moves weakly, the fault is usually in the hydraulic supply, a sticking control valve, or worn seals. The Servicing section troubleshooting charts walk you through the checks.
Manual Section: Servicing p. 91Boom or bucket drifts down under load

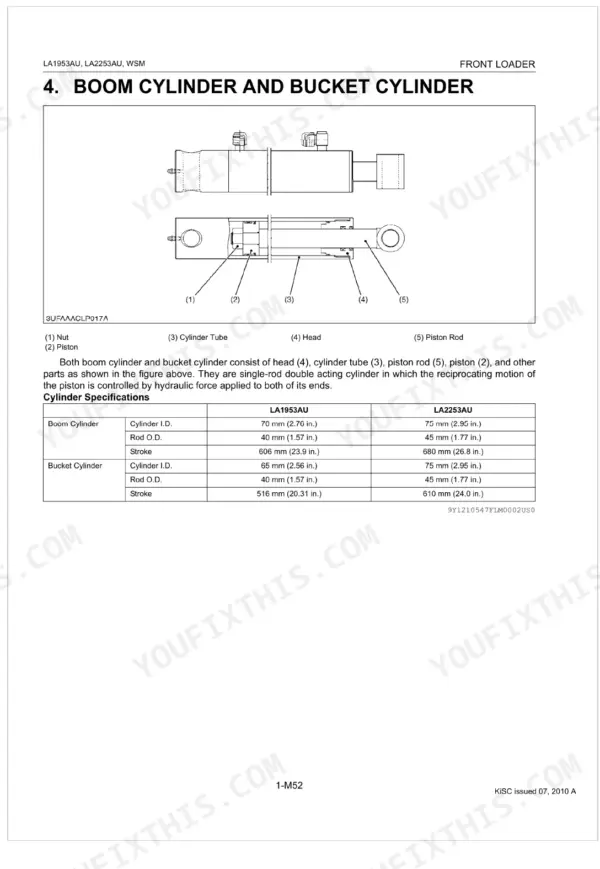

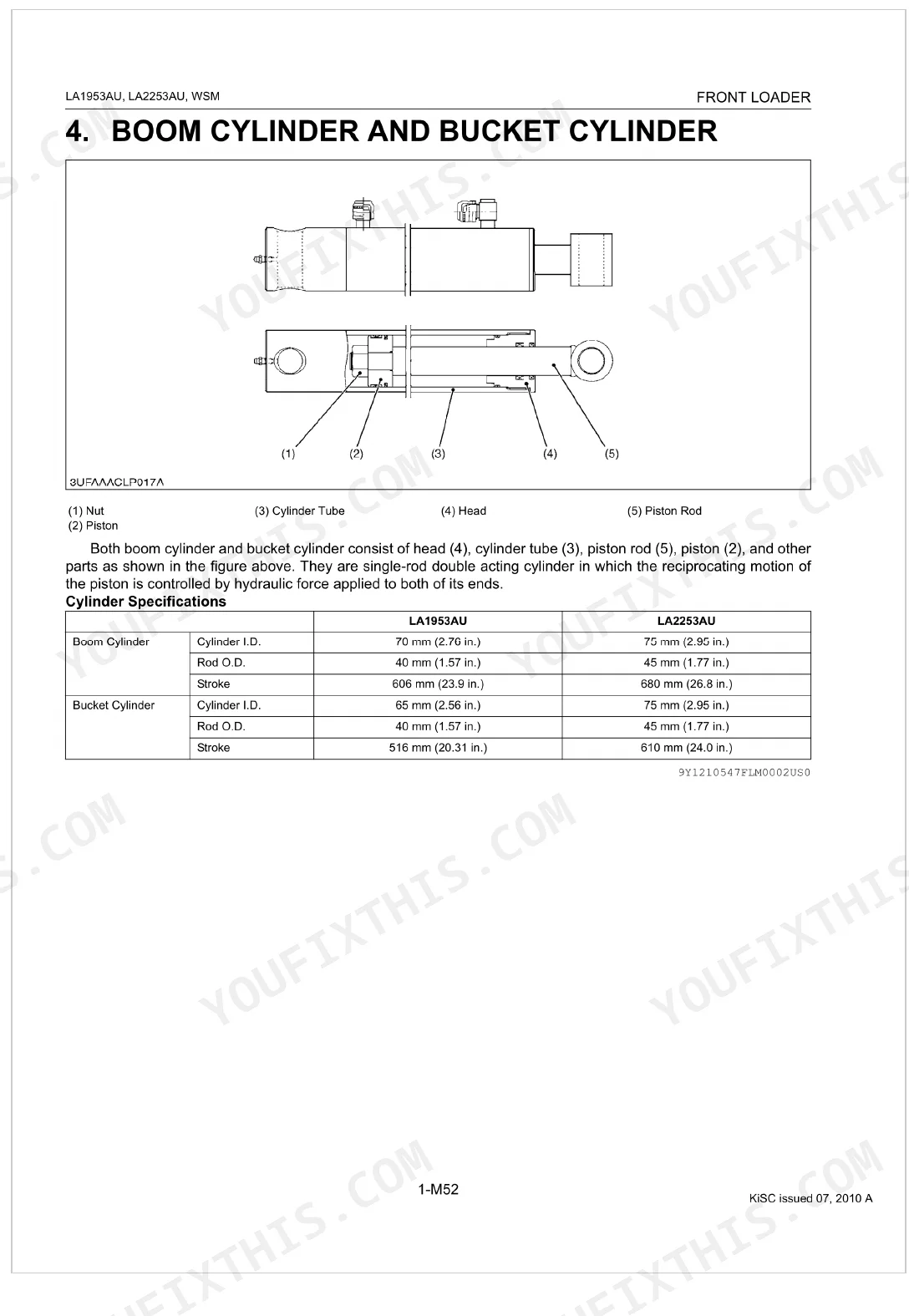

A loader that slowly settles when parked points to internal leakage past cylinder seals or the control valve spool. The Mechanism section details the control valve assembly and the boom and bucket cylinders.
Manual Section: Mechanism p. 24Jerky, slow, or noisy loader operation

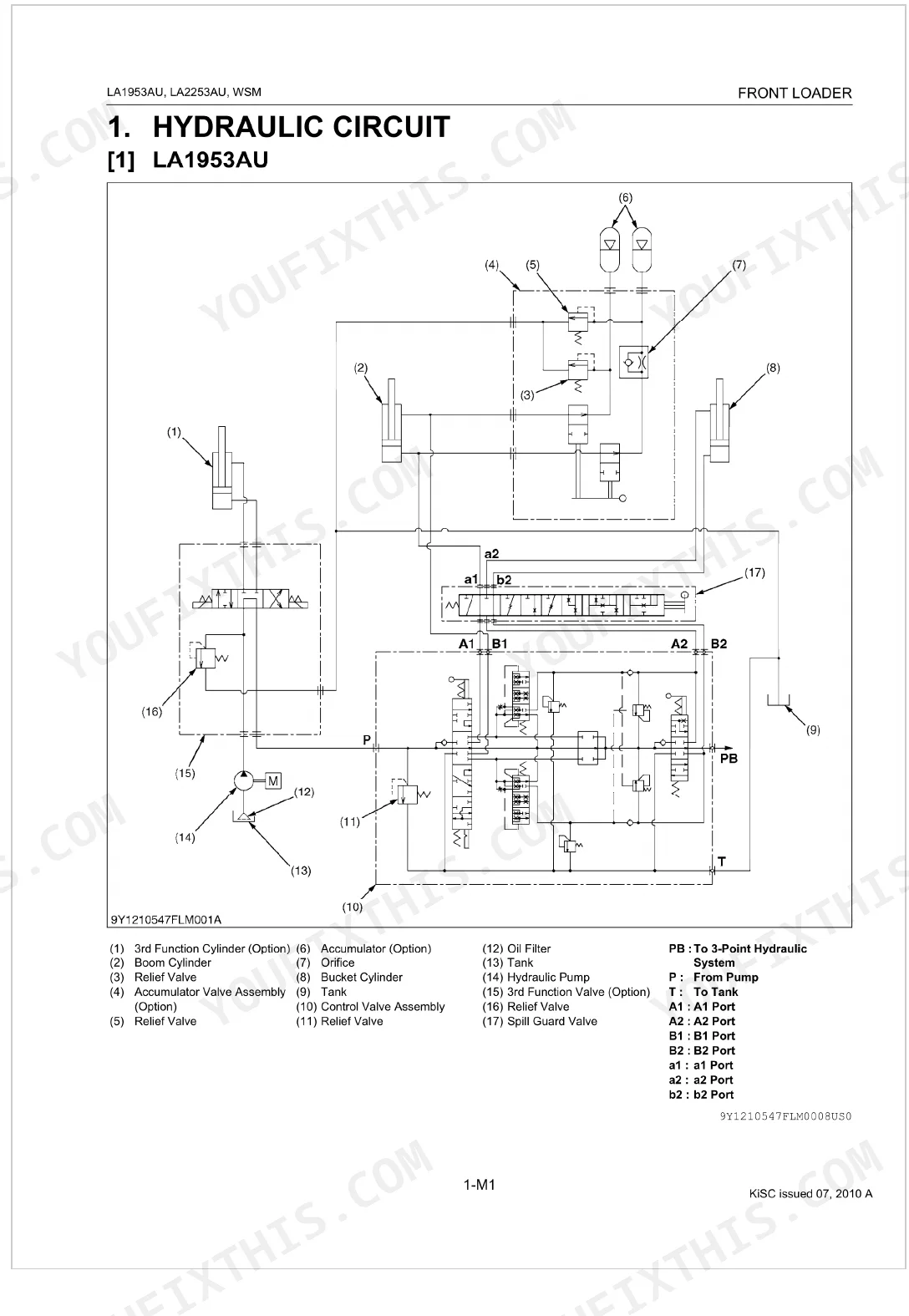

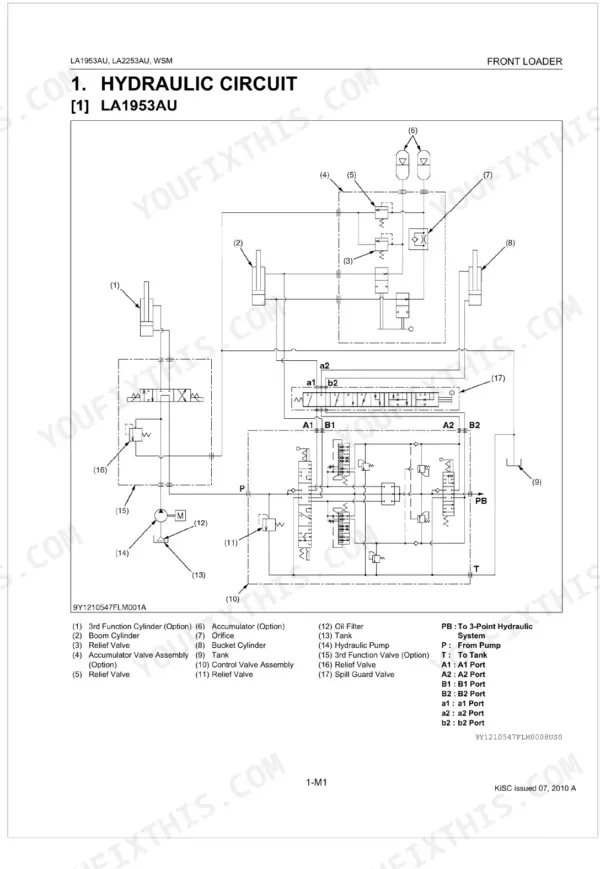

Low or aerated oil, a restriction, or pump wear can make loader movement jerky, slow, or noisy. The Mechanism section lays out the hydraulic circuit for both models so you can trace the flow.
Manual Section: Mechanism p. 24Hydraulic leaks at hoses and fittings
Hoses, couplers, and flare fittings eventually seep or leak under pressure. The General section gives the hydraulic fitting torque values so connections are set to spec on reassembly.
Manual Section: General p. 14Play or cracking at loader mounts

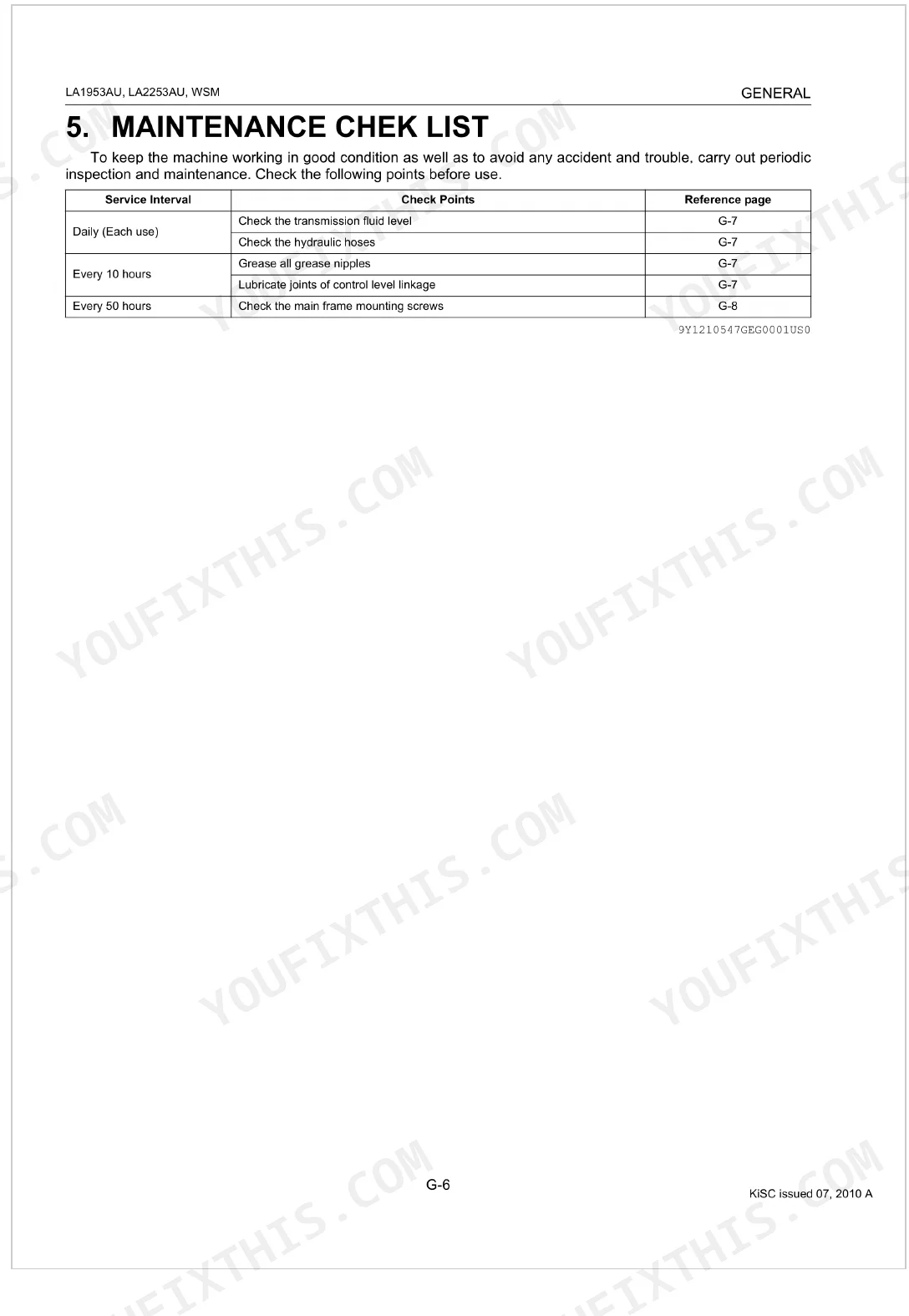

Loose or worn pivot pins, bushings, and frame hardware create play that affects alignment and safety. The General section provides the tightening torque tables for the mounting hardware.
Manual Section: General p. 14Loader hard to detach or reinstall safely

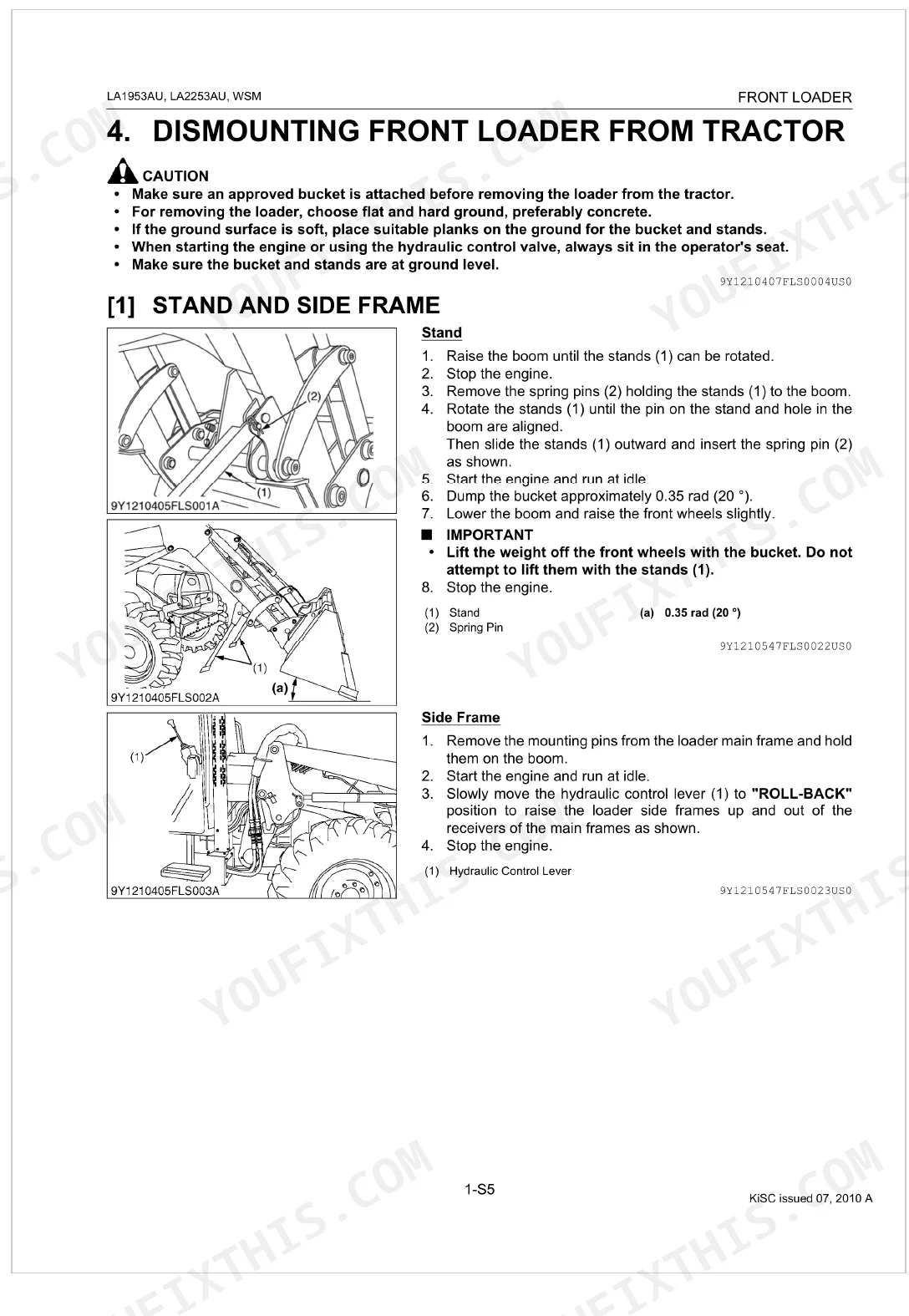

Stand misalignment or trapped pressure in the lines makes the loader difficult to remove or refit. The Servicing section covers dismounting the front loader from the tractor, including the stand, side frame, and hydraulic hoses.
Manual Section: Servicing p. 91Frequently Asked Questions
Which loader models does this manual cover?
It covers the Kubota LA1953AU and LA2253AU front loaders.
Is this a repair manual or an operator guide?
This is a workshop manual. It covers the loader mechanism, hydraulic circuit, servicing specifications, troubleshooting, and rebuild procedures, not just basic operation.
Does it include the hydraulic control valve details?
Yes. The Mechanism section details the hydraulic circuit and the control valve assembly, including its structure and operation, for both the LA1953AU and LA2253AU. p. 24
Does it explain removing the loader from the tractor?
Yes. The Servicing section covers dismounting the front loader from the tractor, including the stand and side frame and the hydraulic hose connections. p. 91
What format is this manual in?
Immediate download of the complete 122-page searchable Workshop Manual. Open it on any device, whether that’s a laptop at your desk or a phone out in the field.
Are there any print restrictions on this manual?
Yes. The PDF carries no DRM, so print any page or section you need for the shop. It works with any standard printer.
Does this Kubota LA1953AU manual include wiring diagrams?
Yes. You’ll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
