This Kubota M9540 Dual Speed Workshop Manual (OEM #9Y111-03380) runs 87 pages and stays focused on the dual-speed drivetrain that sets the Cabin Dual Speed apart from the standard lineup. It walks through clutch mechanism and servicing, a transmission section covering both mechanism and repair, hydraulic schematics with fluid routing for the 3-point hitch and power steering circuits, and wiring diagrams paired with electrical servicing for the D9 system. Need exact figures? Torque the 3-point hitch delivery pipe retaining nut to 107.9 to 117.7 N-m, and set PTO pressure between 2.16 and 2.26 MPa with the switch on. When your machine is down, factory numbers beat a forum thread that quotes the wrong model year. Every section is bookmarked and keyword-searchable, so you can pull it up on a tablet and head straight to the tractor.
What's Inside This Kubota M9540 Dual Speed Manual
| System | Pages | Key Topics |
|---|---|---|
| Dg General | 15-18 | Special Tools, Hydraulic Clutch Spring Compressor, Tool 4 (Plate), Tool 3 (Clow), Tool 1 (Body), Tool 2 (Center Bar) |
| D2 Clutch | 19-26 | PTO Clutch, PTO Solenoid Valve, Relief Valve, Solenoid Valve Assembly, 2WD-4WD Clutch Pack, Differential Lock Piston |
| D3 Transmission | 27-62 | F24/R24 Speed Transmission Model, Shuttle Shift Section, Hi-Lo/Creep Shift Section, Shift Fork Rod, Hi-Lo Dual Speed Shift Section, 4WD Hydraulic Clutch Section, Differential Lock, Solenoid Valve Assembly |
| D8 Hydraulic System | 63-66 | Hydraulic System, Dual Speed Model (F24/R24 Speed Transmission), Hydraulic Circuit, Total Hydraulic Circuit, F24/R24 Speed Transmission Model |
| D9 Electrical System | 67-87 | Wiring Diagram, Electrical Circuit Detailed Chart, Instrument Panel, Horn, Solenoid Valve |

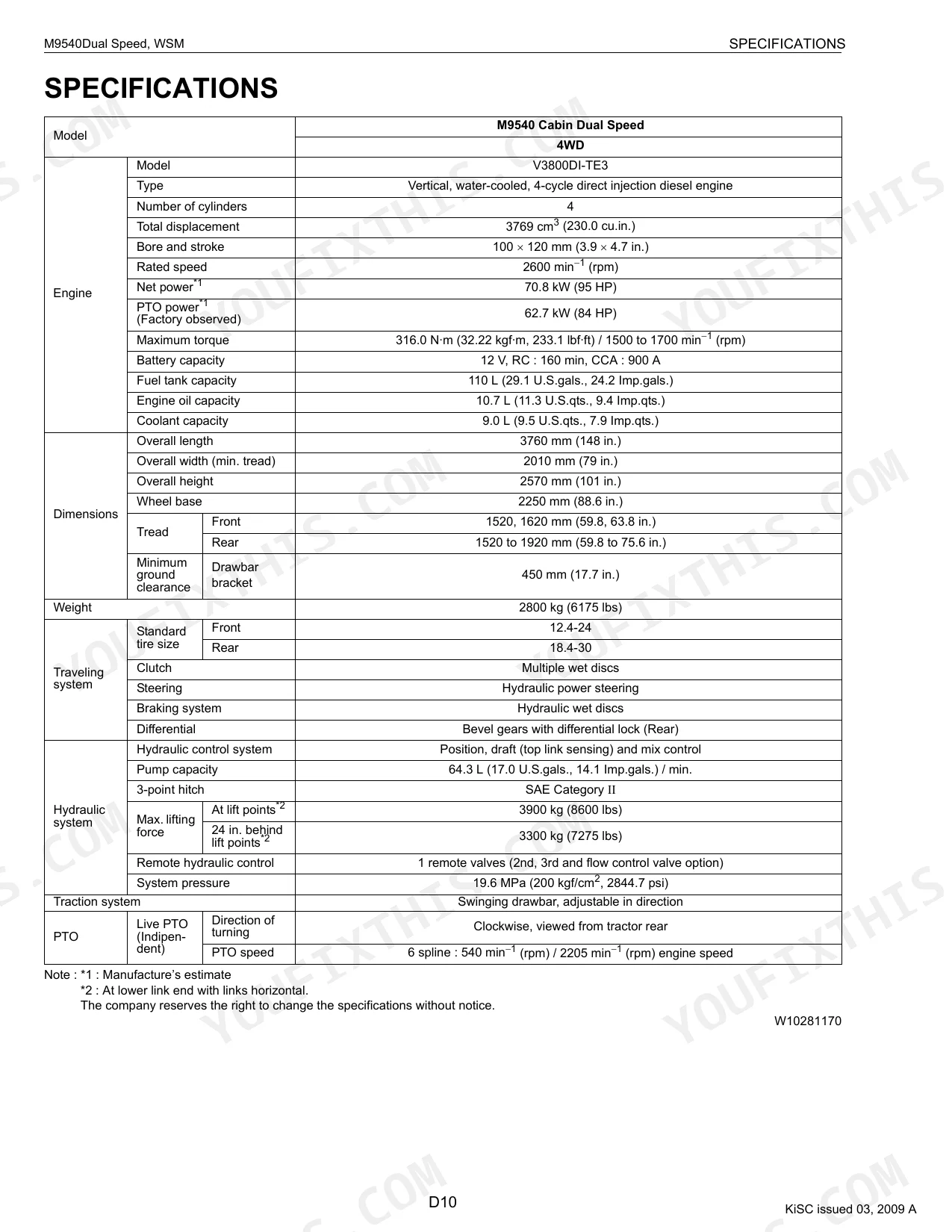

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery capacity | 12 V, RC: 160 min, CCA: 900 A | p. 12 |
| 3-point hitch delivery pipe retaining nut tightening torque | 107.9 to 117.7 N-m | p. 46 |
| Power steering pipe and hydraulic pipe retaining nut tightening torque | 49.0 to 68.6 N-m | p. 46 |
| PTO pressure (when PTO switch is "ON" position) | 2.16 to 2.26 MPa | p. 24 |
| PTO clutch holder mounting screw tightening torque | 23.5 to 27.4 N-m | p. 56 |
| Coolant capacity | 9.0 L (9.5 U.S.qts., 7.9 Imp.qts.) | p. 12 |
| Engine Total Displacement | 3769 cm³ | p. 12 |
| Engine Rated Speed | 2600 min⁻¹ (rpm) | p. 12 |
| Fuel Tank Capacity | 110 L | p. 12 |
| Engine Oil Capacity | 10.7 L | p. 12 |
| Hydraulic System Pressure | 19.6 MPa | p. 12 |
| PTO Clutch Operating Pressure (ON position) | 2.16 to 2.26 MPa | p. 24 |
Kubota M9540 Dual Speed Common Problems This Manual Covers
Kubota M9540 won't start or cranks very slowly, battery terminals look clean

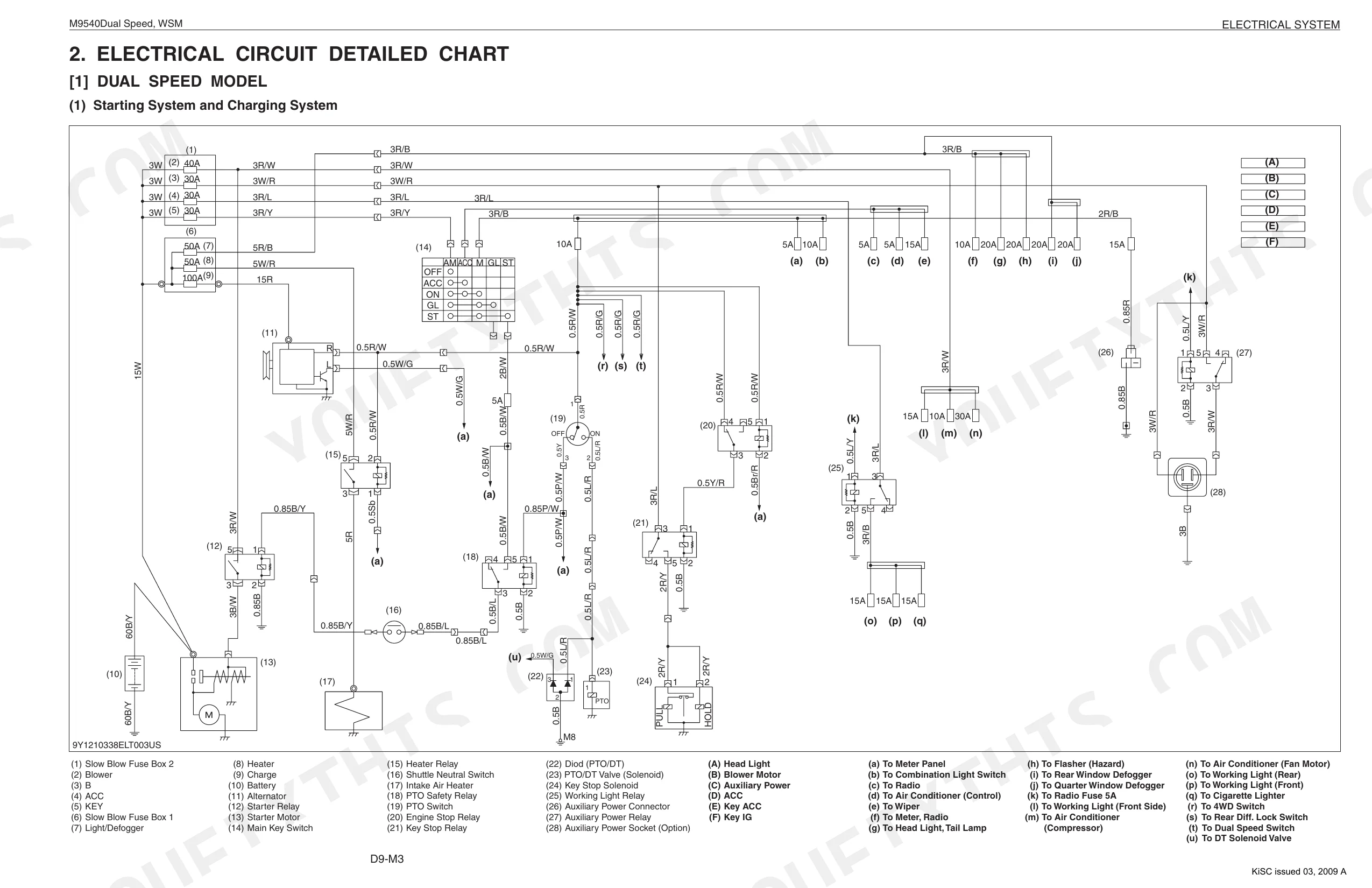

Confirm the battery spec on page 12: this tractor needs a 12V, 900 CCA unit. Measure terminal voltage during cranking and inspect all ground cable connections for corrosion or looseness. Test alternator output and starter circuit continuity against the wiring diagram on page 71. Replace anything outside spec before condemning the starter motor.
Manual Section: D9 Electrical System p. 67PTO shaft won't rotate when engaged, or slips on and off under light implement load
Measure PTO clutch operating pressure on page 24; it must read 2.16 to 2.26 MPa with the switch in the ON position. If pressure is low, test solenoid valve resistance at 10 to 12 Ω per page 80. Out-of-spec resistance points to a failed solenoid; low pressure with good resistance points to clutch pack wear that needs disassembly.
Manual Section: D2 Clutch p. 24Hydraulic system pressure is low, 3-point hitch lifts slowly or won't hold a loaded implement

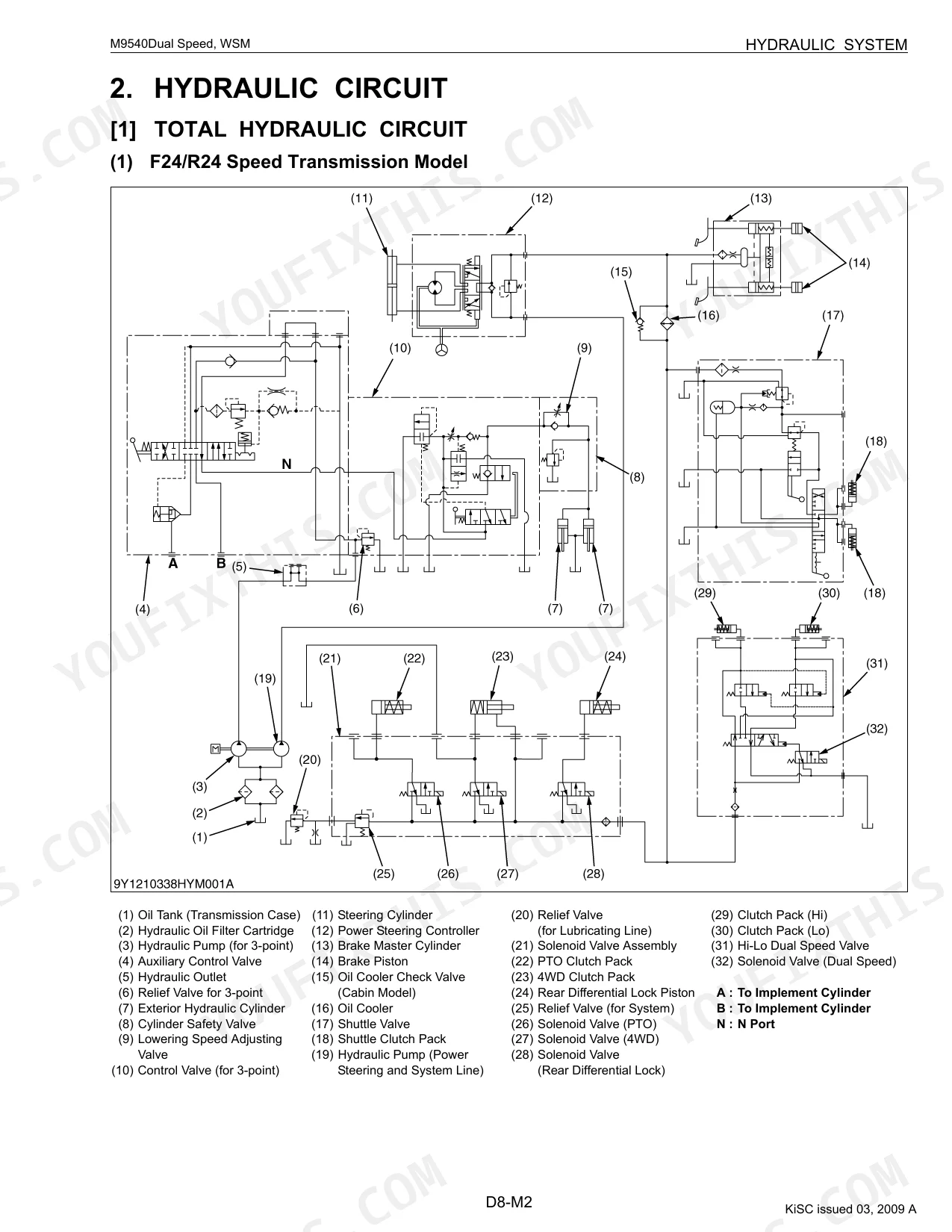

Verify hydraulic system pressure against the 19.6 MPa spec on page 12. Start with fluid level and condition; contaminated or low fluid causes most pump wear before any internal damage occurs. Trace flow from pump to control valve using the hydraulic schematic on page 66. Inspect all hose connections for leaks before opening the system.

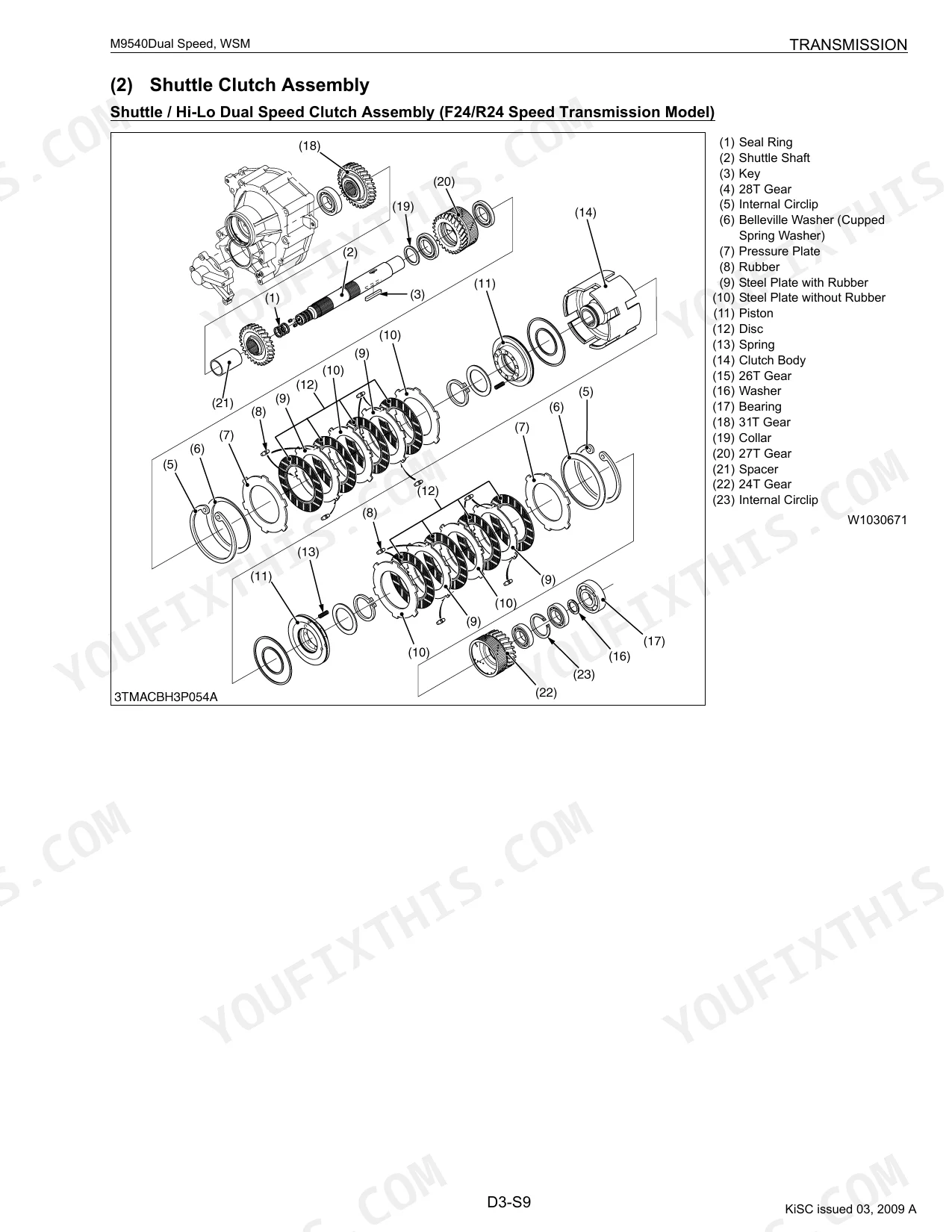

Manual Section: D8 Hydraulic System p. 63Hi-Low dual speed won't switch ranges, or clutch slips and tractor loses drive underway
Test dual speed solenoid valve resistance: spec is 10 to 12 Ω on page 80. An open circuit here stops range switching entirely. If resistance is good, trace the switch signal through the wiring diagram on page 71. For slip complaints, pull the transmission cover and inspect clutch pack condition using the service procedures on page 47.

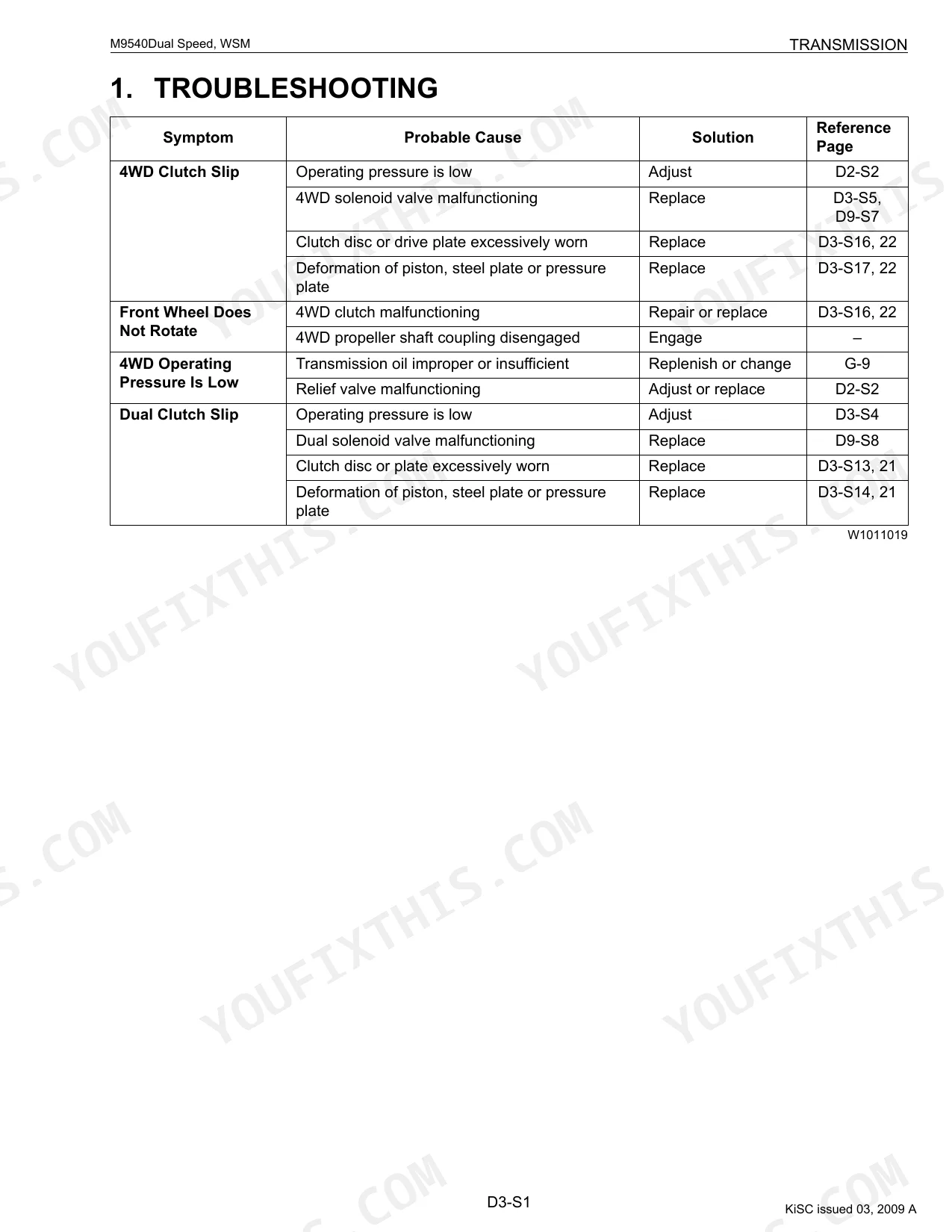

Manual Section: D3 Transmission p. 41Front wheels won't engage when 4WD switch is turned on, or front drive won't cancel
Inspect 4WD clutch disc thickness first; the allowable limit is 1.9 mm per page 42, and discs worn past that slip under any load. If the discs measure good, follow the D3 Transmission troubleshooting on page 41 for clutch pressure checks. Trace the engagement circuit in the D9 Electrical System on page 67 if mechanical parts pass inspection.
Manual Section: D3 Transmission p. 41Frequently Asked Questions
What are the torque specs for Kubota M9540 wheel lug nuts / axle bolts / engine components?

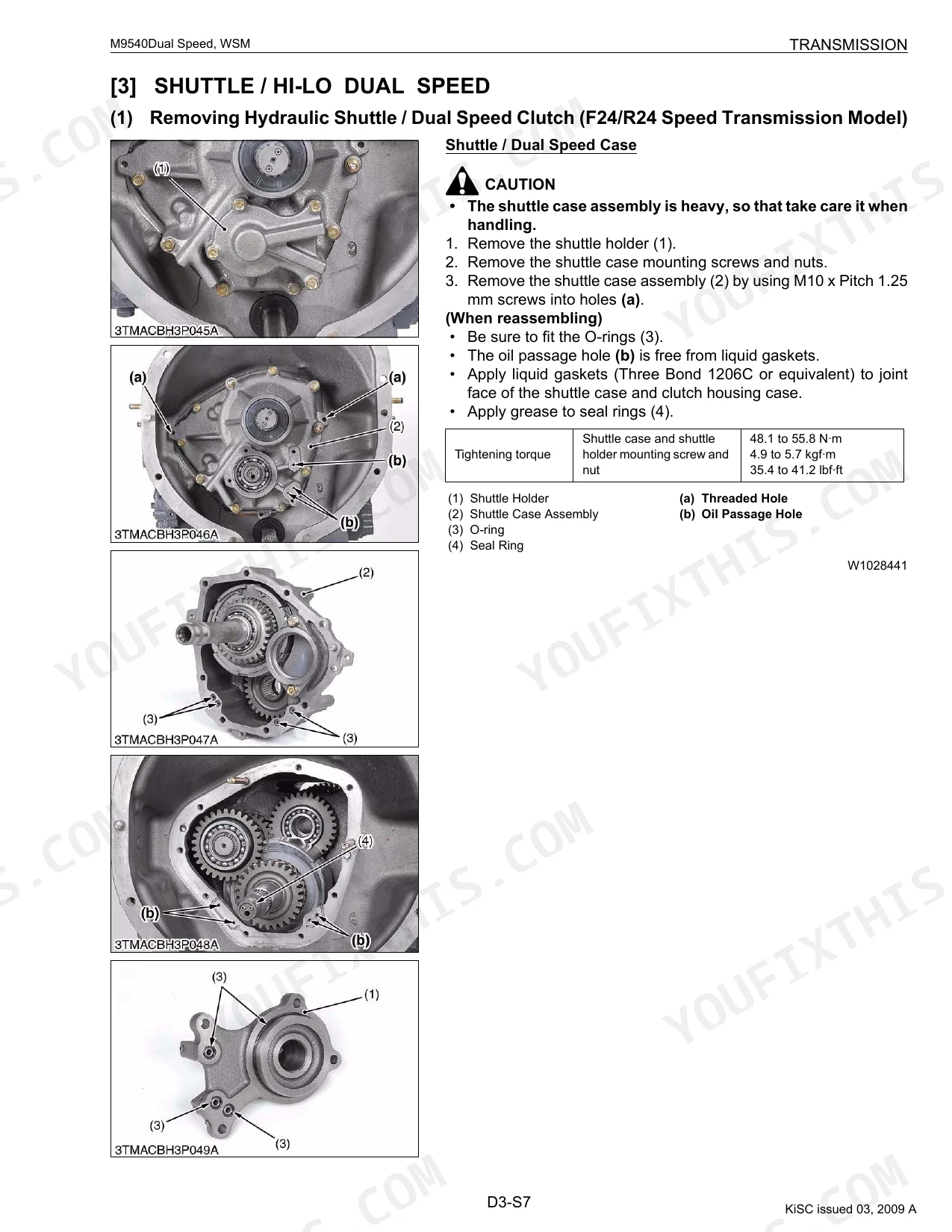

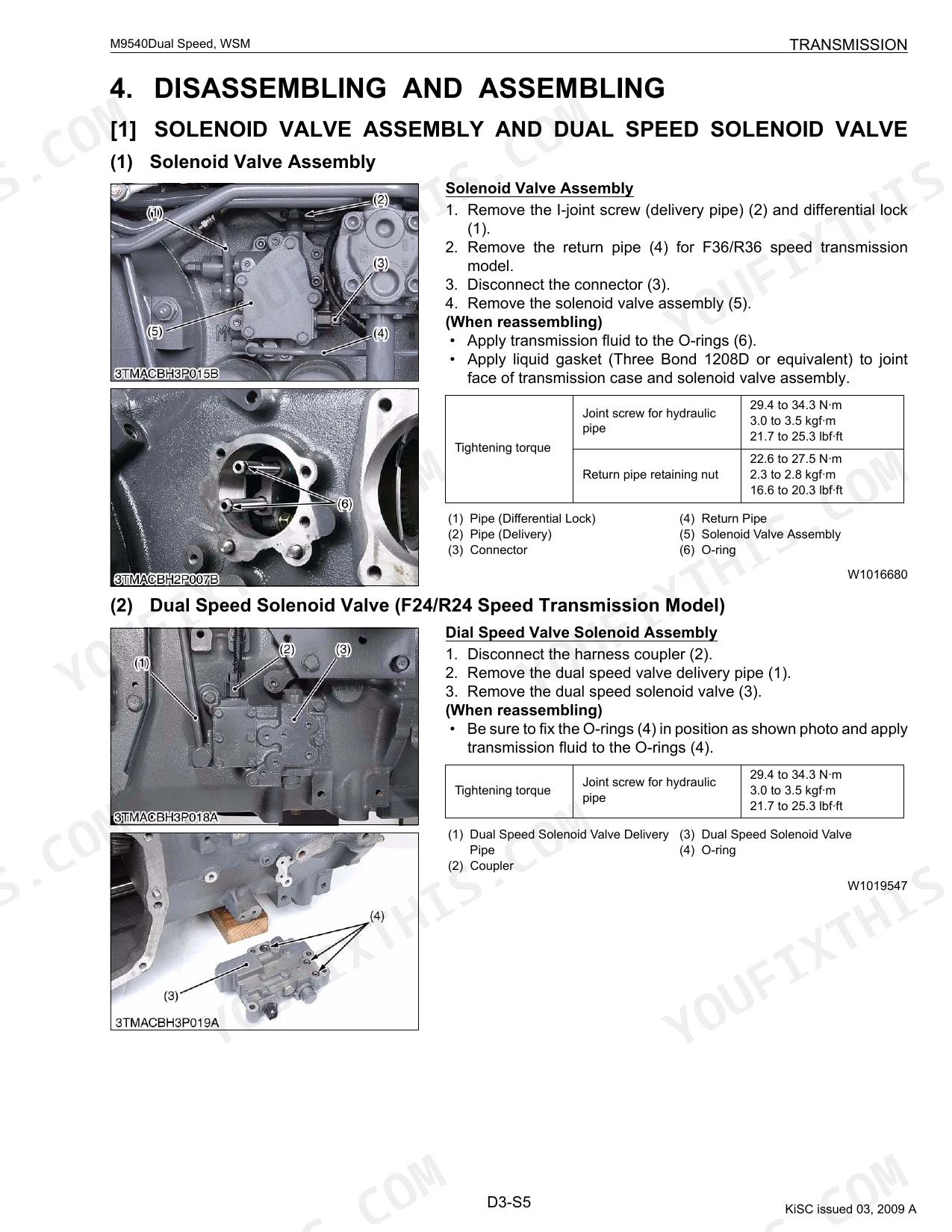

This supplement lists torque figures for hydraulic pipes and clutch components, but not for wheel lug nuts, axle bolts, or engine parts. The hydraulic pipe joint screw, for example, tightens to 29.4 to 34.3 N·m (3.0 to 3.5 kgf·m, 21.7 to 25.3 lbf·ft). The shuttle case and shuttle holder mounting screw and nut tighten to 48.1 to 55.8 N·m (4.9 to 5.7 kgf·m, 35.4 to 41.2 lbf·ft). p. 45
How do I troubleshoot Kubota M9540 hydraulic or PTO problems?
For PTO clutch faults, the table on page 23 covers symptoms like 'PTO Clutch Slip' and 'PTO Shaft Does Not Rotate', usually traced to low operating pressure or a bad PTO solenoid valve. Hydraulic issues tied to the 4WD or Dual Speed clutches sit in the troubleshooting tables on pages 41 and 79. Both list probable causes, from low pressure to defective solenoids to worn clutch components, and point you to fixes such as adjusting pressure or replacing parts. p. 23
How do I put the Kubota M9540 into park lock / neutral correctly?
Park on firm, level ground and set the parking brake before servicing or dismounting. On a slope, position the tractor across the grade. Put both shift levers (main shift and shuttle) in Neutral, stop the engine, and pull the key. Lower every implement to the ground before you step off. p. 9
How do I check the 4WD clutch discs on the Kubota M9540 Dual Speed?
Pull the transmission cover and measure 4WD clutch disc thickness. The allowable minimum is 1.9 mm per page 42. Discs worn past that limit will slip under any load. If disc thickness is within spec, follow the D3 Transmission troubleshooting tables on page 41 for clutch pressure checks and solenoid valve resistance. p. 42
What format is this manual in?
Instant PDF download. The full 87-page searchable Workshop Manual lands in your hands right after payment. Open it on a laptop, tablet, or phone out in the shop.
Is this Kubota M9540 Dual Speed Workshop Manual printable?
Yes. The PDF carries no DRM, so you can print any page or section you need for the shop. It works with any standard printer.
Can I find hydraulic circuit diagrams in this Kubota M9540 Dual Speed manual?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
