Part of the Kubota Operator Manuals.
This operator manual covers Kubota's common-rail diesel engines, including the V1505-CR-TE5, D1803-CR-E5, V2403 series, V2607 series, V3307 series, and V3800-CR-TE5. Across 62 pages it gives owners and technicians the day-to-day operating and maintenance information these engines need.You get starting procedures for normal and cold-weather conditions, checks to run during operation, and guidance on the diesel particulate filter, air flow sensor, and emission control system. The maintenance chapters lay out service intervals, daily checks, and the regular work due at the 50, 100, 250, 400, and 500 hour points.It also includes carriage and storage steps, a troubleshooting chart for hard starting and overheating, the operator warning and inducement behaviour tied to emission faults, and full specification tables. The manual is a downloadable PDF you can print or keep on any device.
What's Inside This Kubota Common Rail Diesel Engines Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 7-12 | Safe Clothing and Personal Protective Equipment (Ppe), Check Before Starting & Operating, Keep Engine and Surroundings Clean, Safe Handling of Fuel and Lubricants |
| Servicing of the Engine | 13 | - |
| Names of Parts | 14-19 | Diesel Particulate Filter (DPF), EGR Valve, Turbo-Charger, Alternator, Oil Filter Cartridge, Cooling Fan |
| Pre-Operation Check | 20 | Break-In, Daily Check |

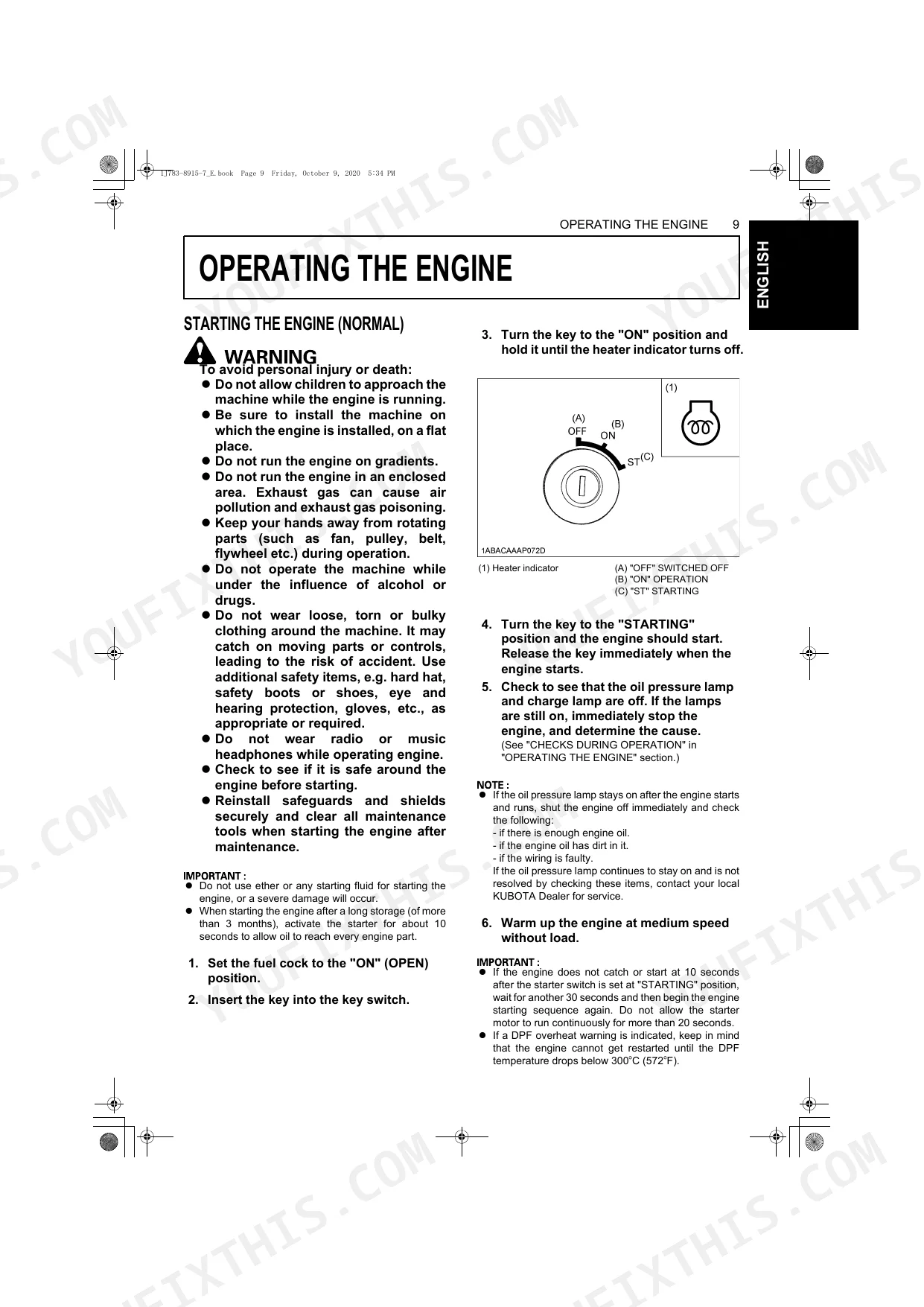

| Operating the Engine | 21-24 | Starting the Engine, Cold Weather Starting, Stopping the Engine, Checks During Operation, Diesel Particulate Filter, Air Flow Sensor, Emission Control System |

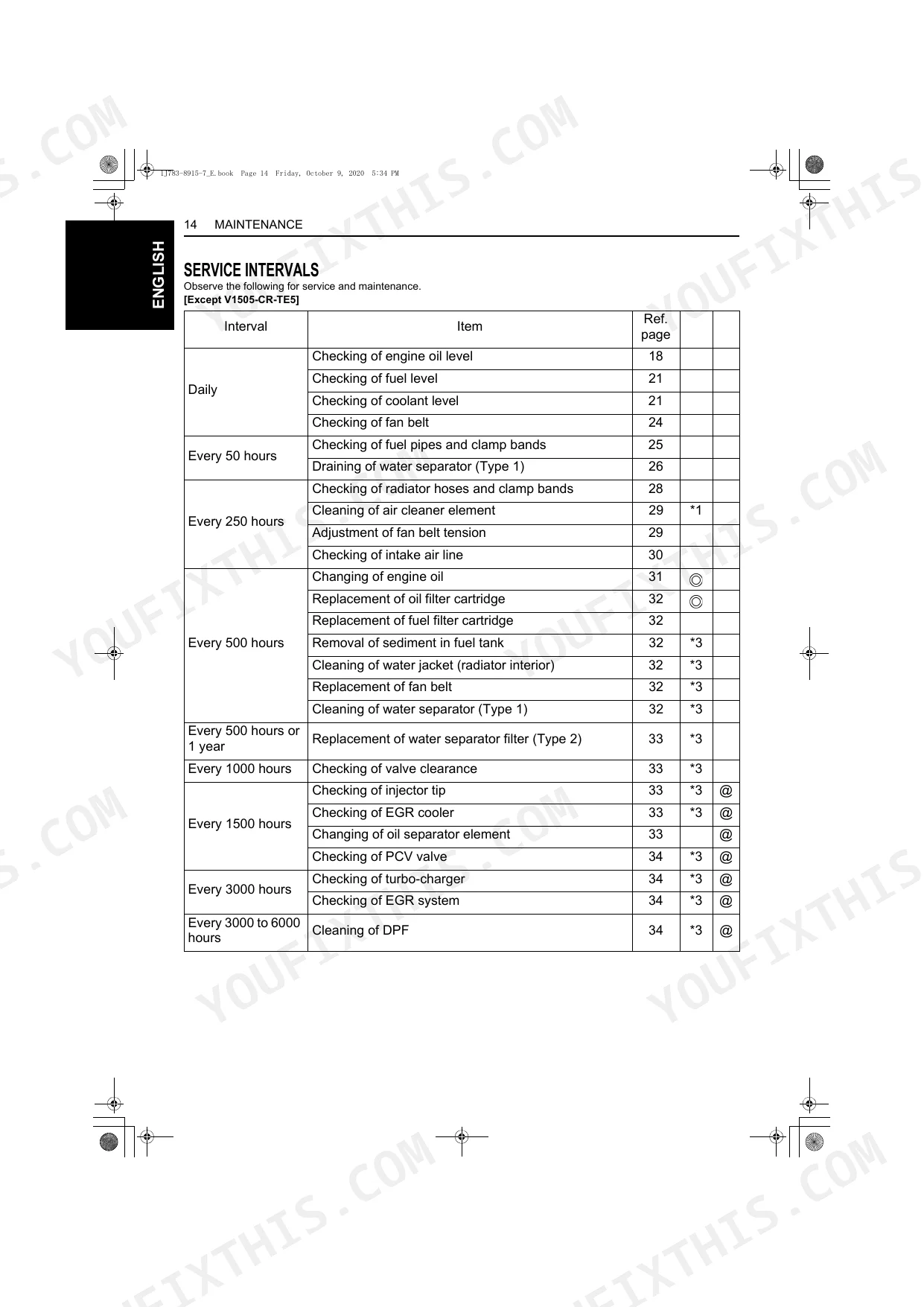

| Maintenance | 25-36 | Service Intervals, Daily Checks |

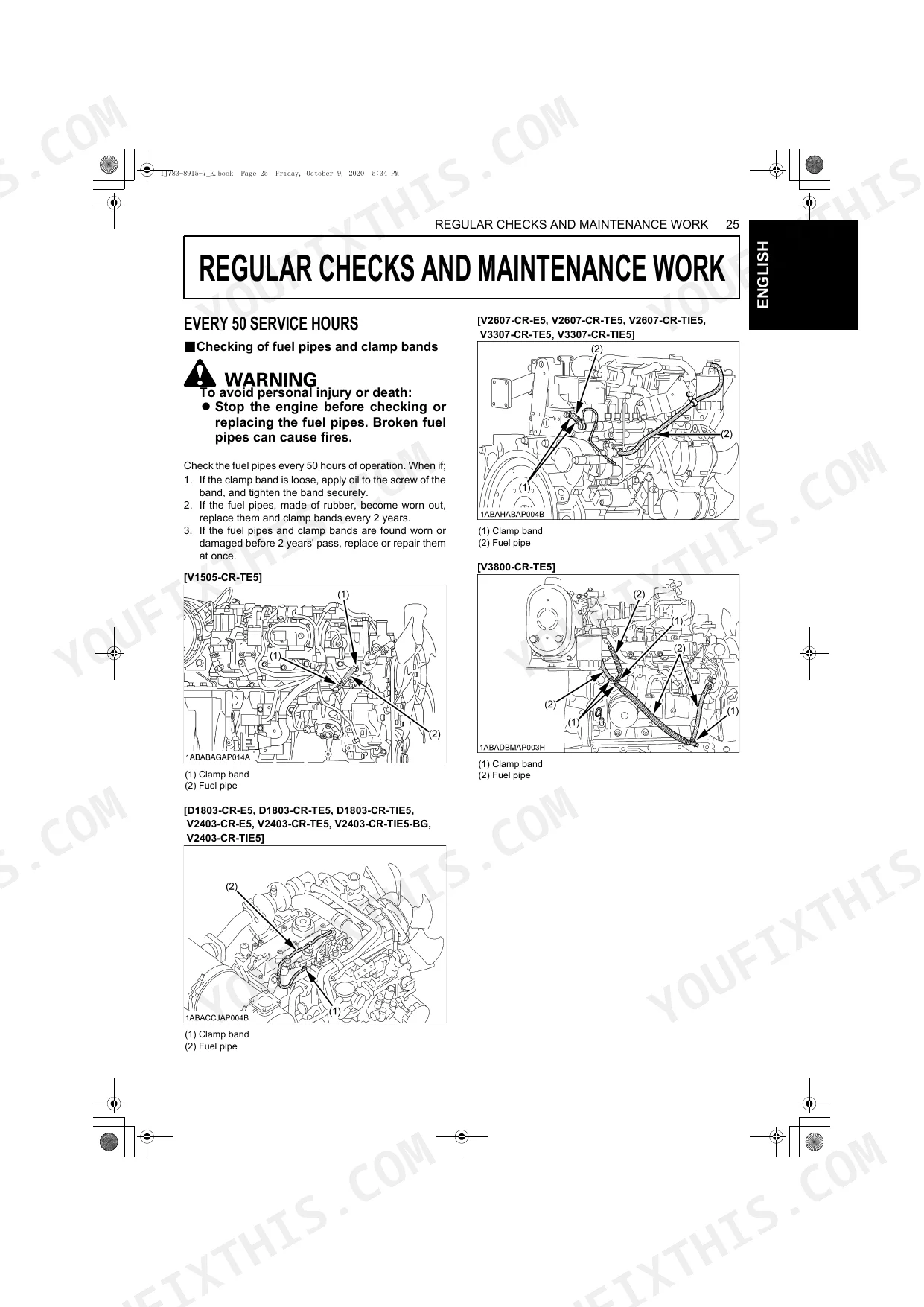

| Regular Checks and Maintenance Work | 37-48 | Every 50 Service Hours, Every 100 Service Hours, Every 250 Service Hours, Every 400 Service Hours, Every 500 Service Hours, Every 500 Service Hours or 1 Year |
| Carriage and Storage | 49 | Carriage, Storage |

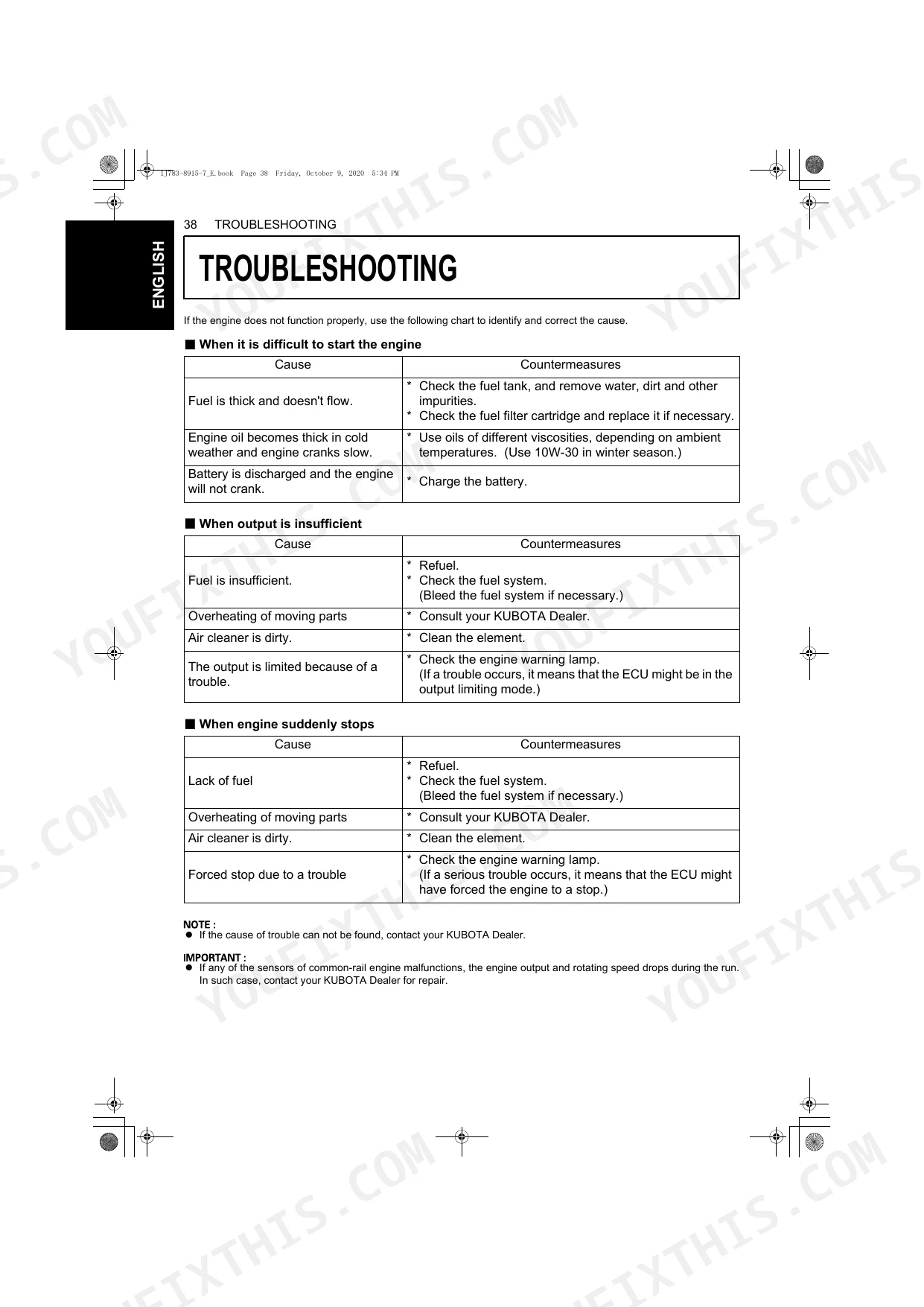

| Troubleshooting | 50-51 | Difficult to Start, Output Insufficient, Engine Suddenly Stops, Engine Must Be Stopped Immediately, Engine Overheats |
| Operator Warning and Inducement | 52-55 | Warning Signal for Emission Failure, Warning Indicator, Inducement for Emission Failure, Reduction Level 1, Reduction Level 2, Repeat Tampering |

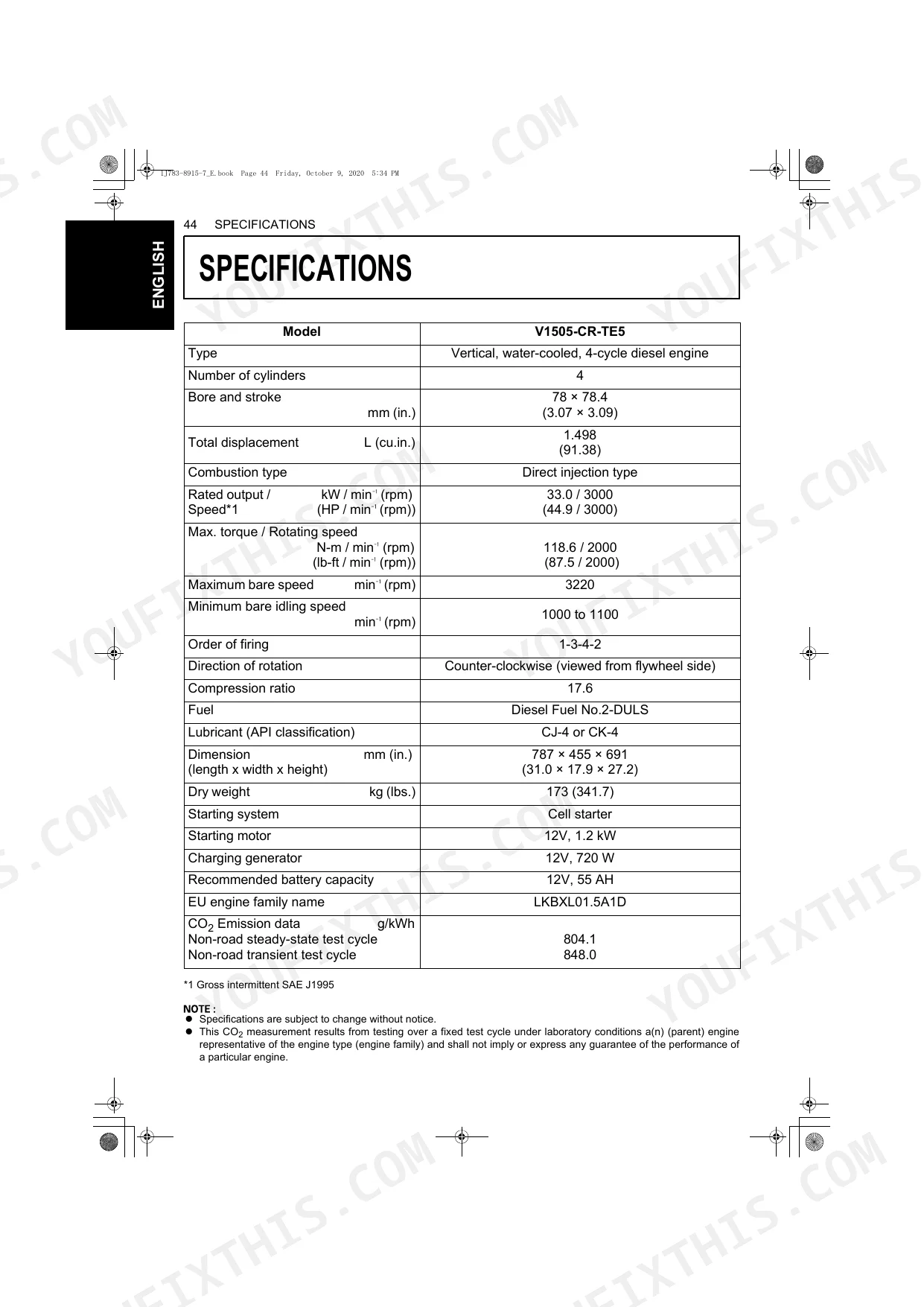

| Specifications | 56-62 | Type, Number of Cylinders, Total Displacement, Rated Output / Speed, Max. Torque / Rotating Speed, CO2 Emission Data |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| V1505-CR-TE5 | ||
| Max. torque / Rotating speed | 118.6 N-m (87.5 lb-ft) at 2000 rpm | p. 56 |
| Oil filter cartridge replacement interval | Every 400 hours | p. 30 |
| Fuel filter cartridge replacement interval | Every 400 operating hours | p. 31 |
| D1803-CR-E5 | ||
| Injector tip check | Consult your local KUBOTA Dealer for this service. | p. 33 |
| V2403-CR-TE5 | ||
| Max. torque / Rotating speed | 198.5 N-m (146.4 lb-ft) at 1600 rpm | p. 58 |
| V2403-CR-TIE5 | ||
| Injector tip check | Consult your local KUBOTA Dealer for this service. | p. 33 |
| V2607-CR-TIE5 | ||
| Max. torque / Rotating speed | 269.0 N-m (198.4 lb-ft) at 1600 rpm | p. 59 |
| V3800-CR-TE5 | ||
| Max. torque / Rotating speed | 310.0 N-m (228.7 lb-ft) at 1500 rpm | p. 61 |
| D1803-CR-E5, D1803-CR-TE5, D1803-CR-TIE5, V2403-CR-E5, V2403-CR-TE5, V2403-CR-TE5-BG, V2403-CR-TIE5, V2607-CR-E5, V2607-CR-TE5, V2607-CR-TIE5, V3307-CR-TE5, V3307-CR-TIE5, V3800-CR-TE5, V3800-CR-TE5-BG | ||
| Oil filter cartridge replacement interval | Every 400 hours | p. 32 |
| Fuel filter cartridge replacement interval | Every 400 hours | p. 32 |
| All Models | ||
| Air cleaner element cleaning interval | Every 250 hours (more often in dusty conditions) | p. 26 |
| Air cleaner evacuator valve cleaning interval | Once a week (or daily in dusty places) | p. 27 |
Kubota Common Rail Diesel Engines Common Problems This Manual Covers
Engine derates until DPF is serviced
These emission-controlled engines can reduce power or refuse normal work when the diesel particulate filter needs regeneration or service. The operator warning and inducement section explains the warning signals, reduction levels, and what each stage means.
Manual Section: Operator Warning and Inducement p. 52Engine cranks but will not start
Hard starting is often traced to fuel contamination, air in the fuel system, or a weak battery rather than serious engine damage. The troubleshooting section lists the likely causes for a no-start and where to look.
Manual Section: Troubleshooting p. 50Oil pressure warning lamp stays on
A low oil level or a lubrication fault triggers the oil-pressure lamp, and the manual calls for stopping the engine immediately to check. The operating section covers the checks to run during operation and the lamps to watch.
Manual Section: Operating the Engine p. 21Overheating or coolant loss
Low coolant, a leak, or blocked airflow around the radiator drives temperatures up under load. The troubleshooting section walks through overheating symptoms and the cooling-system points to inspect.
Manual Section: Troubleshooting p. 50Frequent oil, fuel, and air filter service
Oil filters, fuel filters, and air cleaner elements are the common replacement items across these engine families and must be changed on schedule. The maintenance section sets out the service intervals so nothing gets missed.
Manual Section: Maintenance p. 25Exhaust leaks or loose clamps
Loose clamps or a leaking exhaust are treated as a recurring safety issue during inspection because they can burn the operator or create fire risk. The safe operation section covers the checks to make before and during use.
Manual Section: Safe Operation p. 7Frequently Asked Questions
Which engines does this manual cover?
It covers Kubota's common-rail diesel engine range, including the V1505-CR-TE5, D1803-CR-E5, D1803-CR-TE5, D1803-CR-TIE5, the V2403, V2607, and V3307 series, and the V3800-CR-TE5 and V3800-CR-TE5-BG.
Does it cover the DPF and emission system?
Yes. The Operating the Engine section explains the diesel particulate filter, air flow sensor, and emission control system, and the operator warning and inducement chapter details the derate behaviour when a fault occurs. p. 21
Where are the specifications and torque figures?
The Specifications section lists type, cylinder count, displacement, rated output and speed, and maximum torque and rotating speed for the covered models, so you can confirm the figures for your exact engine. p. 56
Does it include service intervals?
Yes. The Maintenance section lays out the service intervals and daily checks, and the regular checks chapter details the work due at each hour milestone from 50 hours onward. p. 25
What do I get after purchasing this Kubota V1505-CR-TE5 & variants manual?
Immediate download of the complete 62-page searchable Operator Manual. Open it on any device, whether that is a laptop at your desk or a phone out in the field.
Am I able to print pages from this Kubota V1505-CR-TE5 & variants manual?
Yes. There is no DRM or copy protection, so print the entire manual or just the pages you need. Any home or office printer handles it.
