This is the Kubota M4700 and M5400 operator manual, covering both tractors powered by the F2803-LA and F2803-A diesel engines. Its 72 pages take the owner from safe operation and daily checks through to storage, with the manufacturer procedures for running and maintaining the machine.
Inside you will find the specification table, instrument panel and control layout, engine starting and stopping steps, PTO and three-point hitch operation, remote hydraulic control, and tire and ballast setup. The maintenance chapters break service into 100-hour, 200-hour, and two-year intervals.
Owners and independent mechanics use this PDF to confirm the correct starting sequence, torque figures, fluid capacities, and service schedule for the M4700 and M5400, plus a troubleshooting chart for common engine complaints.
What's Inside This Kubota M4700, M5400 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Cover and Contents | 1-6 | Operator's Manual for Kubota M4700 and M5400, Model Identification, Table of Contents |
| Safe Operation | 7-12 | Before Operating the Tractor, Operating the Tractor, Parking the Tractor, Servicing the Tractor, Danger/Warning/Caution Labels |

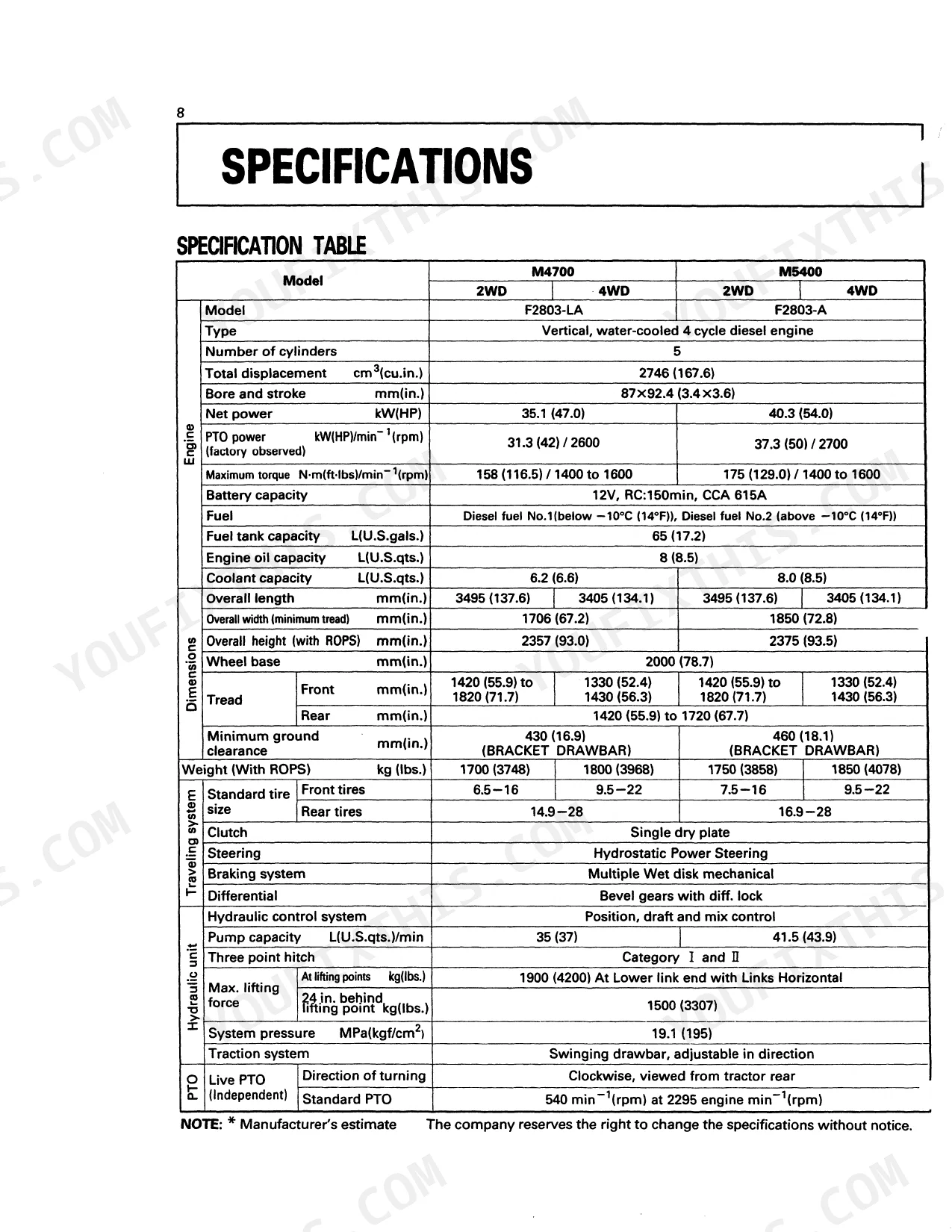

| Servicing of Tractor, Specifications and Implement Limitations | 13-17 | Tractor Identification, Specification Table, Traveling Speeds, Tread with Farm Tires, Lower Link Capacity |

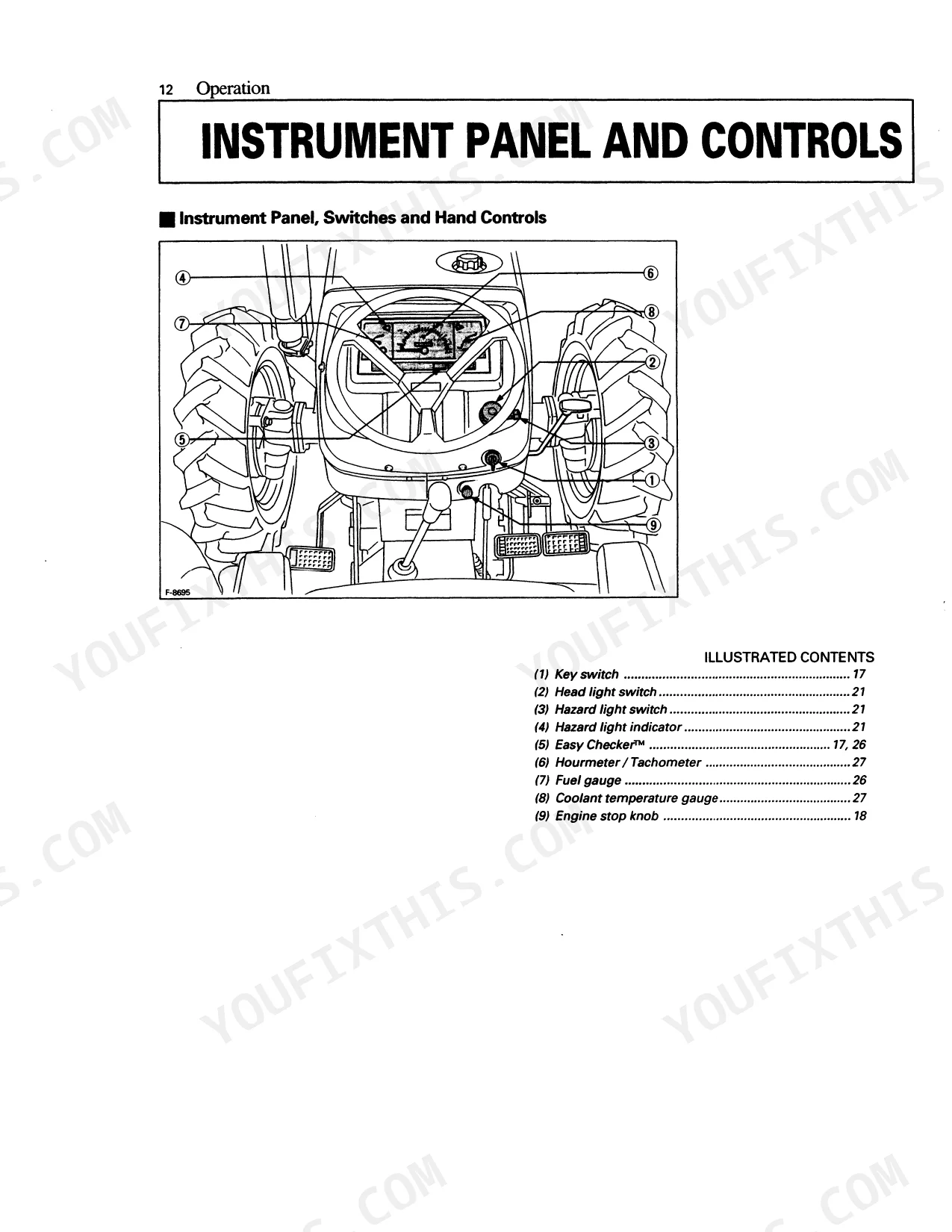

| Instrument Panel and Controls | 18-19 | Key Switch, Easy Checker, Hourmeter/Tachometer, Switches and Levers |

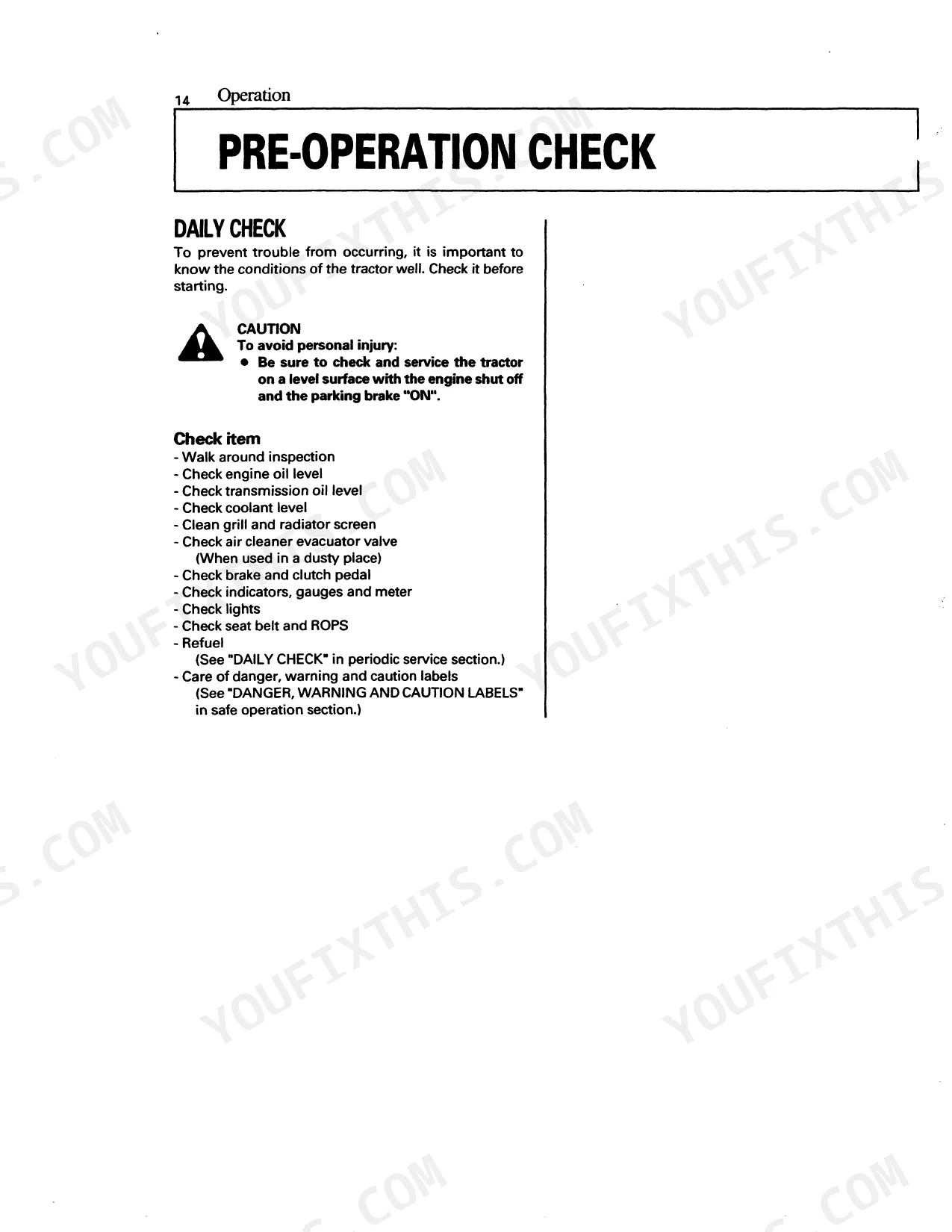

| Pre-Operation Check | 20 | Daily Check |

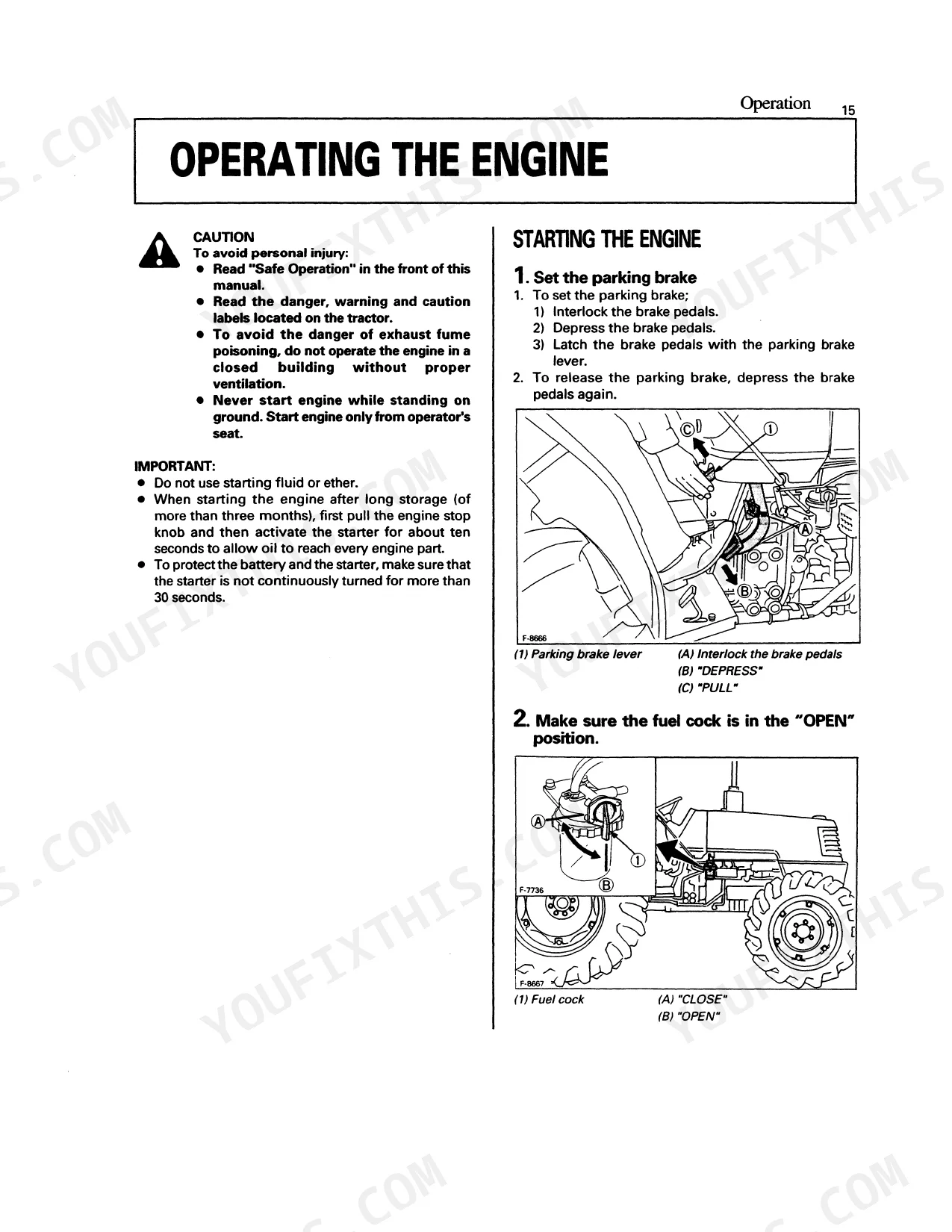

| Operating the Engine | 21-25 | Starting the Engine, Parking Brake, Cold Weather Starting, Stopping the Engine, Jump Starting |
| Operating the Tractor | 26-35 | Operating a New Tractor, Starting, Stopping, Check During Driving, Parking, Differential Lock, Road Operation, Slopes and Rough Terrain |

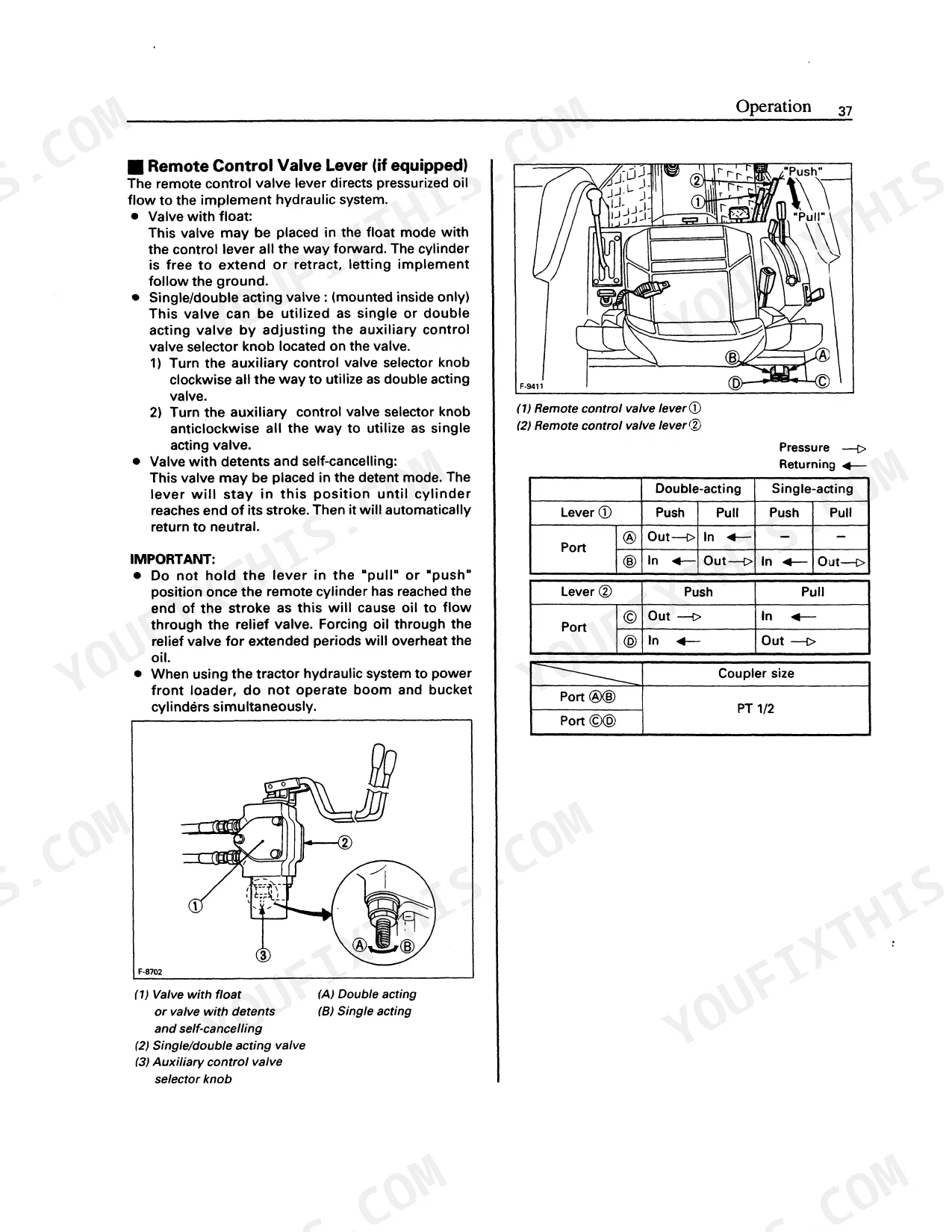

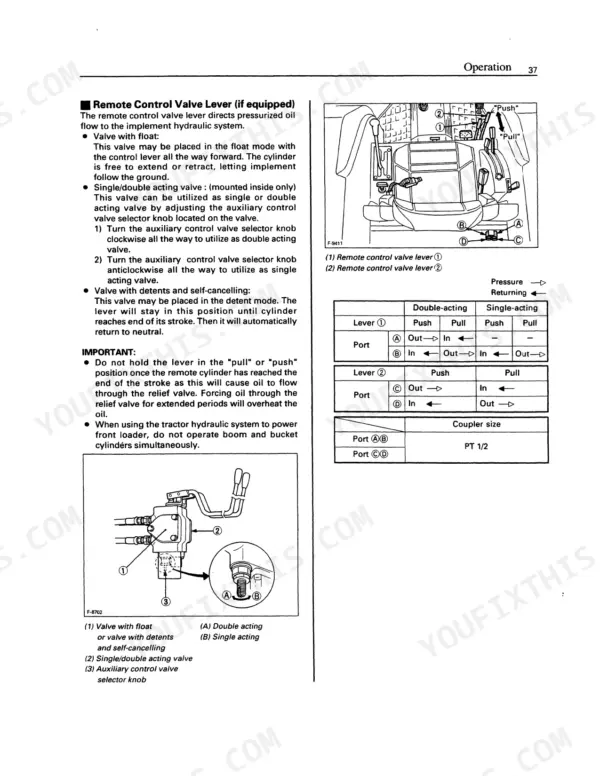

| PTO, Three-Point Hitch, Drawbar and Hydraulics | 36-44 | PTO Operation and Shaft Cover, Top Link, Lifting Rod, Telescopic Stabilizer, Drawbar, Hydraulic Unit, Draft and Position Control, Float Control, Remote Hydraulic Control System and Coupler |
| Tires, Wheels and Ballast | 45-48 | Tires, Wheel Adjustment, Ballast, Weight Distribution |
| Maintenance | 49-53 | Service Intervals, Lubricants, Periodic Service |
| Service Intervals | 54-66 | Every 50 Hours (Wheel Bolt Torque), Every 100 Hours (Engine Oil Change, Grease Fittings), Every 200 Hours (Engine Oil Filter, Hydraulic Filter), Every 400 Hours, Every 800 Hours, Every 2 Years (Coolant Change), Service As Required |
| Storage | 67 | Tractor Storage, Removing the Tractor From Storage |
| Troubleshooting | 68 | Engine Troubleshooting, Engine Difficult to Start, Output Insufficient, Overheating |
| Options | 69-72 | Under Muffler, Smv Emblem, Work Light, Double-Acting Remote Valve, Dealer Contact |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front wheel bolt torque | 168 to 196 N•m (17.1 to 20.0 kgf•m) (123.9 to 144.6 ft-lbs) | p. 54 |
| Rear wheel bolt torque | 260 to 304 N•m (26.5 to 31.0 kgf•m) (191.8 to 224.2 ft-lbs) | p. 54 |
| Battery capacity | 12V, RC:150min, CCA 615A | p. 14 |
| Battery condition check interval | every 100 Hr | p. 49 |
| Fuel filter element cleaning interval | every 100 Hr | p. 49 |
| Fuel filter element replacement interval | every 400 Hr | p. 49 |
| Air cleaner Primary element cleaning pressure | under 686kPa (7kgf/cm², 99 psi) | p. 57 |
| Air cleaner Primary element replacement interval | Once yearly or after every sixth cleaning | p. 57 |
| Engine oil filter replacement interval | every 200 Hr | p. 49 |
| Hydraulic oil filter replacement interval | every 200 Hr | p. 49 |
| Radiator hose and clamp replacement interval | every 2 years | p. 49 |
| Fan belt tension (deflection) | 7 to 9 mm (0.28 to 0.34 in.) | p. 58 |
Kubota M4700, M5400 Common Problems This Manual Covers
Tractor will not start or starts intermittently
A weak battery, loose connections, low fuel, or skipping the pre-start sequence leaves the engine cranking without firing. The troubleshooting section lists the checks for hard starting and related engine faults.
Manual Section: Troubleshooting p. 68Loss of power under load
Clogged filters, a dirty air intake, or low fuel flow rob the engine of power during work. The 100-hour service section covers cleaning the air cleaner primary element and the fuel filter element.
Manual Section: Every 100 Hours p. 55Hydraulics or PTO do not engage properly
Incorrect lever position or low fluid keeps the PTO or three-point hitch from responding. The PTO section explains correct PTO operation and engagement.
Manual Section: PTO p. 36Overheating or temperature warning
Low coolant, debris in the radiator screen, or blocked airflow drives the coolant temperature up during use. The pre-operation daily check covers the fluid and airflow inspections that catch this early.
Manual Section: Pre-Operation Check p. 20Abnormal brake or steering feel
Low fluid, wear, or adjustment drift can make the brakes or power steering feel wrong, which the manual treats as a safety concern to inspect before continued use. The 200-hour service section covers checking the power steering line and related items.
Manual Section: Every 200 Hours p. 59Tractor rolls or moves when parked
Skipping PTO disengagement, neutral lever positions, or the parking brake lets the machine move after shutdown. The parking section lays out the full shutdown and key-removal sequence.
Manual Section: Parking the Tractor p. 9Frequently Asked Questions
Which models and engines does this manual cover?
It covers the Kubota M4700 and M5400 tractors, fitted with the F2803-LA and F2803-A diesel engines. It is the factory operator manual for both models.
What are the wheel bolt torque specs?
The maintenance data gives front wheel bolt torque of 168 to 196 N-m (123.9 to 144.6 ft-lbs) and rear wheel bolt torque of 260 to 304 N-m (191.8 to 224.2 ft-lbs). p. 49
How often should I change the oil and filters?
The maintenance section sets the engine oil filter and hydraulic oil filter at every 200 hours, the fuel filter element at every 400 hours, and lists the 100-hour and two-year tasks. p. 49
How do I start the engine correctly?
The Operating the Engine section walks through setting the parking brake, opening the fuel cock, checking the engine stop knob, placing levers in neutral, and the preheat and start steps. p. 21
Is this Kubota M4700 manual a download or a disc?
Yes. The full 72-page searchable Operator Manual downloads as a PDF the moment payment clears, ready to open on a laptop, tablet, or phone out in the shop.
Are there any print restrictions on this manual?
None. The PDF ships DRM-free, so print whatever sections you want to carry out to the shop. Standard letter or A4 paper both work fine.
