This is the factory Kubota M5-091 and M5-111 Operator's Manual, a 142-page PDF for these utility tractors built on the V3800-TIEF4 diesel engine (U.S. edition). It is the owner and operator reference for running and maintaining the tractor, not a full workshop repair manual.The manual covers safe operation, the instrument panel and controls, the dual exhaust aftertreatment system with DPF and DEF/AdBlue, starting and operating the engine and tractor, the PTO, three-point hitch, hydraulic unit, tires, and ballast. Maintenance, storage, and troubleshooting chapters round it out with service intervals and fluid capacities.Use it to manage DEF/AdBlue and DPF regeneration, keep the tractor on its service schedule, set wheel bolt torque, adjust the three-point hitch and remote hydraulics, and diagnose engine, emissions, and power train faults. It downloads as a printable PDF for the shop, cab, or phone.
What's Inside This Kubota M5-091, M5-111 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Universal Symbols | 3-4 | General, Engine-Related, Vehicle Body-Related, Hydraulic-Related, Electric-Related |
| Safe Operation | 13-24 | Before Operating the Tractor, Cab, ROPS, Parking the Tractor, Operating the PTO, Using 3-Point Hitch, Servicing the Tractor, Danger |
| Servicing of Tractor | 25-26 | Tractor Identification Plate, Tractor Serial Number, Engine Serial Number, Warranty, Scrapping the Tractor and Its Procedure, ROPS Identification Plate |
| Specifications | 27-29 | Specification Table (Engine, Dimensions, Weight, Traveling System, Hydraulic Unit, PTO), Traveling Speeds (Model M5-091, M5-111) |

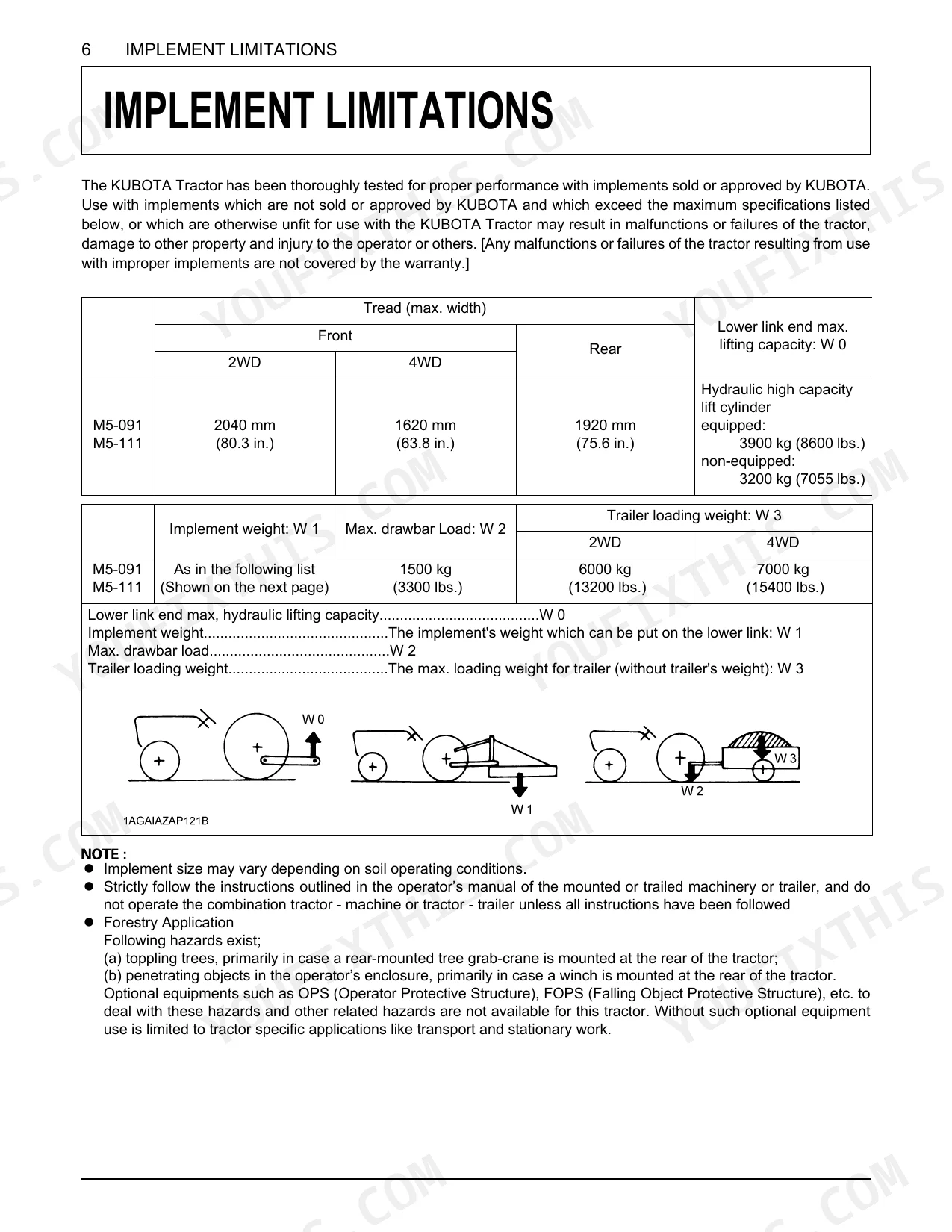

| Implement Limitations | 30-31 | Tread, Implement Weight, Max. Drawbar Load, Trailer Loading Weight, Lower Link End Max. Hydraulic Lifting Capacity, Forestry Application, Implement Specifications Table |

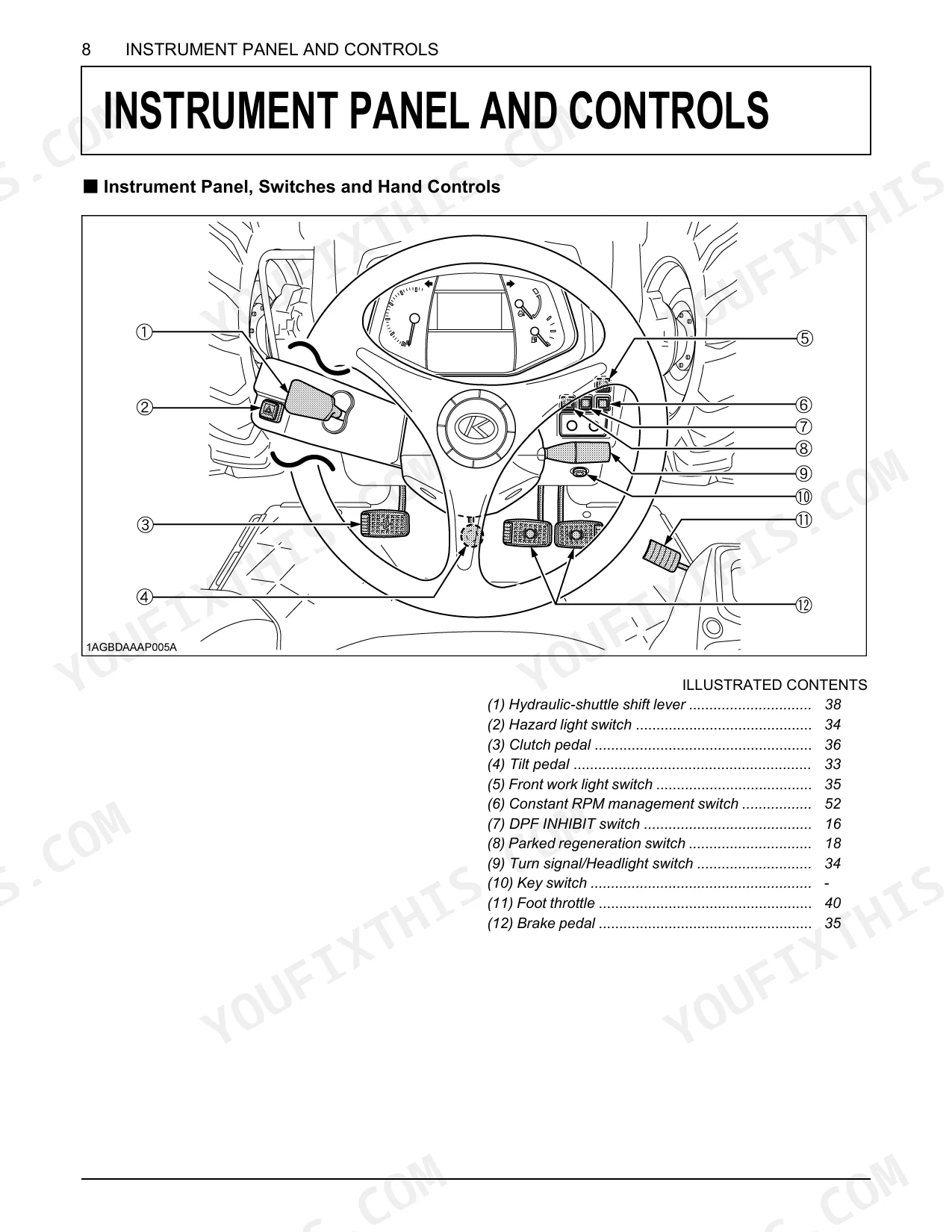

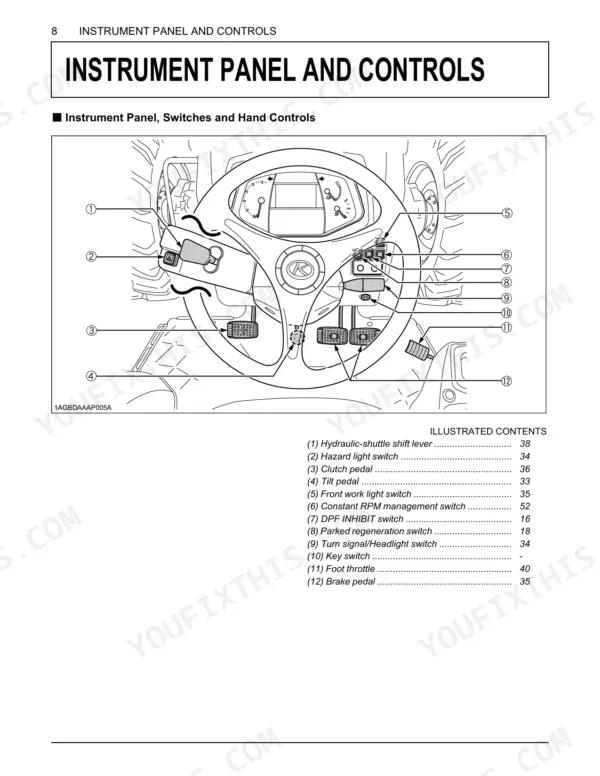

| Instrument Panel and Controls | 32-34 | Instrument Panel, Switches and Hand Controls (Illustrated Contents), Foot and Hand Controls (Illustrated Contents) |
| Pre-Operation Check | 35 | Daily Check (Check Item), Walk Around Inspection, Checking and Refueling, Checking the DEF/AdBlue® Level and Adding the Fluid |

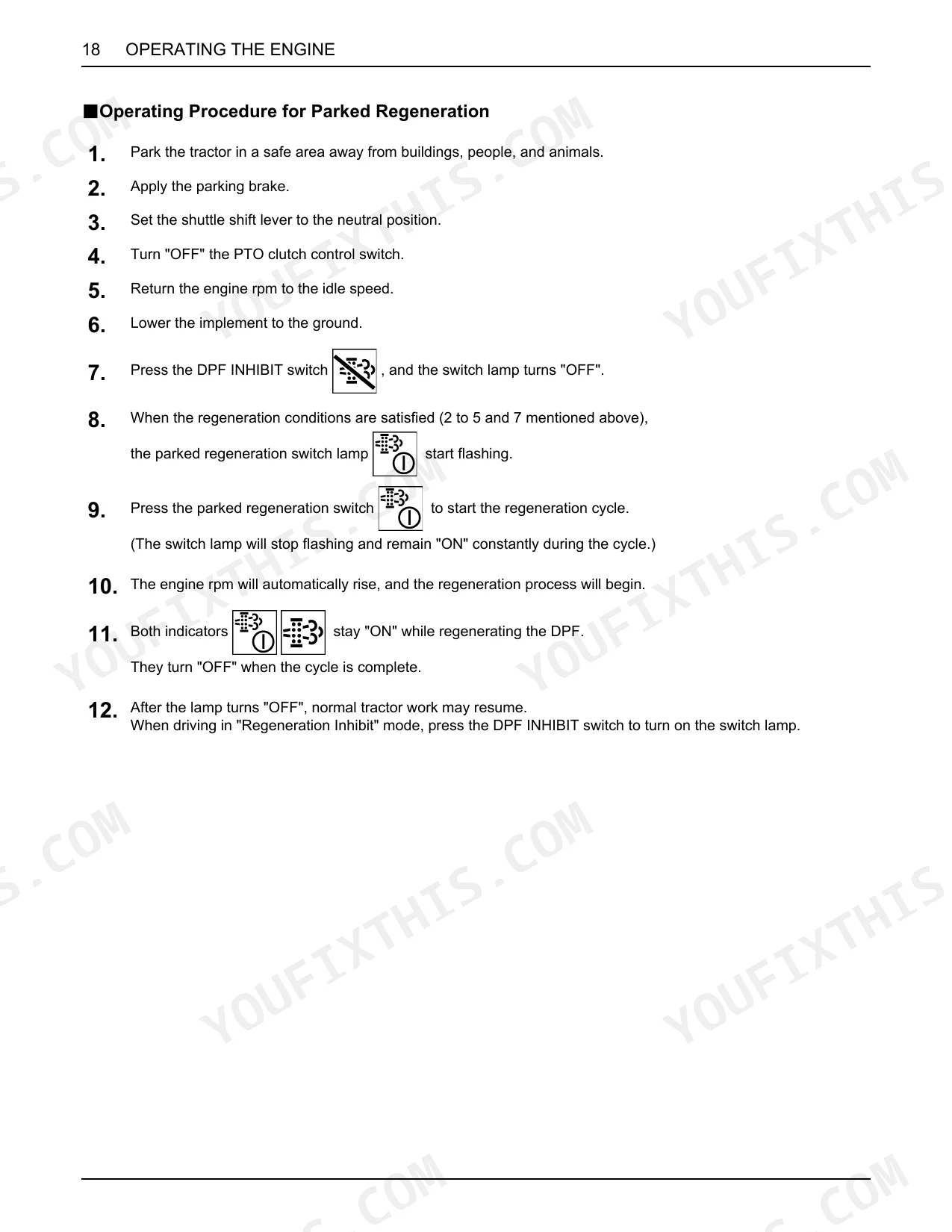

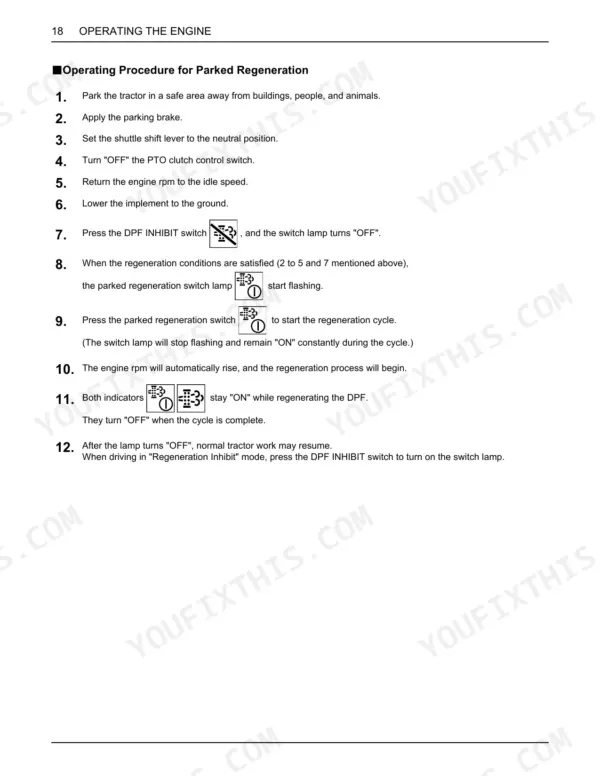

| Operating the Engine | 36-53 | Exhaust Aftertreatment Devices, Dual Exhaust Aftertreatment Devices, Diesel Particulate Filter (DPF) Muffler, Handling Points, DPF Regeneration Process, Operating Procedure for Parked Regeneration, Selective Catalytic Reduction (SCR) Muffler, Outline of the SCR |

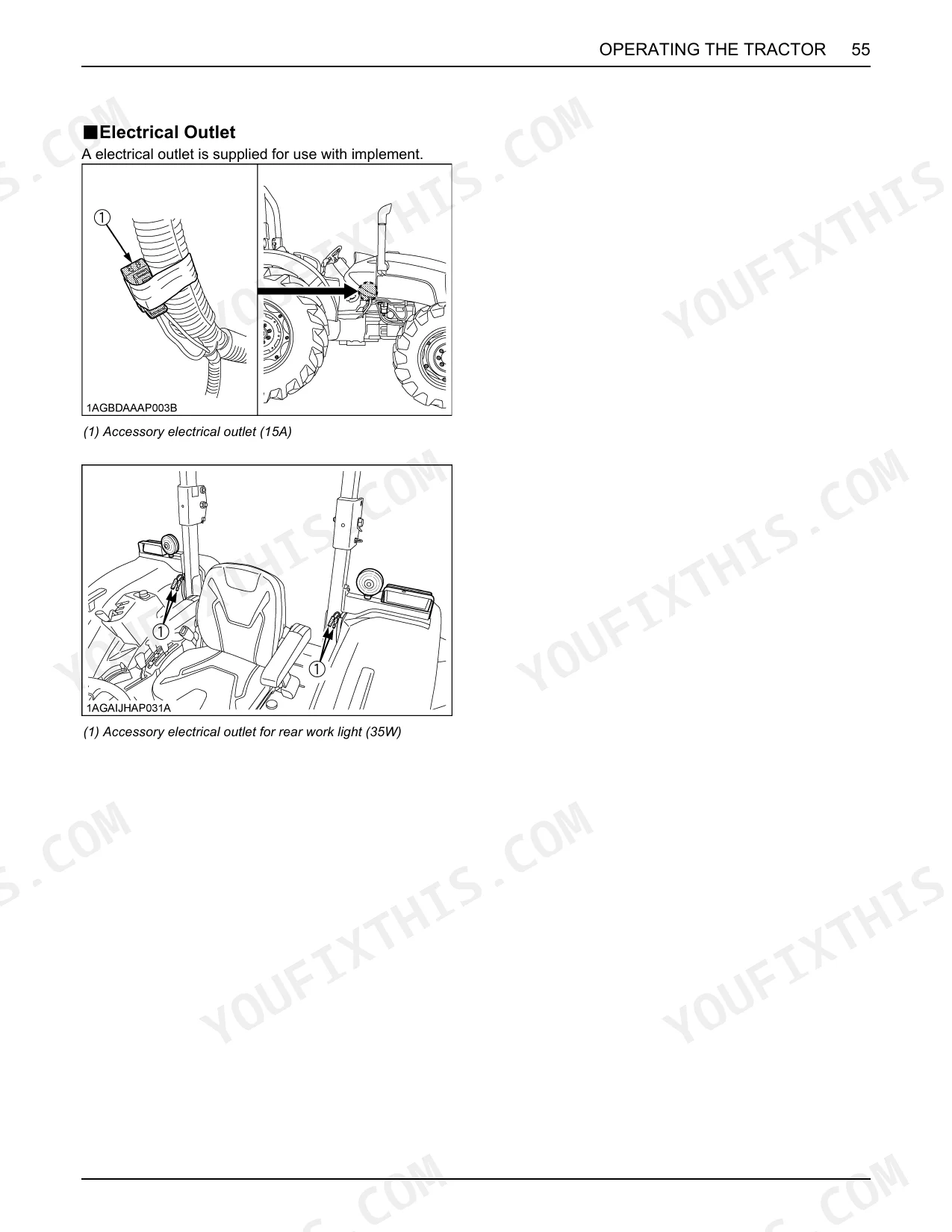

| Operating the Tractor | 54-79 | Operating New Tractor (Do Not Operate the Tractor at Full Speed for the First 50 Hours, Changing Lubricating Oil for New Tractors), Boarding and Leaving the Tractor |
| PTO | 80-83 | PTO Operation, PTO Clutch Control Switch (Turn: Off), PTO Clutch Indicator, PTO Gear Shift Lever, PTO Speed Limiter, RPM PTO Shaft (PTO Shaft Interchanging Procedure) |
| Point Hitch & Drawbar | 84-88 | Point Hitch, Drawbar |
| Hydraulic Unit | 89-94 | 3-Point Hitch Control System, Remote Hydraulic Control System, Position Control, Draft Control, Mixed Control, Float Control, 3-Point Hitch Lowering Speed, Remote Control Valve |

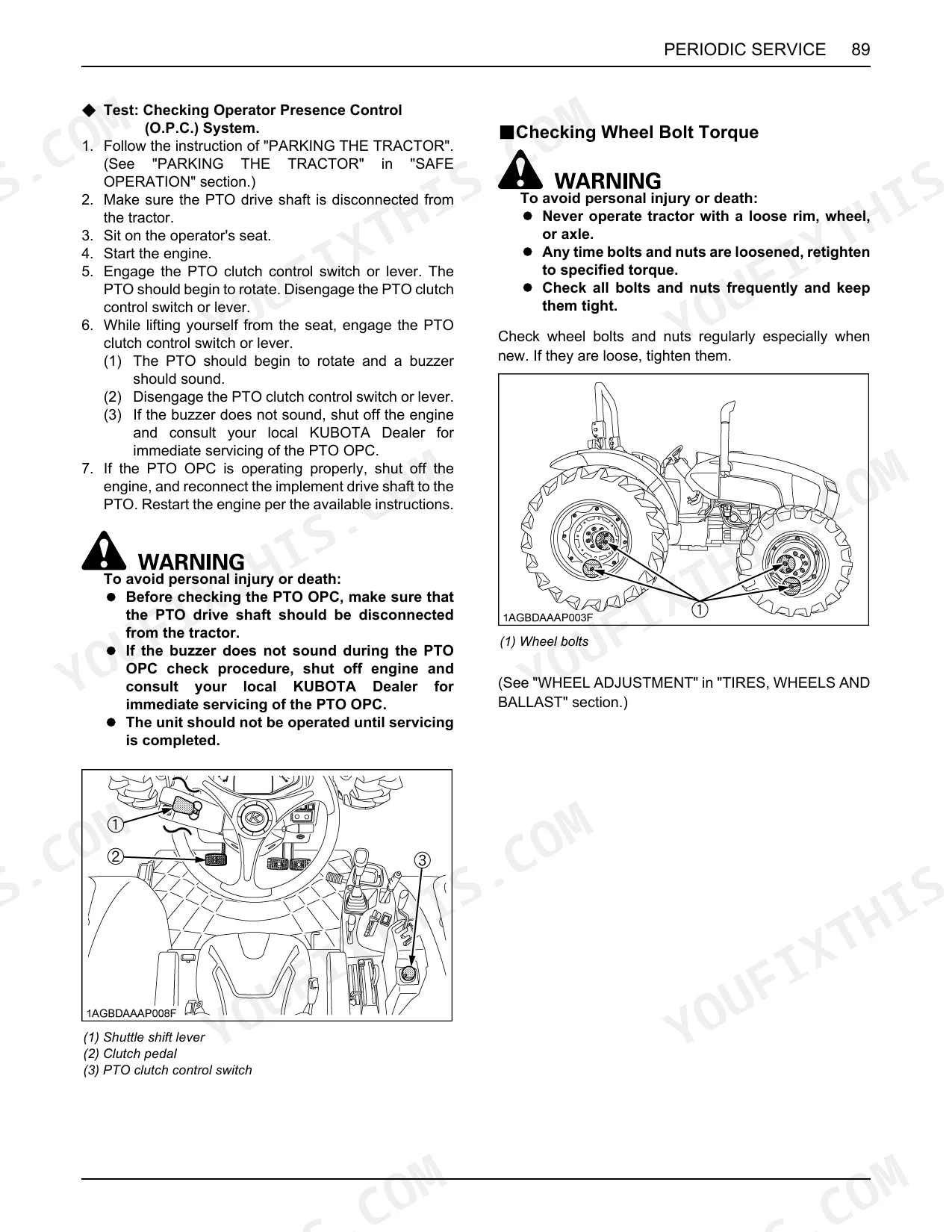

| Tires, Wheels and Ballast | 95-100 | Tires (Inflation Pressure, Dual Tires), Wheel Adjustment (Front Wheels, Rear Wheels), Ballast (Front Ballast, Rear Ballast) |
| Maintenance | 101-135 | Service Intervals (Maintenance Items Chart), Lubricants, Fuel and Coolant |
| Storage | 136 | Tractor Storage, Storage Procedures, Removing the Tractor From Storage |
| Troubleshooting | 137-139 | Engine Troubleshooting (Cause Countermeasure, Operator's Action), Power Train Trouble Shooting (Displayed Error Code Trouble) |
| Options | 140 | Consult Your Local Kubota Dealer for Further Details, Under Muffler Kit, Engine Block Heater |
| Appendices | 141-142 | Index, RPM PTO Shaft, 3-Point Hitch Lowering Speed |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front wheel bolt torque (TITAN) | 260 to 304 N-m (192 to 224 ft-lbs) | p. 97 |
| Front wheel bolt torque (Non-Waffle) | 244 N-m (180 ft-lbs) | p. 97 |
| Air cleaner primary element replacement interval | Once every 1000 hours or yearly, whichever comes first | p. 92 |
| Compressed air pressure for cleaning primary element | under 205 kPa (2.1 kgf/cm², 30 psi) | p. 92 |
| Fuel filter replacement interval | Every 500 Hours | p. 101 |
| Engine oil capacity (with filter) | 10.7 L (11.3 U.S.qts.) | p. 104 |
| Engine oil initial change interval | 50 Hr | p. 101 |
| Grease fittings lubrication interval | Every 100 hours | p. 90 |
| Grease type | Multipurpose Grease NLGI-2 OR NLGI-1(GC-LB) | p. 104 |
| DEF/AdBlue® capacity | 12.3 L (3.2 U.S.gals.) | p. 27 |
| DEF/AdBlue® composition | 32.5% urea aqueous solution | p. 44 |
| 3-point hitch lowering speed | adjusted to 2 or more seconds | p. 90 |
Kubota M5-091, M5-111 Common Problems This Manual Covers
DEF warning or engine derate after storage
Tractors that sit unused can develop DEF/AdBlue quality problems that trigger warnings, derate, or no-start behavior. The pre-operation check covers verifying and topping the DEF/AdBlue level and quality.
Manual Section: Pre-Operation Check p. 35Frequent DPF regeneration downtime
Low-duty or idle-heavy operation clogs the diesel particulate filter and forces frequent regeneration. The engine operation chapter explains the dual aftertreatment system and the regeneration procedures.
Manual Section: Operating the Engine p. 36Shuttle or clutch slip and weak response
Shuttle clutch slip or weak directional response is a reported concern on this platform. The power train troubleshooting section lists displayed error codes and the causes to check.
Manual Section: Troubleshooting p. 137Loader valve or hydraulic function problems
Loader valve wear, contamination, low fluid, or coupler issues can cause weak or erratic hydraulic function. The hydraulic unit chapter explains the hitch and remote control systems and their setup.
Manual Section: Hydraulic Unit p. 89Wheel bolts loosen and cause vibration
Wheel bolts that back off produce vibration and risk wheel damage. The tires and ballast chapter gives the wheel bolt torques, such as front bolts at 260 to 304 N-m, to re-check on schedule.
Manual Section: Tires, Wheels and Ballast p. 95Faults from overdue filter or fluid service
Skipped filter and fluid changes lead to performance and reliability problems over time. The maintenance chapter lists the service intervals, capacities, and lubricants that keep the tractor healthy.
Manual Section: Maintenance p. 101Frequently Asked Questions
Which tractors does this manual cover?
It is the operator's manual for the Kubota M5-091 and M5-111 tractors, built on the V3800-TIEF4 diesel engine. It is the U.S. edition.
Is this a repair or workshop manual?
No. It is the operator (owner's) manual covering operation, controls, and routine maintenance. It does not include full engine or transmission teardown procedures.
Does it cover DEF/AdBlue service?
Yes. The engine operation chapter covers the DEF/AdBlue system, including the 12.3 L capacity, the 32.5% urea solution, and the injector and filter service intervals. p. 36
Does it list wheel nut torque specs?
Yes. The tires and ballast chapter gives wheel bolt torques, including front TITAN bolts at 260 to 304 N-m and rear steel-disk bolts at 343 to 401 N-m. p. 95
How is this Kubota M5-091 Operator Manual delivered?
It is a 142-page searchable PDF ready to download right away. The file opens on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print a copy of this Kubota M5-091 Operator Manual for the shop?
Yes. Print as many copies as you want, with no restrictions. Plenty of mechanics print just the section they need and carry it onto the shop floor.
