This is the factory Kubota M5091N and M5101N Operator's Manual, a 152-page PDF for these utility tractors powered by the V3800-TE4 and V3800-TIE4 diesel engines (Australian English edition). It is the owner and operator reference for running and maintaining the tractor, not a full workshop teardown.The manual walks through safe operation, the instrument panel and controls, starting and operating the engine with its diesel particulate filter regeneration, the PTO, three-point hitch, hydraulic unit, and tires and ballast. Maintenance and periodic service chapters list intervals, capacities, and daily checks, followed by troubleshooting.Use it to understand DPF regeneration and PM warning levels, set up implements on the hitch, keep filters and fluids on schedule, torque the wheel bolts correctly, and work through basic engine and power train faults. It downloads as a printable PDF for the shop, cab, or phone.
What's Inside This Kubota M5091N, M5101N Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 13-24 | General, Cab and ROPS, Starting to Operate the Tractor, Working the Tractor, Safety for Children, Operating on Slopes, Driving the Tractor on the Road, Operating the PTO |
| Servicing of Tractor | 25-26 | Warranty, Scrapping the Tractor and Its Procedure |
| Specifications | 27-29 | Specification Table, Traveling Speeds |
| Implement Limitations | 30-31 | Implement Specification Table |

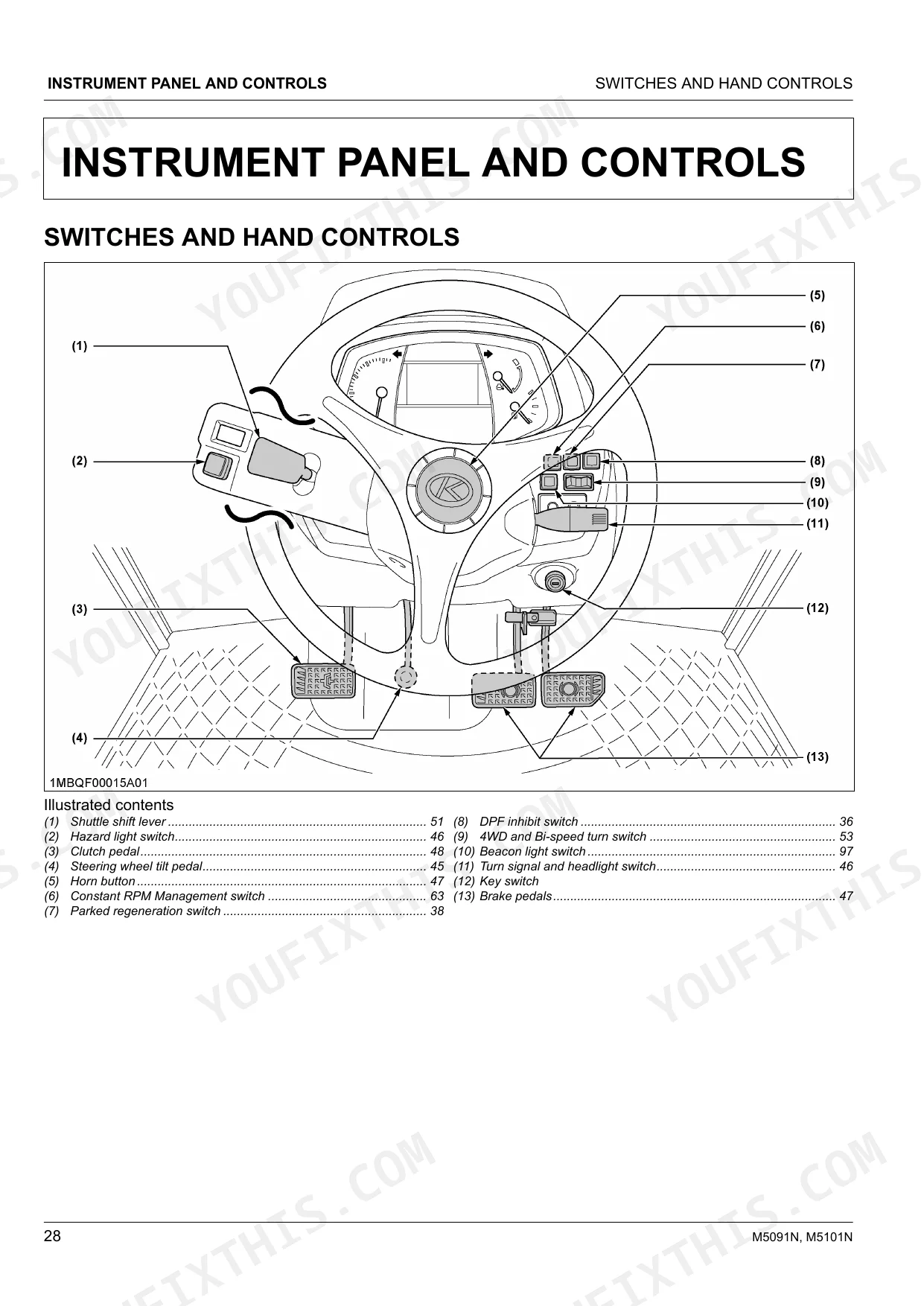

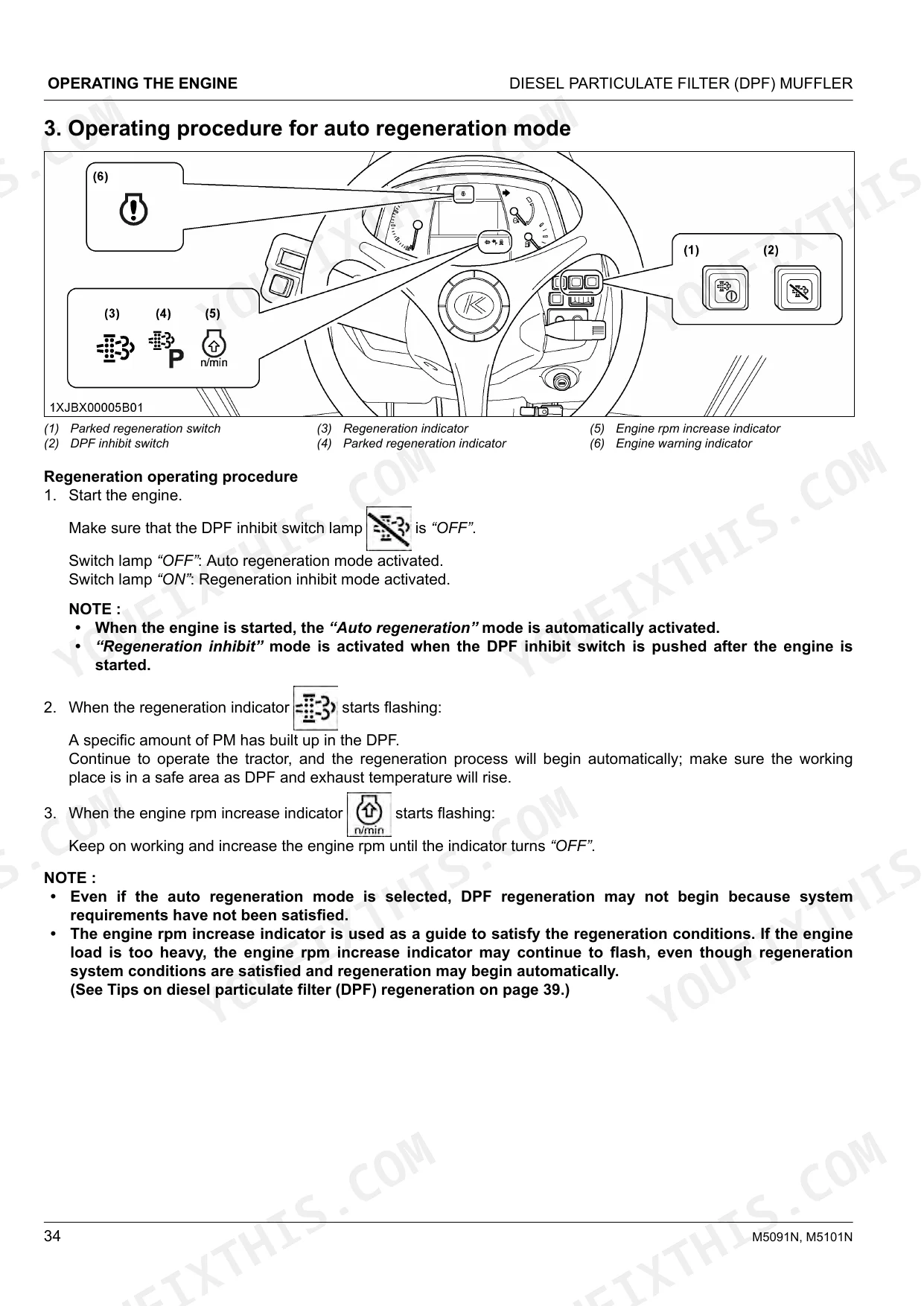

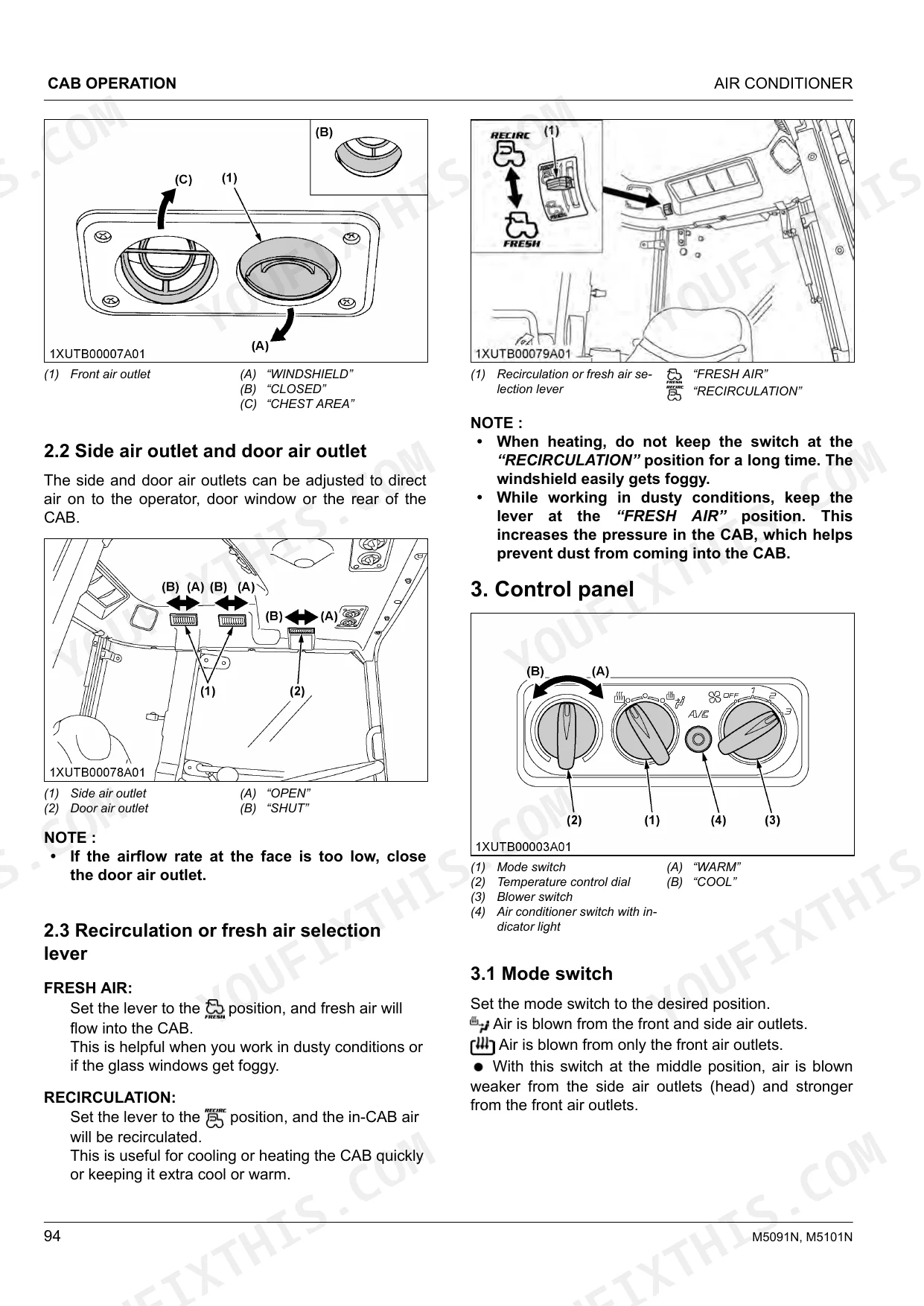

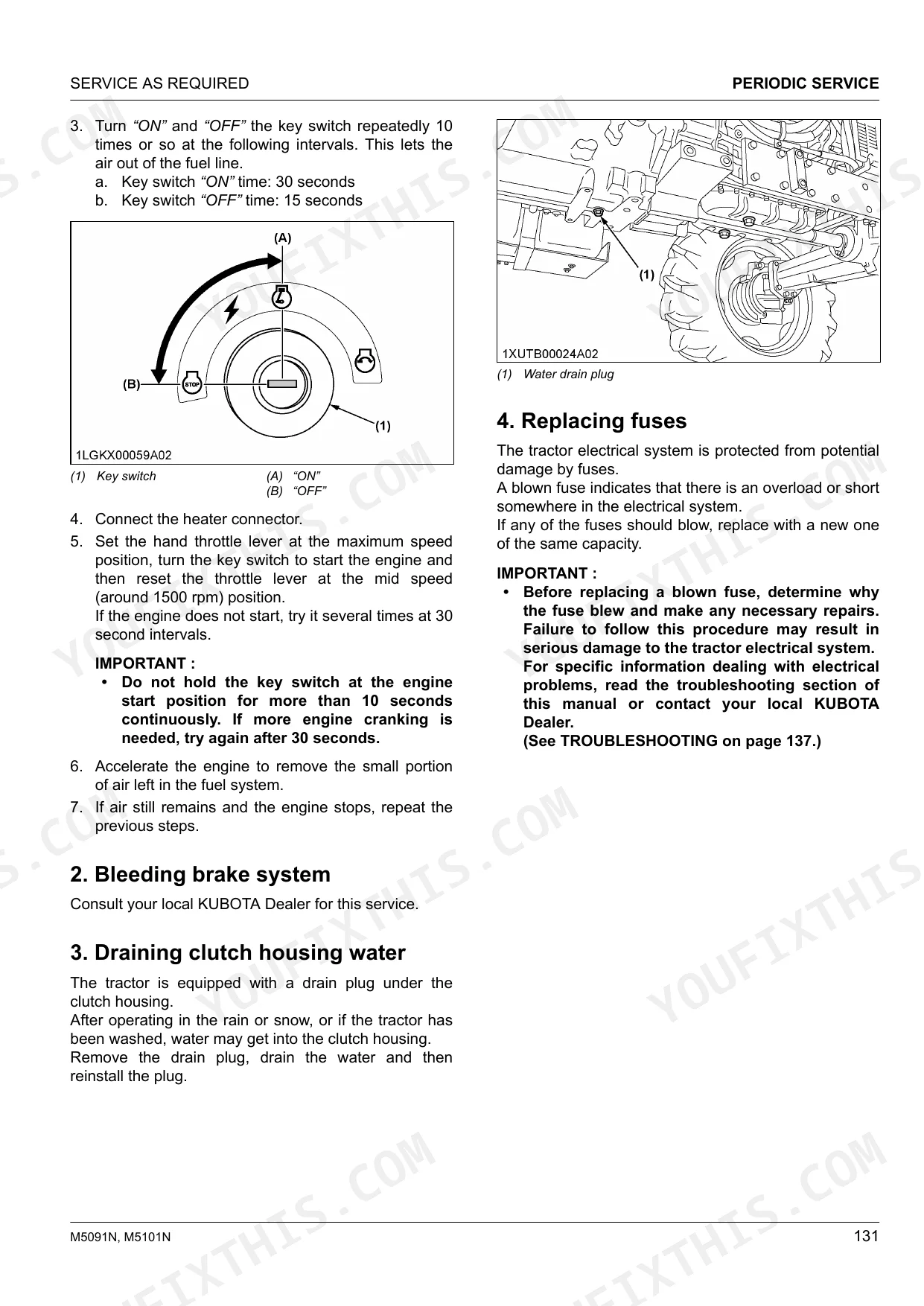

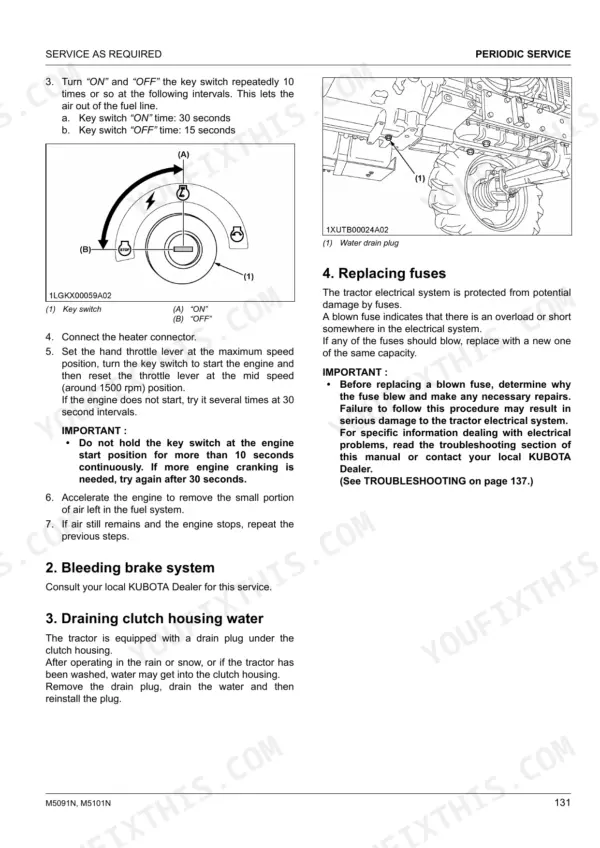

| Instrument Panel and Controls | 34-36 | Switches and Hand Controls (Operating Procedure for Auto Regeneration Mode), Instrument Panel (Pm Warning Level and Required Procedures) |
| Pre-Operation Check | 37 | Daily Check |
| Operating the Engine | 38-49 | Exhaust Aftertreatment Devices |
| Operating the Tractor | 50-73 | Operating New Tractor (Do Not Operate the Tractor at Full Speed for the First 50 Hours, Changing Lubricating Oil for New Tractors), Boarding and Leaving the Tractor |
| PTO | 74-76 | PTO Operation, PTO Models |
| Point Hitch and Drawbar | 77-83 | The 3-Point Hitch Setup, Drawbar |
| Hydraulic Unit | 84-89 | 3-Point Hitch Control System, Remote Hydraulic Control System |
| Tires, Wheels and Ballast | 90-95 | Tires, Wheel Adjustment |
| Cab Operation | 96-104 | Cab Classification and Maintenance, Doors and Windows (Locking and Unlocking the Door, Opening the Door, Rear Window, Side Window, Emergency Exit), Dome Light |
| Maintenance | 105-109 | Service Intervals, Maintenance Items Chart, Lubricants, Fuel and Coolant |
| Periodic Service | 110-141 | Waste Disposal, How to Open the Hood (Side Cover) |
| Storage | 142 | Tractor Storage, Removing the Tractor From Storage |
| Troubleshooting | 143-144 | Engine Troubleshooting, Power Train Trouble Shooting |
| Options | 145 | List of Options |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front wheel bolts torque | 168 to 199 N⋅m / 17.1 to 20.0 kgf⋅m | p. 92 |
| Rear wheel bolts torque (first value) | 260 to 304 N⋅m / 26.5 to 31.0 kgf⋅m | p. 94 |
| Rear wheel bolts torque (second value) | 343 to 401 N⋅m / 35.0 to 41.0 kgf⋅m | p. 94 |
| Air cleaner primary element cleaning compressed air pressure | under 205 kPa (2.1 kgf/cm2 , 30 psi) | p. 119 |
| Fresh air filter cleaning compressed air pressure | under 205 kPa (2.1 kgf/cm2 / 30 psi) | p. 125 |
| Engine Oil Capacity | 10.7 L | p. 108 |
| Coolant Capacity | 10 L | p. 108 |
| Fuel Tank Capacity | 76 L | p. 108 |
| Hydraulic Pump Capacity | 68.6 L/min | p. 27 |
| Max. Lifting Force (at lifting points) | 2300 kg | p. 28 |
| Hydraulic System Pressure | 19.1 MPa (195 kgf/cm²) | p. 28 |
| PTO Engine Speed (540 rpm) | 2385 rpm | p. 76 |
Kubota M5091N, M5101N Common Problems This Manual Covers
DPF regeneration too frequent or interrupted
Low-duty or idle-heavy use loads the diesel particulate filter and drives frequent regeneration. The engine operation chapter explains auto and parked regeneration and the PM warning levels so you can respond correctly.

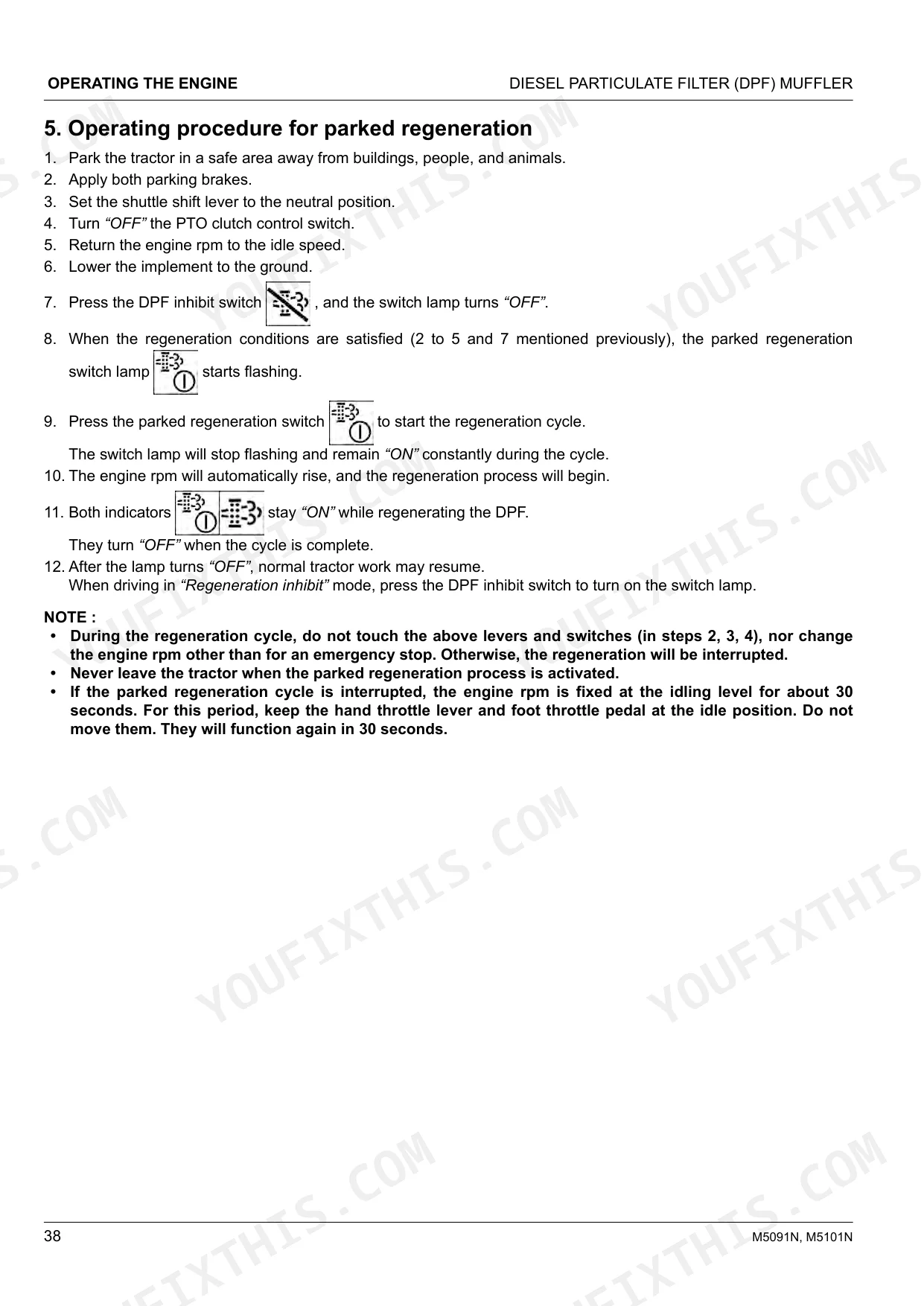

Manual Section: Operating the Engine p. 38Engine hard starting or power loss
Hard starting or reduced power can come from fuel, air intake, or intake air filter restriction. The troubleshooting chart lists engine causes and operator actions to check first.
Manual Section: Troubleshooting p. 143Weak hydraulic lift or remote response
Slow or weak three-point hitch or remote hydraulic response often traces to low fluid, a clogged filter, or a coupler or valve issue. The hydraulic unit chapter explains the hitch and remote control systems and their adjustments.
Manual Section: Hydraulic Unit p. 84Wheel bolts loosen and cause vibration
Wheel bolts that back off produce vibration and wheel damage if left unchecked. The tires and ballast chapter gives the front and rear wheel bolt torques, such as front bolts at 168 to 199 N-m, to re-check on schedule.
Manual Section: Tires, Wheels and Ballast p. 90PTO fails to engage or hold speed
A PTO that will not engage or run at the correct speed can have a control or interlock issue. The PTO chapter covers operation and the available PTO speeds so you can confirm correct use.
Manual Section: PTO p. 74Spongy brakes or excess pedal travel
Excessive brake pedal free travel makes the brakes feel spongy and reduces stopping performance. The periodic service chapter gives the brake pedal free travel of 7 to 14 mm and the adjustment procedure.
Manual Section: Periodic Service p. 110Frequently Asked Questions
Which tractors does this manual cover?
It is the operator's manual for the Kubota M5091N and M5101N tractors, powered by the V3800-TE4 and V3800-TIE4 diesel engines. It is the Australian English edition.
Is this a service or repair manual?
No. It is the operator (owner's) manual covering operation, controls, and routine maintenance. It is not a full workshop manual with engine or transmission teardown procedures.
Does it explain DPF regeneration?
Yes. The engine operation chapter covers the diesel particulate filter, auto and parked regeneration, and the PM warning levels and required procedures. p. 38
Does it list maintenance intervals and capacities?
Yes. The maintenance chapter gives service intervals and capacities, including engine oil at 10.7 L, coolant at 10 L, and a 76 L fuel tank. p. 105
What format is this manual in?
Instant PDF download. The full 152-page searchable Operator Manual is yours immediately after payment, ready on a laptop, tablet, or phone right in the shop.
Are there any print restrictions on this Kubota M5091N manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
