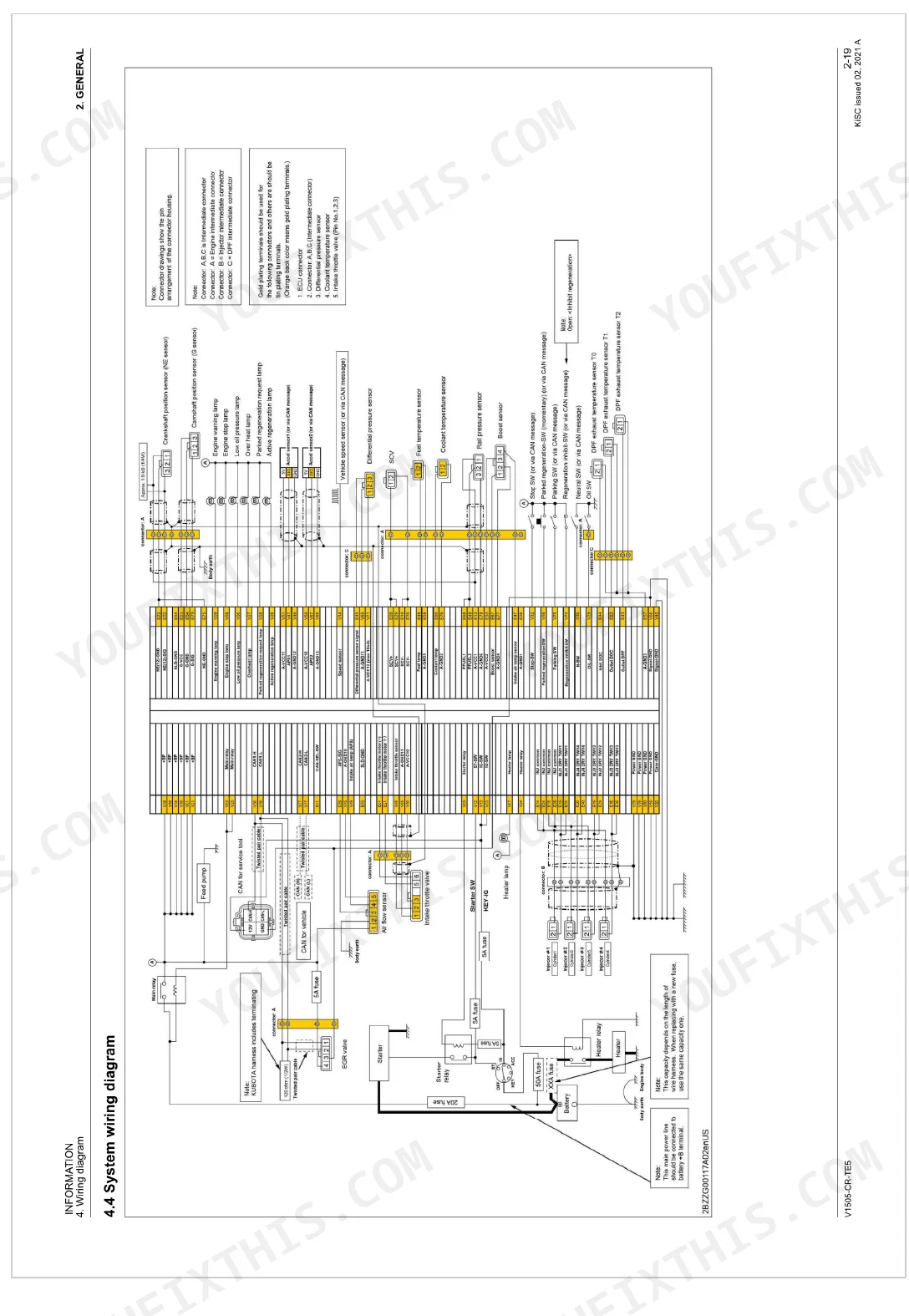

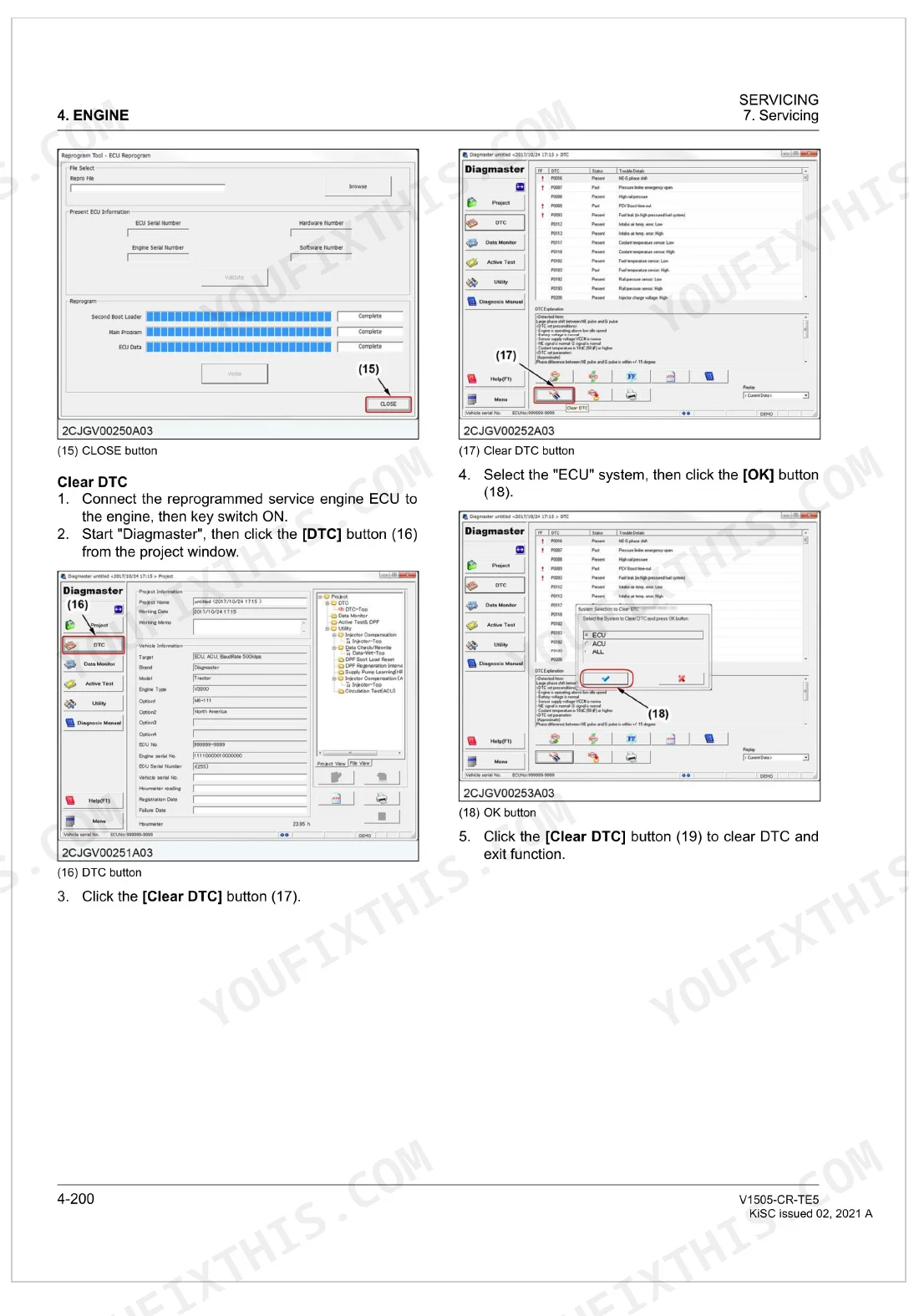

Every procedure in this Kubota V1505-CR-TE5 Workshop Manual (OEM #9Y311-00452) targets one engine: the common rail diesel fitted to Kubota applications. Engine body coverage runs through the crankcase, cylinder head, piston rings, crankshaft, camshaft, timing gears, and the E-CDIS center direct injection combustion system. The 301 pages include wiring diagrams for the engine intermediate harness, injector intermediate harness, DPF intermediate harness, and the full system layout, alongside step-by-step rebuild procedures and exploded views. Fill to exactly 6.7 liters of oil, torque M8 fasteners to 17.7–20.6 N·m, and confirm valve clearance at the 800-hour mark. When the DPF differential pressure sensor throws a code, the diagnosis is here instead of buried in a forum thread. Search any spec by keyword, jump straight to the section you need, and get the engine running.
What's Inside This Kubota V1505-CR-TE5 Manual

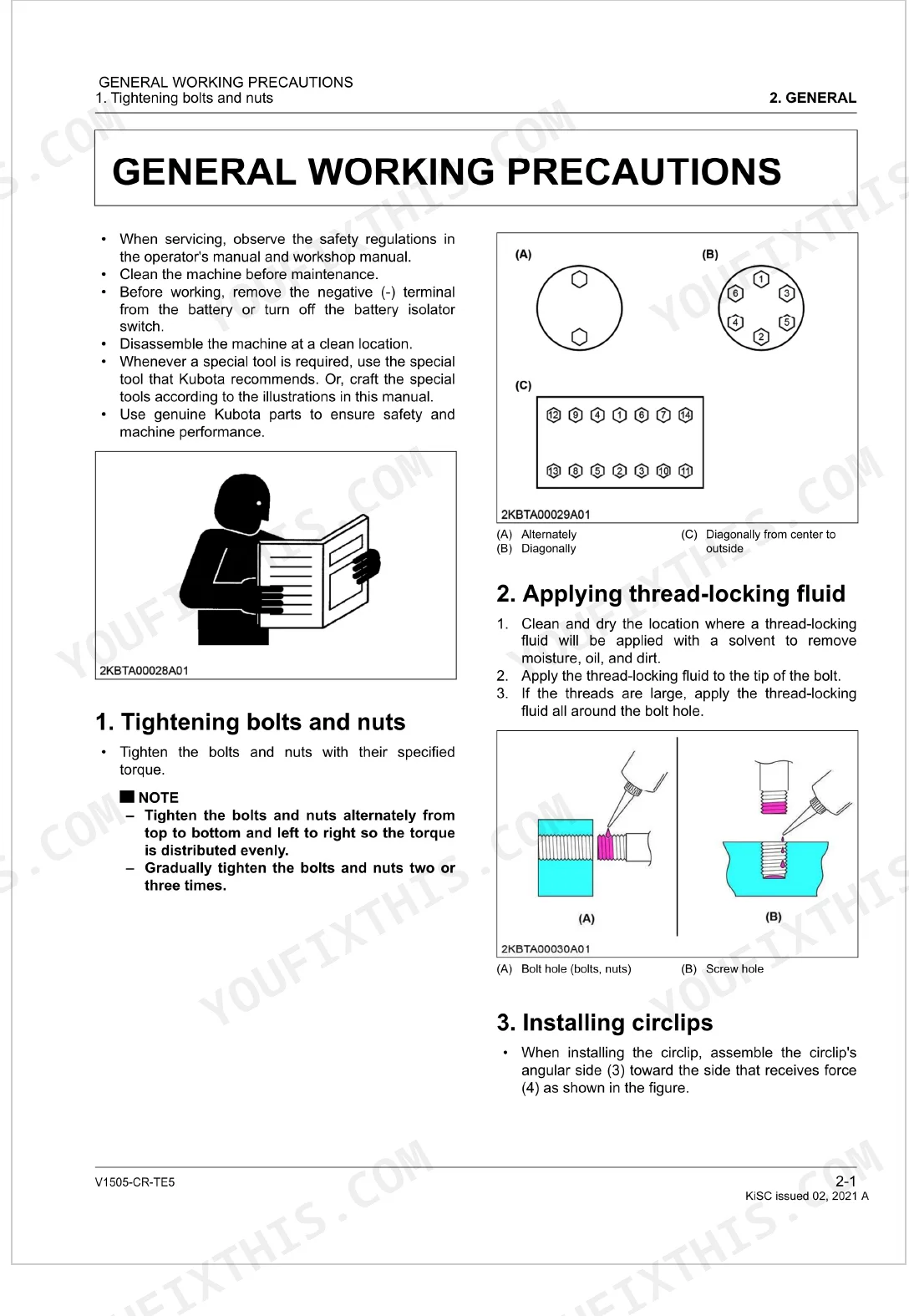

| System | Pages | Key Topics |
|---|---|---|
| Record of Revisions | 3-16 | - |
| Safety | 17-23 | Safety First, Working Precautions, Preparing for Emergencies, Working Cautions, Starting Machine Safely, Preventing Fires, Preventing Acid Burns, Avoiding Hot Exhaust |
| General | 24-52 | Engine Identification (Engine Model Name and Engine Serial Number, Cylinder Number), Muffler Full Assembly Identification (Part Number and Serial Number) |
| Maintenance | 53-83 | Maintenance Check List, Check and Maintenance, Daily Check Points (Checking: Engine Oil Level, Fuel Level, Coolant Level, Fan Belt) |

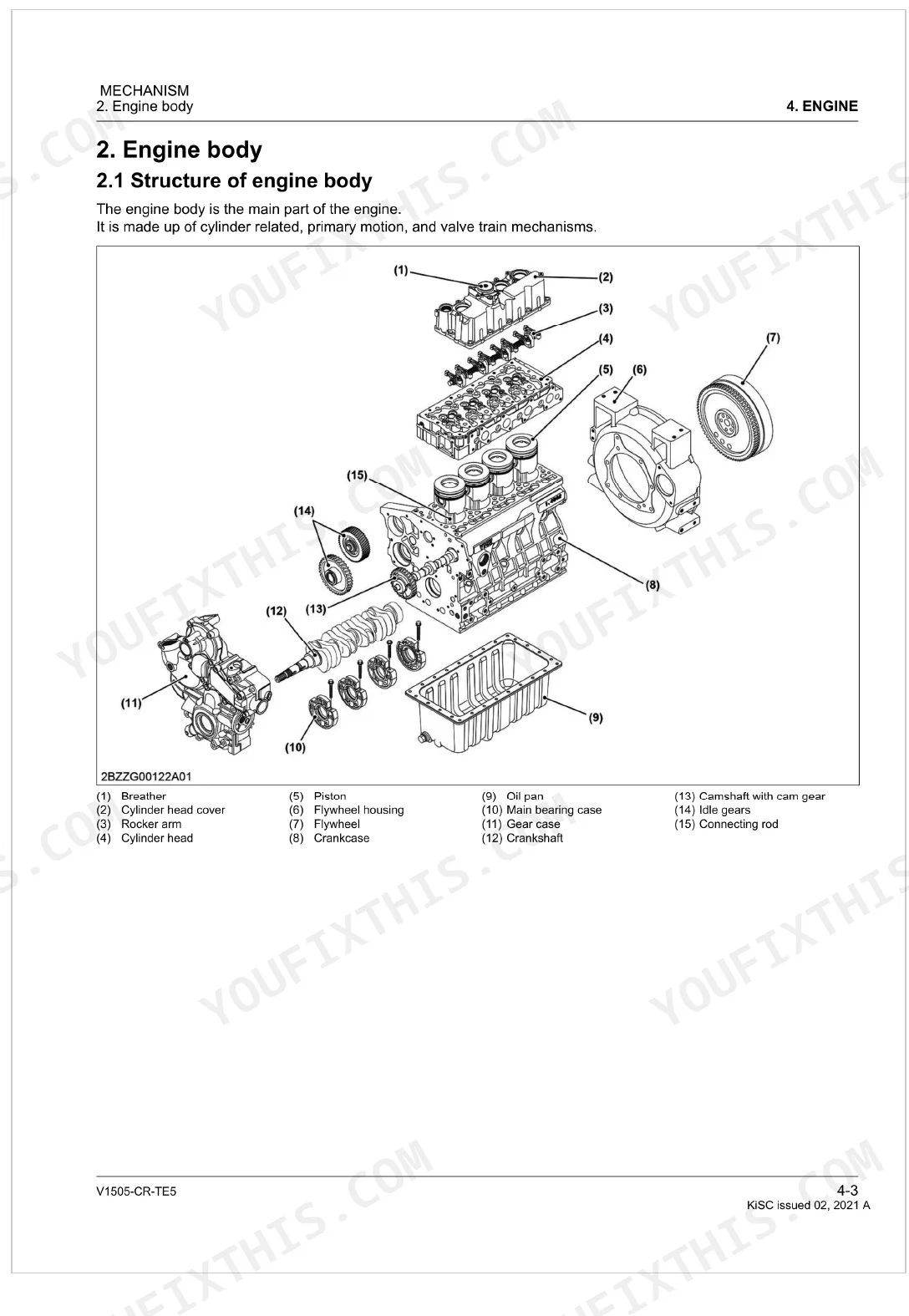

| Engine | 84-301 | Engine Body (Structure of Engine Body, Feature of Engine Body, Crankcase, Cylinder Head, Cylinder Head Cover, Breather, Piston, Piston Ring, Connecting Rod, Crankshaft, Main Bearing Case, Flywheel, Rocker Arm Assembly, Camshaft, Valve, Tappet, Push Rod, Timing Gears) |

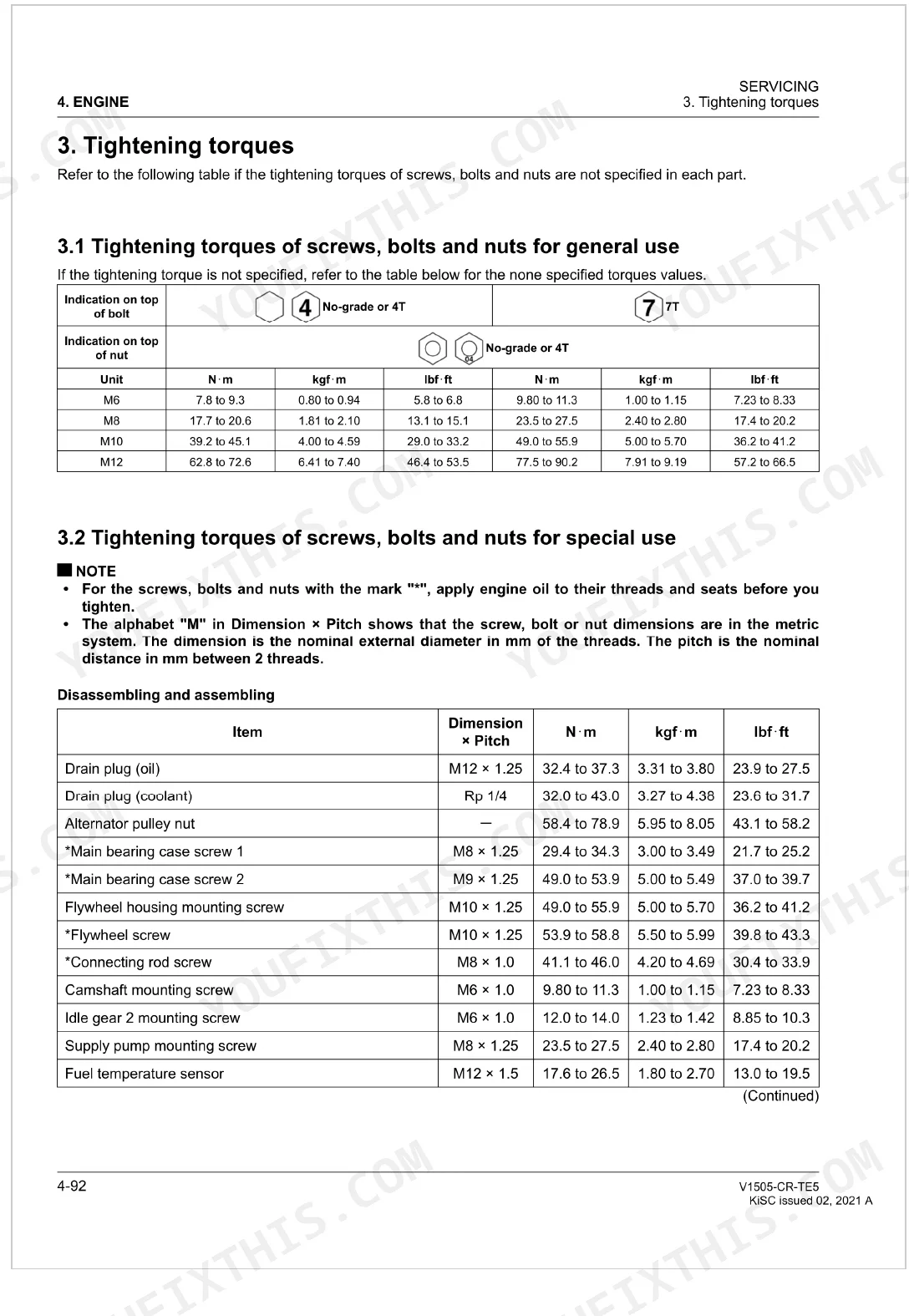

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

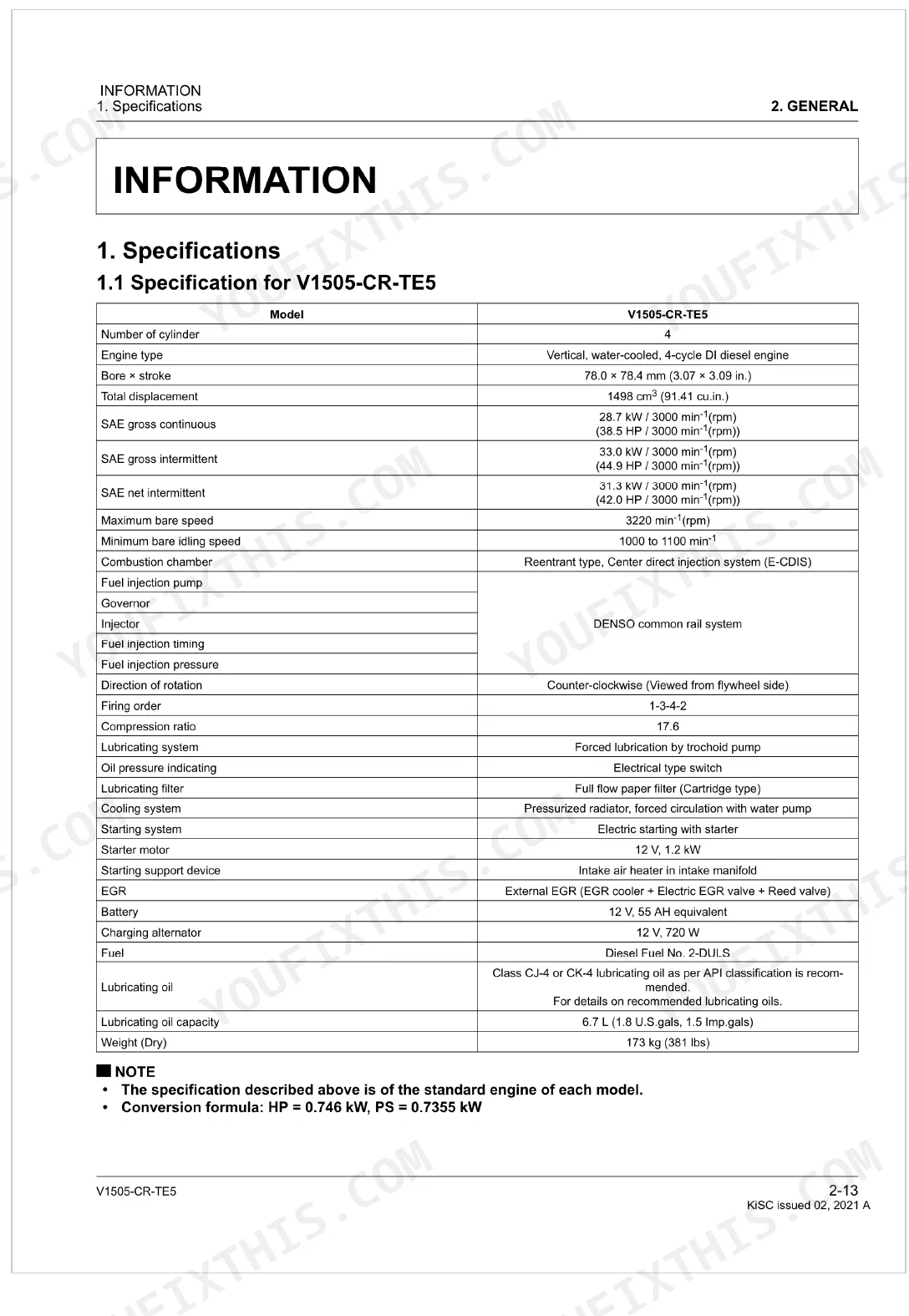

| Engine oil capacity | 6.7 L (1.8 U.S.gals, 1.5 Imp.gals) | p. 37 |
| Radiator capacity | 4.0 L 1.1 U.S.gals 0.88 Imp.gals | p. 71 |
| Tightening torque M6 (No-grade or 4T) | 7.8 to 9.3 N·m | p. 176 |
| Tightening torque M8 (No-grade or 4T) | 17.7 to 20.6 N·m | p. 176 |
| Tightening torque M10 (No-grade or 4T) | 39.2 to 45.1 N·m | p. 176 |
| Tightening torque M12 (No-grade or 4T) | 62.8 to 72.6 N·m | p. 176 |
| Tightening torque M6 (7T) | 9.80 to 11.3 N·m | p. 176 |
| Tightening torque M8 (7T) | 23.5 to 27.5 N·m | p. 176 |
| Tightening torque M10 (7T) | 49.0 to 55.9 N·m | p. 176 |
| Tightening torque M12 (7T) | 77.5 to 90.2 N·m | p. 176 |
| Drain plug (oil) tightening torque | 32.4 to 37.3 N·m | p. 176 |
| Drain plug (coolant) tightening torque | 32.0 to 43.0 N·m | p. 176 |
Kubota V1505-CR-TE5 Common Problems This Manual Covers
Slow cranking or no crank at all on cold mornings p. 155
Check the starter output figures on page 155: the motor should pull 12 V and 1.2 kW under load. Clean any corrosion off the battery cables and check the torque on the B terminal nut. A starting voltage that sags well below spec means the starter assembly is done, so swap it out.
Manual Section: EngineEngine overheats under heavy load and pushes coolant into the overflow tank p. 175
Set the fan belt deflection to 7.0 to 9.0 mm using the procedure on page 175, then flush the system and refill the radiator with 4.0 L of fresh coolant. Pressure-test the cap afterward to confirm it still seals.
Manual Section: EngineTicking from the top end and a rough idle once the engine warms up p. 171
Let the engine cool fully, then measure valve clearance and bring it to 0.13 to 0.17 mm per page 171. While you are in there, check the rocker arm bracket nuts and snug any that have backed off, then recheck clearance once the lock nuts are down.
Manual Section: EngineSudden loss of power under load with black smoke from the exhaust stack p. 107
Test the suction control valve circuit with a digital multimeter; the SCV should read 2.1 Ω, the figure given on page 107. Trace the wiring harness for shorts or breaks while you have the meter out. A reading off that value points to a failed SCV, so replace it.
Manual Section: EngineFrequently Asked Questions
What are the recommended service intervals?
Several items run on set intervals. Engine oil level, fuel level, coolant level, and the fan belt all get a daily check. Engine oil and the oil filter cartridge get changed at the initial 50 hours, then every 250 hours or once a year, whichever comes first.
What fluids and capacities does this machine require?
Oil is API Class CJ-4 or CK-4, and the engine holds 6.7 L (1.8 U.S.gals, 1.5 Imp.gals). The radiator takes 4.0 L (1.1 U.S.gals, 0.88 Imp.gals), fuel is Diesel Fuel No. 2-DULS, and the recommended anti-freeze is a permanent type (PT) mixed below a 50% anti-freeze-to-water ratio.

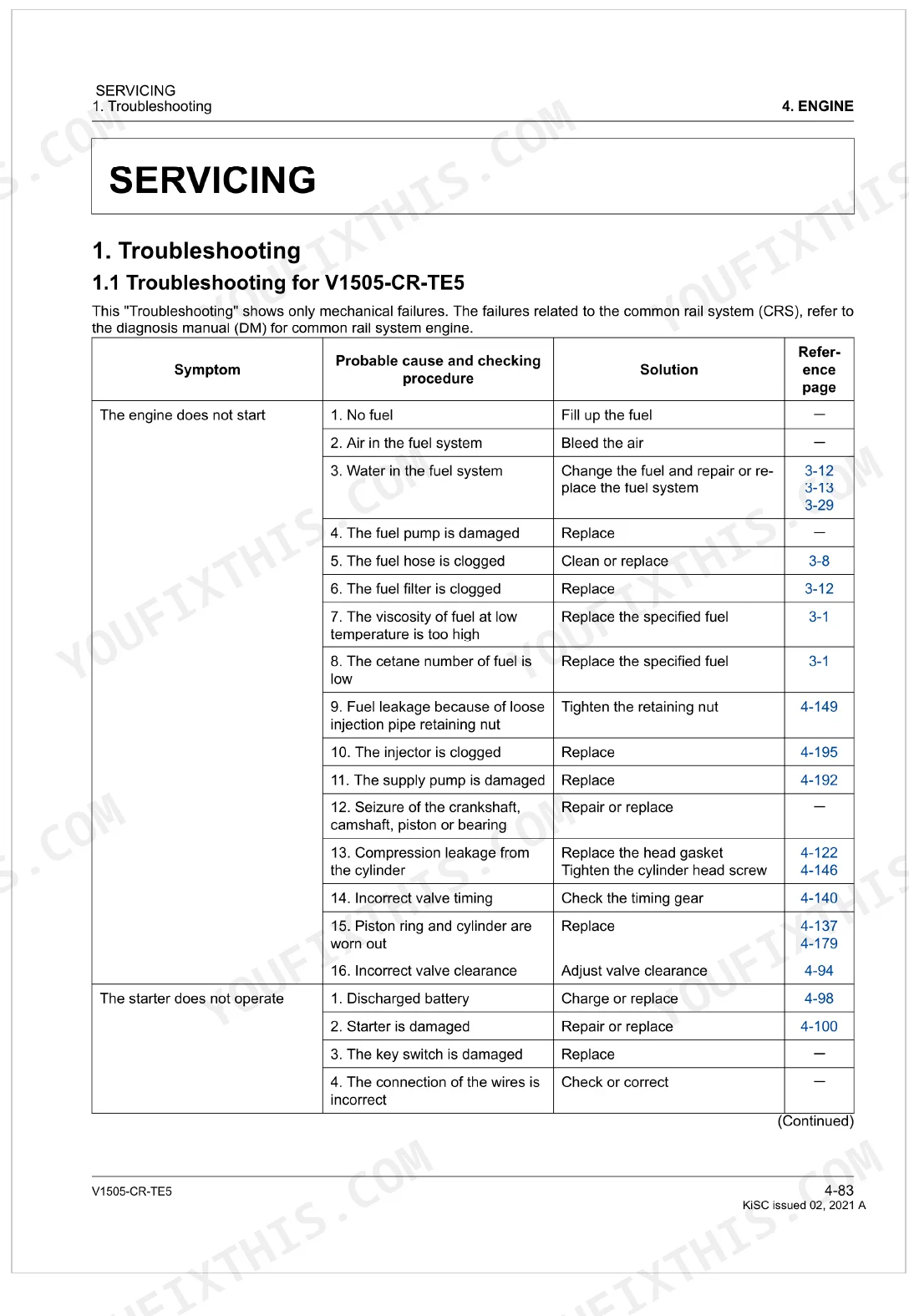

How to troubleshoot engine won't start?
Start with the fuel side. An empty tank (fill it), air in the lines (bleed them), or water in the fuel (drain it, then repair or replace the fuel system) will all stop a start. A damaged fuel pump needs replacing, and a clogged fuel filter does too (page 3-12).
What torque specifications are listed?
General torque figures: M6 takes 7.8 to 9.3 N·m, M8 takes 17.7 to 20.6 N·m, and M10 takes 39.2 to 45.1 N·m. Specific fasteners differ. The oil drain plug runs 32.4 to 37.3 N·m and the connecting rod screws 41.1 to 46.0 N·m.
How will I receive this Kubota V1505-CR-TE5 Workshop Manual?
Delivery is an instant PDF download. The full 301-page searchable Workshop Manual lands the moment payment clears, ready to open on a laptop, tablet, or phone out on the shop floor.
Am I able to print pages from this Kubota V1505-CR-TE5 manual?
Yes. Print as many copies as you like; there are no restrictions. Plenty of mechanics print just the section they need and carry it onto the shop floor.
Does this Kubota V1505-CR-TE5 manual include hydraulic schematics?
No. This manual covers the diesel engine and does not include hydraulic schematics.
