This is the factory Kubota M9540 Dual Speed Workshop Manual, a 572-page service reference for the M9540 Dual Speed utility tractor powered by the V3800DI-TE3 diesel engine. It covers every major system on the machine: engine, clutch, transmission, front and rear axle, brakes, steering, the three-point hydraulic system, the electrical system, and the cabin air conditioning system.Each system pairs a structure and mechanism overview with servicing content covering troubleshooting, servicing specifications, tightening torques, and checking and adjusting. Wiring diagrams and electrical circuits are included, along with fluid capacities such as 10.7 L engine crankcase oil, a 60 L transmission case, a 110 L fuel tank, and 9.0 L coolant.Written for owners and independent mechanics, this PDF gives you the manufacturer procedures needed to diagnose and repair the M9540 Dual Speed correctly. Instant download after purchase.
What's Inside This Kubota M9540 Dual Speed Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 17-103 | Tractor Identification (Model Name and Serial Numbers, Engine Number, Cylinder Number) |

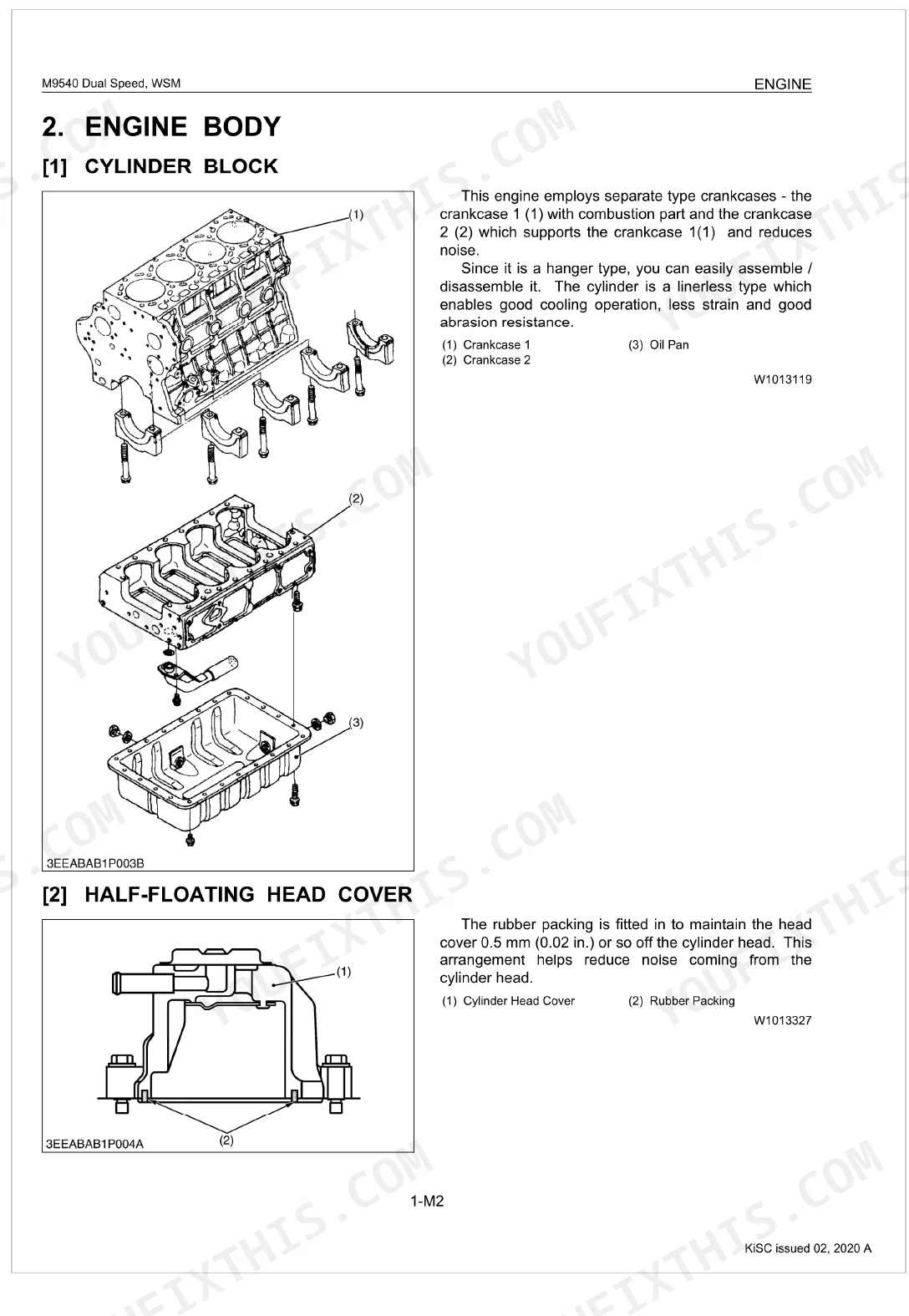

| Engine | 104-200 | Feature, Engine Body (Cylinder Block, Half-Floating Head Cover, Cylinder Head, Center Direct Injection System, Piston, Built-In Dynamic Balancer), Lubricating System (Oil Cooler) |
| Clutch | 201-216 | PTO Clutch (Structure, PTO Solenoid Valve, Relief Valve and Oil Flow), Clutch Hub and Clutch Discs, Servicing Contents, Troubleshooting, Servicing Specifications |

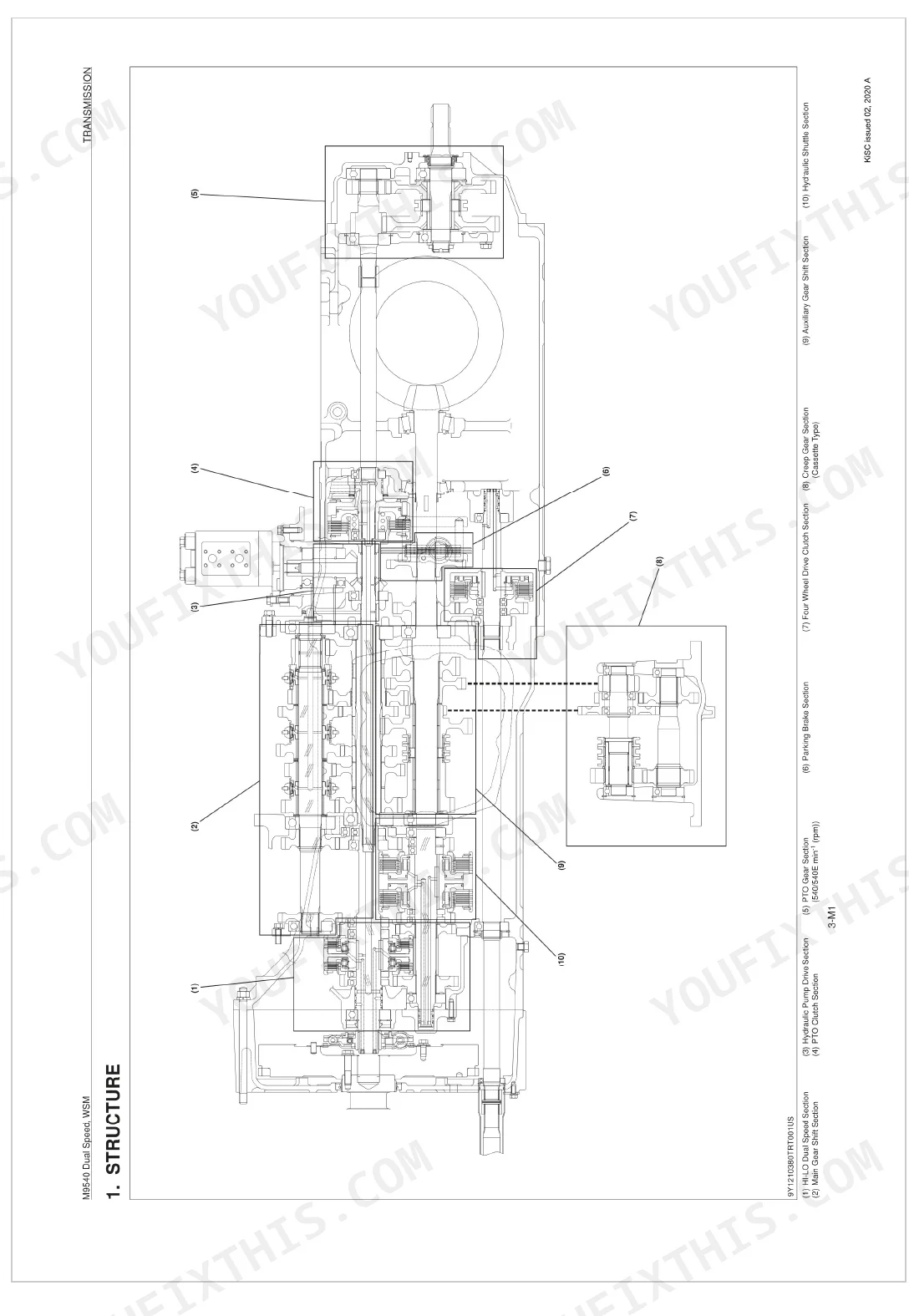

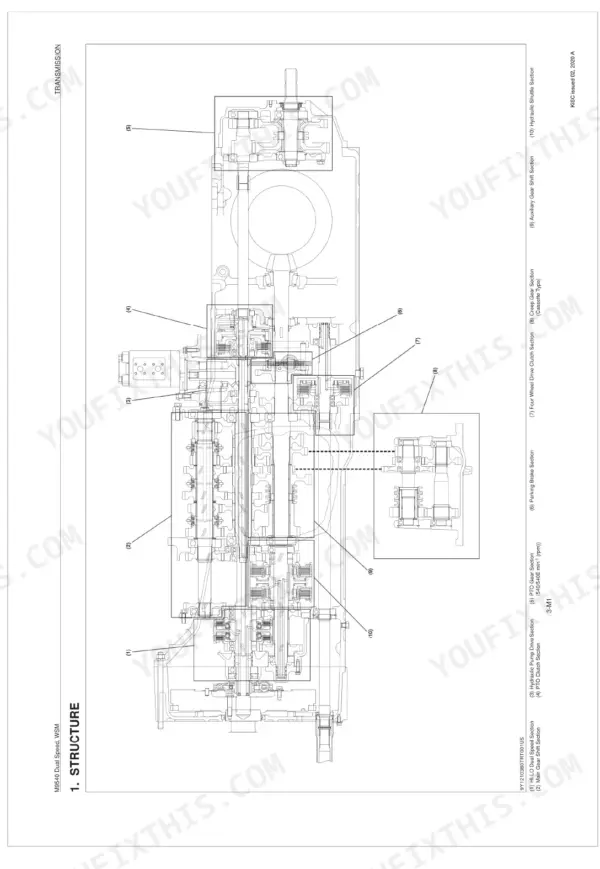

| Transmission | 217-307 | Power Train for Traveling Gear, Shuttle Shift Section, Hydraulic Shuttle Valve, Main Gear Shift Section, Hi-Lo/Creep Shift Section, Shift Fork Rod and Fork, Hi-Lo Dual Speed Shift Section, Lubrication for Transmission |
| Rear Axle | 308-320 | Features, Rear Axle Mechanism, Servicing Contents, Troubleshooting, Servicing Specifications, Tightening Torques, Separating Rear Axle, Removing Rear Axle Assembly |
| Brakes | 321-348 | Travelling Brake (Strucrure, Master Cylinder Assembly), Parking Brake (Gear Lock Brake), Travelling Brake Structure, Master Cylinder Assembly |
| Front Axle | 349-375 | Structure (Front Axle Structure, Limited Slip Differential), Front Axle Mechanism, Limited Slip Differential Mechanism, Servicing Contents, Troubleshooting |
| Steering | 376-391 | Steering Mechanism, Steering Cylinder, Steering Mechanism Overview, Steering Cylinder Overview, Servicing Contents, Troubleshooting, Servicing Specifications, Tightening Torques |

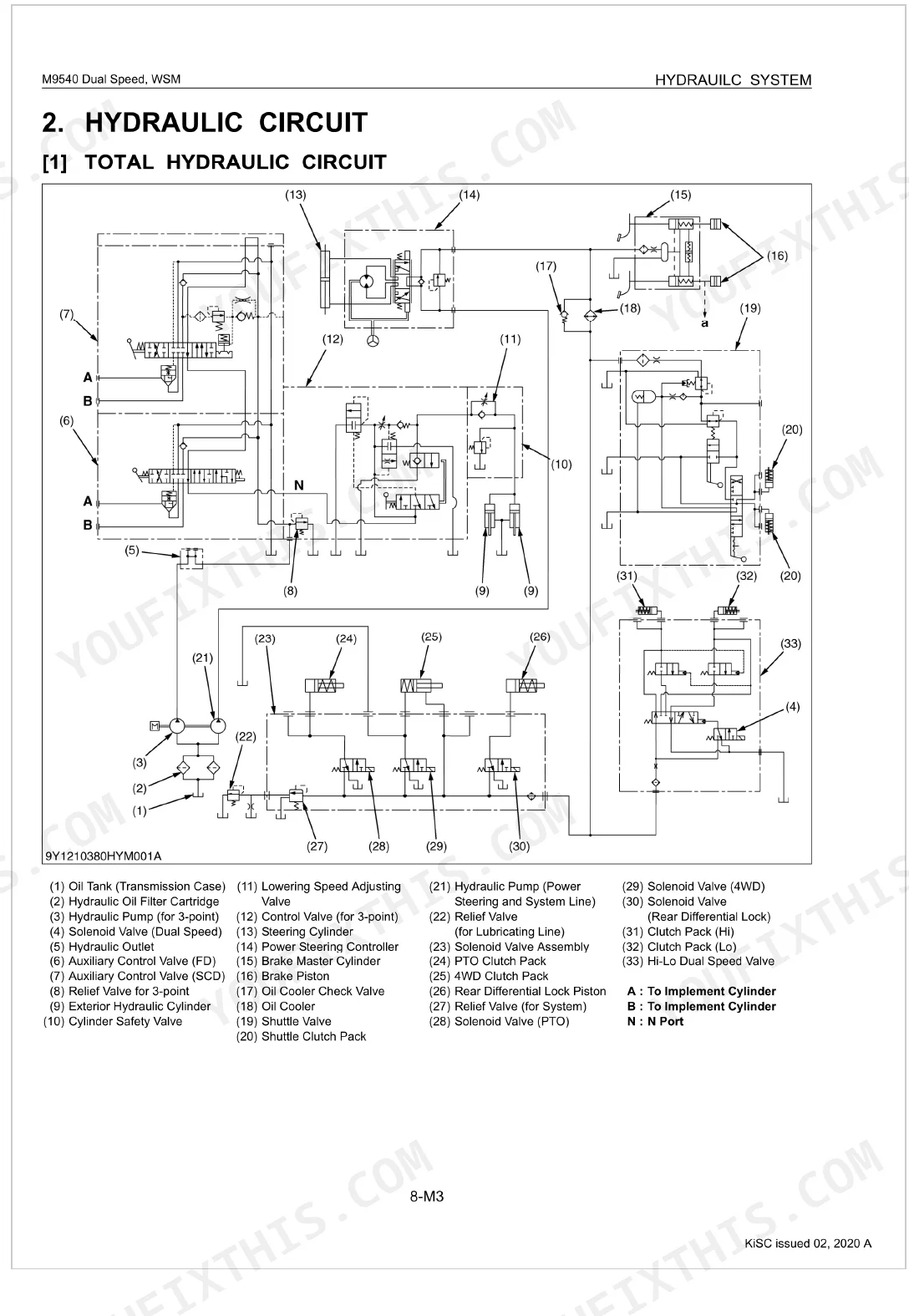

| Hydraulic System | 392-435 | Hydraulic Circuit, Total Hydraulic Circuit, Three Point Hitch Hydraulic System, Hydraulic Block, Linkage Mechanism, Hydraulic Cylinder |

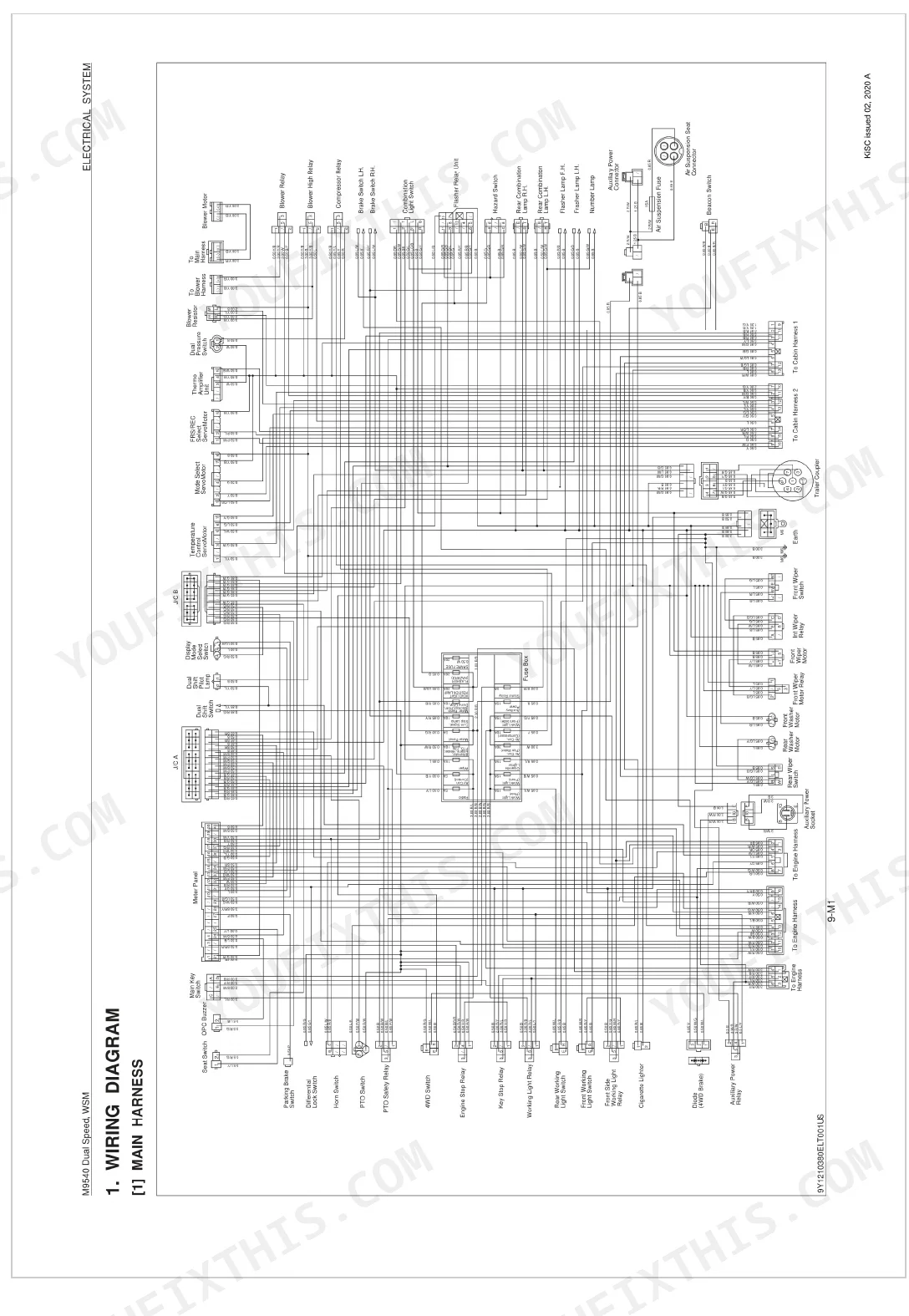

| Electrical System | 436-506 | Wiring Diagram, Electrical Circuit, Starting System, Instrument Panel, Opc (Operator Presence Control), Lighting System, Trailer Socket, Troubleshooting |
| Cabin | 507-572 | Air Conditioning System (Structure, Compressor, Air Conditioner Unit, System Control, Air Flow, Air Control Vent, Electrical System), Air Conditioning System Structure |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

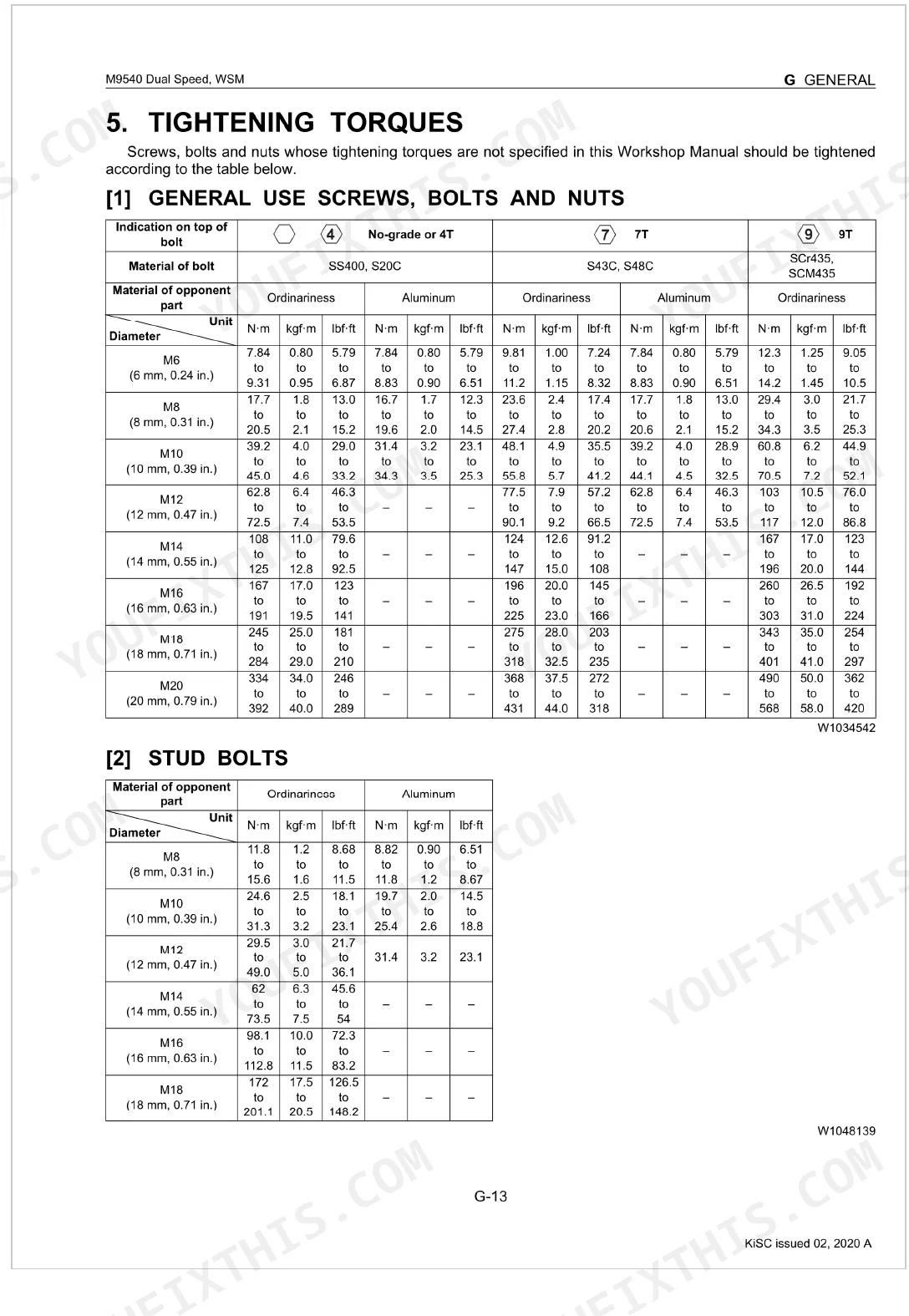

| M10 (0.39 in.) bolt torque (Ordinaryness) | 48.1 to 55.8 N·m | p. 31 |
| Fuel tank capacity (M9540) | 110 L | p. 28 |
| Engine oil replacement interval | every 300 Hr | p. 33 |
| Engine Crankcase Oil Capacity | 10.7 L | p. 28 |
| Transmission Case Oil Capacity | 60 L | p. 28 |
| Coolant Capacity | 9.0 L | p. 28 |
| Rear Wheel Mounting Nut Torque | 343.2 to 393.3 N·m | p. 31 |
| Engine Oil Pressure (At Idling Speed) | Above 12.3 MPa | p. 134 |
| PTO Clutch Operating Pressure | 2.16 to 2.26 MPa | p. 207 |
| Clutch Pedal Free Travel | 15 to 25 mm | p. 207 |
| Front Wheel Mounting Nut Torque (M16) | 259 to 304 N·m | p. 357 |
Kubota M9540 Dual Speed Common Problems This Manual Covers

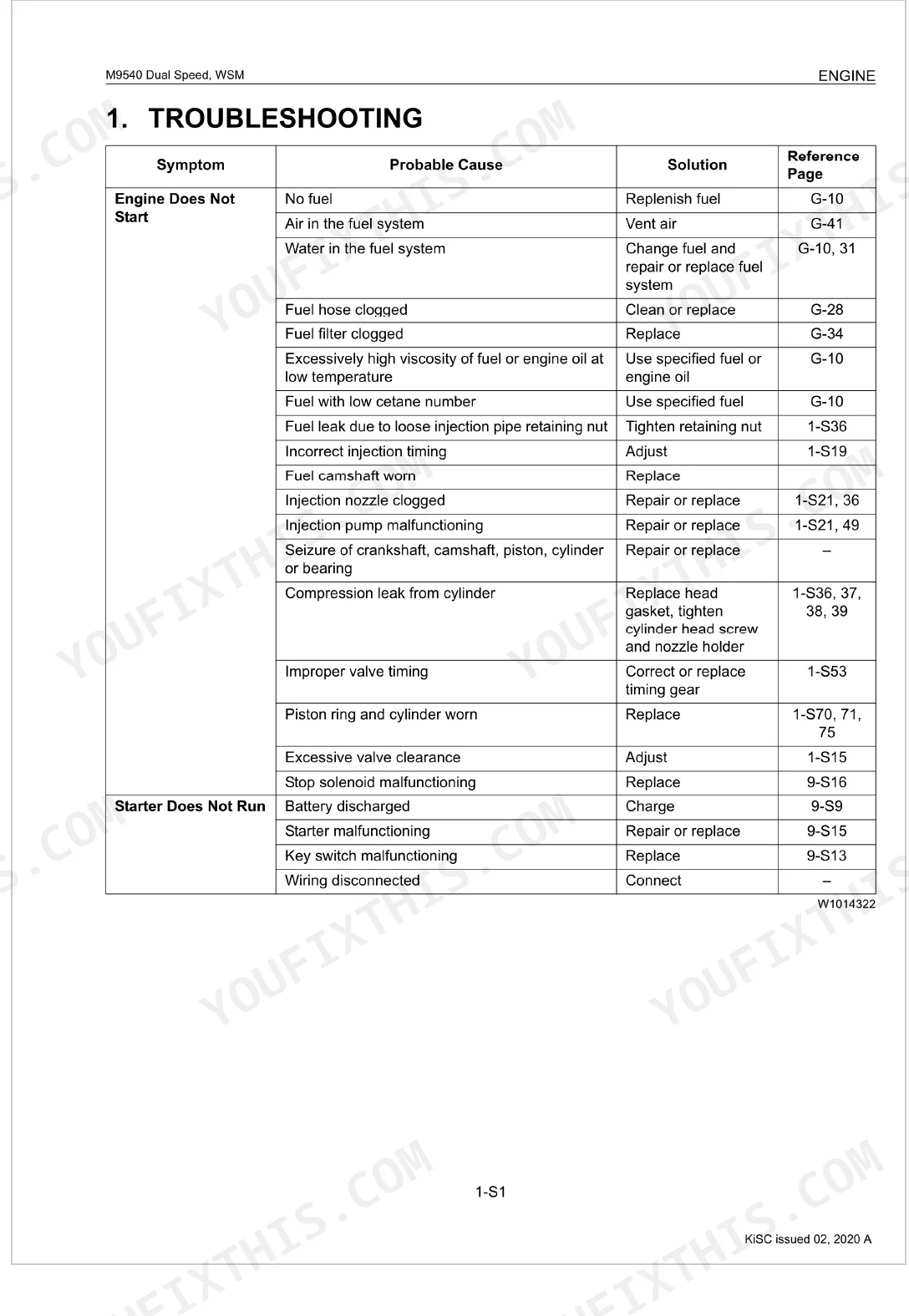

Diesel hard to start or low power

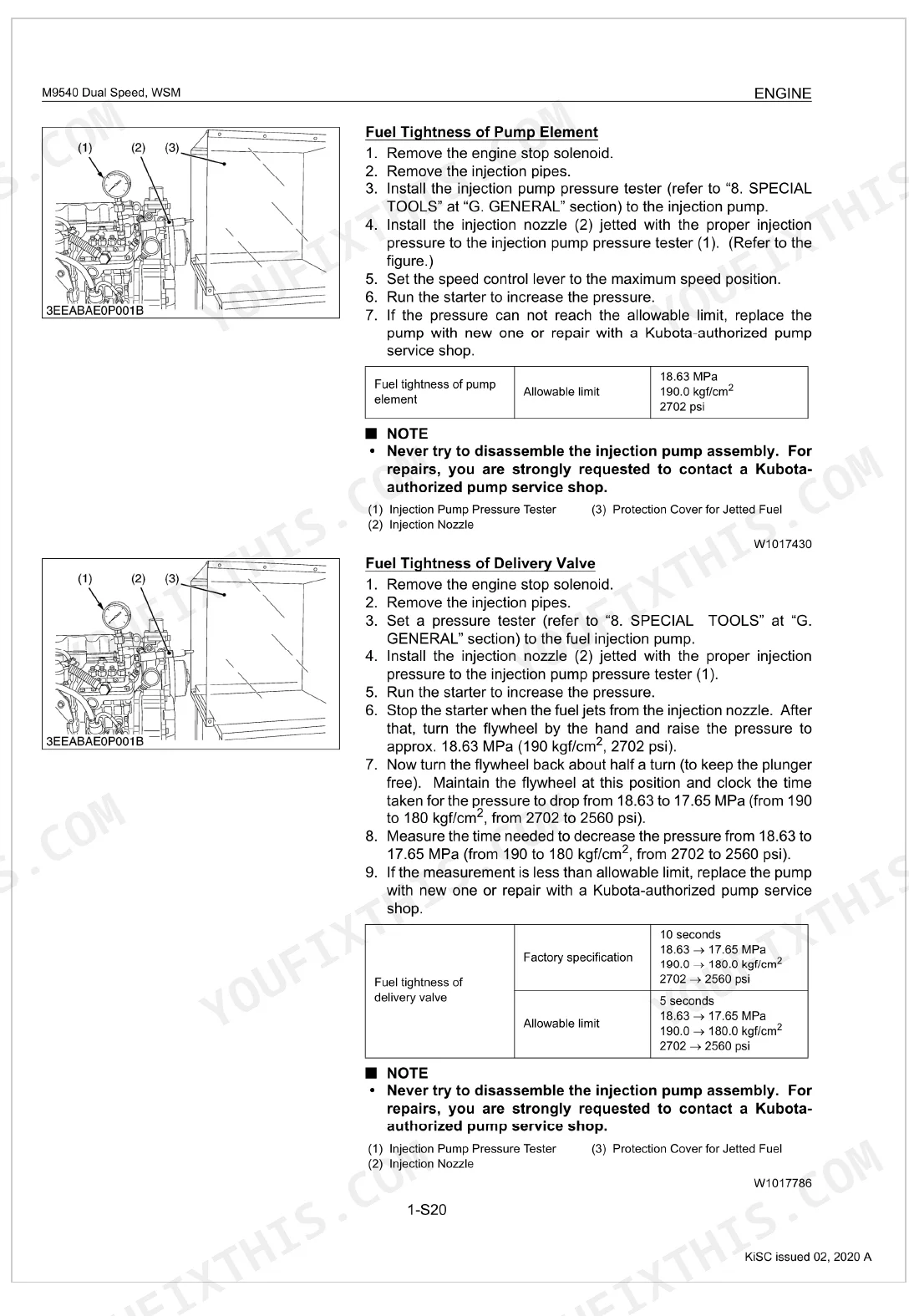

Hard starting, smoke, or lost power on the V3800DI-TE3 usually traces to the fuel injection system, valve clearance, or compression. The engine section covers the engine body and lubricating system with the checks to find the fault.
Manual Section: Engine p. 104Dual Speed transmission shift trouble
Difficulty selecting ranges or slipping under load is worked through the transmission section, which details the structure of the Dual Speed transmission and its power flow.
Manual Section: Transmission p. 217PTO clutch slips or drags
A PTO that slips or fails to release often means worn discs or low operating pressure. The clutch section covers the PTO clutch structure, solenoid valve, relief valve, oil flow, troubleshooting, and specifications.
Manual Section: Clutch p. 201Three-point hitch slow or weak
A hitch that lifts slowly or will not hold usually indicates pump wear or a hydraulic circuit fault. The hydraulic system section covers the circuit, three point hitch system, cylinder, troubleshooting, and specifications.
Manual Section: Hydraulic System p. 392Heavy or unresponsive steering
Increased steering effort points to the steering cylinder or a low relief valve setting. The steering section covers the steering mechanism, cylinder, troubleshooting, and specifications.
Manual Section: Steering p. 376Engine stops or electrical faults
A tractor that shuts off when the operator leaves the seat, or dead lights and circuits, are traced with the electrical section, which maps the wiring diagram, starting system, and Operator Presence Control.
Manual Section: Electrical System p. 436Cabin air conditioner not cooling
Poor cooling or no airflow is diagnosed with the cabin section, which covers the air conditioning system structure, compressor, unit, system control, and electrical system.
Manual Section: Cabin p. 507Frequently Asked Questions
Which tractor does this manual cover?
It covers the Kubota M9540 Dual Speed utility tractor.
What engine does it document?
It covers the Kubota V3800DI-TE3 diesel engine, with the engine body and lubricating system detailed in the Engine section. p. 104
Does it include wiring diagrams?

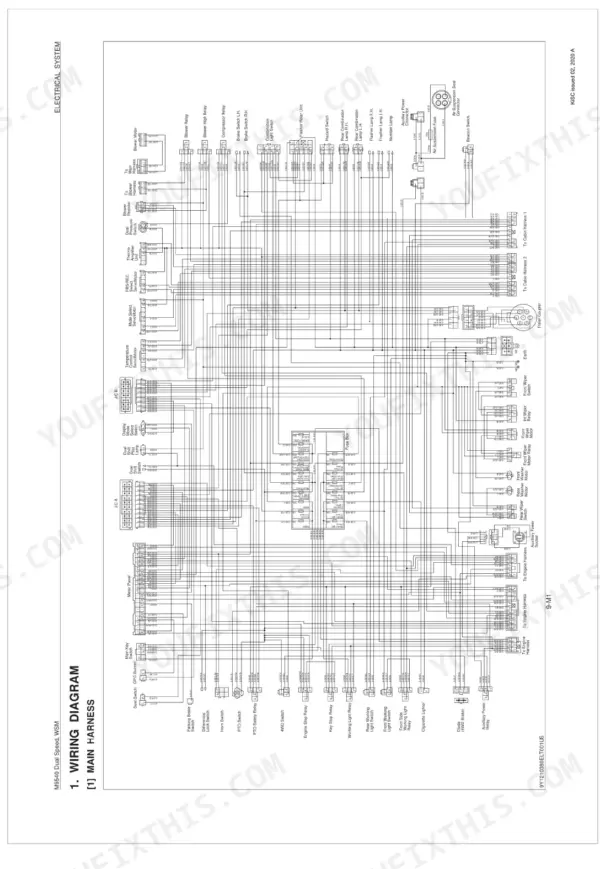

Yes. The Electrical System section provides the wiring diagram and electrical circuits, including the starting system and Operator Presence Control. p. 436
Does it cover the three-point hitch hydraulics?

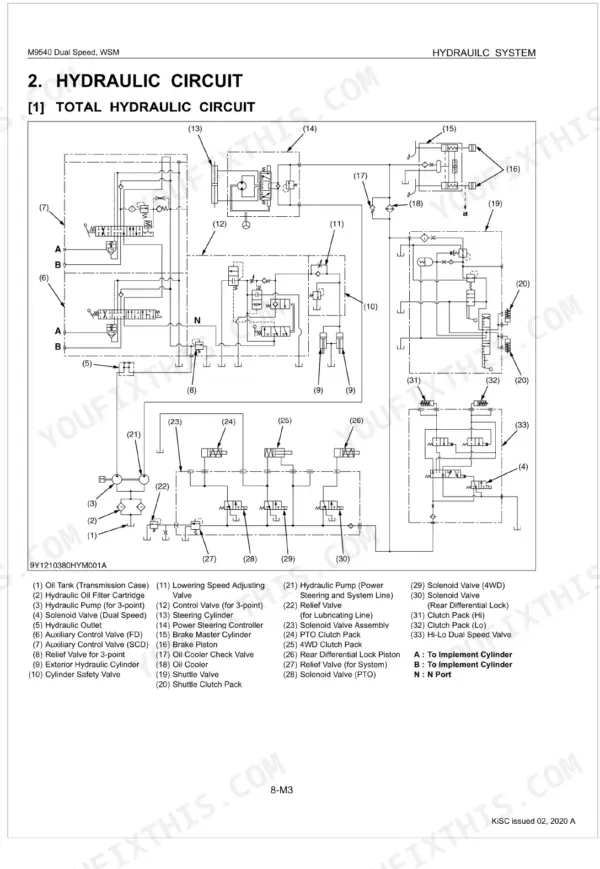

Yes. The Hydraulic System section documents the hydraulic circuit, three point hitch system, and cylinder, with troubleshooting and specifications. p. 392
What format is this Kubota M9540 Dual Speed manual in?
Instant PDF download. You get the full 572-page searchable Workshop Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this Kubota M9540 Dual Speed Workshop Manual printable?
Yes. The PDF carries no DRM restrictions, so you can print any page or section your shop needs. It works with any standard printer.
Can I find hydraulic circuit diagrams in this Kubota M9540 Dual Speed manual?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
