Need the factory part numbers for your Kubota BX2200D compact tractor? This 246-page Kubota BX2200D parts catalog PDF maps every exploded view from the crankcase to the ROPS. Engine components fill 34 pages on their own, breaking down from injection pump plungers and governor weights to individual O-rings and oil seals. Drivetrain coverage runs 19 pages across the HST, rear differential, PTO shafts, and shift linkage. Electrical components, hydraulic lines, steering cylinder internals, and both wheel assemblies each carry their own diagrams and numbered lists, so you can identify a part by sight before placing an order. Front tires are 18x8.50-8, rears run 26x12.00-12, and every bolt and seal is listed to its factory number. Order the wrong part twice and you've bought someone else's lunch. Bookmarked and keyword-searchable, so you can jump to the right page and get the order right the first time.
What's Inside This Kubota BX2200D Parts Manual
| System | Pages | Key Topics |
|---|---|---|

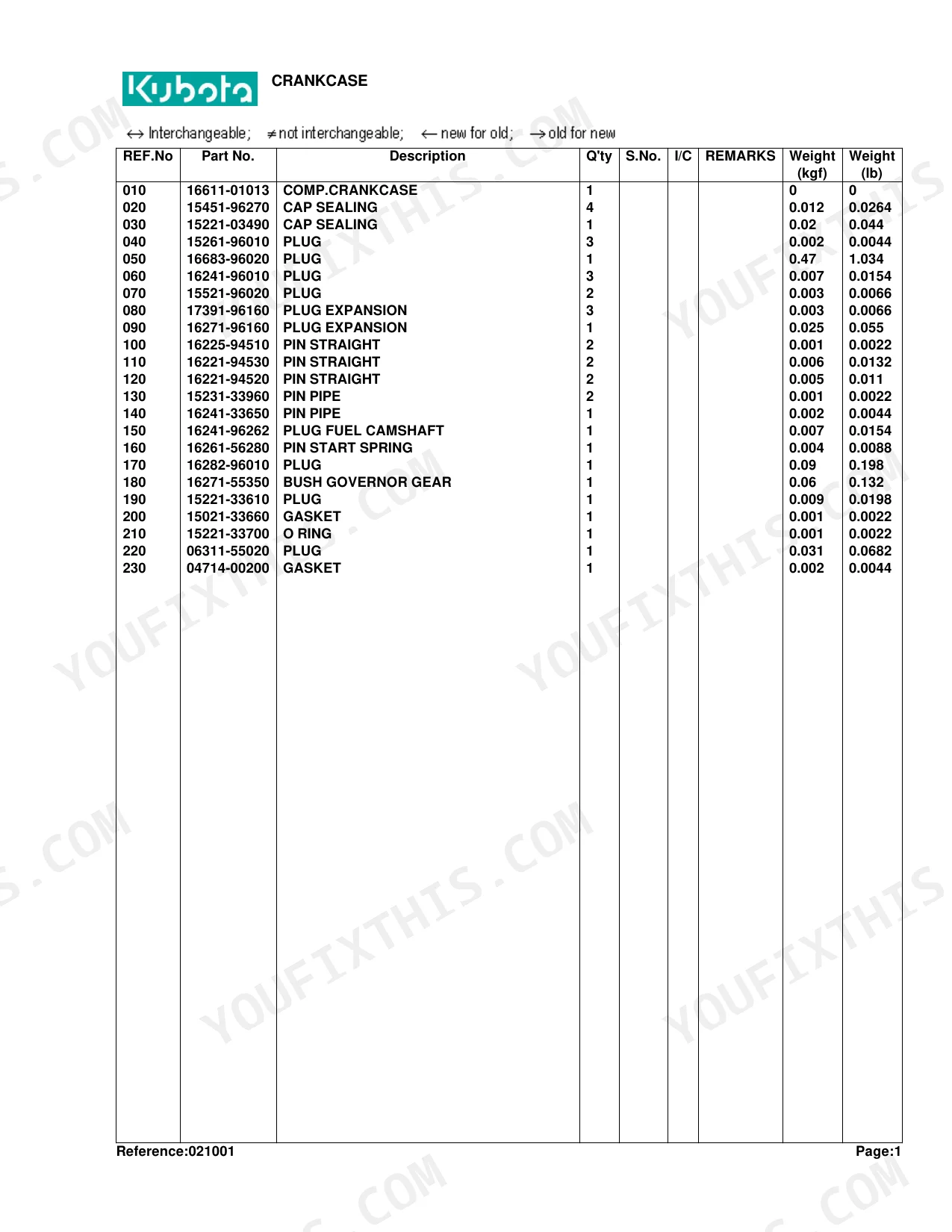

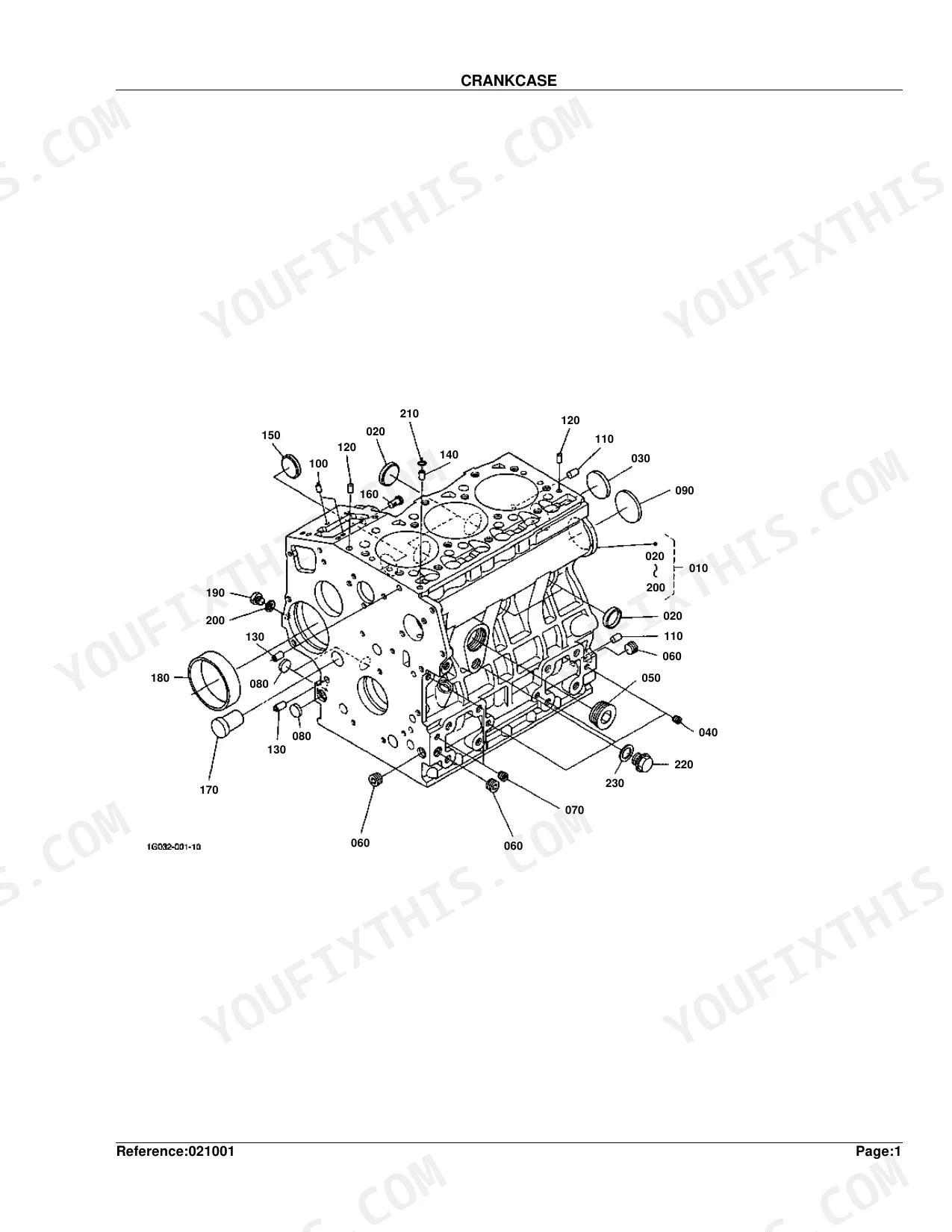

| Crankcase | 5-6 | Cap Sealing, Bush Governor Gear, Gasket, O Ring |
| Oil Pan | 7-8 | Filter Oil, O Ring, Bolt |
| Cylinder Head | 9-10 | Hook Engine, Combustion Chamber, Cap Sealing, Guide Inlet Valve, Guide Exhaust Valve, Gasket Cylinder Head |
| Gear Case | 11-12 | Case Gear, Joint Pipe, Spring, Seat Valve, Assy Rotor Oil Pump, Gasket Gear Case, Seal Oil, O Ring |
| Head Cover | 13-14 | Assy Cover Cylinder Head, Gasket Head Cover, Joint Breather Pipe, Plate B/ther Element, Element Breather, Oil Shield Breather, Gasket, O Ring |
| Oil Filter | 15-16 | Assy Cartridge Oil |
| Dipstick and Guide | 17-18 | Gauge Oil, Assy Guide Oil Gauge, O Ring |
| Main Bearing Case | 19-20 | Assy Case Main Brg, Gasket Brg.case, Cover Bearing Case, Seal Oil, Gasket |
| Camshaft and Idle Gear Shaft | 21-22 | Tappet, Push Rod, Assy Camshaft, Gear Cam, Stopper Camshaft, Comp Gear Idle, Bush Idle Gear, Collar Idle Gear |
| Piston and Crankshaft | 23-24 | Piston Std, Piston + .50MM, Assy Piston Ring Std, Assy Piston Ring + .50MM, Assy Rod Connecting, Metal Crankpin Std Set, Metal Crankpin - .20MM Set, Crankshaft |
| Flywheel | 25-26 | Gear Ring, Plate Starter, Plate Timing |
| Fuel Camshaft and Governor Shaft | 27-28 | Camshaft Fuel, Cam Fuel, Gear Injection Pump, Stopper Fuel.c/shaft, Assy Shaft Governor, Holder Governor Gear, Gear Governor, Holder Governor Weight |
| Engine Stop Lever | 29-30 | Apparatus Fuel Limit, Assy Bolt Adjusting, Gasket, Cap |
| Stop Solenoid | 31-32 | Solenoid Stop, Gasket, Bolt, Washer |
| Injection Pump | 33-34 | Joint Eye, Assy Pump Injection, Shim Injection Pump, Bolt Hex-Soc-Hd, Stud, Nut, Washer Spring |
| Injection Pump [Component Parts] | 35-36 | Assy Pump Injection, Plunger Pump, Valve Delivery, Spring Delivery Valve, Gasket Delivery Valve, Holder Delivery Valve, O Ring, Flange Sleeve |
| Governor | 37-38 | Spring Start, Spring Governor, Roller, Lever Fork, Shaft Fork Lever, Bearing Miniaturize, Cover Fork Lev.shaft, Gasket |
| Speed Control Plate | 39-40 | Lever Speed Control, O Ring, Lever Governor, Lever Engine Stop, Spring Return, Lever Stop, Gasket |
| Nozzle Holder and Glow Plug | 41-42 | Assy Pipe Over Flow, Screw Air Breeder, Gasket, Tube Fuel, Clip Pipe, Kit Holder Nozzle, Assy Holder Nozzle, Seal Heat |
| Nozzle Holder [Component Parts] | 43-44 | Kit Holder Nozzle, Spring Nozzle, Spacer Distance, Push Rod, Piece Nozzle, Assy Washer Adjust Option, Gasket, Seal Heat |
| Fuel Pump(Mechanical) | 45-46 | Cover, Gasket Fuel Pump, Nut, Washer |
| Dynamo and Pulley | 47-48 | Assy Dynamo, Stay Dynamo, Bolt, Nut, Washer Plain, Washer Spring, Pulley Fan Drive, Bolt Fan Drive |
| Starter | 49-50 | Assy Starter, Bolt, Nut |
| Starter [Component Parts] | 51-52 | Assy Starter, Assy Yoke, Assy Armature, Bearing, Clutch Over Running, Frame Drive End, Assy Housing Starter, Assy Switch Magnetic |
| Oil Switch/Thermometer and Plug | 53-54 | Switch Oil, Sensor Thermo |
| Water Flange and Thermostat | 55-56 | Comp Flange Water, Pipe Water Return, Gasket Water Flange, Band Pipe, Assy Thermostat, Cover Thermostat, Gasket Thermostat |
| Water Pump | 57-58 | Assy Pump Water, Bearing, Assy Seal Mechanical, Impeller Water Pump, Pipe Water Return, Gasket Water Pump, Flange Water Pump |
| Valve and Rocker Arm | 61-62 | Valve Inlet, Valve Exhaust, Spring Valve, Retainer Valve Sp, Collet Valve Spring Set, Cap Valve, Shaft Rocker Arm, Bracket Rocker Arm |
| Inlet Manifold | 63-64 | Assy Manifold Inlet, Gasket In-manifold, Bolt, Clamp |
| Exhaust Manifold | 65-66 | Manifold Exhaust, Gasket Ex-Manifold, Stud, Nut |
| Hydraulic Pump Cover | 67-68 | Plate Pump Hole, Gasket Pump Cover Na, Hex.bolt, Hex.nut |
| Upper Gasket Kit | 69-70 | Gasket Cylinder Head, Gasket, Gasket Head Cover, O Ring, Gasket In-manifold, Gasket Ex-manifold, Gasket Muffler Na Out Of Use |
| Lower Gasket Kit | 71-72 | O Ring, O Ring Out Of Use, Gasket, Seal Oil Out Of Use, Seal Oil, Gasket Fuel Pump, Gasket Gear Case |
| Air Cleaner | 73-74 | Air Clearner Assy, Body, Element, Cover, Dust Ejector Valve, Clip, Support Air Cleaner, Hex.Bolt |
| Muffler | 75-76 | Muffler Comp, Gasket Muffler Na, Hex.bolt, Cover Exhaust |
| Accelerator Lever | 77-78 | Lever Accel, Grip, Spring Plate, Hex.nut, Cover Accel Lever, Wire Engine, Bracket Wire, Hex.bolt |
| Fuel Tank | 79-80 | Tank Fuel, Cap Fuel, Cushion Tank Front, Stay Fuel Tank LH, Stay Fuel Tank RH, Hex.bolt, Cushion Tank Rear Lo, Cushion Tank Rear Up |
| Fuel Pipe | 81-82 | Hose Fuel, Assy Hose Fuel Tf, Conv.conduit Tf, Assy Hose Fuel Tr, Conv.conduit Tr, Convoluted Condutt, Assy Hose Fuel 4R, Condluted Conduit |
| Water Pipe | 83-84 | Hose Water Lower, Hose Water Upper, Clamp |
| Radiator | 85-86 | Kit RADIAT0R, Kit Shroud, Assy Cap, Cock Drain, Net Guide RH, Net Guide LH, Gasket, Assy Tank Reserve |
| Battery | 87-88 | Battery 26RA 26RA, Holder Battery, Rod Battery, Cable Battery, Hex.bolt |
| Panel Board | 89-90 | Assy Switch Starter, Switch Light, Switch Blinker, Switch Hazard, Meter Hour, Gauge Assy Fuel, Bulb Gauge, Gauge Assy Temp |
| Switch/Sensor | 91-92 | Sensor Fuel, Stay Sensor Fuel, Bush Sensor Fuel, Arm Fuel Float, Float Leveler Fuel, Hex.bolt, Hex.nut, Regulator |
| Head Right | 93-94 | Assy Lamp, Lens, Socket, Bulb, Holder Light |
| Hazard Light/Tail Light | 95-96 | Assy Hazard Lamp, Bulb 12V32P, Convoluted Conduit H, Lamp Assy Tail, Body.Tail Lamp, Socket Tail Lamp, Bulb Tail Lamp, Gasket Tail Lamp |

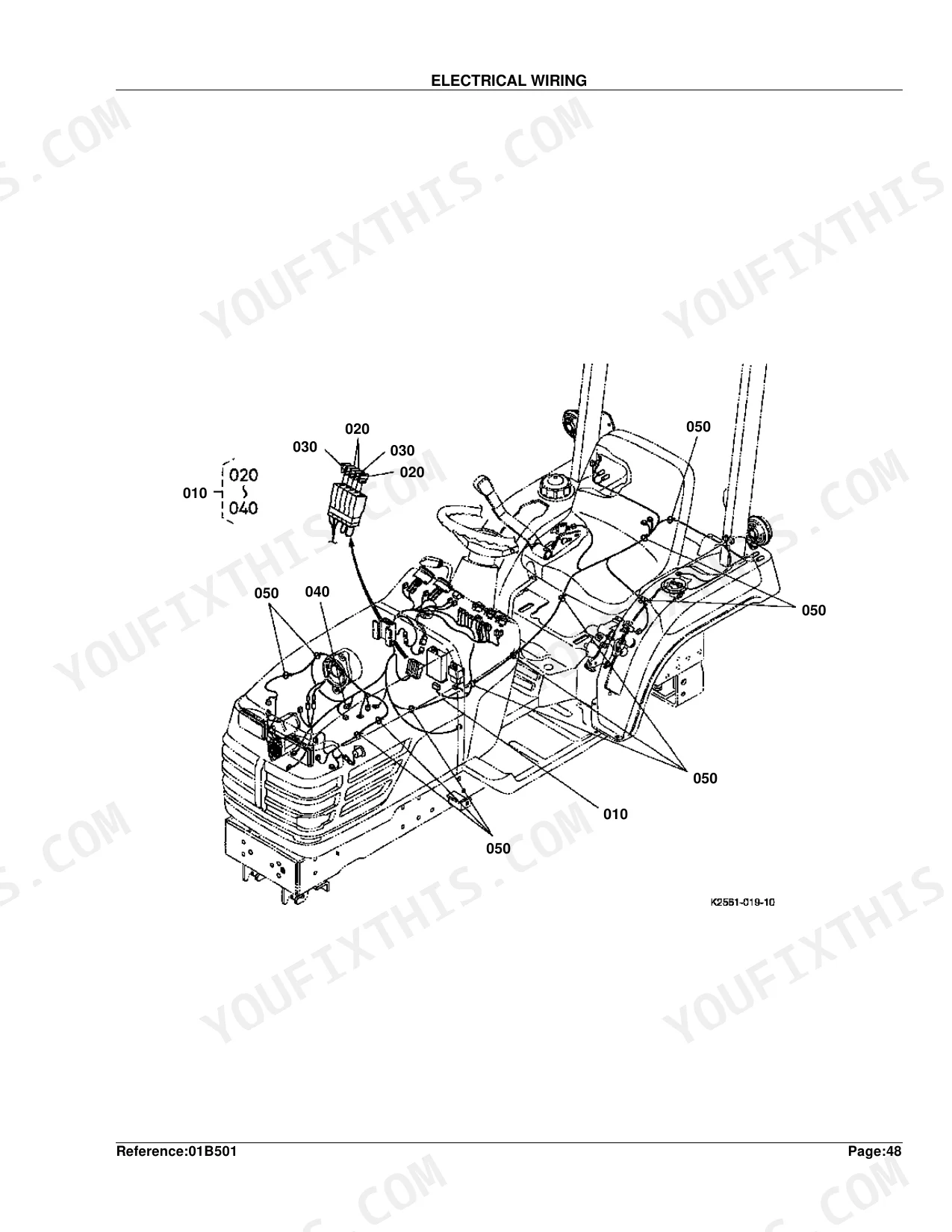

| Electrical Wiring | 97-98 | Assy Wire Harness, Fuse Auto 15A, Fuse 30A, Cable Tie |

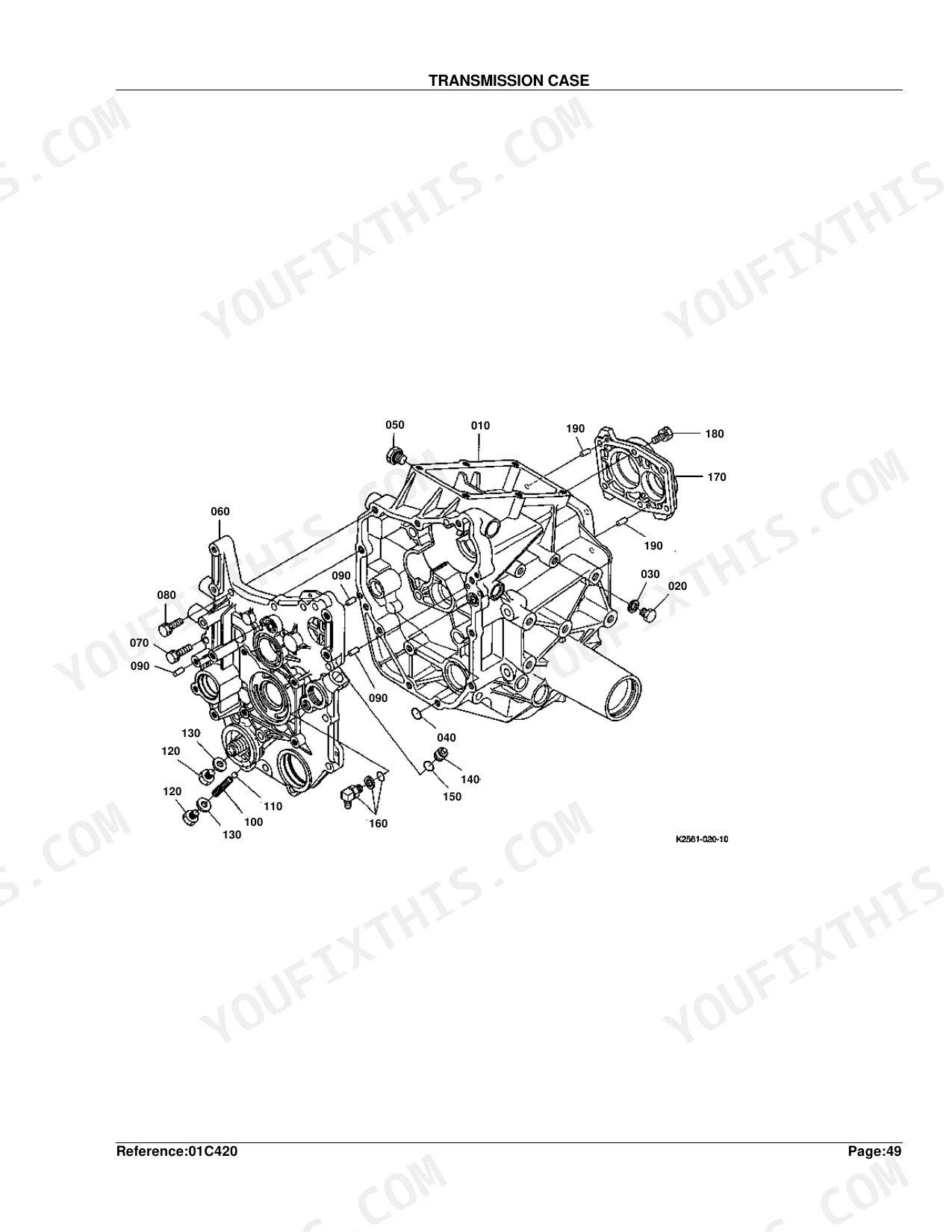

| Transmission Case | 99-100 | Case Transmission, O Ring, Cover Front, Spring PTO, Connector, Cover Rear |
| Rear Axle Case | 101-102 | Cover Axle R, Bolt, Pin, Plug |
| Clutch Shaft/Output Shaft | 103-104 | Sahft Brake Disk, Shaft Clutch, Ring Seal, Gear 13T, Collar Spacer, Gear Clutch 12T, Bearing Needle, Case Clutch |
| Propeller Shaft | 105-106 | Coupling Front, Hex.bolt, Plate Ball Joint, Shaft Propeller, Cover Joint, Coupling Ball Inner, O Ring Damper, Coupling Rear |
| HST | 107-108 | Bolt HST Upper, Assy HST |
| HST [Component Parts] | 109-111 | Assy HST, Gasket, Kit Cyl-block Motor, Shaft Pump, Clip, Spacer, Seal Oil, Needle Bearing Pump |
| Range Gear Shaft | 112-113 | Gear Low 17T, Gear High 25T, Gear Sub -24T, Gear 4WD 12T |
| PTO Shaft | 114-115 | Cap PTO Shaft, Gear Shaft Rear PTO 11T, Gear Mid PTO 22T, Bearing Needle, Collar Inner Ring, Gear PTO Select 30T, Seal Oil |
| Mid PTO | 116-117 | Shaft Mid PTO Idle, Gear Mid PTO Idle 26T, Shaft Gear 11T, Seal Oil Mid PTO |
| Rear Differential | 118-119 | Gear Shaft Final 10T, Bearing Roller, Assy Differential, Case Differential, Shaft Diff.pinion, Pinion Diff, Gear Diff.side LH, Gear Diff.side RH |
| FWD Idle Shaft | 120-121 | Shaft Fwd Idle, Gear Fwd Idle -25T, Bearing Needle, Pin |
| Gp Idle Shaft | 122-123 | Shaft Gp Idle, Gear Gp Idle 29T, Gear Shaft Gp 19T, Pin |
| Front Wheel Propeller Shaft | 124-126 | Shaft 4WD, Bearing Needle, Seal Oil, Gear Fwd Select 19T, Collar, Shaft Fwd Drive, Coupling Fwd, Collar Coupling |
| Range Gear Shift Fork/Creep Gear Shift | 127-128 | Rod Fork, Fork Range Shift, Spring Stopper, Arm Range Shift, O Ring |
| PTO Gear Shift Fork | 129-130 | Shaft PTO Clutchonof, O Ring, Sleeve PTO Clutch, Collor PTO Clutch, Arm PTO Clutch |
| PTO Gear Shift Arm | 131-132 | Arm PTO Select, O Ring, Spring Stopper, Bolt |
| Differential Lock Shift Fork | 133-134 | Fork Diff.lock Shift, Shaft Diff.lock, O Ring, Arm Diff.lock |
| Rear Axle | 135-136 | Axle Rear, Seal Oil, Ball, Circlip |
| Brake | 137-138 | Lever Cam LH, Lever Cam RH, O Ring, Actuator LH, Actuator RH, Holder Bearing L, Holder Bearing R |
| Neutral Holder Link | 139-141 | Arm HST Trunnion, Hex.nut, Plate HST Neutral, Hex.bolt, Lever Neutral Adjust, Collar HST, Arm HST Neutral, Spring HST Neutral |
| Speed Control Pedal | 142-143 | Pedal HST, Hex.bolt, Hex.nut, Link HST Pedal, Bushing Du, Rod Speed Change, Rod End, Damper HST |
| Range Gear Shift Lever | 144-146 | Lever Sub Select, Kit Lever Sub Sel, Lever Sub Mid, Lever Sub Upper, Grip Lever Sub, Cushion, Stay Switch Neutral, Rod Switch |
| Front Wheel Drive Lever | 147-148 | Arm 4WD Shift, O Ring, Plate Fwd Select, Spring Stopper, Lever Fwd Select, Grip Lever Fwd, Cushion |
| PTO Select Lever | 149-151 | Lever PTO Select, Kit Lever PTO Sel, Lever PTO Sel.mid, Lever Sub Upper, Grip Lever PTO, Cushion |
| PTO Gear Shift Lever | 152-153 | Lever PTO Clutch, Bushing Du, Grip Lever Clutch, Cushion, Rod PTO Clutch, Spring Position, Hex.bolt, Cam PTO Clutch |
| Hydraulic Control Lever | 154-155 | Rod Feedback, Bracket Feedback, Hex.nut, Spring Feed Back, Lever Hyd Control, Boss Hyd Lever, Grip Lever Hyd, Cushion |
| Brake Pedal | 156-157 | Rod Brake, Rod Left Hand Thread, Turnbuckle, Hex.nut, Spring Return Brake, Cover Brake Pedal, Arm Brake, Bush |
| Differential Lock Pedal | 158-159 | Pedal Diff.lock, Cover Diff.lock Pdl, Spring Diff.lock Pdl, Rod Diff.lock |

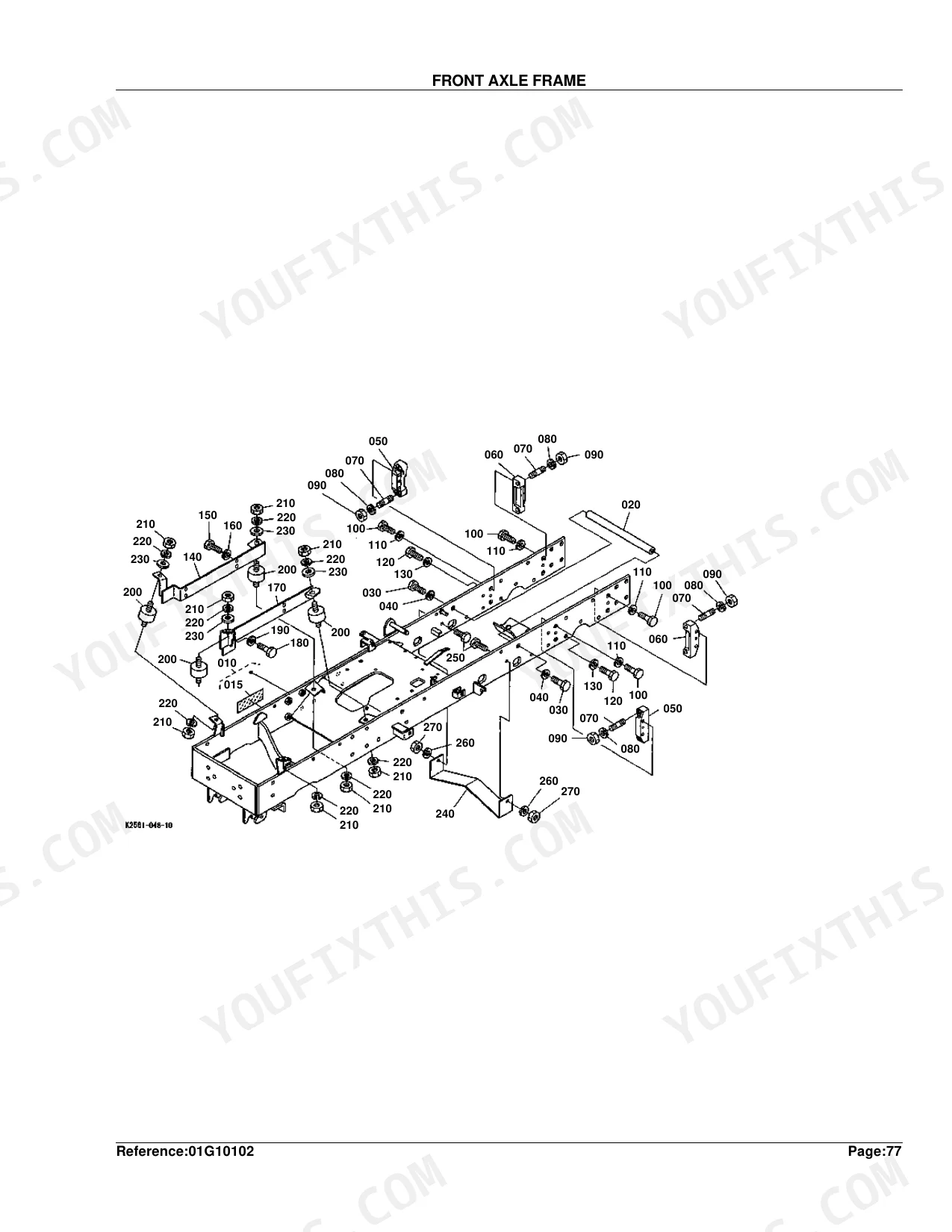

| Front Axle Frame | 160-161 | Kit Frame Comp English, Kit Frame Comp French, Label Start Danger English, Label Start Danger French, Rod Tie, Hex.bolt, Bracket Front, Bracket Rear |
| Front Differential Case | 162-163 | Assy Case Front, Bush, O Ring, Ring Back Up, Shaft Center |
| Front Differential | 164-165 | Shaft Gear 11T, Bearing Taper-roller, Collar .0MM, Collar, Seal Oil, Gear Bevel 20T, Assy Diff. Front, Case Diff.front |
| Differential Gear Shaft | 166-167 | Case Bevel Gear, O Ring, Gauge Oil, Shaft Yoke RH, Shaft Yoke LH, Gear Bevel F 12T |
| Front Axle Case | 168-169 | Case Front Gear LH, Case Front Gear RH, Gear Bevel F 15T, Shaft Bevel Gear 9T |
| Front Axle | 170-171 | Cover Gear Case, Shaft Front Axle, Gear Bevel 36T, Collar Set, Seal Oil |
| Steering Handle | 172-173 | Assy Steering Wheel, Wheel Steering, Cap Steering Wheel, Nut |
| Steering Controller | 174-175 | Unit Steering, Hex Bolt, Washer Spring Lock |
| Steering Linkage | 176-177 | Comp Cylinder Refer To L.NO.F05-L For, Tie Rod Steering, Hex.nut, Holder LH, Holder RH |
| Steering | 178-179 | Comp Cylinder Ps, Cap End, Piston Center, Seal Kit, Ring Wiper, Ring Seal |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery replacement value | BATTERY 26RA | p. 88 |
| Fuse replacement value | 15A | p. 98 |
| Relay replacement value | COMP.RELAY | p. 242 |
| Ignition switch replacement value | ASSY SWITCH STARTER | p. 90 |
| Key switch replacement value | KEY STARTER | p. 90 |
| Fuel shutoff solenoid replacement value | SOLENOID STOP | p. 32 |
| Hydraulic filter replacement value | CARTRIDGE OIL FILTER | p. 185 |
| COMP.CYLINDER HEAD weight | 10.1 kgf | p. 10 |
| COMP.CRANKSHAFT weight | 9.35 kgf | p. 24 |
| KIT RING PISTON weight | 0.55 kgf | p. 24 |
| SHIM INJECTION PUMP thickness | 0.3 MM | p. 34 |
| WASHER ADJUSTING thickness | 0.80 MM | p. 44 |
Kubota BX2200D Common Problems This Manual Covers
Kubota BX2200D will not start, need fuse, relay, and fuel shutoff solenoid part numbers p. 97
Check the Electrical Wiring diagram on page 97 for the Assy Wire Harness and Fuse Auto part numbers; the 15A fuse spec is confirmed on page 98. The Solenoid Stop assembly with Gasket is on page 31. Cross-reference the Panel Board on page 89 for Assy Switch Starter and Key Starter numbers before ordering.
Manual Section: Electrical WiringEngine will not shut off with key, need correct stop solenoid part number to order p. 31
Locate the Solenoid Stop, Gasket, and hex-socket bolts on page 31. While ordering, pull the Electrical Wiring diagram on page 97 and verify the 15A Fuse Auto (page 98) is intact. If you're replacing the solenoid after a bypass or rigging, add the Washer Spring listed in that section to complete the hardware set.
Manual Section: Stop SolenoidHydrostatic transmission losing drive under load, HST assembly and filter part numbers unknown p. 107
Find the Assy HST on page 107; the full component list including Kit Cyl-Block Pump and Assy Valve Relief is on page 109. Locate the Cartridge Oil Filter number in Hydraulic Oil Line (Suction) on page 184. Also pull the Hydraulic Pump section on page 180; the assembly weighs 1.2 kgf (page 181) if you need that as a cross-reference.
Manual Section: HSTThree-point hitch won't lift or acts erratic, control valve and cylinder seal kit numbers needed p. 194
Open the Control Valve exploded view on page 194; O Ring, Ball, and Spring Shift Fork numbers are on page 196. For cylinder seals, the Ring Back Up, O Ring, and Piston Hyd are on page 192. The Bracket Shim (1.9 MM thick, page 205) is listed too if hitch geometry needs adjustment.
Manual Section: Control ValveIntermittent starting and electrical failures, wiring harness and relay part numbers hard to locate p. 241
Pull the Electrical Wiring section on page 97 for the Assy Wire Harness and Cable Tie part numbers. Fuses in this circuit are rated 15A (page 98). For the relay, check the Alternator Kit on page 241, where Comp Relay is a separate line item. Order battery cable hardware from page 87 if terminals show corrosion.
Manual Section: Alternator Kit [Option]Starter clicks or cranks slowly, need Assy Starter and rebuild kit part numbers for ordering p. 49
Find the Assy Starter and mounting bolt numbers on page 49. The full rebuild list, including Assy Armature, Bearing, Over Running Clutch, and Kit Starter, is on page 51. While sourcing the starter, confirm the Dynamo assembly (1.4 kgf, page 48) is in spec; both are common replacements on higher-hour machines.
Manual Section: StarterFrequently Asked Questions
What are the replacement specifications for battery?
The battery listed for replacement is "BATTERY 26RA," part number K2563-61110. You'll find it spelled out in the battery section of the manual.
What are the replacement specifications for fuses?
Three fuses are listed for replacement: a 15A "FUSE AUTO" (Part No. 35820-75560), a 20A "FUSE AUTO" (Part No. 36919-56650), and a 30A "FUSE" (Part No. 51950-29320).
How quickly can I access this Kubota BX2200D manual after buying?
The 246-page searchable PDF downloads as soon as checkout clears. Open it on a laptop, tablet, or phone and bring it straight to the shop floor.
Is this Kubota BX2200D Parts Catalog printable?
Yes. The PDF carries no DRM, so you can print any page or section you need for the shop. Works with any standard printer.
