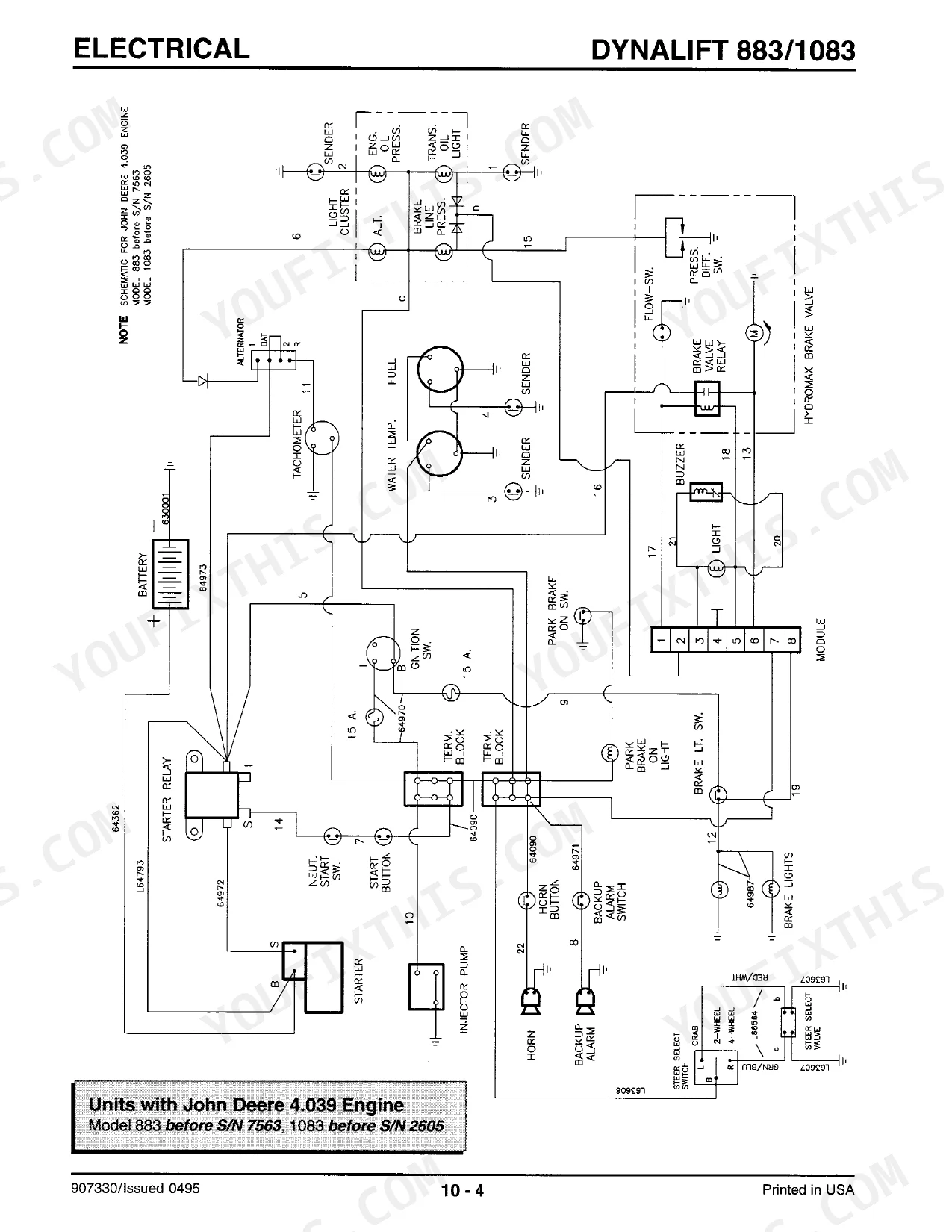

Two engine variants, one machine: this OEM #907330 manual covers the Gehl 883 and 1083 Dynalift telescoping boom forklifts, with separate wiring diagrams for the John Deere and Perkins builds. Hydraulic schematics carry the full pressure-check sequences and relief valve adjustment steps, and more than 100 pages walk through rebuilds of the boom, transmission, axles, and engine. Six troubleshooting guides isolate a fault fast, whether it sits in the hydraulics, drivetrain, or boom assembly. Torque the control valve assembly studs to 52-55 lb-ft (70-75 Nm) and confirm hydraulic cooler flow specs before you close the system. Stop chasing a transmission fault through a generic reference that never heard of a Dynalift. Bookmarked by system and keyword-searchable, so you can pull it up on a tablet, tap to the section, and start turning wrenches.
What's Inside This Gehl 883, 1083 Manual
| System | Pages | Key Topics |
|---|---|---|

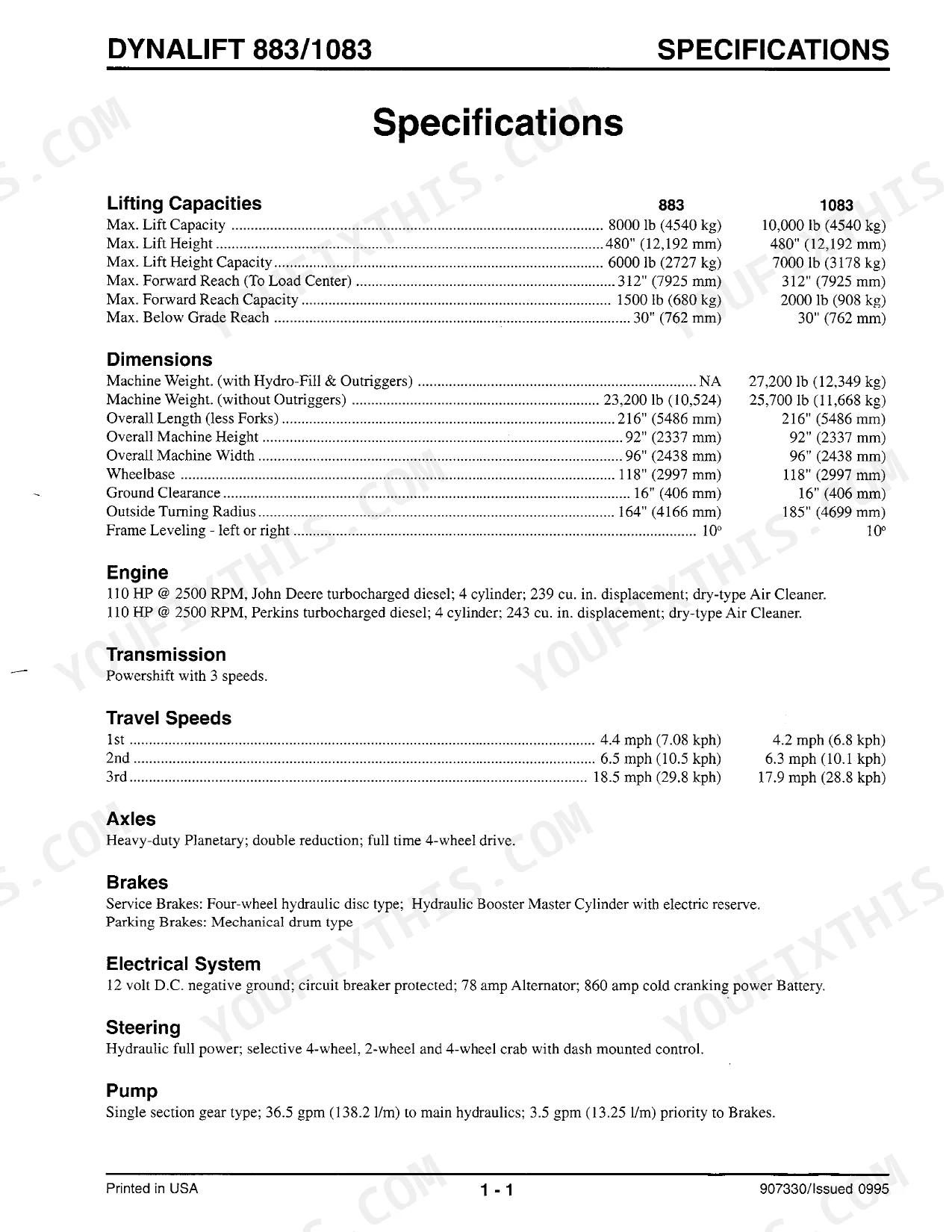

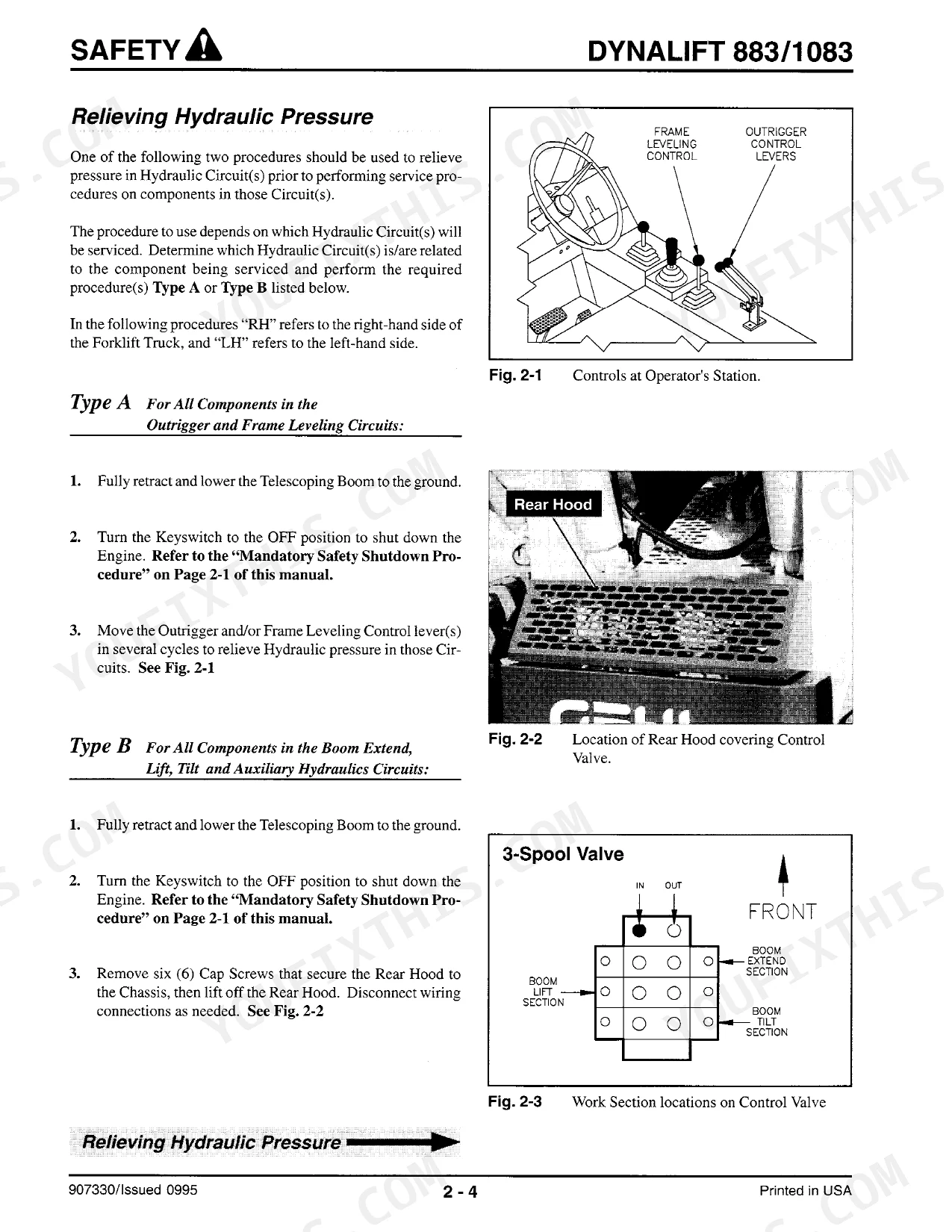

| Specifications | - | Lifting Capacities, Machine Weight, Fluid Capacities, Engine RPM, Travel Speeds, Electrical System |
| Safety | - | Signal Words, Mandatory Safety Shutdown Procedure, Safety Reminders, Modifications, Nameplates, Markings and Capacities, Safety Guards and Warning Devices |
| Decals | - | General Information, New Decal Application, Paint Finish, Decal List, Decal Locations |
| Lubrication | - | Engine Oil, Hydraulic Oil, Transmission Oil, Axle Differential Oil, Planetary Hub Oil, Brake Fluid Reservoir, Boom Leaf Chains, Grease Fittings |

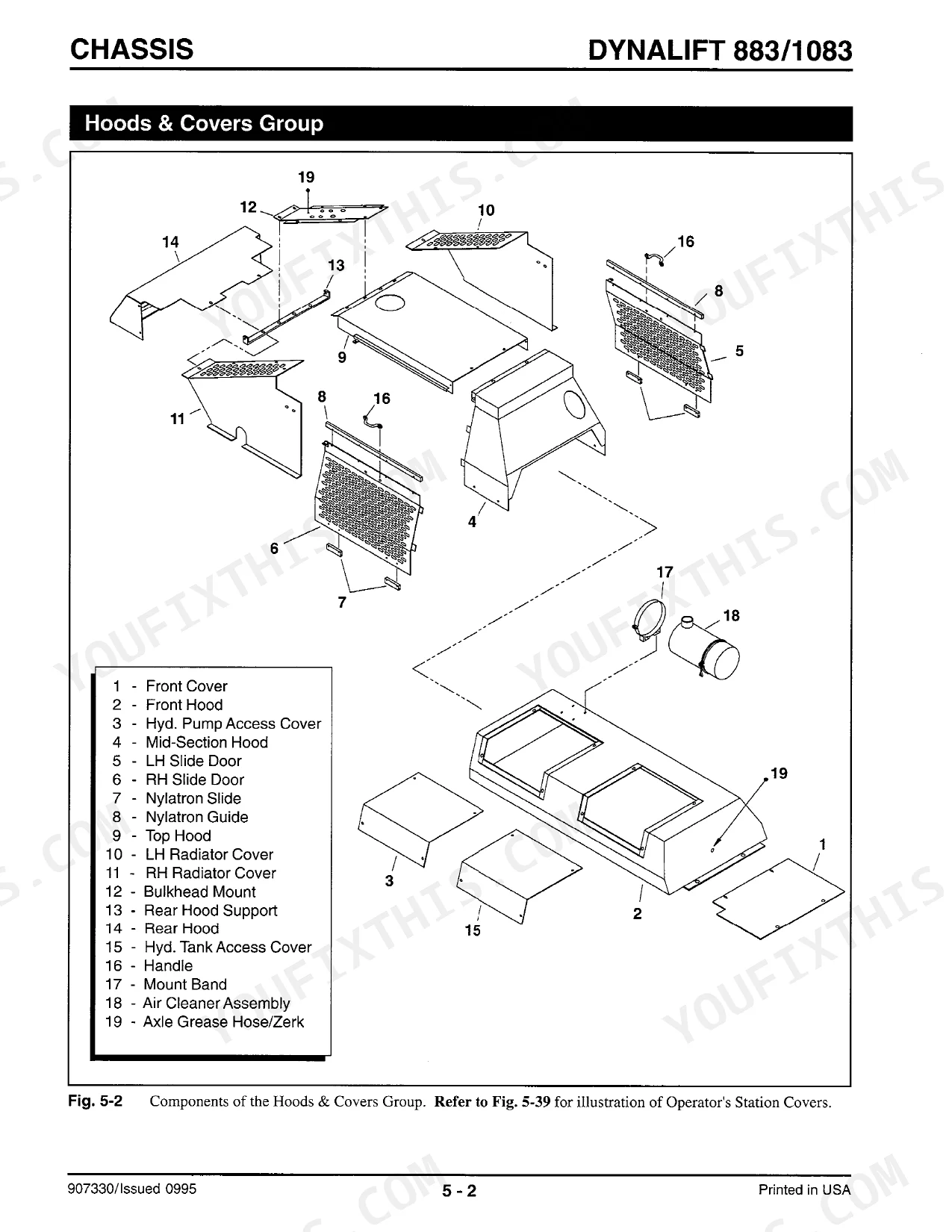

| Chassis | - | Introduction, Hoods and Covers, Removal / Installation Details, Fuel Tank, Removal & Installation, Frame Level Indicator Adjustment, Operator's Station |

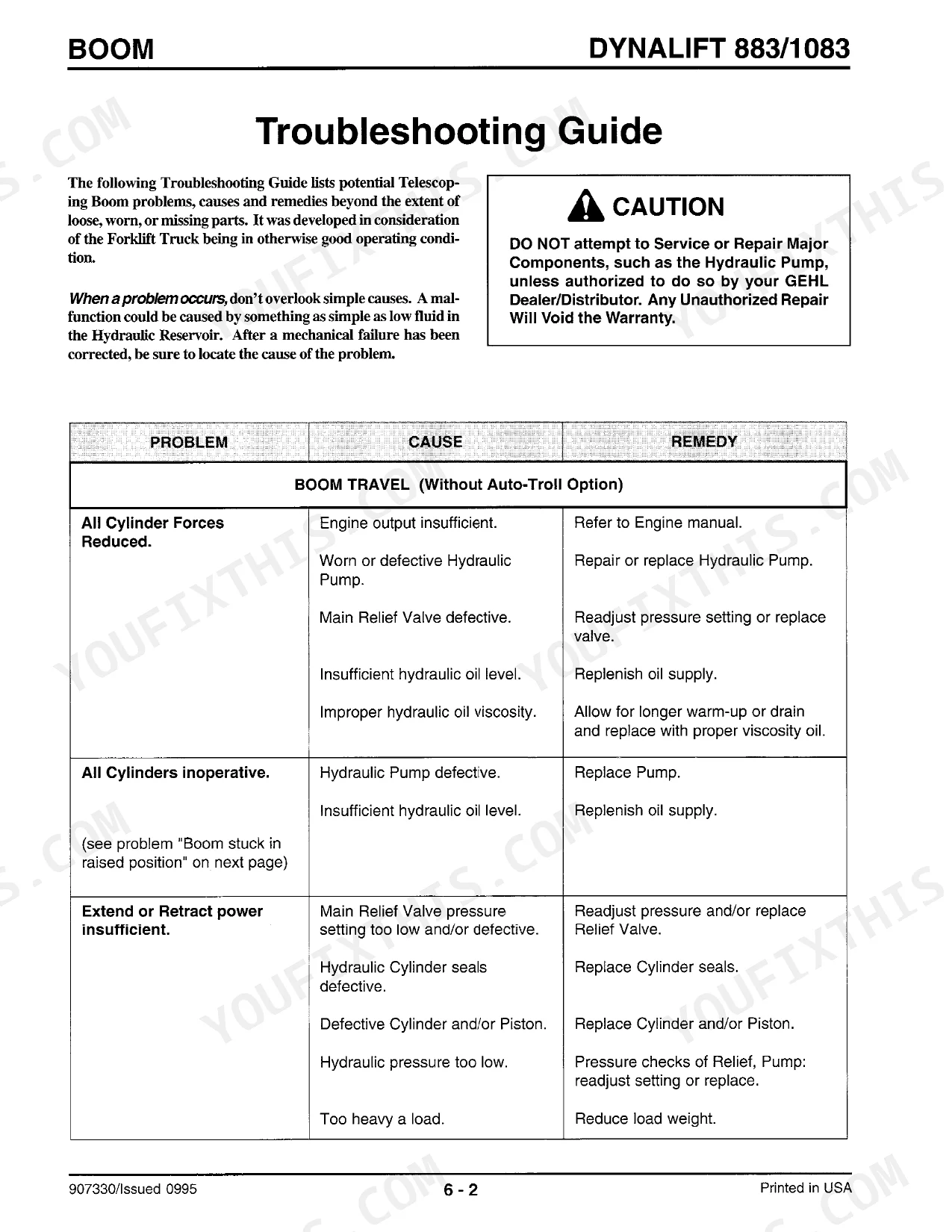

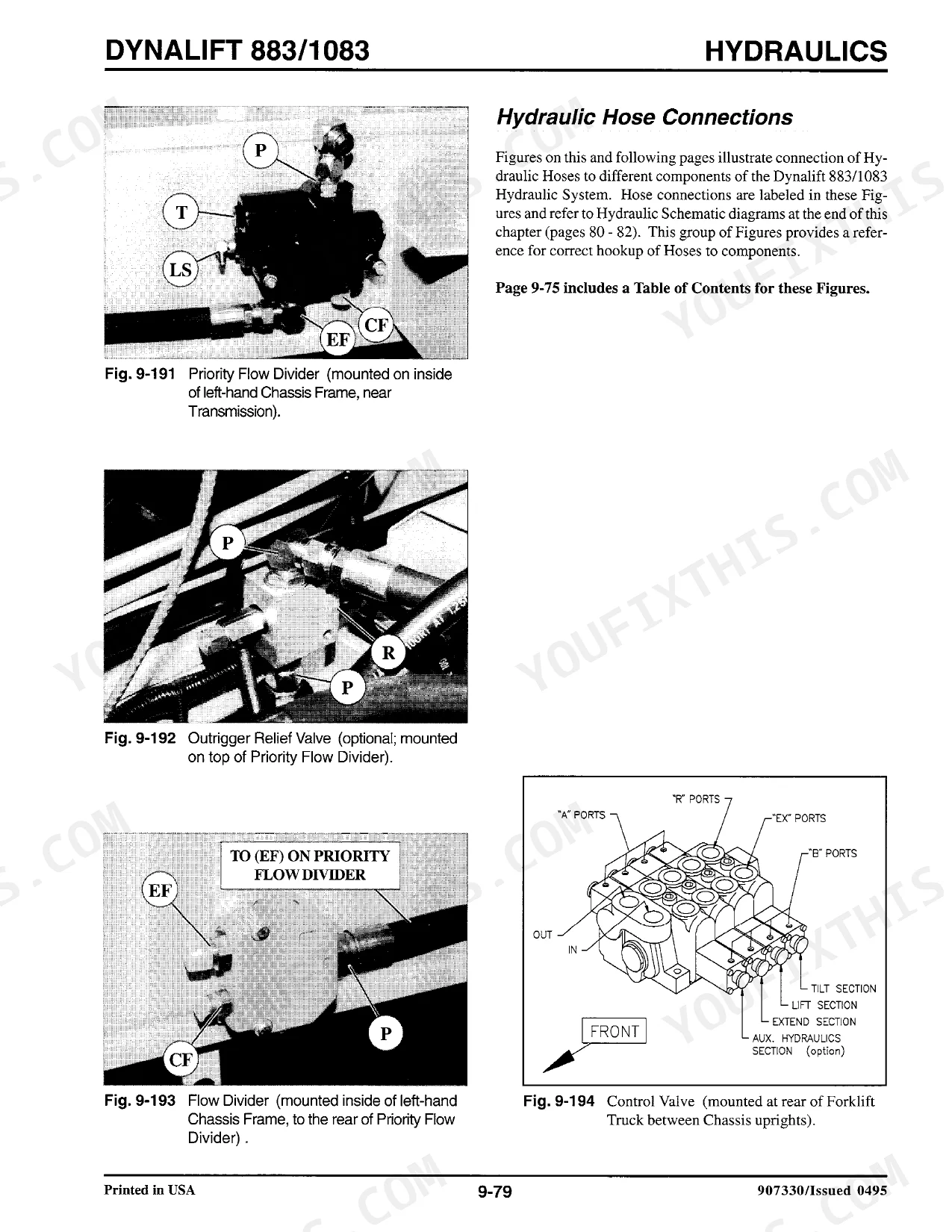

| Telescoping Boom | - | Introduction, Troubleshooting Guide, Leaf Chain Maintenance, Leaf Chain Adjustment, Leaf Chain Assembly, Slide Pad Maintenance, Slide Pad Locations and Information |
| Transmission & Driveline | - | Troubleshooting Guide, Transmission Filter Replacement, Transmission Fluid Drain & Refill, Transmission Controls, Parking Brake |
| Axles & Wheels | - | Introduction, Troubleshooting Guide, Front Axle Removal, Front Axle Installation, Rear Axle Removal, Rear Axle Installation, Wheel Removal & Installation |
| Hydraulic System | - | Troubleshooting Guide, Hydraulic Pressure Checks, Relief Valve Adjustment, Lift Cylinder Removal, Electrical System Schematics |
| Engine | - | Introduction, Troubleshooting Guide, Oil and Filter Element Change, Air Cleaner Element, Removal & Cleaning, Battery Removal / Installation, Starter Removal / Installation |

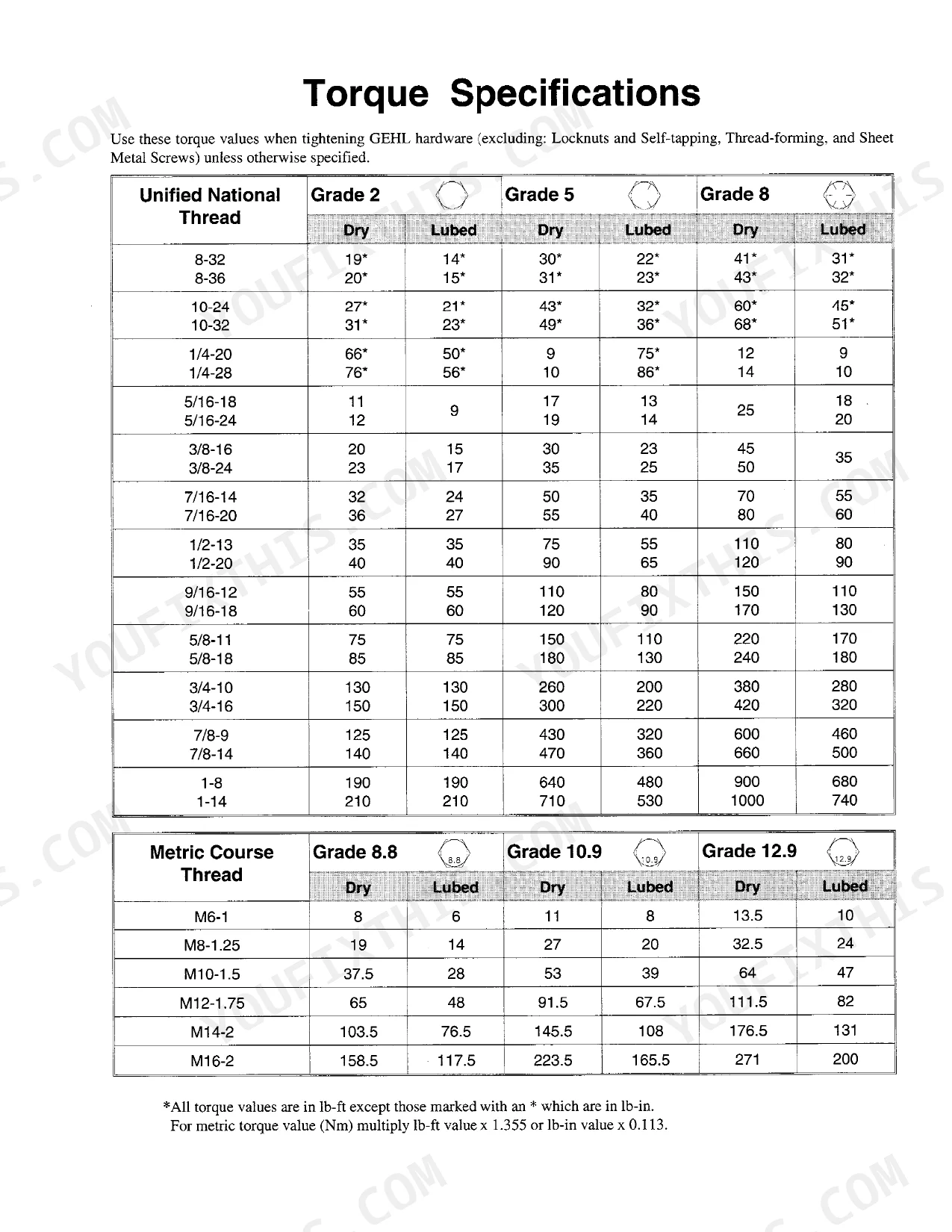

| Torque Specifications | - | Unified National Thread, Grade 2, Grade 5, Grade 8, Metric Thread |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

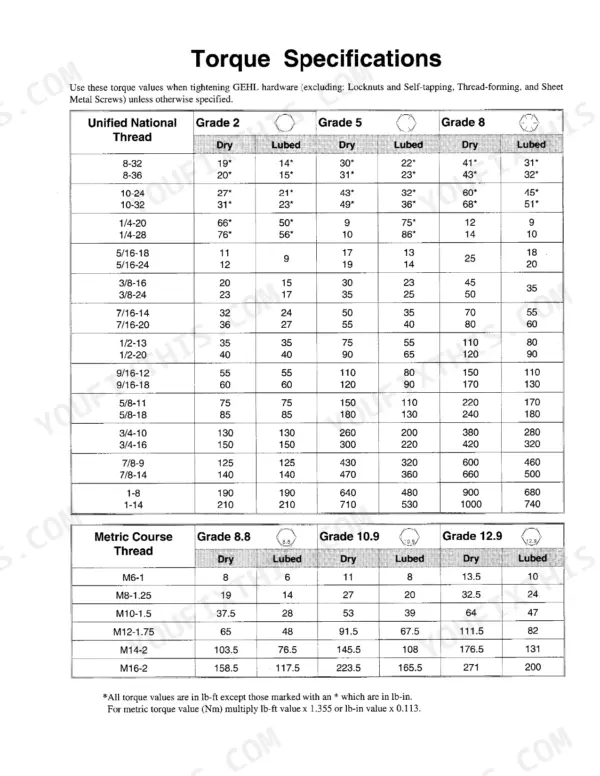

| General Torque Specifications | Use these torque values when tightening GEHL hardware (excluding: Locknuts and Self-tapping, Thread-forming, and Sheet Metal Screws) unless otherwise specified. For metric torque values (Nm) multiply torque by 1.355 or an lb-in value x 0.113. (Refer to the table on page 324 for specific values based on thread size and grade) | p. 324 |
| Hydraulic Filter Element Replacement | Full flow 10 micron with safety bypass | p. 9 |
| Hydraulic Cooler Flow | up to 37 gpm (140 l/m) | p. 9 |
| Cylinder Seal Kit | Not specified | p. 241 |
| Control Valve Assembly Studs Torque | 52-55 Nm | p. 252 |
| Engine Oil Capacity (with filter) | 6.5 quarts (7.6 liters) | p. 9 |
| Hydraulic Tank Capacity (with system) | 47 gallons (177.9 liters) | p. 9 |
| Transmission Oil Capacity (with filter & cooler) | 6 gallons (22.7 liters) | p. 9 |
| Axle Differential Oil Capacity (each) | 6.8 pints (3.22 liters) | p. 9 |
| Axle Planetary Hub Oil Capacity (each) | 2.5 pints (1.18 liters) | p. 9 |
| 883 | ||
| Lifting Capacity | 8000 lb (3629 kg) | p. 8 |
| 1083 | ||
| Lifting Capacity | 10,000 lb (4540 kg) | p. 8 |
Gehl 883, 1083 Common Problems This Manual Covers
Hydraulic boom lift slow or won't raise load after warming up, functions weak p. 198
Confirm the hydraulic fluid level first; the tank holds 47 gallons (177.9 liters) total. Verify main system relief valve pressure is at 2250 PSI (155 Bar) per page 198. If pressure tests good but lift stays sluggish, inspect the hydraulic filter for restriction and check for aerated or contaminated oil before disassembling pump components.
Manual Section: Hydraulic SystemBoom extends or retracts with jerking and binding, movement not smooth under load p. 68
Inspect the boom slide pads at the locations shown. Worn or misadjusted pads cause binding, so check pad clearance and torque slide pad cap screws to 30 lb-ft (40.6 Nm) per page 68. Clean the boom channel, clear any debris, and confirm the hydraulic cylinders show no external seal leaks before returning to service.
Manual Section: Telescoping BoomBoom drifts down or load won't hold in position with controls in neutral p. 198
Verify main system relief valve pressure is at 2250 PSI (155 Bar) per page 198; low pressure lets loads drift. If pressure checks out, inspect the lift cylinder for external seal leakage. Remove and rebuild the control valve, torquing assembly studs to 52-55 lb-ft (70-75 Nm) per page 252, then retest drift with a rated load in the carriage.
Manual Section: Hydraulic SystemEngine won't crank or turns over slowly, machine dead in cold morning
Start at the battery terminals and cable connections; corrosion or a loose post is the most common culprit. Trace the starter circuit using the wiring diagram. Confirm engine oil is at the correct level (6.5 quarts / 7.6 liters with filter per page 9), make sure the fuel shutoff is open, and load-test the battery before pulling the starter for bench testing.
Manual Section: EngineTransmission slips, overheats, or machine lacks drive power and speed during loaded travel p. 9
Drain and refill the transmission to the correct level; capacity is 6 gallons (22.7 liters) including filter and cooler per page 9. Inspect the transmission filter for metallic debris, which signals internal wear. Check torque converter charging pump output and clutch pack circuit pressures using the troubleshooting guide in the Transmission and Driveline section before pulling components.
Manual Section: Transmission & DrivelineParking brake won't hold on grade, machine rolls after setting brake and exiting cab p. 144
Adjust parking brake cable tension so the brake engages fully at 68 lbs (30.8 kg) pedal force per page 144. Lower the boom completely, set all controls to neutral, and apply the brake before testing hold on a grade. Inspect brake lining thickness for wear and confirm the linkage has no binding, loose pins, or lost motion at the clevis connections.
Manual Section: Transmission & DrivelineFrequently Asked Questions
What are the torque specs for Gehl 883/1083 boom, axle, or engine components?
General torque specs are listed by thread size. A 1/4-20 Unified National Thread, for instance, calls for 66 ft-lb (90 Nm) dry and 56 ft-lb (76 Nm) lubed. An M10-1.5 Metric Thread takes 37.5 ft-lb (51 Nm) dry and 28 ft-lb (38 Nm) lubed.
What do I get after purchasing this Gehl 883, 1083 manual?
Immediate download of the complete 325-page searchable shop manual. Use it on any device: laptop at your desk or phone out in the field.
Can I print specific sections of this Gehl 883, 1083 Shop Manual?
No restrictions at all. Print individual pages, full chapters, or the whole manual. The PDF is completely unlocked.
Are hydraulic system diagrams in this Gehl 883, 1083 Shop Manual?
Yes. Full hydraulic system diagrams are included, covering circuits, valve locations, and component specs for the Gehl 883, 1083.
Document Quality
This document is a scanned PDF, not a native digital file. It includes an OCR layer, so you can search and copy the full text, though the original scanned text can be slightly blurry or faded in places. Diagrams and illustrations are raster images, which means they may lose some crispness when highly magnified, but labels are generally readable. The page condition is mostly clean, with some minor scan artifacts and slight skewing visible on various pages. Page 7 is a dedicated 'NOTES' page.
