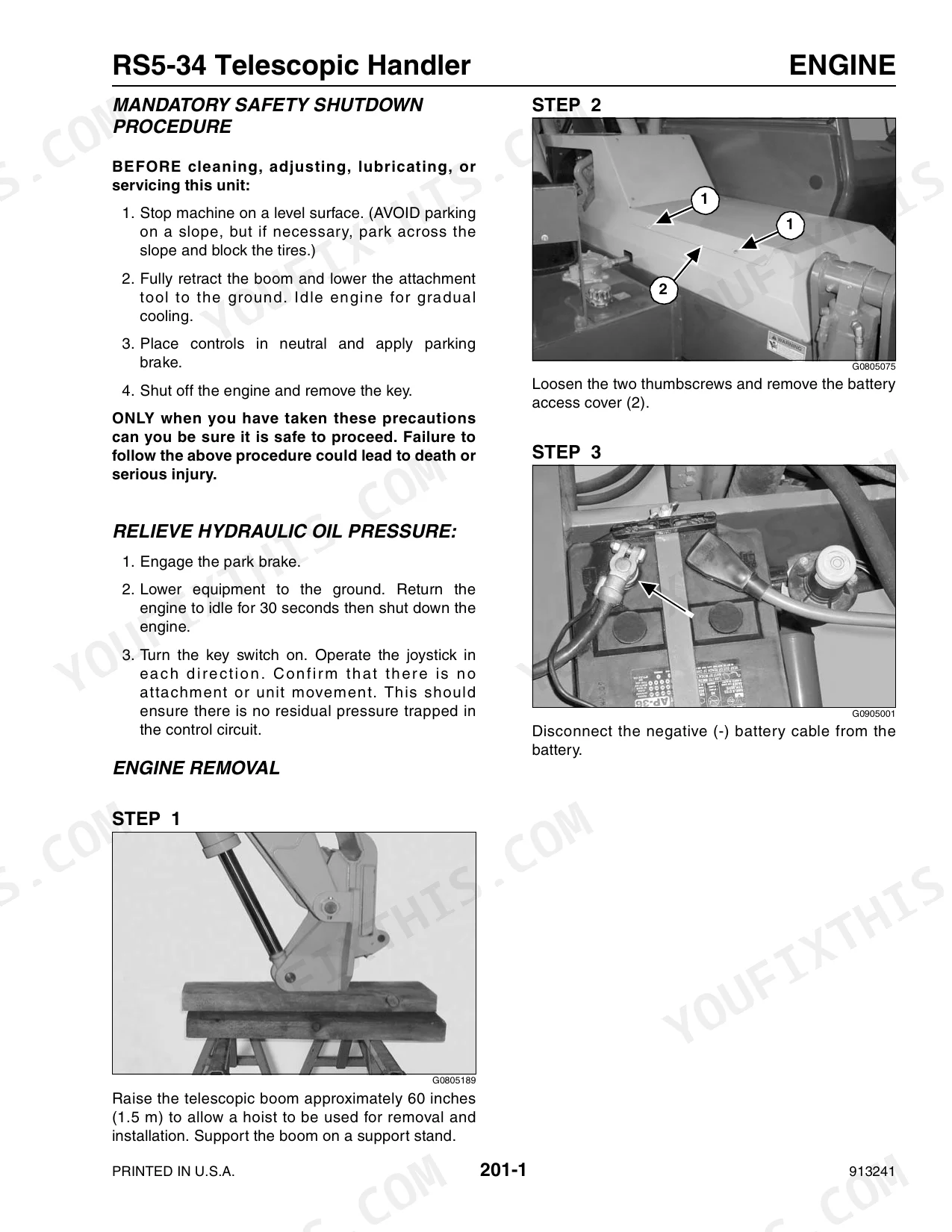

Gehl built the RS5-34 and RS6-34 around a 99-hp drivetrain and a 3000 PSI hydraulic system, and this OEM manual (#913241) documents both down to the seal. The 292 pages run from ground-level drivetrain to the full telescoping boom: electrical schematics paired with test and troubleshooting routines, hydraulic schematics for every cylinder circuit, and more than 100 pages of step-by-step work covering engine R&I, transmission, front and rear axle, hydraulic pump, frame leveling, tilt, lift, and boom extend cylinders. Wheel nuts land at 450 ft.-lbs. (610 Nm); size your hydraulic fittings off the standard torque table before you crack a single line. When a circuit fails, you stop guessing which cylinder or spool is at fault. Bookmark the section you need and read it at the machine.
What's Inside This Gehl RS5-34, RS6-34 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 5-28 | Safety, General Info & Specifications |
| Engine | 29-56 | Engine Removal & Installation |
| Electrical | 57-86 | Elec. Schematic, Troubleshooting, Testing & Adjustment Procedures, Battery Removal & Installation |
| Steering | 87-94 | Steering Control Valve Removal & Installation |
| Power Train | 95-136 | Transmission Removal & Installation, Rear Axle Removal & Installation, Front Axle Removal & Installation |

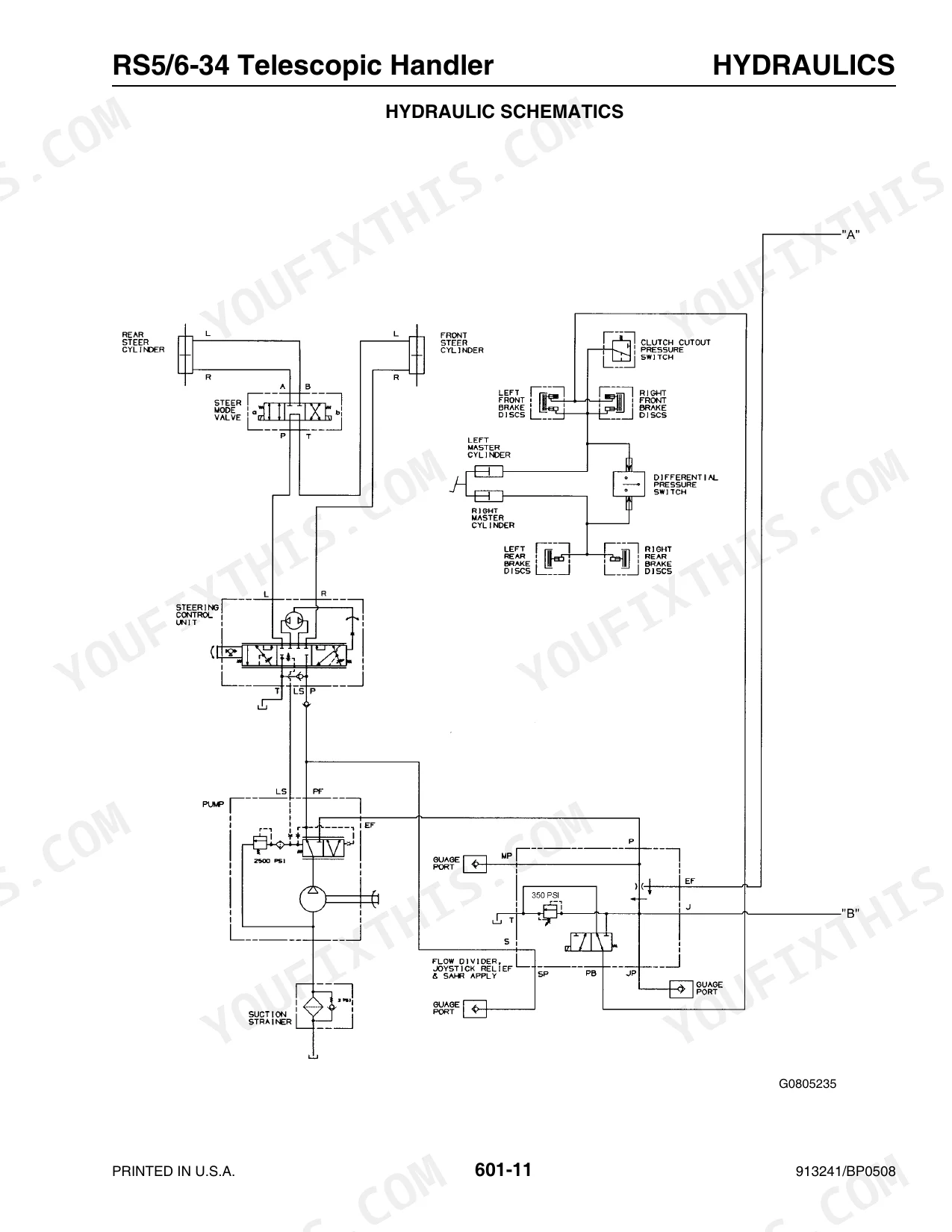

| Hydraulic System | 137-236 | Hyd. Schematics, Troubleshooting, Testing & Adjustment Procedures, Hyd. Pump Removal & Installation |
| Telescoping Boom | 237-292 | Boom Assembly Removal & Installation, Single & Double Leaf Chain Adjustment, Inner Boom Section Removal & Installation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel nut torque | 450 ft.-lbs. (610 Nm) | p. 123 |
| Hydraulic filter type | Remote, 10 Micron, Replaceable Element | p. 24 |
| Hydraulic filter rated flow | 100 GPM (371 L/min) | p. 24 |

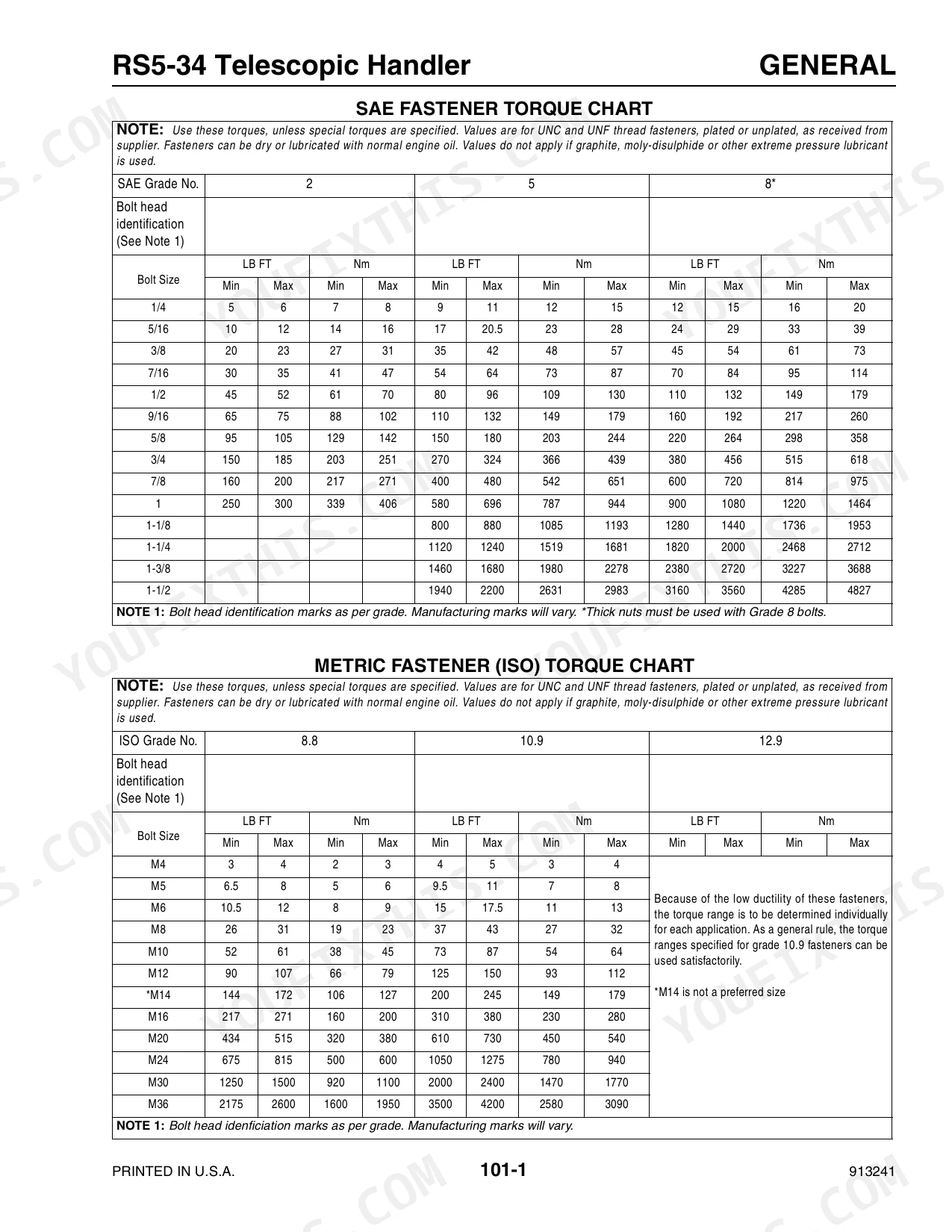

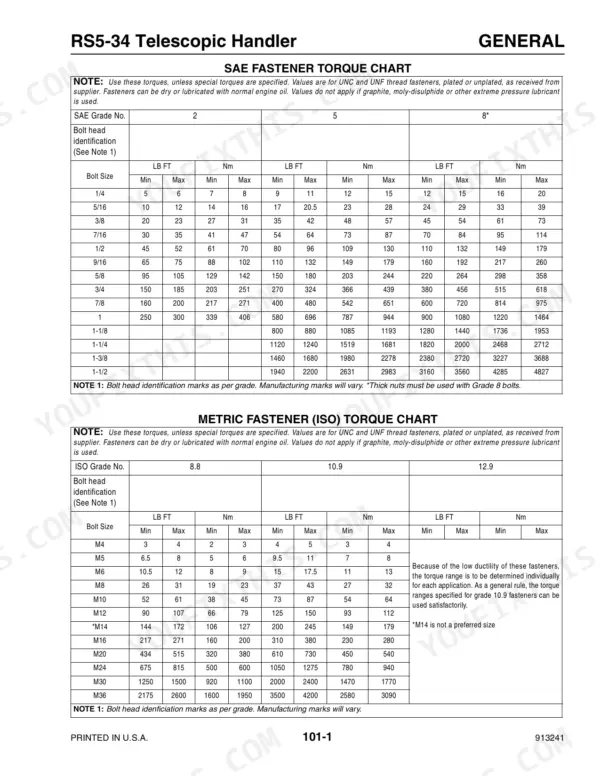

| Standard torque data for hydraulic tubes and fittings (example for 1/4 inch tubing, 7/16-20 thread) | 9-12 LB FT (12-16 Nm) | p. 20 |
| Cylinder rod nut torque | 450 ft.-lbs. (610 Nm) | p. 210 |
| Main control valve type | Parallel, 4-Section Spool Type | p. 24 |
| Main control valve relief pressure | 3000 psi (207 bar) | p. 142 |
| Recommended tire type | 15.00 x 19.5 12-ply, 405/70 R20 x M27 Traction Type | p. 26 |
| Engine Crankcase Capacity (4045T John Deere) | 14.0 qts. | p. 22 |
| Cooling System Capacity | 17.2 qts. | p. 22 |
| Hydraulic System Reservoir Capacity | 35 gal. | p. 22 |
| Fuel Tank Capacity | 29 gal. | p. 22 |
Gehl RS5-34, RS6-34 Common Problems This Manual Covers
Hydraulic pump grinding under load, boom won't lift or extend p. 142
Check the hydraulic fluid level first. The reservoir holds 35 gal. and low fluid is the most common miss. Verify main system relief pressure at 3000 PSI (207 bar) using the test procedure on page 142. If pressure is low, inspect pump output and the main control valve spool for wear or internal bypass.
Manual Section: Hydraulic System Troubleshooting & TestsEngine cranks but won't start, or shuts down unexpectedly at full operating load p. 59
Start at the 29 gal. fuel tank, then work the electrical diagnostic chart on page 59 to test the fuel shut-off solenoid, ignition relay, and starter circuit in sequence. Replace any fuse or relay that won't hold continuity. On cold starts, a weak battery often mimics a fuel-delivery fault.
Manual Section: Electrical System Troubleshooting & TestsMachine drifts or won't respond to steering inputs in any steering mode p. 63
Inspect the steering control valve for internal leakage and verify the steering mode circuit is energized. Follow the steering mode circuit test on page 63 for switch, relay, and solenoid checks. With the engine running, confirm main system pressure is at 2000 PSI (138 bar) before condemning the control valve or steering cylinder.
Manual Section: Electrical System Troubleshooting & TestsHydraulic fluid foaming, overheating, or return line making excessive noise at operating temperature p. 137
Drain and inspect the hydraulic fluid for water contamination or metallic debris. The reservoir holds 35 gal., so budget time for a full drain and refill if fluid is dark or foamy. Replace the 10-micron return filter. Check all suction-line fittings for air ingestion, since foamy fluid almost always means air is entering, not just heat buildup.

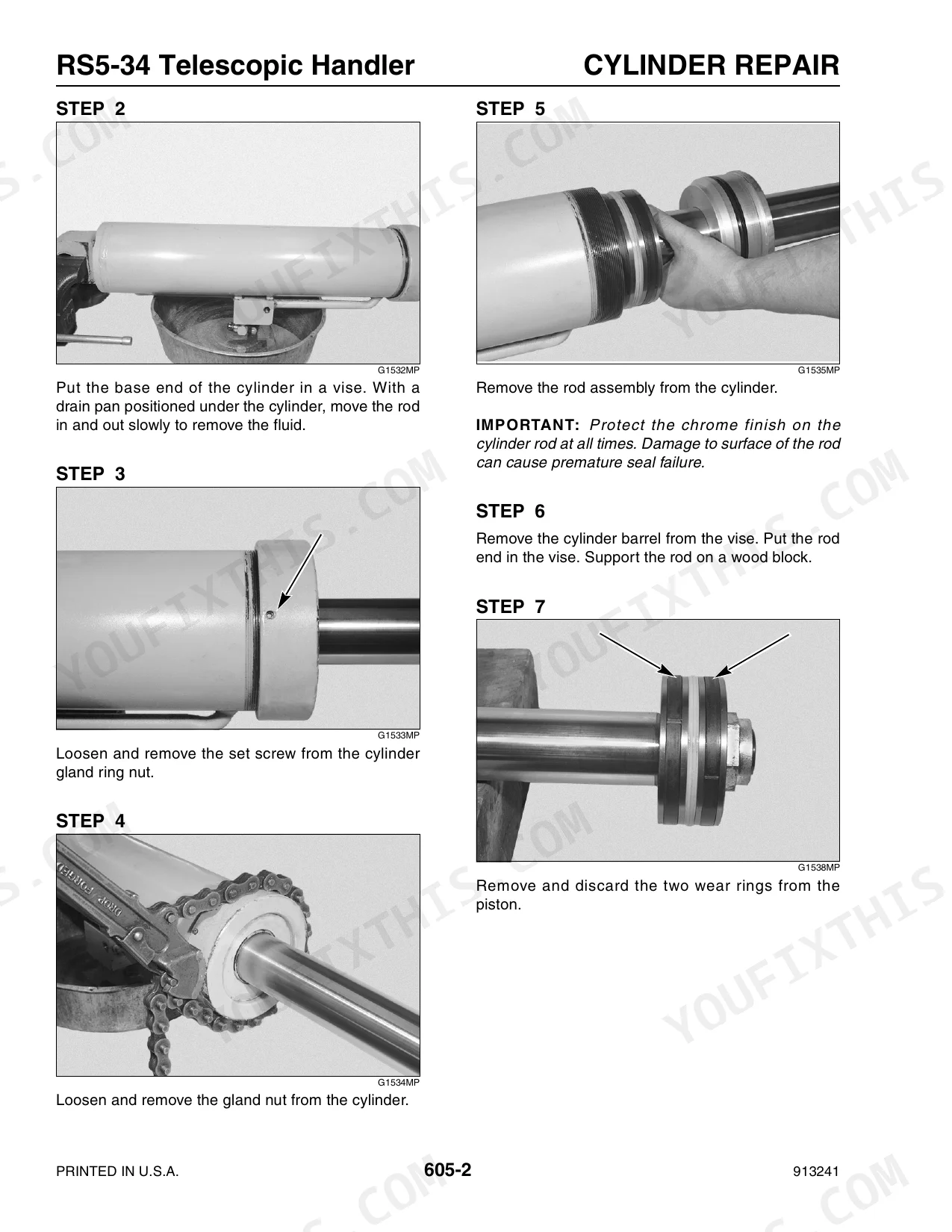

Manual Section: Hydraulic SystemBoom slowly drifts down with a suspended load, hydraulic seepage visible at cylinder p. 210
Rebuild the boom lift cylinder using the Hydraulic Cylinder Repair procedure. Torque the cylinder rod nut to 450 ft.-lbs. (610 Nm) as specified on page 210 after replacing seals. Also test the main control valve for spool bypass: internal valve leakage causes identical drift symptoms even with new cylinder seals installed.
Manual Section: Hydraulic Cylinder RepairFrequently Asked Questions
What are the torque specs for the wheels on a GEHL RS6-34?
Both the front and rear axle wheel nuts tighten to 450 ft.-lbs. (610 Nm). The figure appears in the installation procedure for each axle.
What are the replacement specifications for hydraulic filters?
The hydraulic filter is a remote, 10 Micron replaceable element. It carries a rated flow of 100 GPM (371 L/min), a rated pressure of 100 PSI (690 kPa), and a full-flow by-pass pressure of 25 PSI (172 kPa).
How quickly can I access this Gehl RS5-34, RS6-34 manual after buying?
Your download unlocks the instant checkout completes: a 292-page searchable PDF you can open on a computer, tablet, or phone. No shipping wait.
Is this Gehl RS5-34, RS6-34 Service Manual printable?
Yes. The PDF carries no DRM, so you can print any page or section your shop needs on any standard printer.
Are electrical wiring diagrams included in this Gehl RS5-34, RS6-34 manual?

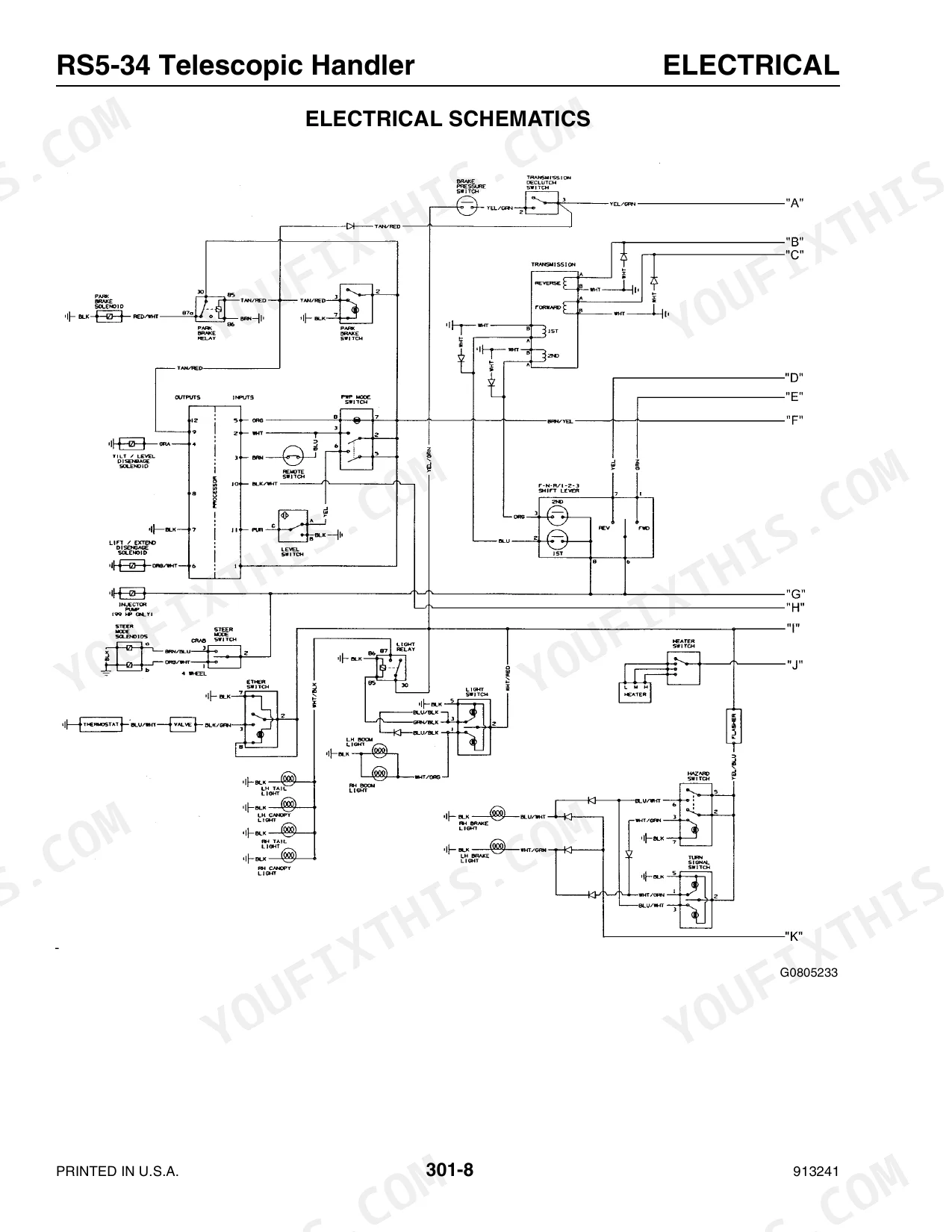

Yes. The manual includes full electrical schematics with wire-routing diagrams, connector identification, and circuit descriptions.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text throughout is crisp and very easy to read. Diagrams and illustrations are primarily raster images or photos, with labels that are generally clear and readable. Pages are clean with no noticeable scan artifacts or skewed content. There are several blank pages interspersed throughout the document, typically serving as section breaks.
