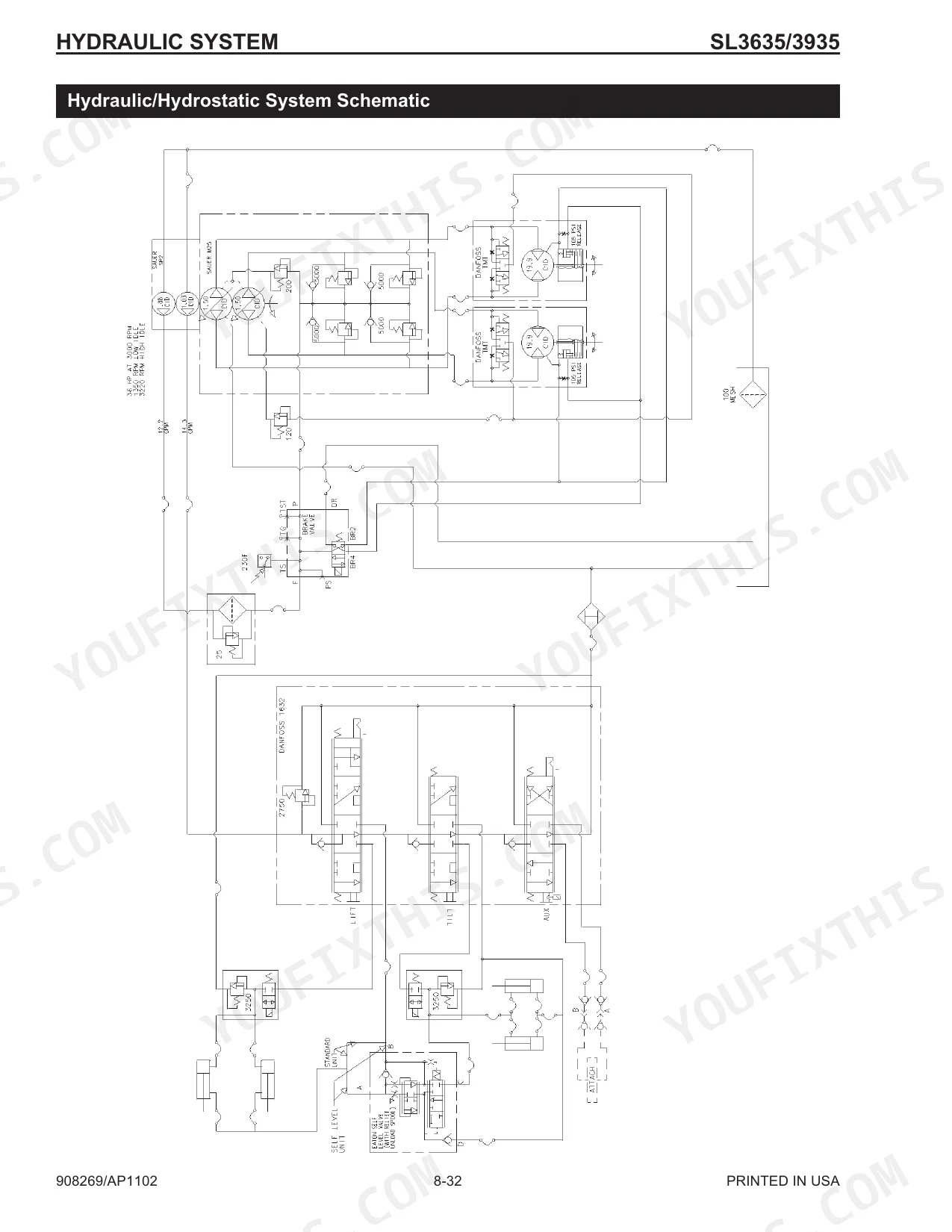

Factory-level procedures for the Gehl SL3635 and SL3935 skid loaders, all 171 pages of OEM #908269. Coverage runs across hydrostatics, hydraulics, electrical circuits, and wheel drives. The manual carries a full hydraulic/hydrostatic schematic with complete circuit routing, electrical wiring diagrams, 12 pages of troubleshooting tables for engine, hydraulic, and hydrostatic faults, and 40 pages of step-by-step service work. Twenty exploded assembly views break down the controls, liftarm, wheel drives, auxiliary hydraulics, and the full plumbing stack. Torque the drive motor capscrews to 120 ft-lbs (168 N·m), and the lift cylinder piston locknut to 225 ft-lbs (305 N·m), no guessing at numbers while the machine sits cold. Bookmarks and keyword search let you jump to any section from a phone or tablet on the shop floor.
What's Inside This Gehl SL3635, SL3935 Manual
| System | Pages | Key Topics |
|---|---|---|
| A | 163-166 | Additional Safety Reminders 2-1 |

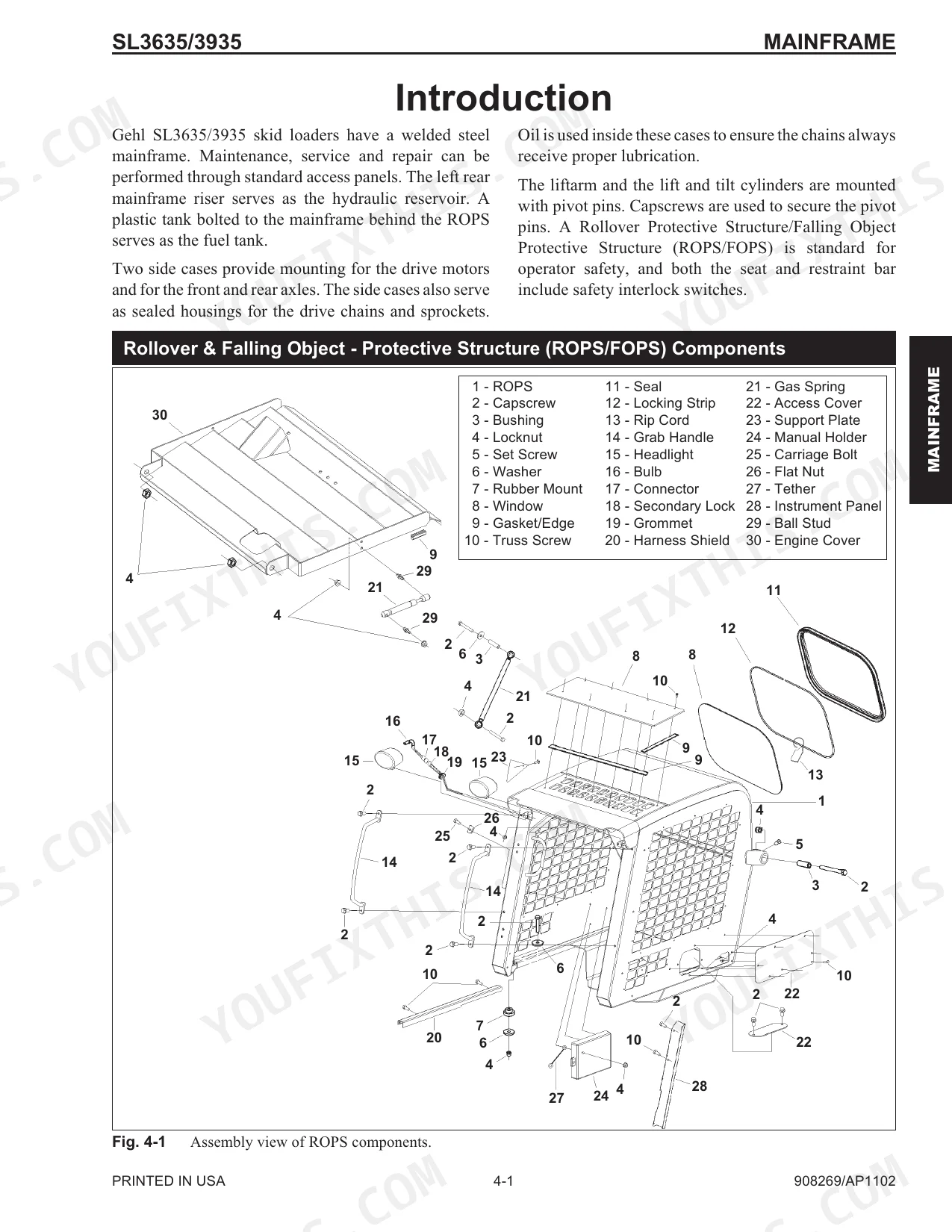

| M | 167 | Mainframe Chapter (Engine Access Cover Removal and Installation 4-2, Floor Cover and Kick Plate Removal and Installation 4-16, Fuel Level Sender Removal and Installation 4-19, Hitch Removal and Installation 4-9, Introduction 4-1, Liftarm Bushing Replacement 4-13, Liftarm Removal and Installation 4-10, Liftarm Stop Installation and Adjustment 4-14, Rear Grille Removal and Installation 4-20, Restraint Bar Removal and Installation 4-7, ROPS Rear Window Removal and Installation 4-5, ROPS Removal and Installation 4-2, Seat Removal and Installation 4-4, Seat Slide Replacement 4-4) |
| N | 167 | Neutral Centering Device Adjustment 6-17, Neutral Centering Device and Pump Arm Removal and Installation 6-16 |
| O | 167 | Oil Cooler and Fan Shroud Removal and Installation 10-15 |
| P | 167 | Priming Diesel Fuel System 10-9 |
| R | 167 | Radiator Removal and Installation 10-14, Rear Grille Removal and Installation 4-20, Relay Test and Operation 9-6, Relieving Hydraulic Pressure 2-6 |
| S | 168 | Safety Chapter (Additional Safety Reminders 2-1, Liftarm Support Device 2-3, Liftarm Support Device Disengagement 2-4, Liftarm Support Device Engagement 2-3, Mandatory Safety Shutdown Procedure 2-2, Relieving Hydraulic Pressure 2-6, ROPS, Lowering 2-5, Raising 2-4, Signal Words 2-1, Skid Loader Lowering Procedure 2-7, Skid Loader Raising Procedure 2-6) |
| T | 168 | Test (Charge Pressure 7-10, Hydrostatic Pump Case Drain 7-8, Lift Cylinder 8-13, Relay 9-6, Self-Leveling Valve 8-11, Solenoid Valve 8-14, System Pressure - Control Valve 8-7, Tilt Cylinder 8-9) |
| W | 169-171 | Wheel Drives Chapter (Axle Removal and Installation 5-4, Drive Chain Adjustment 5-2, Drive Chain Removal and Installation 5-3, Introduction 5-1) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Drive motor to chaincase capscrews torque | 120 ft-lbs (168 N•m) | p. 91 |
| Lift and Tilt Cylinder piston locknut torque | 225 ft-lbs (305 N•m) | p. 115 |
| Hydraulic oil filter element replacement interval | every 500 hours of operation or annually (whichever happens first) | p. 18 |
| Initial hydraulic oil filter element replacement interval for new skid loaders | 50-hour | p. 18 |
| Spool lock solenoid coil retaining nut torque | 45 in-lbs (5,1 N•m) | p. 121 |
| Hydraulic oil reservoir capacity | 8.0 US gal (30 L) | p. 17 |
| Hydraulic oil type | Mobil DUE 15M, or Pedro-Canada Premium HVI60, or equivalent which contains anti-rust, anti-foam, and anti-oxi dation additives & con forms to ISO VG46 | p. 17 |

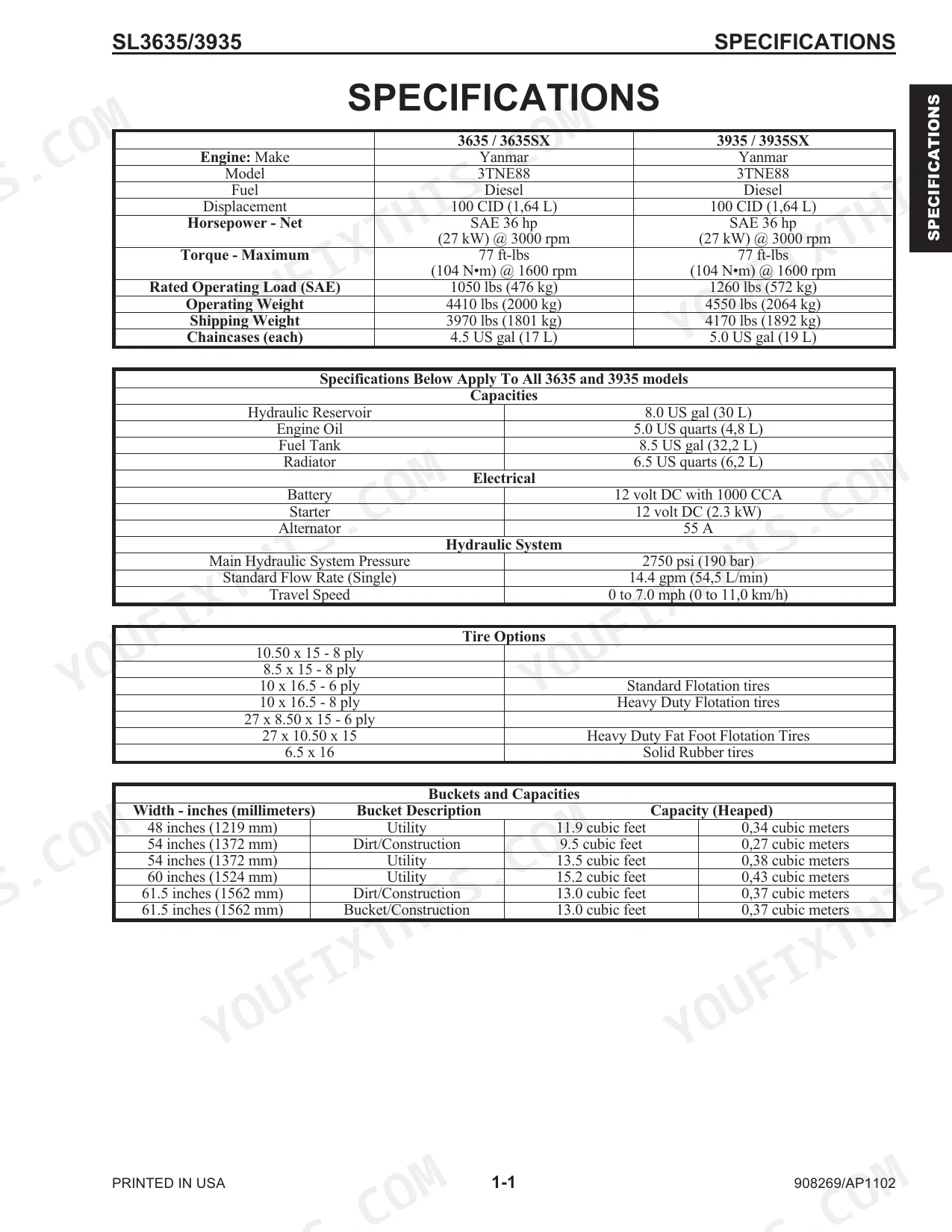

| Engine Displacement | 100 CID (1,64 L) | p. 7 |
| Horsepower - Net | SAE 36 hp (27 kW) @ 3000 rpm | p. 7 |
| Torque - Maximum | 77 ft-lbs (104 N•m) @ 1600 rpm | p. 7 |
| Hydraulic Reservoir Capacity | 8.0 US gal (30 L) | p. 7 |
| Engine Oil Capacity | 5.0 US quarts (4,8 L) | p. 7 |
Gehl SL3635, SL3935 Common Problems This Manual Covers
Gehl SL3635 lift controls fail to respond and hydraulic cylinder action is extremely slow.
Top off the hydraulic reservoir to its 8.0 US gal (30 L) capacity, called out on page 17, then inspect hoses for leaks. If air got into the system, cycle the lift and tilt cylinders at full stroke to bleed the circuits.

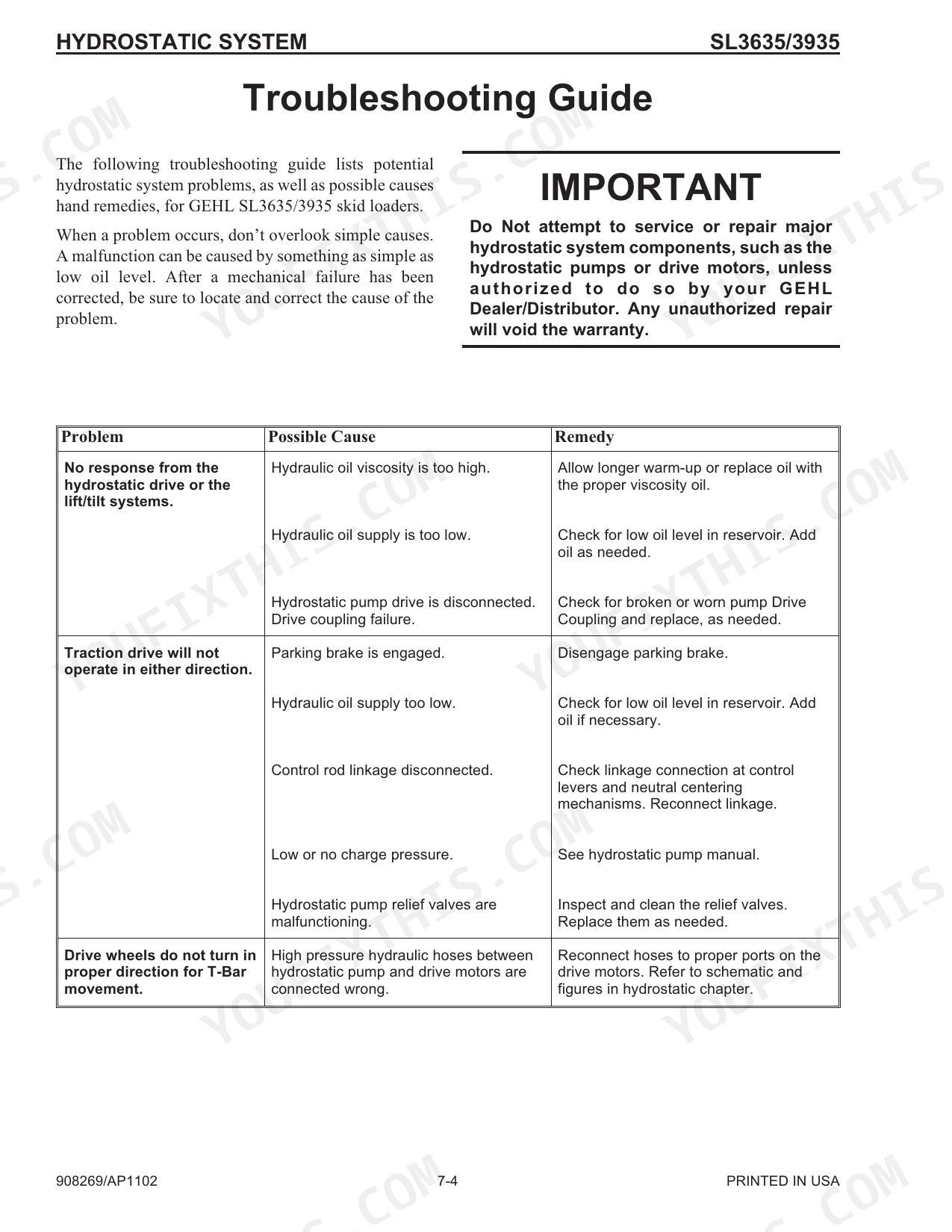

Manual Section: Hydrostatic System Troubleshooting GuideAuxiliary hydraulic functions do not operate and lift/tilt lock solenoids do not work. p. 121
Inspect the wiring at the spool lock solenoid, clean off any corrosion, and test the relay. A replacement solenoid coil takes 45 in-lbs (5,1 N•m) on the retaining nut, per page 121. Confirm the restraint bar is fully lowered.
Manual Section: Electrical System Troubleshooting GuideEngine turns over but will not start or engine overheats under heavy load. p. 154
Work through the cooling system: fan belt deflection should sit at 1/2" (13 mm) under a 20 lbs (27 N•m) load, specified on page 154. Look for loose intake clamps or cracked rubber elbows, then drain and refill the radiator.
Manual Section: Engine Troubleshooting GuideJerky liftarm and bucket action combined with a loud, noisy hydrostatic drive system. p. 96
Swap the hydraulic oil filter element every 500 hours of operation or once a year, per page 18. Drain the hydraulic tank, refill with fresh fluid, and cycle the controls at full stroke to purge trapped air.
Manual Section: Hydraulic System Troubleshooting GuideFrequently Asked Questions
Where is the fuse or relay reset for a GEHL SL3635/SL3935?
The SL3635/SL3935 run circuit breakers at several amperages, 8A, 15A, and 35A, any of which can trip and need a reset. You'll find the 8A and 15A breakers on the Electrical Instrument Panel (Fig. 9-2, page 9-2); the 35A breaker shows up in Relay Test and Operation (page 9-6). Before you reset one, check the wiring diagram and track down the underlying fault first.
What are the replacement specifications for hydraulic filter?
Replace the hydraulic oil filter element every 500 hours of operation; on a new skid loader, do the first change at 50 hours. The correct capacity element is listed in the GEHL Service Parts manual. Before installing, wipe a light coat of oil on the new element's gasket, then secure it to the filter head.
What do I get after purchasing this Gehl SL3635, SL3935 manual?
Checkout delivers a 171-page searchable PDF, downloadable on the spot. Open it on a laptop, tablet, or phone and take it straight to the shop floor.
Can I print specific sections of this Gehl SL3635, SL3935 Service Manual?
None at all. The PDF is DRM-free, so print whatever sections you want to carry out to the shop. Standard letter or A4 paper works fine.

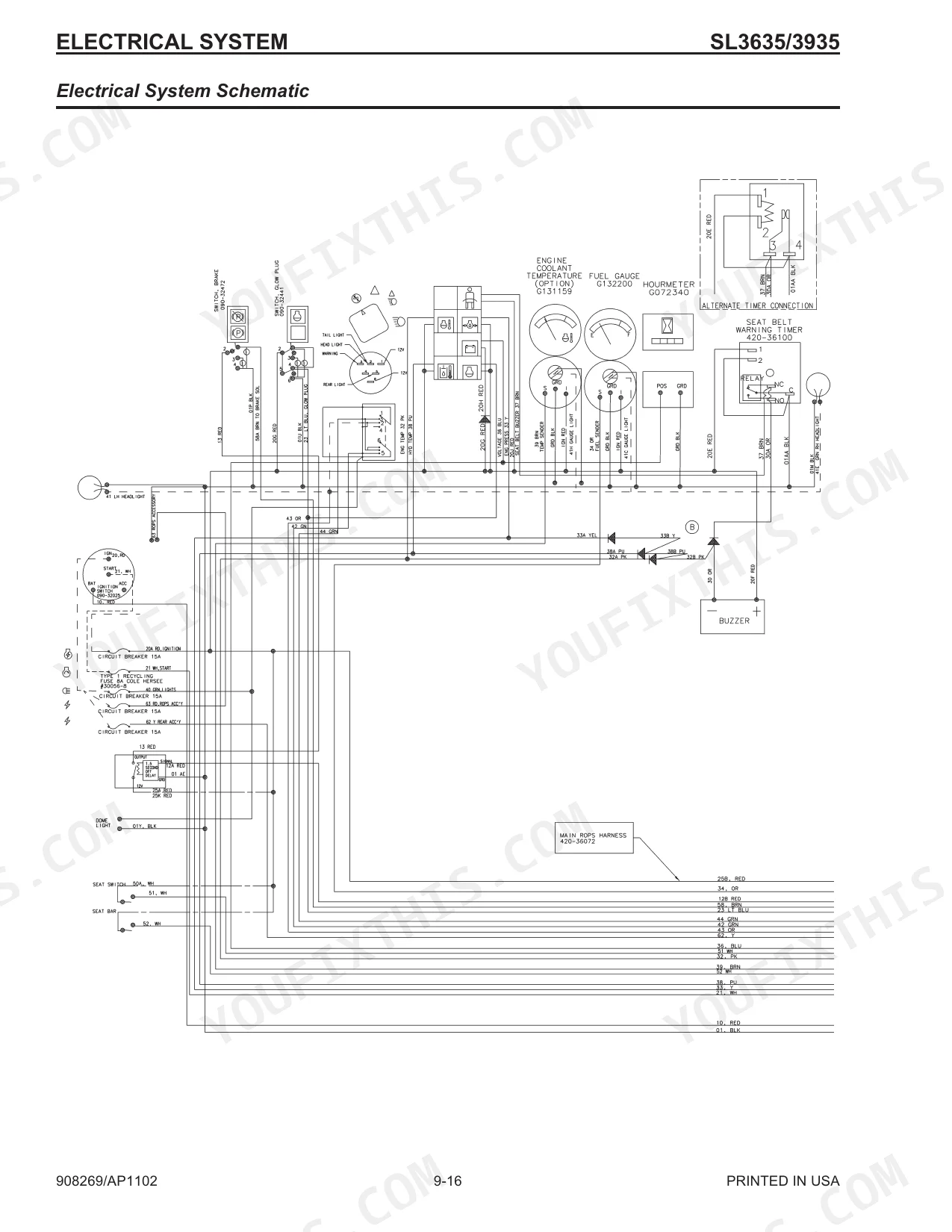

Are electrical wiring diagrams included in this Gehl SL3635, SL3935 manual?
Yes. This manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
Document Quality
This document is a scanned PDF, not a native digital file. An OCR layer is present, allowing you to search and copy the full text, which is crisp and easy to read throughout. Diagrams and illustrations are a mix of clear line drawings with readable labels and grayscale photographs that are generally sharp enough to discern details and labels. Pages are clean with no noticeable scan artifacts, stains, or skewed content. There are a few blank "NOTES" pages included at the end of some chapters.
