Need factory-level procedures for your Gehl V270 or V330 skid-steer? This 196-page Gehl V270 service manual PDF (OEM #917435 Revision B) covers the V270, V330, 2700V, and 3300V loaders, plus compatible Mustang 2700V and 3300V machines. Hydraulic schematics trace the full hydrostatic and auxiliary circuits, wiring diagrams map every electrical circuit, and 10 pages of troubleshooting walk through hydraulic faults, electrical failures, and engine issues. Add error codes, 50 pages of step-by-step work on wheel drives, chaincase service, ROPS/FOPS removal, and cylinder rebuilds, plus exploded views of every major assembly. Torque the lift/tilt cylinder rod locknut to 350 ft.-lbs. (474 N•m), and replace the hydraulic filter every 500 hours or annually, whichever comes first. Your machine is down, so download once and use the system bookmarks to jump straight to the spec you need.
What's Inside This Gehl V270, V330, 2700V, 3300V Manual
| System | Pages | Key Topics |
|---|---|---|

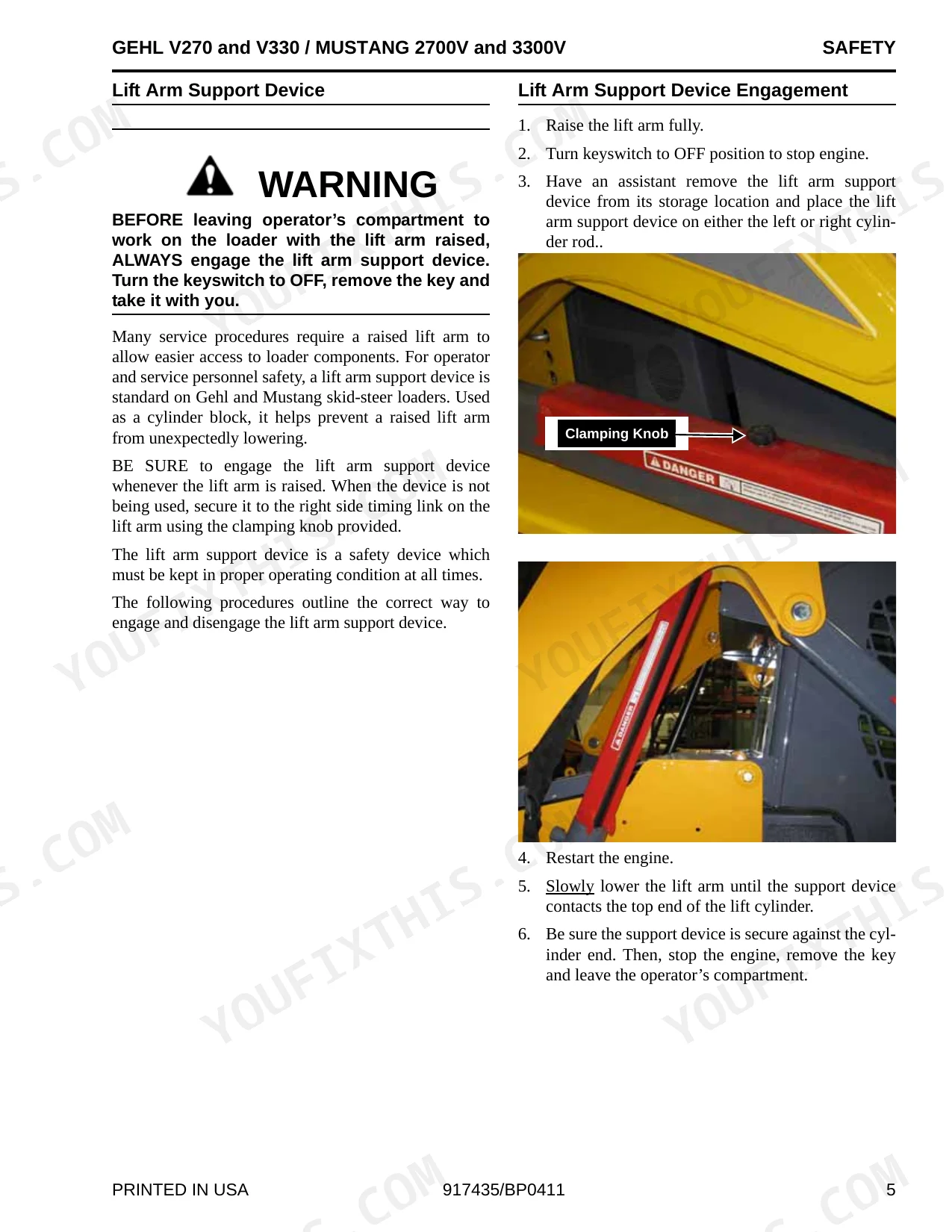

| Safety | - | Signal Words (Danger, Warning, Caution), Mandatory Safety Shutdown Procedure, Lift Arm Support Device Engagement/Disengagement, ROPS/FOPS Raising/Lowering |
| Lubrication | - | General Information, Hydraulic Oil Reservoir (Capacity, Drain/Refill), Crankcase Oil (Capacity, Viscosity, Drain Plug), Chaincases (Capacity |

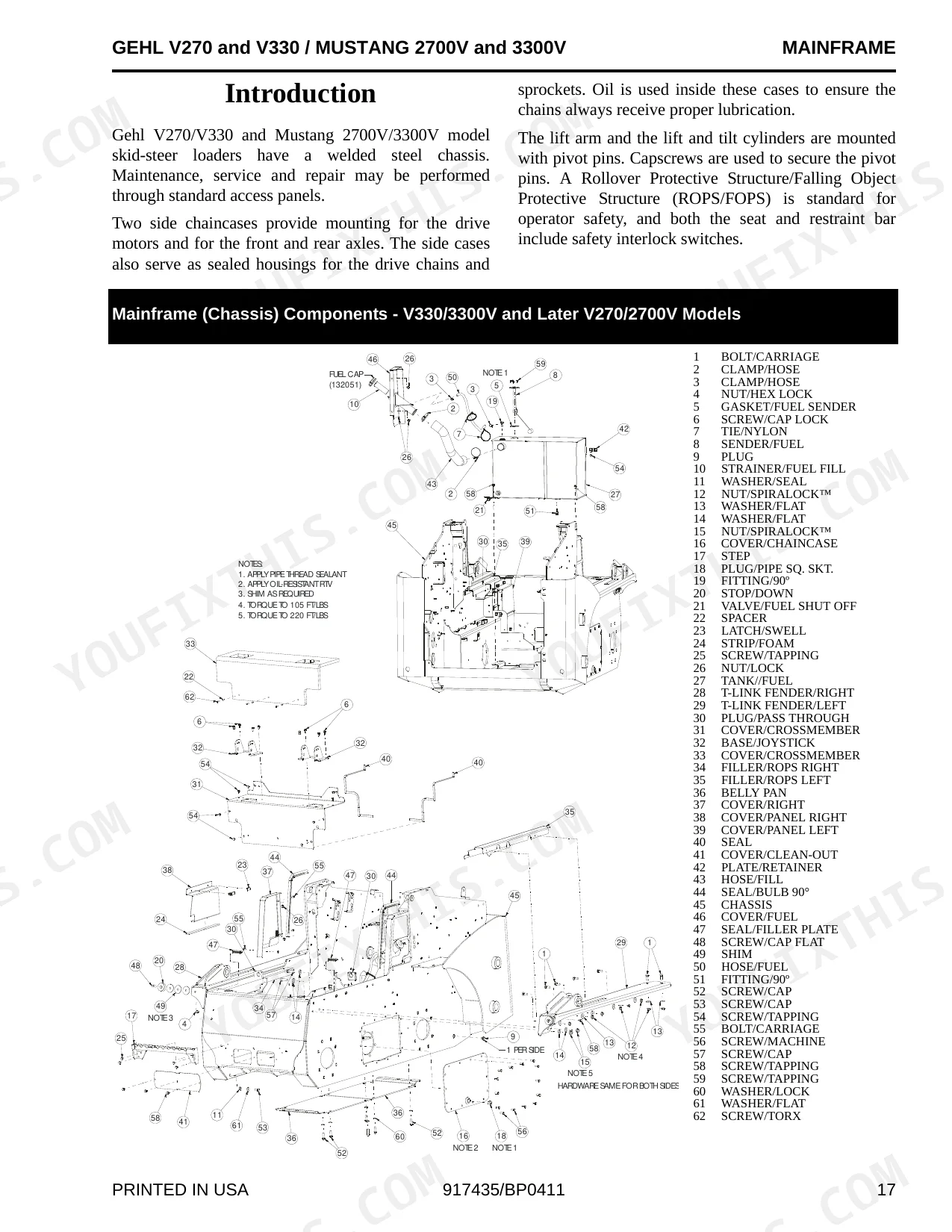

| Mainframe | - | Chassis Components, Rear Grille and Engine Cover (Removal/Installation), ROPS/FOPS Components (Removal/Installation), Seat (Removal/Installation, Slide Replacement) |
| Wheel Drives | - | Introduction, Wheel Drive Components, Drive Chain Adjustment, Axle Housing Assembly (Removal/Installation), Drive Chain (Removal/Installation), Axle Assembly Components |
| Controls | - | Introduction (Dual Joystick, Hand/Foot Controls, Float, Two-Speed, Hydraglide™, Power-A-Tach®), Control Locations |

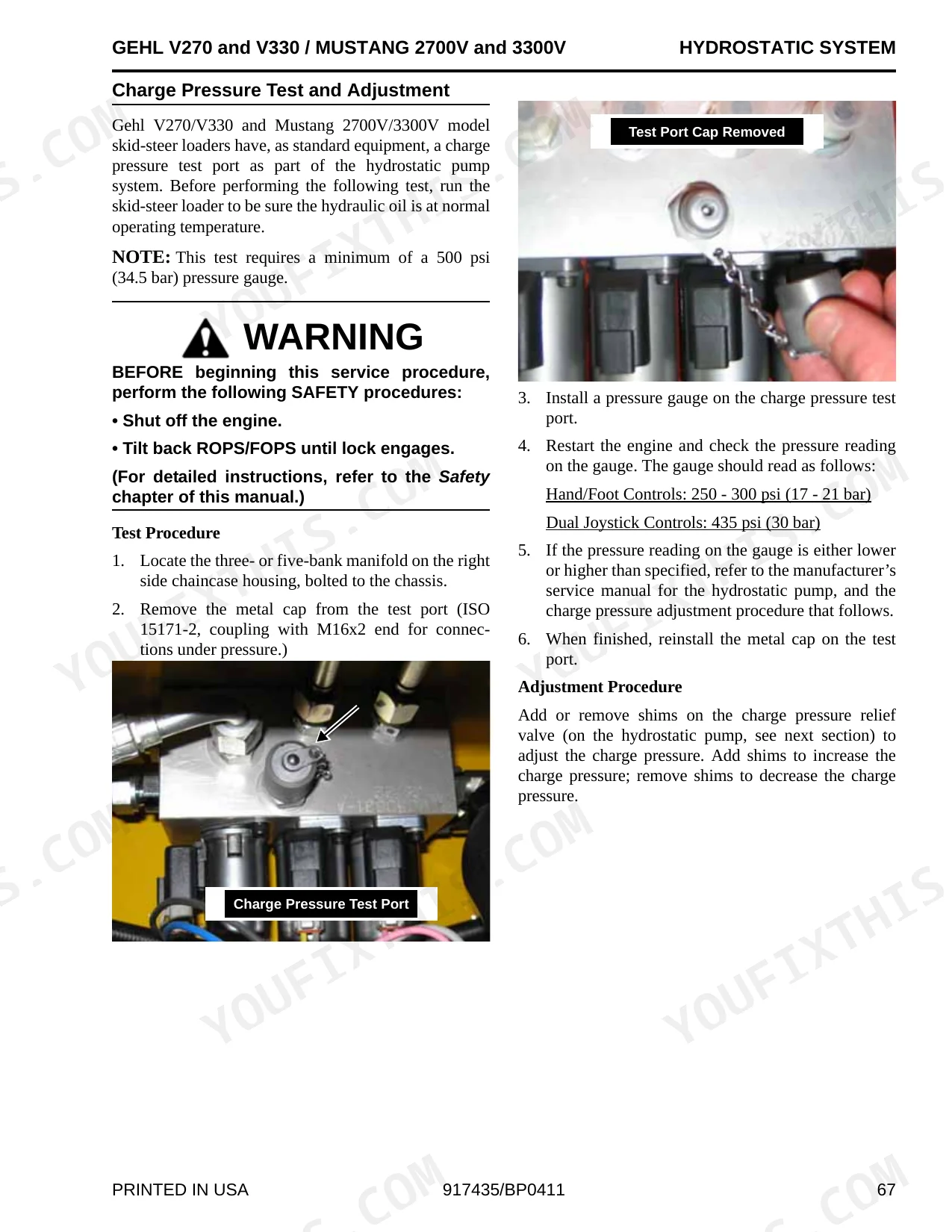

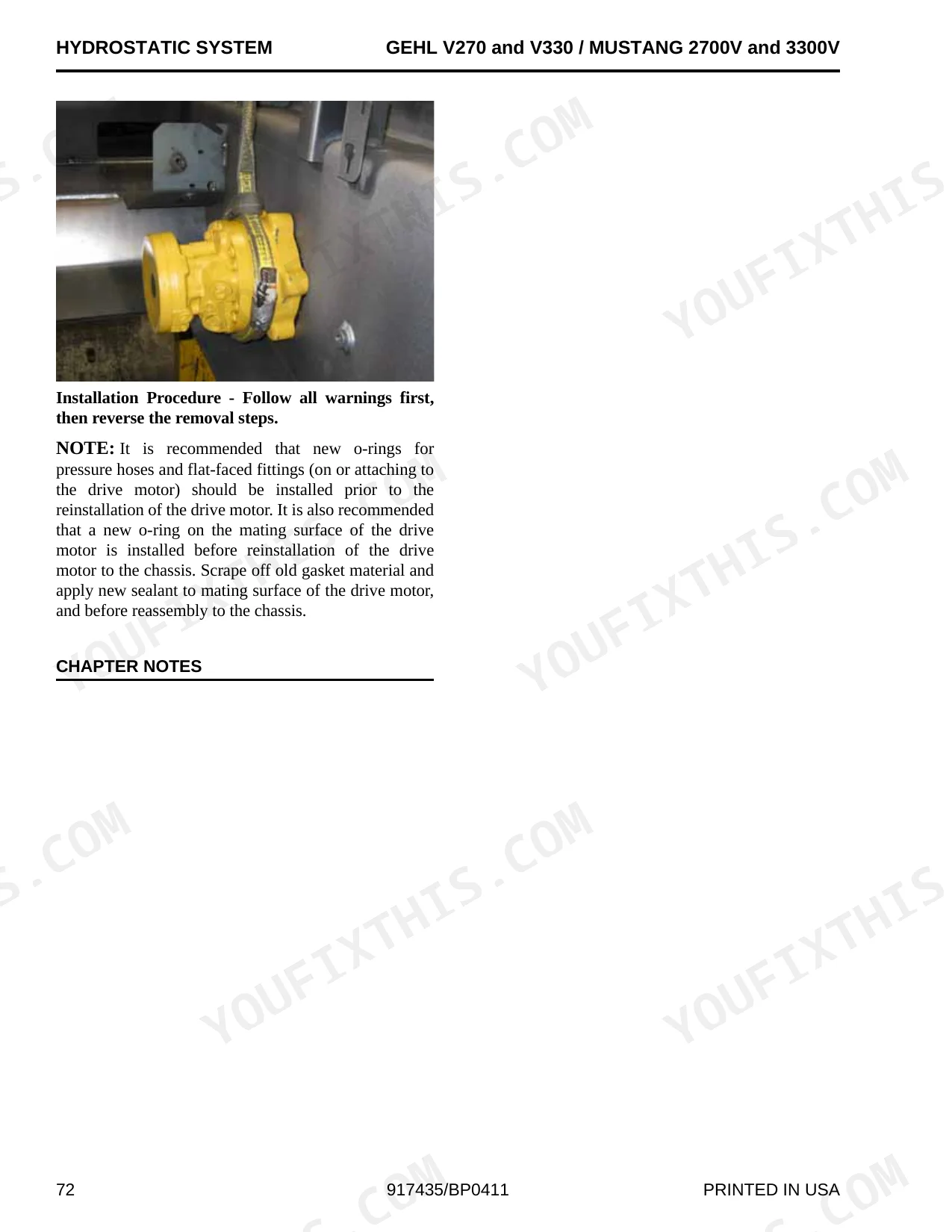

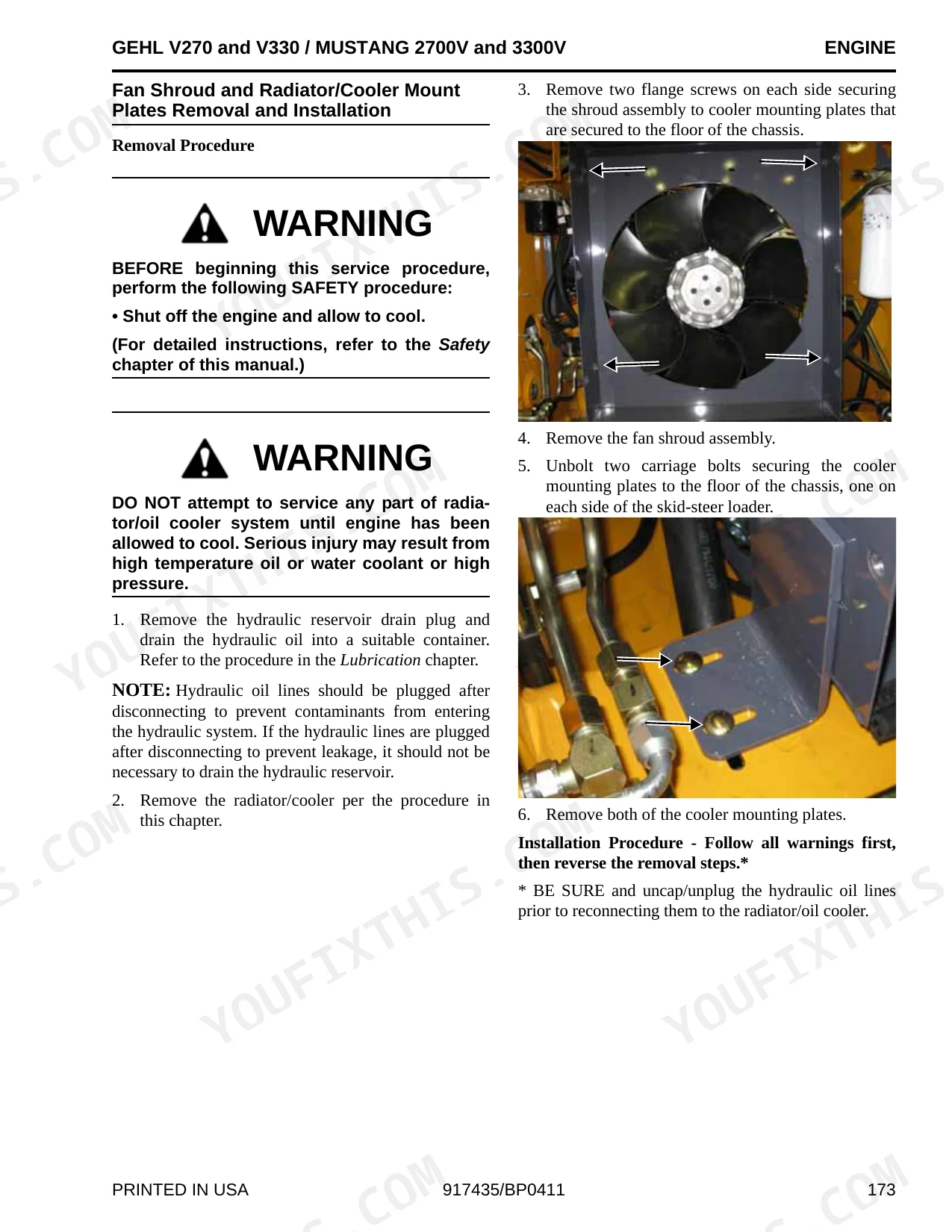

| Hydrostatic System | - | Introduction, Hydrostatic Components (Single-Speed, Two-Speed), Charge Pressure Test and Adjustment, Hydrostatic Pump Relief Valves, Hydrostatic Pump (Removal/Installation) |
| Hydraulic System | - | Introduction, Troubleshooting Guide, Chassis Components, Auxiliary Lift Arm Components (Standard, High-Flow), Cylinder Tests (Tilt, Lift), Self-Leveling Valve Test/Adjustment |
| Electrical System | - | Introduction, Description of Operation (Instrument Panels), Troubleshooting Guide, Chassis Components, Power Distribution Panel (Test/Operation), Fuse Box Panel (Test/Operation) |
| Engine | - | Introduction, Troubleshooting Guide, Engine Components and Engine Controls, Air Cleaner and Exhaust Components, Radiator/Cooler Components |
| Index | - | Alphabetical Listing of All Topics, Page References for Major Components, Procedures, And Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Capscrew securing base end of tilt cylinder to lift arm | 80 ft.-lbs. (108 N•m) | p. 109 |
| Hydraulic oil filter element replacement interval | every 500 hours of operation or annually (whichever occurs first) | p. 17 |
| Initial hydraulic oil filter element replacement interval for new skid-steer loaders | 50-hour | p. 101 |
| Fan belt deflection | ½" (13 mm) under a load of 20 lbf. (90 N) | p. 170 |
| Lift/Tilt cylinder rod locknut torque | 350 ft.-lbs. (474 N•m) | p. 114 |
| Drive chain deflection | ½" @ 20 lbs. force (13 mm @ 89 N) | p. 52 |
| Axle housing locknuts torque | 280 lbf. (380 N•m) | p. 52 |
| Engine Oil Capacity | 11.0 US qts (10.4 L) | p. 17 |
| Fuel Tank Capacity | 20.0 US gal (75.7 L) | p. 17 |
| Hydraulic Reservoir Capacity | 10.5 US gal (39.7 L) | p. 17 |
| V270 / 2700V | ||
| Rated Operating Capacity | 2700 lbs (1225 kg) | p. 7 |
| V330 / 3300V | ||
| Rated Operating Capacity | 3300 lbs (1497 kg) | p. 7 |
Gehl V270, V330, 2700V, 3300V Common Problems This Manual Covers
Gehl V270 hydraulic pump weak or noisy after 2000 hours, bucket won't lift under load
Start at the hydraulic reservoir; it holds 10.5 US gal (39.7 L) when full (page 17). On new machines, replace the filter at 50 hours (page 101). When installing, hand-tighten until the gasket seats, then turn 3/4 turn more (page 107). Walk the hose runs looking for pinched or leaking lines before pulling the pump.
Manual Section: Hydraulic SystemMachine won't move or loses drive power, both sides or one side completely dead p. 52
Measure drive chain deflection; correct tension is 1/2 in. (13 mm) at 20 lbs. force, with axle locknuts torqued to 280 lbf. (380 N•m) per page 52. If both sides are dead, suspect the hydrostatic pump. One dead side points to that drive motor or chaincase. Verify the operator presence switch closes before chasing deeper faults.
Manual Section: Hydrostatic SystemEngine turns over but won't start or stalls repeatedly after reaching operating temperature
Confirm fuel level (page 17; tank holds 20.0 US gal/75.7 L) and pull any stored ECU fault codes first. Rack position, coolant temp, and accelerator sensor faults all trigger shutdowns. If codes are clear, inspect the fuel filter and air cleaner for restriction before suspecting an injection or timing issue.
Manual Section: EngineCoolant temperature warning light stays on, machine shuts down in warm weather p. 170
Check the fan belt deflection; it should give 1/2 in. (13 mm) under 20 lbf. (90 N) load (page 170). Clean the radiator and oil cooler cores for debris packed between them. Verify coolant level and look for air-side restrictions at the rear grille and engine cover before suspecting a thermostat or water pump failure.
Manual Section: EngineLift arm slowly drifts down or won't hold raised position under load p. 114
Inspect the lift and tilt cylinders for external seal leaks; a weeping rod seal is cheaper to fix than a control valve. If rebuilding, torque the rod locknut to 350 ft.-lbs. (474 N•m) (page 114) and tilt cylinder base capscrew to 80 ft.-lbs. (108 N•m) (page 109). Drift with no visible leaks points to internal valve leakage.
Manual Section: Hydraulic SystemEngine cranks but machine locks out all functions, no movement or hydraulics
Test the seat switch and belt interlock first; these loaders will lock out drive and hydraulics if the operator presence circuit is open. Check the wiring diagram for the interlock loop and verify fuse continuity at the power distribution panel. A bad seat switch or harness connector accounts for most no-function complaints on these machines.
Manual Section: Electrical SystemFrequently Asked Questions
What do the error codes mean on a Gehl 3300V skid steer?
Pages 179-181 carry a "Diagnostic list" for the "Yanmar 4TNV98-ZNMS Engine ECU Fault Codes," detailing each code's detection conditions, operation during failure, and recommended recovery actions. Error code No. 1, for instance, flags a "Coolant temperature sensor failure" when sensor voltage reads 4.8 V or more, or 0.2 V or less.
What are the most common problems on Gehl V270, V330, 2700V, and 3300V skid steers?
Troubleshooting guides cover several systems. Common hydrostatic faults include "Neutral difficult to maintain" (possible cause: hydrostatic pump out of adjustment) and "Sluggish acceleration" (air in the hydraulic system). On the hydraulic side, you might see "Lift/tilt controls fail to respond" (oil viscosity too heavy or low oil level) or "Lift arm doesn't maintain raised position with lift control in NEUTRAL" (oil leaking past lift cylinder seals).
What are the replacement specifications for hydraulic filters?
The hydraulic oil filter element should be replaced after every 500 hours of operation or annually, whichever occurs first. For new skid-steer loaders with original filters, there is an initial 50-hour element replacement schedule. The filter needs replacement when the restriction indicator shows red.
What do I get after purchasing this Gehl V270, V330, 2700V, 3300V manual?
A 196-page Service Manual in searchable PDF format, available the moment you complete checkout. View it on a computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this Gehl V270, V330, 2700V, 3300V manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

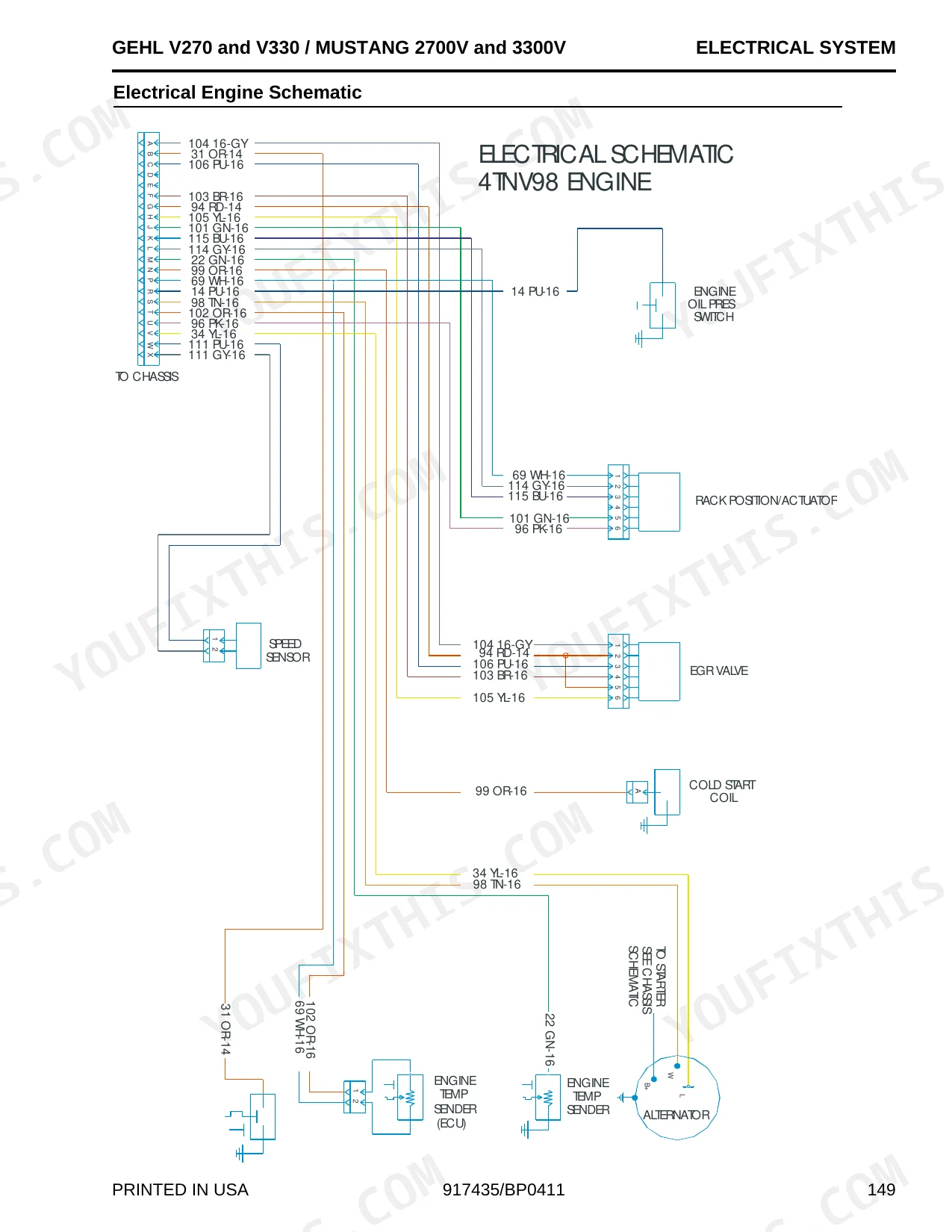

Are electrical wiring diagrams included in this Gehl V270, V330, 2700V, 3300V?
Included. The Gehl V270, V330, 2700V, 3300V Service Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
Document Quality
This is a high-quality digital PDF, allowing you to search and copy all text within the document. The text is consistently crisp and easy to read on every page. Diagrams and illustrations are sharp and clear, with all labels perfectly readable even when zoomed in. Pages are clean, free from scan artifacts or marks, though you will find several "CHAPTER NOTES" and one "THIS PAGE INTENTIONALLY LEFT BLANK" page.
