Gehl V270 Operator Manual

$19.99 USD · one-time payment

Model: V270 | V270 (EU)
Type: Skid-Steer Loader
102 Pages·5.1 MB·Searchable PDF·English·Print-Ready
  • ✓ Torque Specs
  • ✓ Multi-Level Bookmarks (3-level navigation)
Preview Sample Pages (PDF)
Add to Cart

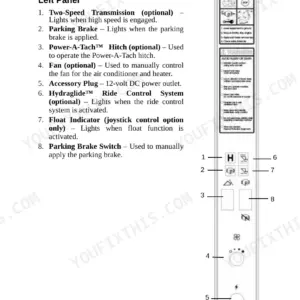

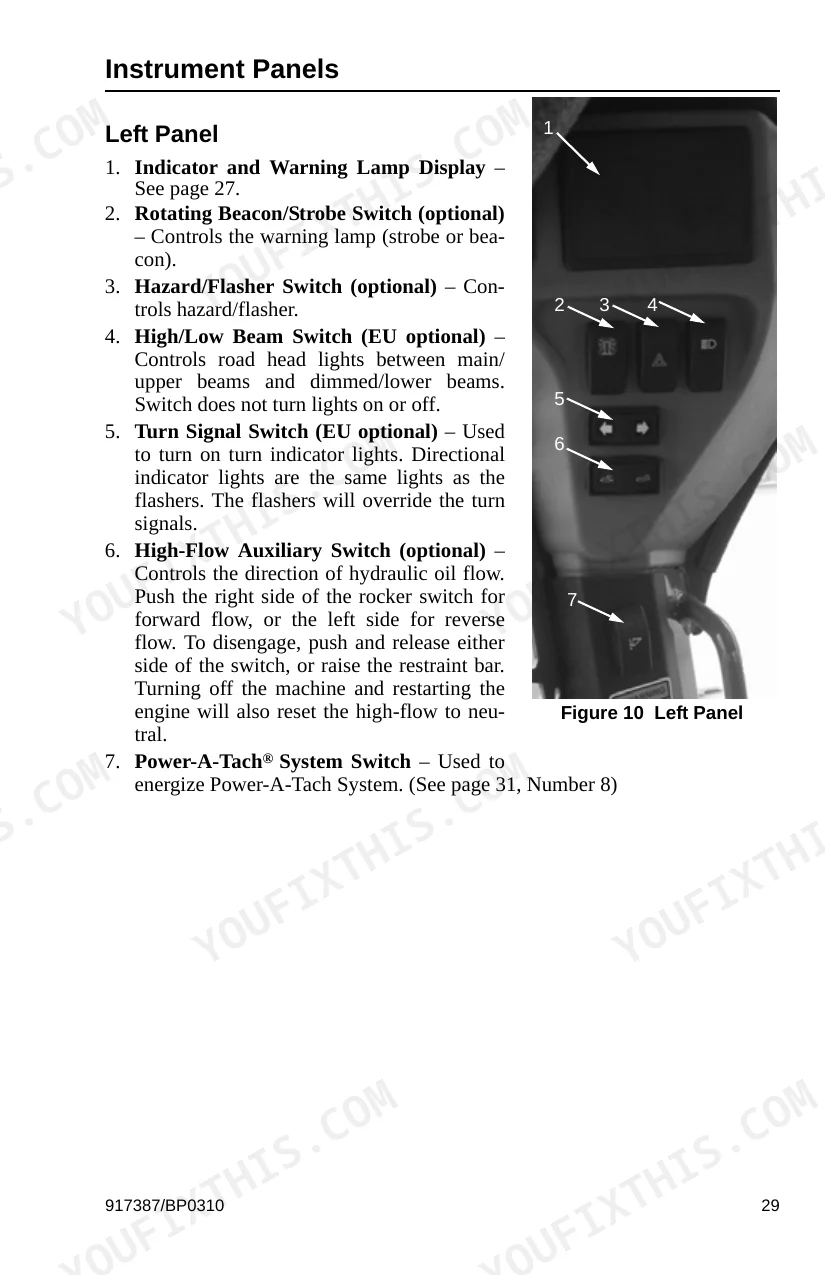

Gehl V270 left instrument panel controls diagram identifying switches for lights, turn signals, and Power-A-Tach.
Gehl V270 Operator Manual
$19.99

Instant Download 24/7

  • Works on PC, Mac, tablet, and phone.
  • Download once, keep forever



Guaranteed Safe Checkout
Visa Mastercard PayPal Apple Pay Google Pay

Lift arms up, a warning lamp lit and a loader you need to get under safely: this 102-page Gehl V270 operator manual PDF (OEM form 917387) answers that for the skid-steer loader in standard and EU builds. Controls and safety equipment fill a solid share of the book, covering the operator restraint bar, safety interlock system and lift arm support device, before the operation chapter moves through starting, stopping and swapping attachments. Troubleshooting charts sort faults by electrical system, engine and hydrostatic drive, while the maintenance schedule tells you when the air cleaner, hydraulic oil filter, fuel filter and chaincase oil are due. Keep the bucket inside the 2700 lb. (1225 kg) rated operating load, and know the main hydraulic system runs at 3300 psi (228 bar). A made-up pressure or torque figure costs hoses and threads. Bookmarks jump you straight to the torque chart or troubleshooting page, and the text layer finds any term you type.

What's Inside This Operator Manual

SystemPagesKey Topics
Introduction5-8Operator's Manual, Gehl Dealer, Manual Storage Box, Attachments, Service Parts
Safety9-22Mandatory Safety Shutdown Procedure, Potential Hazards
Controls and Safety Equipment23-40Operator Restraint Bar, Safety Interlock System, Lift Arm Support Device

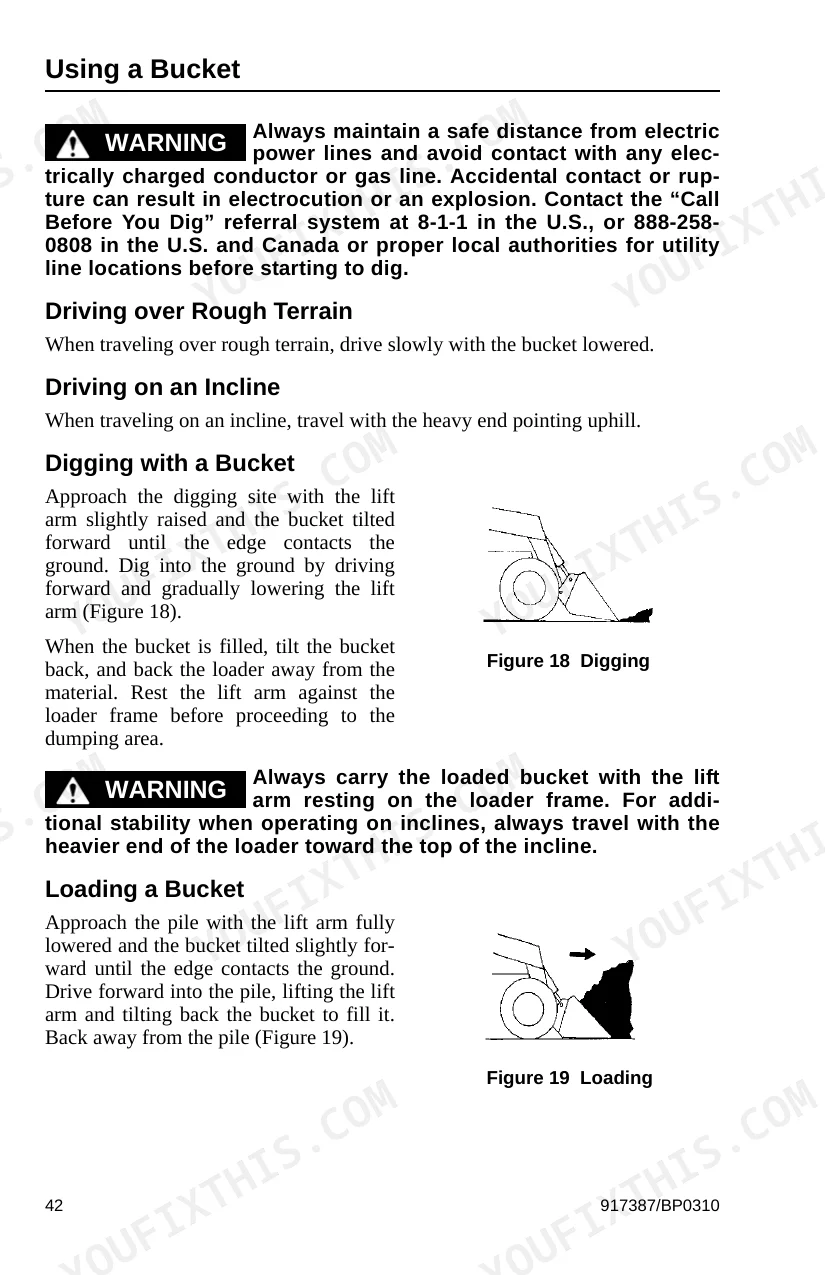

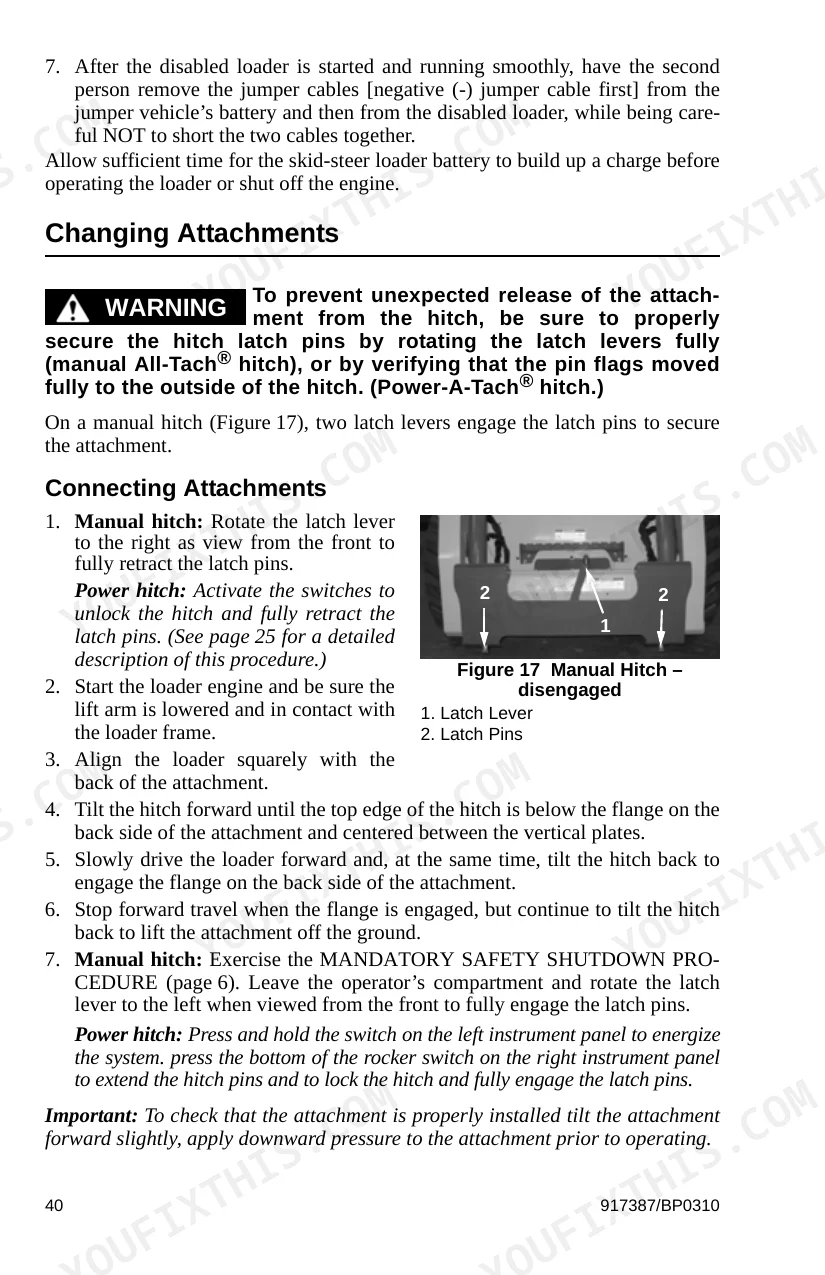

Operation41-54Starting the Engine, Stopping the Loader, Changing Attachments
Service55-76Loader Raising Procedure, Engine Air Cleaner, Hydraulic System
Troubleshooting77-84Electrical System, Engine, Hydrostatic Drive System
Maintenance85-88Engine Air Cleaner, Hydraulic Oil Filter, Fuel Filter, Chaincase Oil, Lift Arm Pivots, Cooling System

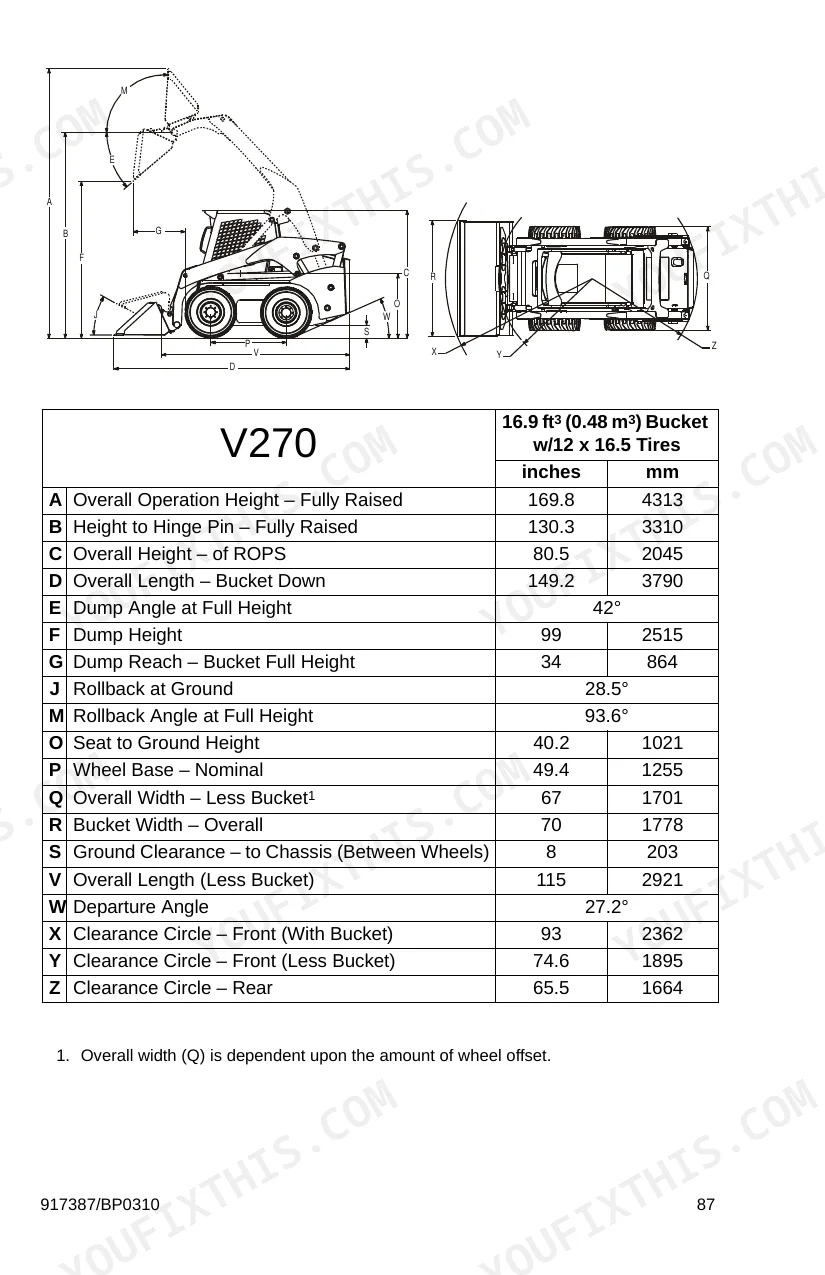

Specifications89-94Operating Weight, Engine, Hydraulic System, Electrical, Capacities, Sound Levels
Torque Specifications95Grade 2, Grade 5, Grade 8, Grade 12.9
Warranty96Gehl Warranty Service

Quick Reference Specifications

SpecificationValuePage
Battery12-Volt DC, 950 CCAp. 89
Operating Weight8000 lbs. (3629 kg)p. 89
Rated Operating Load2700 lbs. (1225 kg)p. 89
Engine Power (net)84 hp (63 kW) @ 2500 rpmp. 89
Main Hydraulic System Pressure3300 psi (228 bar)p. 89
Hydraulic Reservoir Capacity11 U.S. gal. (42 L)p. 89
Engine Oil Capacity11 U.S. quarts (10,4 L)p. 59
Chaincase Oil Capacity (each side)10 U.S. quarts (9,5 L)p. 59
Wheel Nut Torque180 ft.-lbs. (244 N·m)p. 72
Lift Arm Pivot Torque240 ft. lbs. (325 N·m)p. 72
Tire Inflation Pressure (12 x 16.5 10-ply)65 psi (450 kPa)p. 74
Tire Inflation Pressure (33 x 15.5 x 16.5)60 psi (415 kPa)p. 74
BrandGehl
ModelV270, V270 (EU)
Machine TypeSkid-Steer Loader
Manual TypeOperator Manual
LanguageEnglish
FormatSearchable PDF (Digital Download)
Pages102
File Size5.1 MB
Manual No.917387
Wiring DiagramsNo
Hydraulic SchematicsNo
Torque SpecificationsYes
Bookmarked / IndexedYes
