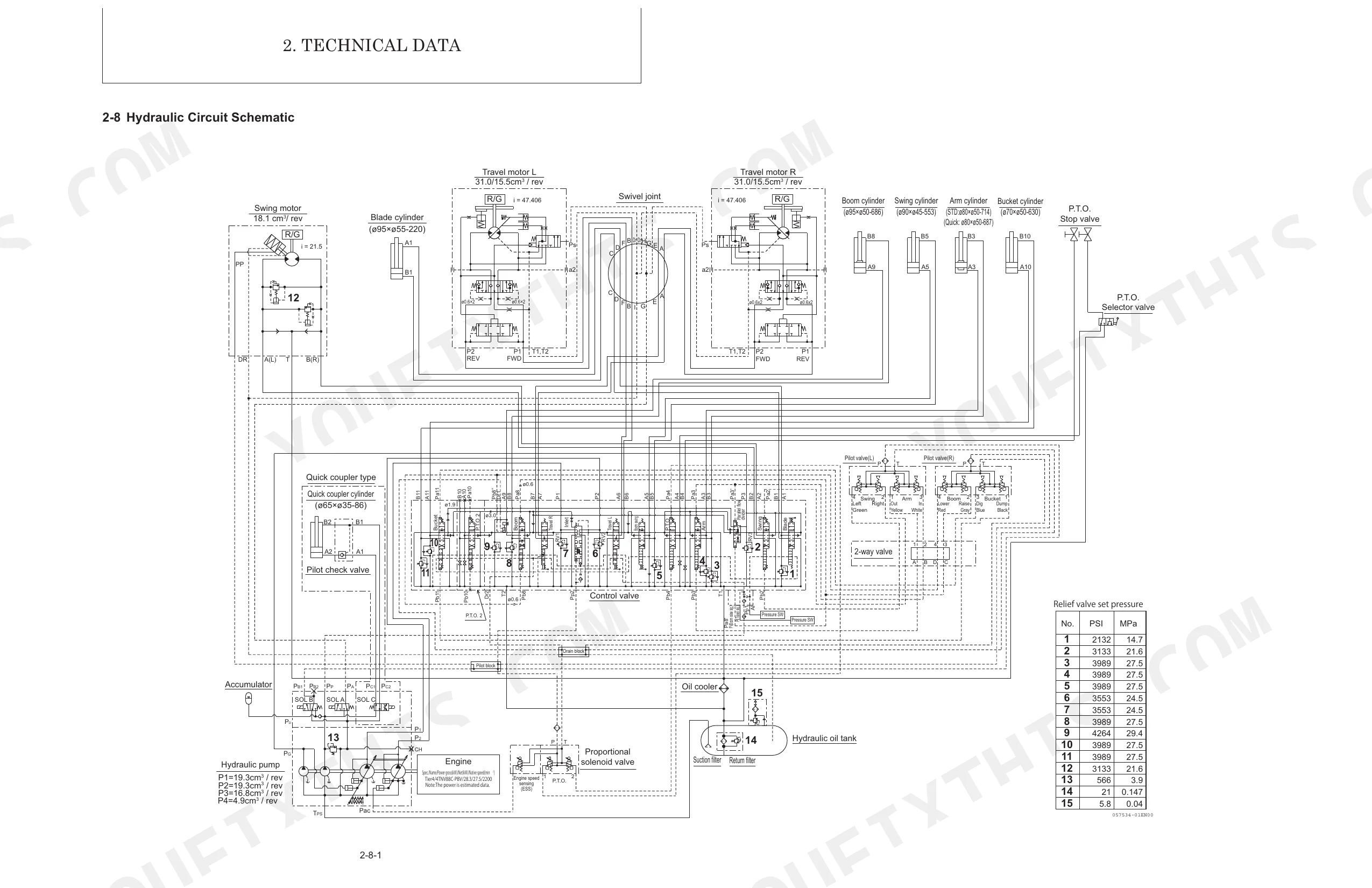

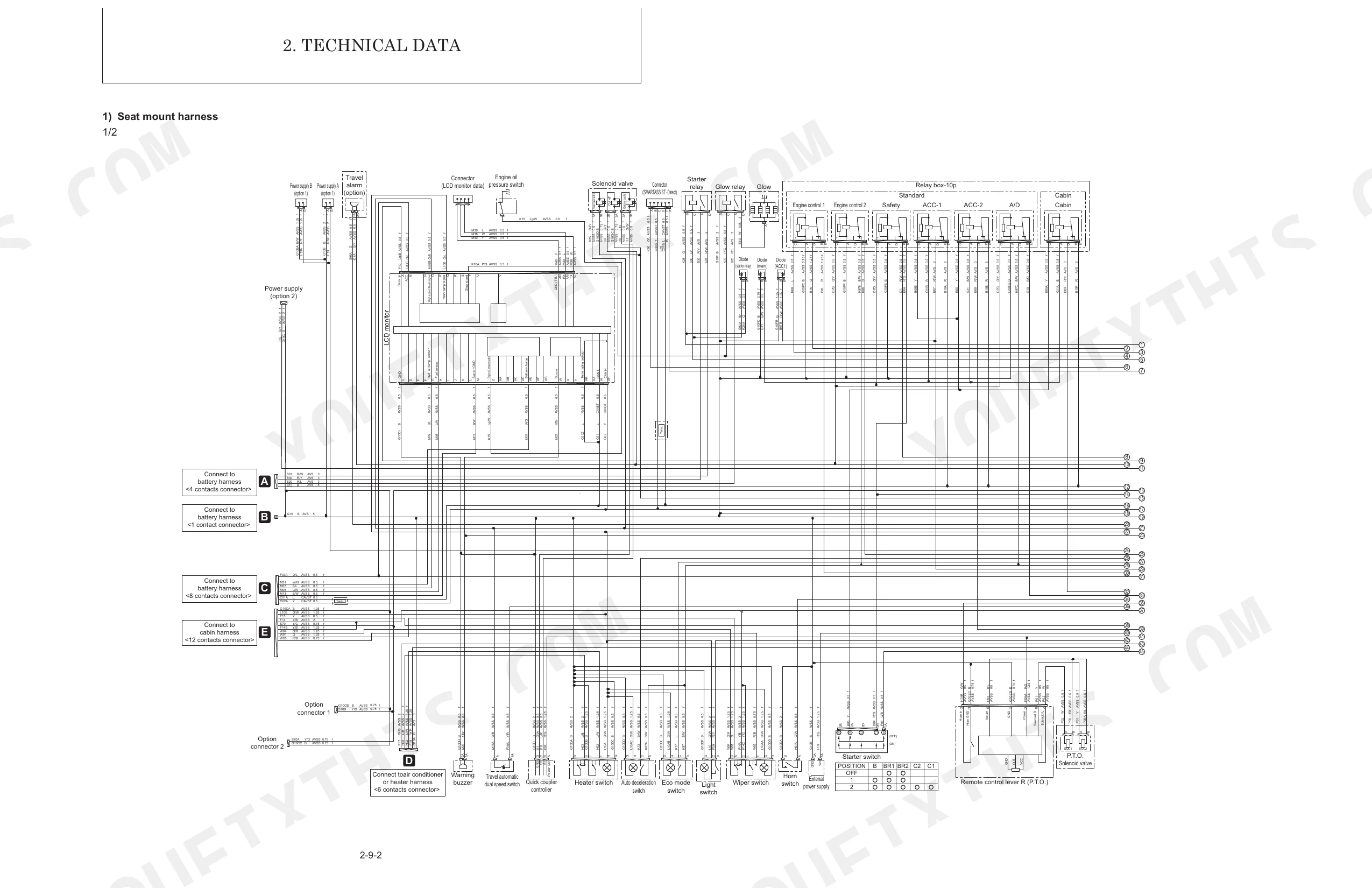

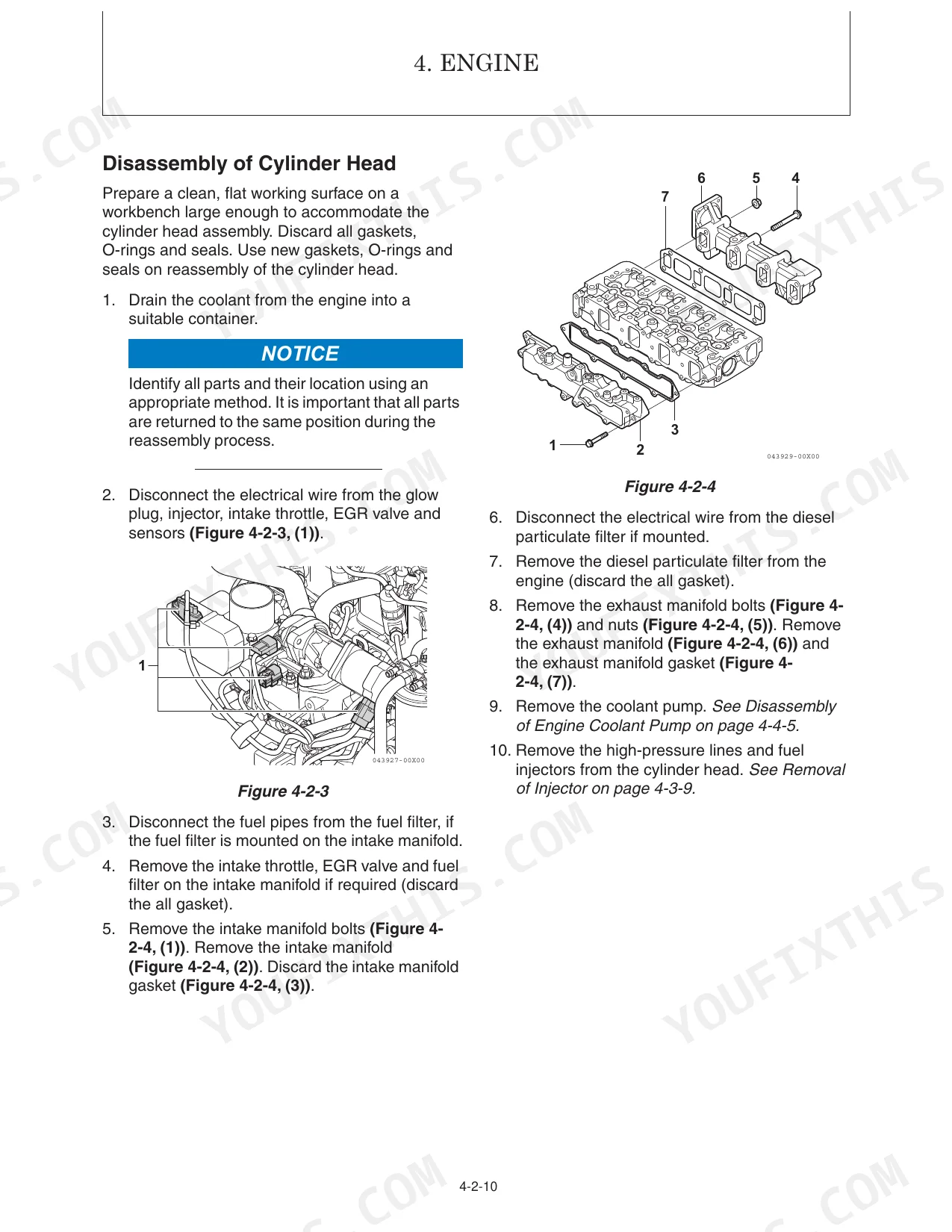

OEM #50940272 Revision A documents the rebuild and diagnostic procedures for both compact excavator variants, covering engine, hydraulics, electrical, undercarriage, and cabin across 704 pages. Hydraulic circuit schematics trace fluid flow for every function (boom, arm, bucket, swing, travel, blade), while the wiring diagrams map the LCD monitor, Engine ECU, Hydraulic ECU, and proportional solenoid valve controls. Torque specifications fill 9 pages, backed by a full error code list with diagnostic steps and 150-plus pages of repair sequences: pump disassembly, control valve rebuild, travel motor R&R, swivel joint overhaul. Set the M14 travel motor mounting bolts to 186.0-206.0 N·m, and confirm the return filter by-pass valve cracks open at 21 PSI before buttoning up. When the machine is down, the right answer matters the first time. Download once, search any spec by keyword, and open it on a phone or tablet at the machine.
What's Inside This Gehl Z45 GEN:2, 450Z NXT2 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Cautions for Maintenance Work | 9-17 | Correct Work, Safety Precautions, Preparations, Cautions for Disassembly and Reassembly, Cautions for Handling Seals |

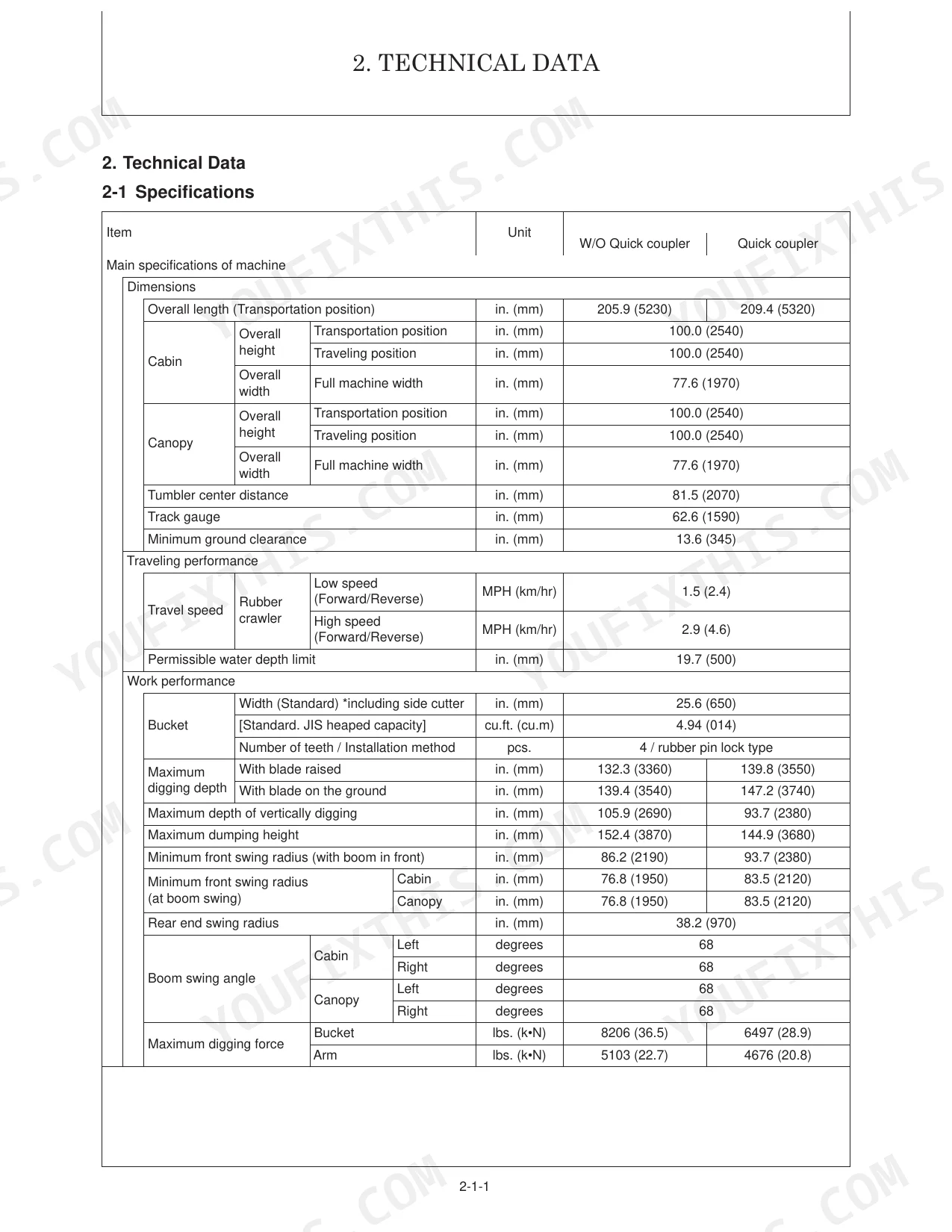

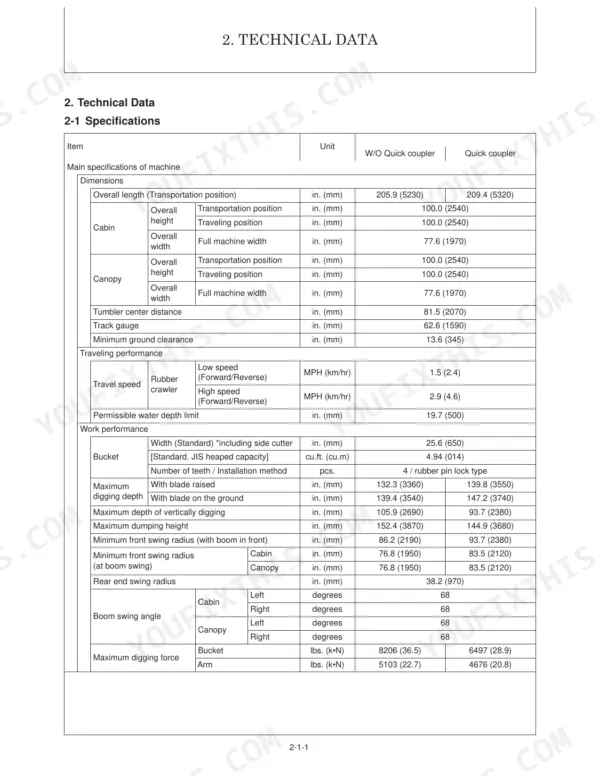

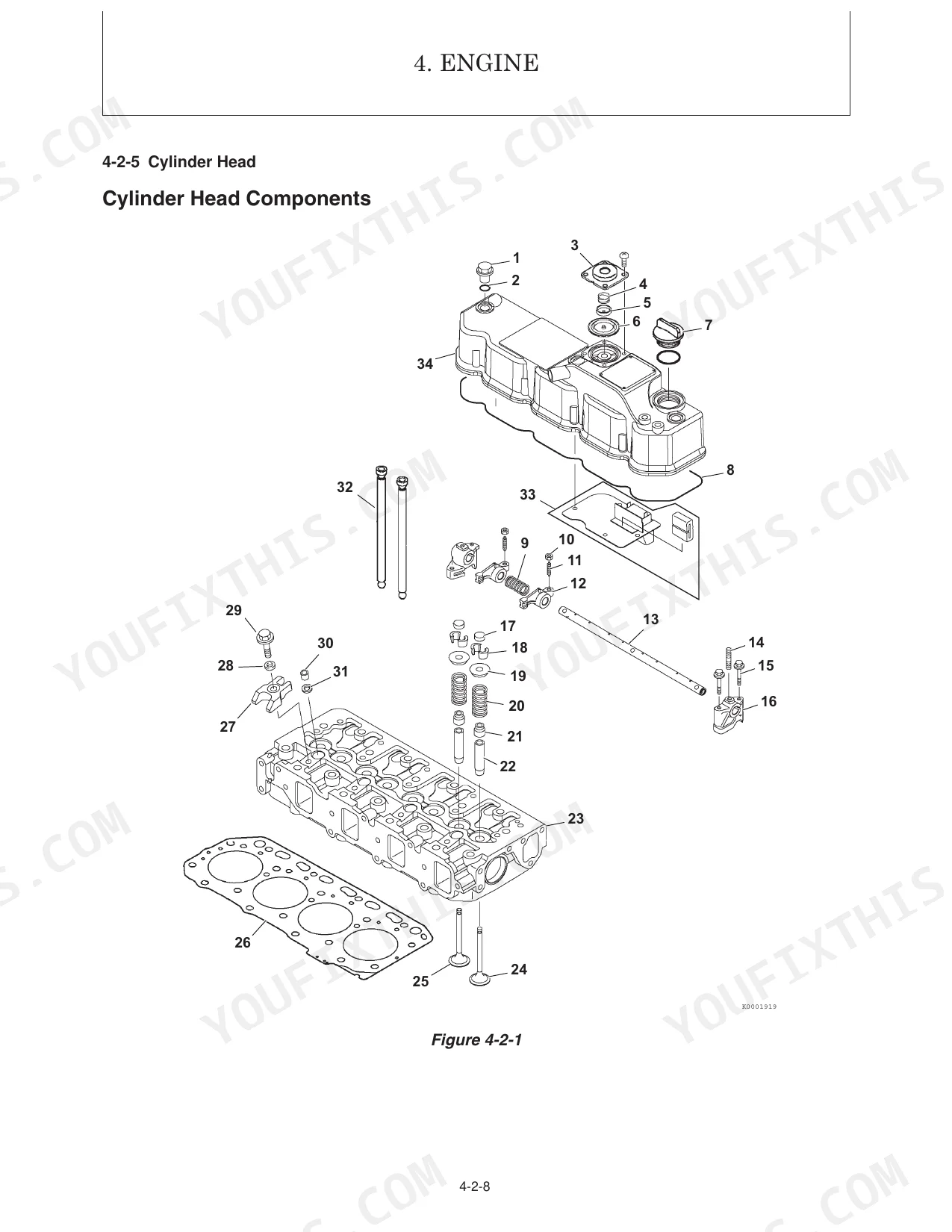

| Technical Data | 18-50 | Outline Drawing and Working Area, Weight List of Main Parts, Lifting Capacity List, Specifications for Attachment, Periodic Inspection and Servicing, Fuel, Lube Oil and Grease Recommended |
| Service Standards | 51-65 | Machine Performance, Undercarriage, Controls, Hydraulic Equipment, Implement, List of Tightening Torque, Pressure Adjustment |
| Engine | 66-254 | Fuel System, Cooling System, Lubrication System, Starter Motor, Alternator, Electronic Control System |
| Electric System | 255-310 | Electric Equipment of Machine, Electronic Control System, Engine ECU (Engine Controller), Hydraulic ECU (Controller), Error Code List |
| Hydraulic System | 311-529 | Hydraulic Pump, Control Valve, Pilot Valve, Swing Motor, Travel Motor, Proportional Solenoid Valve, Pilot Check Valve, 2-Way Valve |
| Adjustment and Repair | 530-689 | Engine and Electric Equipment, Undercarriage, Controls, Swing Bearing, Hydraulic Equipment, Work Implements, Cabin, Air Conditioner |
| Troubleshooting | 690-704 | Non-Breakdowns, Quick Reference Table for Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

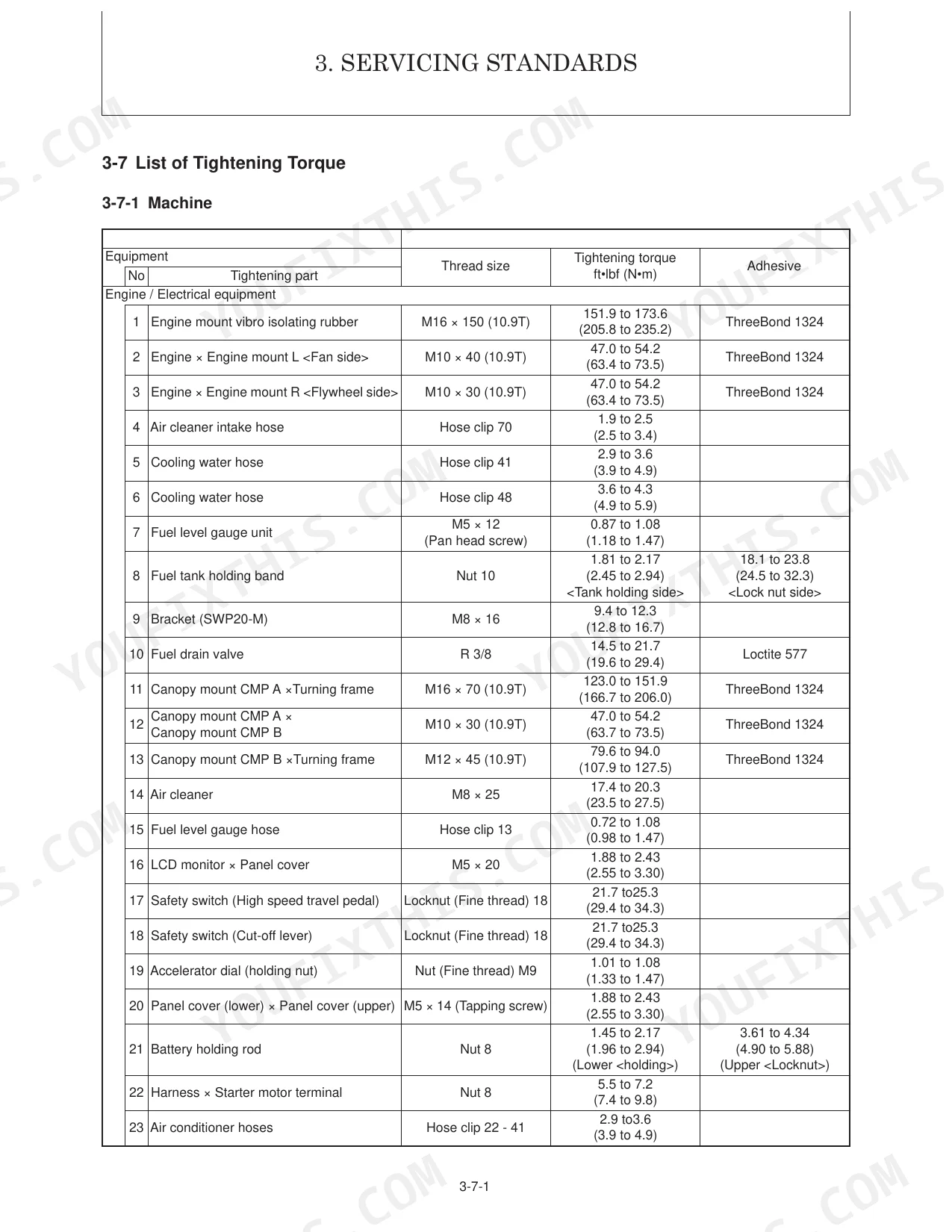

| Travel motor mounting bolt (M14) tightening torque | 138.0 to 151.9 ft·lbf (186.0 to 206.0 N·m) | p. 561 |
| Parallel pipe thread (G 1/8) tightening torque | 10.1 to 12.3 (13.7 to 16.7) ft·lbf (N·m) | p. 75 |
| Taper pipe thread (G 1/8) tightening torque | 5.1 to 6.5 (6.9 to 8.8) ft·lbf (N·m) | p. 75 |
| Suction filter filtration accuracy | 105 µ | p. 22 |
| Return filter by-pass valve opening pressure | 21 (0.147) PSI (MPa) | p. 22 |
| Fuel filter filtration area | 310 (2000) sq.in. (sq.cm) | p. 24 |
| Fuel filter element replacement interval | Every 250 hrs | p. 35 |
| Air cleaner type | Cyclone type | p. 25 |
| Air cleaner filtration area | 12.8 (1.19) sq.ft. (sq.m) | p. 25 |
| Crawler tension adjustment clearance | 0.3 to 0.5 in. (8 to 13 mm) | p. 558 |
| Idler seal cover × Track tension spring tightening torque | 57.9 to 72.3 ft·lbf (78.5 to 98.0 N·m) | p. 68 |
| Cylinder seals replacement | Replace O-rings, packings and seals with new ones | p. 605 |
Gehl Z45 GEN:2, 450Z NXT2 Common Problems This Manual Covers
Gehl Z45 hydraulic functions slow or dead after extended digging, bucket won't lift p. 76
Start with the hydraulic oil level; the tank holds 10.0 Gals. (38 L) per page 37. Check the suction filter for collapse or clogging; its filtration accuracy is 105 µ per page 22. If flow stays weak under load, measure system relief pressure against the P1 spec of 3,553 PSI (24.5 MPa) at 8.0 GPM (30 L/min) on page 76.

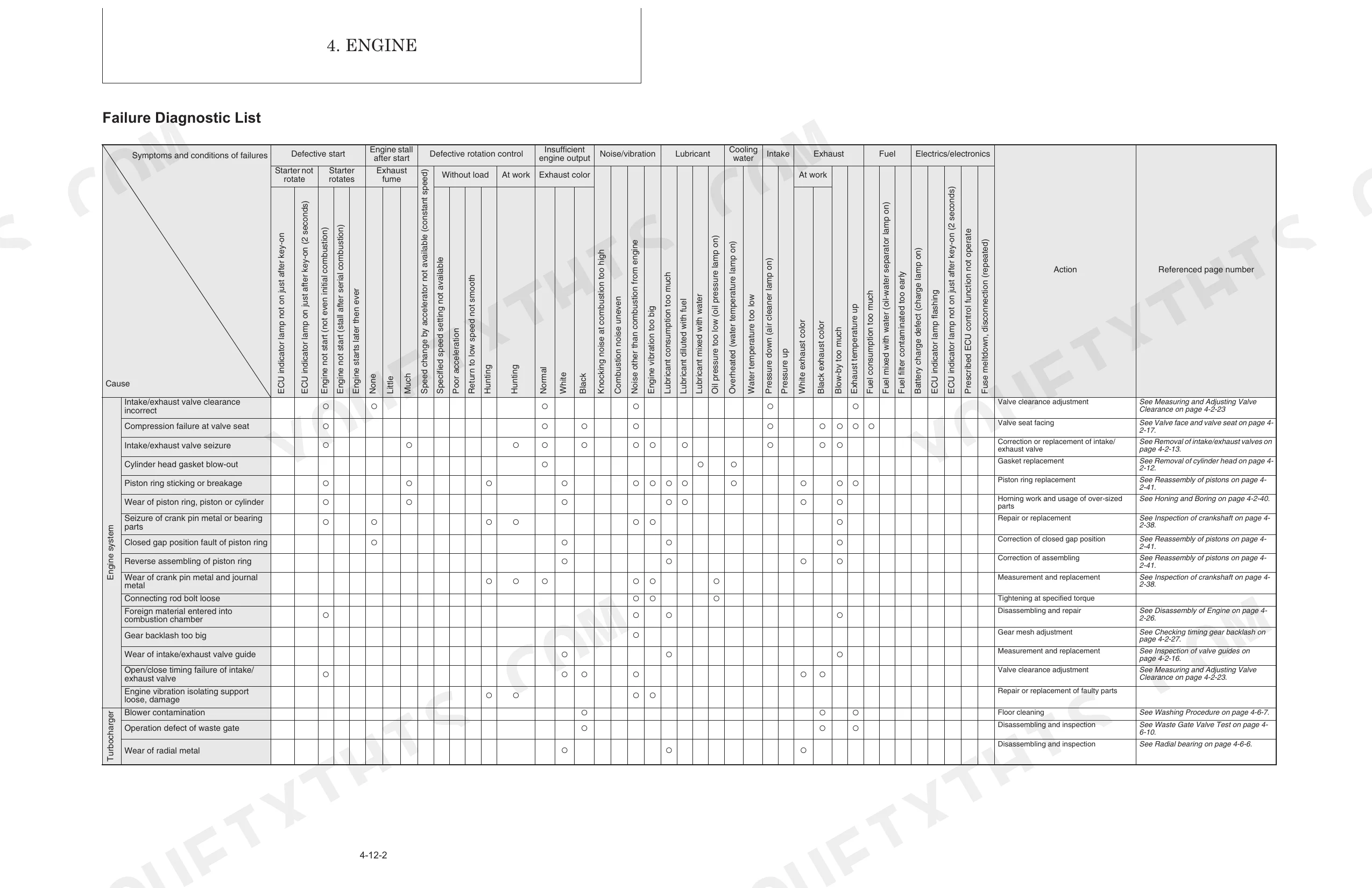

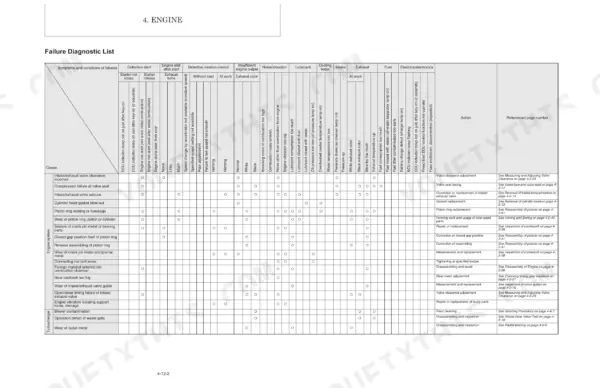

Manual Section: Hydraulic Pump TroubleshootingEngine cranks but won't fire or turns over sluggishly in cold weather p. 109
Inspect the air cleaner for restriction; maximum allowable intake restriction is 0.90 psi (6.23 kPa) per page 99. If it cranks but won't run, check fuel filter condition; the element gets replaced every 250 hrs per the maintenance schedule on page 35. Pull the error code list before any deeper component diagnosis.
Manual Section: Engine Troubleshooting Quick Reference TableOne track runs slower than the other or machine pulls hard to one side p. 558
Compare track tension side to side before anything else; correct adjustment clearance is 0.3 to 0.5 in. (8 to 13 mm) per page 558. If tension matches but the speed difference remains, inspect the travel motor and counter-balance valve starting on page 457. Travel motor mounting bolts torque to 138.0 to 151.9 ft·lbf (186.0 to 206.0 N·m) on reassembly per page 561.
Manual Section: Travel Motor TroubleshootingBoom or arm drifts down slowly with engine off and load on bucket p. 605
Replace the cylinder seals first: O-rings, packings, and seals all go in new per page 605. If drift continues afterward, examine the control valve spool and pilot check valve for internal leakage starting at page 349. When reinstalling the boom cylinder head, torque to 477 ft·lbf (647 N·m) per page 64.
Manual Section: Control Valve TroubleshootingEngine loses power and coolant temperature gauge climbs under continuous dig cycles p. 109
Confirm the coolant level first; the radiator holds 7.4 Qts. (7.0 L) per page 37. Clear packed debris from the radiator and hydraulic oil cooler fins with compressed air. Keep air intake restriction below 0.90 psi (6.23 kPa) per page 99. Cross-check the error code list before pulling any components.
Manual Section: Engine Troubleshooting Quick Reference TableFrequently Asked Questions
What does the error code mean on a Gehl Z45 GEN:2 compact excavator?
Section 5-5 carries the Error Code List, breaking down each code's classification, description, detection condition, causes, and corrective measures. Code "00 000051.03," for instance, flags an "Intake throttle position sensor malfunction: High voltage" when sensor voltage exceeds 4.8 V while the engine is not cranking.
How do I clear fault codes on a Gehl 450Z NXT2?
Most fault codes clear by checking the relevant components, then cycling the starter switch "OFF" and back "ON" to see whether the code returns. For specific EGR-related defects, the SMARTASSIST DIRECT (SA-D) tool clears error information from the "Defect History" via the "Clear All" button.
What are the torque specs for the track motor, swing motor, or final drive on a Gehl Z45?
Travel motor to track frame: 86.8 to 108.5 ft•lbf (117.6 to 147.0 N•m) on M14 × 35 bolts with Locktite 262 or K-965. Swing motor to turning frame: 195.3 to 224.2 ft•lbf (264.8 to 304.0 N•m) on M16 × 45 bolts with ThreeBond 1324.
What are the replacement specifications for hydraulic filters?
Two filters serve the hydraulic system: a suction filter (Type SFB-12S, filtration area 338 sq.in. (2180 sq.cm), accuracy 105 µ) and a return filter (Type Y2502, filtration area 1356 sq.in. (8750 sq.cm), accuracy 10 µ). Replace the return filter element at the first service.
What do I get after purchasing this Gehl Z45 GEN:2, 450Z NXT2 manual?
A 704-page service manual in searchable PDF, ready to download the moment checkout completes. Open it on a computer, tablet, or phone with no shipping wait.
Can I print specific sections of this Gehl Z45 GEN:2, 450Z NXT2 Service Manual?
Yes. The PDF carries no DRM, so you can print any page or section you need for the shop. It works with any standard printer.
Does this Gehl Z45 GEN:2, 450Z NXT2 manual include hydraulic schematics?
Yes. Hydraulic system diagrams, circuit schematics, and component specifications are all included in this Gehl Z45 GEN:2, 450Z NXT2 Service Manual.
