Keep your vintage iron running strong with this 76-page International 4166 Operators Manual PDF (OEM #1084116R1) detailing every control, hitch function, and service interval for your tractor. You get step-by-step operating procedures covering the transmission range levers, independent power take-off, and cab equipment. Open to the preventive maintenance guide to find complete lubrication schedules, cooling system fluid capacities, and troubleshooting steps to keep your machine out in the field. Replace the large air filter element after ten cleanings or one year of service, and remember to hand-tighten the engine oil filter an additional 1/4 to 1/2 turn after the gasket contacts the base. Don't rely on guesswork to maintain your equipment. Grab this bookmarked download, open it on your phone or tablet, and get your routine service done right the first time.
What's Inside This International 4166, 4166 Tractor Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 4 | Terms of Location, Optional Equipment, Illustrations |
| Work Safely - Follow These Rules | 5-6 | Before Starting, During Operation, Tractors with Cabs, Transporting, After Operating |

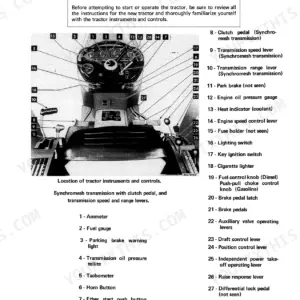

| Tractor Instruments and Controls | 7 | Tellites, Gauges, Levers, Pedals, Switches, Indicators |
| Cab Controls | 8-9 | Pressurizer Fan and Speed Switch, Turn Signals, Windshield Wiper Switch, Dome Light, Heater Control, Air Conditioning Controls |
| Cab Equipment Preventive Maintenance | 10-13 | Pressurizer Filter, Re-Circulation Air Filter, Air Conditioner Condenser, Refrigerant Sight Glass, Compressor Belt Tension, Compressor Oil Level |
| Before Operating Your New Tractor | 14 | Tractor Break-In Procedure, Lubrication, Tires, Air Cleaning System, Engine Cooling System, Fuel System |

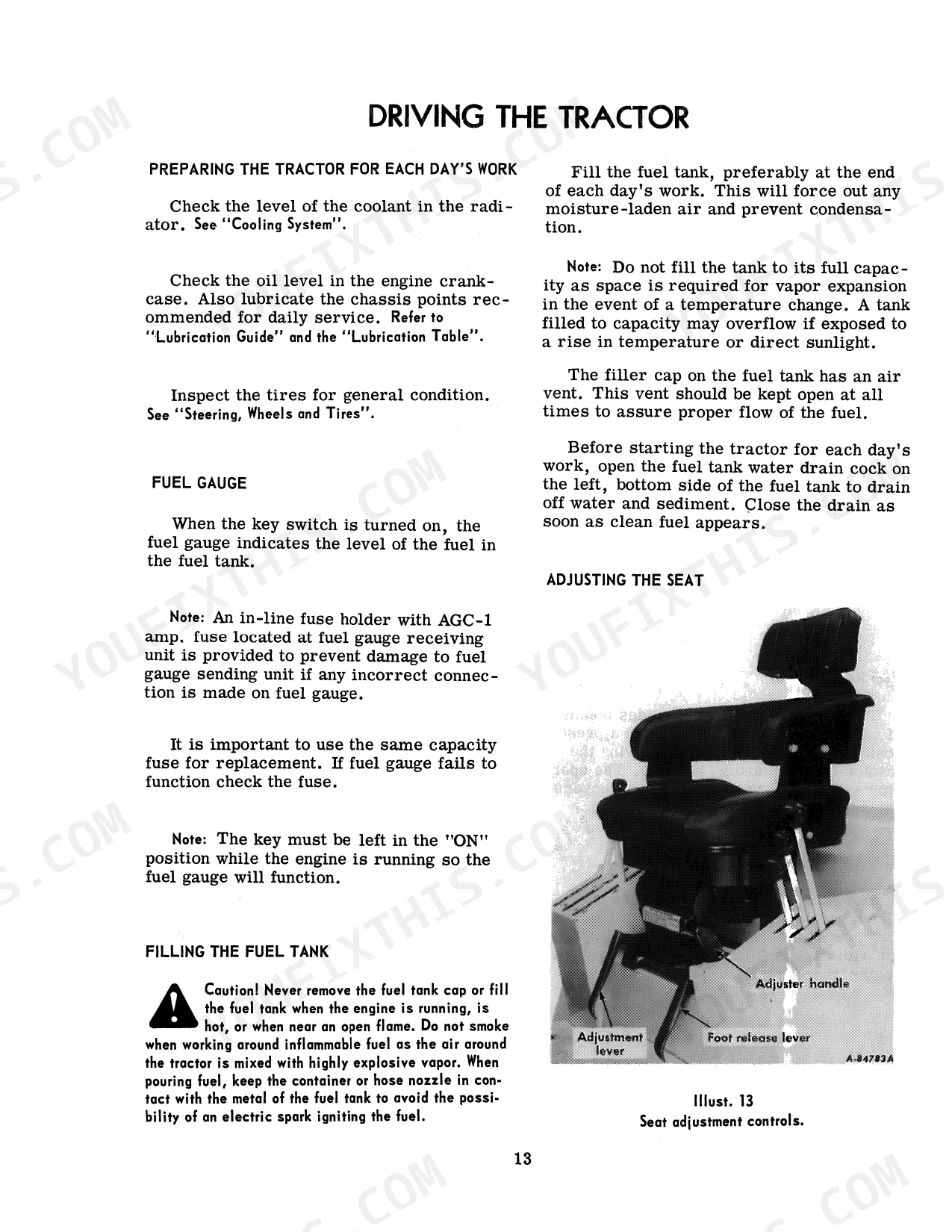

| Driving the Tractor | 15-18 | Adjusting the Seat, Transmission Range and Speed Levers, Starting the Tractor, Operating Two-Wheel Four-Wheel Drive, Steering the Tractor, Stopping the Tractor |

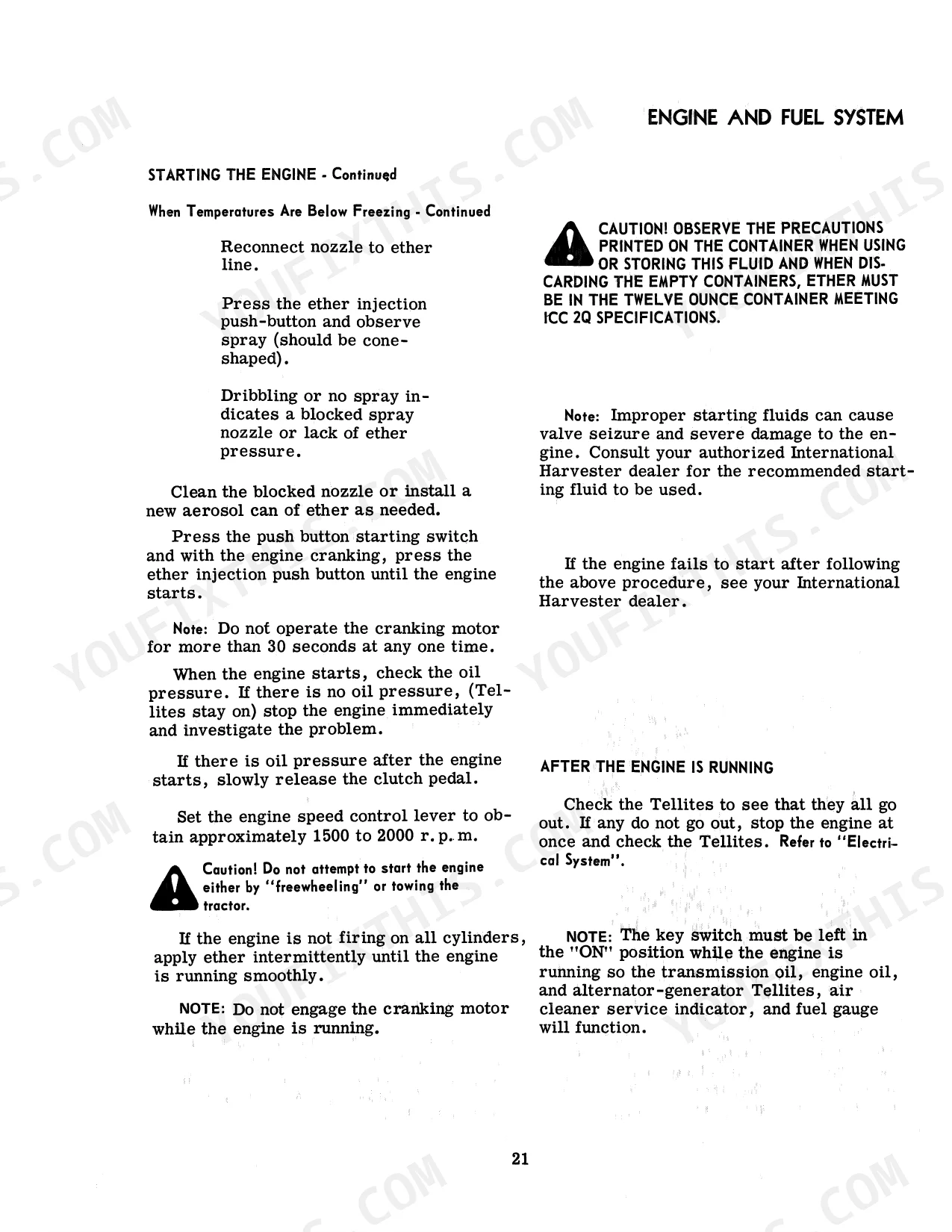

| Engine and Fuel System | 19-25 | Fuel System, Venting the Fuel System, Priming the Turbocharger, Starting the Engine, Stopping the Engine, Fuel Filters |
| Hydraulic Controls for Three-Point Hitch | 26 | Position Control Lever, Quadrant, Adjustable Stop |

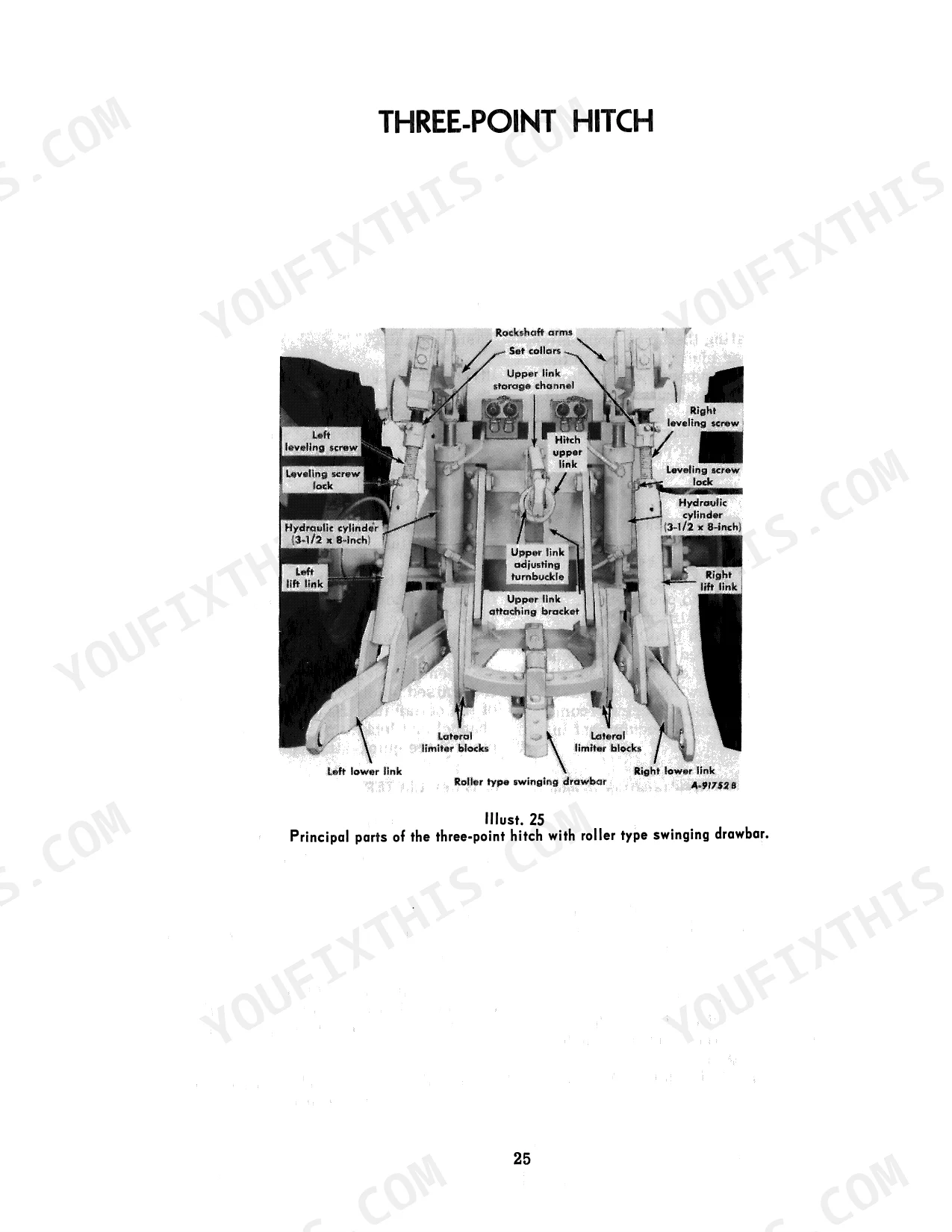

| Three-Point Hitch | 27-32 | Hitch Lower Links, Hitch Upper Link, Lateral Limiter, Rigid Hitch Position, Free to Float Position, Coupling the Equipment |
| Hitching Trailing Equipment to the Tractor | 33-34 | Vertically Adjustable Drawbar, Swinging Drawbar, Hydraulically Controlled Drawbar |

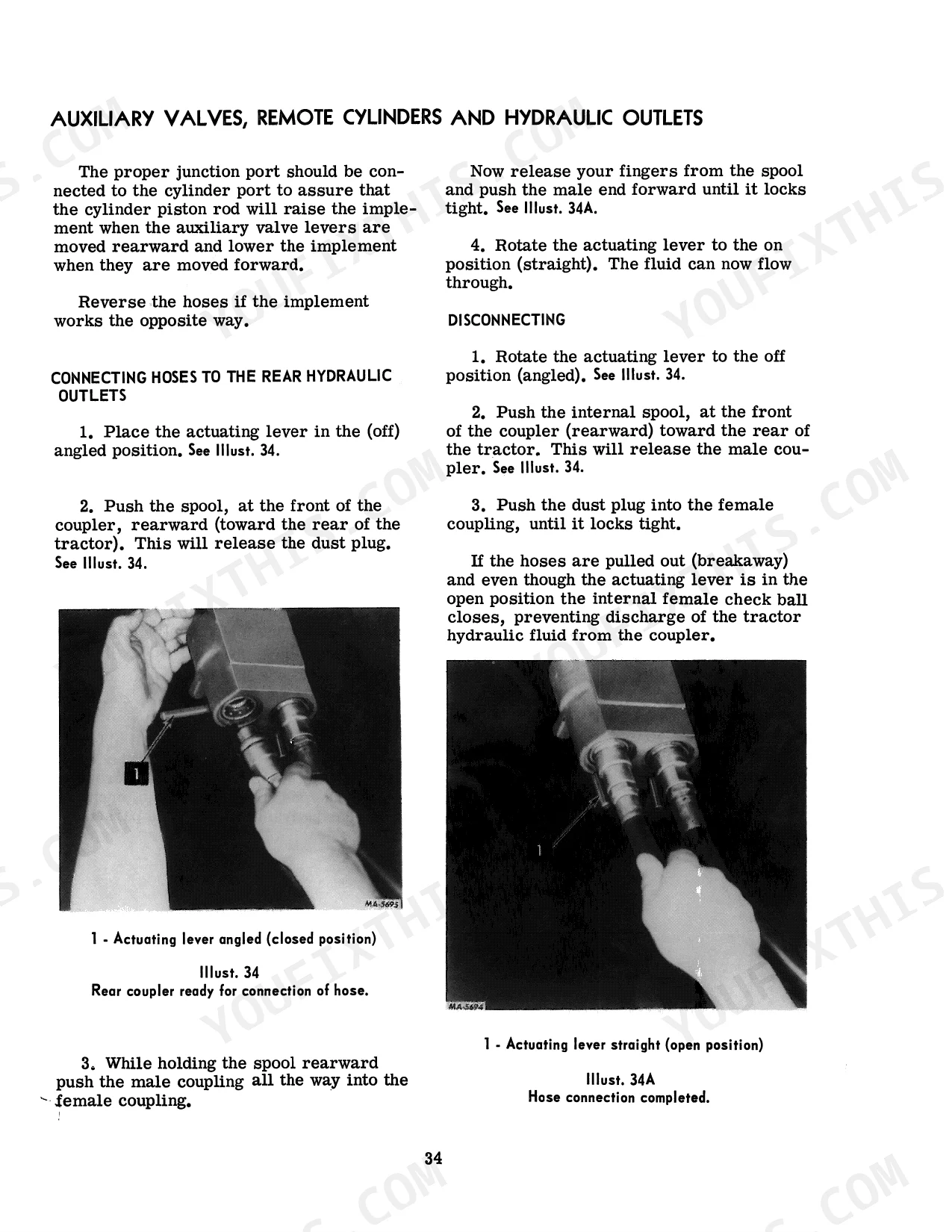

| Auxiliary Valves, Remote Cylinders and Hydraulic Outlets | 35-38 | Auxiliary Valve, Couplings, Double-Acting Check Valve, Connecting Hoses, Disconnecting, Float Lockout |
| Power Take-Off | 39-40 | Power Take-Off Drive, Power Take-Off Shaft, Shear Type Coupling, Output Shafts, Power Take-Off Brake, Changing Output Shafts |
| Cooling System | 41-43 | Temperature Gauge, Filling the Cooling System, Adding Coolant, Cleaning the Cooling System, Radiator Core, Fan Belt Tension |
| Air Cleaning System | 44-46 | Dry-Type Air Cleaner, Filter Element, Air Cleaner Service Indicator, Safety Element, Automatic Dust Unloader |
| Electrical System | 47-51 | Charging System, Cranking System, Lighting System, Tellites, Battery, Fuse |
| Steering, Wheels, and Tires | 52-53 | Steering, Front and Rear Wheels, Tires, Inflation, Tire Code Marking, Tire Industry Type |
| Weights | 54 | Front End Weights, Front Weight Mounting Bracket, Cross Tie Shaft, Nut, Operating Weight Distribution |
| Storing the Tractor | 55-56 | Storage, Removing From Storage, Engine Lubricating Oil Filters, Fuel Tank Water Drain Valve, Clutch Pedal, Turbocharger |
| Cold Weather Precautions | 57 | Fuel System, Electrical, Lubrication, Cooling System, Antifreeze, Cooling System Capacity |
| Lubrication | 58-61 | Engine Oil Level, Oil Pump, Engine Oil Cooler, Gear Lubricant, Hydraulic Fluid Filter, By-Pass Valve Screen |

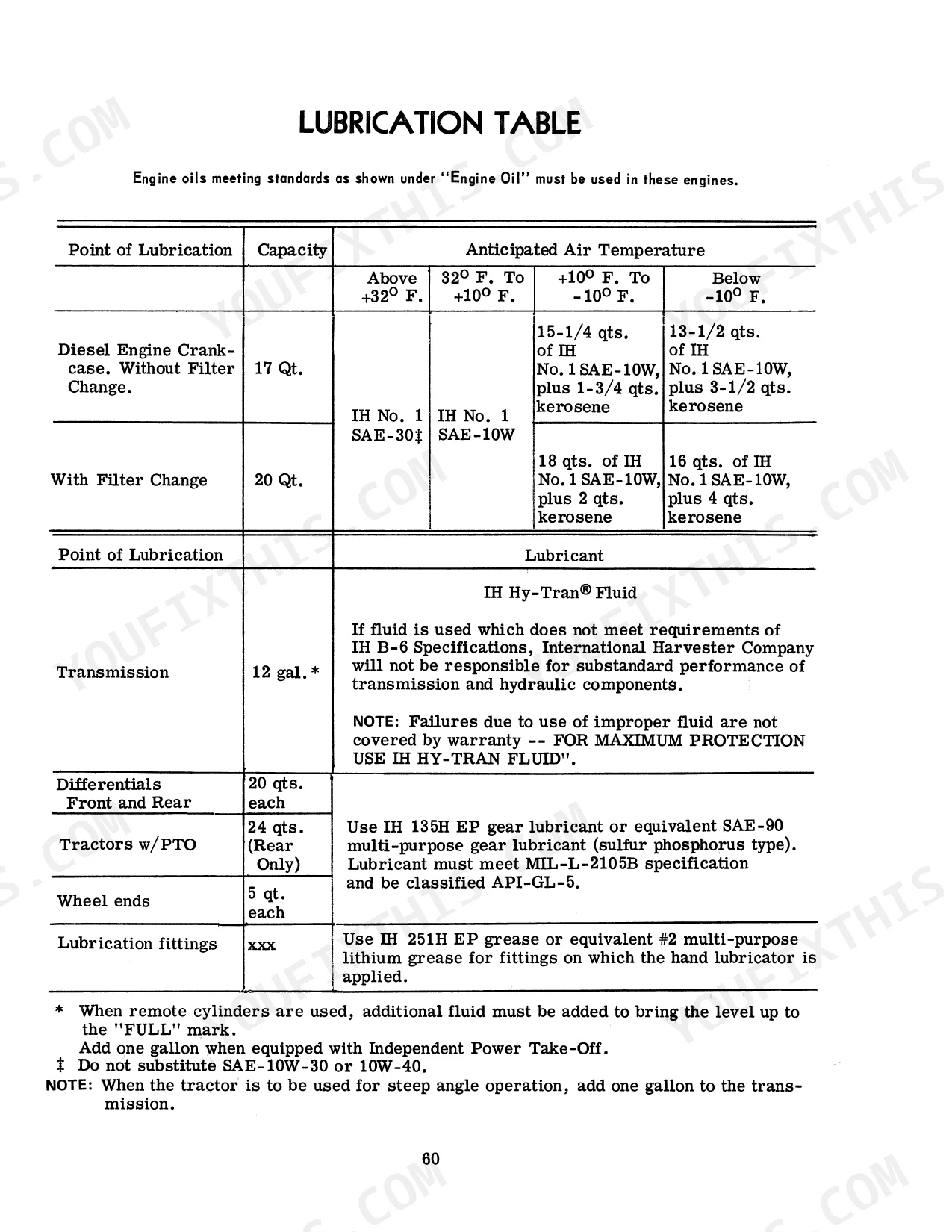

| Lubrication Table | 62 | Point of Lubrication, Capacity, Anticipated Air Temperature, Lubricant, Tire Code Marking, Tire Industry Type |
| Lubrication Guide | 63-67 | Oil Filler and Level Gauge, Hydraulic Fluid Filter, Power Take-Off, Crankcase Oil Drain Plug, Differential Housing, Wheel Ends |
| Preventive Maintenance Guide | 68-69 | Hydraulic Fluid Filter, Water Pump, Fan and Alternator-Generator Belts, Air Intake Cap and Screen, Cooling System, Engine Crankcase, Primary and Final Fuel Filters |

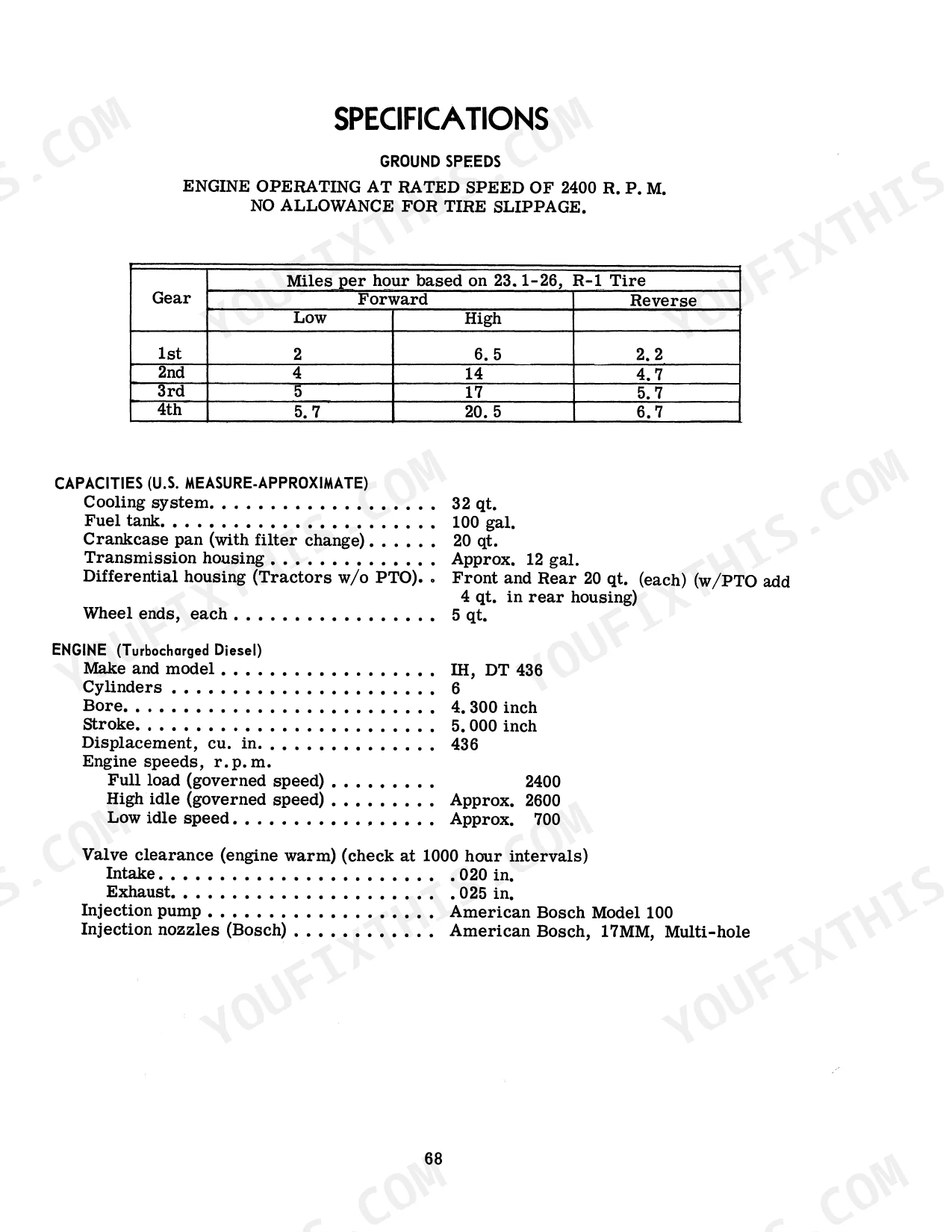

| Specifications | 70-72 | Ground Speeds, Capacities (U.S. Measure-Approximate), Engine (Turbocharged Diesel), Power Take-Off Shaft Speeds R.P.M., Electrical System, General Dimensions |
| Optional Equipment | 73-76 | Air Cleaner Pipe Extension, Hydraulic Drawbar, Independent Power Take-Off, Quick Coupler (Three-Point Hitch), Rollover Protective Structure, Tractor Cab with Pressurizer |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil filter replacement interval | Every second oil change (200 hours of operation) | p. 58 |
| Engine oil filter tightening | Hand tighten an additional 1/4 to 1/2 turn after gasket contacts filter base; do not use tools | p. 60 |
| Large air filter element replacement interval | After ten cleanings or after one year of service | p. 44 |
| Safety air filter element replacement interval | After one year of service | p. 45 |
| Hydraulic fluid type | IH Hy-Tran® Fluid (meeting IH B-6 specification) | p. 59 |
| Coolant level | 2-1/2 inches above the radiator core when cold | p. 41 |
| Fan belt tension | Deflection with 25 pound load, 13/16-inch midway between fan and crankshaft pulleys | p. 42 |
| Electrical System voltage | 12 volt neg. ground | p. 71 |
| Clutch diameter | 14 in. | p. 71 |
International 4166, 4166 Tractor Common Problems This Manual Covers
International 4166 engine temperature gauge spikes and tractor overheats during heavy summer field work p. 41
Inspect the fan belt tension on page 42. Verify the belt deflects 13/16-inch midway between the fan and crankshaft pulleys under a 25 pound load. Check the radiator core and fill the cooling system 2-1/2 inches above the core when cold as detailed on page 41.
Manual Section: Cooling SystemDashboard warning light indicates low engine oil pressure during continuous field operation p. 60
Replace the engine oil filters every 200 hours of operation, which is every second oil change. Apply a thin film of oil to the gasket, turn clockwise, and hand tighten an additional 1/4 to 1/2 turn after contact as shown on page 60. Do not use tools.
Manual Section: LubricationEngine lacks power and air cleaner service indicator shows restriction during dusty conditions p. 45
Remove the dry-type air cleaner housing and inspect the filters. Replace the safety air filter element after one year of service as directed on page 45. Clean the large filter element and verify all connections are tight before restarting the engine.
Manual Section: Air Cleaning SystemEngine fails to start or cranks slowly after prolonged idle in cold weather p. 23
Test the cranking system and battery voltage. Confirm the electrical system maintains a 12 volt neg. ground as specified on page 71. Review the troubleshooting procedures on page 23 to isolate fuel delivery issues, and bleed any trapped air from the lines before attempting another start.
Manual Section: Engine and Fuel SystemFrequently Asked Questions
How do you fix International 4166 engine temperature gauge spikes and tractor overheats during heavy summer field work?
Inspect the fan belt tension on page 42. Verify the belt deflects 13/16-inch midway between the fan and crankshaft pulleys under a 25 pound load. Check the radiator core and fill the cooling system 2-1/2 inches above the core when cold as detailed on page 41.
How do you fix Dashboard warning light indicates low engine oil pressure during continuous field operation?
Replace the engine oil filters every 200 hours of operation, which is every second oil change. Apply a thin film of oil to the gasket, turn clockwise, and hand tighten an additional 1/4 to 1/2 turn after contact as shown on page 60. Do not use tools.
How do you fix Engine lacks power and air cleaner service indicator shows restriction during dusty conditions?
Remove the dry-type air cleaner housing and inspect the filters. Replace the safety air filter element after one year of service as directed on page 45. Clean the large filter element and verify all connections are tight before restarting the engine.
How do you fix Engine fails to start or cranks slowly after prolonged idle in cold weather?
Test the cranking system and battery voltage. Confirm the electrical system maintains a 12 volt neg. ground as specified on page 71. Review the troubleshooting procedures on page 23 to isolate fuel delivery issues, and bleed any trapped air from the lines before attempting another start.
How quickly can I access this International 4166?
This is a 76-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this International 4166 Tractor Operators Manual printable?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
