Need the exact factory operating instructions for your articulated beast? This 58-page International 4366 Articulated Turbo Diesel Tractor Operator Manual PDF (OEM #1084394R1) details every daily check and cab control for your machine. You get a full breakdown of the three-point hitch hydraulic controls, complete lubrication guides for the drive units, and dashboard indicator charts so you know exactly what your tractor is telling you. Open up to find step-by-step cold weather startup procedures and preventive maintenance schedules for both the cab air conditioning and diesel engine systems. Swap out the dry-type air cleaner safety element strictly after one year of service to protect your turbocharger. A busted engine from ignored maintenance ruins your season. Grab this bookmarked file on your tablet, walk out to the cab, and keep your equipment running right.
What's Inside This International 4366 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Serial Numbers | 5-6 | Diesel Engine Serial Number, Front Axle Serial Number, Tractor Serial Number, Transfer Case Serial Number, Rear Axle Serial Number, Transmission Serial Number |
| Introduction | 7 | Optional Equipment, Operating and Maintenance Instruction, Left and Right Sides of the Tractor, Identifying Symbol, Terms of Location |
| Work Safely - Follow These Rules | 8-9 | Before Starting, During Operation, Transporting, After Operating |
| Tractor Instructions and Controls | 10 | Cab Environment Controls, Engine Operation Controls, Transmission and Brake Controls, Hydraulic Coupler Operating Levers, Instrument Gauges and Indicators, Lighting Controls |
| Before Operating Your New Tractor | 11 | Lubrication, Tires, Air Cleaning System, Engine Cooling System, Fuel System, Priming the Turbocharger |

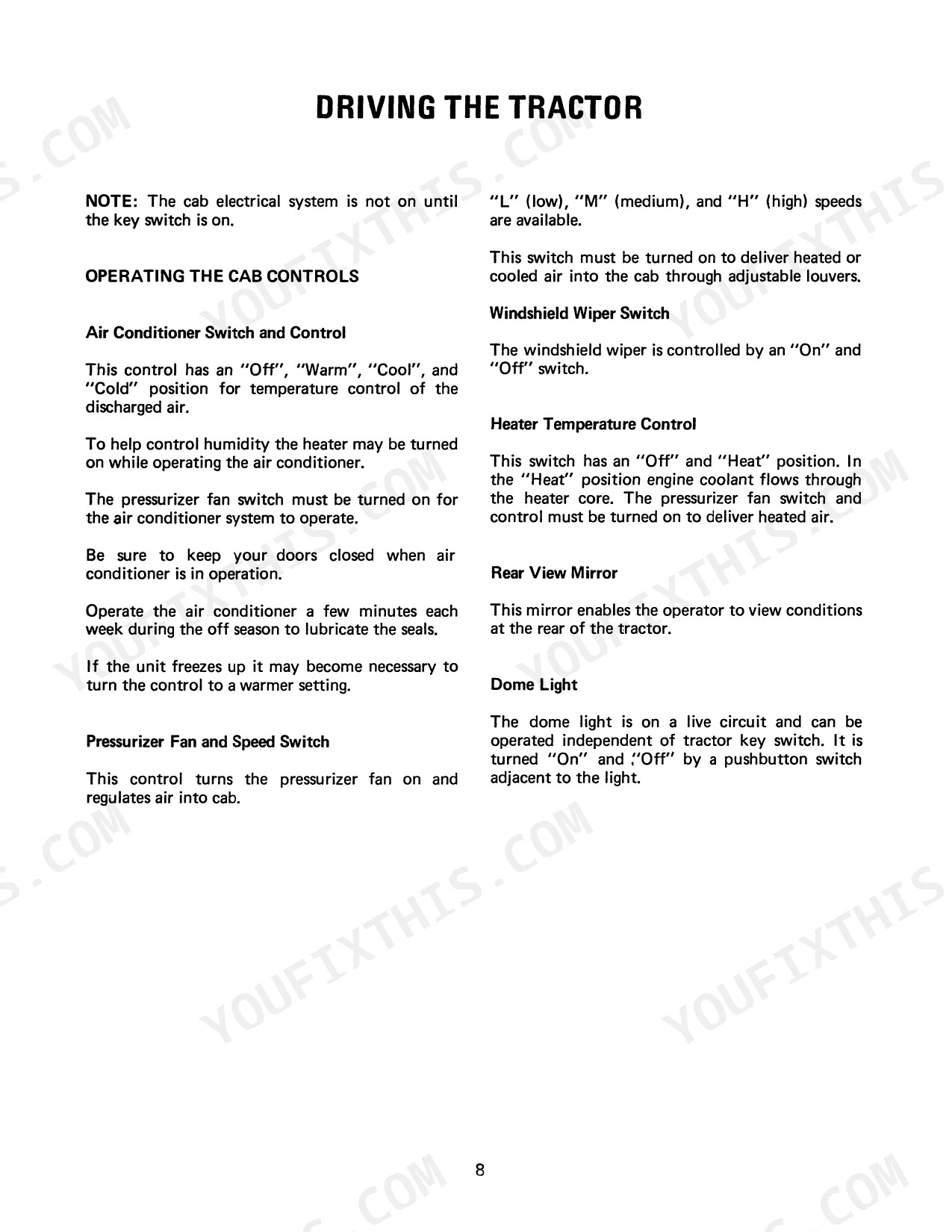

| Driving the Tractor | 12-15 | Steering the Tractor, Brakes, Transmission Range and Speed Levers, Clutch Pedal, Park Brake, Tachometer - Speedometer |

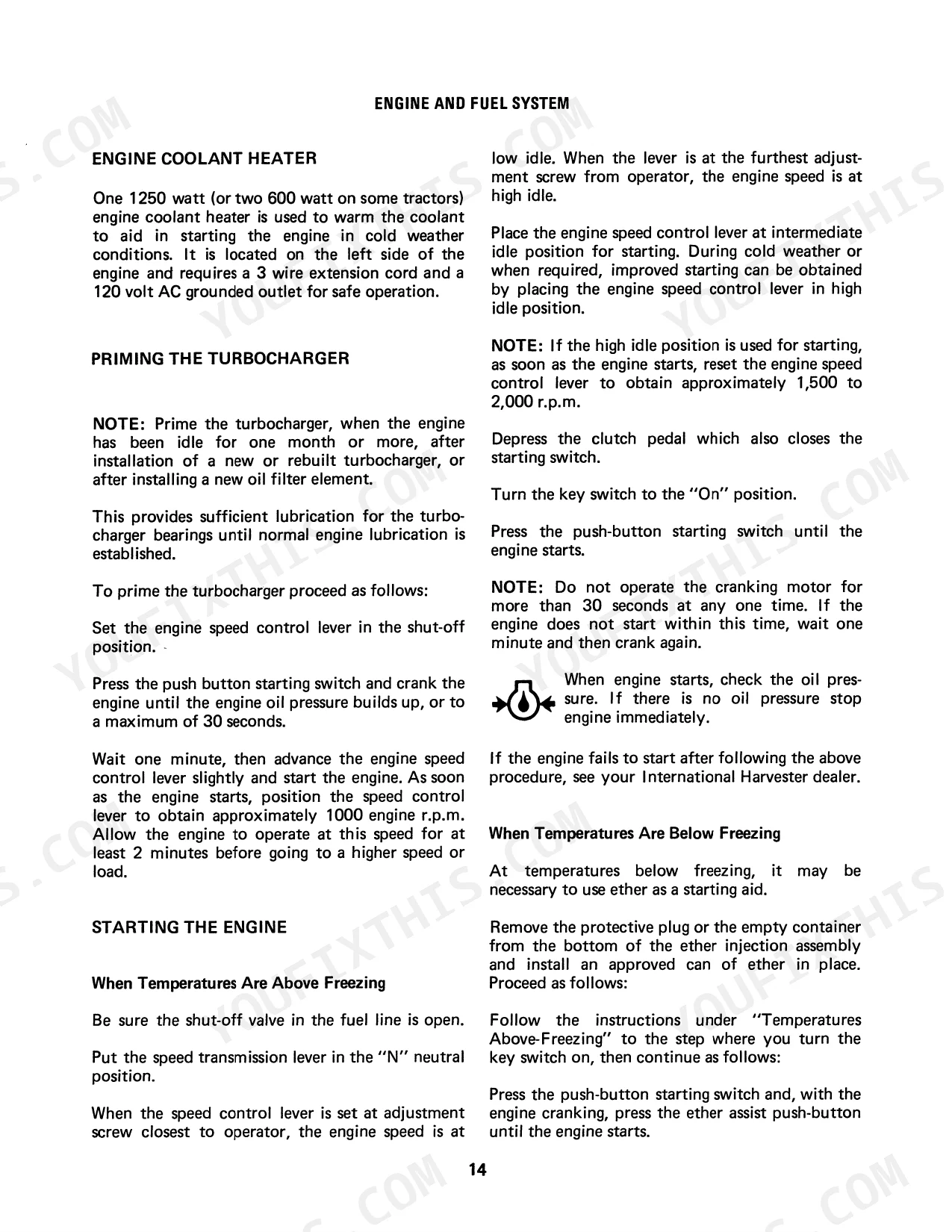

| Engine and Fuel System | 16-20 | Fuel System, Fuel Storage, Engine Coolant Heater, Priming the Turbocharger, Fuel Filters, Fuel Injection Pump and Nozzles |
| Hydraulic Control for Three-Point Hitch | 21 | Control Lever Function, Raise Position, Neutral Position, Lower Position, Float Position |

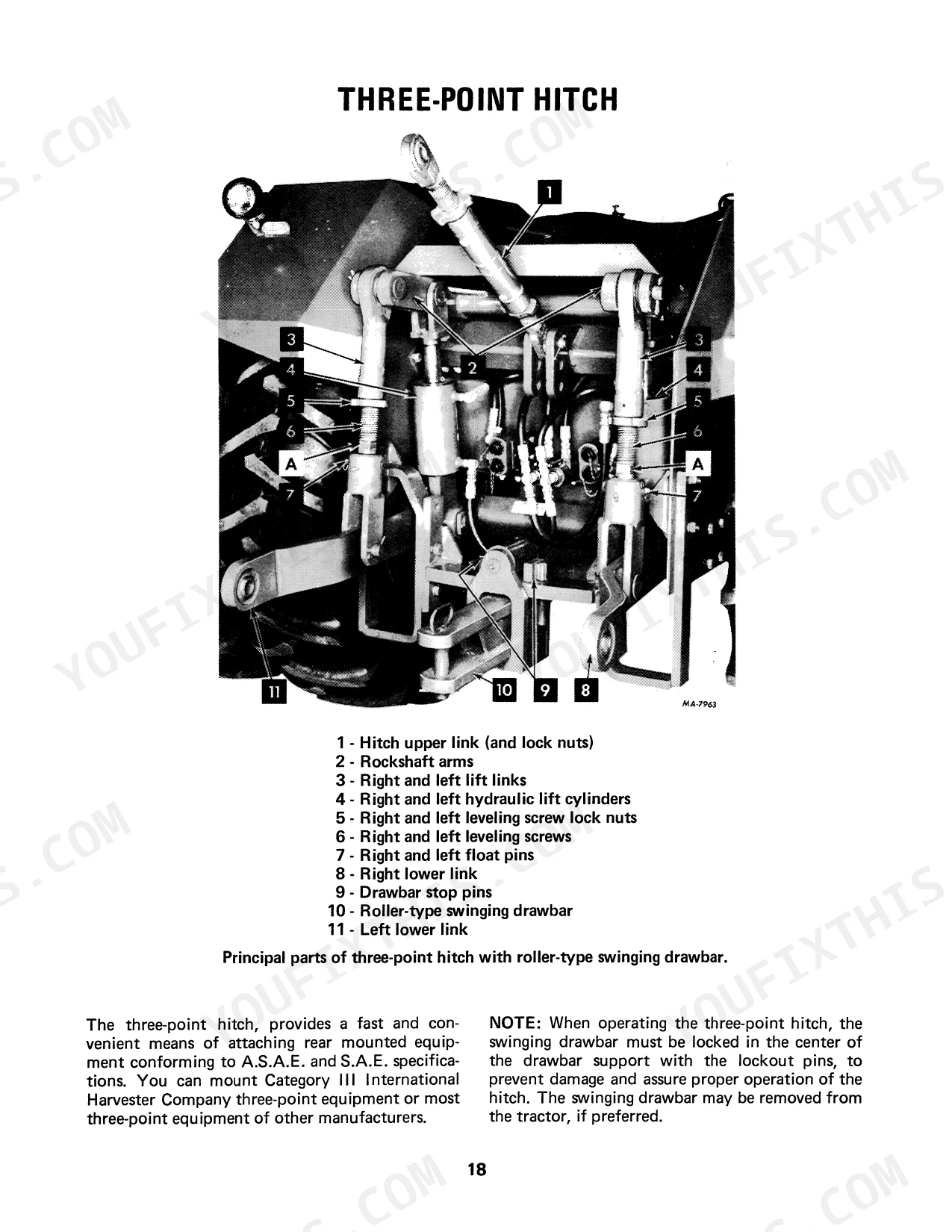

| Three-Point Hitch | 22-23 | Hitch Upper Link, Rockshaft Arms, Lift Links, Hydraulic Lift Cylinders, Leveling Screws, Lateral Limiter |
| Hitch Trailing Equipment to the Tractor | 24 | Coupling Equipment, Linch Pin Shield, Uncoupling the Equipment, Roller-Type Swinging Drawbar |
| Auxiliary Valves, Remote Cylinders and Hydraulic Outlets | 25-26 | Auxiliary Valves, Remote Cylinders, Hydraulic Outlets, Break-Away Couplers, Actuating Lever, Double-Acting Cylinders |
| Cooling System | 27-28 | Temperature Gauge, Filling the Cooling System, Radiator Cap, Coolant Recovery Reservoir, Antifreeze Protection, Fan Belt Tension |
| Air Cleanung System | 29-30 | Dry-Type Air Cleaner, Safety Element, Dust Unloader, Service Indicator, Filter Element, Element Cleaning Tool |
| Electrical System | 31-34 | Solenoid Switch, Battery Cable Terminals, Cranking System, Lighting System, Fuses, Alternator-Generator |
| Front and Rear Wheels | 35 | Flat Disc Type Rims, Tire Size, Inflation, Tire Valve Caps, Tread Width, Ballast |
| Weights and Park Brake Adjustment | 36 | Tractor Ballast, Wheel Slippage, Total Tractor Weight, Park Brake, Adjusting Knob, Brake Caliper Assembly |
| Storing the Tractor | 37 | Engine Oil, Fuel Tank, Cooling System, Air Cleaner, Batteries, Turbocharger Priming |
| Cold Weather Precautions and Lubrication | 38-41 | Fuel System, Electrical, Lubrication, Cooling System, Engine Oil Level |
| Lubrication Table | 42 | Diesel Engine Crankcase, Rear Drive Unit, Front Drive Unit, Transmission, Transfer Case, Lubrication Fittings |
| Lubrication Guide | 43-46 | Oil Filter and Lever Gauge, Hydraulic Fluid Filters, Crankcase Oil Drain Plug, Engine Oil Filters, Drive Units and Transfer Case, Brake Master Cylinder |

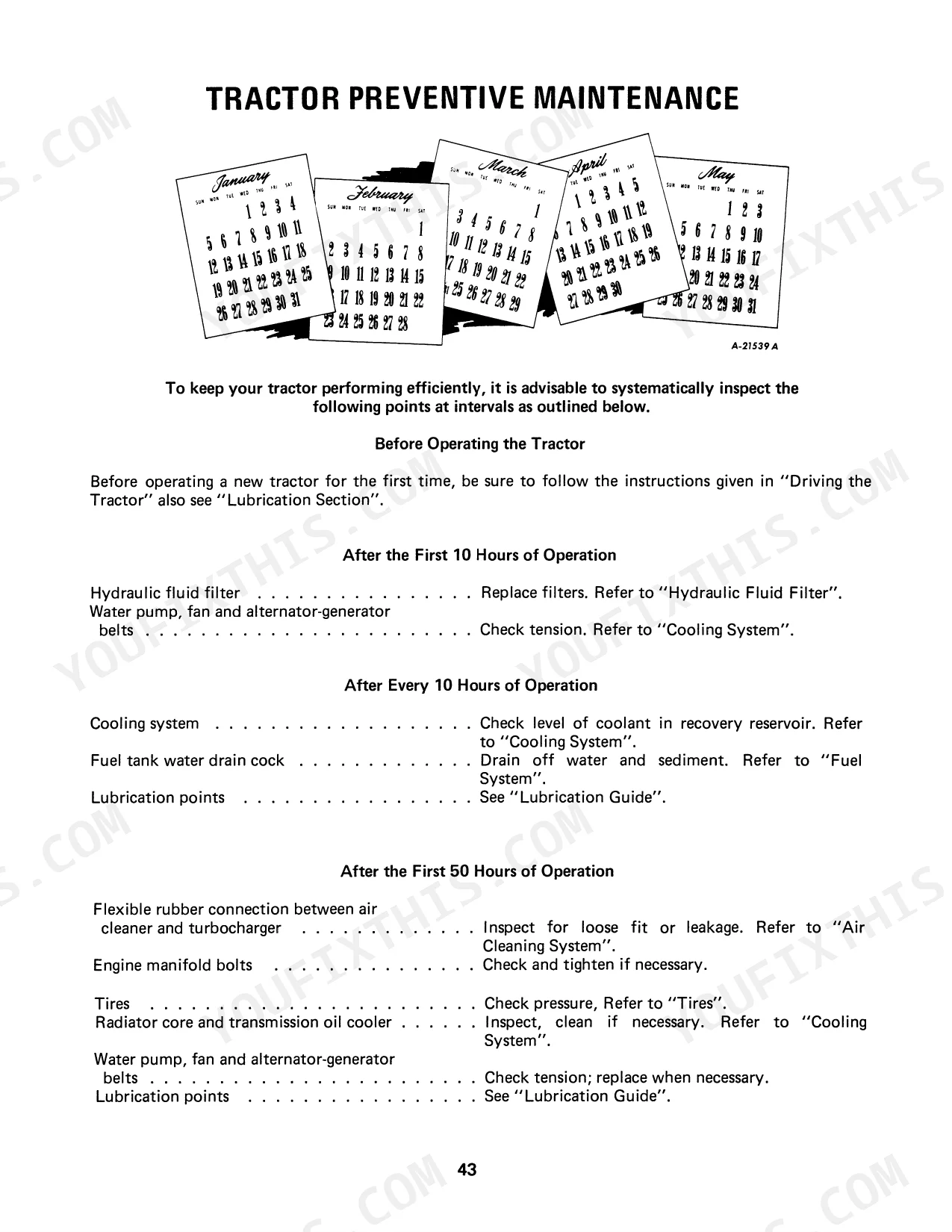

| Tractor Preventive Maintenance | 47-48 | Hydraulic Fluid Filter, Cooling System, Fuel Tank Water Drain Cock, Engine Manifold Bolts, Engine Crankcase, Air Cleaner Element |
| Cab Equipment Preventive Maintenance | 49-51 | Cab Air Filters, Air Conditioner Condenser, Refrigerant Sight Glass, Compressor Belt Tension, Compressor Pulley and Clutch, Electrical System |

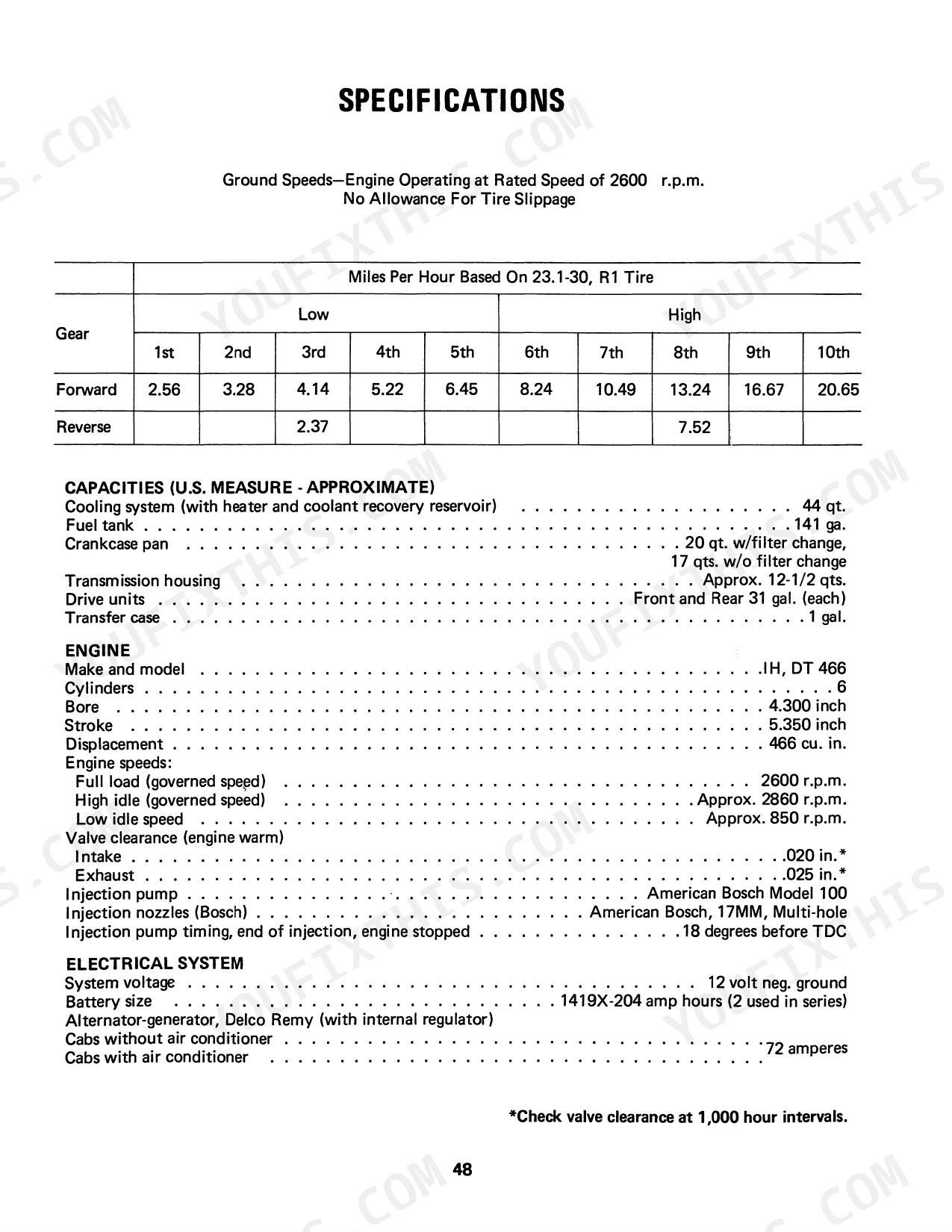

| Specifications | 52-53 | Ground Speeds, Capacities, Engine, Electrical System, Clutch, General Dimensions |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Safety filter element replacement interval | after one year of service | p. 30 |
International 4366 Common Problems This Manual Covers
International 4366 air cleaner service indicator glows red on the dashboard p. 29
Check the air cleaner service indicator on page 29; if it shows red, the element needs cleaning or replacement. Remove the primary filter element and clean it with compressed air, inspect for tears. Replace the safety element on page 30 after one year of service regardless of appearance, since a torn element lets unfiltered air enter the engine.
Manual Section: Air Cleanung SystemEngine cranks slowly or won't start at all during cold winter mornings p. 38
Check the cold weather precautions starting on page 38 for correct fuel, oil, and battery prep. Verify battery cables are clean and tight, and confirm engine oil viscosity matches ambient temperature. If air is trapped in the fuel lines from a fuel filter change, vent the system per page 16 before attempting to start.
Manual Section: Cold Weather Precautions and LubricationThree-point hitch moves jerky or hesitates badly when raising and lowering implements p. 27
Check the procedure for freeing trapped air from the hydraulic system on page 27. Cycle the three-point hitch control lever between raise and lower several times with the engine running to purge air pockets. Verify hydraulic fluid level is correct per the lubrication table on page 42 before rechecking hitch operation.
Manual Section: Freeing the Hydraulic System of Trapped AirTurn signal or hazard warning lights stay on solid instead of flashing p. 51
Check the flasher unit location and replacement steps on page 51. Confirm the bulb itself isn't burned out before condemning the flasher. Replace the flasher unit if lights stay lit steady or don't blink at all, and verify the new unit's connector seats fully into the socket.
Manual Section: Replacing Flasher UnitEngine misfires or noticeably loses power intermittently while pulling a heavy load p. 16
Check the fuel filter replacement procedure in the engine and fuel system section on page 16. Replace both the primary and secondary fuel filters if they're due, then vent air from the fuel system per page 16 before restarting. Inspect fuel lines for cracks or loose fittings that could let air enter under load.
Manual Section: Engine and Fuel SystemFrequently Asked Questions
How do you fix International 4366 air cleaner service indicator glows red on the dashboard?
Check the air cleaner service indicator on page 29; if it shows red, the element needs cleaning or replacement. Remove the primary filter element and clean it with compressed air, inspect for tears. Replace the safety element on page 30 after one year of service regardless of appearance, since a torn element lets unfiltered air enter the engine.
How do you fix engine cranks slowly or won't start at all during cold winter mornings?
Check the cold weather precautions starting on page 38 for correct fuel, oil, and battery prep. Verify battery cables are clean and tight, and confirm engine oil viscosity matches ambient temperature. If air is trapped in the fuel lines from a fuel filter change, vent the system per page 16 before attempting to start.
How do you fix three-point hitch moves jerky or hesitates badly when raising and lowering implements?
Check the procedure for freeing trapped air from the hydraulic system on page 27. Cycle the three-point hitch control lever between raise and lower several times with the engine running to purge air pockets. Verify hydraulic fluid level is correct per the lubrication table on page 42 before rechecking hitch operation.
How do you fix turn signal or hazard warning lights stay on solid instead of flashing?
Check the flasher unit location and replacement steps on page 51. Confirm the bulb itself isn't burned out before condemning the flasher. Replace the flasher unit if lights stay lit steady or don't blink at all, and verify the new unit's connector seats fully into the socket.
How quickly can I access this International 4366?
This is a 58-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this International 4366 Articulated Turbo Diesel?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
