All 176 pages of this International Cub Cadet Service Manual (OEM #GSS-1497) cover one family: the 582, 582 Special, 682, 782, and 982 chassis tractors. Inside, you get full electrical schematics broken out by model variant, hydraulic system diagrams, and a library of exploded views spanning steering assemblies, front axle components, and mower deck hardware for the 38C, 44C, and 50C. Open to the chassis section and you'll find torque tables, a troubleshooting guide, and step-by-step procedures running through engine removal, installation, and drivetrain rebuild — each procedure keyed to the specific model it applies to. On the 582, hold the clutch release lever-to-bearing clearance at exactly 1.27 mm; miss that number and your clutch won't survive a season. Your machine is down and forum guesses won't fix it. Download now, bookmark any section in two clicks, and pull it up on your phone right at the machine.
What's Inside This International Cub Cadet 582–982 Manual
| System | Pages | Key Topics |
|---|---|---|
| Service Manual Cover | 1-2 | Cub Cadet Tractors, Models 582, 582 Special, 682, 782, 982 Chassis, Ih Equipment |
| Library Filing Information | 3-4 | Model 582, Model 582 Special, Model 682, Model 782, Model 982 Chassis, Ih Equipment |

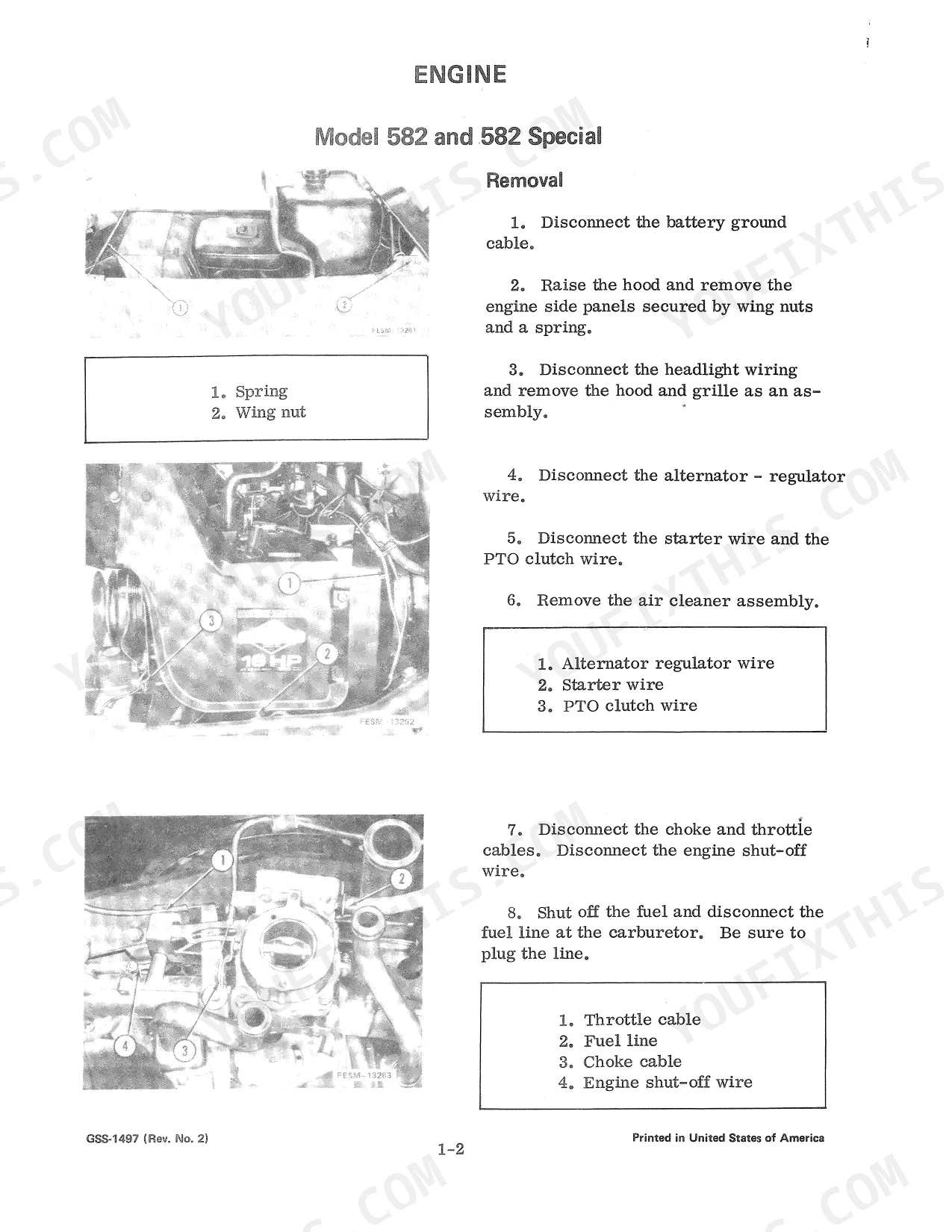

| Engine | 14-24 | Model 582 and 582 Special Removal, Model 582 and 582 Special Installation, Models 682 and 782 Installation, Model 982 Installation, Electrical Schematics Model 582 and 582 Special |

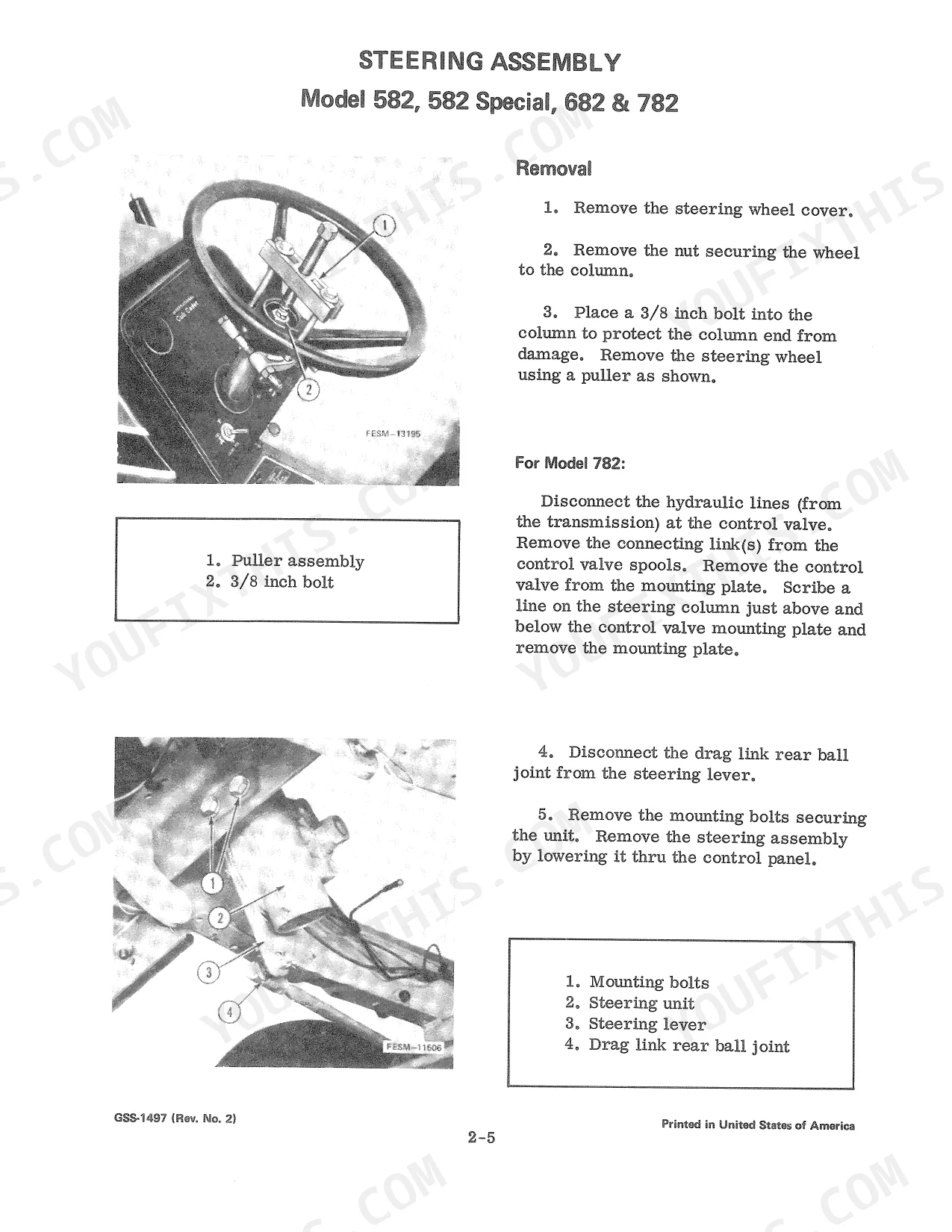

| Steering & Front Axle | 25-44 | Special Torques, Specifications, Steering Assembly Models 582/682/782, Steering Assembly Model 982, Front Wheels and Bearings, Front Axle Models 582/682/782 and 982 |
| Transaxle & Drive (582 Special) | 45-71 | Drive Belt and Clutch Spring Linkage, Right Angle Drive, Transaxle, Differential Model 582 Special |

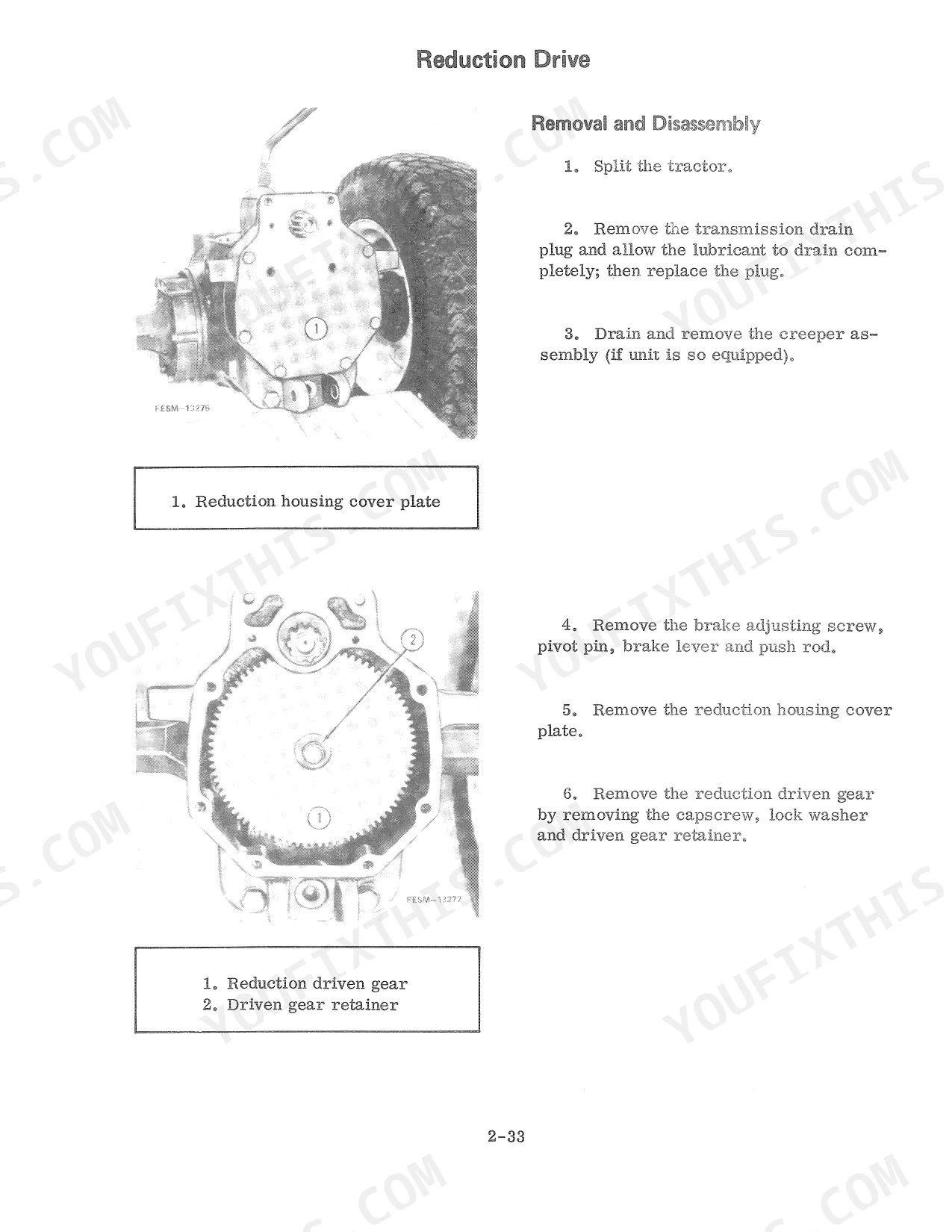

| Standard Transmission (Model 582) | 72-92 | Rear Axle and Axle Housing, Standard Transmission Clutch, Splitting and Recoupling, Reduction Drive, Transmission and Differential, Creeper Drive |
| Hydrostatic Transmission (682/782/982) | 93-132 | Hydrostatic Principles, Check Valve Service, Charge Pump Service, Transmission Overhaul, Splitting and Recoupling, Speed Control Adjustment |
| Brakes, PTO & Hydraulic Lift | 133-161 | Internal and External Brakes, Front PTO Clutch Troubleshooting, Rear PTO Clutch and Hitch Model 982, Hydraulic Lift Pressure Check and Lift Cylinder |
| Ih Equipment | 162-176 | Mower (Model 38C, 44C and 50C) Removal, 44C and 50C) Inspection and Repair, 44C and 50C) Blade Sharpening |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Clutch release lever to clutch release bearing clearance | 1.27 mm (.05 inch) | p. 79 |
International Cub Cadet 582–982 Common Problems This Manual Covers
International 582 tractor clutch engagement failure or slipping under heavy implement load. p. 79
Inspect the clutch linkage assembly and replace the worn drive belt or degraded spring. Adjust the mechanism to maintain a clearance of exactly 1.27 mm (.05 inch) between the clutch release lever and bearing. Refer to page 79 for complete adjustment procedures.
Manual Section: ChassisEngine driven attachment rotates slower than normal or front PTO clutch does not engage. p. 162
Verify the field coil wiring has no intermittent breaks and check for a blown fuse. Inspect the spindle drive belt and pulleys on the 38-inch, 44-inch, or 50-inch mower deck for excessive wear. Examine the mower inspection procedures on page 162.
Manual Section: Ih EquipmentFaulty throttle linkage with rough idle and engine stalling during implement operation. p. 14
Inspect the throttle cable and linkage assembly on the 16 HP engine variant for misalignment. Remove the carburetor and install a new gasket set to prevent vacuum leaks. Consult the engine service procedures on page 14 to verify proper idle speed adjustments.
Manual Section: EngineFrequently Asked Questions
What are the replacement specifications for Clutch spring?
The replacement specifications for the Clutch Load Spring are as follows: a free length of 170 mm (6.7 inches), a test length of 132 mm (5.2 inches), and a test load of 1053 to 1067 N (235 to 240 lbs. force). These specifications are crucial for ensuring proper clutch operation.
How do you fix international 582 tractor clutch engagement failure or slipping under heavy implement load?
Inspect the clutch linkage assembly and replace the worn drive belt or degraded spring. Adjust the mechanism to maintain a clearance of exactly 1.27 mm (.05 inch) between the clutch release lever and bearing. Refer to page 79 for complete adjustment procedures.
How do you fix engine driven attachment rotates slower than normal or front PTO clutch does not engage?
Verify the field coil wiring has no intermittent breaks and check for a blown fuse. Inspect the spindle drive belt and pulleys on the 38-inch, 44-inch, or 50-inch mower deck for excessive wear. Examine the mower inspection procedures on page 162.
How do you fix faulty throttle linkage with rough idle and engine stalling during implement operation?
Inspect the throttle cable and linkage assembly on the 16 HP engine variant for misalignment. Remove the carburetor and install a new gasket set to prevent vacuum leaks. Consult the engine service procedures on page 14 to verify proper idle speed adjustments.
How will I receive this Service Manual?
Immediate download of the complete 176-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Is this International 582 & variants Service Manual printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Are there hydraulic schematics in this International 582 & variants manual?
Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
