Need the factory breakdown for your tractor? This 122-page International Harvester 544, 656, 666, 686, Hydro 70, Hydro 86 Shop Manual PDF gives you the complete teardown and rebuild procedures to get these classic machines back in the dirt. Inside, you get detailed hydraulic schematics, full wiring diagrams covering both diesel and LP gas models, and dedicated troubleshooting sections for the hydrostatic drive. Open up to step-by-step instructions for the direction reverser, power steering cylinder, and engine clutch linkage. Verify your charge pump pushes an 80 psi minimum at 700 rpm, and secure the Thompson draft hydraulic pump cap screws to exactly 25-35 ft.-lbs. Guessing at clearances costs you time and parts. Download this bookmarked file, jump straight to the spec you need, and start wrenching.
What's Inside This International Harvester 544 / 656 / 666 / 686 / Hydro 70 / Hydro 86 Manual

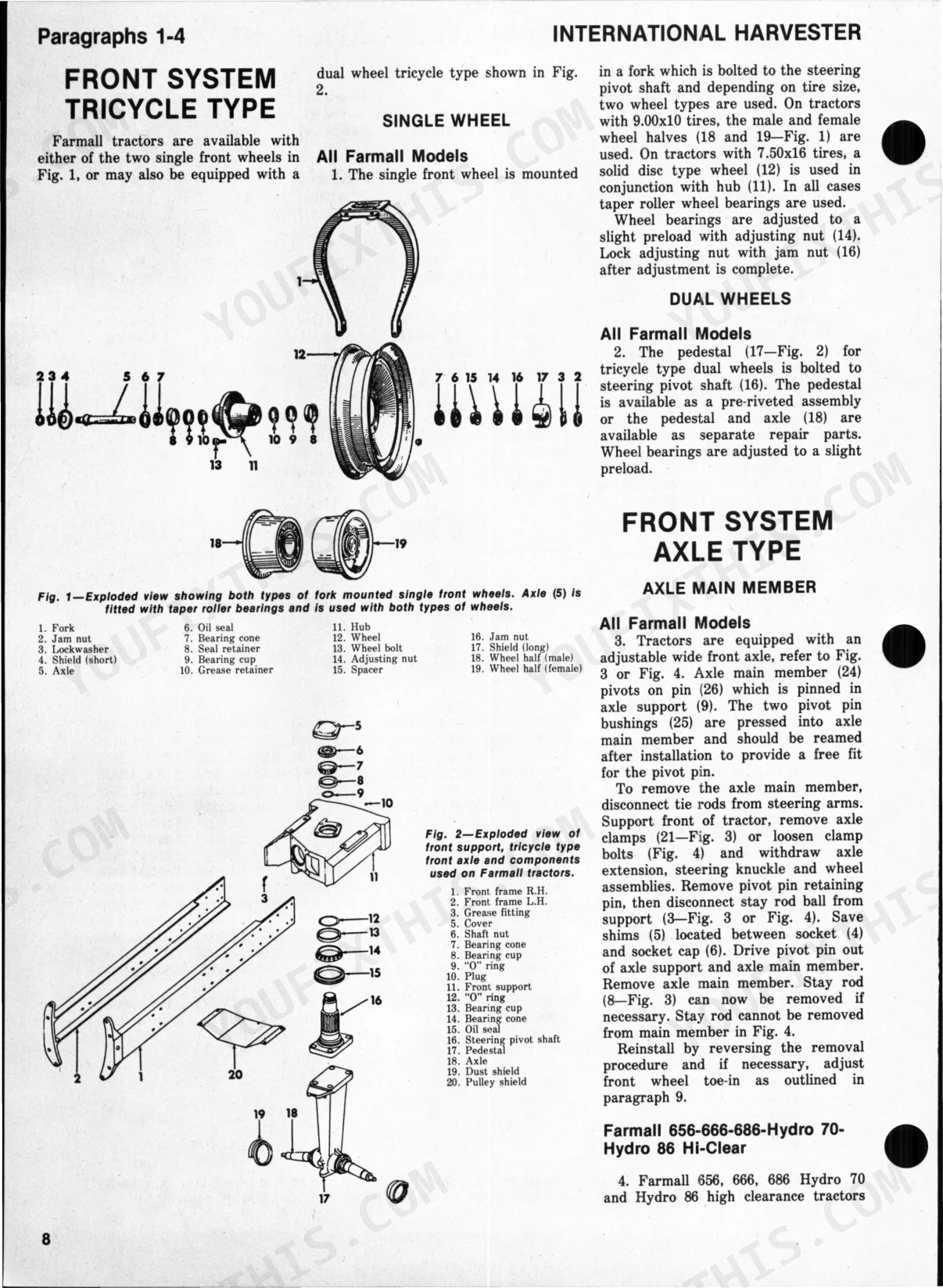

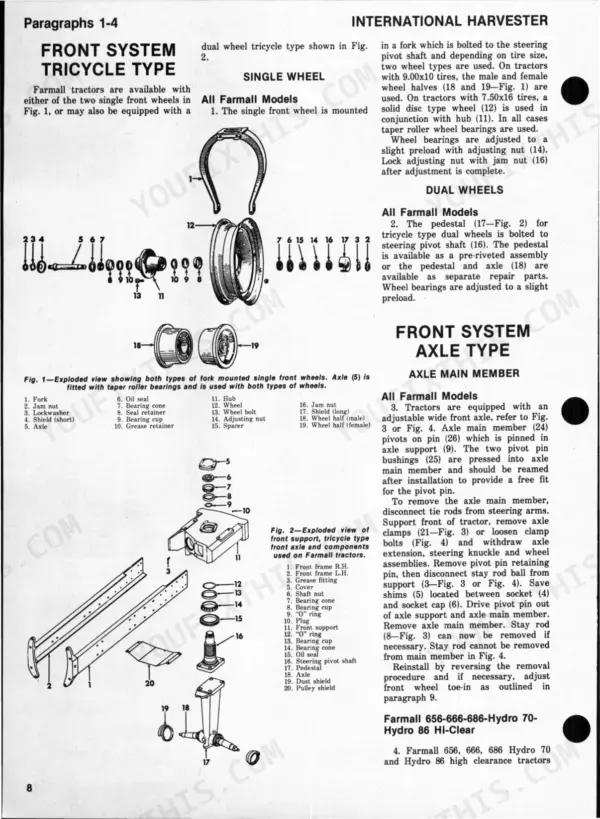

| System | Pages | Key Topics |
|---|---|---|
| Belt Pulley | - | Input Shaft, Bearing Assembly, Pulley Shaft, Driven Gear, Shims, Bevel Gears |
| Brakes | - | Adjustment, Overhaul |
| Carburetor | - | Gasoline, Lp Gas |
| Clutch | - | Engine, Torque Amplifier, Engine Clutch Linkage, Release Levers, Release Bearing, Cam Lever |
| Cooling System | - | Fan, Radiator, Water Pump, Coolant Filter, Conditioner, Bearing Assembly |
| Diesel Fuel System | - | Filters, Bleeding, Injection Pump, Injection Nozzles, Precombustion Chambers, Glow Plugs |
| Differential | - | Carrier Bearing Adjustment, Backlash Adjustment, Mesh Position Adjustment, Bevel Gears, Bull Pinion, Carrier Bearing |
| Direction Reverser | - | R&R and Overhaul, Direction Reversing Mechanism, Clutch Housing, Transmission Drive Shaft, Planet Carrier, Reverse Sun Gear |
| Electrical System | - | Alternator, Regulator, Generator, Starting Motor, Standard Ignition, Magnetic Pulse Ignition |
| Engine | - | Balancer, Cam Followers, Camshaft, Connecting Rods and Bearings, Crankshaft, Cylinder Head |
| Final Drive | - | Bull Gears, Bull Pinions, Wheel Axle Shaft |
| Front System | - | Axle Main Member, Steering Knuckles, Tie Rods, Tricycle Type |
| Governor | - | Synchronizing Governor and Carburetor, High Idle Speed, Low Idle Speed, Overhaul |
| Hydraulic System | - | Auxiliary Valves, Auxiliary System Pump, Cylinder and Valve Unit, Lift Unit Pump, Test and Adjust, Trouble Shooting |
| Hydrostatic Drive | - | Adjustments, Lubrication and Filter, Pressure Checks, R&R and Overhaul, Trouble Shooting |
| Lp Gas System | - | Adjustments, Carburetor Overhaul, LP-Gas Filter |

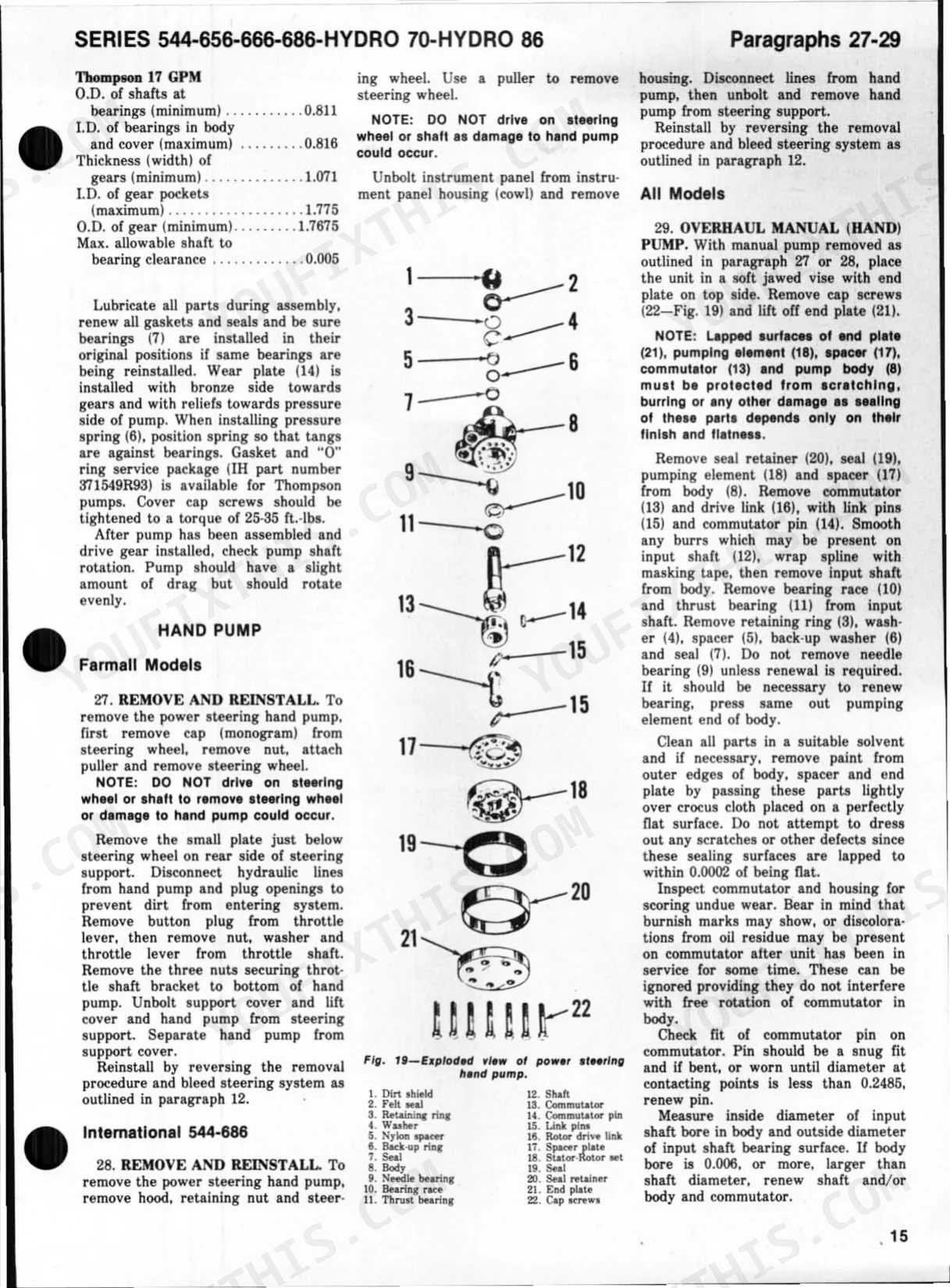

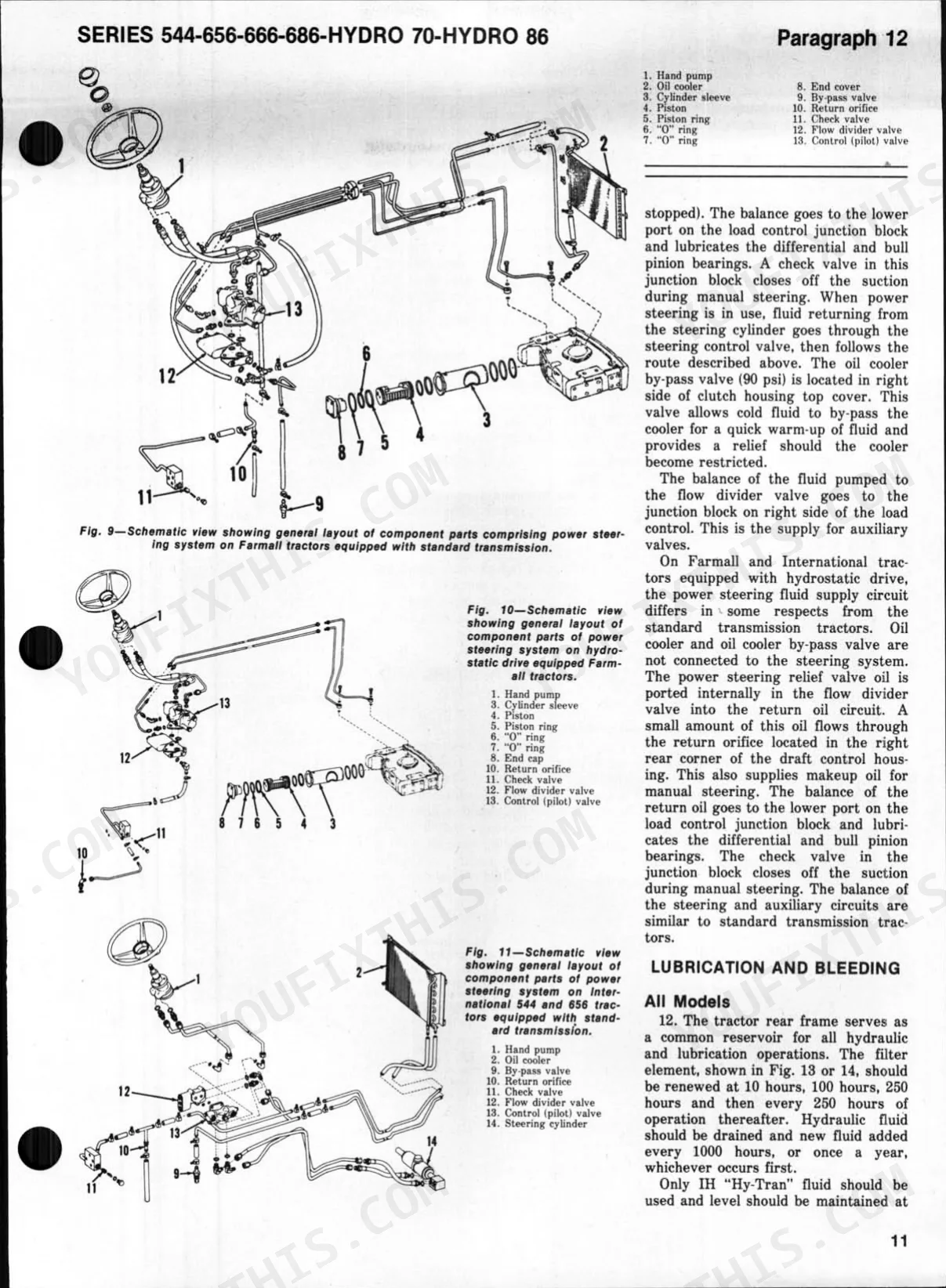

| Power Steering System | - | Cylinder, Flow Divider, Hand Pump, Lubrication and Bleeding, Oil Cooler, Operational Tests |
| PTO | - | Pressure Check, Adjustment, Removal and Reinstallation, Overhaul |

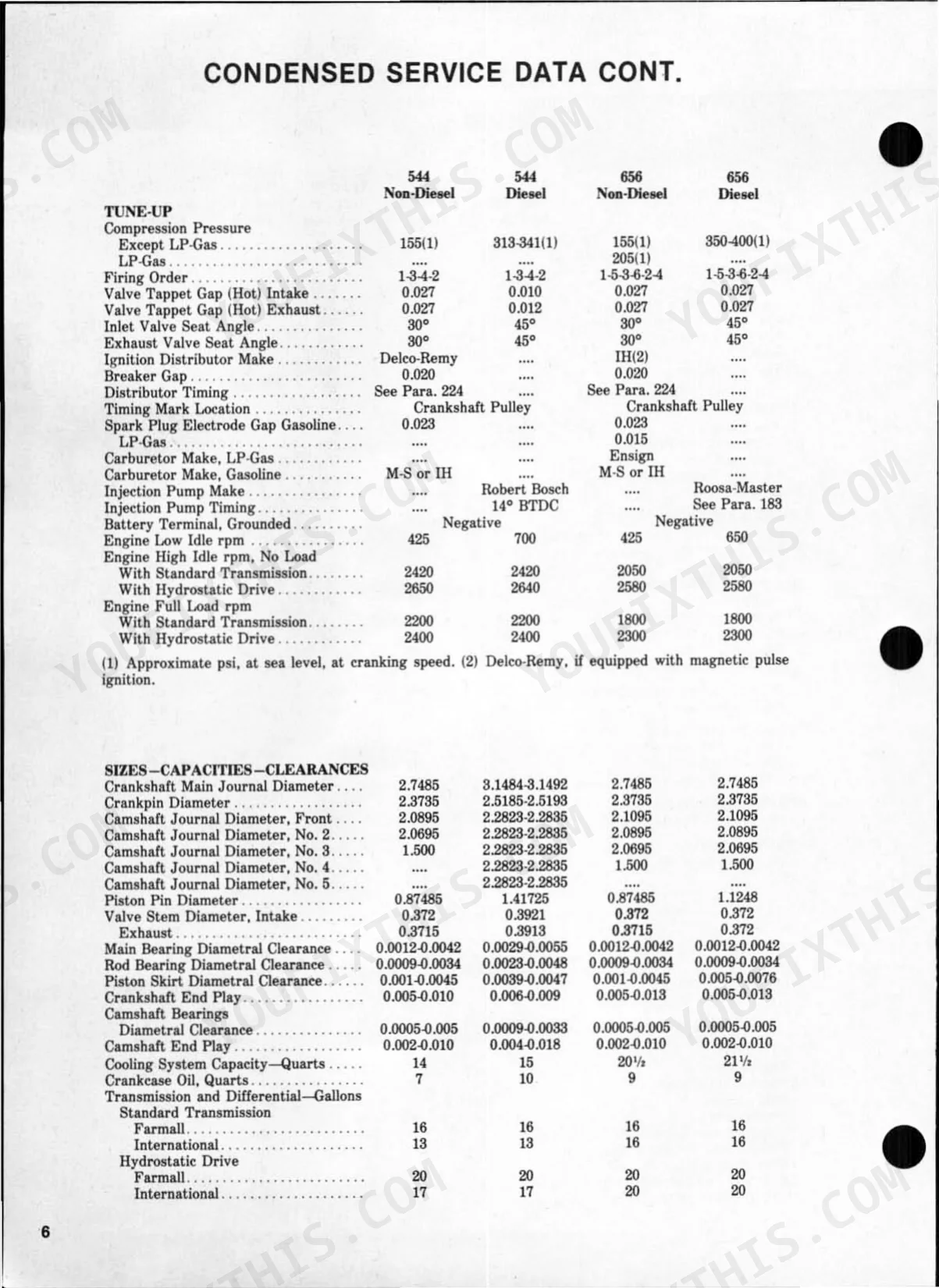

| Service Data | - | General, Tune-Up, Sizes-Capacities-Clearances |
| Torque Amplifier | - | Linkage Adjustment, Overhaul T.A. Clutch, R&R and Overhaul T.A., Planet Gears, Sun Gears, Over-Running Clutch |
| Transmission, Range | - | Shifter Rail, Fork, Transmission Driving Shaft, Mainshaft Pilot Bearing, Mainshaft, Countershaft |
| Transmission | - | Shifter Rails, Forks, Transmission Driving Shaft, Mainshaft Pilot Bearing, Mainshaft, Countershaft |

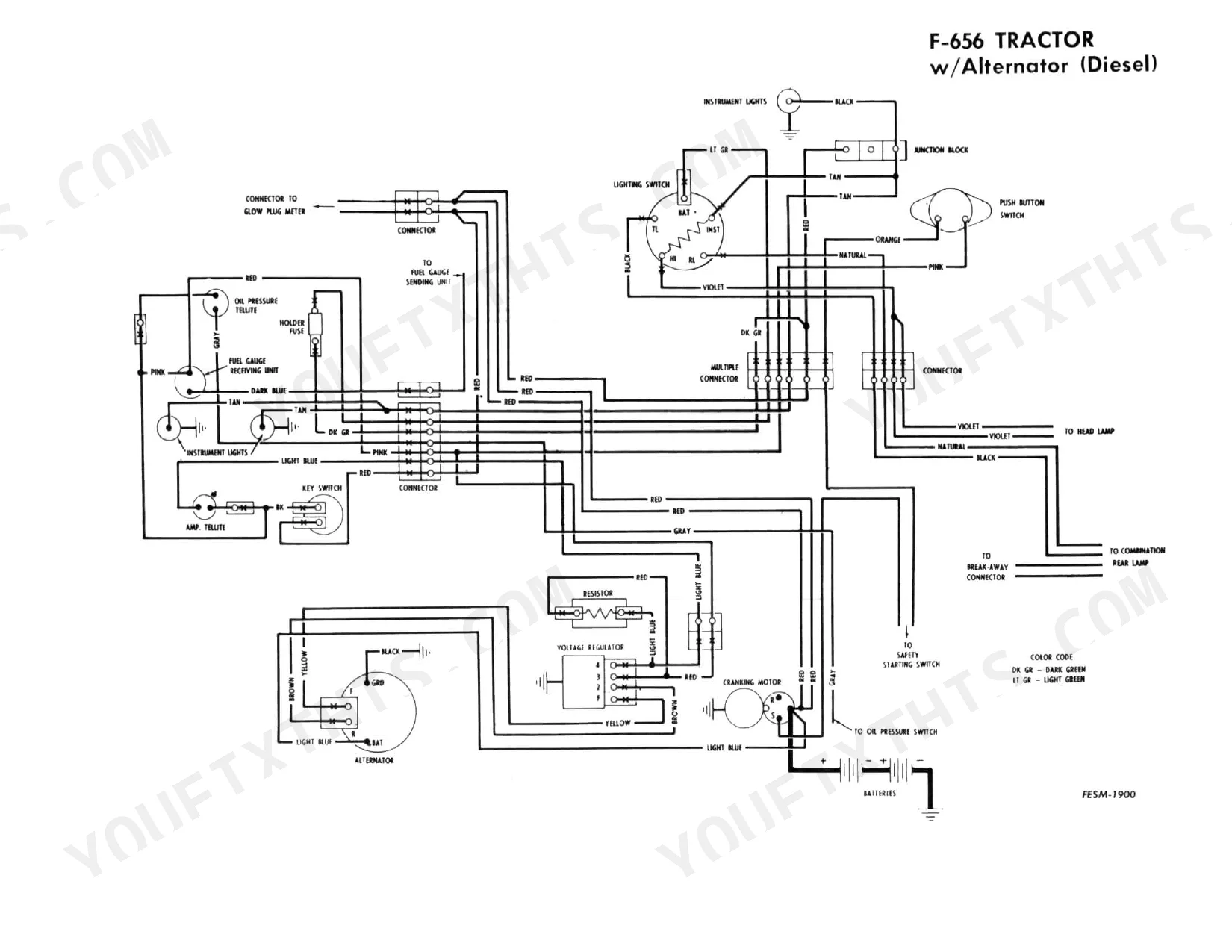

| F-656 | - | w/Alternator (Diesel), w/Generator (Diesel), w/Generator (Gas & Lpg), w/Alternator (Gas & Lpg) |
| I-656 | - | Alternator, Key Switch, Glow Plug Switch, Fuel Gauge Sending Unit, Voltage Regulator, Cranking Motor |
| 666 & 70 | - | Alternator, Key Switch, Oil Temp Light, Air Cleaner Indicator, Ether Push-Button |
| 686 & 86 | - | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hand Controlled Models | ||
| Movable pump variable orifice adjustment (affects servo pressure) | loosen the orifice block by turning the adjusting bolt as required until 1/3 to 1/2 of the orifice opening is visible behind the cam. Tighten the orifice block bolts. | p. 81 |
| All Models | ||
| Charge pump pressure (at 700 rpm or higher, neutral) | 80 psi minimum | p. 83 |
| Hy-Tran transmission fluid replacement interval | every 1000 hours, or once a year, whichever occurs first | p. 10 |
| Drive control valve O-ring #2 replacement | use new | p. 94 |
| Drive control valve stem pin fit | loose, but matched fit | p. 94 |
| Hydraulic lift system relief valve opening pressure | 1800 psi | p. 104 |
| Models equipped with Cessna pump (12 GPM or 17 GPM) | ||
| Draft hydraulic pump (Cessna) assembly cap screws torque | 40 ft.-lbs. | p. 13 |
| Models equipped with Thompson pump (12 GPM or 17 GPM) | ||
| Draft hydraulic pump (Thompson) assembly cap screws torque | 25-35 ft.-lbs. | p. 13 |
| 544 Non-Diesel, 544 Diesel | ||
| Number of Cylinders | 4 | p. 4 |
| 656 Non-Diesel, 656 Diesel, 666, 686, Hydro 70, Hydro 86 | ||
| Number of Cylinders | 6 | p. 4 |
| 544 Diesel, 666, Early 686 Diesel, Hydro 70, Early Hydro 86 Diesel, Late 686, Hydro 86 Diesel | ||
| Engine Low Idle rpm (Diesel) | 700 rpm | p. 6 |
| 544 Non-Diesel | ||
| Cooling System Capacity | 14 quarts | p. 5 |
International Harvester 544 / 656 / 666 / 686 / Hydro 70 / Hydro 86 Common Problems This Manual Covers
International Harvester 544 PTO fails to engage or quits instantly without load slipping
Pull the drive control valve cover and inspect the valve pin behind the spool. It is a loose, but matched fit per page 94, so a worn or bent pin will not hold the anti-coast valve open under load. Replace the pin and spool as a matched set, and always install a new O-ring on reassembly per page 94 before torquing the cover down.
Manual Section: Hydrostatic Drive p. 94Tractor cannot be stopped with brakes alone in high range on hills
Run the pressure checks on before blaming the brakes. Measure forward and reverse drive pressure and compare against the charge pump reading of 80 PSI minimum taken at 700 RPM or higher in neutral per page 83. Weak drive pressure means the hydrostatic unit is slipping under load, not the brake bands, so overhaul the pump and motor per the troubleshooting chart.
Manual Section: Hydrostatic DriveHydrostatic transmission loses pressure or leaks down under heavy pulling load
Check the foot-and-inch valve return line and servo regulating valve first, referencing the pressure checks on for expected servo readings. On hand controlled models, reset servo pressure by loosening the orifice block adjusting bolt per page 81 until 1/3 to 1/2 of the orifice opening is visible behind the cam, then retighten the block bolts and retest under load.
Manual Section: Hydrostatic Drive p. 81Charge flow reads low or suction line shows aeration on the tester
Verify charge pump pressure at 700 RPM or higher in neutral; it must hold 80 PSI minimum per page 83. If it falls short, pull the suction screen and check every fitting between the reservoir and charge pump for a slow air leak, since aeration at this stage will starve the servo and drive circuits and mimic a failing pump.
Manual Section: Hydrostatic Drive p. 83Fuel economy feels far worse than comparable gas or diesel tractors
Check low idle speed against 700 RPM on diesel-equipped models per page 6 before chasing the injection pump. An idle set too high burns fuel constantly under no load, and a governor out of sync with the carburetor or injection linkage will overfuel across the whole rpm range, so verify the synchronizing linkage travels smoothly with no binding.
Manual Section: Governor p. 6Frequently Asked Questions
How do I run a hydrostatic transmission pressure check on the Hydro 70 and 86?
To pressure check the forward and reverse drive, support the rear of the tractor so wheels rotate freely. Warm transmission oil to 135°F and install a 10,000 psi test gage (IH tool No. FES 96-2 or equivalent). Operate the engine at high idle rpm, move the S-R lever or pedal to place the pump in stroke, and apply both brakes. p. 84
What to look for when checking the hydro transmission on small frame IH tractors 544-656-hydro70-hydro86?
When checking the hydro transmission, look for symptoms such as the tractor propelling itself with low drive pressure or noisy system, erratic hydraulic components, failure to propel in either direction, pulling full load in one direction but not the other, moving in reverse when in forward position, or lacking pulling ability. Also check for slow or erratic speed changes, or failure to maintain preset speed. p. 80
Why does the PTO won't engage on 544-656-666-686-Hydro 70-Hydro 86 and how to fix it?
The manual does not explicitly state reasons for the PTO not engaging. However, if the PTO anti-creep brake does not stop PTO rotation within a maximum of 3 seconds, the PTO unit needs to be removed and overhauled as outlined in paragraph 300. p. 103
How to reset servo pressure on International Harvester 544 656 Hydro 70 86?
The manual describes how to *check* the servo pressure, but not a specific *reset* procedure. To check, connect a 600 psi test gage to the check port (Fig. 178). With the engine operating at 1200 rpm or higher, the servo pressure should be between 390 and 430 psi. If the pressure is outside this range, it may indicate issues with other components requiring troubleshooting or overhaul. p. 85
Is this International Harvester 544 & variants Shop Manual a digital download?
Instant PDF download. You get the full 122-page searchable Shop Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this International Harvester 544 & variants?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Can I find hydraulic circuit diagrams in this International Harvester 544?
Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
