This 88-page International 574 Row-Crop Tractor Operator Manual (OEM #1084225R4) hands you every dashboard reading, control layout, and daily start-up step for the IH C-200 gas and D-239 diesel variants. Open it and you get the ammeter, fuel gauge, and oil pressure gauge explained, plus the three-point hitch, PTO, and lubrication schedule that keep this 574 running right.
What's Inside This International International 574 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction & Work Safely | 8-10 | Servicing and Before Starting, Starting, During Operation, Transporting, Before Dismounting, Dismounting |

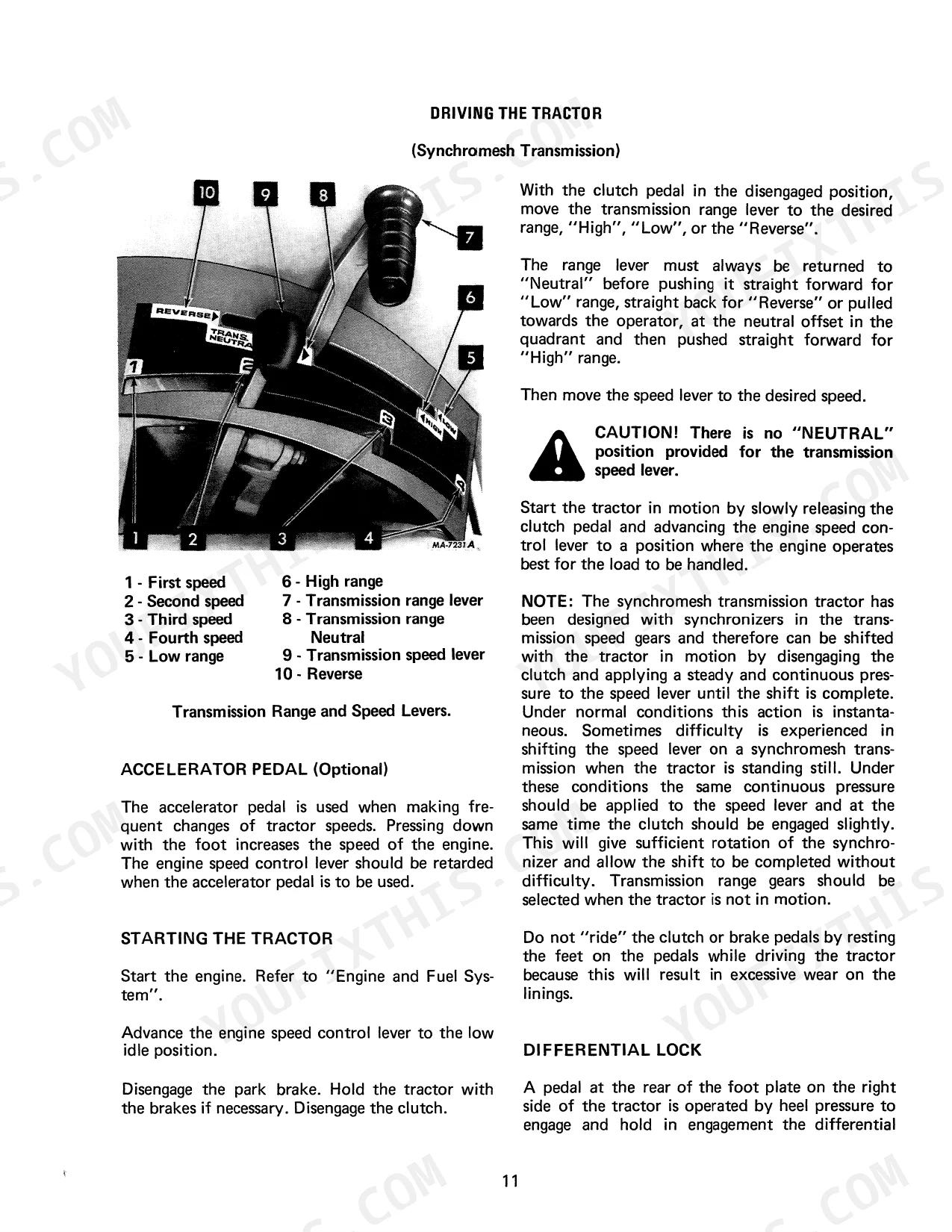

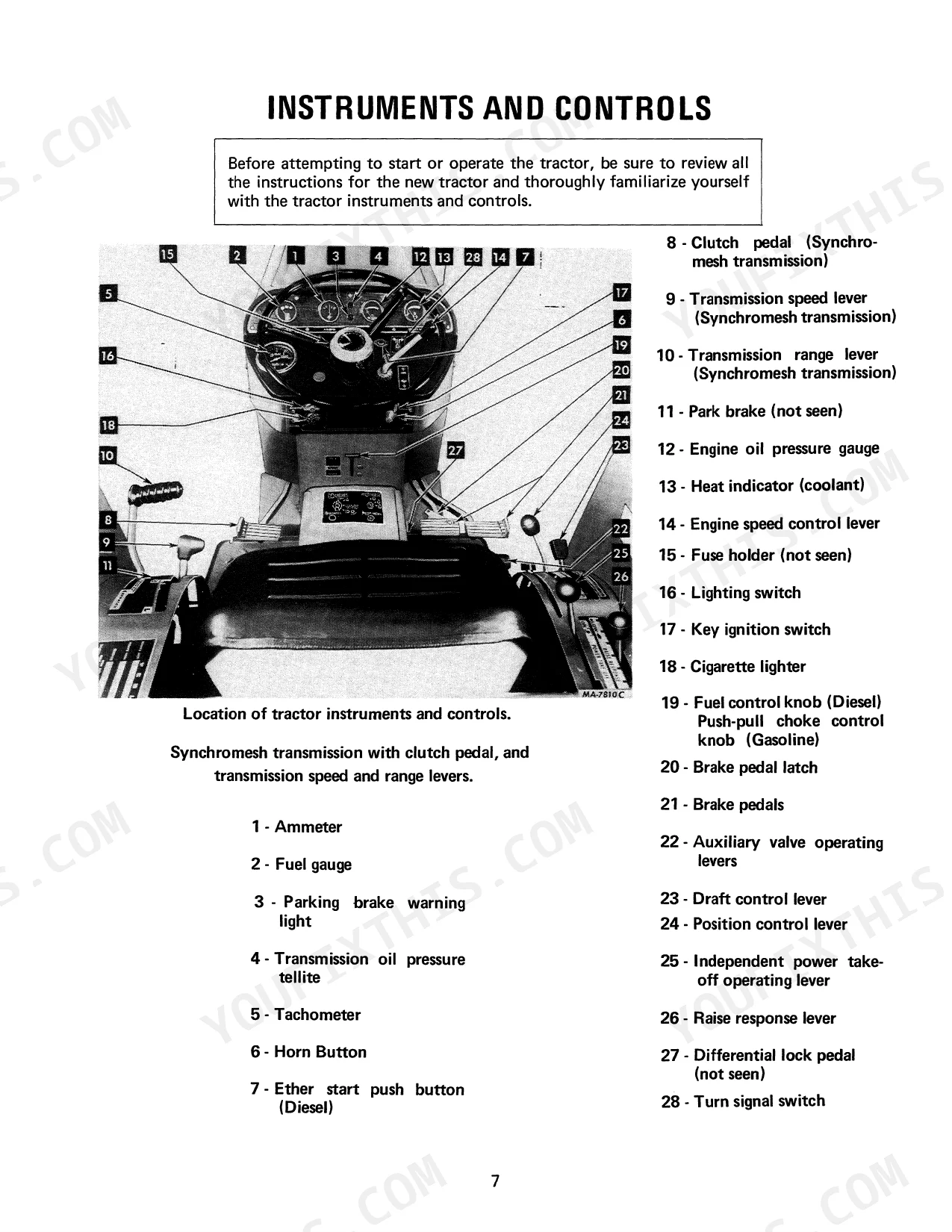

| Instruments and Controls | 11 | Ammeter, Fuel Gauge, Tachometer, Clutch Pedal, Transmission Speed Lever, Engine Speed Control Lever |
| Driving the Tractor | 13-17 | Preparing the Tractor for Each Day's Work, Fuel Gauge, Filling the Fuel Tank, Suspension Seat, Steering the Tractor, Using the Brakes, Safety Starting Switch |

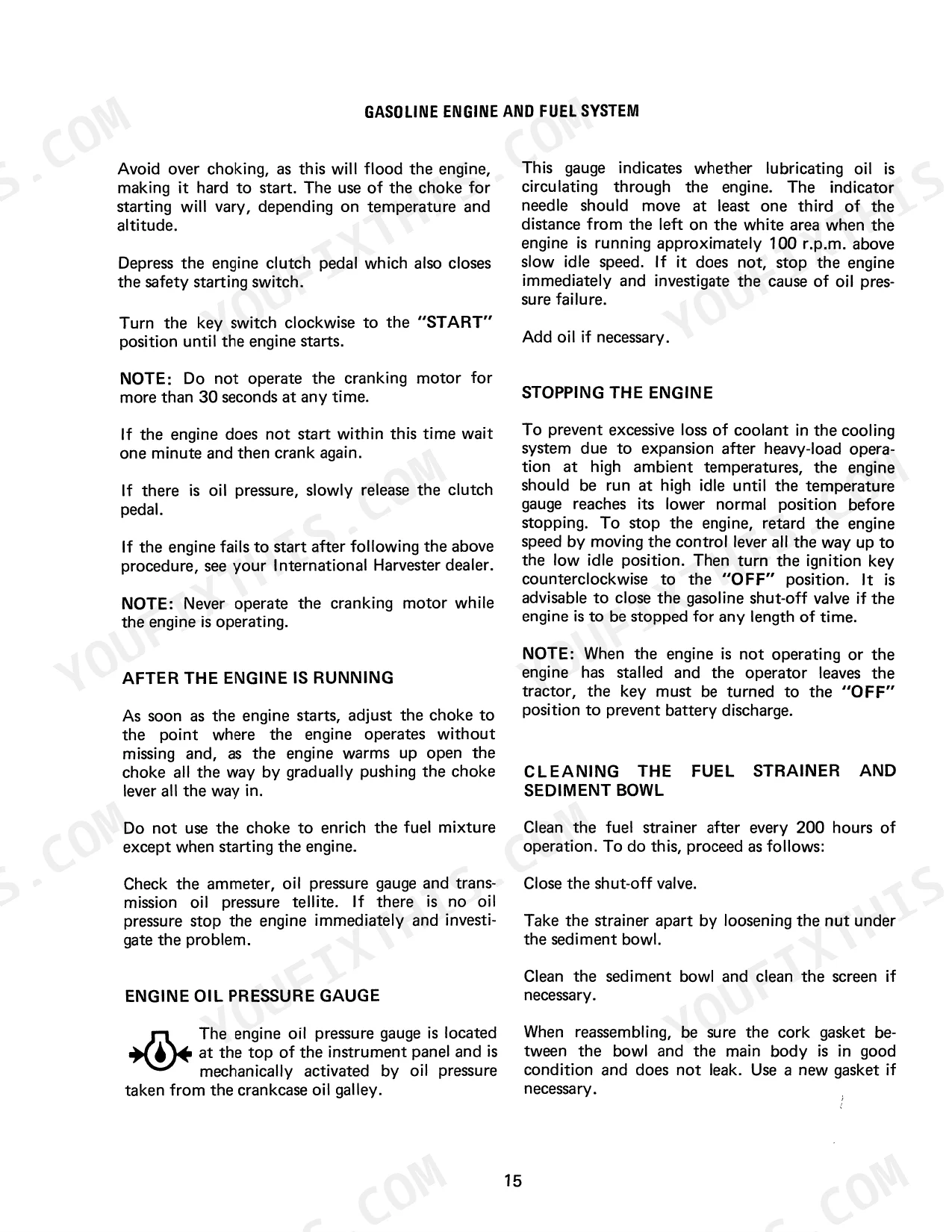

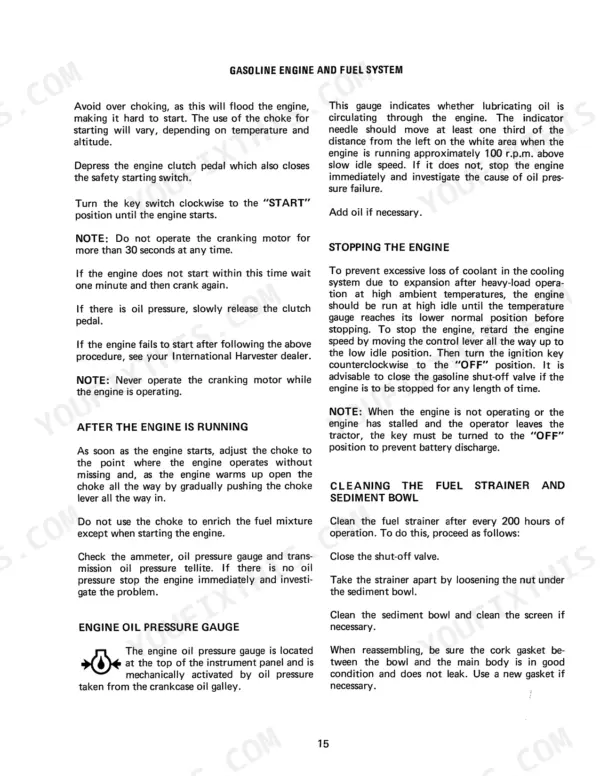

| Gasoline & Diesel Engine and Fuel Systems | 18-26 | Starting the Engine, Engine Oil Pressure Gauge, Stopping the Engine, Cleaning the Fuel Strainer and Sediment Bowl, Carburetor (Gasoline); Fuel System, Venting the Fuel System (Diesel) |
| Hydraulic Controls & Three-Point Hitch | 27-36 | Position Control Lever, Draft Control, Raise Response, Drop Response, Lift Links and Leveling Cranks, Hitch Lower and Upper Link, Restraining Chains, Stabilizers, Coupling Equipment |
| Hitching, Auxiliary Valves & Power Take-Off | 37-41 | Swinging Drawbar, Connecting Hoses to Junction Ports and Remote Couplings, Thermal Expansion Pressures, Operating the Independent Power Take-Off |
| Cooling & Air Cleaning Systems | 42-45 | Heat Indicator, Coolants, Checking the Coolant Level, Draining and Filling the Cooling System, Hoses and Clamps, Thermostat, Dry-Type Air Cleaner, Automatic Dust Unloader |
| Electrical System | 46-50 | Charging System for Alternator-Generator, Cranking System, Ignition System, Lighting System, Lights, Ammeter |
| Wheels, Tires & Weights | 51-64 | Tread Widths, Toe-In, Power Adjusted, Cast and Disc Wheels, Front End and Wheel Weights, Rear Wheel Weights, Tire Inflation, Tire Chains |
| Engine Clutch & Storing the Tractor | 65-66 | Care and Adjustment of the Engine Clutch, Storage, Removing From Storage |

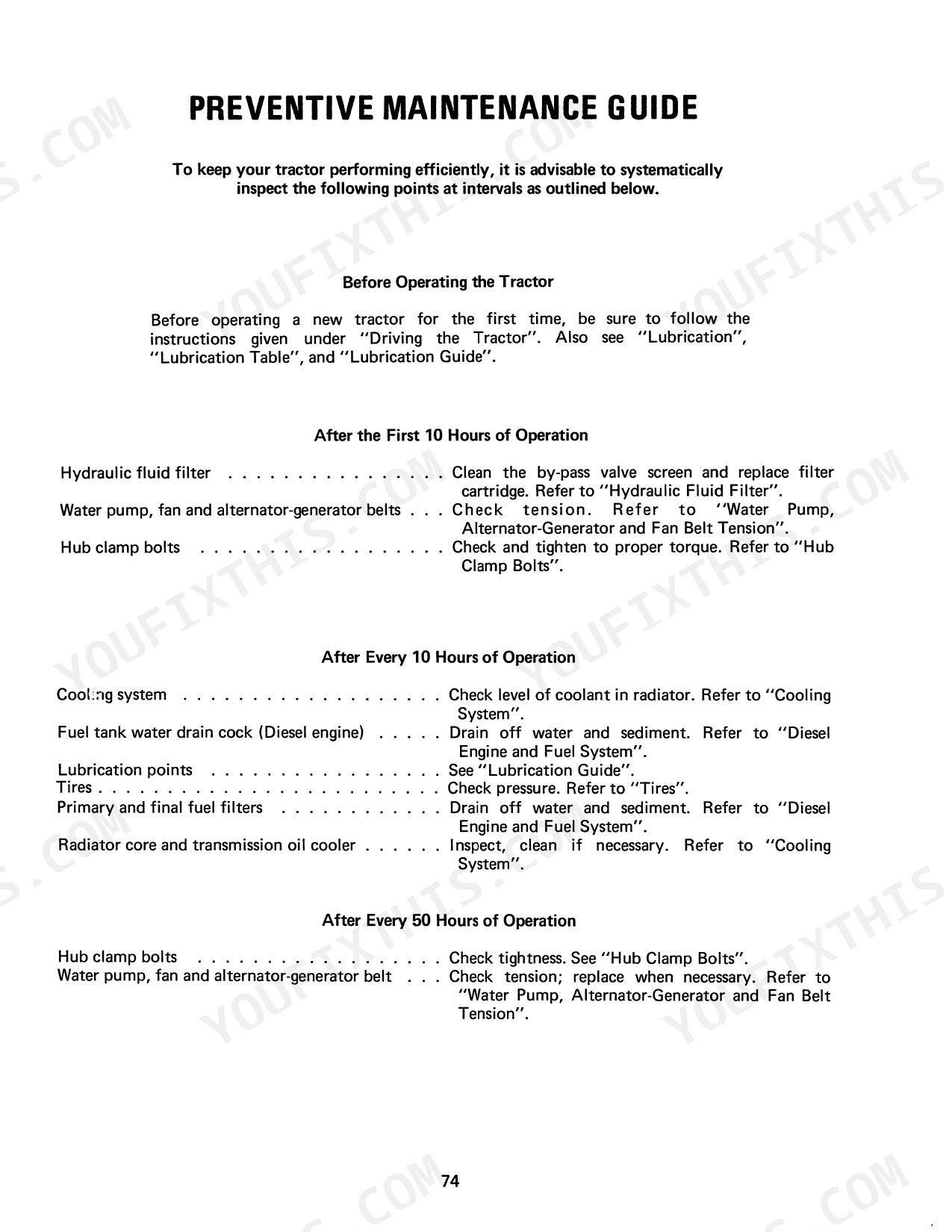

| Lubrication Table & Preventive Maintenance Guide | 68-79 | Engine Oil, Gear Lubricant, Hydraulic Fluid Filter, Engine Oil Filter, Greasing the Front Wheels, Preventive Maintenance Schedule |
| Specifications & Optional Equipment | 80-84 | Capacities, Engine, Engine Valve Clearance, Power Take-Off Shaft Speeds, Electrical System, General Dimensions, Optional Equipment |
| Metric (Si) Measurements | 85-88 | Area, Force, Length, Mass, Power, Pressure |

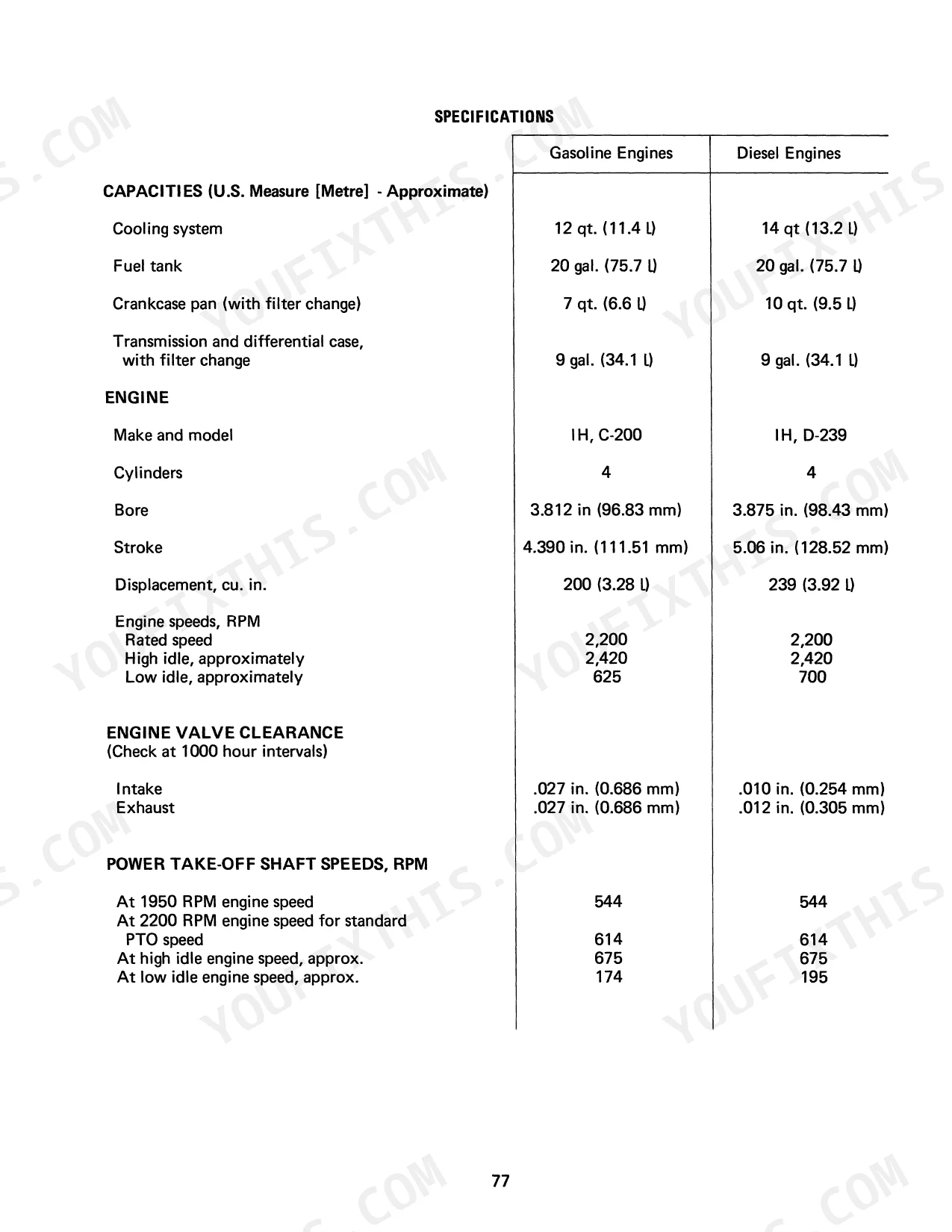

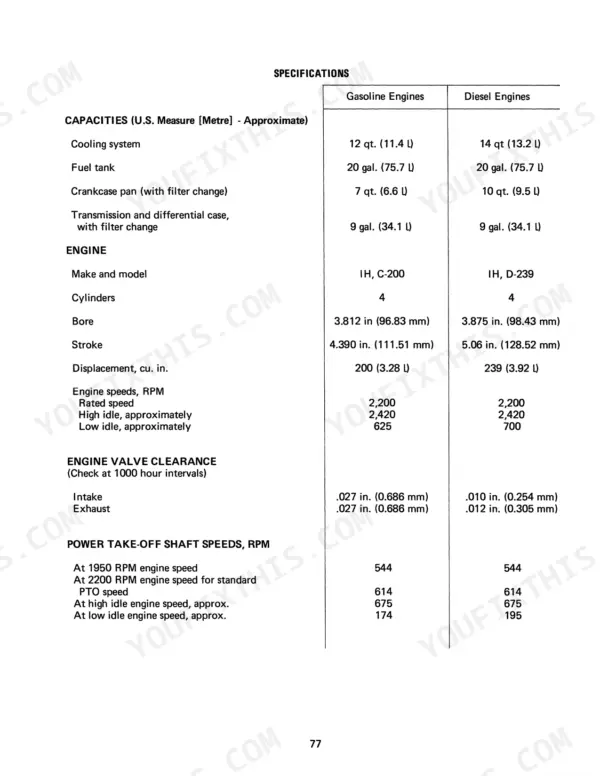

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel tank capacity | 20 gal. (75.7 L) | p. 81 |
| Transmission and differential case, with filter change (Hydraulic system capacity) | 9 gal. (34.1 L) | p. 81 |
| Transmission/Differential Case Capacity (with filter change) | 34.1 L | p. 81 |
| Front Wheel Toe-In | 4.8 to 7.9 mm | p. 53 |
| Rear Wheel Hub Clamp Bolts Torque | 529 to 624 Nm | p. 57 |
| Clutch Free Pedal Travel | 44.4 mm | p. 65 |
| Fan Belt Tension | 267-378 N | p. 44 |
| IH, C-200 | ||
| Gasoline Engine Crankcase Capacity (with filter change) | 6.6 L | p. 81 |
| Gasoline Engine Cooling System Capacity | 11.4 L | p. 81 |
| Gasoline Engine Spark Plug Gap | 0.58 mm | p. 48 |
| Gasoline Engine Spark Plug Torque | 46 Nm | p. 48 |
| IH, D-239 | ||
| Diesel Engine Crankcase Capacity (with filter change) | 9.5 L | p. 81 |
International International 574 Common Problems This Manual Covers
IH 574 three-point hitch hesitates before lifting, raise response feels slow and delayed p. 27
Check the Raise Response adjustment in the Hydraulic Controls section starting page 27. Verify the transmission and hydraulic fluid is filled to the correct level per the 9 gal. (34.1 L) capacity spec on page 81, then inspect the hydraulic fluid filter; replace it if it has exceeded the 200 hour service interval.
Manual Section: Hydraulic Controls for Three-Point HitchService brakes feel spongy and parking brake won't hold the tractor on a slope p. 15
Check the hydraulic and transmission fluid level against the 9 gal. (34.1 L) capacity spec on page 81, since low fluid starves the wet brake discs and the parking brake mechanism. Bleed air from the lines, adjust the brake linkage, then road test on level ground with the implement lowered before returning to work.
Manual Section: Driving the TractorFuel tank rusted and leaking at the bottom corners, fuel gauge reading looks inaccurate p. 13
Drain the tank and inspect the bottom corners for rust-through per the Filling the Fuel Tank section on page 13. Confirm actual fuel volume against the 20 gal. (75.7 L) tank capacity on page 81 before condemning the sending unit, since a corroded float arm often causes the same inaccurate gauge reading.
Manual Section: Driving the TractorGasoline engine oil pressure warning light stays lit right after a cold startup p. 19
Check the Engine Oil Pressure Gauge troubleshooting steps on page 19. Pull the dipstick and confirm the crankcase is filled to the 7 qt. (6.6 L) capacity for the C-200 gasoline engine per page 81, then check the oil pressure sending unit wiring for a loose or corroded connection before condemning the pump.
Manual Section: Gasoline Engine and Fuel SystemDiesel engine cranks slowly or won't start at all in cold weather p. 21
Follow the Diesel Engine Cold Starting steps beginning on page 21, including the ether injection procedure for low temperatures. Pull the dipstick and verify the crankcase holds the correct 10 qt. (9.5 L) capacity for the D-239 engine per page 81, since low or thickened oil increases cranking resistance in cold conditions.
Manual Section: Diesel Engine and Fuel SystemFrequently Asked Questions
How can I free trapped air in the hydraulic system of an IH 574 tractor?
To free trapped air in the hydraulic system, start the tractor engine and operate it at a moderate idle speed. Slowly move the control levers back and forth ten or twelve times through their full range of travel. Additionally, move the steering wheel first to one extreme, then to the other, and then back to center to ensure all trapped air is released.
What is the engine oil capacity for the D-239 Diesel Engine Crankcase on an IH 574 tractor?
The engine oil capacity for the D-239 Diesel Engine Crankcase is 9 quarts (8.5 L) without a filter change. If the filter is changed, the capacity increases to 10 quarts (9.46 L).
What is the fluid capacity for the transmission and differential case, including the hydraulic system, on an IH 574 tractor?
The transmission and differential case, which also serves as the reservoir for the hydraulic system, has an approximate fluid capacity of 9 gallons (34.1 L) when the filter is changed. It is crucial to use IH Hy-Tran Fluid for proper performance.
What is the recommended replacement interval for the engine oil filter on an IH 574 tractor?
The engine oil filter should be replaced every 200 hours of operation. This ensures that the circulating oil remains clean and free of harmful materials, which is vital for the longevity of the engine's bearings.
Under what conditions should the diesel fuel filter elements be replaced on an IH 574 tractor?
The primary diesel fuel filter element should be changed when the engine is misfiring or a loss of power is evident. If these symptoms persist, the final filter element should also be replaced. After any filter replacement, it is necessary to vent the fuel system.
Is this International 574 & variants Operator Manual a digital download?
Immediate download of the complete 88-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this International 574 & variants manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
