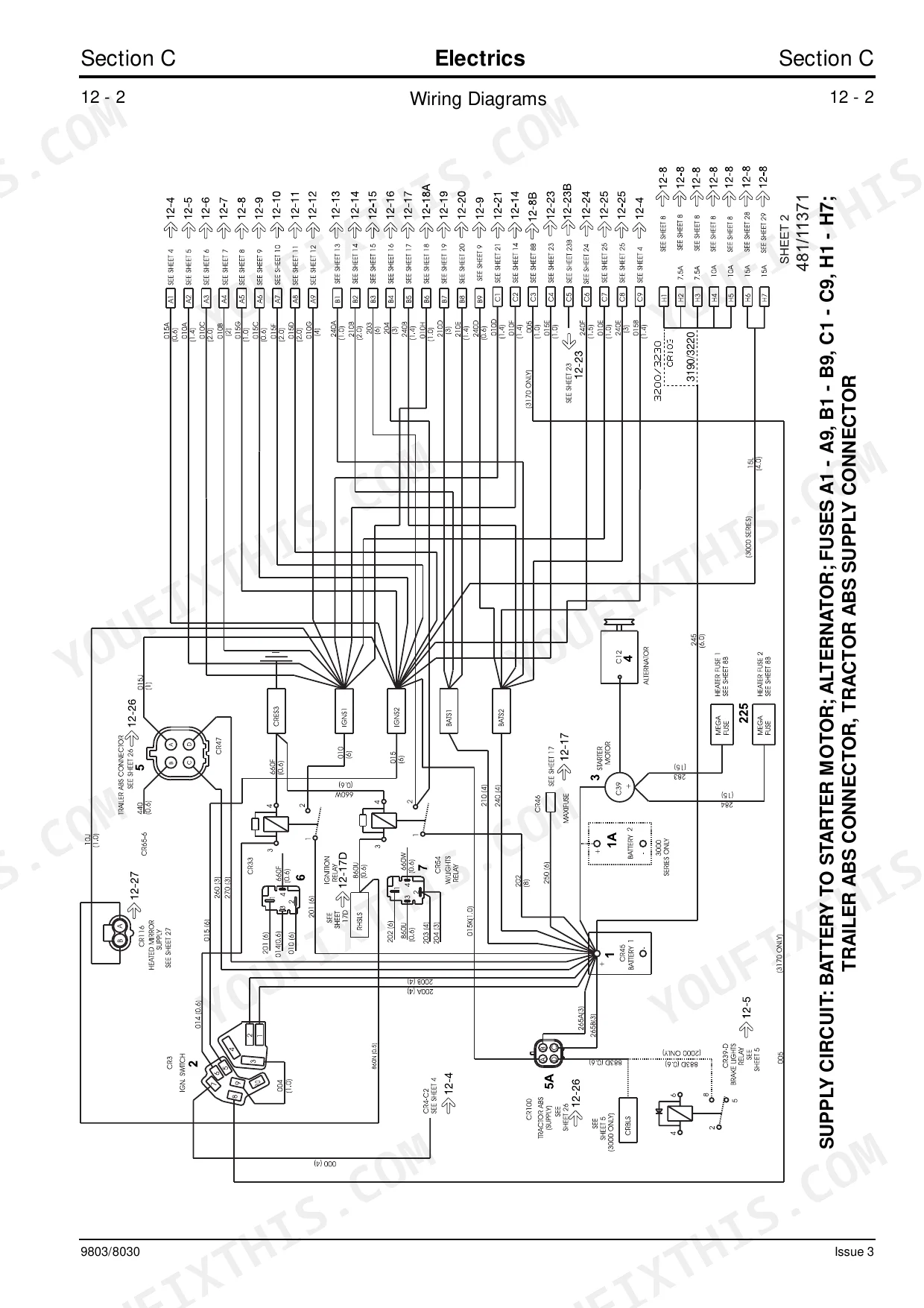

Looking for the exact factory repair data? This 830-page JCB Fastrac 3170–3230 Service Manual PDF (OEM #9803/8030) breaks down every critical system on your heavy tractor. You get complete electrical and hydraulic schematics, detailed pinout charts, and a comprehensive fault-finding section for the electronic management system. Open directly to step-by-step engine heater teardowns, flywheel damper replacements, and diagnostic error codes to trace stubborn faults. Lock down the rear axle wheel nuts (12-nut configuration) to 600 Nm and secure the air dryer unloader valve bolts at exactly 17 Nm. Stop throwing expensive parts at mystery codes. Download this factory PDF, load it onto your shop tablet, and get your equipment back to work.
What's Inside This JCB Fastrac 3170–3230 Manual
| System | Pages | Key Topics |
|---|---|---|
| Technical Data | 5-10 | System Type, Battery, Alternator, Light Bulbs, Configuration Values for Setup of Ems |
| Special Tools | 11-114 | Diagnostic Tools, Engine/Transmission Tools, Hydraulic Tools, Body/Cab Tools, Brake/Steering/Suspension Tools |
| Engine Heater | 115-248 | Removal and Replacement, Component Inspection |

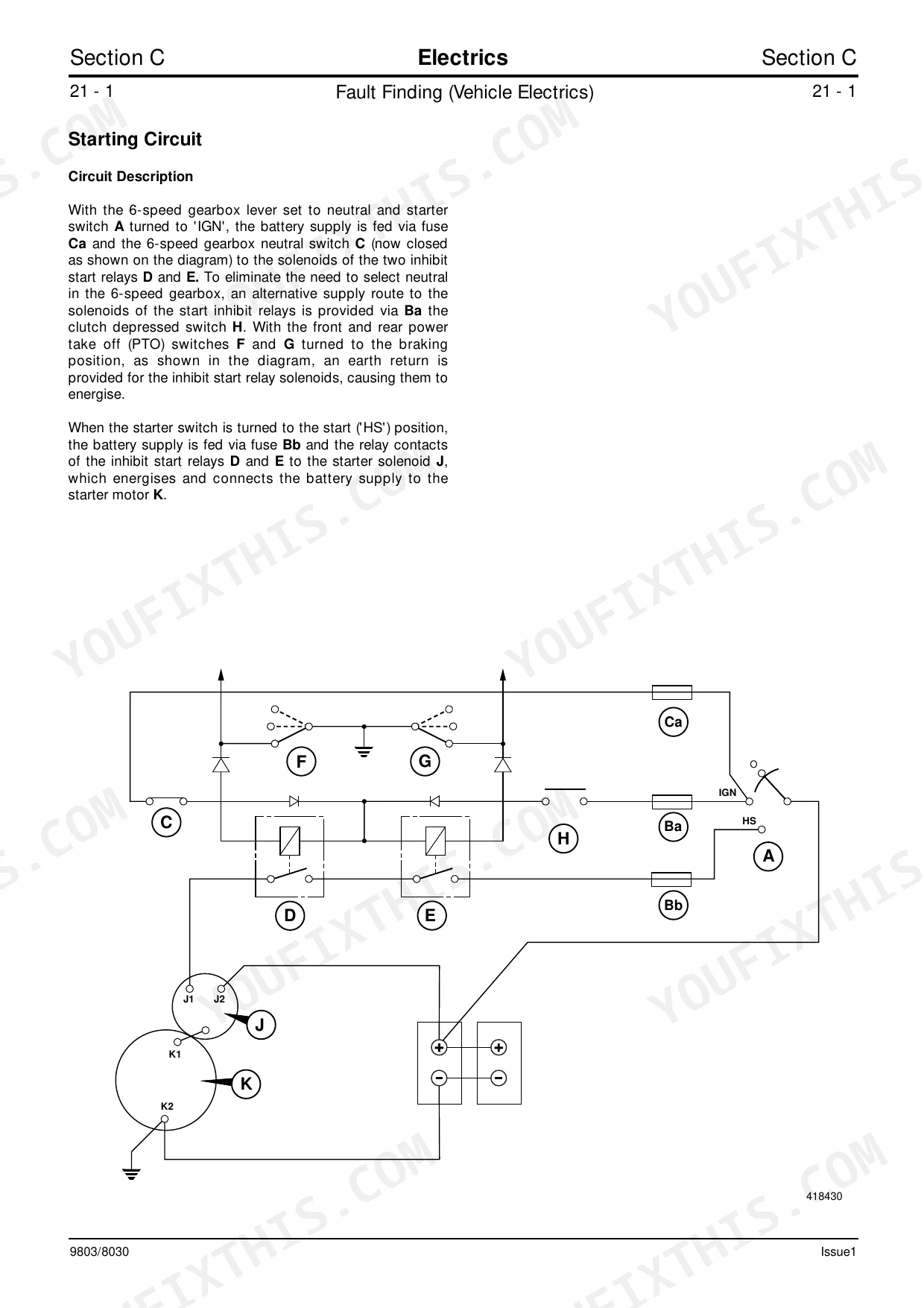

| Wiring Harness Repair | 249-257 | Fault Finding (Vehicle Electrics) |
| Instrument Cluster | 258-281 | - |
| Electronic Service Tools Applications | 282-287 | - |
| Wingst Program | 288-325 | - |
| Combined Diagnostic Tool | 326-357 | - |
| Diagnostic Error Codes - General | 358-456 | - |
| Diagnostic Error Codes - ABS | 457-465 | - |
| Error Blink Codes - Electronic Control Valve | 466-829 | - |
| Flywheel Damper | 830 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel nut torque setting (Rear axles with 12 nuts per wheel) | 600 Nm | p. 78 |
| Wheel nut torque setting (All other axles) | 500 Nm | p. 78 |

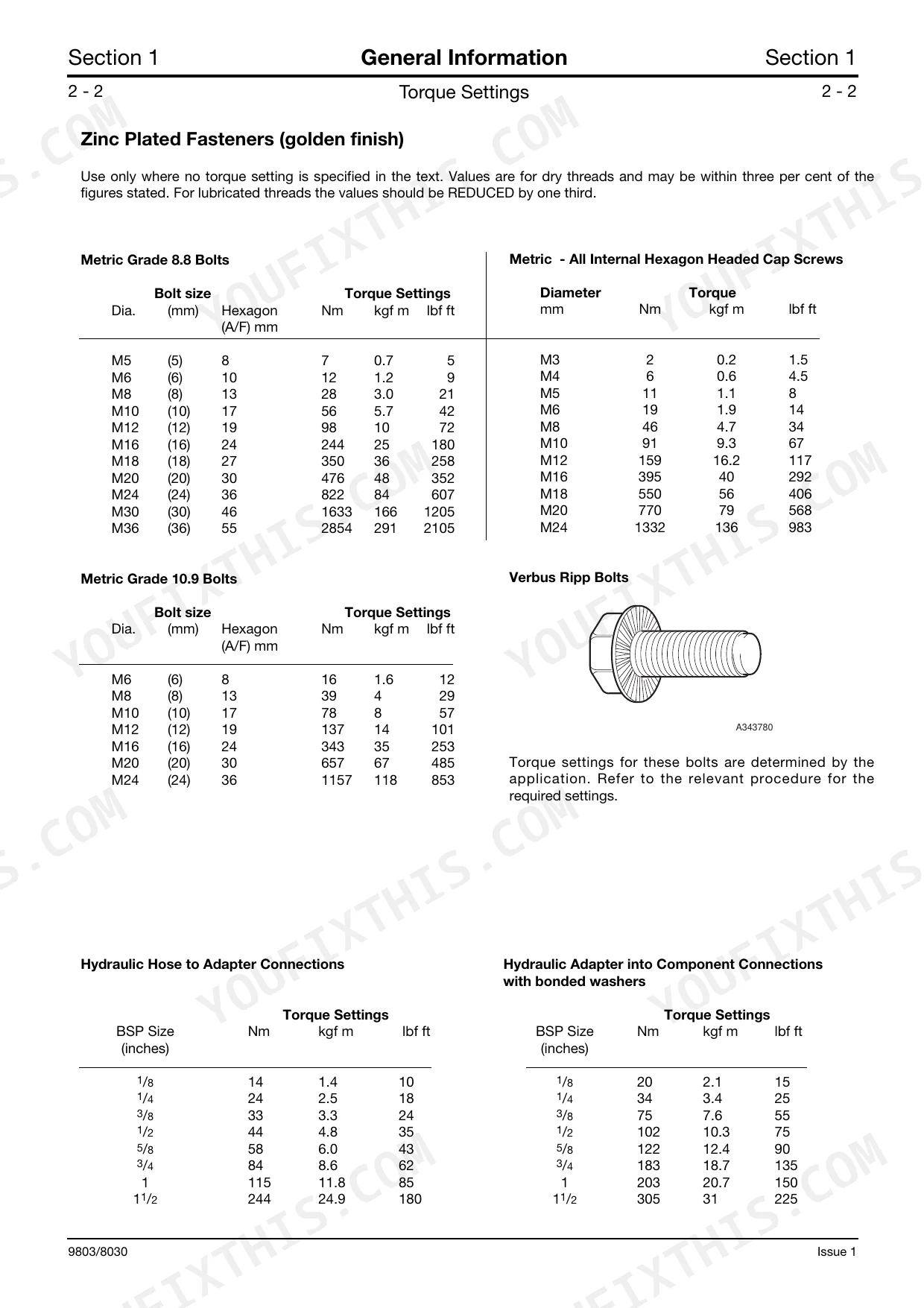

| Metric Grade 8.8 Bolts (M10) | 56 Nm | p. 6 |
| Air Dryer/Unloader Valve mounting bolts (Item B) | 17 Nm | p. 774 |
| Microswitch retaining band torque | 1.7 Nm | p. 487 |
| Selector Shaft and Forks (Item 5 bolt) | 35-39 Nm | p. 674 |
| Wire insulation removal dimension for splices | 7mm | p. 253 |
| M5 Grade 8.8 Bolt Torque (Zinc-Plated Fasteners) | 7 Nm | p. 6 |
| Fuel Capacity | 350 Litres | p. 43 |
| Engine Oil Capacity (3200/3230 models) | 17.5 Litres | p. 43 |
| Engine Coolant Capacity | 33 Litres | p. 43 |
| Hydraulic System Capacity | 120 Litres | p. 43 |
JCB Fastrac 3170–3230 Common Problems This Manual Covers
JCB Fastrac 3170 will not shift out of a single gear and stays locked in second gear p. 487
Inspect the transmission shift control components and air switches. Replace any failed magnetic switches on the air rams, torquing the microswitch retaining band to exactly 1.7 Nm as specified on page 487. Verify the air supply lines are intact and free of leaks.
Manual Section: Transmission Fault FindingRange or gear selection is intermittent, delayed, or incorrect after the tractor has been operating normally p. 674
Test the air switches at the back of the cab and check the transmission selector shaft. Tighten the item 5 bolt on the selector shaft and forks to 35-39 Nm as shown on page 674. Replace any sticking air valves to restore proper shifting response.
Manual Section: Transmission Fault FindingIntermittent electrical faults and visible smoke or burnt plastic smells near the main cab wiring harness p. 253
Inspect the cab wiring harness for deterioration or melted insulation. Cut back damaged sections and strip exactly 7mm of wire insulation for new splices as detailed on page 253. Crimp new connectors securely and apply heat shrink to prevent moisture intrusion and future shorts.
Manual Section: Wiring Harness RepairMaster clutch slips under heavy load or takes too long to engage during normal field operation p. 599
Measure the master clutch actuating hydraulic pressure with the clutch fully engaged and compare to the specification in the manual. If pressure is low, inspect the control valve and hydraulic pump flow before tearing down the transmission assembly.
Manual Section: Transmission Fault FindingFrequently Asked Questions
How fast does a JCB Fastrac 3170/3190/3220/3230 go?
The JCB Fastrac models have various maximum speeds depending on their configuration. For early machines, models like the 3190 and 3220 can have rated speeds of 80, 65, 50, or 40 km/h. Later machines generally have a maximum speed of 80 kph.
What horsepower does the JCB Fastrac 3170 have?

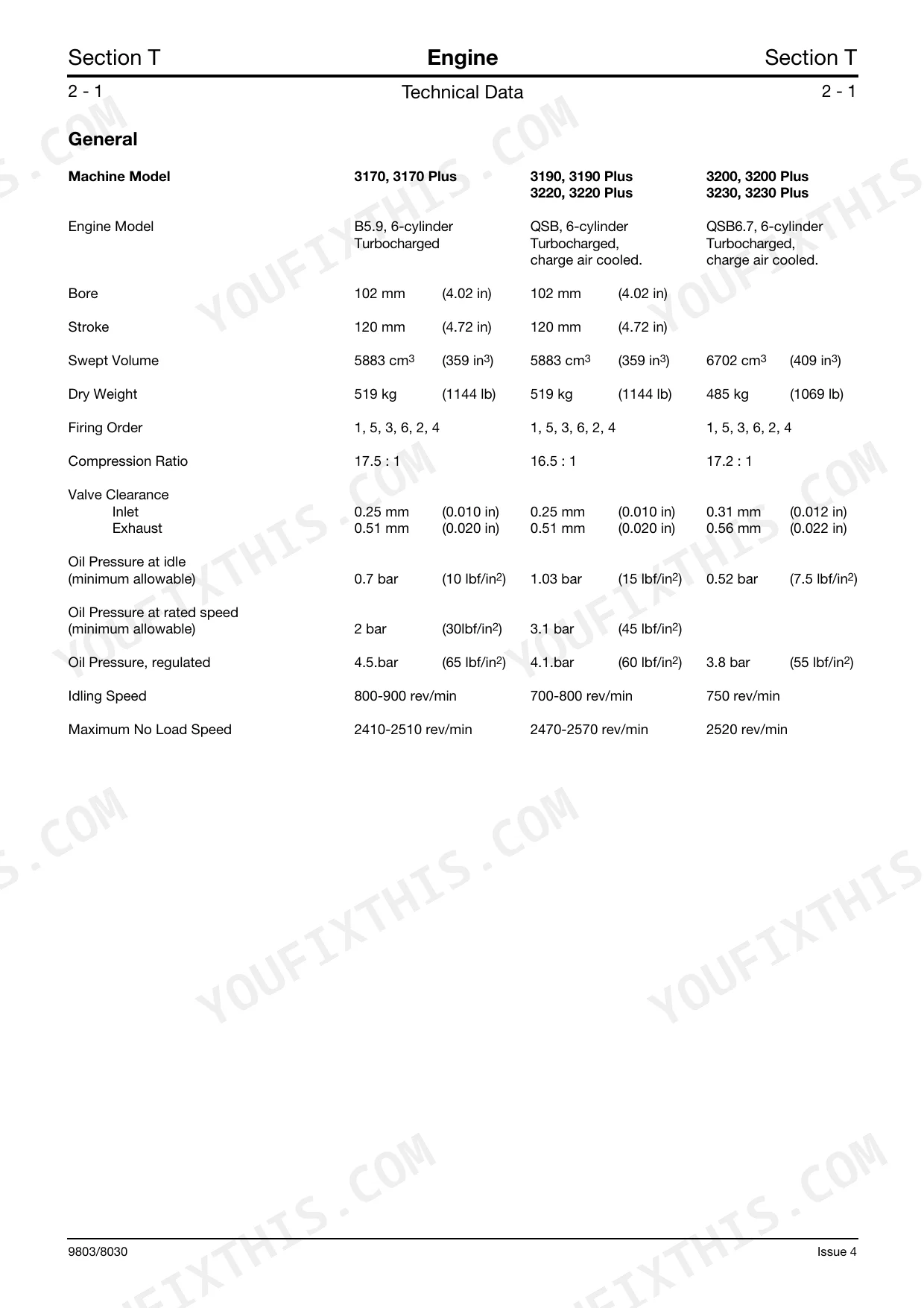

The manual specifies that the JCB Fastrac 3170 and 3170 Plus models are equipped with a B5.9, 6-cylinder Turbocharged engine. While it lists the swept volume as 5883 cm3 (359 in3) and dry weight as 519 kg (1144 lb), the horsepower is not explicitly stated.
How much weight can a JCB Fastrac pull?
The manual does not provide a specific numerical value for the maximum weight a JCB Fastrac can pull. It advises to study the specifications before loading, towing, or using implements to avoid overloading, which can damage the machine and make it unstable. It also states that the machine must never be loaded such that less than 20% of the vehicle weight is carried on the front axle.

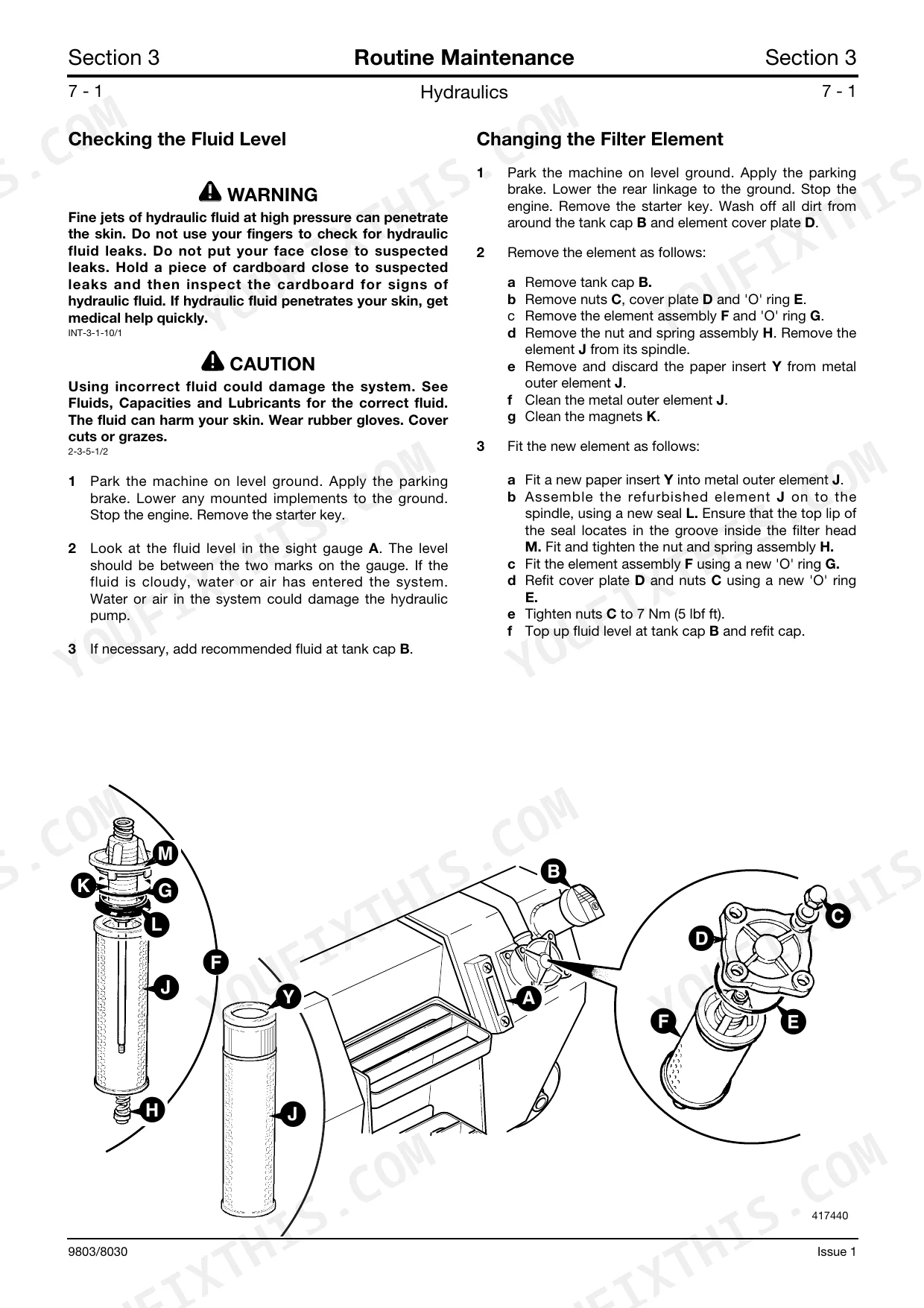

What are common JCB Fastrac servicing intervals?
Common servicing intervals for the JCB Fastrac include daily checks (Every 10 Operating Hours), weekly checks (Every 50 Operating Hours), and more extensive services at 100, 250, 500, 1000, 2000, and 5000 operating hours or corresponding time intervals (e.g., 3 Monthly, Six Months, Yearly, 2 Years, 4 Years).
How will I receive this Service Manual?
A 830-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

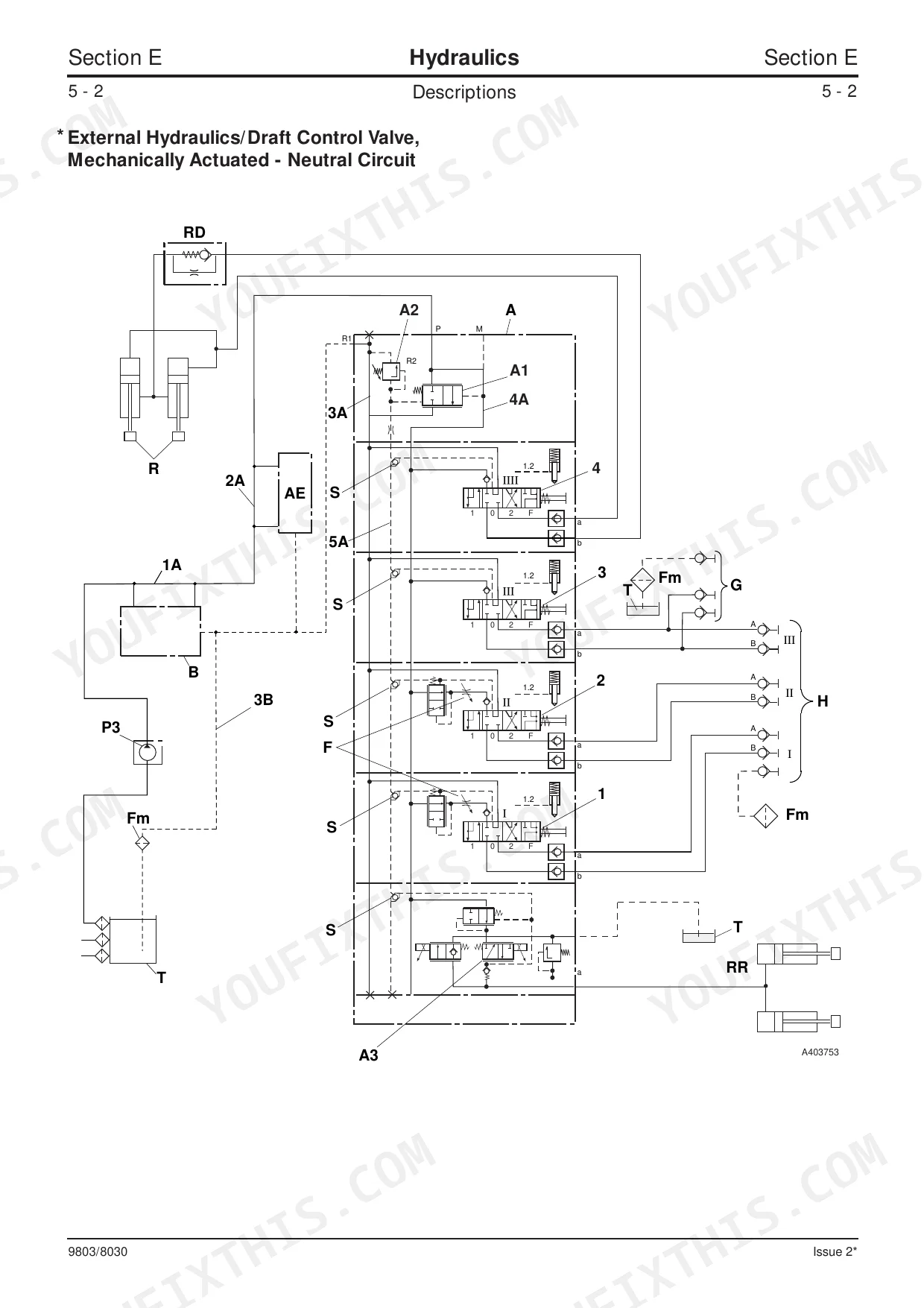

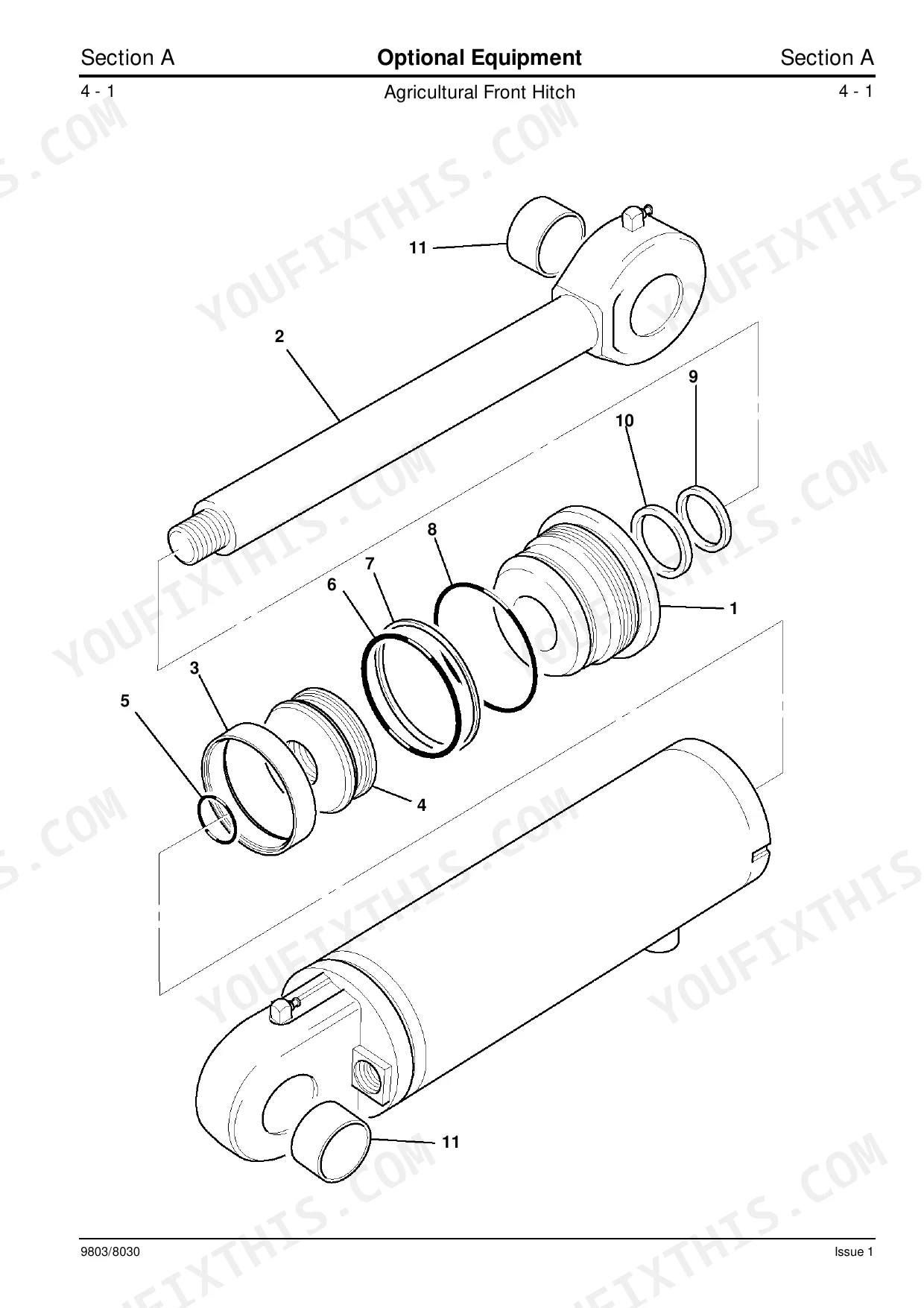

Can I find hydraulic circuit diagrams in this JCB Fastrac 3170 & variants?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the JCB Fastrac 3170 & variants.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text quality is consistently crisp and easy to read throughout. Diagrams and illustrations are primarily raster images, but they are clear and all labels are readable. Pages are generally clean with no significant scan artifacts, stains, marks, or skewed content. There are no notable blank or filler pages.
