Built specifically for 1994-2005 mini-excavators, this 216-page JCB 8027Z, 8032Z, HL 403C-15 Service Manual PDF (OEM #9803/9300) breaks down every track gearbox, slew motor, and hydraulic pump procedure. Complete electrical circuit diagrams, full hydraulic schematics detailing hose routing, and clear troubleshooting trees help you isolate faults fast. Look through detailed exploded views of the bucket ram linkage and follow step-by-step teardowns for the servo hand controllers. Confirm your slew crossline relief valves are operating at exactly 165 bar, then dial in the rubber track tension between 70 and 90 mm before sending the machine back to the dirt. Guesswork burns shop hours and wrecks profit margins. Open this bookmarked digital reference on your tablet right next to the undercarriage, and get back to turning wrenches.
What's Inside This JCB 8027Z, 8032Z, HL 403C-15 Manual
| System | Pages | Key Topics |
|---|---|---|

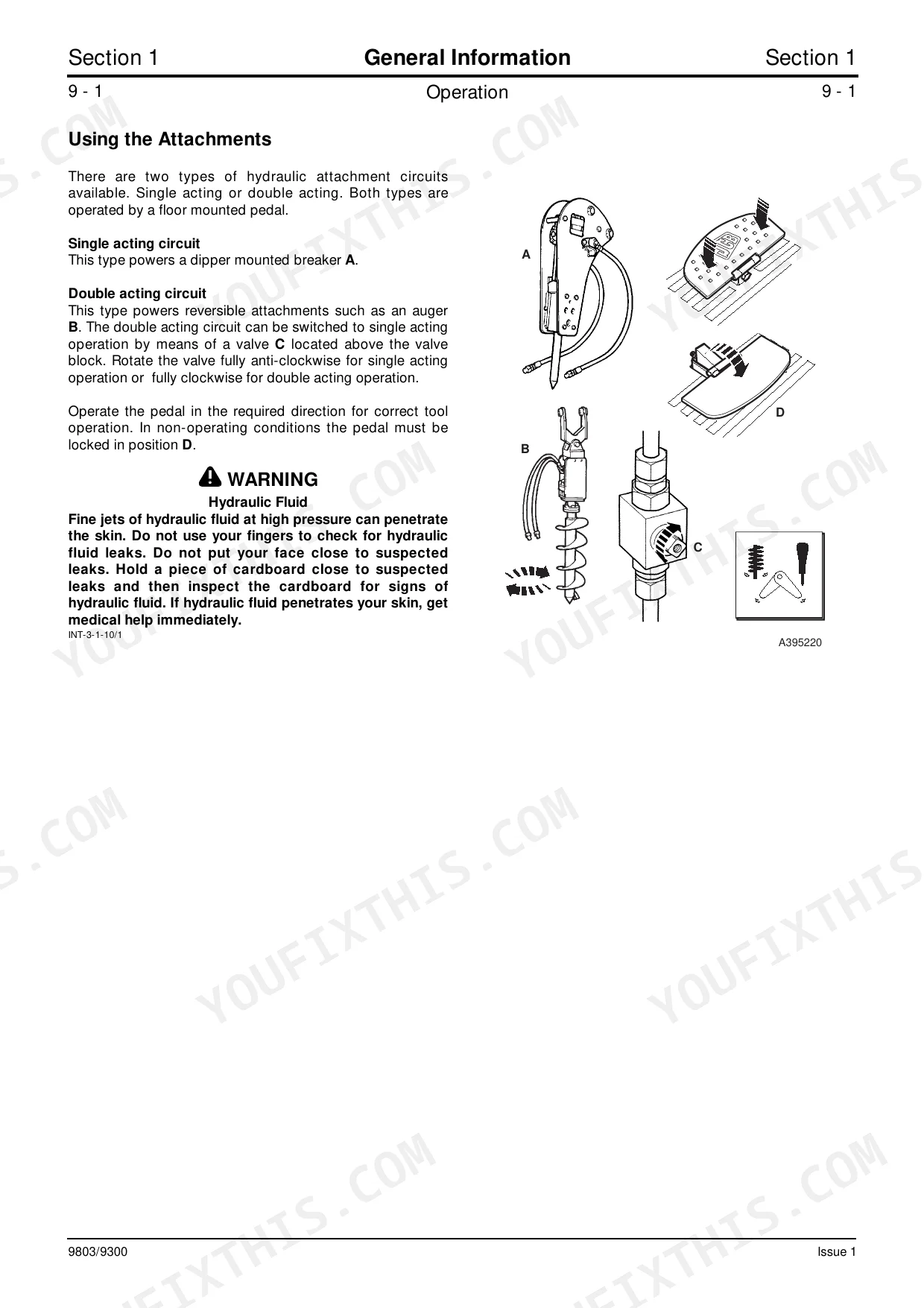

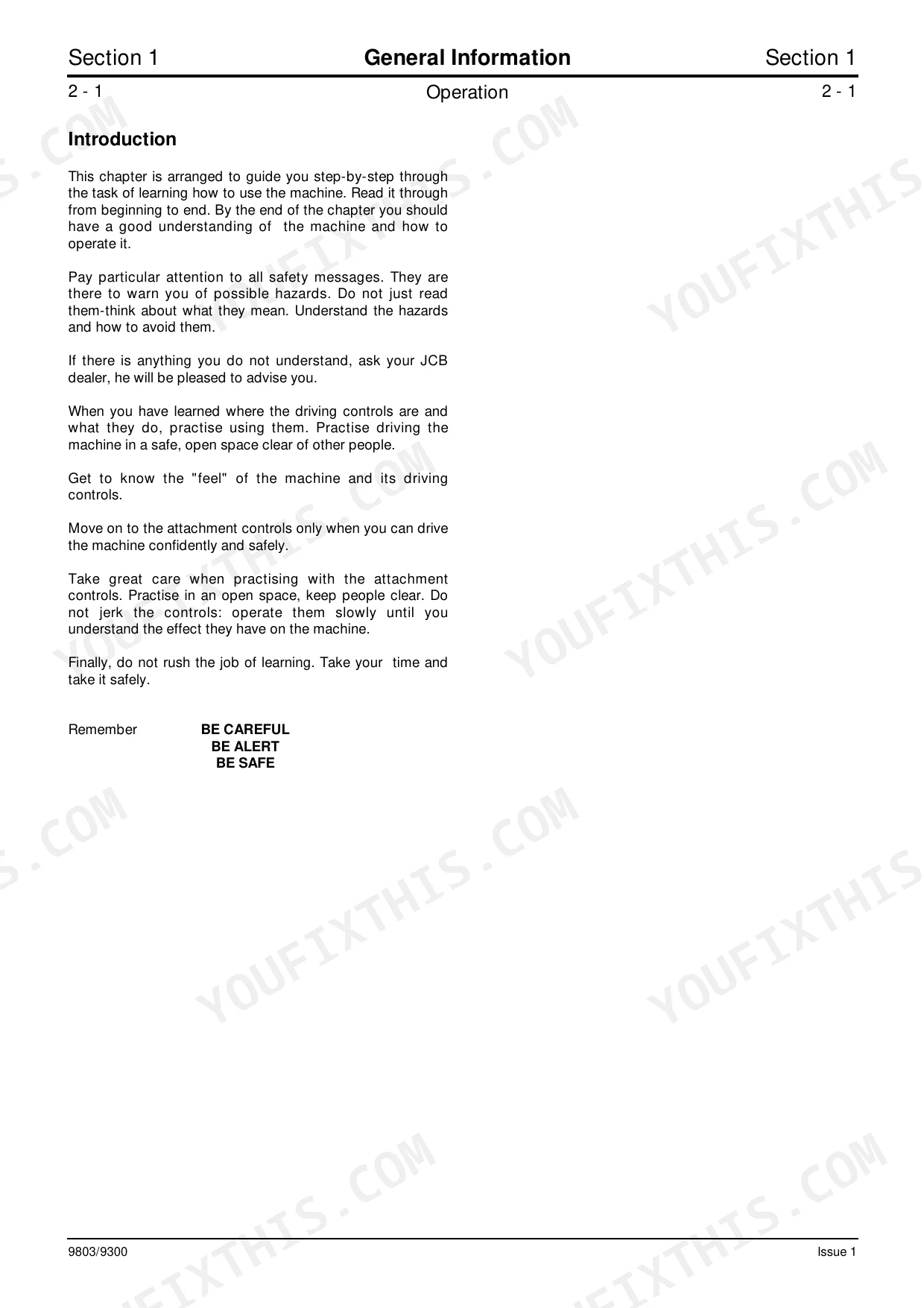

| General Information | 3-56 | Identifying Your Machine, Preparation for Storage, Operation, Using the Attachments and Site Safety, Using the Attachments, Moving a Disabled Machine, Transporting the Machine |
| Care & Safety | 57-62 | Safety Notices, General Safety, Operating Safety, Maintenance Safety |
| Routine Maintenance | 63-78 | Fluids, Lubricants, Capacities and Specifications, Torque Settings, Hydraulic Fittings and Torque Settings, Fuel System, Coolant Mixtures, Service Schedules |
| Optional Equipment | 79-82 | General Description |
| Body & Framework | 83-96 | General Description, Bucket Ram Pivot and Linkage, Dipper, Boom, Slew Ring, Kingpost, Glazing |
| Electrics | 97-112 | Technical Data, Battery, Fan Belt, Alternator, Starter Motor, Beacon, Circuit Diagram, Wiring Harnesses |
| Controls | 113-121 | Servo Hand Controllers, Dismantling and Assembly, Fault Finding, Maintenance Specification |

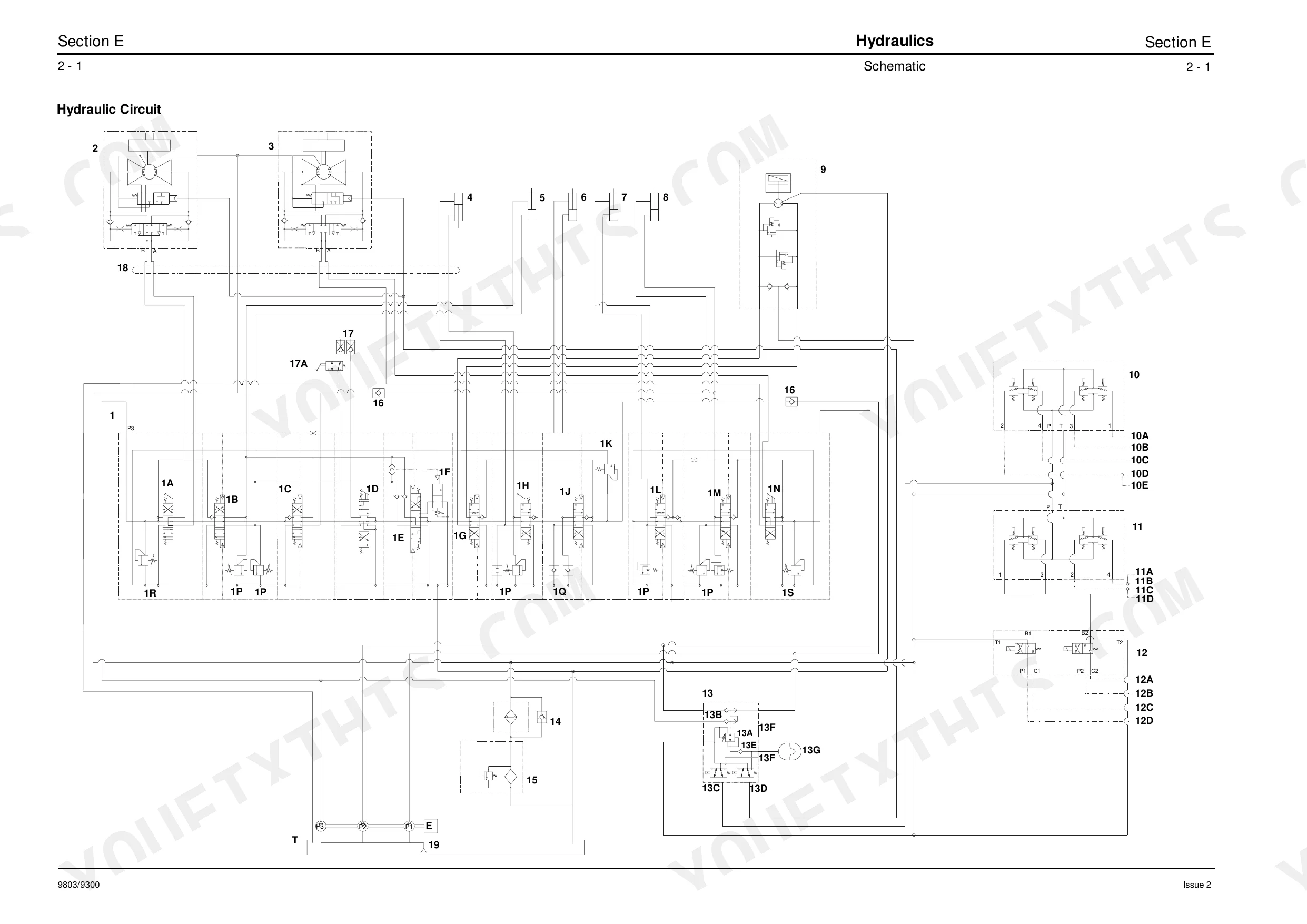

| Hydraulics | 122-185 | Technical Data, Hydraulic Circuit, Hydraulic System General Fault Diagnosis, Hydraulic Pump, Track Motor, Slew Motor, Hydraulic Pump Flow Testing, Hose and Pipe Connections |

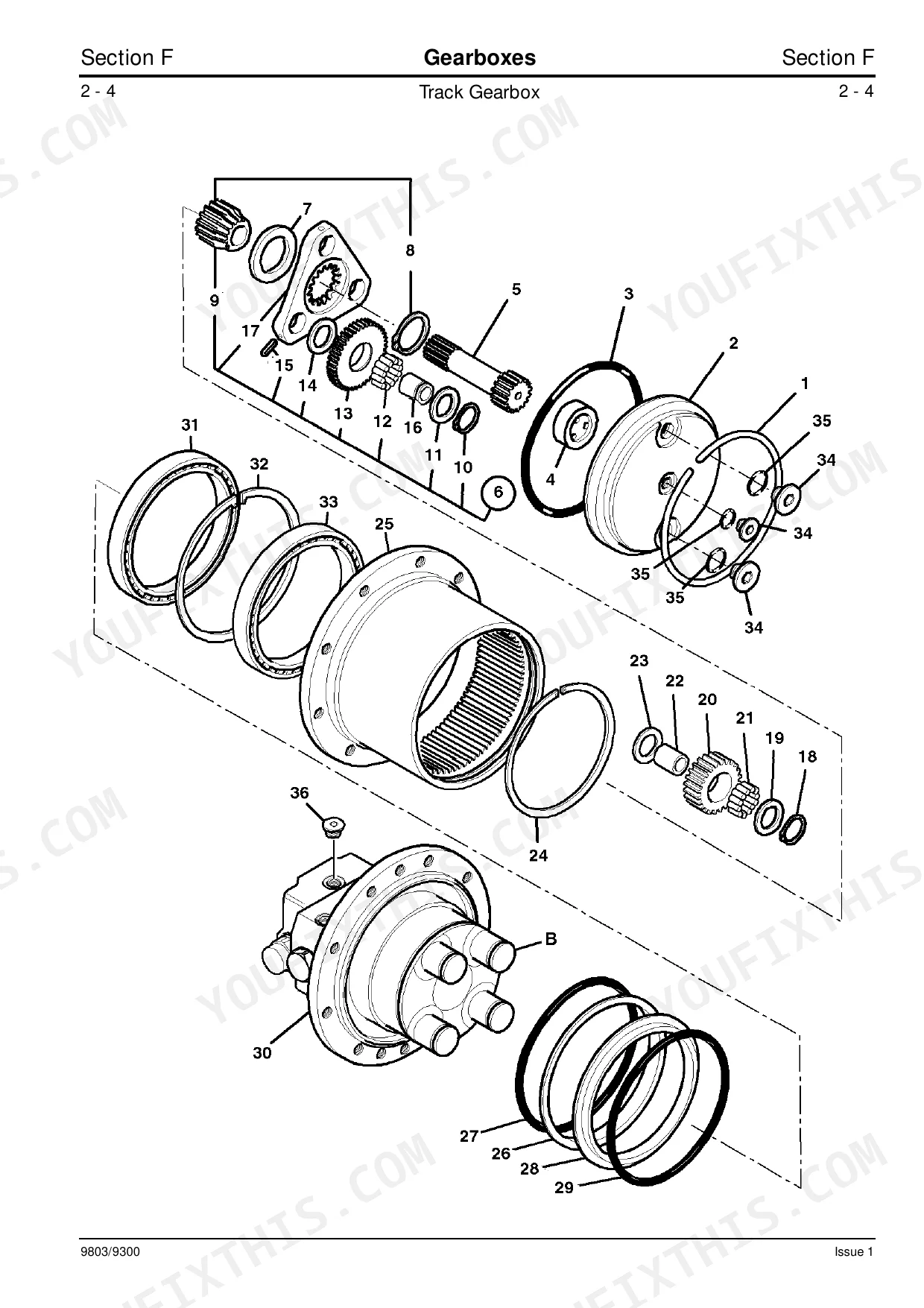

| Gearboxes | 186-196 | Technical Data, Track Gearbox, Slew Gearbox |
| Track & Running Gear | 197-214 | General Description, Tracks, Track Rollers, Track Idler and Recoil Unit, Driven Sprocket, Track Roller Metallic Face Seals |
| Engine | 215-216 | Technical Data |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Track tension (rubber track) | between 70 mm (2.8 in.) and 90 mm (3.6 in.) | p. 77 |
| Track tension (steel track) | 120 mm (4.8in.) | p. 77 |

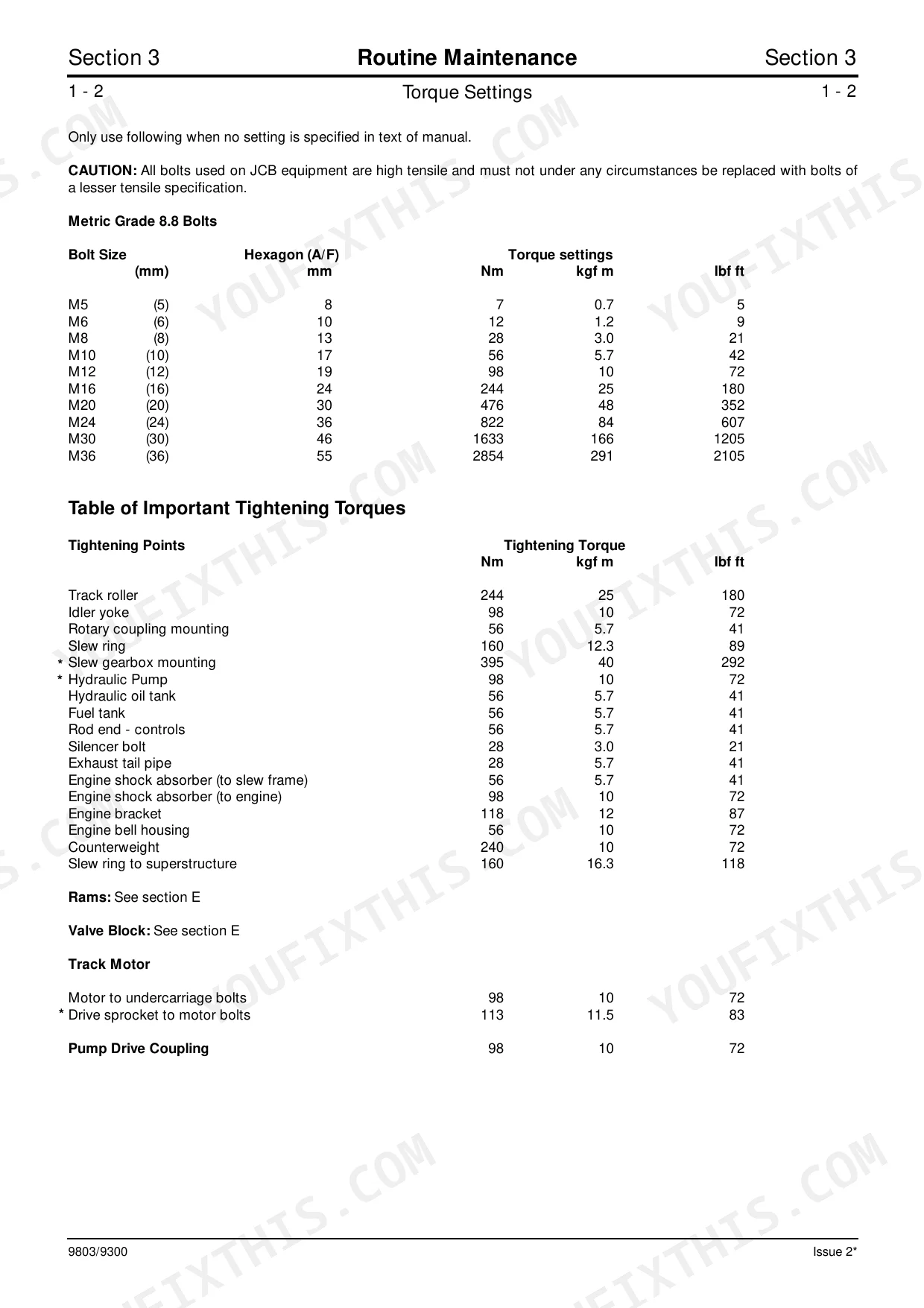

| Motor to undercarriage bolts torque | 98 Nm (72 lbf ft) | p. 65 |
| Slew Crossline Relief Valves operating pressure | 165 bar (2393 lbf/in2) | p. 124 |
| Slew Crossline Relief Valves adjustability | not pressure adjustable | p. 175 |
| Fuel injection pump torque | 15 Nm (11 lbf ft) | p. 216 |
| Battery Type | Type 058 | p. 99 |
| Battery Voltage | 12 V | p. 99 |
| Fuel Tank Capacity | 43.0 L | p. 64 |
| Engine Oil Capacity | 4.5 L | p. 64 |
| Hydraulic Tank Capacity | 58.0 L | p. 64 |
| M8 Bolt Torque | 28 Nm | p. 65 |
JCB 8027Z, 8032Z, HL 403C-15 Common Problems This Manual Covers
JCB 8027Z mini excavator slew motor drifting continuously during standard trenching operations p. 175
Inspect the cross-line relief valves in the slew motor for trapped dirt. These valves are not pressure adjustable as noted on page 175. Verify the Slew Crossline Relief Valves operating pressure is 165 bar (2393 lbf/in2) as specified on page 124. Remove and clean the slew valves if they fail to seal correctly.
Manual Section: Hydraulic Pressure Testing (Valves)Engine turns over slowly and fails to start after several attempts in cold weather p. 100
Test the battery specific gravity across all cells. Verify the readings do not vary by more than 0.04 as specified on page 100. If the battery voltage drops below 12 V on page 99, recharge or replace the unit before attempting to bleed the fuel injection system.
Manual Section: Battery DiagnosticsRubber track derailing repeatedly or sagging excessively while tracking across uneven terrain p. 77
Adjust the grease cylinder to correct the undercarriage tension. Measure the sag at the center roller. Ensure the rubber track tension is between 70 mm (2.8 in.) and 90 mm (3.6 in.) as detailed on page 77. Drain grease to loosen or pump grease to tighten the track.
Manual Section: Track Tension CheckingHydraulic pressure warning light stays on continuously during normal arm and boom operation p. 127
Test the system pressure using the test ports. Verify the main relief valve pressure reaches exactly 207 bar for 8027Z models as specified on page 124. Check the troubleshooting procedures for blockages if pressure reads low. Replace the hydraulic pressure sensor if mechanical pressure is normal.
Manual Section: Hydraulic System General Fault DiagnosisFrequently Asked Questions
How do I reset the hydraulic or ECU fault code on a JCB 8032Z?
The manual states that if a fault is ignored, the buzzer will sound continuously for 180 seconds, then intermittently. To reset all operations, switch the ignition off. This action is described in the context of audible warnings for machine faults.
How do I bleed the fuel system after a no-start on a JCB 8032Z?
To bleed the fuel system, first raise the engine cover. Slacken bleed screw A on the filter and operate fuel priming bulb B until air-free fuel flows. The fuel injection pump is self-bleeding as the engine is cranked. Loosen unions C, D, and E, then turn the starter key to rotate the engine until air-free fuel flows from all three points, then tighten the unions.
What are the torque specs for the track adjuster or undercarriage bolts on a JCB 8027Z?
For undercarriage components, the torque for 'Motor to undercarriage bolts' is 98 Nm (10 kgf m, 72 lbf ft). The 'Track roller' bolts require a torque of 244 Nm (25 kgf m, 180 lbf ft). Additionally, the driven sprocket bolts (Item A) have a torque setting of 113.0 Nm (11.5 kgfm, 83 lbf ft).
How to reset fault codes on JCB 8032Z
The manual indicates that if a fault causes the buzzer to sound, ignoring it will result in continuous buzzing for 180 seconds, then intermittent buzzing. To reset all operations related to these warnings, switch the ignition off.
What do I get after purchasing this JCB 8027Z, 8032Z, HL 403C-15 manual?
A 216-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.

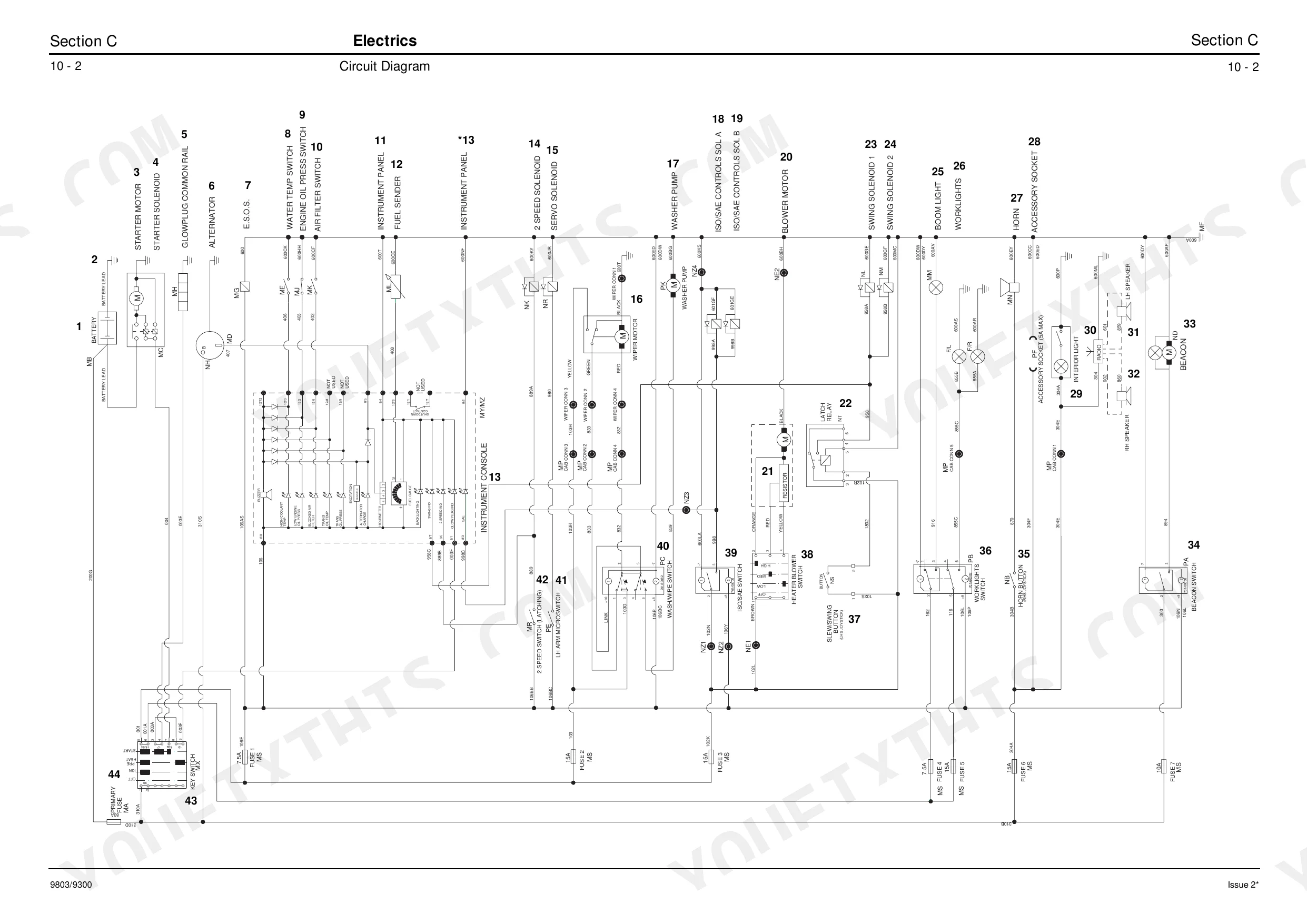

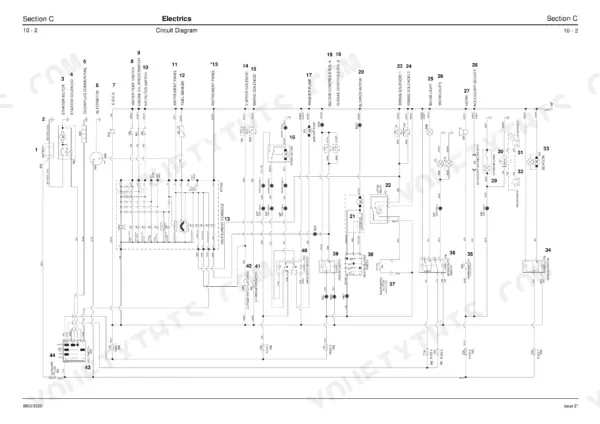

Does this Service Manual have electrical diagrams?
Yes, this JCB 8027Z, 8032Z, HL 403C-15 Service Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
Document Quality
This is a scanned document with an OCR layer, allowing you to search and copy the full text content. The text is generally crisp and easy to read throughout the manual. Diagrams and illustrations are clear scanned images, with all labels and details readable, though not vector-sharp. Pages are clean with no noticeable scan artifacts or marks, but there are several blank pages interspersed throughout the document.
