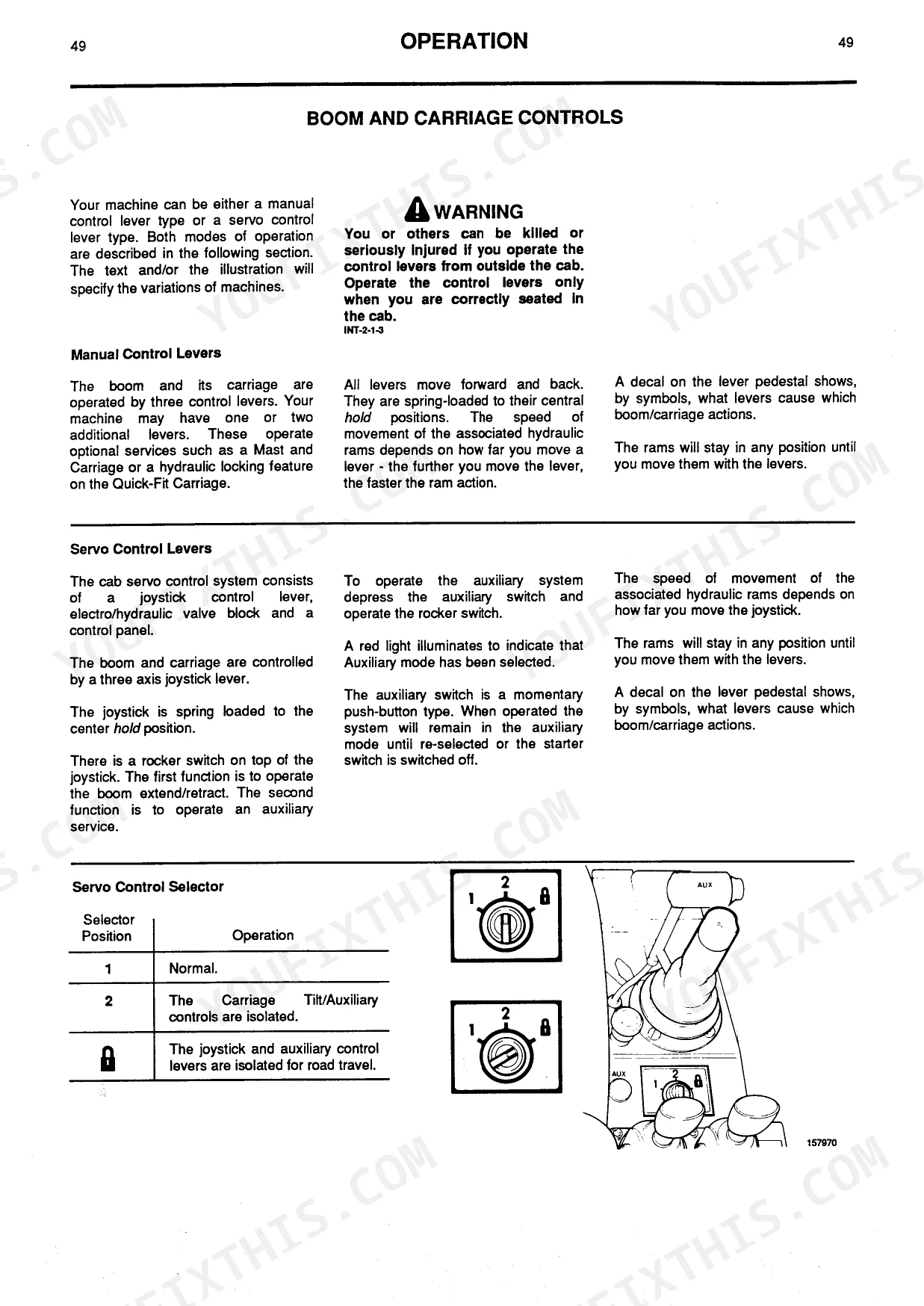

Getting the most out of your telehandler requires the 180-page JCB 505-19, 505-22 operator manual pdf (OEM #9801/7868). You get complete daily service schedules, dashboard indicator explanations, and step-by-step boom and carriage control instructions. Open up the guide to find detailed safety checklists, full cab control layouts, and precise fluid capacity charts designed to keep your equipment out of the shop and on the job. Verify your engine oil pan holds exactly 10 liters (2.2 gallons), and always tighten the front and rear wheel nuts to 500 lbf-ft (680 Nm) before heading to the work site. Don't risk an accident or a costly breakdown because of a missed daily inspection. Download this bookmarked file directly to your tablet, find your specific maintenance intervals, and get back in the cab.
What's Inside This JCB 505-19, 505-22 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 3 | Study This Manual Before Starting the Machine, Do Not Fit an Attachment to This Machine Which Is Not Jcb Approved, Extreme Hazard Exists, Hazard Exists |
| Safety - Yours and Other People'S | 10-16 | Safety Check List, Operating Safety, Maintenance Safety |
| Safety Decals | 17-18 | Decal Hazards, Reading Safety Decals, Decal Cleanliness and Replacement, Sway Machine Decals, Stabilizer Machine Decals, Representative Decals |
| Identifying Your Machine | 19-30 | Identification Plate, Unit Identification, Typical Machine Identification Number, Typical Engine Identification Number |

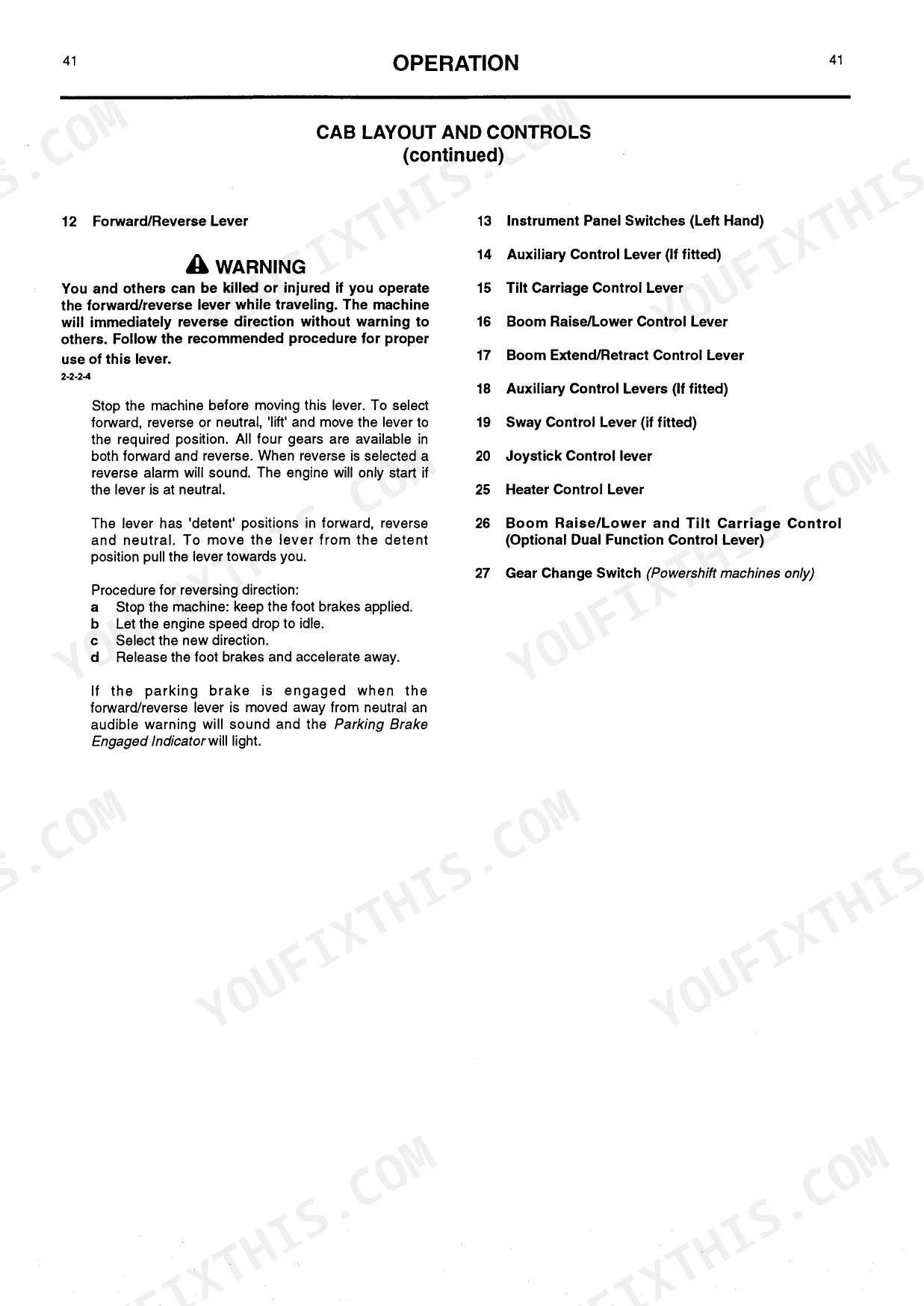

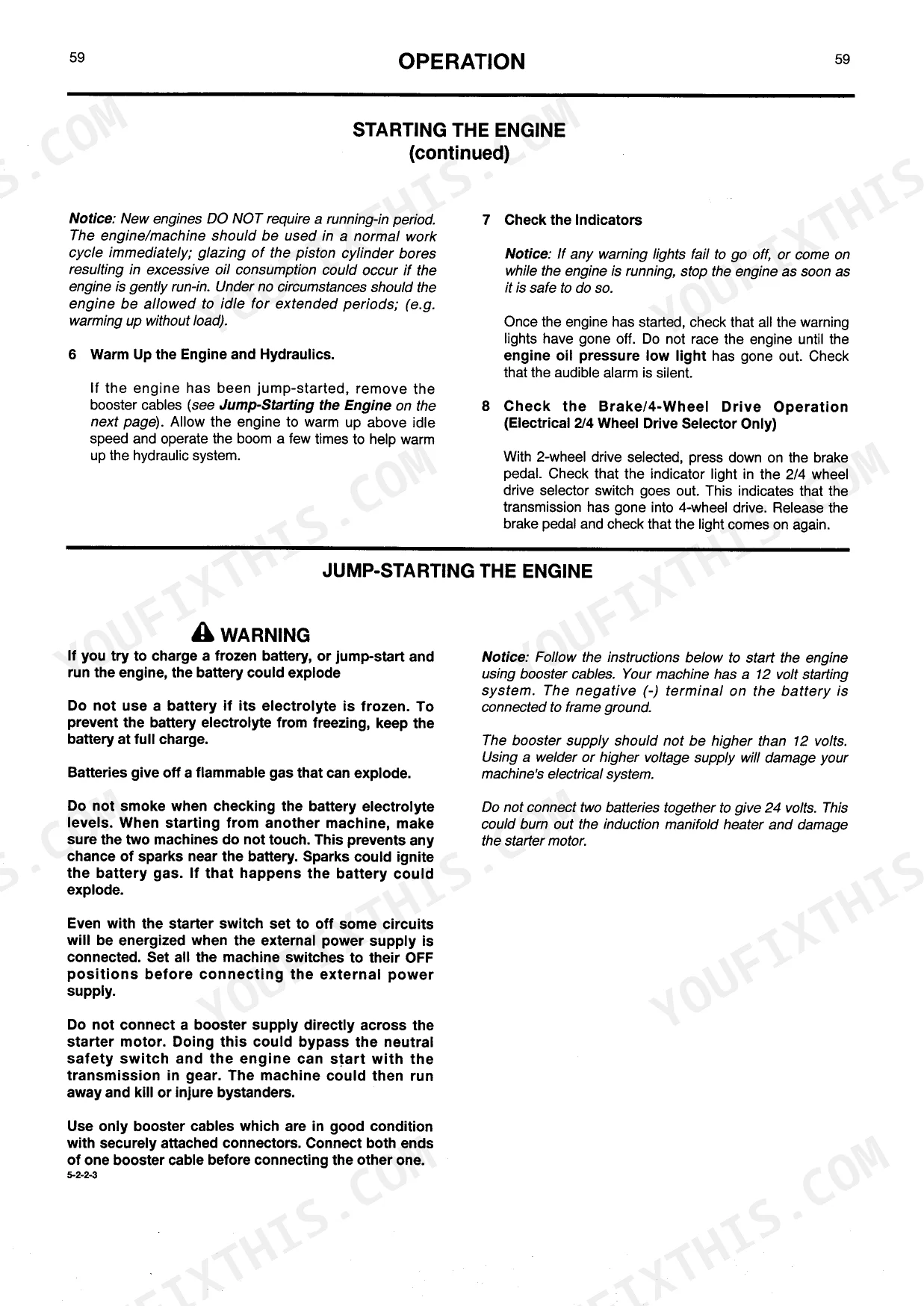

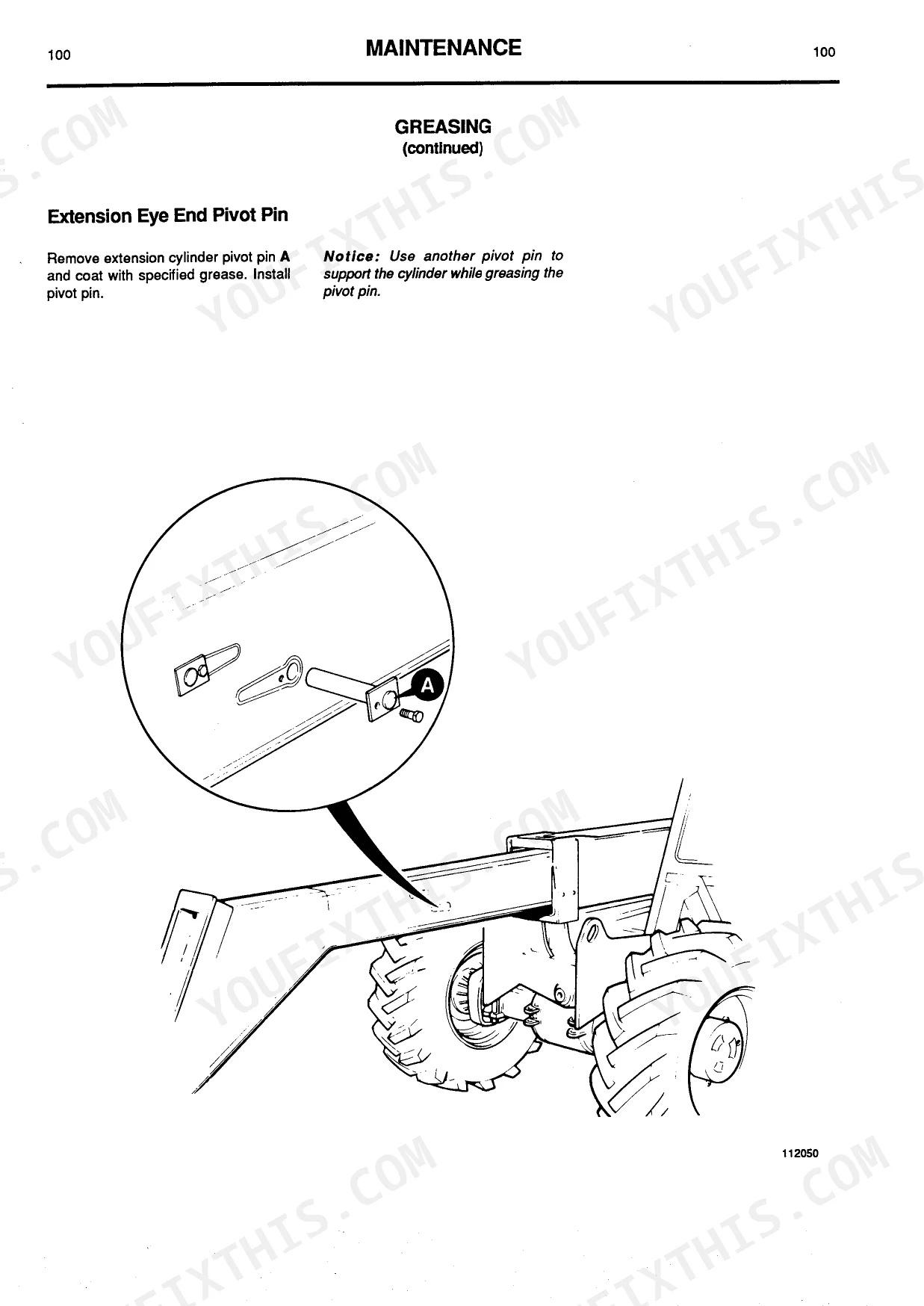

| Operation | 31-83 | Introduction, Before Entering the Cab, Entering & Leaving the Cab |
| Maintenance | 84-127 | Lubricants - Health and Safety, Service Requirements, Boom Safety Strut, Removing, Engine Hood and Cover, Radiator Grille, ROPS/FOPS Structure, Checking for Damage |
| Optional Attachments | 128-138 | Quick Release Couplings |
Quick Reference Specifications

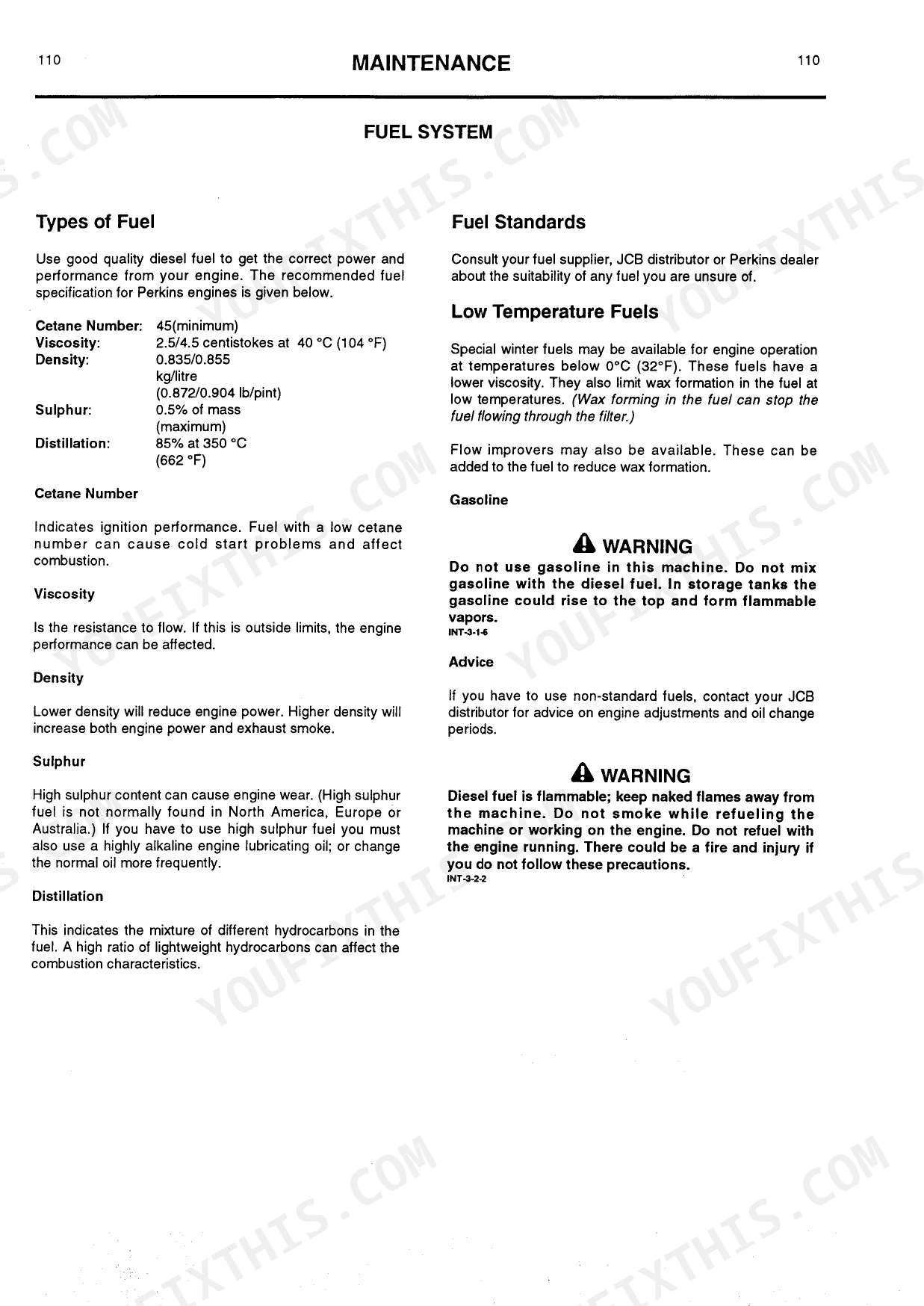

| Specification | Value | Page |
|---|---|---|
| 505-19 | ||
| Wheel Nut Torque (Front) | 500 lbf ft (680 Nm) | p. 102 |
| Wheel Nut Torque (Rear) | 500 lbf ft (680 Nm) | p. 102 |
| 505-22 | ||
| Wheel Nut Torque (Front) | 500 lbf ft (680 Nm) | p. 102 |
| Wheel Nut Torque (Rear) | 500 lbf ft (680 Nm) | p. 102 |
| All Models | ||
| Engine Oil Capacity | 10 Litres (2.2 Gal) | p. 126 |
| Engine Oil Type (-10 °C to 50 °C) | JCB 15W/40 Multigrade | p. 126 |
| Engine Coolant Freezing Point (55% Antifreeze) | -36 °C (-33 °F) | p. 107 |
| Engine Coolant Temperature Warning | Lights if the engine coolant temperature rises too far. | p. 47 |
| Parking Brake Efficiency Degradation | Efficiency of the brake will be reduced if used to slow machine from traveling speed, except in emergency. | p. 40 |
| Steering Effectiveness Degradation | Reduction in steering effectiveness if 4-wheel steer is not phased at least once per day. | p. 45 |
| Fuel Tank Capacity | 90 Litres (20 Gal) | p. 126 |
| Engine Coolant Capacity | 17 Litres (3.7 Gal) | p. 126 |
JCB 505-19, 505-22 Common Problems This Manual Covers
JCB 505-19 and 505-22 engine coolant temperature warning light illuminates on dashboard during heavy operation p. 107
Check the coolant level and verify the system contains the correct 17 Litres (3.7 Gal) capacity as noted on page 126. Inspect the radiator grille for debris. Mix JCB Universal Antifreeze to a 55 percent ratio to maintain a freezing point of -36 °C (-33 °F) outlined on page 107.
Manual Section: Engine Cooling SystemMachine steering feels sloppy or unresponsive when changing directions on hard surfaces p. 45
Phase the 4-wheel steering system daily to prevent a reduction in steering effectiveness as instructed on page 45. Verify hydraulic fluid levels and ensure the system contains the full 152 Litres (33.5 Gal) of correct fluid specified on page 126.
Manual Section: OperationClicking noise from axles or loose rims detected during daily walkaround inspection p. 102
Inspect all wheel hardware immediately. Torque the front and rear wheel nuts to 500 lbf ft (680 Nm) following the specifications on page 102. Verify tire inflation pressures match the charts for operation with or without water ballast before returning the machine to service.
Manual Section: Tires and WheelsBoom operates slowly and drive transmission slips after warming up in hot weather p. 126
Drain the hydraulic tank and refill it with 152 Litres (33.5 Gal) of ISO VG46 High Performance Hydraulic Oil specified for temperatures above 38 °C. Review the fluid charts on page 126 to confirm you are using the correct viscosity for your operating climate.
Manual Section: Hydraulic SystemFrequently Asked Questions
What are the torque specs for JCB 505-19/505-22 wheel nuts?
The manual specifies the torque specifications for wheel nuts in the "Tires and Wheels" section on page 102. For both JCB 505-19 and 505-22 models, the correct torque for both front and rear wheel nuts is 500 lbf ft (680 Nm). It is recommended to check the wheel nuts daily before starting work.
What are the replacement specifications for Fluids and lubricants specified for engine, transmission, hydraulic system, gear oils, grease?
The manual provides detailed fluid and lubricant specifications on page 126 under "Fluids, Lubricants, Capacities and Specifications". For the engine, use 10 (2.2) Litres of JCB 15W/40 Multigrade oil (SAE15W/40, API CD/SE). The gearbox requires 18.25 (4.0) Litres of JCB Special Transmission Fluid (ESP-M2C 33G). The hydraulic tank uses *152 (33.5) Litres of JCB High Performance Hydraulic Oil (ISO VG46) or JCB Special Hydraulic Fluid (ISO VG32). Grease points require JCB Special MPL Grease, which is Lithium based, No. 2 consistency.
How do you fix JCB 505-19 and 505-22 engine coolant temperature warning light illuminates on dashboard during heavy operation?
Check the coolant level and verify the system contains the correct 17 Litres (3.7 Gal) capacity as noted on page 126. Inspect the radiator grille for debris. Mix JCB Universal Antifreeze to a 55 percent ratio to maintain a freezing point of -36 °C (-33 °F) outlined on page 107.
How do you fix machine steering feels sloppy or unresponsive when changing directions on hard surfaces?
Phase the 4-wheel steering system daily to prevent a reduction in steering effectiveness as instructed on page 45. Verify hydraulic fluid levels and ensure the system contains the full 152 Litres (33.5 Gal) of correct fluid specified on page 126.
How quickly can I access this manual after buying?
Immediate download of the complete 180-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text is generally crisp and readable, though some pages show minor variations in clarity typical of scanning. Diagrams and illustrations are raster images; their labels are readable, but the images may pixelate slightly when zoomed. Pages are mostly clean, with occasional minor scan artifacts or slight skewing. You will find several blank pages throughout, likely acting as section separators or fillers.
