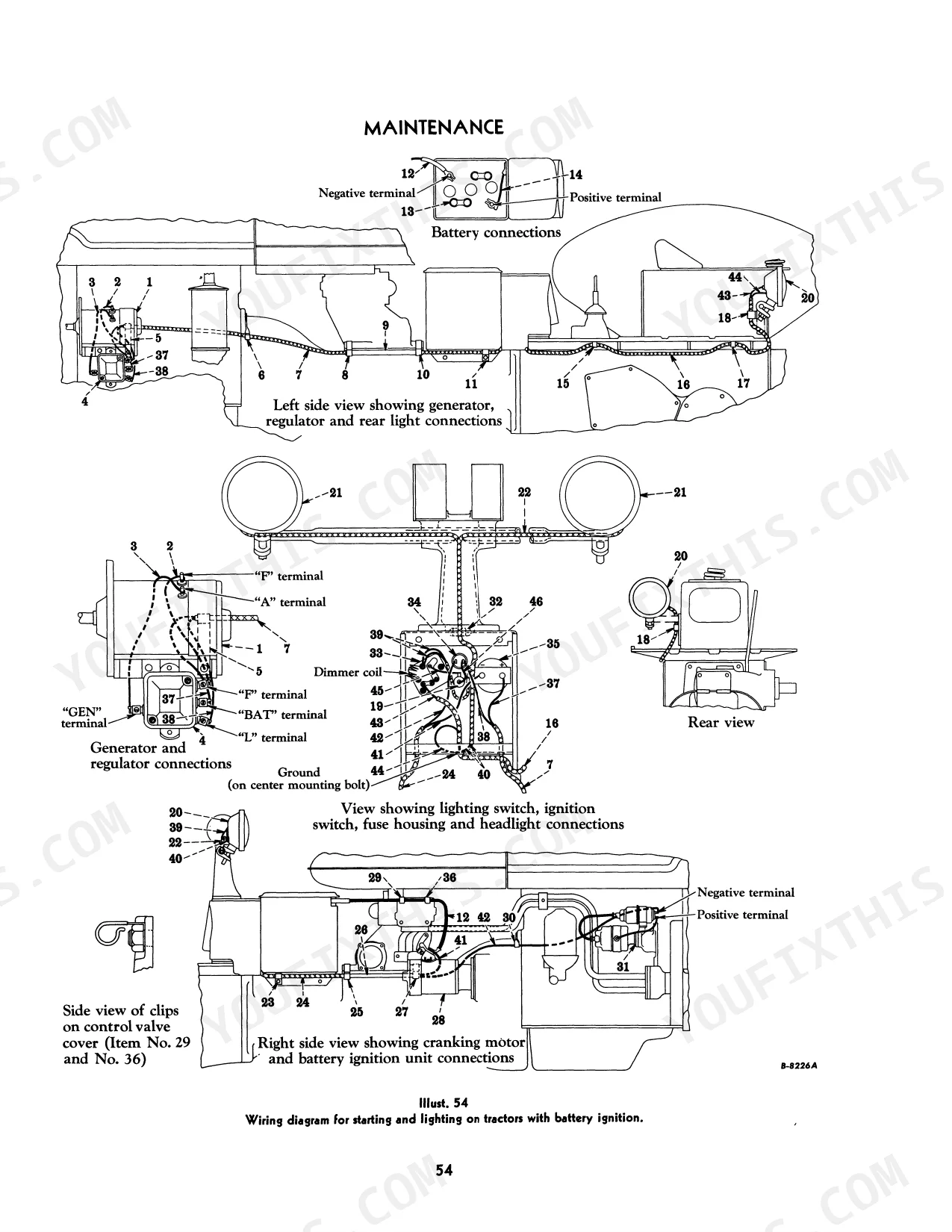

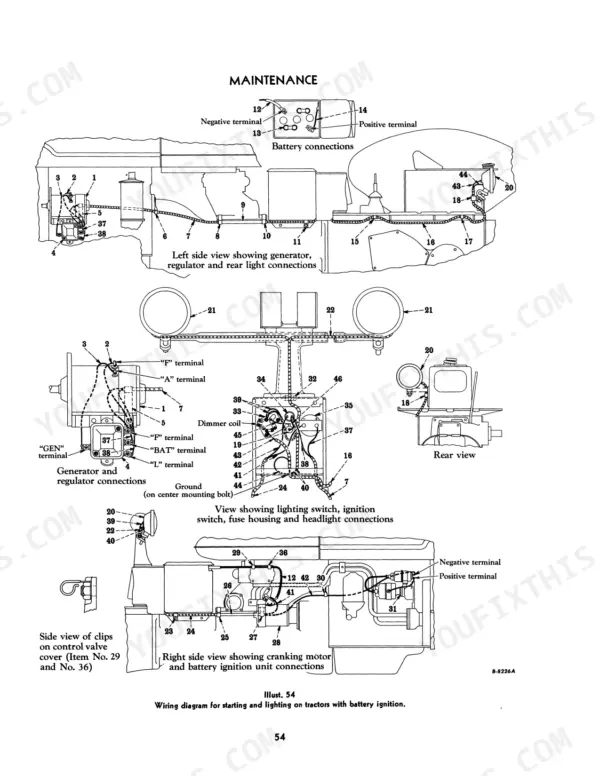

Grab the factory reference your Mccormick Farmall 230 deserves: this 96-page Farmall 230 Tractor Operator Manual (OEM #1004482R3) walks you through every instrument, control, and daily maintenance task from first start to end-of-season storage. Inside you get wiring diagrams, a complete lubrication guide with oil and grease specifications, maintenance interval schedules, and a full troubleshooting section covering battery, carburetor, cooling, and ignition faults. Step-by-step operating procedures cover the Hydra-Touch system, Power Take-Off, Belt Pulley, and Fast-Hitch. Fill the cooling system to 15 U.S. quarts and set brake pedal free movement to 1 1/8 to 1 3/8 inches; both numbers are in here, not sourced from a forum thread. Your Farmall is sitting cold and you need the right answer on the first try. Bookmarked for instant section navigation; search any spec by keyword and get to work.
What's Inside This Mccormick Farmall Farmall 230 Operator Manual

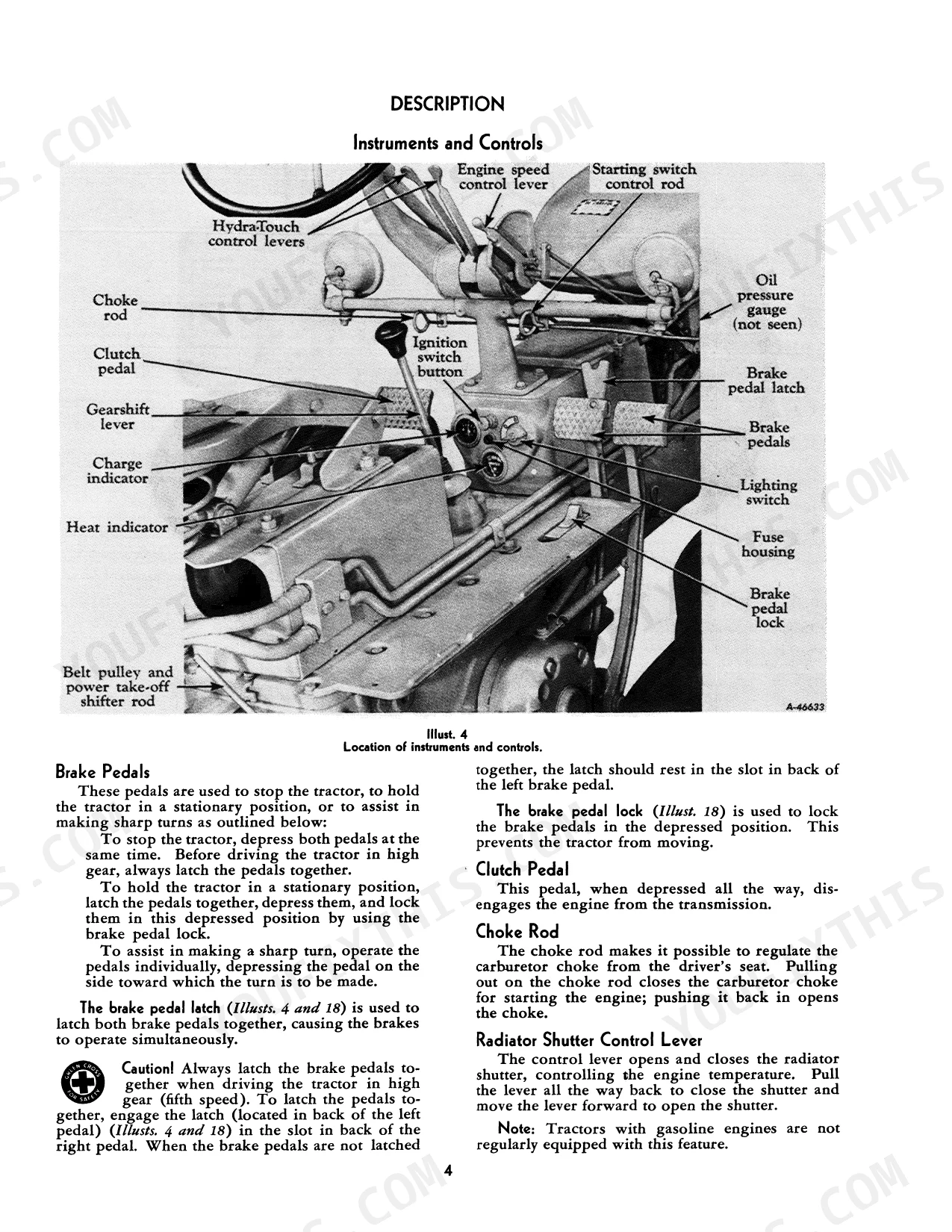

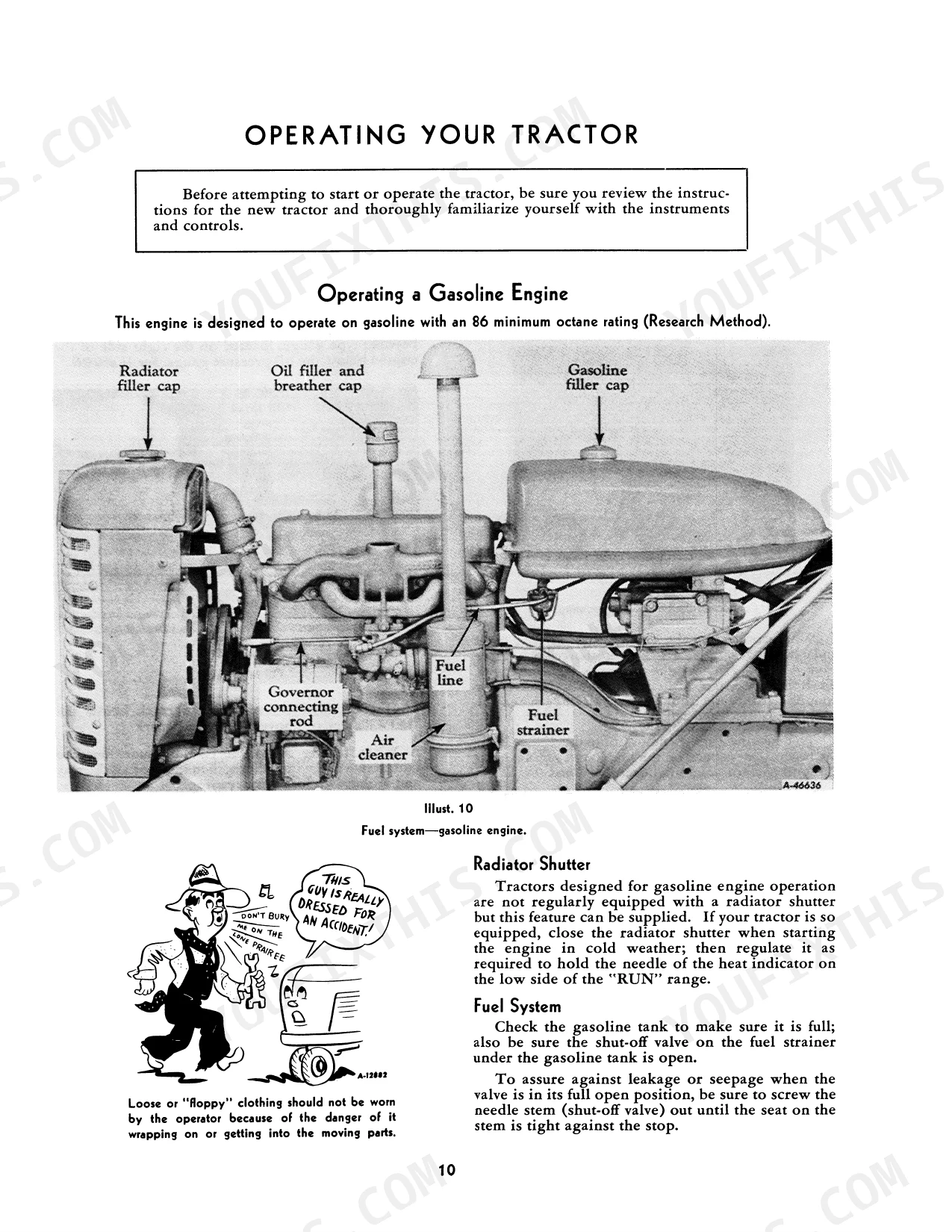

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 6 | General, Serial Numbers, Engine and Tractor |
| Description | 7-13 | Before Starting Your New Tractor, Instruments and Controls, Preparing Your Tractor for Each Day's Work, Views of the Tractor |
| Operating Your Tractor | 14-29 | Driving the Tractor, Hitching the Tractor to the Implement, Operating a Distillate Engine on Distillate, Operating a Distillate Engine on Gasoline, Operating a Gasoline Engine |
| Lubrication | 30-38 | Greasing the Front Wheels, Lubrication Guide, Lubricating Oil and Grease Specifications, Oil Filter |
| Minor Engine Service Operations | 60-67 | Cylinder Head Gasket, Crankshaft Bearings, Pistons and Rings |
| Rear Wheels | 68-76 | Rear Wheel Tread, Wheels Dished in, Wheels Dished Out, Rear Axles, Cast-Iron Wheel Weights |
| Starting Engines That Have Been in Storage | 77 | Spark Plugs, Valve Housing Cover, Impulse Coupling, Crankcase, Battery, Air Cleaner |
| Storing and Housing Your Tractor | 77 | Lubrication, Cooling System, Magneto Impulse Coupling, Spark Plugs, Oil Filter, Fuel System |
| Tachometer Drive Unit | 59 | Tachometer Drive Gear, Tachometer Drive Housing Retainer Plate, Housing, Drive Gear Assembly, Distributor Drive Housing, Tachometer Drive Shaft |
| Valve Clearance Adjustment | 60-81 | Valve Clearance, Exhaust Valves, Valve Rotators, Valve Lever, Feeler Gauge, Cylinder's Valves |
| Extra Equipment and Accessories | 82-90 | Adjustable Wide-Tread Front Axle, Belt Pulley and Power Take-Off, Fast-Hitch with Traction Control, Pneumatic Tire Pumps, Tachometer, Wheel Weights |
| Delivery Report | 93-96 | - |

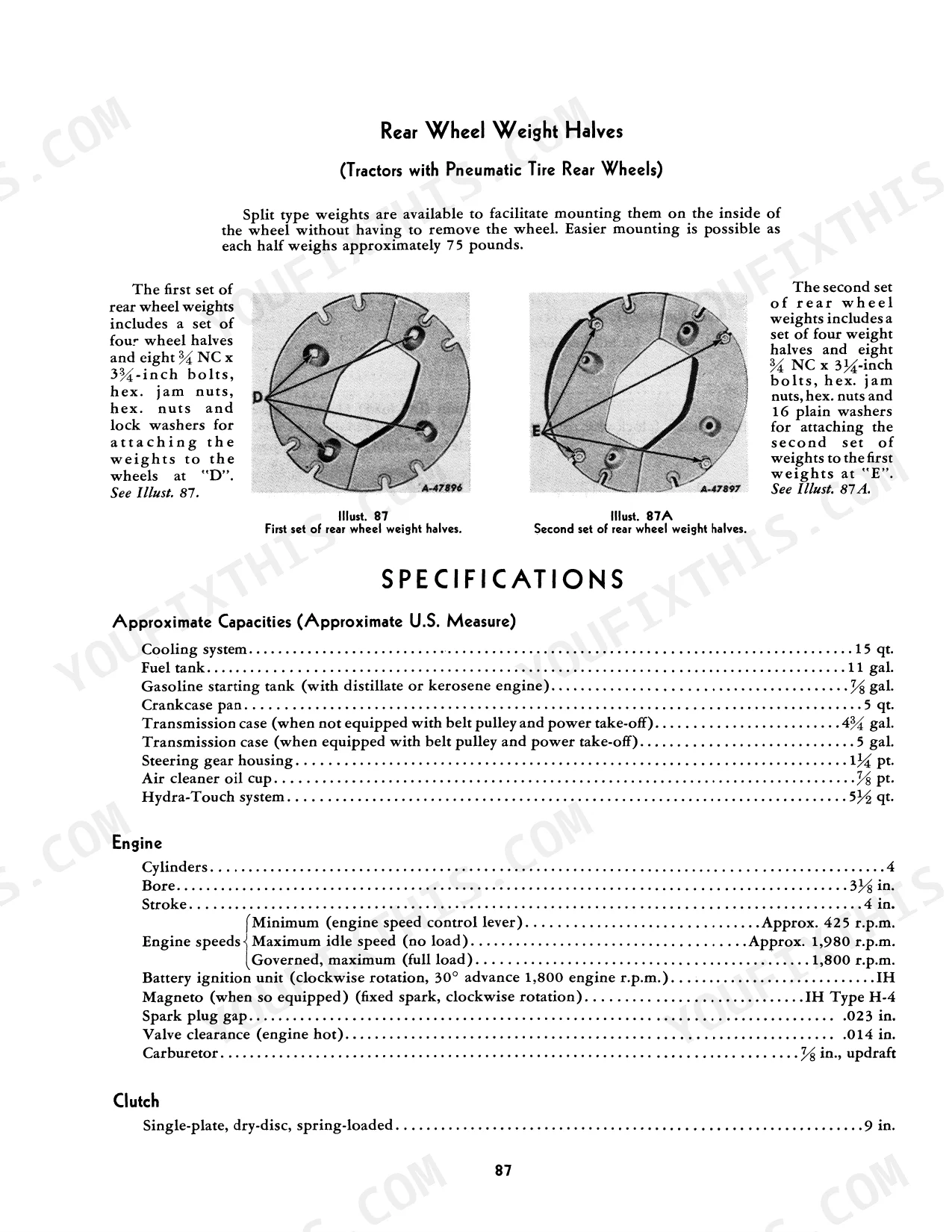

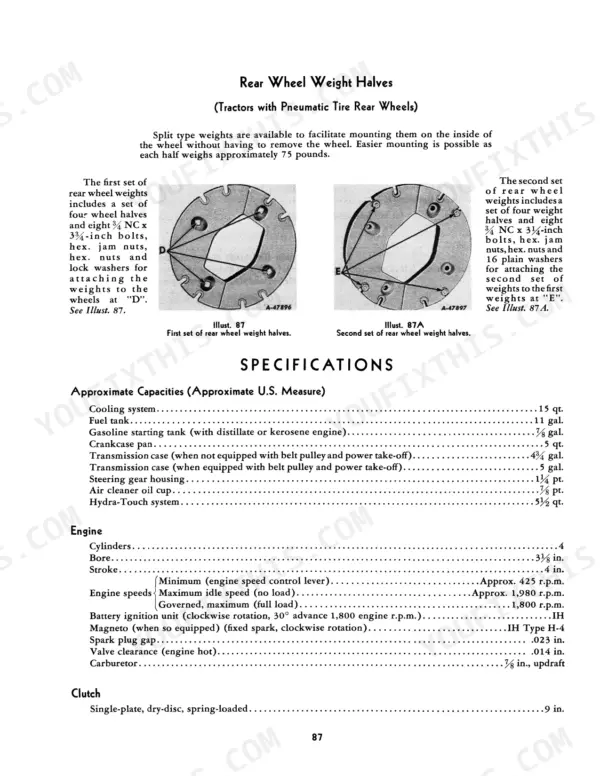

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Brake pedal free movement | 1 1/8 to 1 3/8 inches | p. 65 |
| Battery specific gravity (fully charged) | 1.255 to 1.280 corrected to +80° F. | p. 57 |
| Battery specific gravity (minimum maintained) | 1.230 corrected to +80° F. | p. 57 |
| Cooling system capacity | 15 U.S. quarts | p. 11 |
| Engine Oil Capacity | 5 qt. | p. 91 |
| Air Cleaner Oil Cup Capacity | 7/8 pt. | p. 91 |
| Fuel Tank Capacity | 11 gal. | p. 91 |
| Spark Plug Gap | .023 in. | p. 91 |
| Valve Clearance (engine hot) | .014 in. | p. 91 |
| Belt Pulley Speed (full load) | 1,487 r.p.m. | p. 92 |
| Power Take-Off Shaft Speed (full load) | 539 r.p.m. at 1,650 engine r.p.m. | p. 92 |
| Clutch Pedal Free Movement | 1 7/16 inches | p. 62 |

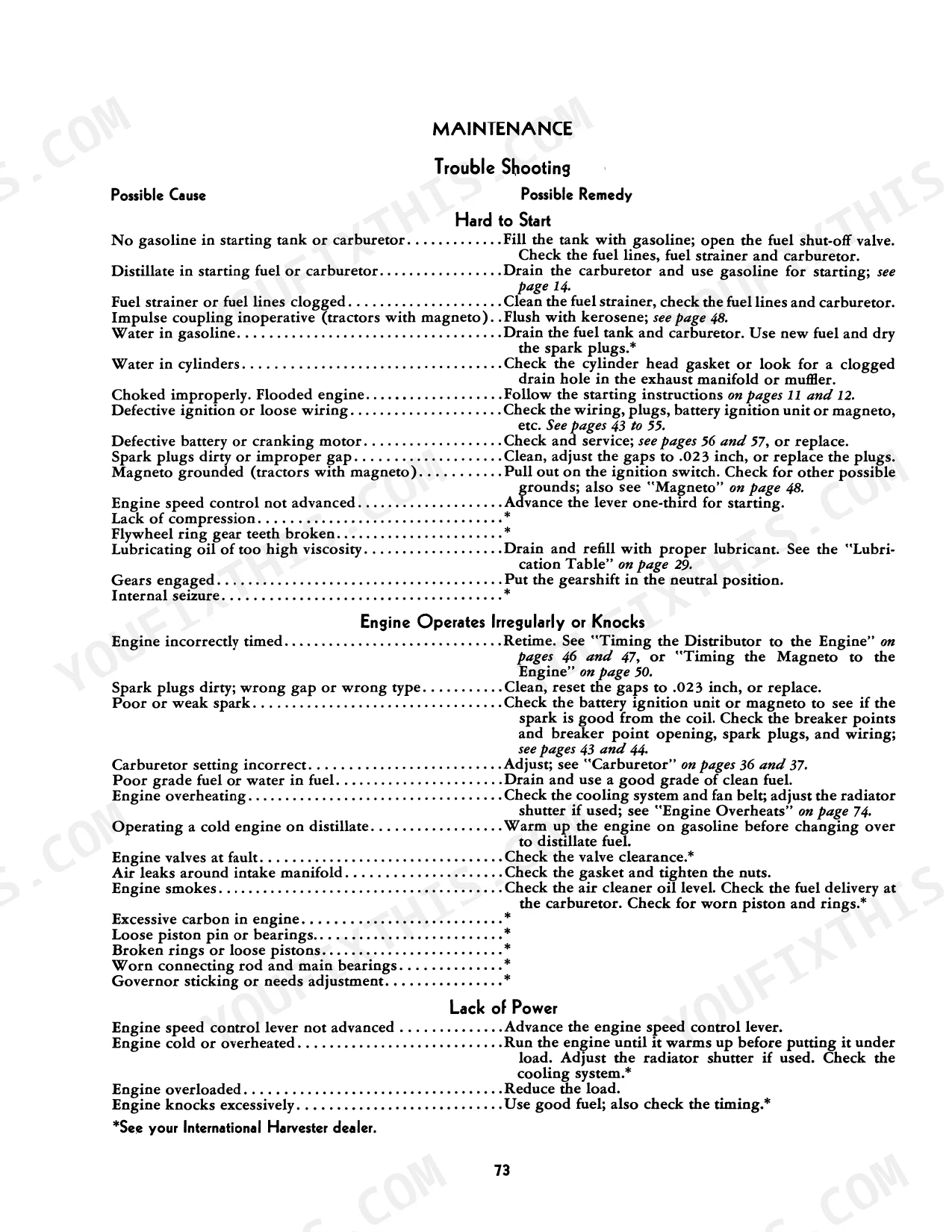

Mccormick Farmall Farmall 230 Common Problems This Manual Covers
McCormick Farmall 230 battery won't hold charge, starter cranks slowly or not at all
Test each battery cell with a hydrometer every two weeks. A fully charged battery reads 1.255 to 1.280 specific gravity corrected to +80°F; never let it drop below 1.230 (page 57). Clean white corrosion from the terminals with a wire brush, then verify the electrolyte level covers the plates in every cell.
Manual Section: Ignition and ElectricalEngine cranks but won't fire, or turns over slowly on cold mornings
Close the choke fully before cranking on a cold morning. Inspect the air cleaner oil cup; it holds only 7/8 pt., and oil thickened by cold weather restricts airflow enough to prevent starting. Confirm the fuel tank has an adequate supply (capacity 11 gal., page 91) and that the fuel shut-off valve is fully open.
Manual Section: Hard to StartSteering wheel requires excessive effort and poor response on slow tight turns
Inspect front wheel bearings and the front axle pivot pin for adequate grease using the lubrication schedule on page 35. Verify front tire pressure is equal side to side; unequal inflation pulls the tractor and multiplies steering effort. Check drag link and tie rod end connections for looseness before each day's work.
Manual Section: SteeringBrakes drag or pull hard to one side when stopping on a slope
Check free movement on both brake pedals; each should travel 1 1/8 to 1 3/8 inches before the brake engages (page 65). A significant difference between left and right causes the tractor to veer during stops. Look for oil seeping from the axle housing seals onto the brake drum area, which glazes the lining and prevents full contact.
Manual Section: BrakesCoolant level drops repeatedly and engine temperature climbs on hot working days
Fill the cooling system to the correct mark; total capacity is 15 qt. (page 91). Inspect all hose clamps and the radiator drain cock for seeps before each start. Check the fan belt for cracks or glazing; a slipping belt cuts coolant circulation during heavy loads. Clear any crop residue packed against the radiator fins.
Manual Section: Engine OverheatsFrequently Asked Questions
How do I adjust the governor on the McCormick Farmall 230 tractor?
The governor on the Farmall tractor is factory-set and should not require adjustment. If the governor is not functioning correctly, it is recommended to consult an International Harvester dealer for assistance.
How do I reset the hydraulic system on the McCormick Farmall 230?
To reset the Hydra-Touch system, first drain the reservoir and refill it with approximately 5½ U.S. quarts of clean IH Touch Control fluid to within ½ inch of the filler opening. Then, start the engine at a moderate idle speed and move the control levers back and forth ten to twelve times through their full range of travel to free any trapped air and circulate fresh fluid through the hydraulic system.
What is the spark plug gap for the McCormick Farmall 230?
The spark plug gap should be set to .023 inch. Inspect and replace spark plugs every 200 to 300 hours of operation. Always use a spark plug wrench when removing or replacing plugs to avoid cracking the porcelain insulator. Sandblasting is the recommended cleaning method.
What is the engine firing order for the McCormick Farmall 230?
The engine firing order is 1, 3, 4, 2. When replacing spark plug cables, note the position of each cable on the distributor cap before removal to ensure correct reconnection. The timing is set using TDC marks on the fan drive pulley.
