Here's the 136-page Mccormick Farmall Operator Manual (OEM #1004381R5) covering the full classic tractor family: 400, 450, AV, BN, C, H, HV, M, MV, O, OS, W, WR, 70, and 86. You get wiring diagrams, Hydra-Touch hydraulic schematics, a complete daily pre-start checklist, and operating procedures for the Torque Amplifier, Fast-Hitch, Power Take-Off, and LP gas fuel system. The lubrication guide runs through every grease point on a timed schedule, and the troubleshooting section covers fuel, ignition, and drivetrain faults. Fill the engine to 8 quarts of oil and the cooling system to 6½ U.S. gallons before startup — both straight from the factory specs table. No more digging through mismatched forum threads for fluid numbers on a tractor you actually own. Bookmarked by section so you jump straight to what you need, not the nearest chapter heading.
What's Inside This Mccormick Farmall Farmall 400/450 Operator Manual

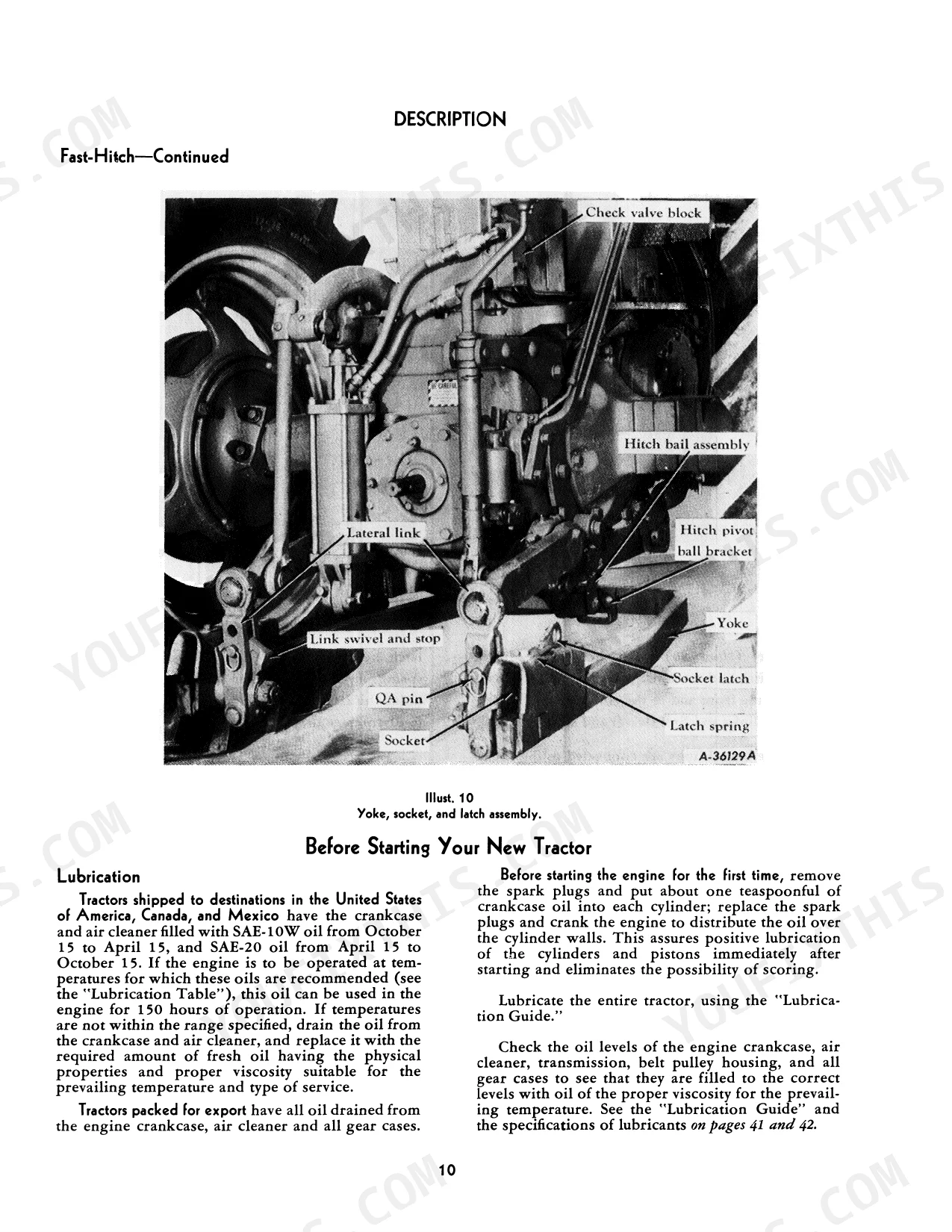

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 6 | Assembled Instructions, Tractor Serial Number, Engine Serial Number |
| Description | 7-17 | Fuel System, Electrical System, Instruments and Controls, Fast-Hitch, Lp Gas Fuel System, Wiring Diagram |
| Operating Your Tractor | 18 | Gasoline Engine Operation, Distillate Engine Operation, Torque Amplifier, Fast-Hitch, Hydra-Touch System, Power Take-Off |

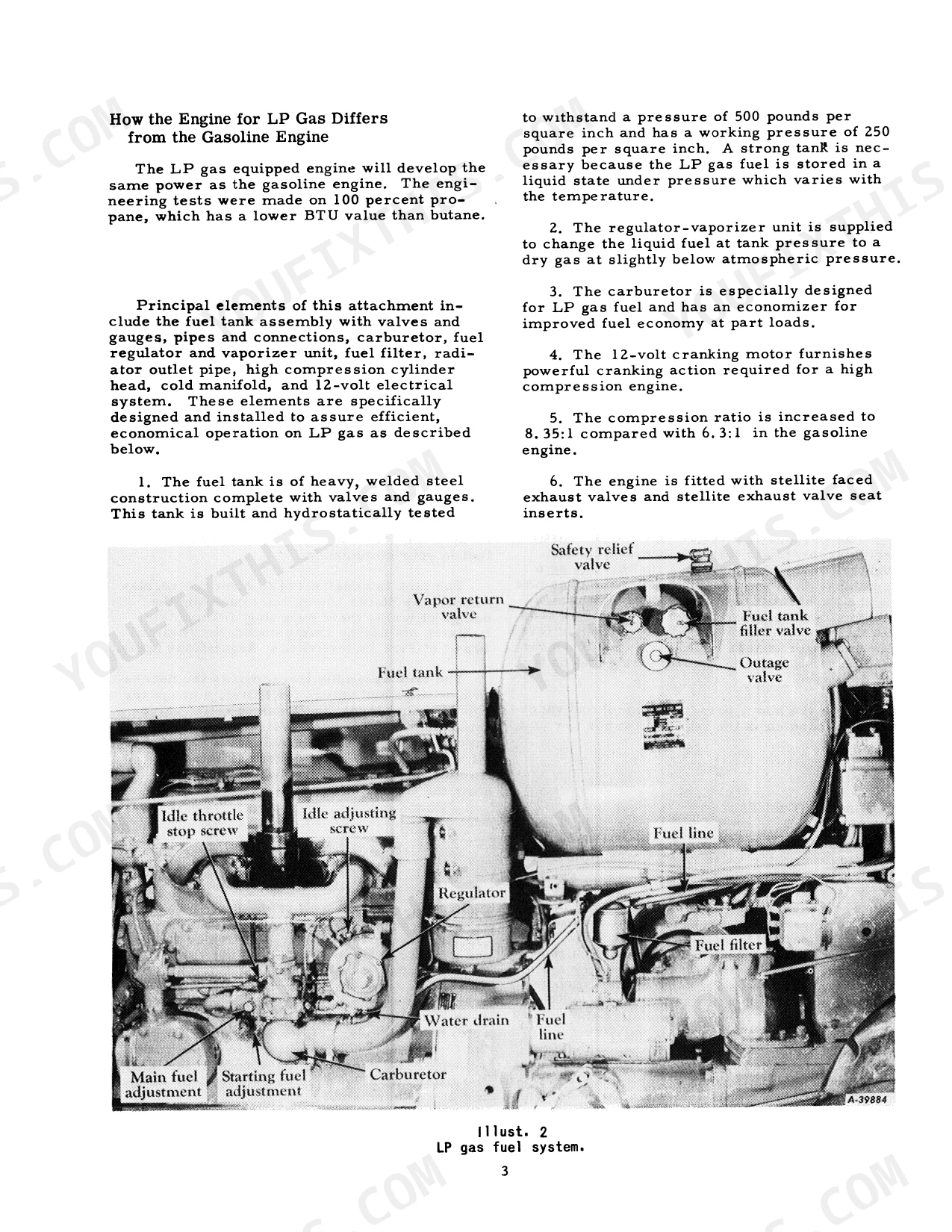

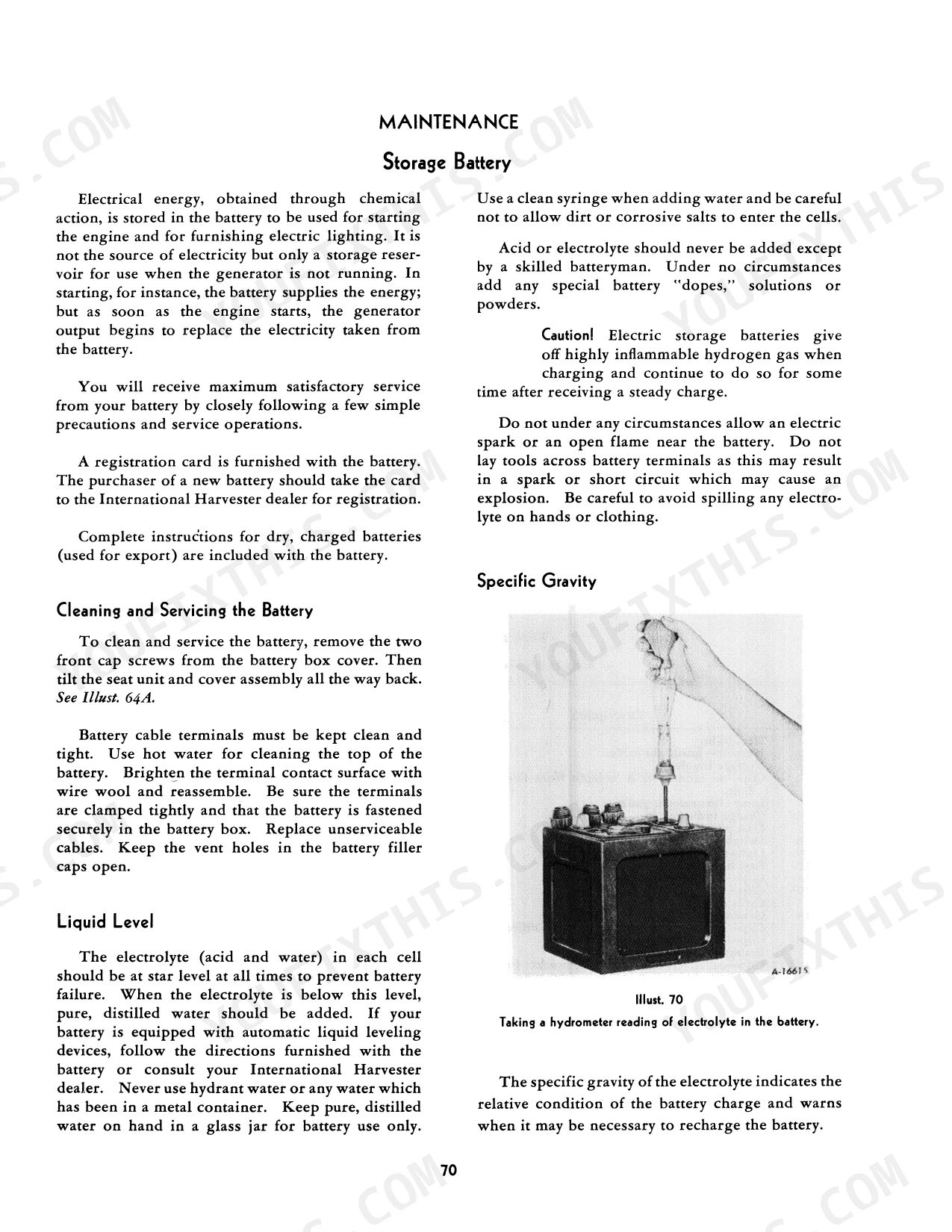

| Supplement to Operator's Manual - Liquefied Petroleum Gas Fuel System for McCorm | 19 | - |
| General Information | 20 | Lp Gas Attachment, Safety Relief Valve, Tank Fire Protection, Liquid and Vapor Service Valves |
| Lubrication | 57-67 | Engine Lubrication, Oil Filter, Front Wheels, Lubrication Table, Lubrication Guide, Periodic Lubrication |
| Maintenance | 68-110 | Fuel System, Cooling System, Electrical System, Brakes, Clutches, Wheels and Tires |
| Extra Equipment and Accessories | 111-125 | Adjustable Front Axle, Spark Arrester, Hydra-Touch System, Power Take-Off, Fast-Hitch, Wheel Weights |
| Specifications | 126-127 | Capacities (U.S. Measure, Approximate), Engine, Clutch, Transmission (Five-Speed), Wheels and Tread, General Dimensions |
Quick Reference Specifications

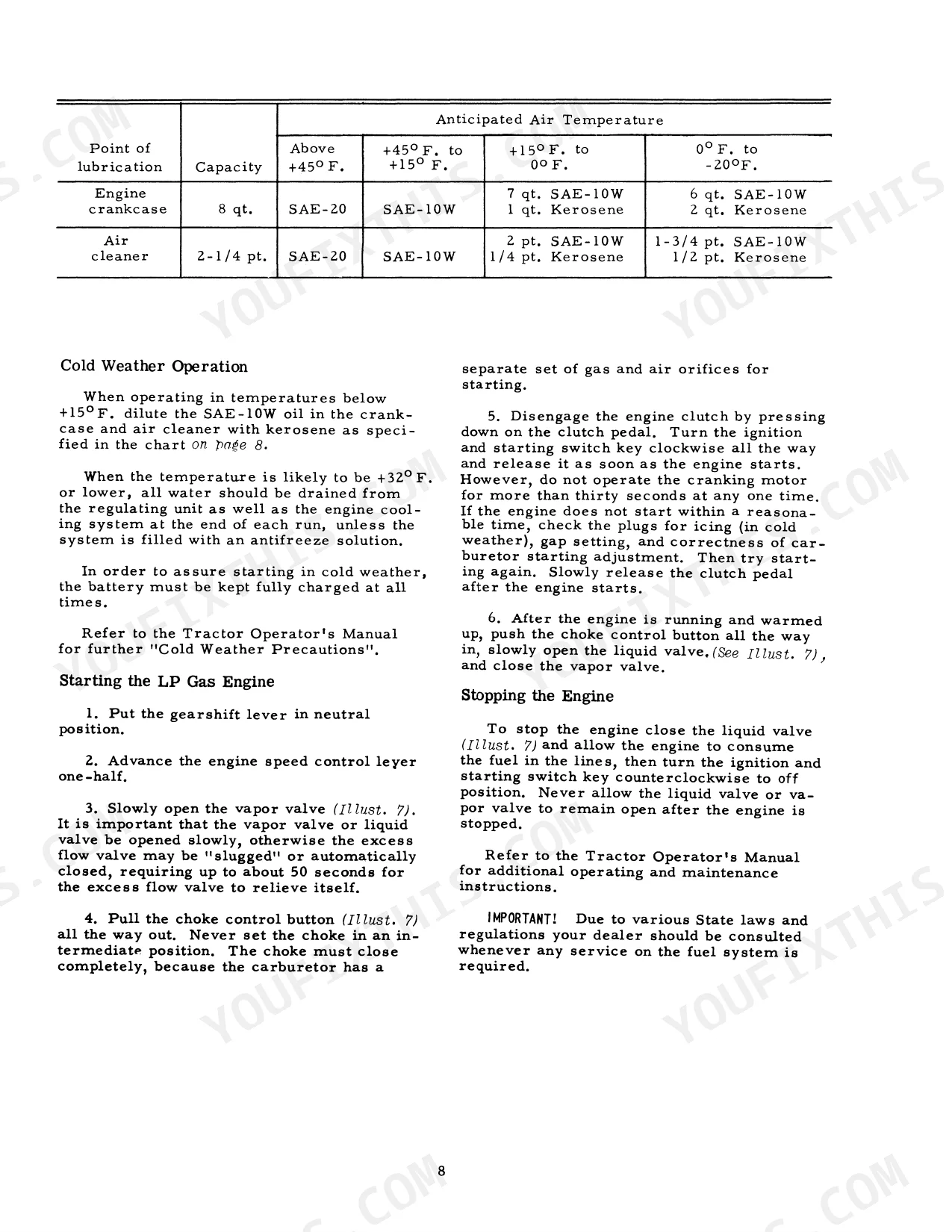

| Specification | Value | Page |
|---|---|---|
| Cooling system capacity | 6½ U.S. gals. | p. 126 |
| Engine Oil Capacity | 8 qt. | p. 12 |
| Air Cleaner Oil Capacity | 2-1/4 pt. | p. 12 |
| Battery Ignition Unit Advance | 16° | p. 16 |
Mccormick Farmall Farmall 400/450 Common Problems This Manual Covers
Farmall 400 diesel hard to start after storage, white or black smoke on startup p. 88
Check the fuel sediment bowl for water and drain it completely before attempting to start. Verify the fuel shutoff valve is open and throttle is set to full. If smoke persists, drain and refill the tank with fresh fuel, then clean the fuel filter screen. Consult the hard-to-start checklist on page 88 for the full diagnostic sequence.
Manual Section: Engine Troubleshooting (Hard to Start)Generator warning light stays on or battery not charging after belt service p. 12
Inspect the generator belt tension by pressing firmly at the midpoint between pulleys. A properly tensioned belt deflects no more than 3/4 inch under firm thumb pressure. Re-tension or replace if stretched. Also check the wiring diagram on page 12 for loose or corroded connections at the generator and voltage regulator terminals.
Manual Section: Ignition and Electrical TroubleshootingEngine overheats and coolant temperature runs high during field work p. 89
Check coolant level first and top off if low. For Farmall 400 and 400 Hi-Clear models, cooling system capacity is 6.5 U.S. gallons (page 126). Inspect the fan belt for slippage or glazing and adjust tension. Check radiator cores for debris or mud blocking airflow. Review the cooling system troubleshooting steps on page 89 for thermostat and water pump checks.
Manual Section: Cooling System TroubleshootingHydraulic hoses on remote unit visibly cracked or leaking fluid p. 91
Shut the engine down immediately and relieve system pressure before handling any hoses. Inspect all remote unit hose connections for cracks, chafing, or seeping fluid at the fittings. Reference the Hydra-Touch system overview on page 91 for guidance on hose routing and connection points. Do not operate remote hydraulic attachments until damaged hoses are replaced.

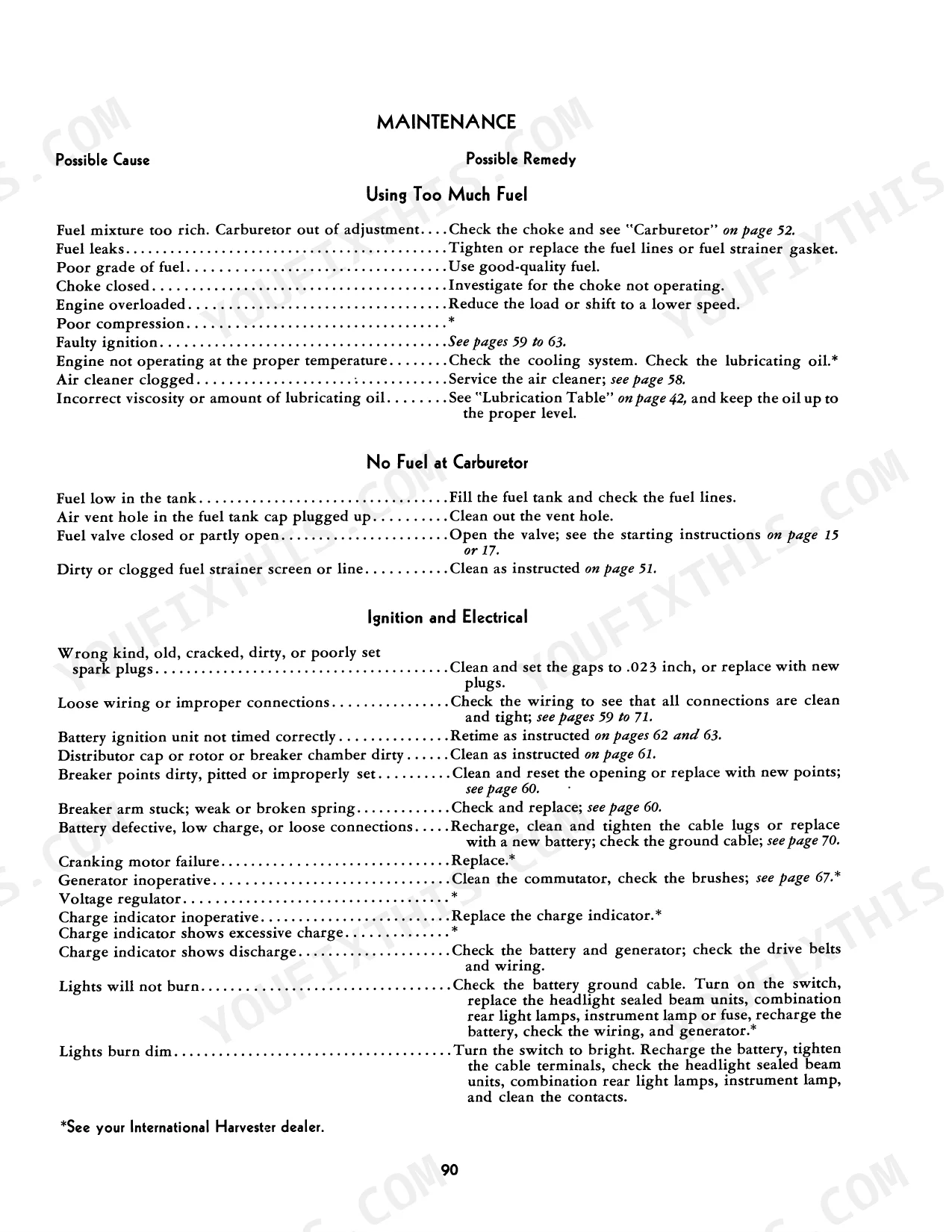

Manual Section: Hydra-Touch System TroubleshootingEngine misses, runs rough, or lacks power under load in the field p. 89
Check air cleaner oil level first; capacity is 2-1/4 pt. (page 12), and a clogged or dry air cleaner is the most common power-loss culprit on these tractors. Verify the fuel tank has adequate fuel and the vent is clear. If the engine still misses, inspect spark plugs for fouling or incorrect gap and check distributor points for wear or dirt. See the lack-of-power and irregular-operation checklist on page 89 for the full sequence.
Manual Section: Engine Troubleshooting (Lack of Power)Tractor pulls to one side or steering feels stiff and hard to control p. 91
Check front tire pressures on both sides and equalize them. Unequal tire pressure is the most common cause of pulling on these tractors. Inspect front wheel bearing adjustment for excessive tightness. Review the steering and front wheel troubleshooting guide on page 91 for worn steering gear or front axle adjustment steps if tire pressure is not the cause.
Manual Section: Steering TroubleshootingFrequently Asked Questions
How to reset the carburetor on McCormick Farmall 400?
To reset the carburetor, first loosen the lock nuts on the starting fuel adjustment and main fuel adjustment on the carburetor. Then, turn these adjusting screws, along with the idle adjusting screw (on the regulator), all the way in. This procedure is detailed on page 11.
How to reset the ignition timing on McCormick AV?
To reset the ignition timing, set the engine on the top dead center of the No. 1 firing stroke by cranking the engine until the No. 1 piston (next to the radiator) is on the top dead center of the compression stroke. This procedure is described on page 10 and page 62.
How to reset transmission fluid level on McCormick AV
To maintain the correct transmission fluid level, ensure the oil is up to the level plugs. The transmission capacity is approximately 1.5 U.S. gallons when the tractor is standing level. Check and add oil as necessary, especially when operating on belt work with the front of the tractor higher than the rear.
How do you fix farmall 400 diesel hard to start after storage, white or black smoke on startup?
Check the fuel sediment bowl for water and drain it completely before attempting to start. Verify the fuel shutoff valve is open and throttle is set to full. If smoke persists, drain and refill the tank with fresh fuel, then clean the fuel filter screen. Consult the hard-to-start checklist on page 88 for the full diagnostic sequence.
How quickly can I access this manual after?
You get a 136-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Are there wiring harness diagrams in this Mccormick Farmall 400 & variants?
Yes, this Mccormick Farmall 400 & variants Operator Manual includes a wiring diagram for the electrical system.
